Сварочный аппарат MIG-156 MIG/TIG/Stick 5 в 1 сварщик с двойным напряжением 110 В/220 В работает золотниковым
- Категории: >>>
- Поставщик: Xiamen,Golden,Silk,Road,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
MIG-156 Welding Machine MIG/TIG/Stick 3 in 1 Welder Dual Voltage 110V/220V Work with Spool Gun Gas/Gasless Multiprocess Welders

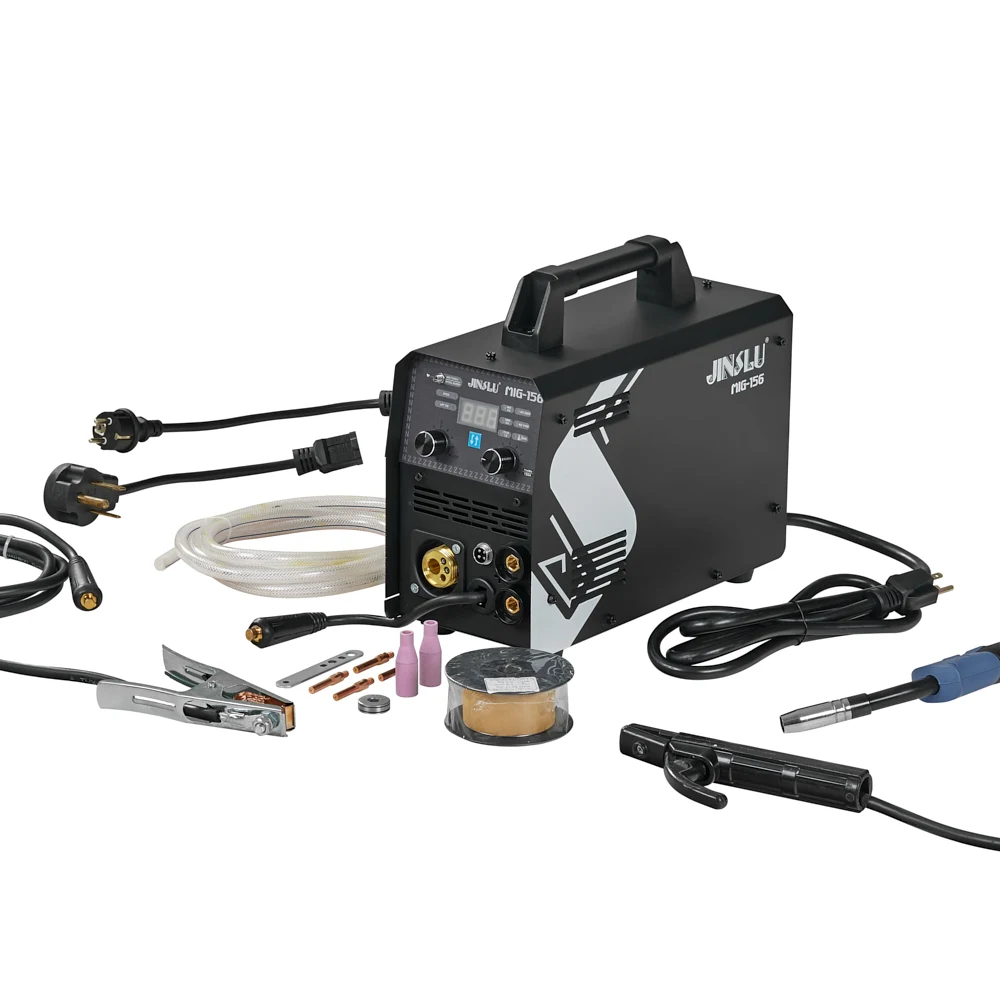

Package list
1 PCS MIG-156
1 PCS 3m 15AK Welding Torch
1 PCS Ground Clamp
1PCS Welding clamp
1PCS Wire feeder Roller V0.8/1.0
1PCS 0.5KG Flux Cored Welding Wire
1PCS Gas hose
1 PCS 3m 15AK Welding Torch
1 PCS Ground Clamp
1PCS Welding clamp
1PCS Wire feeder Roller V0.8/1.0
1PCS 0.5KG Flux Cored Welding Wire
1PCS Gas hose
* [Welding Wire] Supports 2lb only flux core wire and perfectly to do the steel welding without gas. Meanwhile,welding with gas
with 2lb solid welding wires .030"-.035"（0.8/1.0 mm )to weld over .030"(0.8mm) thickness workpiece.
* [Multipurpose Welder] mig/lift tig/stick/mma multipurpose welding machine,gas/gasless all are available ,mma welding(3.2mm rod)
7018 1/8″ very well, also 6013 and 7018 3/32″Mig/lift tig/stick/mma multipurpose welding machine,gas/gasless all are available
,mma welding(3.2mm rod) 7018 1/8″ very well, also 6013 and 7018 3/32″
* [Lift Tig] Lift tig mode(not HF tig) is optional,please refer the picture to connect the tig mode(This product does not have a
TIG gun)
* [Flux Core Welding] You will need the co2 or mixed composition welding solid wire,however,no gas required welding with flux
core, portable design 18lbs, and easy to weld with high effect instead of stick welder.
with 2lb solid welding wires .030"-.035"（0.8/1.0 mm )to weld over .030"(0.8mm) thickness workpiece.
* [Multipurpose Welder] mig/lift tig/stick/mma multipurpose welding machine,gas/gasless all are available ,mma welding(3.2mm rod)
7018 1/8″ very well, also 6013 and 7018 3/32″Mig/lift tig/stick/mma multipurpose welding machine,gas/gasless all are available
,mma welding(3.2mm rod) 7018 1/8″ very well, also 6013 and 7018 3/32″
* [Lift Tig] Lift tig mode(not HF tig) is optional,please refer the picture to connect the tig mode(This product does not have a
TIG gun)
* [Flux Core Welding] You will need the co2 or mixed composition welding solid wire,however,no gas required welding with flux
core, portable design 18lbs, and easy to weld with high effect instead of stick welder.
Machinetype | MIG-156 | ||||
Supplyvoltage(V) | 1 phaseAC110V/ 220V±15% | ||||
Frequency(Hz) | 50/60 | ||||
RatedMax. input current(A) | 110 29 (MIG) 36.7 (STICK) 21.4 (TIG) | 220 20 (MIG) 27.4 (STICK) 16.7 (TIG) | |||
Outputcurrent adjustment(A) | 110V 30- 100 (MIG) 30- 100 (STICK) 30- 100(TIG) | 220V 30- 150 (MIG) 30- 150(STICK) 30- 150(TIG) | |||
Outputvoltage(V) | 110V 15.5-19 (MIG) 21.2-24(STICK) 11.2- 14 (TIG) | 220V 15.5-21.5 (MIG) 21.2-26(STICK) 11.2- 16 (TIG) | |||
Noloadvoltage(V) | 50±5 | ||||
Dutycycle(%) | 80 | ||||
Powerfactor | 0.7 | ||||
Efficiency(%) | 85 | ||||
Wirefeedertype | All-in-one | ||||
Wirefeedspeed (m/ min) | 2-15 | ||||
Wirediameter(mm) | 0.8/1.0 | ||||
Insulationgrade | F | ||||
Enclosureprotection class | IP21 | ||||
Suitableplate thickness(mm) | 0.5-5 | ||||
NetWeight(kg) | 12.8 | ||||
Overalldimension (mm) | 510×310×350 | ||||
