Хит продаж, высокопрочный насос для бетонных насосов
US $4800-$5300
40 м3/ч бетоносмесительная установка высокопроизводительная Бетономешалка с
- Категории: Concrete Pumps >>>
- Поставщик: Henan,Zoomjo,International,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

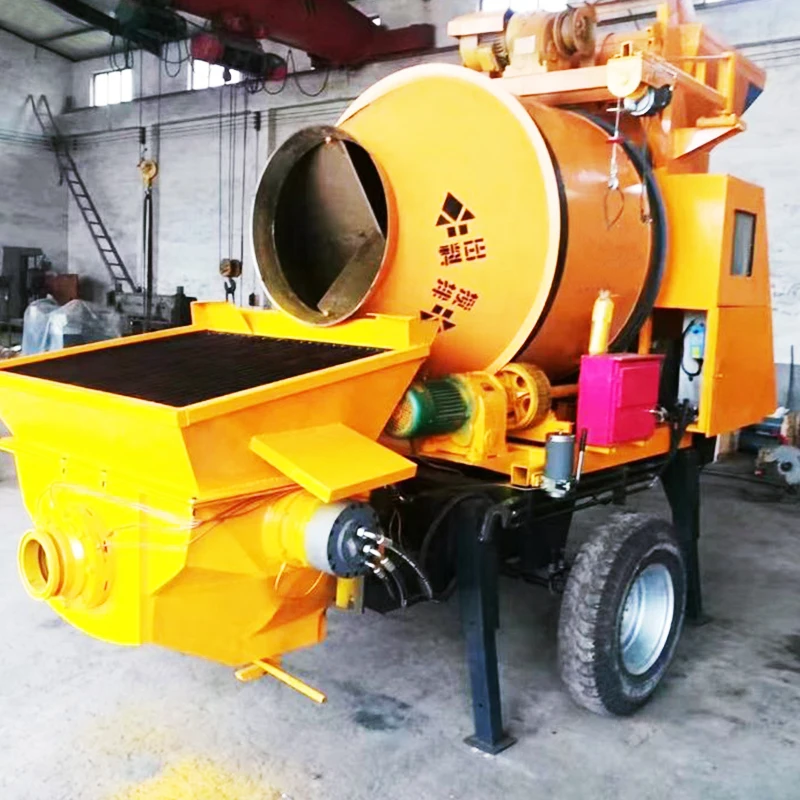

40m3/h Concrete batching mixing plant high productivity concrete mixer with pump
Product Description
The diesel concrete mixer pump trailer is concrete mixer pump of diesel power. As a concrete construction machine invented in China, the mixer pump deals with aggregates of 30mm big and above. The capacities include 40m3, 50m3, 60m3, 80m3, 90m3 and 100m3. If you need smaller capacities like 20m3 and 30m3, Zoomjo can supply them, too. But the aggregate size they can tackle becomes smaller: less than 20mm. Trailer pumps of 30m3 is known as fine stone pumps rather than concrete pumps, though people tend to call them in this way.
The S valve diesel trailer mounted concrete pump mixers have different model names. Take HBT80.13-130RS for example. HBT represents towed concrete pump, 80 the maximum theoretical volume per hour as 80 cubic meters, 13 the outlet pressure as 13 MPa; 130 the power of the diesel engine as 130 kilowatts. R represents Diesel power and S─ stands for S valve pump.
Get 2023 Concrete Mixer Pump Factory Price List Online
Just leave us your whatsapp or email, we send the latest price list to you.
Whenever, 7X24 hours online service is waiting for you.
Hot-sale in many countries: Zimbabwe, Mozambique, Zambia, South Africa, Kenya, Philippines, Indonesia, Vietnam, Uganda, Ethiopia,Tanzania, Peru, Mexico.
Just leave us your whatsapp or email, we send the latest price list to you.
Whenever, 7X24 hours online service is waiting for you.
Hot-sale in many countries: Zimbabwe, Mozambique, Zambia, South Africa, Kenya, Philippines, Indonesia, Vietnam, Uganda, Ethiopia,Tanzania, Peru, Mexico.
Working Flow
As the name implies, the power system of electric concrete mixer pump machine is motor. Because using electricity is environmental and convenient, it is a popular choice for many people. In the past time, the construction subcontractor wanted to buy a concrete mixer to produce the concrete firstly, and then he also needed a concrete pump to deliver the concrete to the buildings. There will be two machines to finish this job. It required more people for the projects. In order to solve this problem and provide our customer with better solution. We researched and developed this concrete mixer with pump. You can finish all the work by the same machinery. It combined concrete mixer with concrete pump. When the concrete pump is working, the concrete mixer is also working. It will save your time to produce and deliver the concrete. After it is sold to the market, we get a positive response from our customers. Most of them said that it is really a revolution for the mixer and pump.
Features:
The most suitable projects and engineering
1.1 Main buildings below 10 floors
1.2 Building and underground garage
1.3 Civil construction
1.4 Small bridges & Tunnels
1.5 Water conservancy slope & Small wharf
1.6 Small river locks and boat lock
1.7 Electric power communication tower base
1.8 Mine construction
1.9 Concrete roadway maintenance field sites scattered
1.10 Highway and road maintenance engineering
1.1 Main buildings below 10 floors
1.2 Building and underground garage
1.3 Civil construction
1.4 Small bridges & Tunnels
1.5 Water conservancy slope & Small wharf
1.6 Small river locks and boat lock
1.7 Electric power communication tower base
1.8 Mine construction
1.9 Concrete roadway maintenance field sites scattered
1.10 Highway and road maintenance engineering
Product Paramenters
Model | ZBJ30C-9-66 | ZBJ40C-10-82 |
Max. theo. concrete output (m3/h) | 30/23 | 40 |
Concrete pumping pressure (MPa) | 9 | 10 |
Maximum throughput vertical/horizontal | 120/500 | 140/600 |
Outlet diameter(mm) | 100 | 150 |
Electrical engineering power(KW) | 66 | 82 |
Rotate speed(r/min) | Open circuit | Open circuit |
Pumping system pressure(MPa) | 28 | 32 |
Mixing system pressure(MPa) | 10 | 10 |
Max mixing speed(r/min) | 20 | 20 |
Capacity of oil tank(L) | 350 | 350 |
Discharging capacity of mixer(m³） | 0.45 | 0.45 |
Mixer productivity（m³/h) | 10-14 | 10-14 |
Largest pumping distance(Height/Horizontal)(m) | 120/400 | 150/600 |
Max. aggregate diameter(mm) | 20 | Scree:40 |
lnside diameter of delivering pipe(mm) | 100 | 125 |
Dimensions:(L*W*H)(mm) | 4500x2200x2600 | 4500x2200x2600 |
Total weight(kg) | 4800 | 5200 |
If you need more products or information, please send an inquiry
Our Advantages
Zoomjo diesel trailer mounted concrete pump mixers have common features of all trailer concrete pumps, too. It has a high degree of mechanization, a simple construction organization and less labor work. Pumped concrete has strict requirements on the quality of pumped concrete. Pumped concrete is not easy to segregate and has a low slump, which can better guarantee the quality of concrete and meet the requirements of engineering construction. Last but not least, the trailer pumping is safer. Operators run a pump by a remote rather than contacting the pump directly. The construction distance of the trailer pump is long, and it can be transported to more difficult places through the pipeline arrangement.

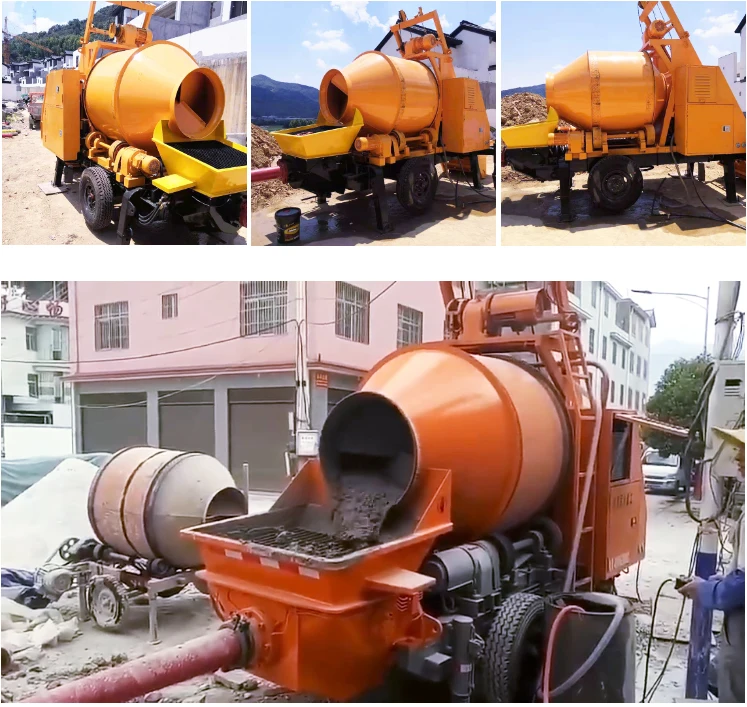

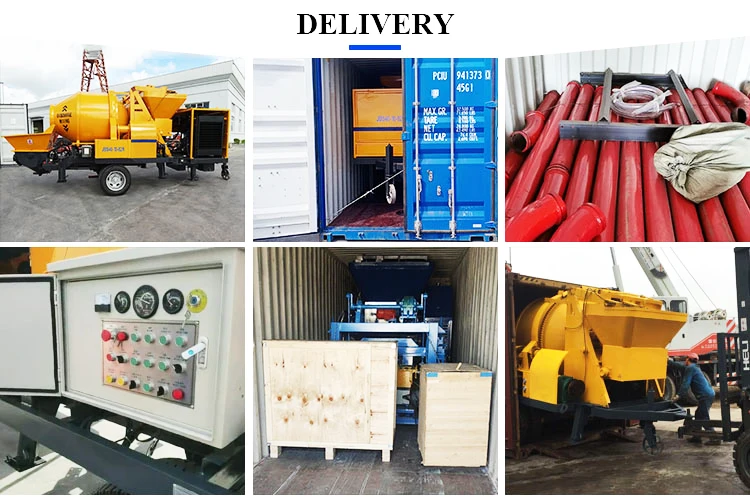

Delivery Site
Comply with Export Packaging Requirements
1. Concrete mixer pump, trailer concrete pump etc small machinery in container. Spare parts in wooden or steel box.
2. Concrete pump truck , concrete mixer truck and concrete pump truck etc equipment will be shipped by RORO ship, Bulk cargo ship or Flat rack.
3. Port:
Tianjin /Lianyungang /Qingdao /Shanghai
2. Concrete pump truck , concrete mixer truck and concrete pump truck etc equipment will be shipped by RORO ship, Bulk cargo ship or Flat rack.
3. Port:
Tianjin /Lianyungang /Qingdao /Shanghai
Company Profile
ZOOMJO is a large-scale enterprise that mainly produces heavy mining machinery and integrates scientific research, production and sales. It mainly produces various large and medium-sized crushing equipment, sand making equipment, drying and calcining equipment, mineral processing equipment and other series of products.
ZOOMJO has developed steadily from its establishment to the present with its technical strength, and has grown stronger day by day, and has gathered a large number of high-level management and scientific research personnel. Our company covers an area of 50,000 square meters, and another 10,000 square meters of modern office space, R&D center and sales center. The company has more than 500 employees, including more than 20 intermediate technicians. With strong technical strength, scientific management system and high product quality, ZOOMJO will rapidly grow into an important production and export base of mining machinery.
FAQ
Q: Are you the original manufacturer?
A: Yes, Zoomjo group is construction machinery manufacturers in China, we have the full range of products you need.
Q: How is the quality of your products?
A: We have more than 10 years experience in concrete machinery maintenance. All our machines are carefully and strictly inspected and maintained by our skilled workers according to national and international standards, and we will test each piece of equipment until it works well before delivery. We guarantee good performance and high quality of every machine we deliver to our customers.
Q: What is the price?
A: We have our own factory and have many customers all over the world, we have the best price, we can give you lower price because we are the main source.
Q: Will you provide after-sales service?
Answer: Yes. Our new machine is guaranteed for 12 months, in addition to that, we have a professional after-sales service team to solve your problems thoroughly and promptly.
Q: How about your concrete pump spare parts service?
A: We are committed to providing our customers with concrete pump spare parts of the highest quality, precise suitability and fast delivery and service. Guarantee that once a customer submits a spare parts request or product list to us, it will be dealt with quickly and properly.
A: Yes, Zoomjo group is construction machinery manufacturers in China, we have the full range of products you need.
Q: How is the quality of your products?
A: We have more than 10 years experience in concrete machinery maintenance. All our machines are carefully and strictly inspected and maintained by our skilled workers according to national and international standards, and we will test each piece of equipment until it works well before delivery. We guarantee good performance and high quality of every machine we deliver to our customers.
Q: What is the price?
A: We have our own factory and have many customers all over the world, we have the best price, we can give you lower price because we are the main source.
Q: Will you provide after-sales service?
Answer: Yes. Our new machine is guaranteed for 12 months, in addition to that, we have a professional after-sales service team to solve your problems thoroughly and promptly.
Q: How about your concrete pump spare parts service?
A: We are committed to providing our customers with concrete pump spare parts of the highest quality, precise suitability and fast delivery and service. Guarantee that once a customer submits a spare parts request or product list to us, it will be dealt with quickly and properly.
