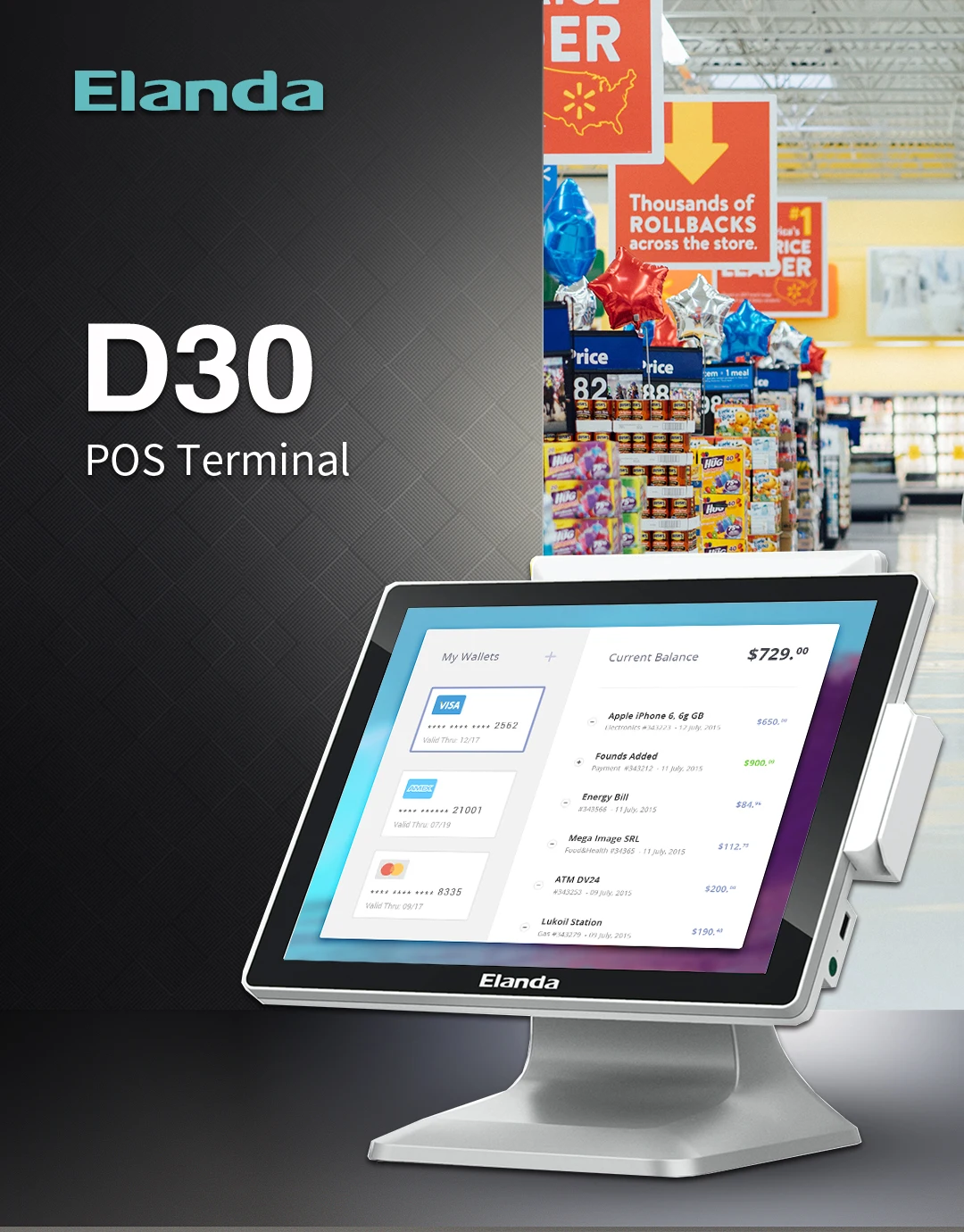

Main Specification | D30 | ||||||

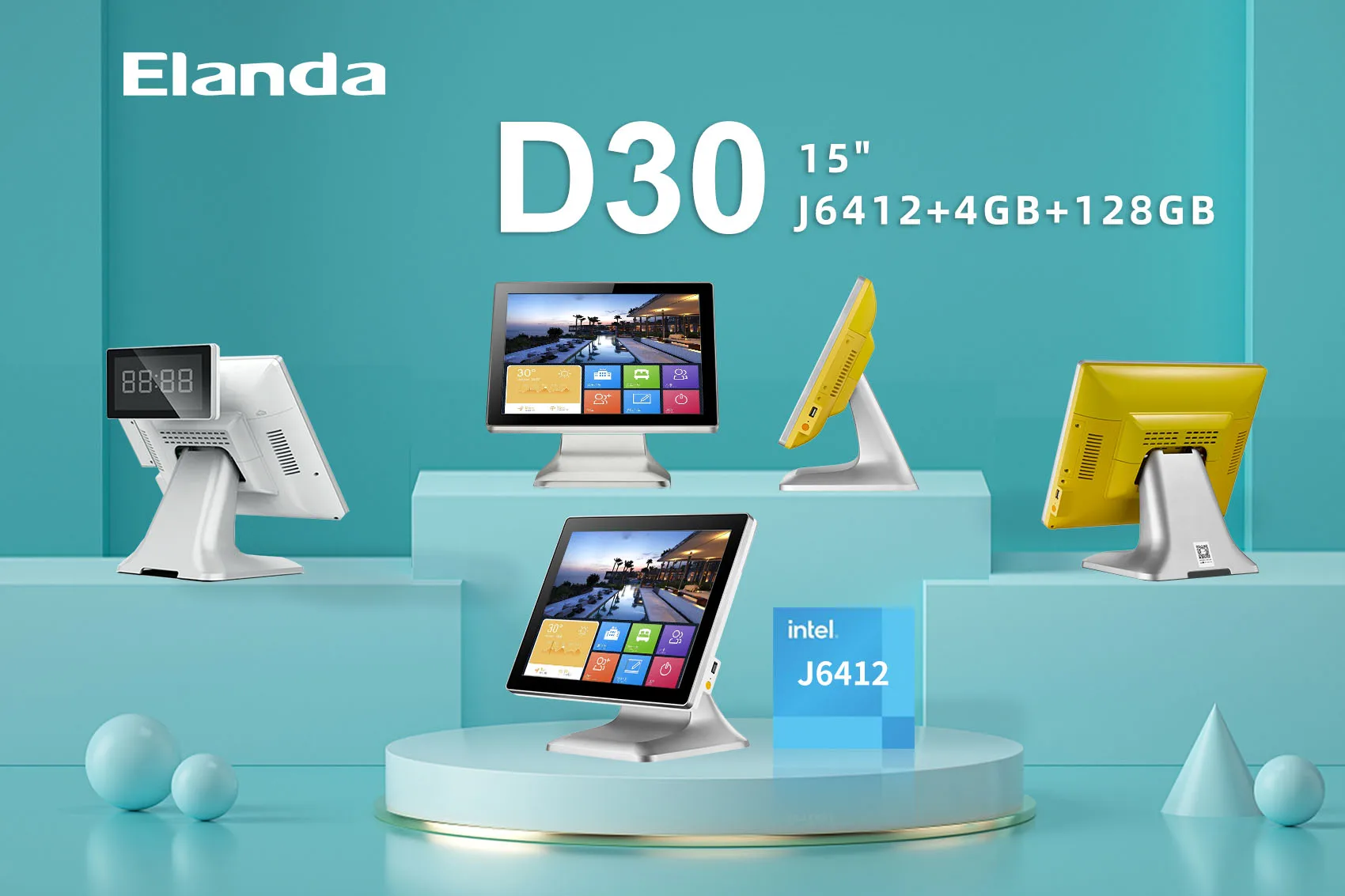

Processor | Intel J6412 | i3/i5 for optional | |||||
Memory | DDR4 4G (Max. 32GB) | 4GB (Max. 16GB) | |||||
Storage | SSD128GB(256GB for optional) | SSD128GB(256GB for optional) | |||||
Power Supply | 12V/5A | ||||||
OS Support | Windows 10/Windows11/Linux | ||||||
Display | 15" TFT LCD Display | ||||||
Resolution | 1024 x 768 | ||||||
Touch | True-flat PCAP touch Screen (Support Multi-touch) | ||||||
Serial Port | DB9*2 | DB9*2 | |||||
USB Port | USB3.0*4 + USB2.0*1 | USB3.0*2 + USB2.0*4 | |||||
LAN Port | 10/100/1000 MB*1 | 10/100/1000 MB*1 | |||||
Display Port | VGA*1, HDMI*1 | VGA*1, HDMI*1 | |||||
Audio | Line-out*1, Mic-in*1 | Line-out*1, Mic-in*1 | |||||
Expansion Slot | Mini-PCIe slot*1 | Mini-PCIe slot*1 | |||||

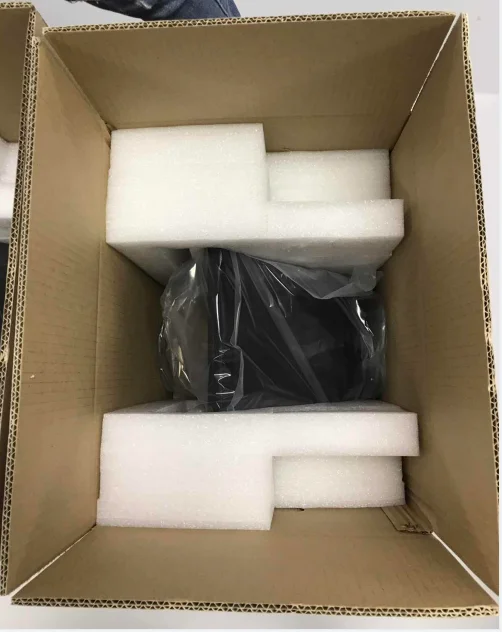

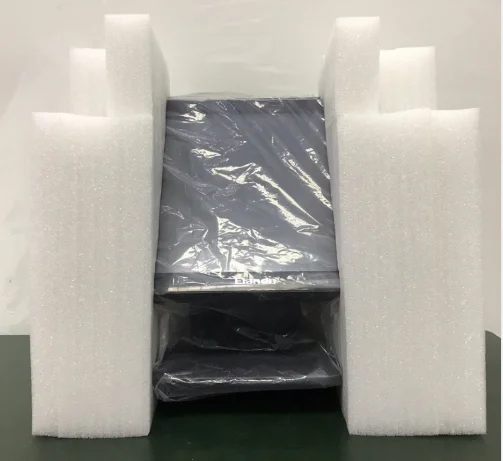

Packaging Dimension | 425mm*340mm*420mm | ||||||
Gross Weight | 6.24KG | ||||||
Operating Condition | 0°C - 40°C, 20%RH - 90%RH | ||||||
Storage Condition | -20℃ ~ 70℃, 10%RH - 90%RH | ||||||
2nd Display | VFD/9.7" LCD Display/11.6" LCD Display | ||||||
MSR | Support 1/2/3 track | ||||||
Dallas Key | Dallas I-button Reader |
