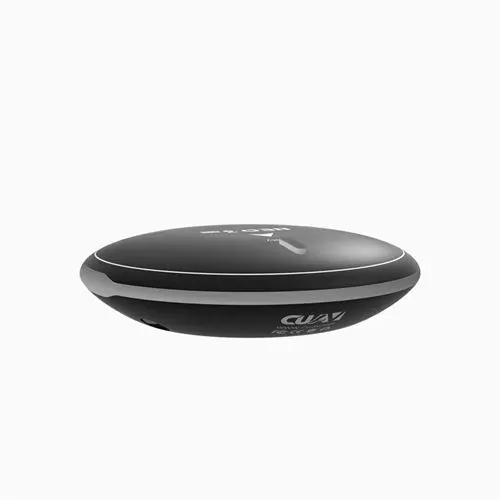

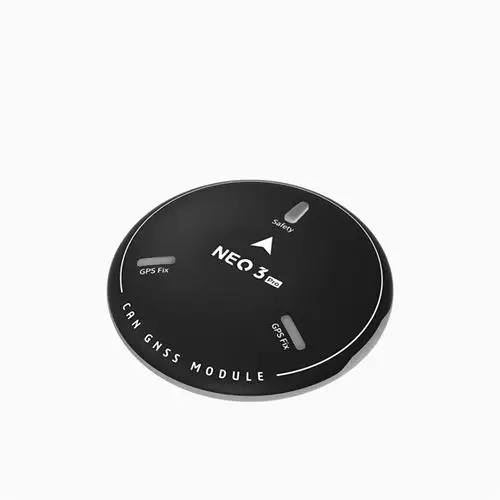

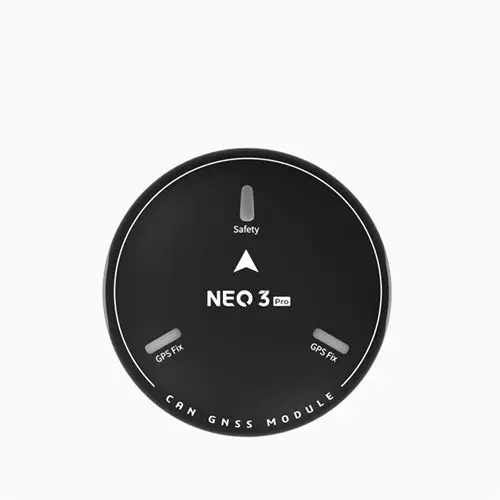

2023 новости CUAV NEO 3 PRO GNSS U-BLOX M9N GPS модуль для контроллера полета PIX Pixhawk с открытым исходным

NEO 3 Pro adopts SAW+LNA+SAW triple filter design, effectively avoiding the influence of remote control, data transmission, 4G
signal on GPS positioning reception
New generation satellite receiver Ublox M9N,The actual measurement can reach a maximum accuracy of 0.7m.
Supports simultaneous reception of Beidou, Galileo, Glonas, and GPS four satellite systems

Processor:STM32F412
Compass:RM3100
Barometer:MS5611
GNSS receiver:UBLOX NEO M9N
RGB drive:NCP5623C
Buzzer:Passive buzzer
Safety switch:Physical button
GNSS:Beidou,Galileo, GLONASS, GPS
GNSS Augmentation System
-SBAS:WAAS,EGNOS,MSAS
-QZSS:L1s(SAIF)
-other:RTCM3.3
Number of concurrent GNSS:4
Frequency band
-GPS:L1C/A
-GLONASS:L10F
-Beidou:B1I
-Galileo:E1B/C
Horizontal accuracy:2.0M
Speed accuracy:0.05M/S
Nav. update rate:25Hz(Max)
Acquisition
-Cold start:24S
-Hot start:2S
-Aided start:2s
Number of satellites(MAX):32+
Sensitivity
-Tracking and nav-167dBm
-Cold start Hot star-148dBm
-Reacquisition -160dBm
Protocol:UAVCAN
Port TYpe:GHR-04V-S
Supported flight controller:CUAV series,
Pixahwk series
Wave filtering:SAW+LNA+SAW
Anti-Electromagnetic/radio frequency interference:EMI+RFI
Upgrade firmware:support
Support Flight control type:Ardupilot/PX4*(PX4 is still working hard to adapt to the clock)
Input voltage:5V
Operating temperature:-10~70℃

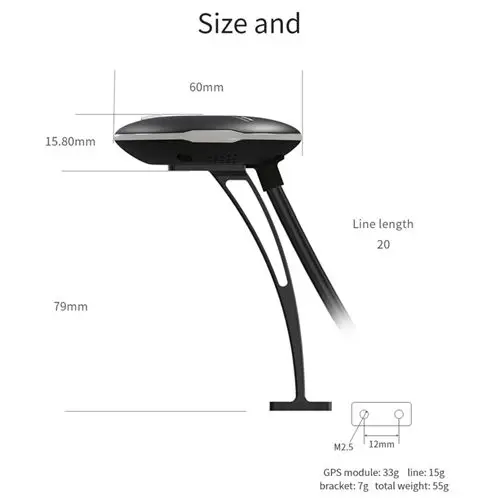

Size:60*60*16MM
Weight:33g

NEO 3 Pro Module X1

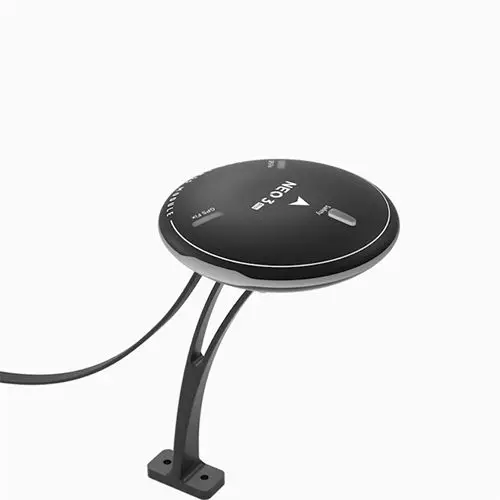

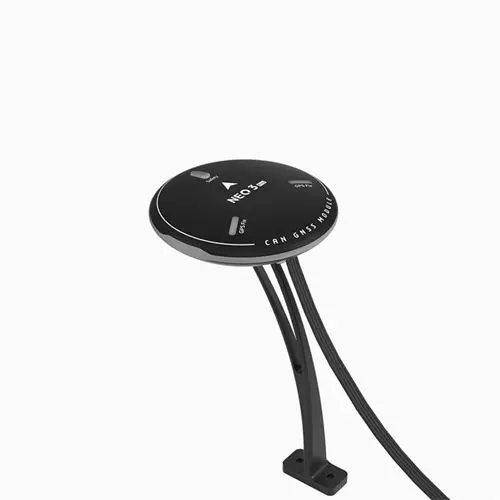

GPS StandX1
CAN Connect Cable X1
