Поделиться:

Цена:244,00 $ - 260,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики





Product Paramenters


Product style
single stage three phase side channel blower
Model number
GHBH 003 34 1R7
Weight
29kg
Level of protection
IP55
Insulation class
F
Certificate
CE Certificate、RoHS Certificate、ISO Certificate、TUV Certificate
Frequency
50Hz
60Hz
Rated power
2.2kw
2.55kw
Rated voltage
200-240△/345-415Y(V)
220-275△/380-480Y(V)
Rated current
9.7△/5.6Y(A)
10.0△/5.8Y(A)
Max airflow
318m³/h
376m³/h
Max vacuum
-190mbar
-190mbar
Max pressure
190mbar
190mbar
Sound level
69db(A)
72db(A)




Product Features


GOORUI Side channel blowers are maintenance-free:
·External, permanently lubricated bearings ·Contactless rotating impellers
·Fan-cooled motors


GOORUI Side channel blowers are user-friendly:
·Weight-optimised design through aluminum pressure casting parts
·Possibility for a vertical or horizontal installation
·Suitability for converter operation


GOORUI Side channel blowers are environmentally friendly:
·Oil-free operation ·Low energy requirement ·Low noise emission


GOORUI Side channel blowers can be used world-wide:
·50/60Hz voltage range motors of the Iso class F
·Protection type IP55 with an integrated thermal protection switch (standard)
·CE, TUV, RoHS, CCC and ISO9001 certifications


Our advantages:
·A large selection of sizes ·Extensive accessoires
·100% check prior to delivery ·Spare parts are in stock
·Service in our facilities or on site ·Fast and reliable delivery

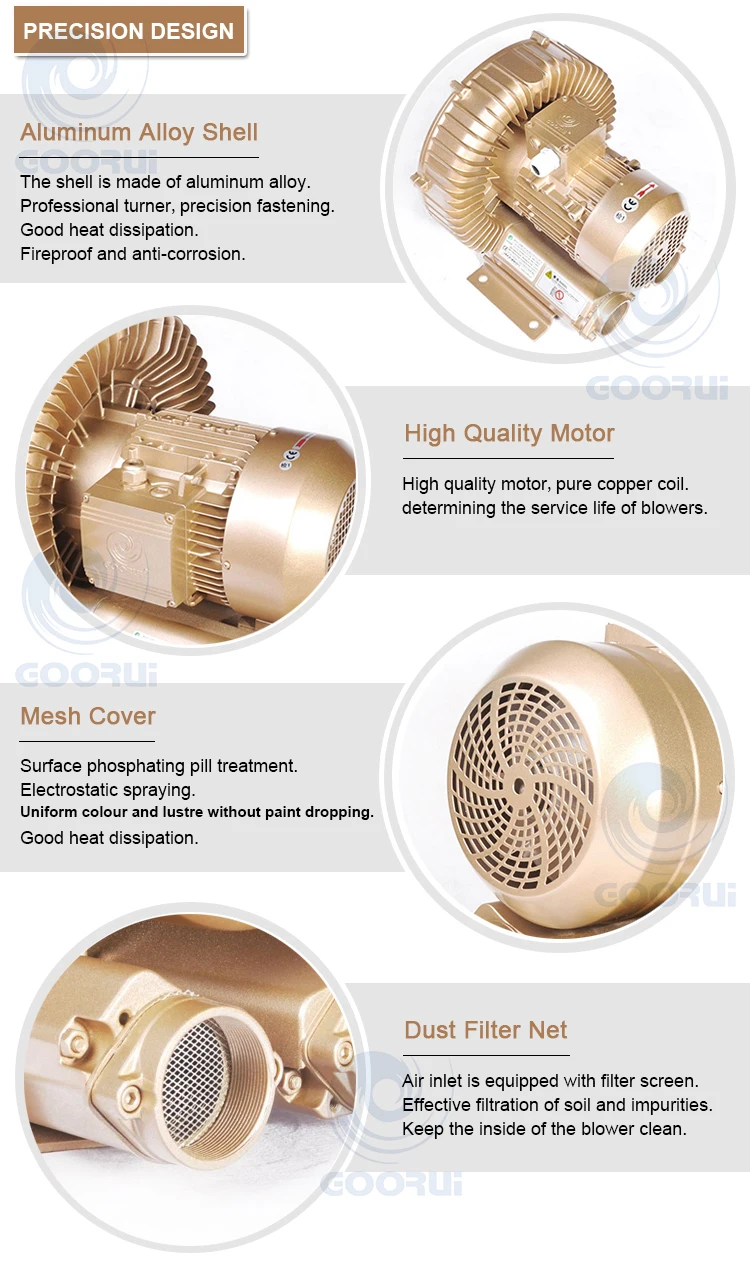

Details Images








Accessories






Installation Instructions




1. It should be placed in a relatively stable place, and the surrounding environment should be clean, dry and ventilated.
2. The direction of rotation of the impeller must be consistent with the direction of the pointed tip marked on the fan cover.
3. When working, the working pressure should not be greater than 8 kPa, so as to avoid excessive heat generation of the air pump and damage to the air pump caused by motor overcurrent.
4. It is strictly forbidden for solid, liquid and corrosive gas to enter the pump body.
5. The filters and silencers at both ends of the air inlet and outlet should be cleaned in time according to the situation to avoid clogging and affecting use. 6. The external connection of the air inlet and outlet must be connected by a hose (rubber tube, plastic spring tube).




1. Flat washers and spring washers must be used to tighten the screws.
2. It is best to use rubber buffer rubber to bear the weight of the air pump, especially the high-power air pump, which is indispensable.
3. For some occasions that require noise, a silencer can be installed to reduce the noise (generally down, about 5 dB), the silencer is installed at the end of the inlet duct or outlet duct. 4. For some occasions with high requirements for noise, you can add a layer of silencer cotton according to the conditions of the machine itself to meet the noise requirements on site. For details, please consult our customer service.
5. When using silencing cotton to silence the sound, pay attention to the distance between the air pump and the box, pay attention to the ventilation and heat dissipation of the air pump, and pay attention to using rubber cushioning to bear the weight of the air pump.According to the picture, you need to consult customer service.
6. The air inlet and outlet of the air pump For pipe connection,hose connection should be used to isolate vibration.


FAQ
