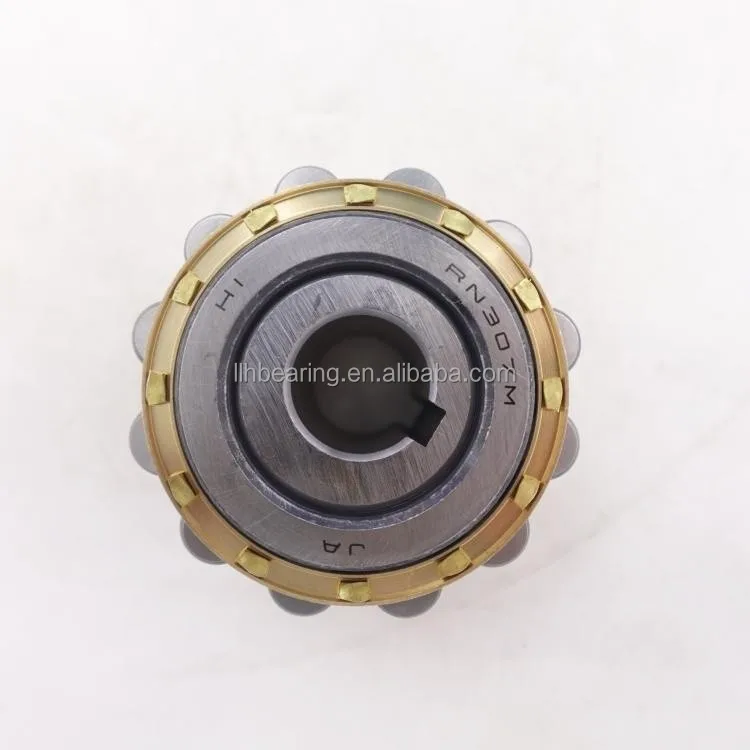

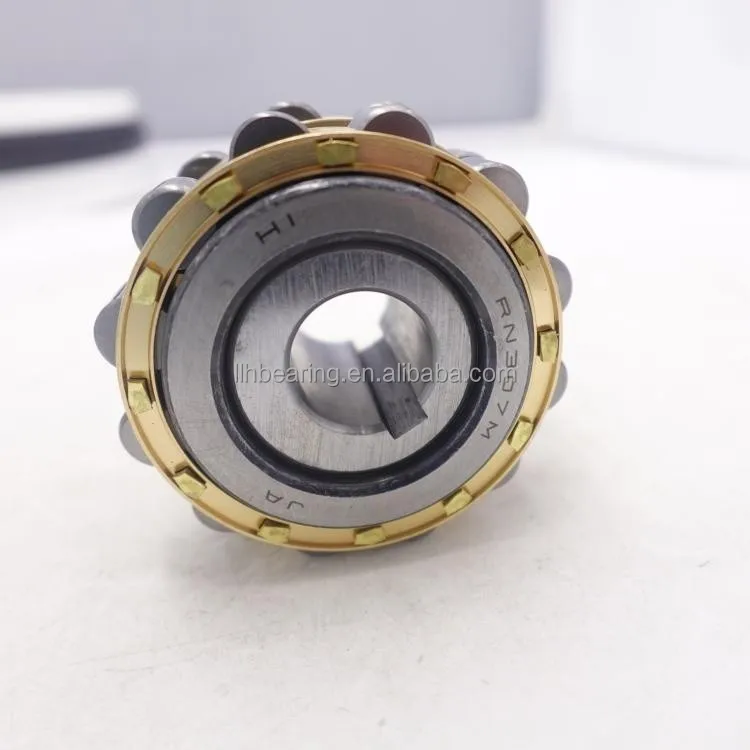

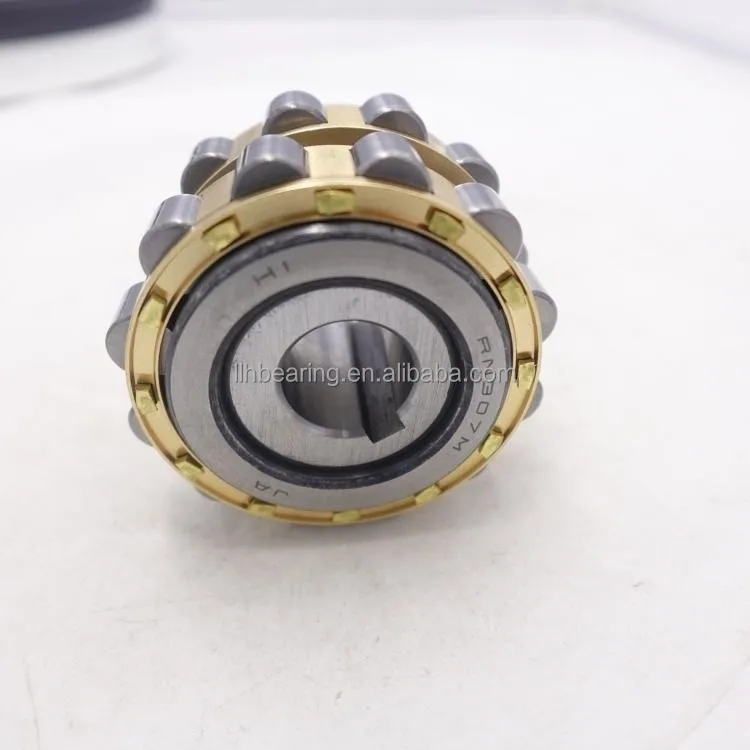

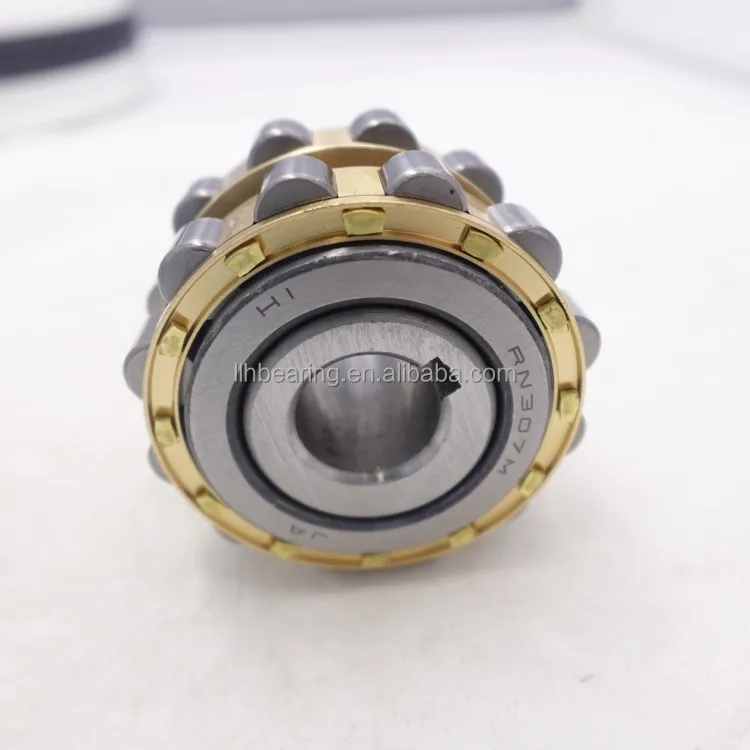

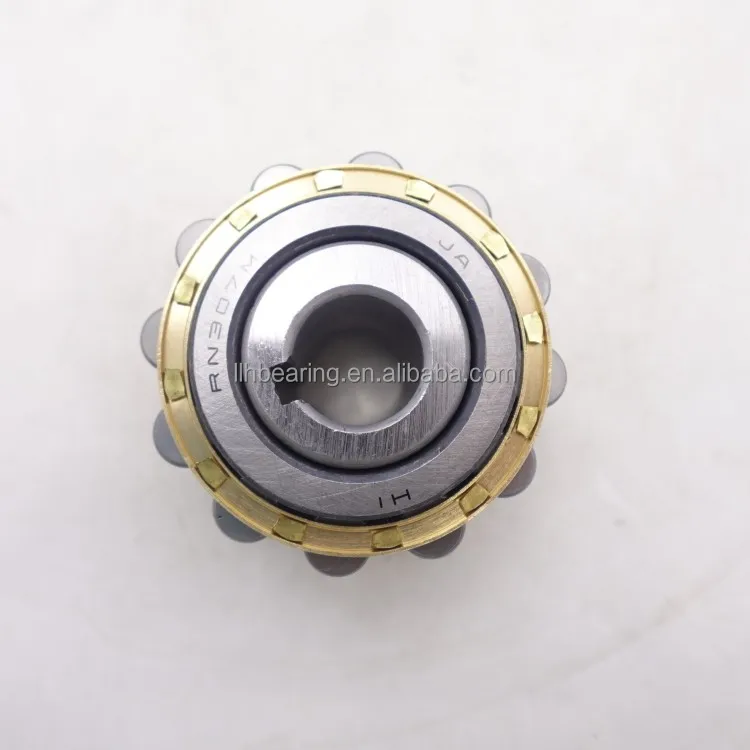

Цилиндрический роликовый подшипник RN307M с 17 эксцентриковыми комплектами RN307M-17 двухрядных эксцентриковых

Описание и отзывы

Характеристики



1)Eccentric bearing is a very practical type in all the bearings.It has a simple structure including an outer ring,an inner ring,rolling element basket.
2)The feature of eccentric bearing is that there is an eccentric hole on the internal bore of inner ring and there is a longitudinal keyway on the medial wall of eccentric hole.The eccentric bearing's characteristic is no eccentric shaft can achieve eccentric function.In this way ,it has another advantage:easy assembly.
3)Eccentric bearing is mainly used in reducer,petroleum,chemical industry,textile,metallurgy,mines,steel mills,heavy machinery etc.It's one of most important parts of reduction box or gear.

They are widely used in the large and medium-size motor, locomotive, spindle, internal combustion engine, generator, gas turbine, reducer, rolling mill, vibrating screen and lifting transportation machinery, etc.

Eccentric bearing models	Specification	Eccentric angle	Wegith(KG)
45712200	10X33.9X12	/	0.059
45712200HA	10X33.9X12	/	0.059
50712200	10X33.9X12	0.5	0.059
50712200HA	10X33.9X12	0.5	0.059
80712200	10X33.9X12	0.75	0.059
80712200HA	10X33.9X12	0.75	0.059
100712200	10X33.9X12	1	0.059
100712200HA	10X33.9X12	1	0.059
150712200	10X33.9X12	1.5	0.059
150712200HA	10X33.9X12	1.5	0.059
180712200	10X33.9X12	1.75	0.059
200712200	10X33.9X12	2	0.059
200712200HA	10X33.9X12	2	0.059
45712201HA	12X33.9X12	/	0.587
50712201HA	12X33.9X12	/	0.587
75712201HA	12X33.9X12	/	0.587
100712201HA	12X33.9X12	1	0.587
150712201HA	12X33.9X12	1.5	0.587



1.Excellent and high quality control,high speed,low noise,long life

2.Prompt delivery

3.Competitive price

4.Small order accepted

5.Customers' drawing or samples accepted

6.OEM service

7.Professional:12 years manufacturer





1.   I couldn’t find a design to fit my application in your catalog.Can you help me design a bearing?

Yes, technical expertise is available to assist you with engineering design for custom products. Available options include, but are not limited to,custom rings, retainers, balls, shields, lubricants, and packaging.We look forward to working with you to satisfy your rotary motion requirements.

2. What causes bearing noise?

Bearing noise is a function of both the bearing and the way it is used. Some external factors that affect bearing noise include lubricant type,excessive bearing load, and improper installation. Once the abnormal noise occurred, you can contact our engineers, we will help you find the reasons and provide the appropriate solutions.

3.     How long is your delivery term?

Our standard product delivery term is normally 30 days. A new product development cycle is 60 days in normal. Under normal circumstances, there are standing stock for regular types. You can email us to learn more details.

4.     Where is your port of shipment located?

Our main port of shipment is Guangzhou port, and we may operate at other ports if required by the customer.
