Product Description

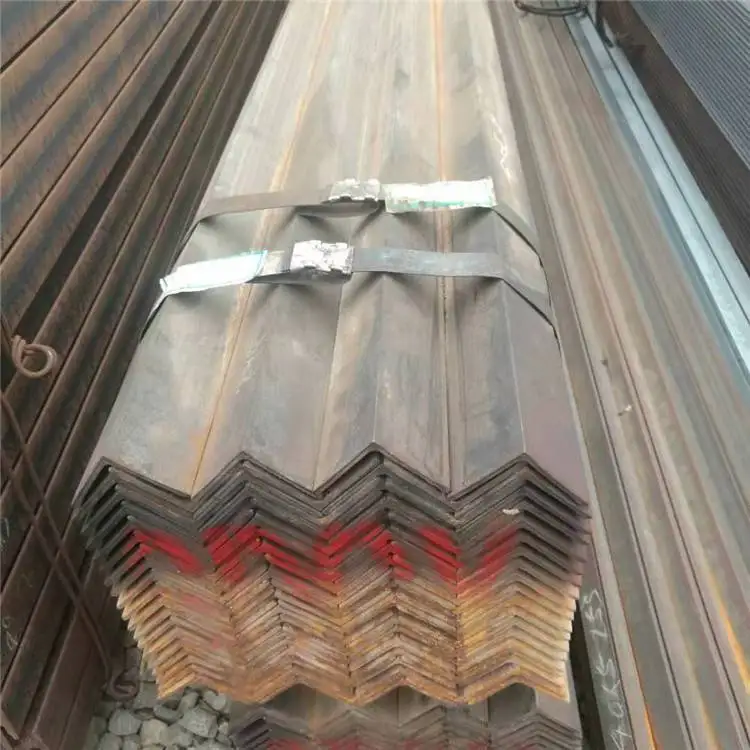

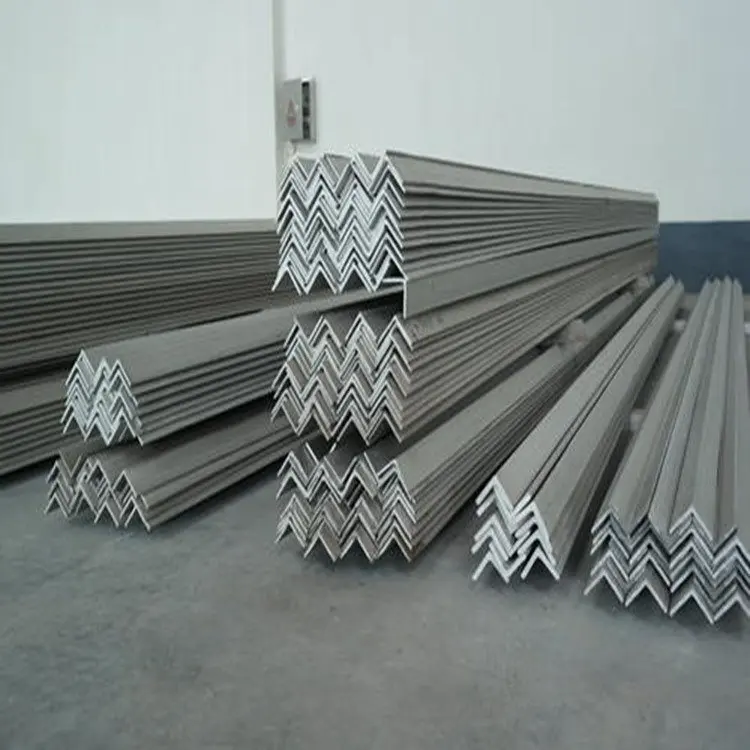

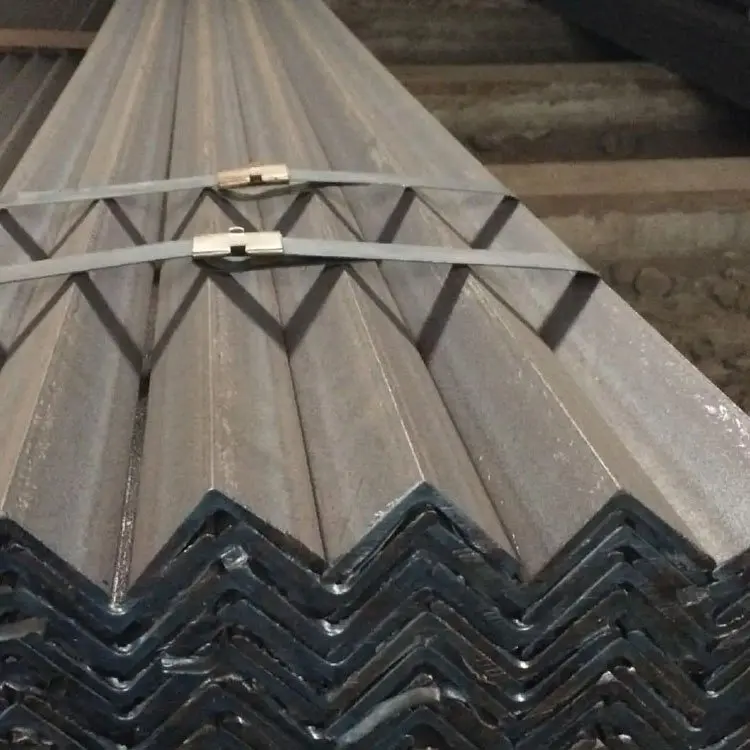

Angle steel
Angle steel can be composed of different stress components according to the different needs of the structure, and can also be used as a connection between the components. Widely used in various building structures and engineering structures, such as beams, Bridges, transmission towers, lifting and transportation machinery, ships, industrial furnaces, reaction towers, container racks, cable trench supports, power piping, bus support installation, and warehouse shelves.





Specification


Product name
Steel Angle Bar
Standard
ASTM / AISI / JIS / EN / DIN
Grade
SS400-SS540 Series
Model Number
customized
Type
Equal
Application
Engineering Structure
Tolerance
±1%
Processing Service
Bending, Welding, Decoiling, Punching, Cutting
Alloy Or Not
Non-Alloy
Invoicing
by theoretical weight
Delivery Time
8-14 days
Shape
Equilateral Angle Bar
Technique
Hot Rollled
Surface treatment
Customers's Requirements
Length
6m-12m
MOQ
5 Tons
Package
Standard Sea-worthy Packing


Equal Angle Bar


Equal Angle Bar
Size
Theoretical Weight
Size
Theoretical Weight
Size
Theoretical Weight
mm
(kg/m)
mm
(kg/m)
mm
(kg/m)
25*3
1.124
70*6
6.406
100*16
23.257
25*4
1.459
70*7
7.398
110*8
13.532
30*3
1.373
70*8
8.373
110*10
16.69
30*4
1.786
75*5
5.818
110*12
19.782
40*3
1.852
75*6
6.905
110*14
22.809
40*4
2.422
75*7
7.976
125*8
15.504
40*5
2.967
75*8
9.03
125*10
19.133
50*3
2.332
75*10
11.089
125*12
22.696
50*4
3.059
80*6
7.736
125*14
26.193
50*5
3.77
80*8
9.658
140*10
21.488
50*6
4.465
80*10
11.874
140*12
25.522
60*5
4.57
90*8
10.946
140*14
29.49
60*6
5.42
90*10
13.476
160*12
29.391
63*4
3.907
90*12
15.94
160*14
33.987
63*5
4.822
100*8
12.276
160*16
38.518
63*6
5.721
100*10
15.12
160*18
48.63
63*8
7.7469
100*12
17.898
180*18
48.634
70*5
5.397
100*14
20.611
200*24
71.168


Unequal Angle Bar


Unequal Angle Bar
Size (mm)
Theoretical Weight (kg/m)
Size (mm)
Theoretical Weight (kg/m)
Size (mm)
Theoretical Weight (kg/m)
25*16*3
0.912
75*50*5
5.339
110*70*10
13.476
32*20*3
1.717
75*50*6
4.808
125*80*8
12.551
40*25*3
1.484
70*50*7
5.699
125*80*10
15.474
40*25*4
1.936
75*50*8
7.431
125*80*12
18.33
40*28*3
1.687
80*50*6
5.935
140*90*8
14.16
40*28*4
2.203
90*56*6
6.717
140*90*10
17.475
45*30*4
2.251
90*56*7
7.756
140*90*12
20.724
50*32*3
1.908
90*56*8
8.779
160*100*10
19.872
50*32*4
2.494
100*63*6
7.55
160*100*12
23.592
56*36*3
2.153
100*63*7
8.722
160*100*14
27.247
56*36*4
2.818
100*63*8
9.878
180*110*10
22.273
56*36*5
3.466
100*63*10
12.142
180*110*12
26.464
63*40*4
3.185
100*80*7
9.656
180*110*14
30.589
63*40*5
3.92
100*80*8
10.946
200*125*12
29.761
63*40*6
4.638
100*80*10
13.476
200*125*14
34.436
63*40*7
5.339
110*70*8
10.946


Packing & Delivery




tandard export Marine packing, wooden pallets, wooden cases.


Company Profile






Shandong Zehao Metal Materials Co., Ltd. is engaged in titanium and its alloys, zirconium and its alloys, tungsten, molybdenum, Monel, Inconel, Inconel, nickel and other superalloy and corrosion resistant alloy research, smelting and processing enterprises. Products cover sheet, strip, profile, bar, wire, pipe, pipe fittings, forged flange and so on.The factory covers an area of 120,000 square meters.Now we have vacuum induction furnace introduced from the United States, vacuum consumable arc furnace made in Germany, 2800mm four-high reversible rolling mill, vacuum annealing furnace and other series of production equipment.It can be customized to produce any size plate within 2.6m * 16m, and the maximum length of a single pipe can reach 15m.

At the same time, we have more than 100 sets of various kinds of testing instruments, the main equipment includes: American non-destructive testing system, spectral analyzer, carbon and sulfur tester, universal testing machine, ultrasonic testing system, fatigue testing machine, etc.

The company has more than ten years of export experience, the products are exported to the United States, the United Kingdom, Germany, Russia, France, Brazil, Japan, South Korea, India, Vietnam, Australia, the Philippines, Zambia, Indonesia and other countries.












Customer praise




FAQ


Q: How about the MOQ? If my first order qty is small, will you accept?
A: We would like to do our best to support your trial order qty, so even 1 pc or 1 kg is ok to start cooperation; because we have confidence to move on second order with your esteemed company.

Q: What is your payment terms ?
A: Commonly two payment term for new customers: 1) 30% T/T as deposit , 70% balance against B/L copy; 2) 100% Irrevocable L/C at sight;If you need any other terms, pls feel free to contact us too, we will try our best.

Q: How long is your delivery time?
A: Our daily inventory is more than 8000 tons, so for common product size, just need 5 days from stocks; if the special size from new production, delivery 7 days.

Q: How about the samples ? is it free or extra fees?
A: Yes, we would like to supply the samples before order; if the samples from stock, it will be free; if the samples from new production, we will charge some reasonable cost, but this amount will be deducted from your first order invoice.

Q: How to control and guarantee your shipment quality?
A: 1) All our factories are ISO9001, CE certified facility; 2) World famous origin mills as TISCO, Baosteel. 3) Ex factory inspection by our own laboratory. 4) SGS/BV Third party inspection before delivery.
