Product Description

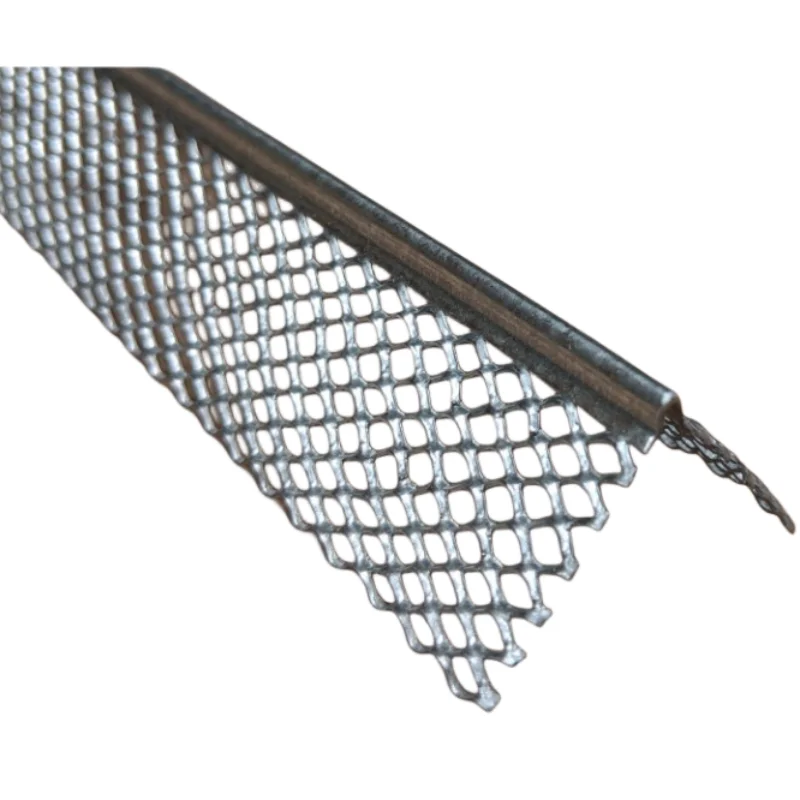

Expanded Metal Mesh Angle Bead Reinforces Plaster / Stucco Corner
Expanded corner bead / Corner Bead / Plastering Bead consists of 2 expanded metal wings with a width of 2-5/8" or 3" and a solid metal nose. The wide wings are flexible and can be easily flexed over irregular, uneven surfaces, which makes it an ideal choice for irregular corners. Plaster keys near the solid nose provide reinforcement where needed most to ensure straight corners.
Expanded corner bead is designed to provide true, straight corners to avoid cracking and chipping while protecting edges from impact damage. It is often used for exterior wall corner reinforcement and protection.
Features of expanded corner bead:
- Diamond Mesh Corner Bead suit for both exterior and interior wall corners.
- Plaster Conrner Bead is of great corrosion resistance, rust resistance, and impact resistance.
- Plastering Angle Bead is Flexible and fit for most irregular surface.
- Metal Angle Bead is durable enough to protect the corner.
- Plaster Corner Metal Mesh is easy and convenient to install anywhere needed.
- Diamond Mesh Corner Bead suit for both exterior and interior wall corners.
- Plaster Conrner Bead is of great corrosion resistance, rust resistance, and impact resistance.
- Plastering Angle Bead is Flexible and fit for most irregular surface.
- Metal Angle Bead is durable enough to protect the corner.
- Plaster Corner Metal Mesh is easy and convenient to install anywhere needed.
Various angle beads we supply:
- Galvanized steel angle bead
- Stainless steel plaster bead
- Expanded diamond mesh angle bead
- Perforated metal corner beads
- Expanded Flange Angle Bead
- Angle bead with increased reinforce flange
- Aluminium Angle Bead
- Galvanized steel angle bead
- Stainless steel plaster bead
- Expanded diamond mesh angle bead
- Perforated metal corner beads
- Expanded Flange Angle Bead
- Angle bead with increased reinforce flange
- Aluminium Angle Bead
Product Specifications
Material | Standard | ||||||
Pre-Galvanized Steel Sheet | BS EN 10346 / ASTM A653 | ||||||
Stainless Steel Sheet | BS EN 10088 / ASTM A666 | ||||||
Alu-zinc Coated Steel (Galvanum) Sheet | ASTM A875 / ASTM A792 | ||||||

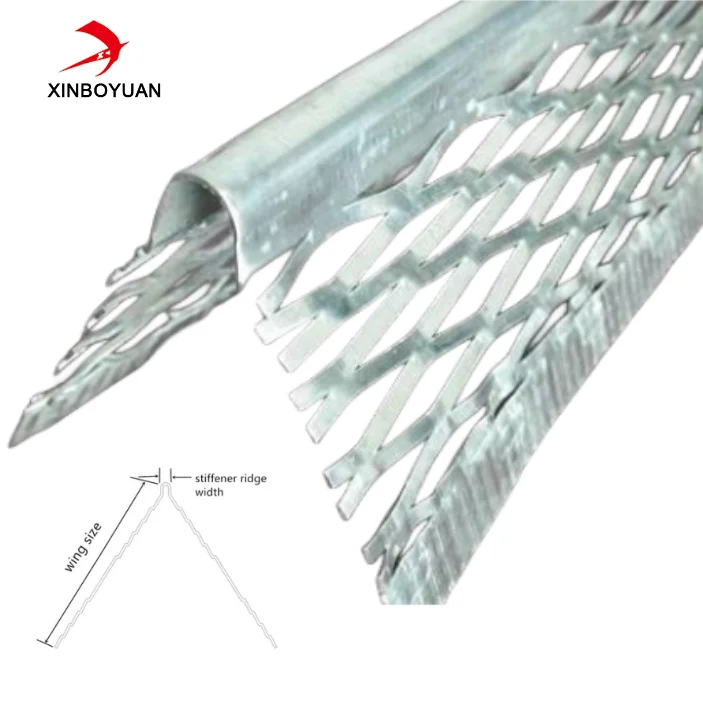

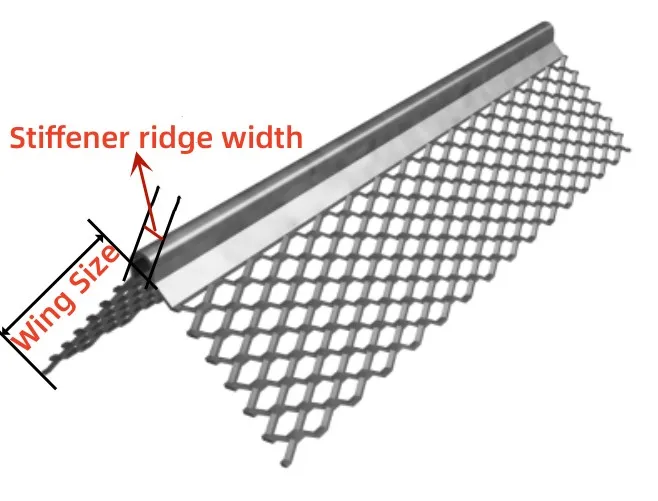

Expanded corner bead
General-purpose corner bead that is economical and most generally used. Wide expanded flanges are easily flexed. Preferred for irregular corners. Provides better reinforcement especially near the nose where strength is needed most.
Dimension
Stiffener ridge width: 0.125", 0.175".
Wing size: 2-5/8", 2-7/8", 3".
Length: 8', 10'.
Dimension
Stiffener ridge width: 0.125", 0.175".
Wing size: 2-5/8", 2-7/8", 3".
Length: 8', 10'.
Double-X corner bead
Double-X corner bead offers perforated stiffening rids along the expanded flanges for better reinforcement, it is galvanized for
rust proof and can be easily adjusted for plaster depth, also easily installed with nails, screws or other fasteners.
Dimension
Stiffener ridge width (A): 0.125", 0.175".
Wing size: 3-1/8", 3-1/4".
Length: 8', 9', 10', 12'.
rust proof and can be easily adjusted for plaster depth, also easily installed with nails, screws or other fasteners.
Dimension
Stiffener ridge width (A): 0.125", 0.175".
Wing size: 3-1/8", 3-1/4".
Length: 8', 9', 10', 12'.

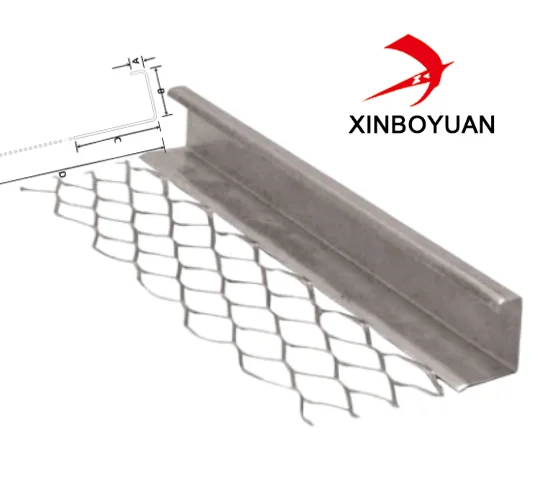

Casing bead
Casing bead is effectively used at junction or intersection of door, window or other area finishes. The diamond holes of the
flange for holding the drywall mud tightly, and the short return provides strong protection for the corner edge.
Dimension
A: 1/4".
B: 1/4", 3/8", 1/2", 5/8", 3/4", 7/8",
flange for holding the drywall mud tightly, and the short return provides strong protection for the corner edge.
Dimension
A: 1/4".
B: 1/4", 3/8", 1/2", 5/8", 3/4", 7/8",
1-1/4", 1-1/2".
C: 1-1/4".
D: 3", 3-1/8".
Length: 10'.
C: 1-1/4".
D: 3", 3-1/8".
Length: 10'.
Double-V control joint
Double-V control joint is used to relieve stress and strains in large plaster area of walls and ceilings. Expanded diamond mesh wings are provided for proper keying and easy application.
Plaster Depth (in) 1/4“, 3/8”, 1/2“, 3/4”, 7/8“
Length: 8', 10'
Length: 8', 10'
Double-J control joint
Double-J control joint has a 5/16" reveal, rolled outer edge that allows stucco to be fixed under rolled edges to provide
increased bonding property and prevent visible separation and cracking.
increased bonding property and prevent visible separation and cracking.
Plaster Depth (in) 1/2“, 3/4”, 7/8“
Length: 8', 10'
Length: 8', 10'
Render stop bead
Render stop bead is used to obtain a neat bell-cast lower edge at the bottom of the external render finish to protect the edge and provide excellent protection to masonry against run-off water.
Flange size 45mm, Thick 0.45mm, Length 3m
RSB16 - Plaster thick 16mm
RSB20 - Plaster thick 20mm
Plaster stop bead
Plaster stop bead is a kind of J-shaped angle bead made from galvanized steel sheet or stainless steel sheet.
Flange size 55/63mm, Thick 0.45mm, Length 3m
PSB10 - Plaster thick 10mm
PSB13 - Plaster thick 13mm
PSB16 - Plaster thick 16mm
PSB19 - Plaster thick 19mm

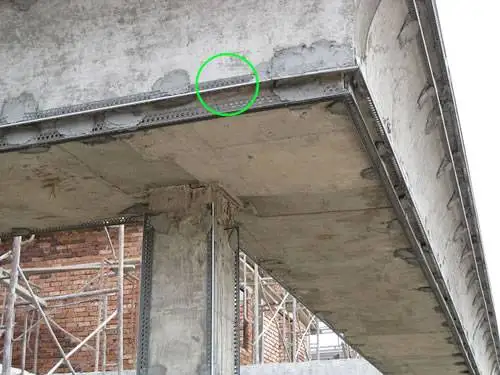

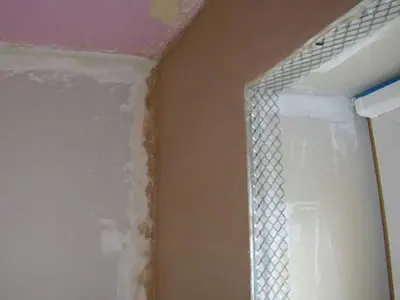

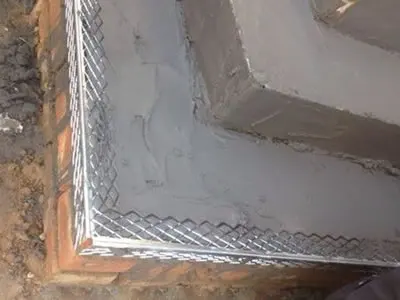

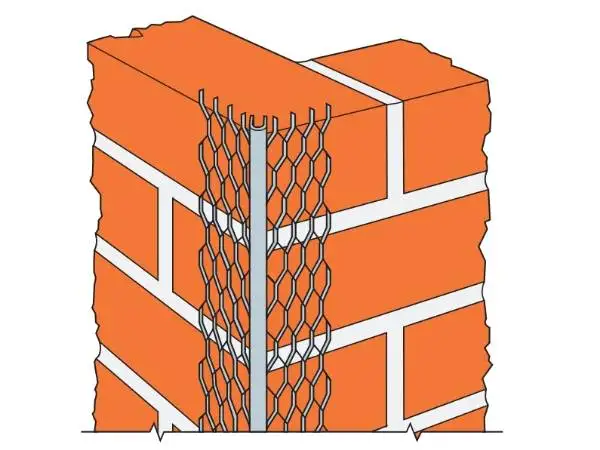

Product Applications
Packaging and Transportation
Company Profle
Anping XinBoYuan Wire Mesh Products Co., Ltd. is a professional wire mesh products manufacturer, which combines with production, processing and sales.
