Product Overview
HONGFA 50000m3/year Automatic AAC Concrete Brick Making Machine for AAC Production Line
Main raw materials of AAC are siliceous material (sand, fly ash and Silicon tailings) and Calcium materials (lime and cement) mixed with foaming agent (aluminum powder). It is the product of light porous silicate through the following processes: batching,mixing, pouring, hardening, cutting, autoclaving and curing etc. Because of large amount of well-distributed tiny pores after foaming, it is named autoclaved aerated concrete.
main equipment
(1)Raw material storage (2)Hopper (3)Conveyor belt (4) Ball mill(wet type) (5)Slurry pump (6)Mixing pool(Slurry pump+Beater)(7)Slurry storage tank (8)Crusher (9)Lime particle silo (10)Ball mill(dry type) (11)Powder lime silo (12)Cement silo (13)Dust-catcher (14)Reinforcement(15)Cage reinforcement welding machine (16)Pouring slurry building(Aluminum power mixer+weighingscale+pouring mixer) (17)Mould (18)Insert drill crane (19)Ferry trolley (20)Curing room (21)Pull out drill crane (22)Rolling over conveyor device (23)Cutting cart (24)Cross cutting and vertical cutting machine (25)Grouping crane (26)Green Cake Bottom Skin Removing System (27)Autoclave (28)Stacking crane (29)Seperator machine (30)Rotating clamp (31)Finished product clamp
Production process
Raw material preparation
1. Dose and match measured raw materials;
2. After distributing, feed raw material into pouring mixer to make slurry.
2. After distributing, feed raw material into pouring mixer to make slurry.
Reinforcement processing
3.Automatic circulation system for cage assembly frame
4.Mesh cage anti-corrosion drying room
5.Automatic warp and weft rib full wire strip welding machine
6.Cage assembly frame shuttle
7.Mesh cage rigid connection welding machine
8Net cage anti-corrosion spreader
4.Mesh cage anti-corrosion drying room
5.Automatic warp and weft rib full wire strip welding machine
6.Cage assembly frame shuttle
7.Mesh cage rigid connection welding machine
8Net cage anti-corrosion spreader
Pouring pre-uperation
9. Through thoroughly mixing, the slurry is poured to mould; ,
10. After pre-curing under a certain temperature and time, the block would reach a certain hardness and prepare for cutting;
10. After pre-curing under a certain temperature and time, the block would reach a certain hardness and prepare for cutting;
Cutting section
11. Tilting hoister would turn over 90 degrees of mould;
12. Then open the mould and separate it from block. And take the block with side plate to the cutting cart;
13. The horizontal cutting machine cuts blocks from both sides.
14. Then the vertical cutting;
12. Then open the mould and separate it from block. And take the block with side plate to the cutting cart;
13. The horizontal cutting machine cuts blocks from both sides.
14. Then the vertical cutting;
Marshalling steaming
15. After cutting, the block is hanged to curing carts with side plate by semi-finished product hoister;
16. Grouping the carts and put them into autoclaves;
17. Curing the blocks under certain temperature and pressure;
18. Carry the finished product out of autoclave by the ferry cart
16. Grouping the carts and put them into autoclaves;
17. Curing the blocks under certain temperature and pressure;
18. Carry the finished product out of autoclave by the ferry cart
Finished product packaging
19. The finished product hoister take the finished product to finished blocks area;
20. The side plate return back through side plate roller;
21. Side plate would be organized with open mould for the next circle.
20. The side plate return back through side plate roller;
21. Side plate would be organized with open mould for the next circle.
Main equipment and parameter
1. Gas Ball Mill: grinding sand to slurry
Type | Diameter | Length | Productivity | Feeeding size | Power(KW) |
Φ1200x4500mm | 1200mm | 4500mm | 3-4t/h | ≤20mm | 55KW |
Φ1500x5700mm | 1200mm | 5700mm | 6-8t/h | ≤20mm | 130KW |
Φ1830x7000mm | 1830mm | 7000mm | 8-17t/h | ≤20mm | 245KW |
Φ2200x9000mm | 2200mm | 9000mm | 12-70t/h | ≤20mm | 380KW |
2. Gas Slurry Pouring Mixer:
To mix t\\he standard sand ,slurry,lime,cement and aluminium paste into balance after measuring
Mixer type | Motor power | Mixer drum volume | Blade diameter | Blade speed |
Diversion drum type | 30kw | V=3.6m3 | Φ560mm | 560r/min |
Diversion drum type | 37kw | V=4.5m3 | Φ630mm | 560r/min |
3. Gas block Mould:
storage sand slurry to curing
Size of (mm) | Size of body(Peeling-off size) | Maximum overall size | ||||||||
Length(mm) | Width(mm) | Heigth(mm) | Length(mm) | Width(mm) | Heigth(mm) | |||||
4200x1200x600 | 4200 | 1200 | 600 | 4720 | 1735 | 1078 | ||||
4800x1200x600 | 4800 | 1200 | 600 | 5320 | 1735 | 1078 | ||||
6000x1200x600 | 6000 | 1200 | 600 | 6550 | 1750 | 1085 | ||||

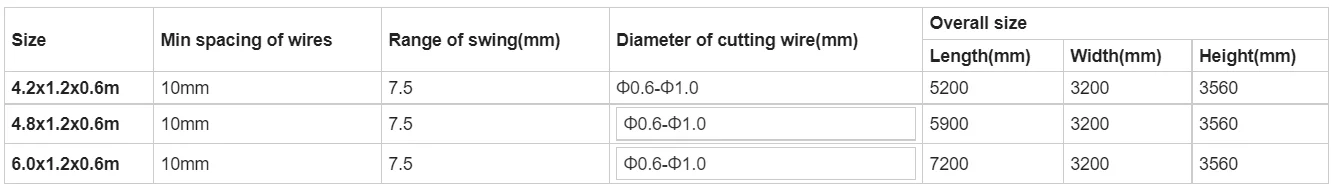

4. Cutting machine
a: Horizatal cutting machine

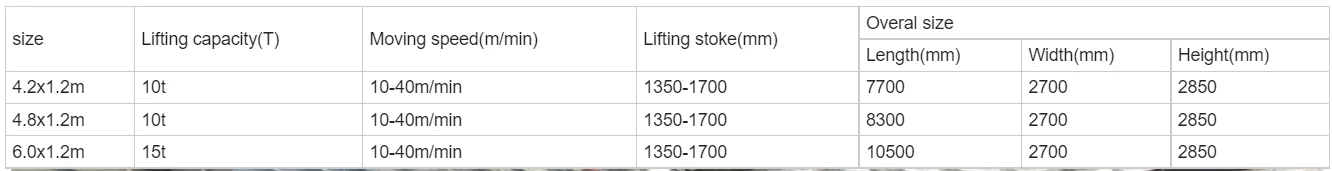

5. Gas block Hoist: hoist block mould and grouping

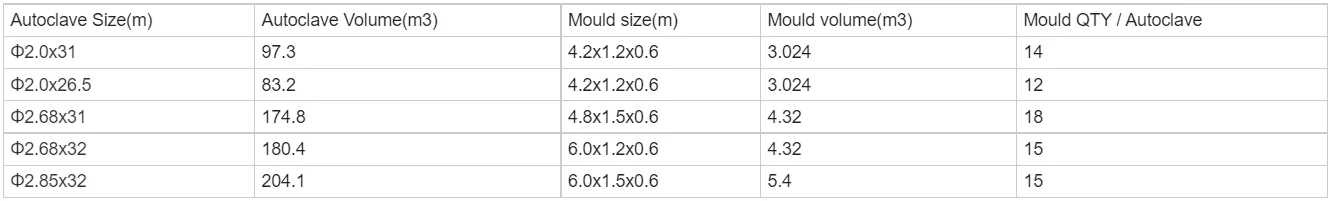

6.Gas block Autoclave

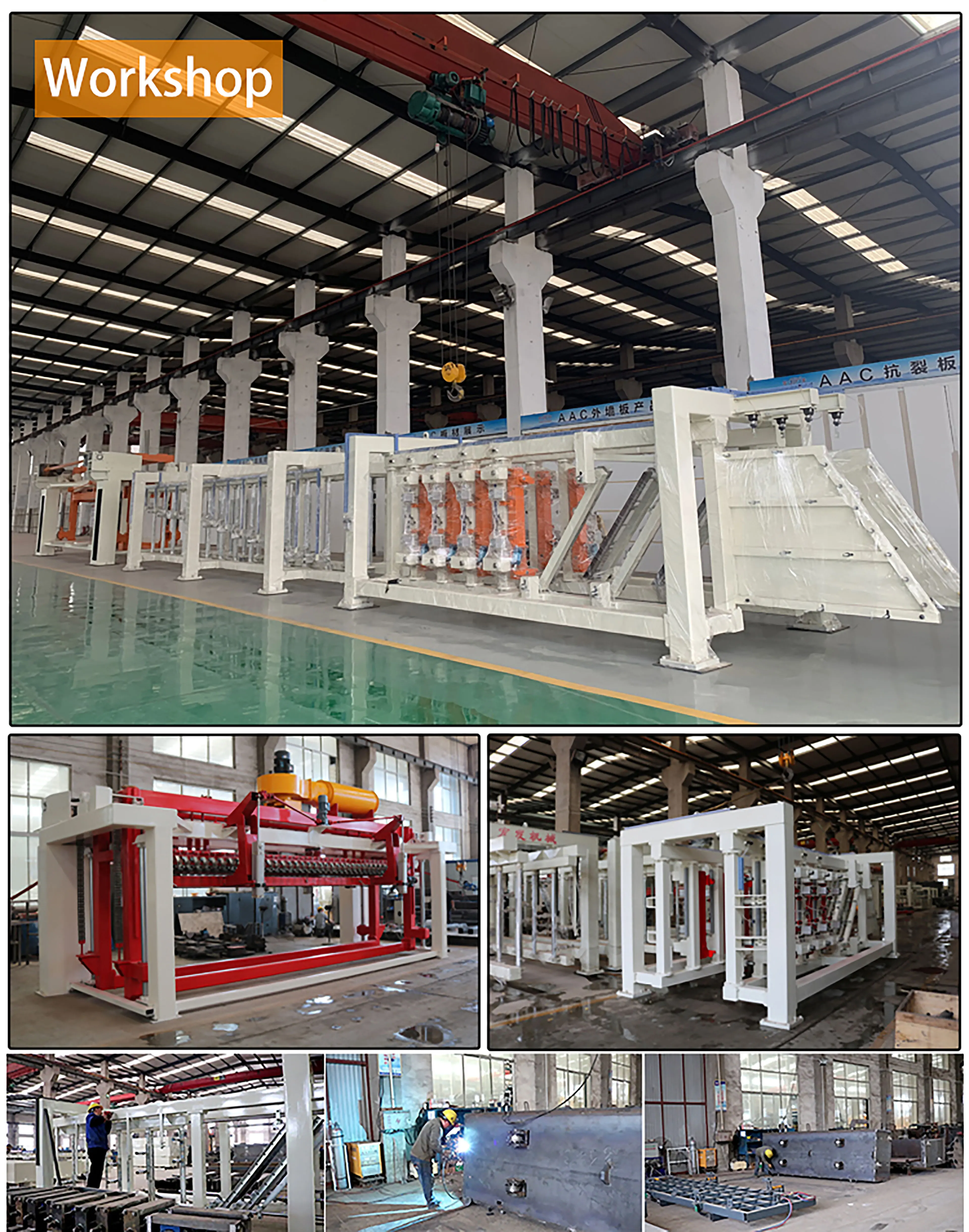

Gas block pictures and photos
