Product Description
Product Description

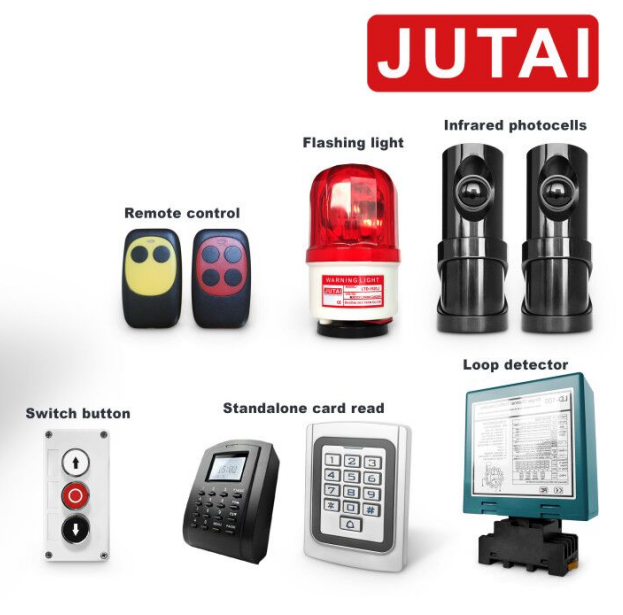

Gate Automation Entrance
JUTAI offers complete Entrance automation by providing barrier gate entrance and sliding gate entrance.
The sliding gate entrance includes a sliding gate motor, safety gate photocells, safety light curtains, remote controls, card
reader, and PC software or mobile phone APP control.
The sliding gate entrance includes a sliding gate motor, safety gate photocells, safety light curtains, remote controls, card
reader, and PC software or mobile phone APP control.
Specification
Specification
Our Advantages
Our Advantages
Anti-rush design.
At the first operation after each power on, the motor runs in slow motion to the limit point throughout the process to avoid
rushing out of the limit. When the door reaches the limit point, the motor can only be operated by pressing the button in the opposite direction to prevent the limit from being broken out. (Notice: It has the power-off protection function when in place, and the motor only moves in the opposite direction when repowered).
rushing out of the limit. When the door reaches the limit point, the motor can only be operated by pressing the button in the opposite direction to prevent the limit from being broken out. (Notice: It has the power-off protection function when in place, and the motor only moves in the opposite direction when repowered).
Master-slave mode is available
Two motors with the same control board on each can work synchronously. In this mode, an infrared, ground sense, automatic door close, and other functions are synchronized. Attention: Infrared, ground sense must be connected to the master motor.
Motor runtime protection.
To prevent the motor from running during the travel failure, the control board will automatically learn the motor running time without manual setting, and 10s will be added automatically as the time margin.
Auto-close function.
Time can be set from 1s to 250s before the door closes automatically. The default value is 3s.
Soft start and slow stop.
There're soft start and slow stop features available. The distance and speed of the slow stop feature can be adjusted.
Stop & rebound against resistance.
There're soft start and slow stop features available. The distance and speed of the slow stop feature can be adjusted.Switchable between stop against resistance and rebound against resistance for the closing travel. Stop against resistance for the opening travel.

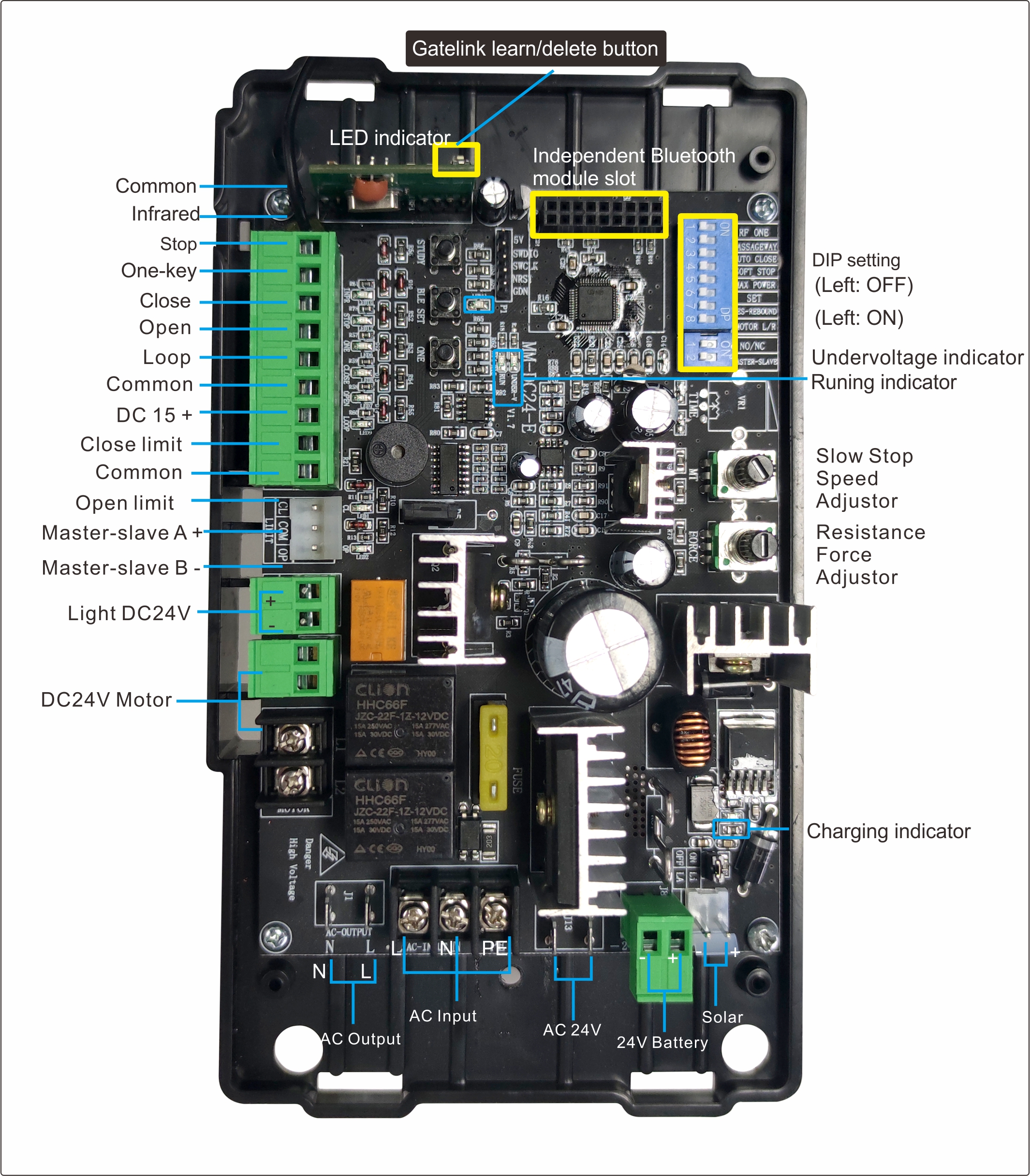

Onboard socket for Bluetooth module.
A socket is integrated onboard for the insertion of the standalone Bluetooth module (module not included by default).
One button configuration for internet control.
Can be directly paired with the internet controllers by pressing one button on the board, no copy procedure is required.
Functions
Functions

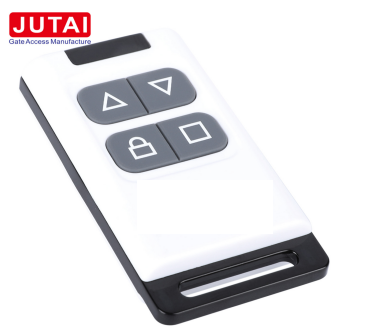

Remote Control
√ Anti-cloning rolling code technology
√ Remotes buttons control open/stop/close
√ Low power-consumption technology,
√ long battery using life
√ Support Laser Logo
√ Support setting clients' unique encrypted code
√ Remotes buttons control open/stop/close
√ Low power-consumption technology,
√ long battery using life
√ Support Laser Logo
√ Support setting clients' unique encrypted code
Remote Control Paring
Mode A: Lock button disabled
Hold down the STUDY button on the control board for about 1s until a buzz, then hold down any button among UP, DOWN, STOP on the
remote control, release it against a buzz, and the pairing procedure is complete. Repeat this step to pair more remotes. Up to 120
remotes can be paired with a single board.
Mode B: Lock button enabled
Hold down the STUDY button on the control board for about 1s until a buzz, then hold down the LOCK button on the remote control,
release it against a buzz, and the pairing procedure is complete. Repeat this step to pair more remotes. Up to 120 remotes can be
paired with a single board.
Hold down the STUDY button on the control board for about 1s until a buzz, then hold down any button among UP, DOWN, STOP on the
remote control, release it against a buzz, and the pairing procedure is complete. Repeat this step to pair more remotes. Up to 120
remotes can be paired with a single board.
Mode B: Lock button enabled
Hold down the STUDY button on the control board for about 1s until a buzz, then hold down the LOCK button on the remote control,
release it against a buzz, and the pairing procedure is complete. Repeat this step to pair more remotes. Up to 120 remotes can be
paired with a single board.
P.S. If an unwanted mode is activated, redo the pairing process following the instruction of the wanted mode.
Remote Control Deletion
Hold down the STUDY button on the control board for about 7s, and release it against 3 continuous buzzes to delete all paired remotes.
P.S.: After entering the pairing state, if no effective RF signal is sensed, the board will exit the pairing state automatically
with a buzz and the LED returning to always on.
P.S.: After entering the pairing state, if no effective RF signal is sensed, the board will exit the pairing state automatically
with a buzz and the LED returning to always on.

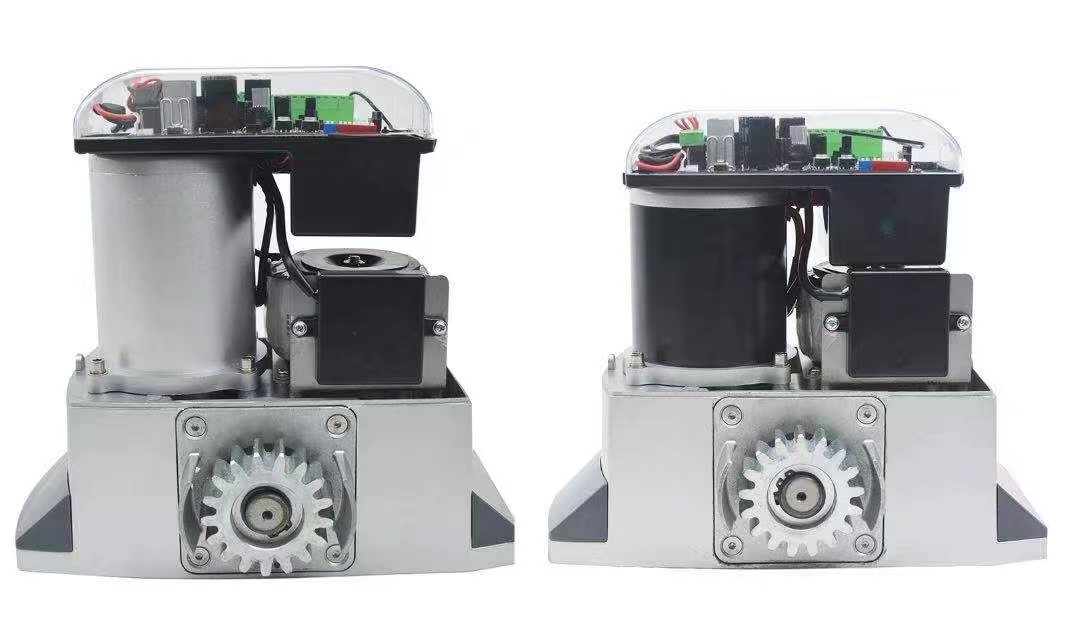

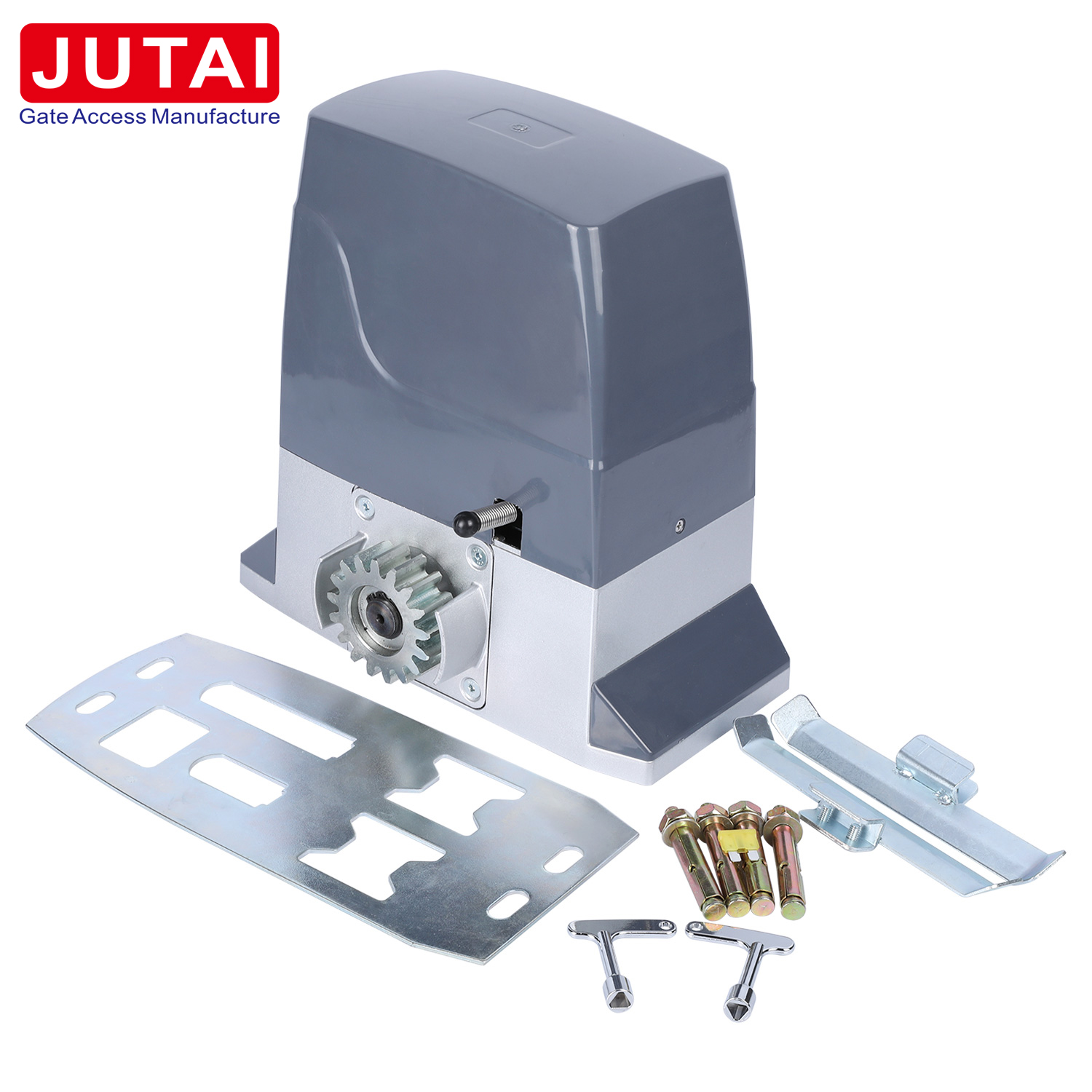

Details Images
Details Images
Company Profile
Company Profile
JUTAI gate access manufacturers provide clients with the following products and solutions:
--vehicle loop detectors(single channel/dual channel)
--photoelectric beam sensors (wired/wireless/reflective/rotational)
--Infrared multi-beam safety curtain sensors ( 30cm/1m/2m heights, 4-beams/8-beams...)
--Radar detectors
--Gatelink remote control gate automation ( receiver with smart USB/cigarette lighter/remote buttons...)
--Standalone card readers
--Proximity EM card reader 130cm
--UHF long-range reader with tag/sticker/card
--433mhz Bluetooth long-range reader with smart card
--Access control system(card/remote/QR code/face recognition)
--Parking management system
--Parking guidance system
--Traffic light system
--photoelectric beam sensors (wired/wireless/reflective/rotational)
--Infrared multi-beam safety curtain sensors ( 30cm/1m/2m heights, 4-beams/8-beams...)
--Radar detectors
--Gatelink remote control gate automation ( receiver with smart USB/cigarette lighter/remote buttons...)
--Standalone card readers
--Proximity EM card reader 130cm
--UHF long-range reader with tag/sticker/card
--433mhz Bluetooth long-range reader with smart card
--Access control system(card/remote/QR code/face recognition)
--Parking management system
--Parking guidance system
--Traffic light system
FAQ
FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2. why should you buy from us not from other suppliers?
10 years R&D experience about RFID wireless technology and high security encrypted technology skill experience, advanced products application concept, good products quality, and best after-sales service. our goal is to grow up with the customer, to achieve a win-win situation.
3. what services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
OEM/ODM service
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2. why should you buy from us not from other suppliers?
10 years R&D experience about RFID wireless technology and high security encrypted technology skill experience, advanced products application concept, good products quality, and best after-sales service. our goal is to grow up with the customer, to achieve a win-win situation.
3. what services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
OEM/ODM service
