Product Description
● 4U Rackmount server chassis series with 670 mm depth
● Serverboard supports up to standard EEB 12"x13" and backward supports to CEB
● Supports 7 x full height and full length PCIe cards
● Front 24 x3.5" hot swap HDDs (2.5" HDD compatible) and rear 2 x2.5" hot swap HDDs
● High-performance 3 x12038 cooling fans with anti-vibration mechanism
● Smart system fan controlled by intelligent temperature management
● Supports 2U Single PSU or 1+1 Redundant PSU
● 12Gb/s SAS passive backplane with SGPIO, compatible with SAS and SATA HDDs
● Serverboard supports up to standard EEB 12"x13" and backward supports to CEB
● Supports 7 x full height and full length PCIe cards
● Front 24 x3.5" hot swap HDDs (2.5" HDD compatible) and rear 2 x2.5" hot swap HDDs
● High-performance 3 x12038 cooling fans with anti-vibration mechanism
● Smart system fan controlled by intelligent temperature management
● Supports 2U Single PSU or 1+1 Redundant PSU
● 12Gb/s SAS passive backplane with SGPIO, compatible with SAS and SATA HDDs
Specification
Chassis | Rackmount |
Form Factor | 4U |
Serverboard | EEB (12"x13"), CEB (12"x10.5"), ATX (12"x9.6"), and microATX (9.6"x9.6") |
PSU Form Factor | 2U Single or 1+1 Redundant (CRPS) |
Backplane SGPIO | Supports |
HDD Backplane | 24-port 3.5" 12Gb/s SAS passive backplane 2-port 2.5" 12Gb/s SAS passive backplane (optional) |
HDD Hot-swap | Supports SAS and SATA HDD |
Hot-swap Fans | Supports |
HDD Drive | Front 24x3.5" Hot-swap HDDs (2.5" HDD compatible) Rear 2x2.5" Hot-swap HDDs (option) |
Other Drive Bay | N/A |
Cooling Fans | Default 3x12038 Hot-swap middle fans |
Temperature Control | Supports system smart fan control by Serverboard |
Air Duct | Optional |
Expansion Slots | Supports 7x full-height full-length PCIe cards |
Slide Rail | Optional |
Indicators | 2x USB2.0, 1x Power Switch, 1x Reset, 1x Power LED, 1x HDD LED, 2x LAN Indicators |
Tool-less | N/A |
Metal Thickness | 1mm thickness SGCC |
Chassis Dimensions | 670* 444* 177mm (DxWxH) |
Net Weight | 18 KG |
Carton Dimensions | 902* 591* 318mm (DxWxH） |
Gross Weight | 24 KG |
Certification | CE, FCC, RoHS |
Company Profile
Gooxi, as a leading Chinese Server Solutions Provider, with independent R&Dand production abilities of intact industry chain, is currently one of the few software and hardware manufacturers in server and storage in China that integrates R&D, production, sales and service. Our products have been expanded to over 10 series of servers and storage platforms, barebones, motherboards, chassis, accessories, etc., and are extensively used in cloud computing, cloud storage, datacenter, Internet, AI, security, telecom, radio&television, finance, government, education, blockchain, etc.

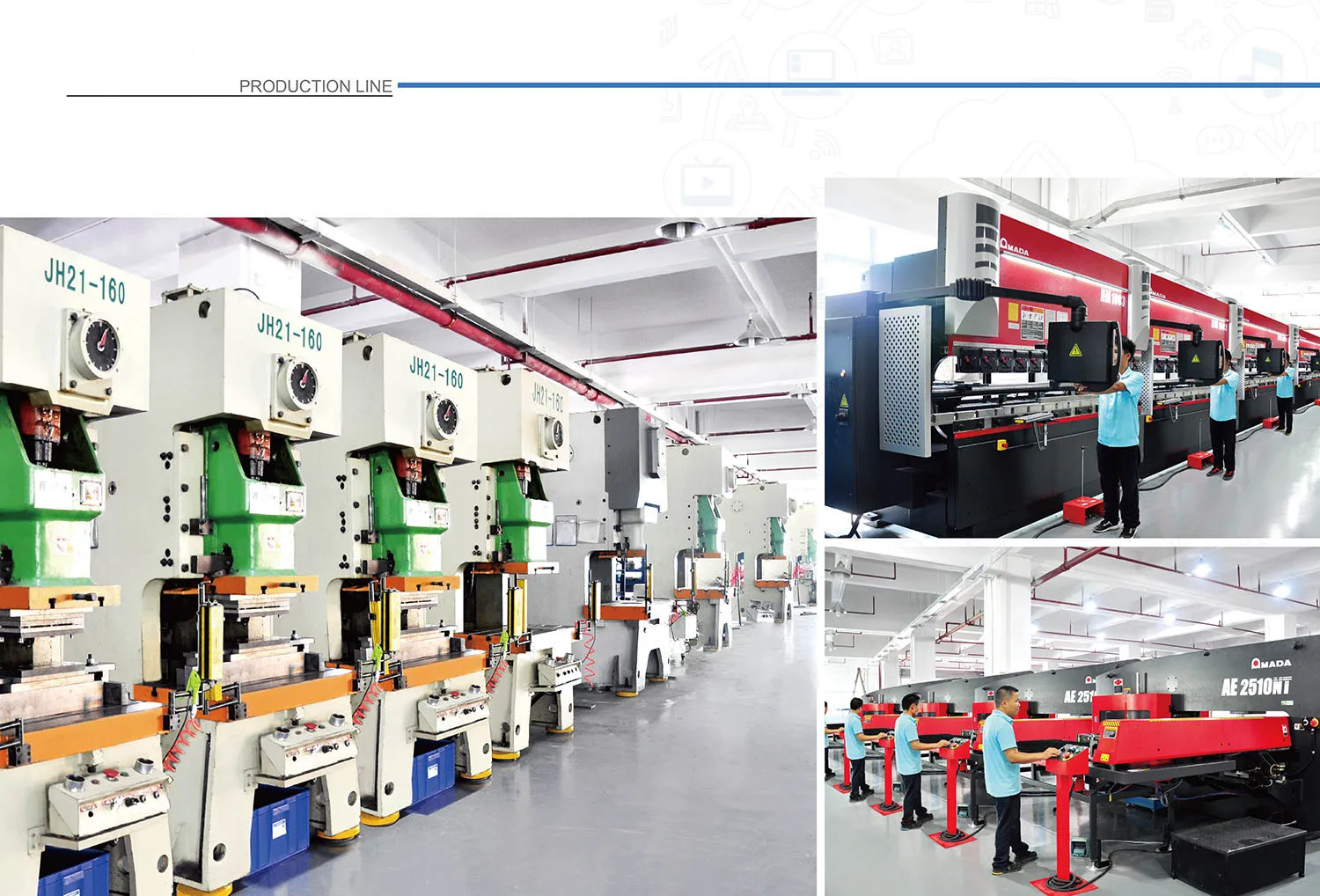

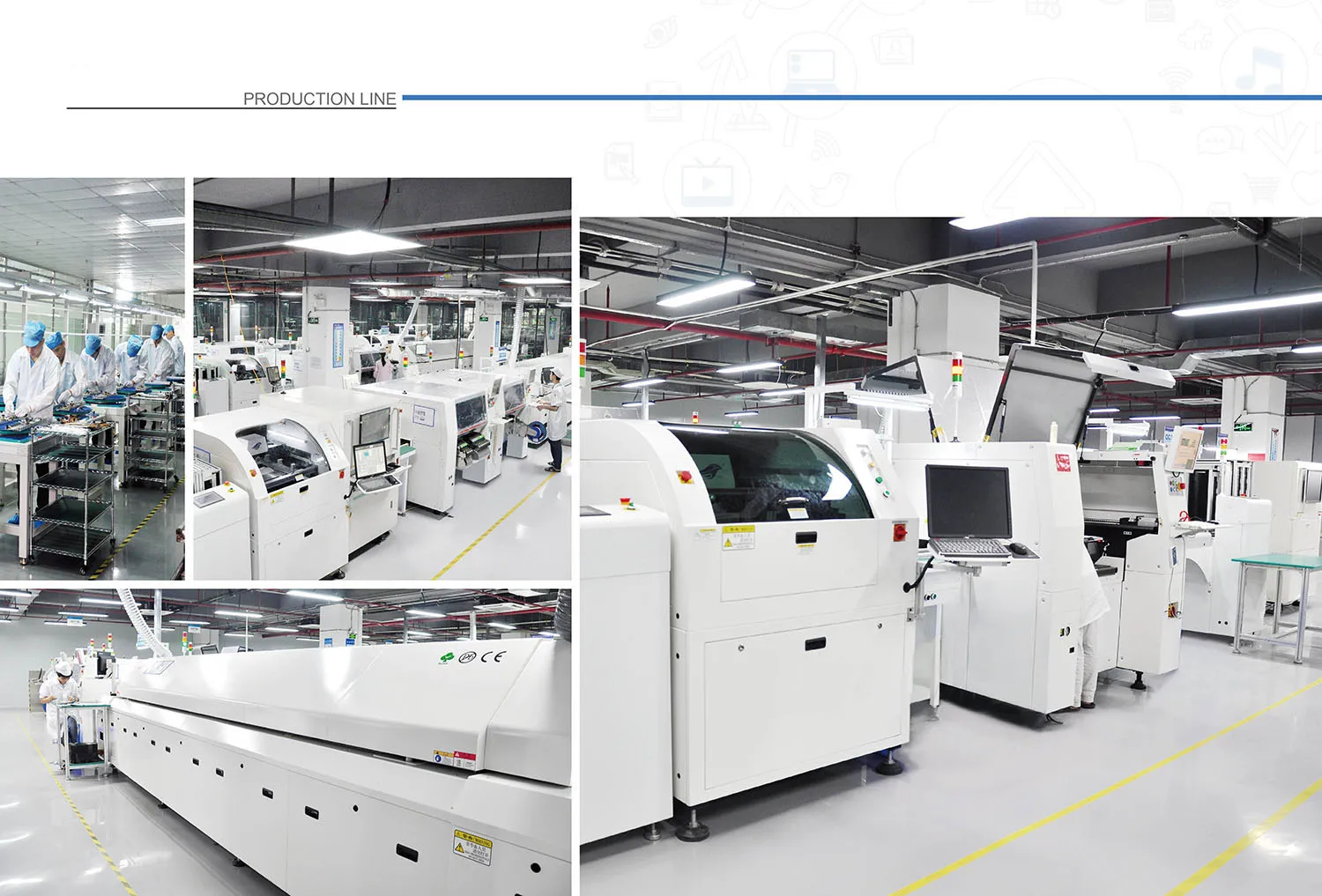

We own a complete integrated manufacturing system of production, processing and quality inspection, 2 production bases in Shenzhen and Dongguan of a total area over 30,000 m2, 12 productionlines, 3 SMT placement lines and an entire set of stamping, CNC, and other structural production platforms. As a server supplier for manifold Listed and large-scale enterprises, annual output of servers exceeds 300,000 units.
