PG36 Size Electrical Nylon Cable Connector
1.Model Number: PG nylon cable gland
2.Material:nylon/NBR
3.Size: PG7-PG63
1. Thread: PG, Metric, NPT, G,BSP,MG...standard.
2. Main Material:NYLON 66/EPDM rubber.

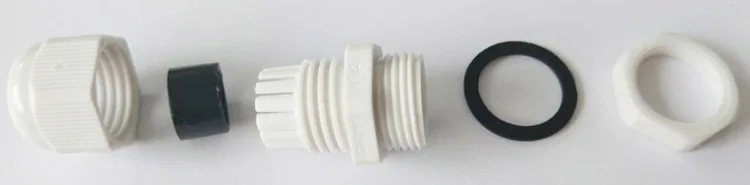

3. Use: Make this gland through the panel hole,then fixed it with nut;
4. More choice:Length added gland,many other sizes of seal,glands made of rubber EPDM for outdoor use.
Product Description

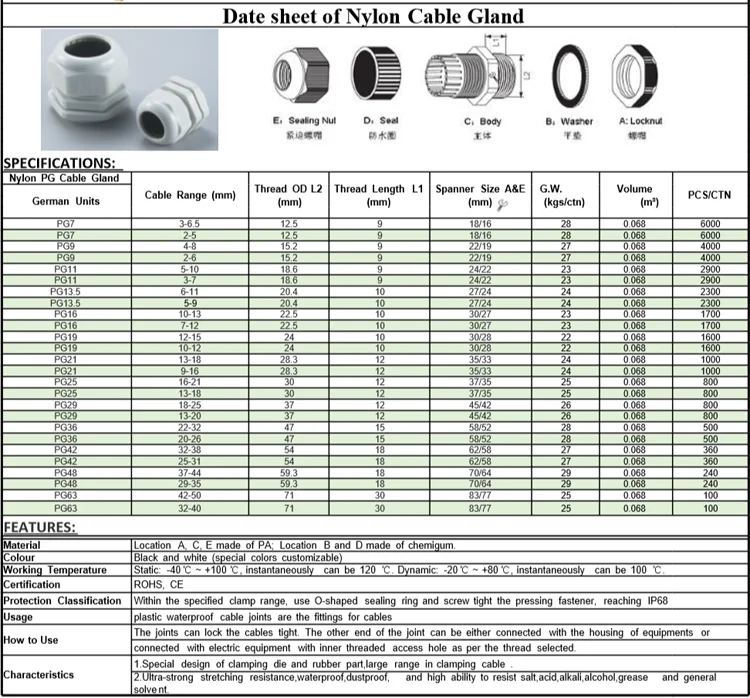

Product Name | PG36 Size Electrical Nylon Cable Connector |
Material | nylon |
Full size range | PG7-PG63 / Metric10-Metric100 / NPT1/4"-NPT 2" /MG12-MG63/BSP(G)1/4"-3" |
Tech | Injection |
Function | Connect cables to box or other enclosure |
Protection Classification | Within the specified clamp range, use O-shaped sealing ring and screw tight the pressing fastener, reaching IP68 |
Features | 1.Special design of clamping die and rubber part,large range in clamping cable . 2.Ultra-strong stretching resistance,waterproof,dustproof, and high ability to resist salt,acid,alkali,alcohol,grease and general solvent. |

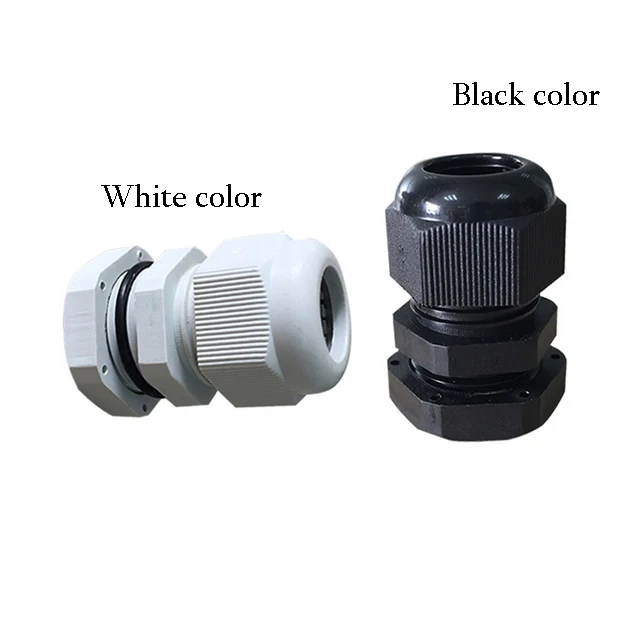

Color | White,Grey,Black or as assigned |
Brief Introduction
Short thread hole is suitable for thin boards or with internal thread device, long thread is suitable for thick plate type machine.
Fire rating
Within the scope of the provisions of card buckle, and use of type O sealing screw tight tight head, IP68-5 bar. UL94V - 2. Level up to where V0 fire protection level.
Working temperature
- 40 ℃ ~ + 100 ℃ short time can be up to + 120 ℃. (such as product specification, ROHS declaration of all can with the request for after purchase of products)
Packing & Delivery
Packing Details :50/100pcs in a plastic bag, then bags in the master cartons.
In case of LCL shipment, Woven bag or pallet may used.
Delivery Details : Around 7 to 15 days after received your payment.
1. Package with carton box
2. Stock in warehouse
3. All with PE film
4. Professional placement
5.Packaging process
6. Complete package
Our Company
Factory
Workshop
Warehouse
Team
Our Certifications
Customer Photo
Quick Delivery: within 30 days for one 4OHQ container.
Keep smooth delivery on time.
Best Service: fast delivery, strong package, good price, timely and effective communication
Our professional service team will be online for 24 hours.
FAQ
1).Do you provide samples?
Yes,we can offer the standard product sample freely,we do not bear the freight. Sample preparation will take some time, and if you asked to use DHL, Blue Dart Express, FedEx, etc. to send samples, you can inform us in advance to prepare.
2).How can I know the completion of my order?
Upon receipt of the deposit, we will immediately arrange for the production. After the order is completed, we will inspect and test all products carefully to ensure no damage and lost, we will also send you the detection images of your order before delivery for your to confirmation.
3).Can you guarantee your products?
Yes, we guarantee your 100% satisfaction on all our products. Please feel free to feedback us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order. For foreign orders, we ensure most accessories. In some special cases, we will give discount as a solution.
4).How can I know whether you are a reliable company?
We have our own paying member account in Alibaba.com by the real name authentication. If necessary, we can provide you with scanned copies of our Certifications.Welcome you to inspect our company at any time.
5).Can I visit your company?
Of course, we have a showroom in Hubei, China. If you want to order our products and visit our company, please contact us to make an appointment.
