Product Description
LSXC Hydraulic Rear Dump trailer 3 Axles 50 TONS Tipper Semi Truck Tipping Trailer For Sale
Vehicle parameters
| product Overview | ||||
| product name | rear tipping semi-trailer | Warranty Period/Certificate | 12 months | |
| transport medium | ore, sand | Production cycle | 15 days | |
| Dimensions | 9600×2500×3990mm | total mass | 72 tons | |
| dead weight | about 12 tons | load | 60 tons | |
| Product parameters (main configuration) | ||||
| Specification | Dimensions | 9600×2500×3990mm | Bearing surface size: | 8900*2300*1600mm |
| draw pin height | 1300mm | front/rear suspension | ||
| wheelbase | 1310mm | wheelbase | 1850mm | |
| Frame body configuration | ItemItem | material | Specification | |
| girders | Q345 | Height 500mm, width 140mm, upper wing plate 16mm, lower wing plate 18mm, vertical plate 14mm; | ||
| beam | Q345 channel steel | 100mm channel steel | ||
| Bottom and side panels | Q235 manganese plate | Bottom 8 Sides 6 | ||
| Accessories | suspension | 3-axle heavy-duty mechanical suspension | leaf spring | 100*16*10-6 racks |
| Axle Specification/Brand | 13T/1850 Fuhua | number of axles | 4 sticks | |
| Tire Size/Brand | 12R22.5 | Number of tires | 16 | |
| Steel ring specification/brand | 9.0-22.5 | Number of rims | 16 | |
| Outrigger Specifications/Brands | 28T/Asia China | Traction Pin Specifications | 50# or 90# interchangeable type | |
| hydraulic cylinder | 200-5-6800 Lifting Cylinder | |||
| Brake system | Brake valve brand | 1 WABCO | Brake chamber size/quantity | T30/30-6 only |
| Brake system | Emergency braking system, air brake, dual air pipelines, 6 T30/30 brake air chambers, two 40L air tanks | |||
| electrical circuit system | circuit socket | 7-hole socket | Voltage | 24 pay |
| lamps | LED lights | Two rear tail lights (including two steering lights, two brake lights, two constant lights), 8 side lights, and two rear tail triangular reflectors; | ||
| appendix | toolbox | 1 toolbox | tool | Axle wrench, rocker |
| Spare tire rack | 1 | |||
| color | according to customers needs | |||

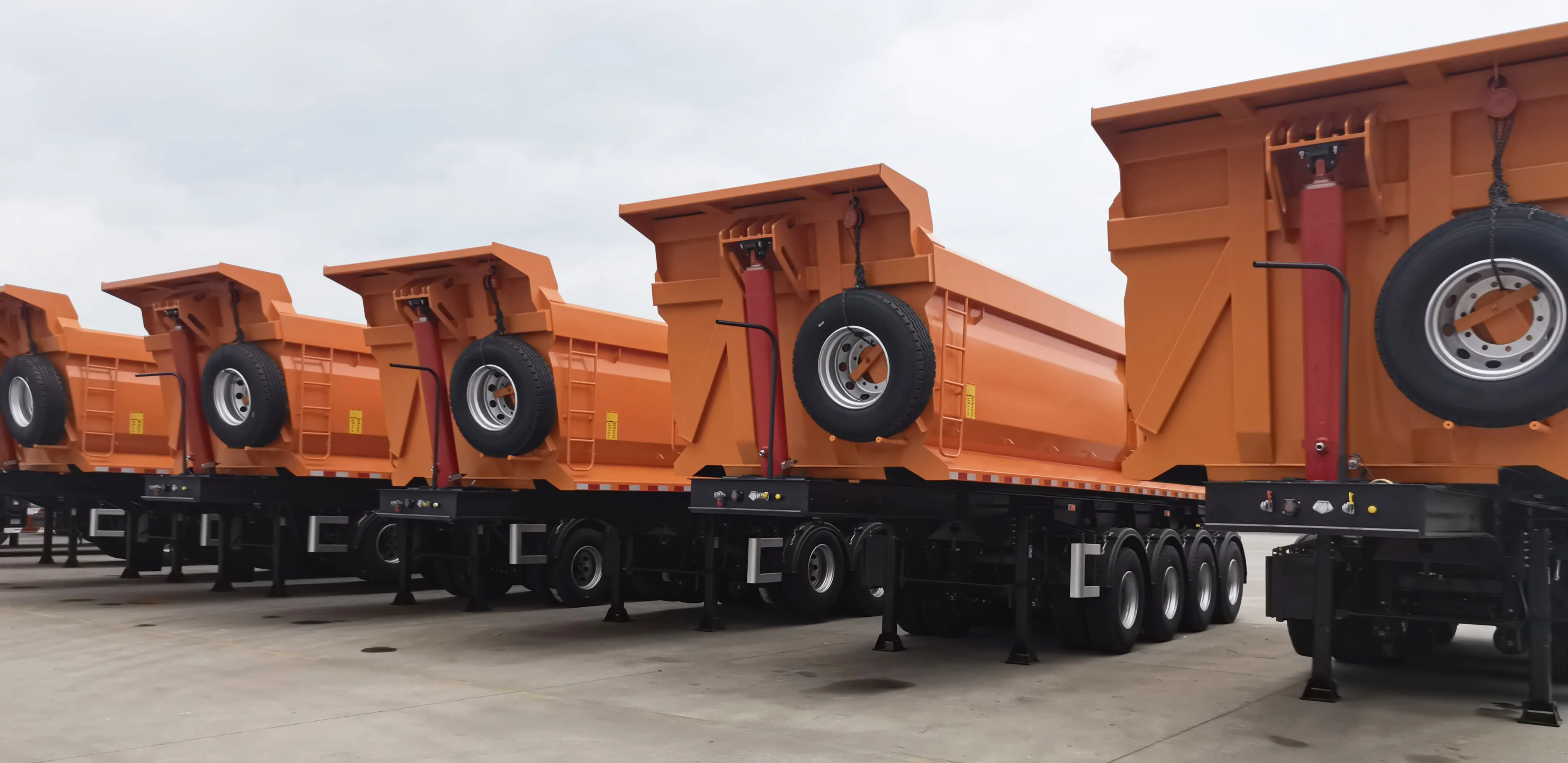

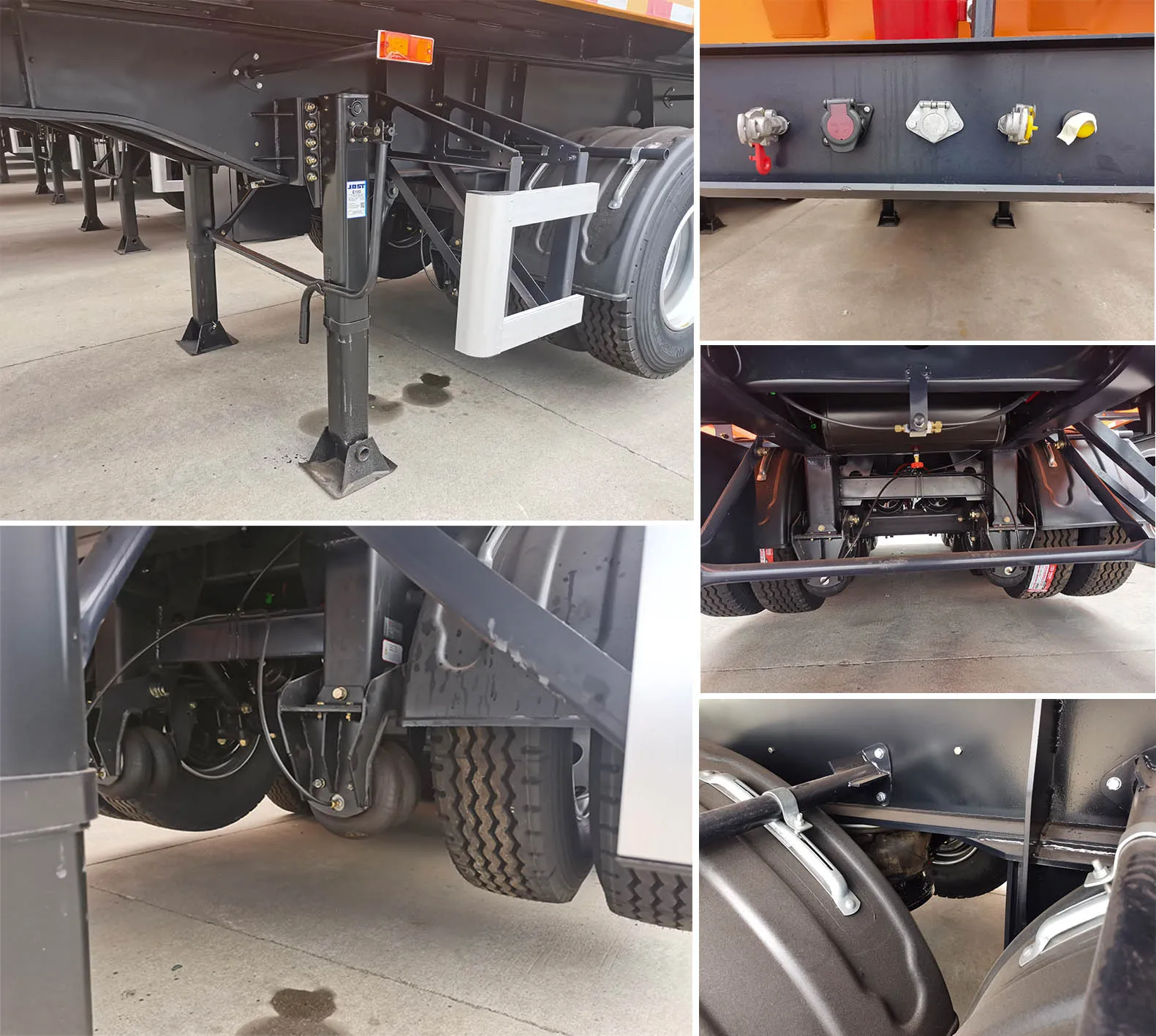

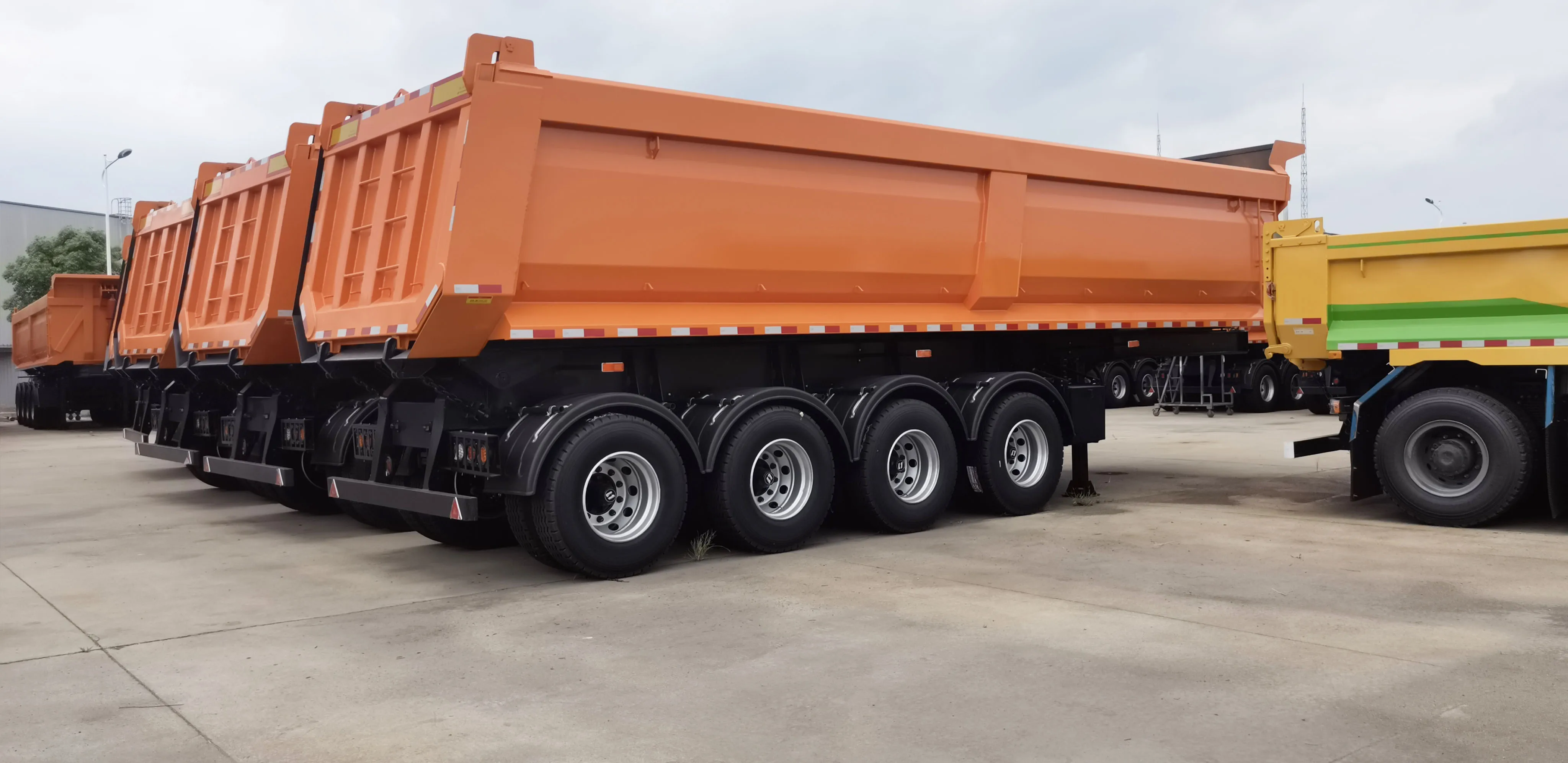

Details

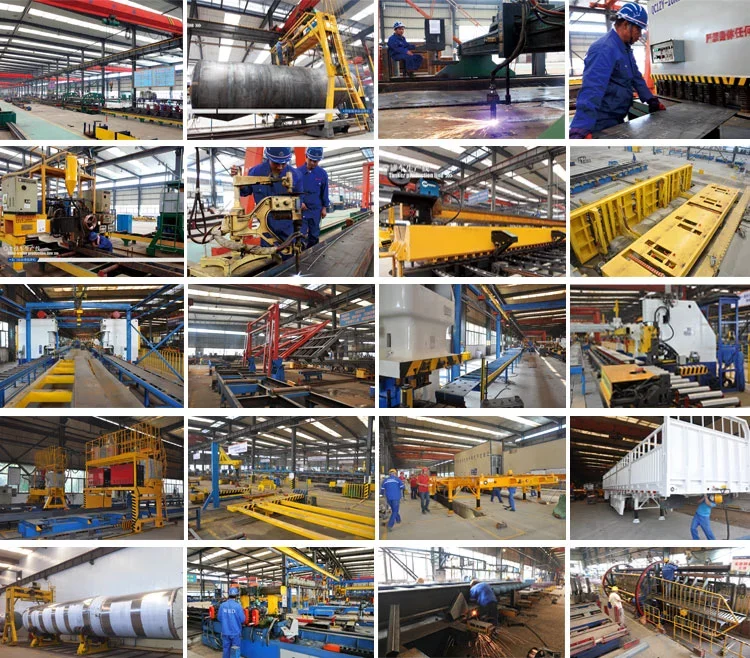

Factory Workshop
![%BOQU({RFH9[]_FD7`29SA.png](http://sc01.alicdn.com/kf/He32d69cca68e4557be858455764f86a7g/237780096/He32d69cca68e4557be858455764f86a7g.png)
Company Information
CSR Visit&Activities

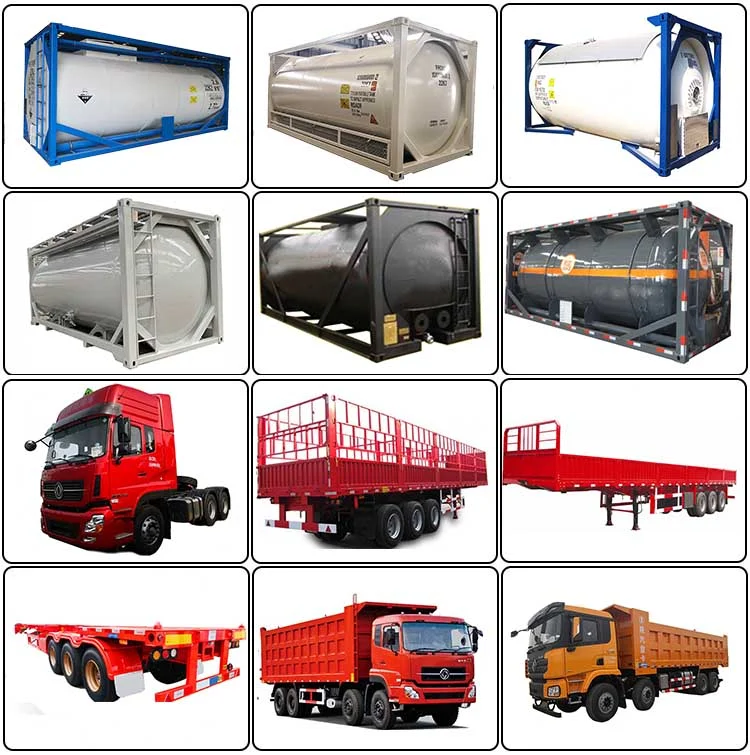

Other products
FAQ
Q:Why should we choose you?
A:Due to the Pricing Strategy,the same products, we can give you the lowest price.
Q:What kind of Payment can you accept?
A:T / T and L/C ,or D/P is all right to us.
Q:How long will it takes to ship?
A:Around 15-25 working days,it's up to the product and your needs.
Q:Do you have MOQ?
A:Actually no,1 Unit is ok.
Q: How about the Color , Specific configuration things?
A:It's up to you , most of them are optional and can be changed by your needs.
