OEM сервер RMC3116-670-HSE серверной стойки
- Категории: Computer Cases & Towers >>>
- Поставщик: Shenzhen,Gooxi,Information,Security,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Introduce
● Serverboard supports up to standard EEB 12"x13", backward supports to CEB and below
● Supports 7x full-height full length PCIe cards

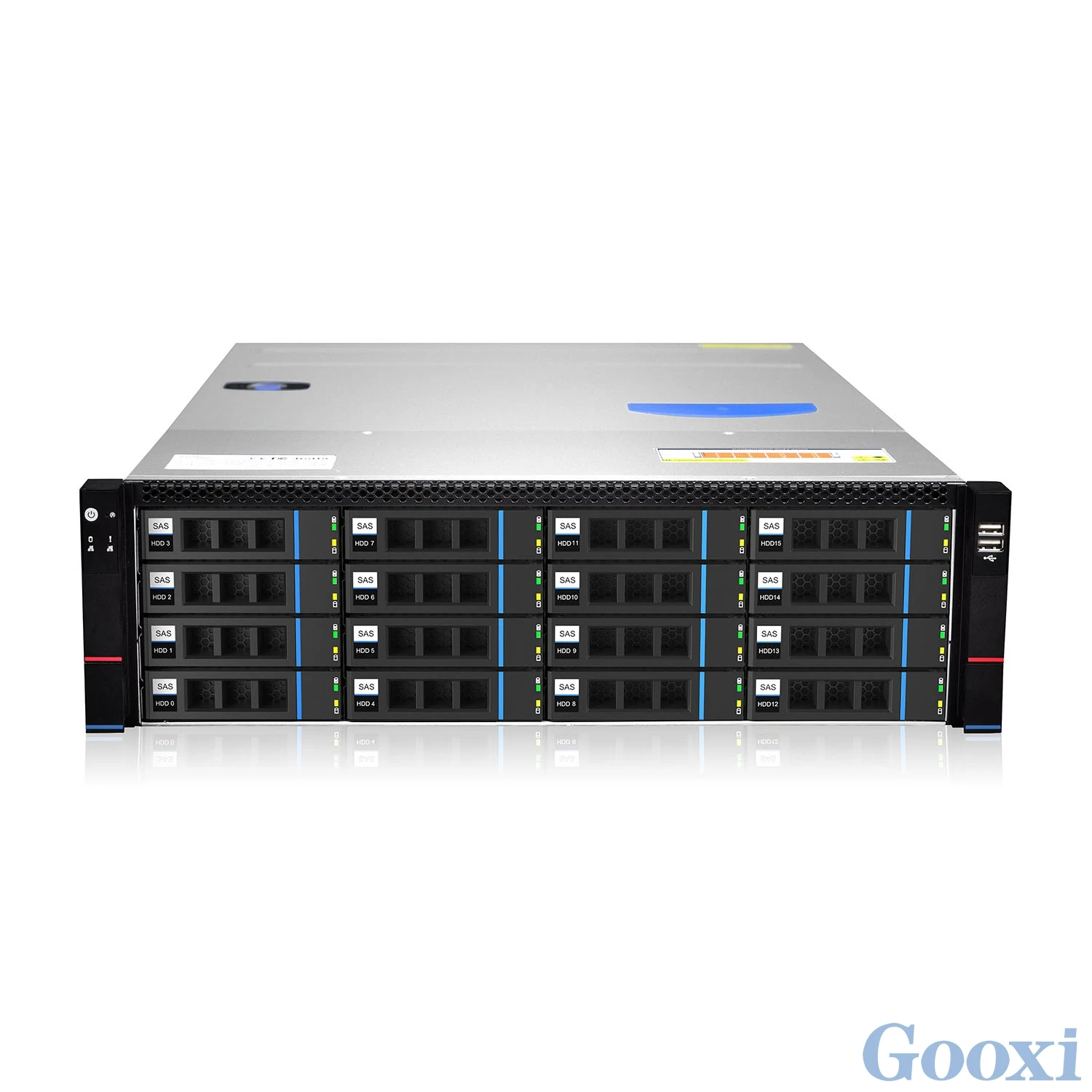

● Front 16x 3.5" hot-swap HDDs (2.5" HDD compatible) and rear 2x2.5" hot-swap HDDs
● Additional 2x2.5" internal HDDs support
● High-performance 3x12038 cooling fans with anti-vibration mechanism
● Smart system fan controlled by intelligent temperature management
● Supports 2U Single PSU or 1+1 Redundant PSU
● 12Gb/s SAS Expander backplane, compatible with SAS and SATA HDDs
Product Paramenters
Chassis | Rackmount |
Form Factor | 3U |
Serverboard | EEB (12"x13"), CEB (12"x10.5"), ATX (12"x9.6"), and micro ATX (9.6"x9.6") |
PSU Form Factor | 2U Single or 1+1 Redundant (CRPS) |
Backplane SGPIO | Supports |
HDD Backplane | 16-port 3.5" 12Gb/s SAS Expander backplane 2-port 2.5" 12Gb/s SAS passive backplane (option) |
HDD Hot-swap | Supports SAS and SATA HDD |
Hot-swap Fans | Supports |
HDD Drive | Front 16x3.5" Hot-swap HDDs (2.5" HDD compatible) Rear 2x 2.5" Hot-swap HDDs (option) Internal 2x2.5" HDDs |
Other Drive Bay | N/A |
Cooling Fans | Default 3x12038 Hot-swap middle fans |
Temperature Control | Supports system smart fan controlled by Serverboard |
Air Duct | Optional |
Expansion Slots | Supports 7x full-height full-length PCIe cards |
Slide Rail | Optional |
Indicators | 2x USB2.0, 1x Power Switch, 1x Reset, 1x Power LED, 1x HDD LED, 2x LAN Indicators |
Tool-less | N/A |
Metal Thickness | 1mm SGCC |
Chassis Dimensions | 670*444*132mm (DxWxH) |
Net Weight | 15.5 KG |
Carton Dimensions | 902*591*273mm (DxWxH） |
Gross Weight | 21.5 KG |
Certification | CE, FCC, RoHS |
Company Profile
Gooxi, a prominent provider of server solutions in China, offers a comprehensive range of hardware and software products. With a strong focus on research and development, Gooxi stands out by integrating R&D, production, sales, and service. Our product portfolio includes server and storage platforms, barebone system, motherboard, chassis, accessories, etc., catering to various sectors such as cloud computing and artificial intelligence.
Gooxi's independent R&D center in Shenzhen comprises a team of nearly 200 experts, covering all aspects of server development, from motherboard design to AI algorithms. We customize products based on customer needs and continuously invest in R&D to enhance their capabilities.

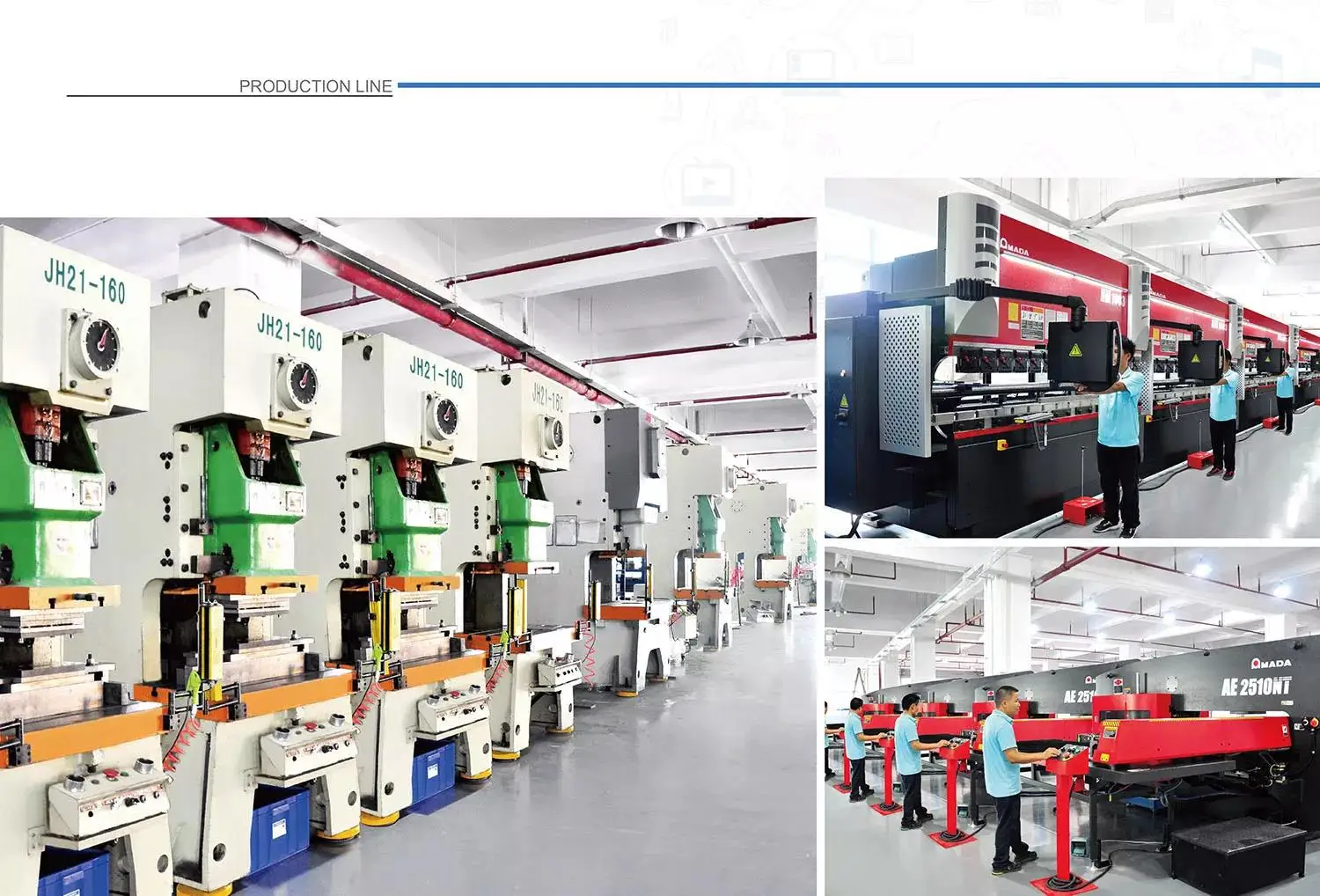

Gooxi's manufacturing system in Dongguan spans over 15,000 square meters, housing 12 production lines and advanced production platforms. With an annual output of over 300,000 servers, Gooxi has gained trust as a supplier for listed companies and large enterprises.
Gooxi has a global marketing service system. Headquartered in Shenzhen, it has established 4 major branches in Beijing, Dongguan, Shanghai and Hong Kong. It also has overseas business development departments, sales outlets, and cooperative dealers worldwide.
With about 10 years of experience, Gooxi remains committed to customer satisfaction and innovation, advancing in core technologies and obtaining many national intellectual property rights. Gooxi has made remarkable achievements in information innovation, and has established strategic partnerships with suppliers such as Intel, AMD, and Seagate.
Driven by integrity, collaboration, and innovation, Gooxi aims to be the world's top provider of server solutions.
Gooxi's independent R&D center in Shenzhen comprises a team of nearly 200 experts, covering all aspects of server development, from motherboard design to AI algorithms. We customize products based on customer needs and continuously invest in R&D to enhance their capabilities.
Gooxi's manufacturing system in Dongguan spans over 15,000 square meters, housing 12 production lines and advanced production platforms. With an annual output of over 300,000 servers, Gooxi has gained trust as a supplier for listed companies and large enterprises.
Gooxi has a global marketing service system. Headquartered in Shenzhen, it has established 4 major branches in Beijing, Dongguan, Shanghai and Hong Kong. It also has overseas business development departments, sales outlets, and cooperative dealers worldwide.
With about 10 years of experience, Gooxi remains committed to customer satisfaction and innovation, advancing in core technologies and obtaining many national intellectual property rights. Gooxi has made remarkable achievements in information innovation, and has established strategic partnerships with suppliers such as Intel, AMD, and Seagate.
Driven by integrity, collaboration, and innovation, Gooxi aims to be the world's top provider of server solutions.
Company Milestone
2008
Founded in Zhongguancun, Beijing.
Launched its first product-1U 4 tray H/S chassis, RM1004-660.
2009
Launched its first generation 2U 6 tray H/S chassis, RM2006-650, and 2U 12 tray RM2012-650 in November.
Registered and approved of 2 national intellectual property patents for SAS hot-swap circuit diagram and SAS High-speed signal
circuit layout.
Sales revenues passed 2 million USD.
2010
Shenzhen Guoxinhengyu Technology was built as production center. HongKong branch is established in the same year.
Launched its 3U 16-bay and 4U 24-bay to meet different requirement of various customer.
Registered and approved of 2 intellectual property patents for high-density storage architecture & design principle of EXPANDER
backplane in Shenzhen, China.
2011
Established strategic cooperative partnership with LSI to develop storage chassis.
Launched China's first SAS expander chassis RM3016-660-BE and high-density server chassis RM2024-660, breaking the server market
monopoly by Tier-1 brand. Sales value passed 5 million USD.
2012
Launched China's first SAS expander card.
Registered and approved of 4 national intellectual property patents: appearance of high-density server bezel and the bezel, the
integrative high-density server backplane and chassis.
Launched the 2nd generation hot-swap server chassis, RM1004-660, RM2008- 660 and RM2012-660. Product upgraded comprehensively.
Launched China's first 2U 4node, high-density server platform, 4U 10 node is published later in the same year.
Annual shipments of hot-swap chassis over 35,000 units, total shipment of all chassis over 100,000 units, and Gooxi becomes the
lead storage chassis factory in China.
2013
Established strategic partnership with Intel.
Launched IOT all-in-one machine, and passed the test of China national IOT organization & Intel IOT laboratory.
Sales revenues reach 9 million USD, own the biggest share in China.
2014
Shenzhen Guoxinhengyu Technology Co., Ltd. is founded to start server barebone research & development.
Launched China's first micro server motherboard in 3 month from scratch.
Co-operated closely with Intel® Embedded Design Center in deepening the strategic partnership.
Launched high-density storage platform based on RAM architecture, passed the test by China Telecom.
Registered and approved the national intellectual property patent for motherboard of high-density system and design principle of
high- density server backplane. Launched China's first micro blade sever barebone system, filled the gaps in native server
industry. Step into overseas markets & compete with global players.
2015
Launched first generation high-density, modular single/dual and storage server system.
Set up Gooxi USA Office in Fremont, California.
Global revenue is over 60 million RMB (9.2 million USD) through expanding Gooxi's global market in Germany, United State and more
countries.
Awarded as high-tech enterprise in Shenzhen.
2016
First generation of dual/quad nodes server and storage system is released.
Gooxi is qualified as the national high-tech enterprise & software certification.
Overall 71 inventions on Gooxi products are accomplished, including software copyrights, exterior design patents & many more
patents are registered and approved by Shenzhen authority.
2017
The 4th Generation 4th server chassis released.
The 2nd Generation Purley General Server is published.
Established USA branch and Taiwan R&D center.
Reached historic high revenue 180 million RMB (23 million USD), with Global growth by 50%.
2018
Established Dongguan Office, built several SMT production lines, servers's output over 200,000.
2019
2008
Founded in Zhongguancun, Beijing.
Launched its first product-1U 4 tray H/S chassis, RM1004-660.
2009
Launched its first generation 2U 6 tray H/S chassis, RM2006-650, and 2U 12 tray RM2012-650 in November.
Registered and approved of 2 national intellectual property patents for SAS hot-swap circuit diagram and SAS High-speed signal
circuit layout.
Sales revenues passed 2 million USD.
2010
Shenzhen Guoxinhengyu Technology was built as production center. HongKong branch is established in the same year.
Launched its 3U 16-bay and 4U 24-bay to meet different requirement of various customer.
Registered and approved of 2 intellectual property patents for high-density storage architecture & design principle of EXPANDER
backplane in Shenzhen, China.
2011
Established strategic cooperative partnership with LSI to develop storage chassis.
Launched China's first SAS expander chassis RM3016-660-BE and high-density server chassis RM2024-660, breaking the server market
monopoly by Tier-1 brand. Sales value passed 5 million USD.
2012
Launched China's first SAS expander card.
Registered and approved of 4 national intellectual property patents: appearance of high-density server bezel and the bezel, the
integrative high-density server backplane and chassis.
Launched the 2nd generation hot-swap server chassis, RM1004-660, RM2008- 660 and RM2012-660. Product upgraded comprehensively.
Launched China's first 2U 4node, high-density server platform, 4U 10 node is published later in the same year.
Annual shipments of hot-swap chassis over 35,000 units, total shipment of all chassis over 100,000 units, and Gooxi becomes the
lead storage chassis factory in China.
2013
Established strategic partnership with Intel.
Launched IOT all-in-one machine, and passed the test of China national IOT organization & Intel IOT laboratory.
Sales revenues reach 9 million USD, own the biggest share in China.
2014
Shenzhen Guoxinhengyu Technology Co., Ltd. is founded to start server barebone research & development.
Launched China's first micro server motherboard in 3 month from scratch.
Co-operated closely with Intel® Embedded Design Center in deepening the strategic partnership.
Launched high-density storage platform based on RAM architecture, passed the test by China Telecom.
Registered and approved the national intellectual property patent for motherboard of high-density system and design principle of
high- density server backplane. Launched China's first micro blade sever barebone system, filled the gaps in native server
industry. Step into overseas markets & compete with global players.
2015
Launched first generation high-density, modular single/dual and storage server system.
Set up Gooxi USA Office in Fremont, California.
Global revenue is over 60 million RMB (9.2 million USD) through expanding Gooxi's global market in Germany, United State and more
countries.
Awarded as high-tech enterprise in Shenzhen.
2016
First generation of dual/quad nodes server and storage system is released.
Gooxi is qualified as the national high-tech enterprise & software certification.
Overall 71 inventions on Gooxi products are accomplished, including software copyrights, exterior design patents & many more
patents are registered and approved by Shenzhen authority.
2017
The 4th Generation 4th server chassis released.
The 2nd Generation Purley General Server is published.
Established USA branch and Taiwan R&D center.
Reached historic high revenue 180 million RMB (23 million USD), with Global growth by 50%.
2018
Established Dongguan Office, built several SMT production lines, servers's output over 200,000.
2019
Released 9 series new products, including X86 & localization platform series products.
2020
Gooxi 5th Generation chassis formaly released.
Pushed Phytium, Loongson, Hygon,etc. localization servers.
Gooxi 5th Generation chassis formaly released.
Pushed Phytium, Loongson, Hygon,etc. localization servers.
Qualification & Honor
Gooxi Corporation owns 250 patents:
108 patents of invention
79 utility models
31 outward appearance patents
32 software copyrights
108 patents of invention
79 utility models
31 outward appearance patents
32 software copyrights
Contact Us
Cathy Wu Sales Dept.
Email: Cathywu@gooxi.com
Tel: +86 13552027270
Add: Omin Industrial park, Shui Lang Village, Dalingshan Town, Dongguan, Guangdong, China.
