Product Description
M12/M15/M16/M20 PA66 Wire Waterproof Cable Over Mold Connector for Lighting
Items | Pins | Part Number | Wire Gauge | Cable OD |
M12 | 2 | AH-M12-0502FMN/MFN01112 | ≤1.0mm² | 3.5mm-7.5mm |
M12 | 3 | AH-M12-0503FMN/MFN01112 | ≤1.0mm² | 3.5mm-7.5mm |
M15 | 2 | AH-M15-0802FMN/MFN01112 | ≤0.75mm² | 3.5mm-8.9mm |
M15 | 3 | AH-M15-0803FMN/MFN01112 | ≤0.75mm² | 3.5mm-7.5mm |
M16 | 2 | AH-M16-1002FMN/MFN01112 | ≤1.5mm² | 6.0mm-8.3mm |
M16 | 3 | AH-M16-1003FMN/MFN01112 | ≤1.5mm² | 6.0mm-8.3mm |
M20 | 2 | AH-M20-1502MMN/FFN01112 | ≤4.0mm² | 6mm-12mm |
M20 | 3 | AH-M20-1503MMN/FFN01112 | ≤2.5mm² | 6mm-12mm |
Mechanical Life | 3000 mating cycles |
Operating Rating | -40ºC-+105ºC |
Waterproof Level | IP67/IP68 |
Related Product
Our Advantages
Application
Application
1. Over mold connector M12: male panel connector to female inline connector
2.Quality Assurance: IP67 advanced protetion,operating temperature:-40°C-+105°C.
3.Easy Install: The installation process is very simple.
4.Material: nylon connector with PVC or rubber cable; Gold plated brass
5.High-Quality Materials: The Outdoor connector all are made high quality Nylon PA66,high temperature resistant,94V-0 flame retardant.
6.2, 3, 4, 5, 6, 7, 8 pin for choices.
2,3 pin passed UL,CE,RoHS certificate.
7.Suitable for LED billboards,LED tunnel lights,LED Road landscape lighting,LED outdoor display,LED Garden spike light and so on.
Further application in coastal,outdoor engineering,mining engineering,solar wind power,solar water heaters,various machinery and equipment.
2.Quality Assurance: IP67 advanced protetion,operating temperature:-40°C-+105°C.
3.Easy Install: The installation process is very simple.
4.Material: nylon connector with PVC or rubber cable; Gold plated brass
5.High-Quality Materials: The Outdoor connector all are made high quality Nylon PA66,high temperature resistant,94V-0 flame retardant.
6.2, 3, 4, 5, 6, 7, 8 pin for choices.
2,3 pin passed UL,CE,RoHS certificate.
7.Suitable for LED billboards,LED tunnel lights,LED Road landscape lighting,LED outdoor display,LED Garden spike light and so on.
Further application in coastal,outdoor engineering,mining engineering,solar wind power,solar water heaters,various machinery and equipment.
Certification: | CE IP67 ROHS certification |
Packing: | 4 per pack(Comes with 2 sets of different sized grommets to accommodate different size wires.) |
Cable Range: | 5.5-7.5mm/7.5-9.5mm(If you use a cable which is too thin,then the seal won't even cover IP67!!) |
Waterproof rating: | IP67/IP68 adcanced waterproof connector |
Rated voltage: | ≤300V |
Rated current: | ≤5A |
Working Temperature: | -40°C~+105°C |
Materal: | palstic(nylon),seal ring(silicon) |
Color: | Black |
Connection method: | The solder plug is easy to install,male and female can be separated and easy to install. |
Scope of application: | connectors are suitable for quick connection of garden and outdoor dispalys,floof heating,beacons,cruise ships,LED billboards,LED tunnel lights,LED street lights,external wiring,ect. |

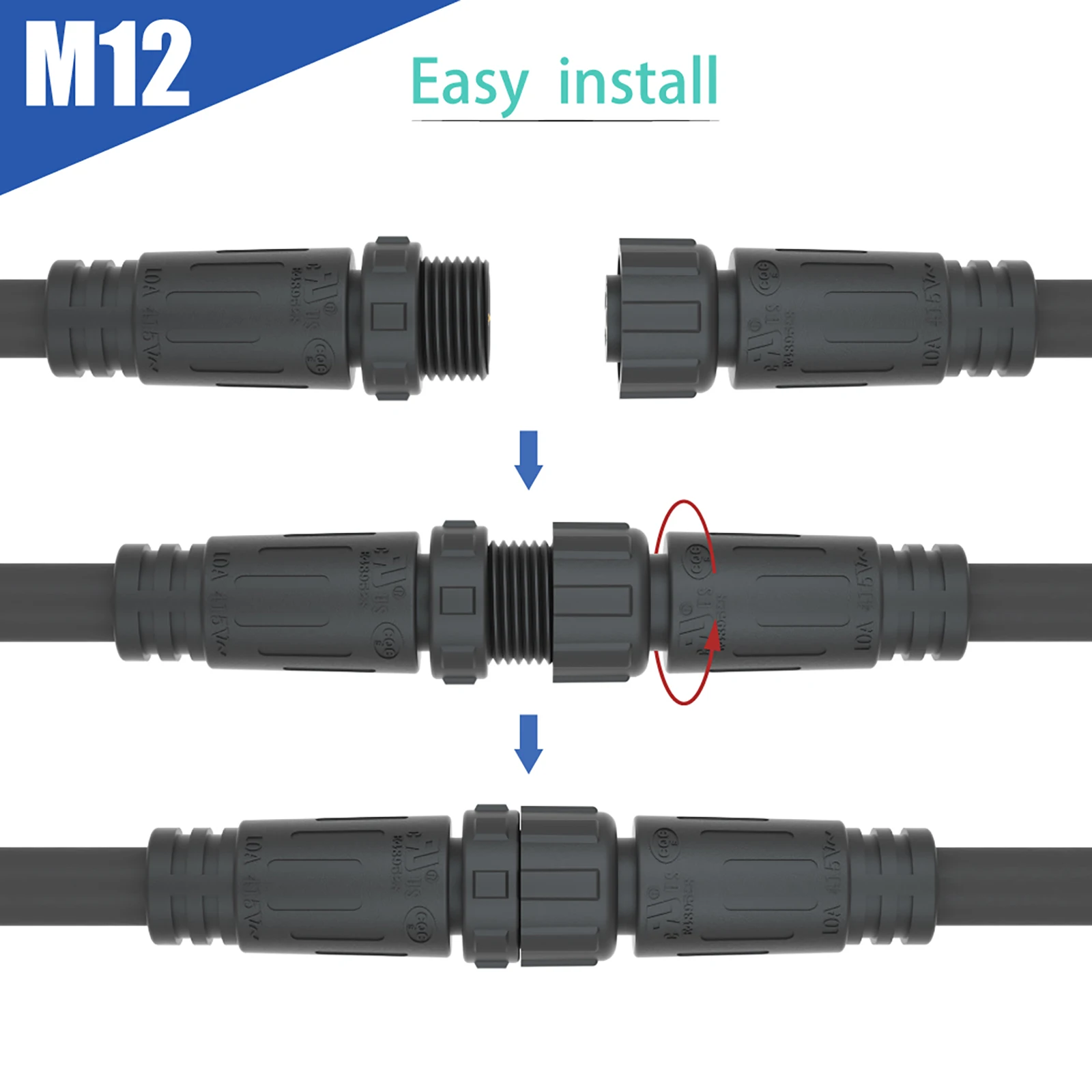

Useage: | Twist the port of the waterproof connector,insert the wire directly,tighten the screw with a screwdriver to secure the wire,and the close the cap, Please make sure connect the wire corrent. |
Note : | when finished,check that all nuts are tight. |
Before get the quotation, please tell us the connection of waterproof connector.
(1)Type:Solder type or screw fixing type;
(2) The voltage rating:such as 110V;300V...
(3)The current rating:such as 10A,25A...
(4)Wire gauge:≤0.5mm²;≤0.75mm²;≤1.5mm²...
(5)Cable OD(over diameter): 5.5mm;6mm...
(6)Wire size:2*18AWG;3*20AWG...
Then AOHUA team will answer you and choose the correct waterproof connector for you within 24h.
(1)Type:Solder type or screw fixing type;
(2) The voltage rating:such as 110V;300V...
(3)The current rating:such as 10A,25A...
(4)Wire gauge:≤0.5mm²;≤0.75mm²;≤1.5mm²...
(5)Cable OD(over diameter): 5.5mm;6mm...
(6)Wire size:2*18AWG;3*20AWG...
Then AOHUA team will answer you and choose the correct waterproof connector for you within 24h.

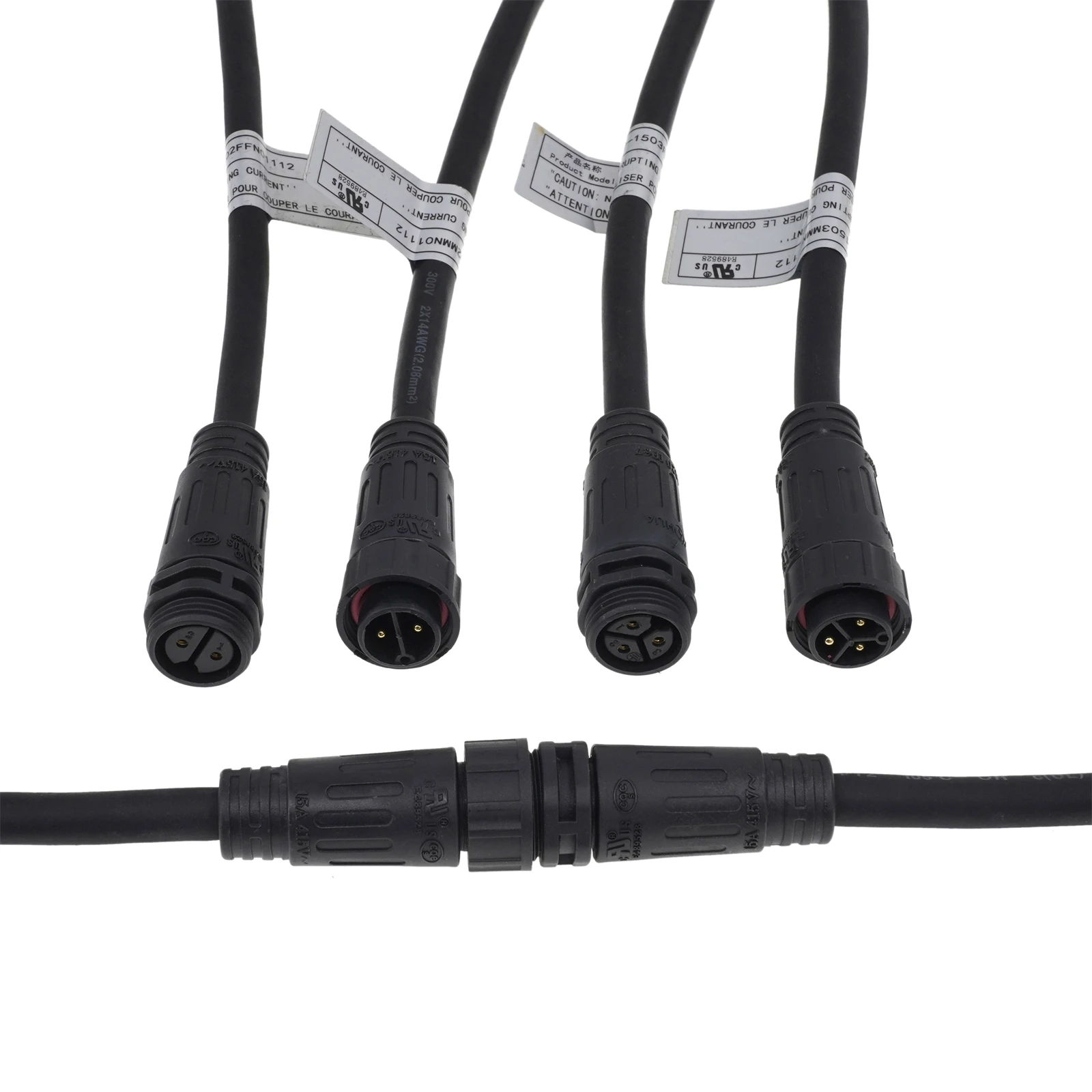

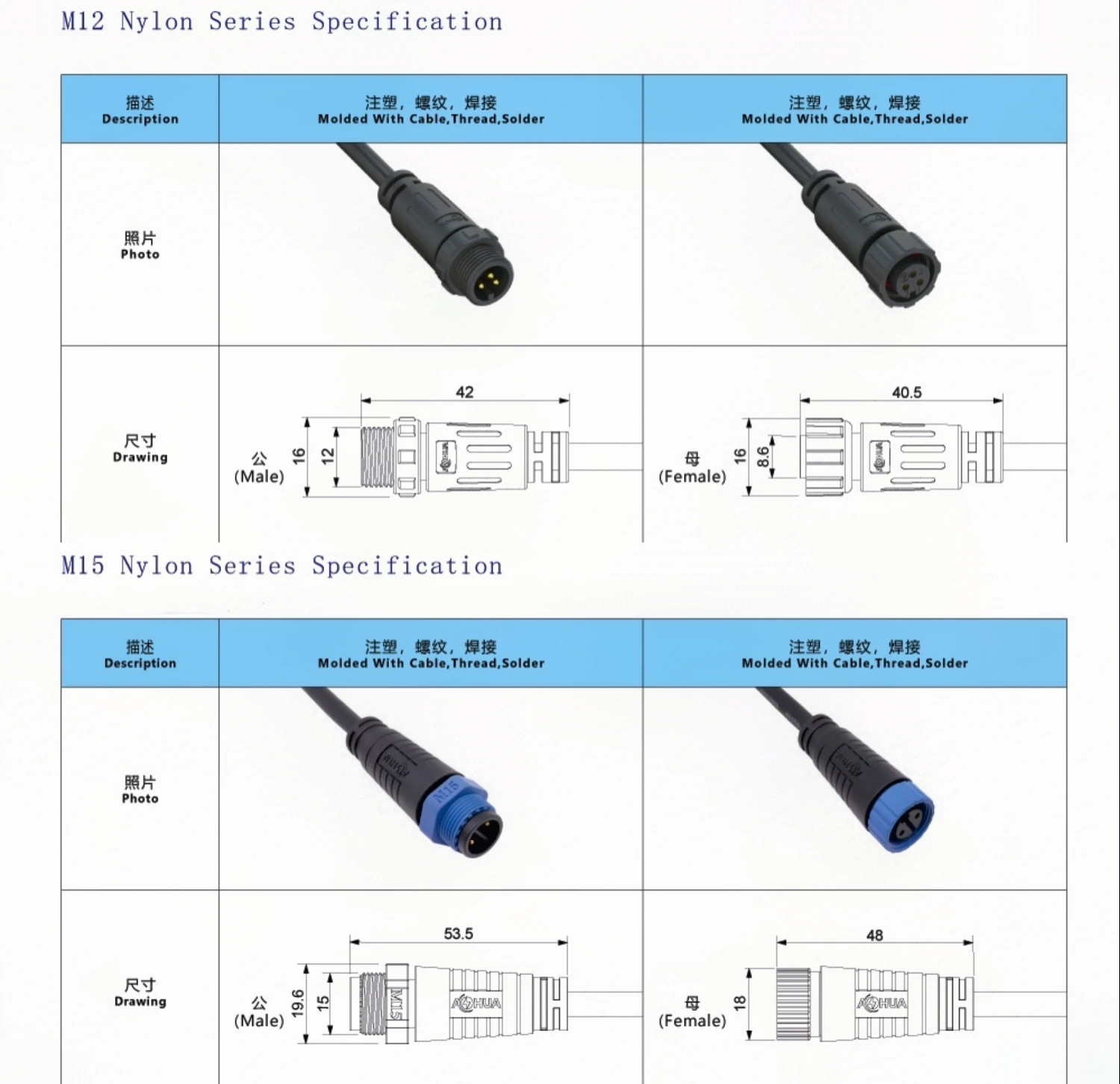

Details Pictures

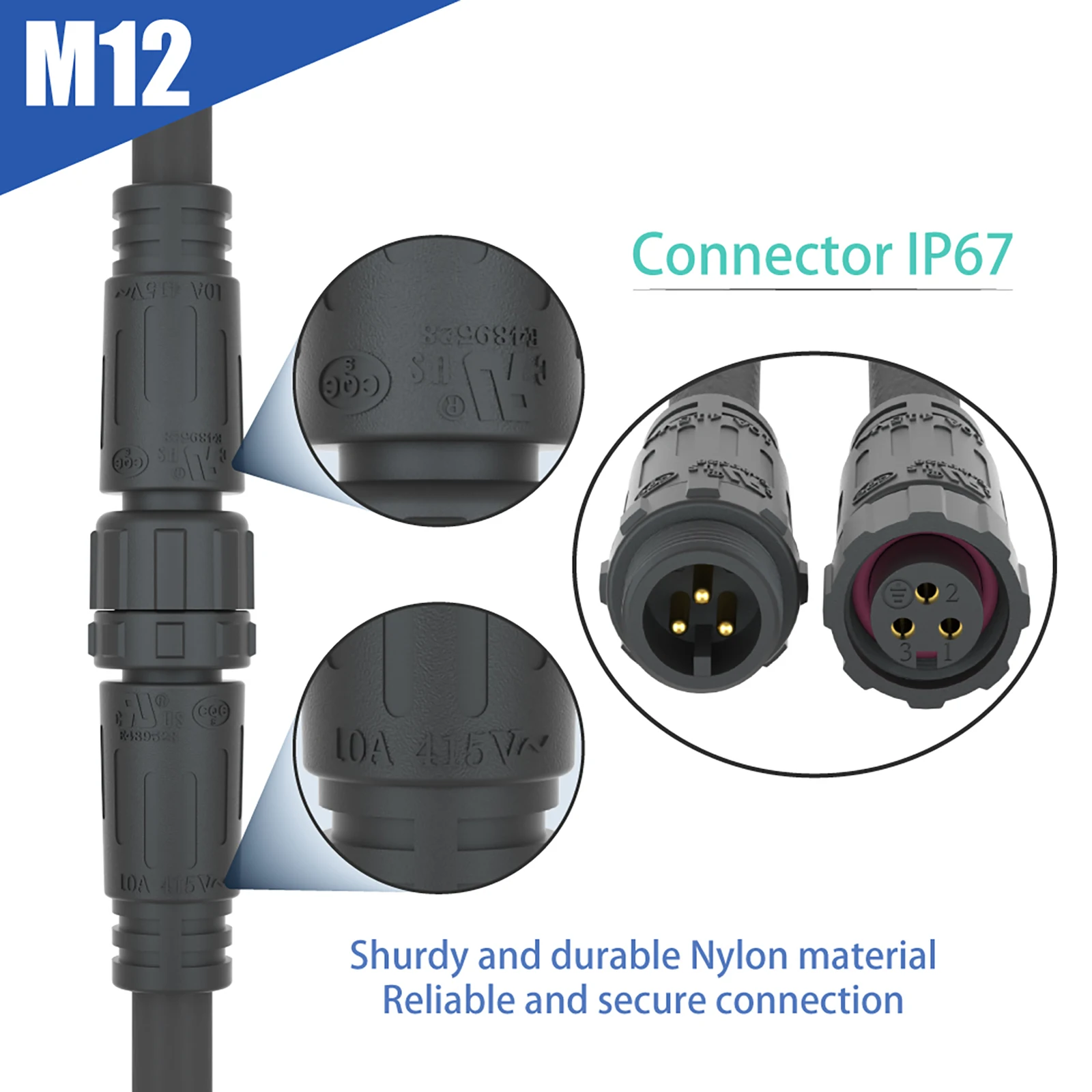

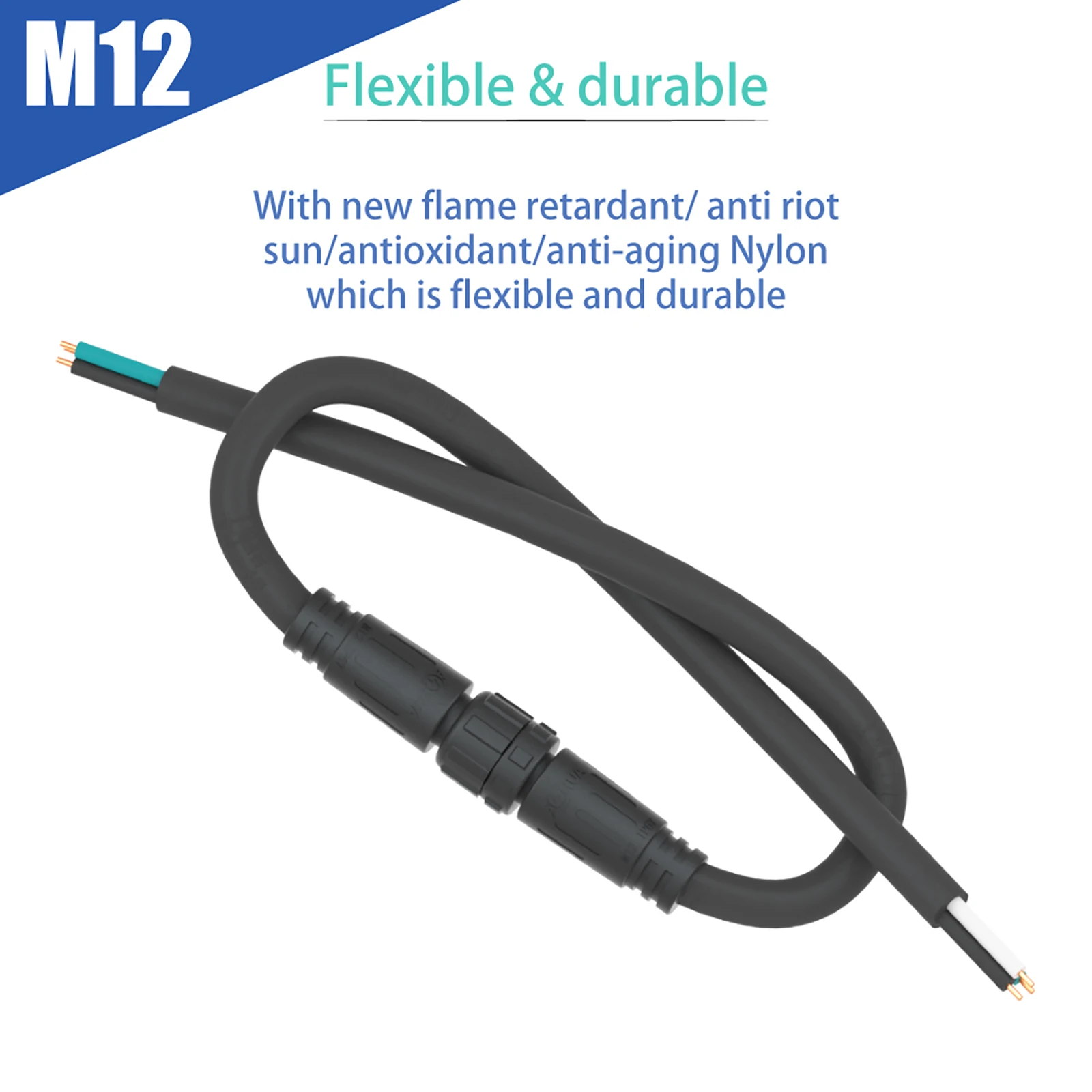

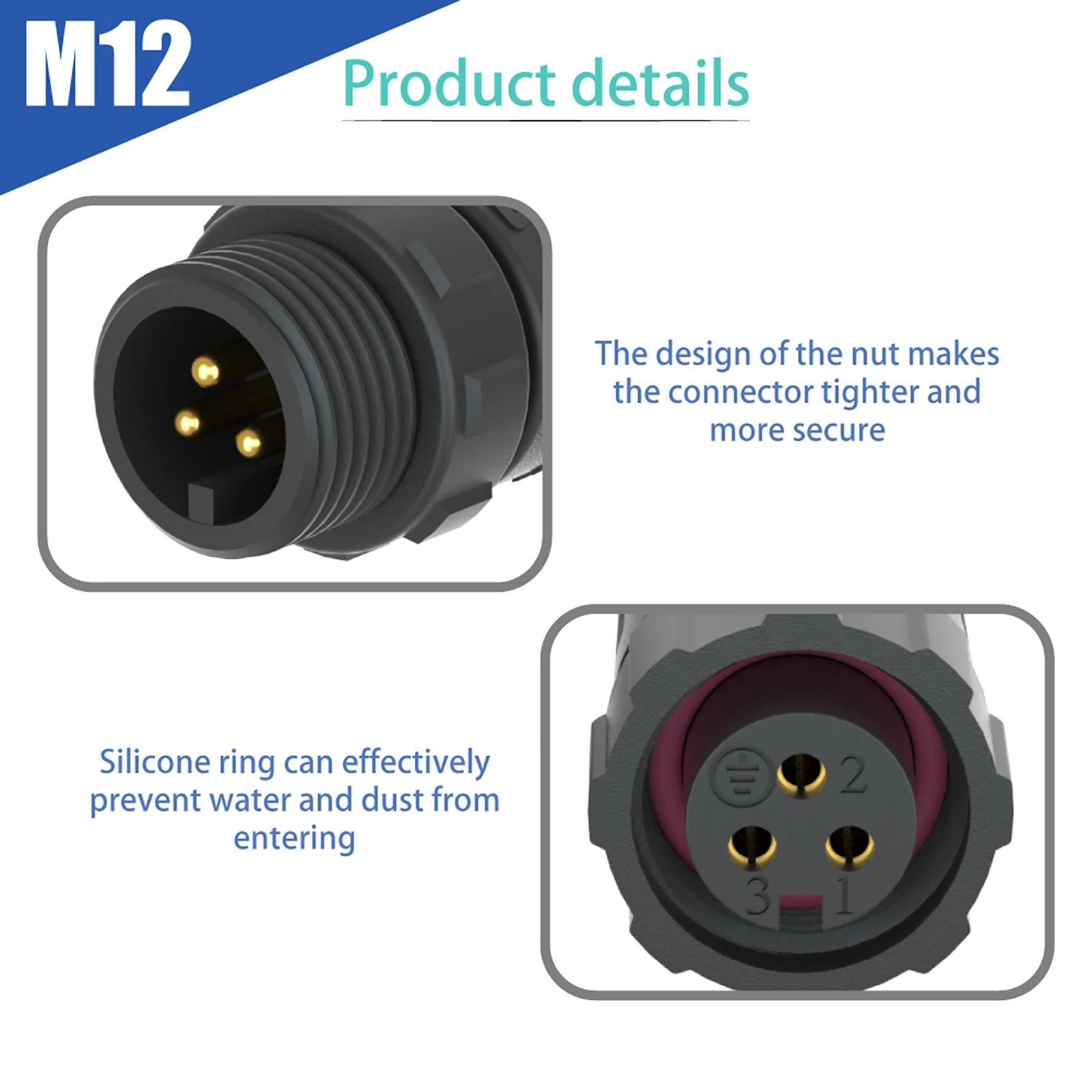

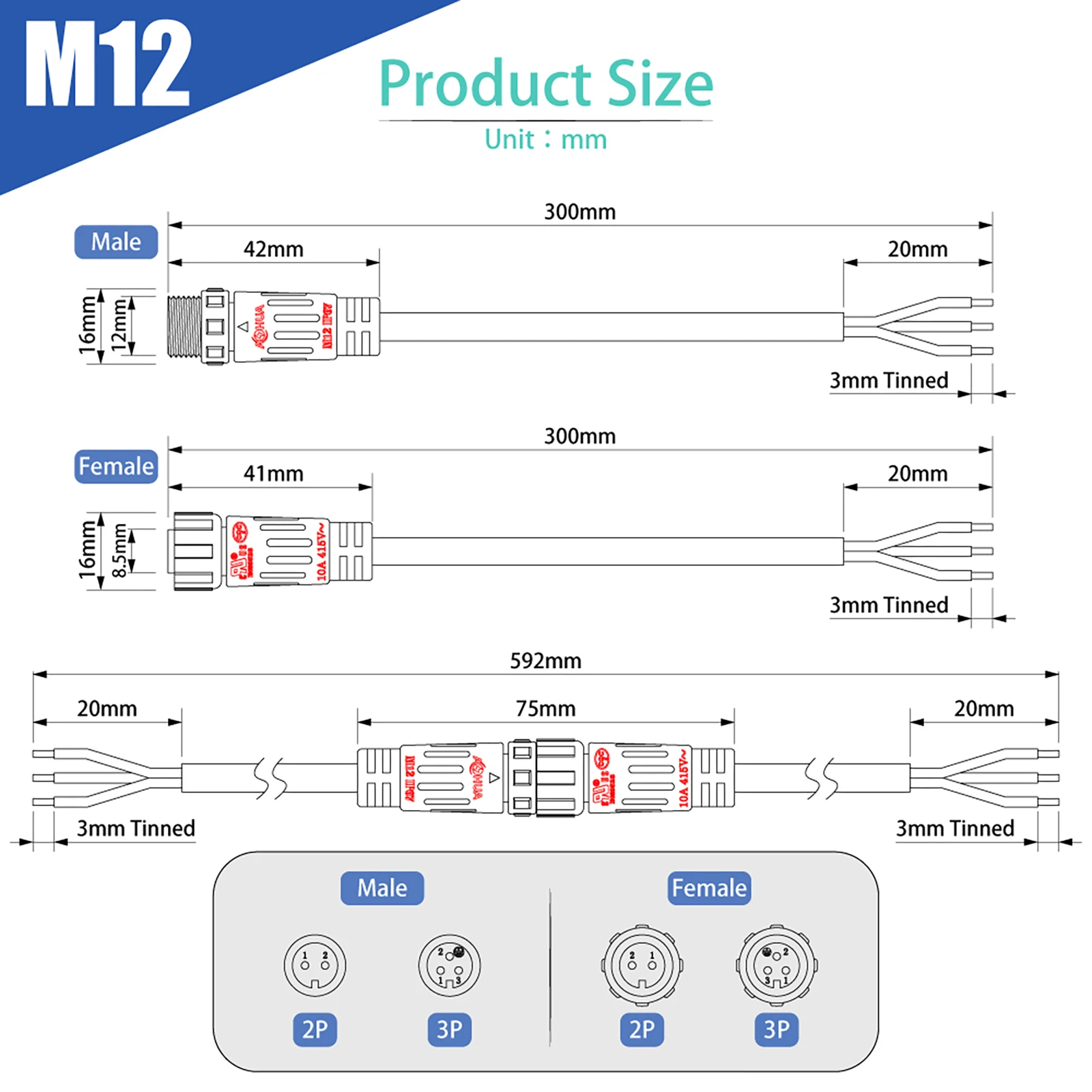

M12 PA66 Wire Waterproof Cable Over Mold Connector for Lighting

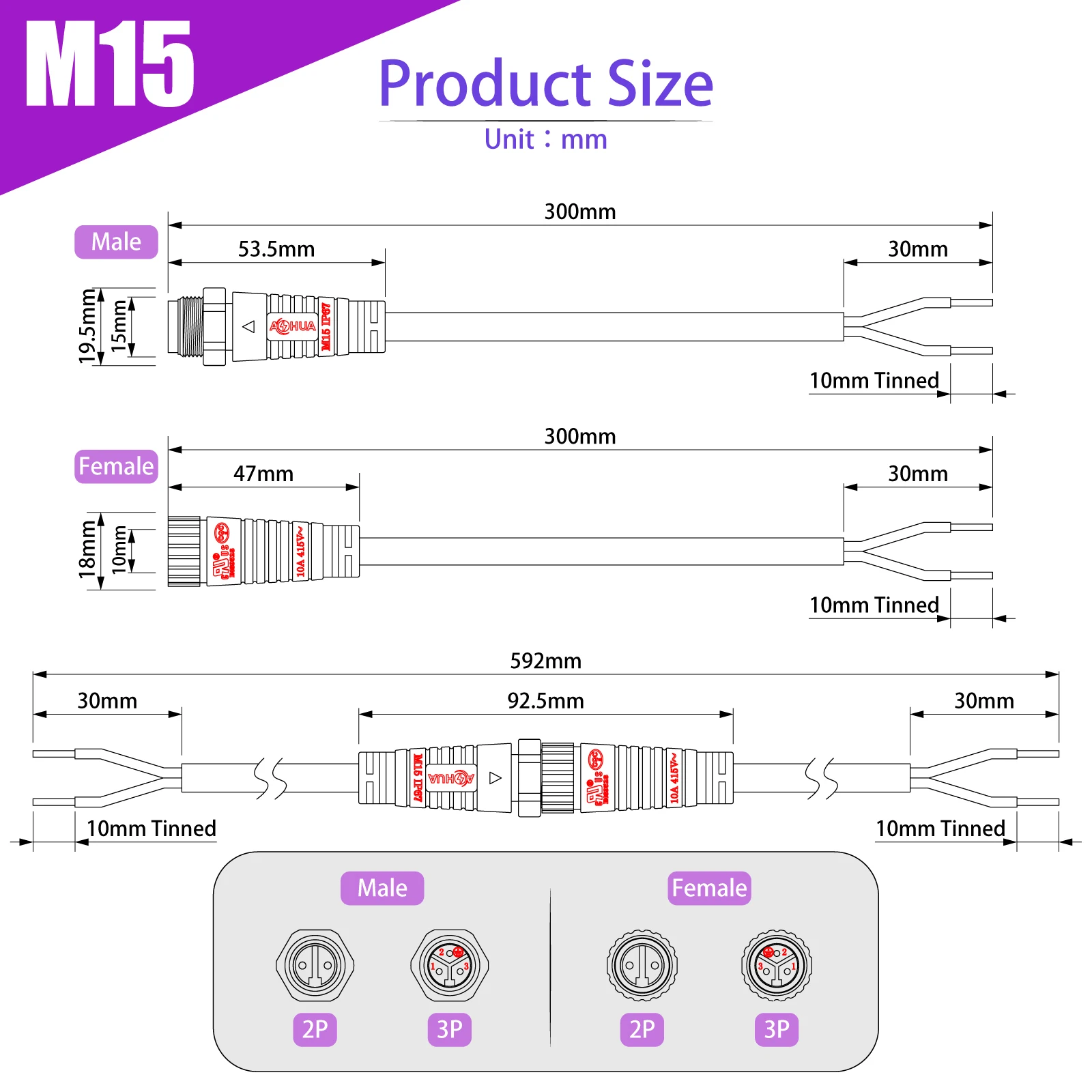

M15 PA66 Wire Waterproof Cable Over Mold Connector for Lighting

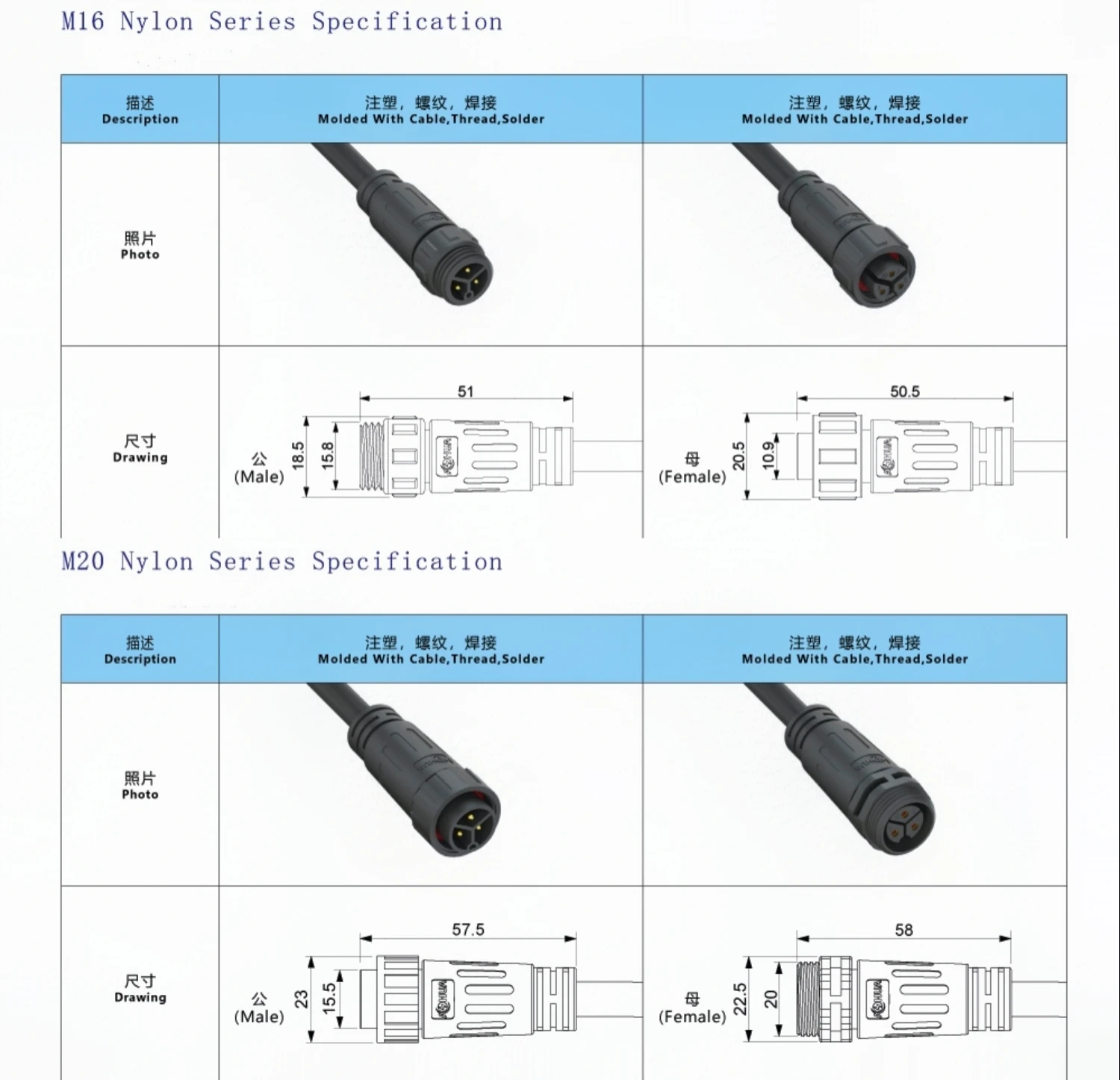

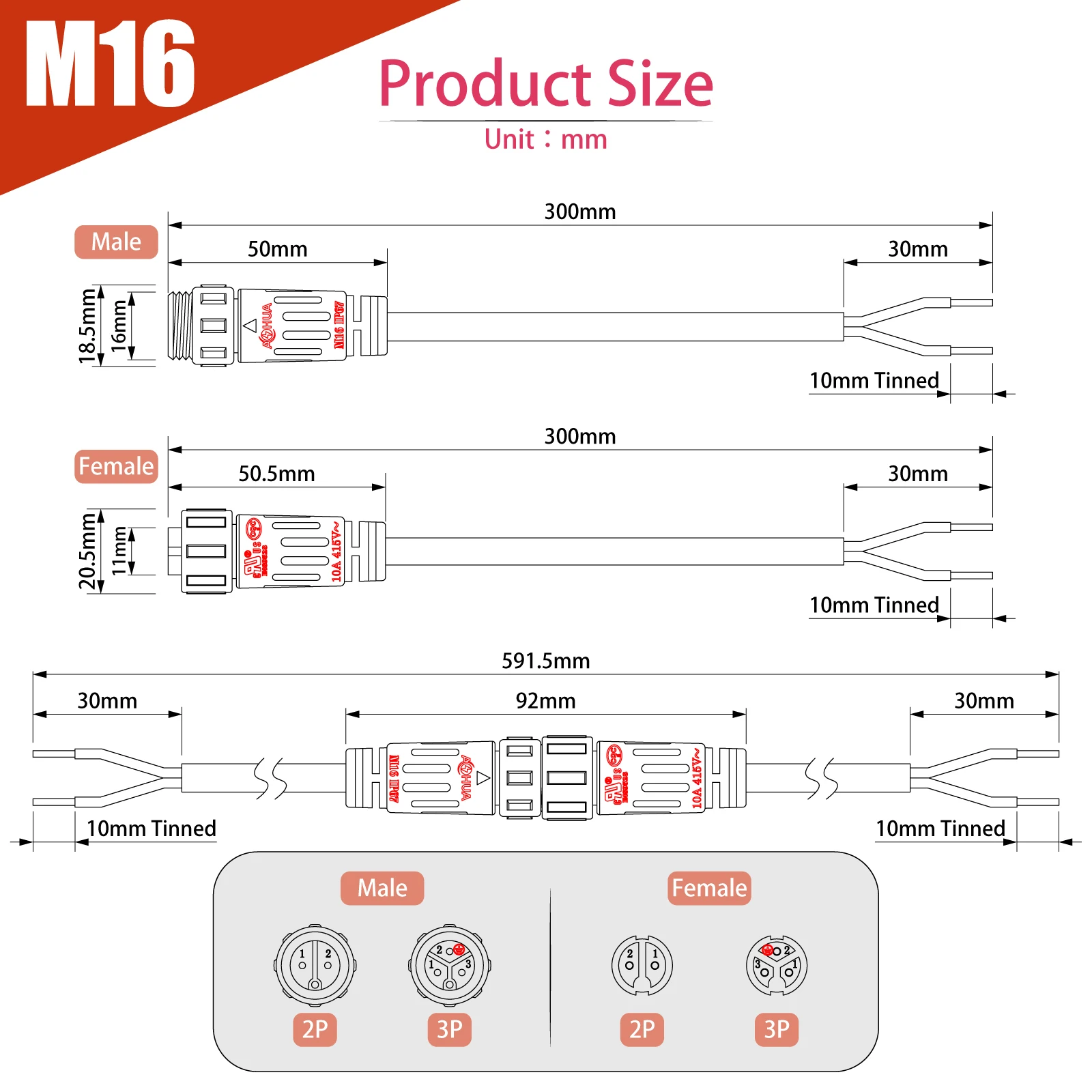

M16 PA66 Wire Waterproof Cable Over Mold Connector for Lighting

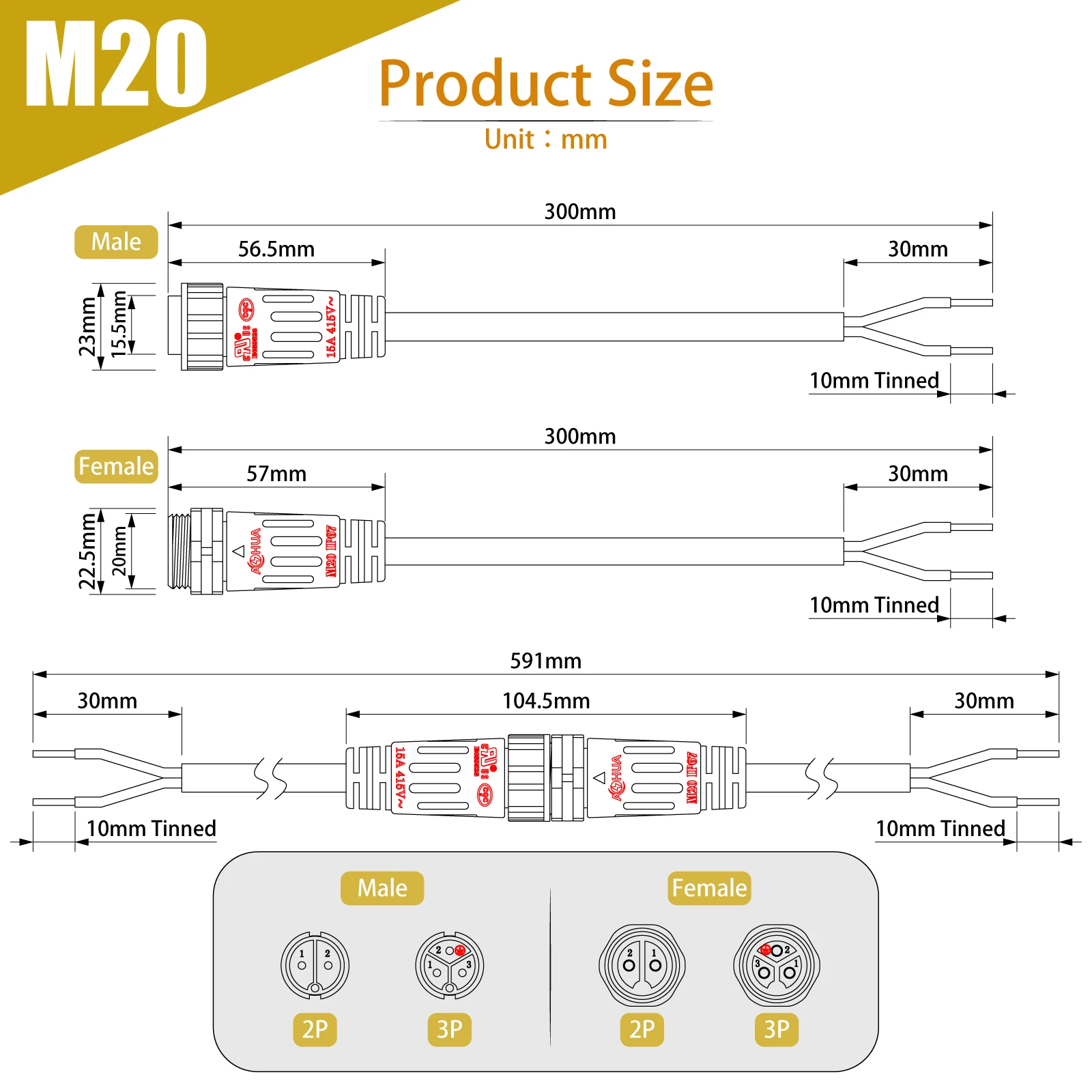

M20 PA66 Wire Waterproof Cable Over Mold Connector for Lighting
Packaging & Shipping
Quantity(sets) | 1 - 500 | >500 | |
Lead time (days) | 5 | To be negotiated | |
Shipment | Express(DHL,Fedex,TNT,Ups);Ocean freight Land freight;Air freight | ||
Company Profile
Certifications
FAQ
1.Q:Who are we?
A:We are based in Guangdong, China, start from 2010,sell to Western Europe(20.00%),South Asia(15.00%),Oceania(15.00%),Eastern Asia(10.00%),North America(5.00%),South America(5.00%),Southern Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Mid
East(5.00%),Southeast Asia(5.00%),Domestic Market(3.00%),Eastern Europe(2.00%). There are total about 51-100 people in our office.
2.Q:How can we guarantee quality?
A:Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.Q:What can you buy from us?
A:2 Pin Waterproof Connector,3 Pin Waterproof Connector,L Waterproof Connector,T Waterproof
A:We are based in Guangdong, China, start from 2010,sell to Western Europe(20.00%),South Asia(15.00%),Oceania(15.00%),Eastern Asia(10.00%),North America(5.00%),South America(5.00%),Southern Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Mid
East(5.00%),Southeast Asia(5.00%),Domestic Market(3.00%),Eastern Europe(2.00%). There are total about 51-100 people in our office.
2.Q:How can we guarantee quality?
A:Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.Q:What can you buy from us?
A:2 Pin Waterproof Connector,3 Pin Waterproof Connector,L Waterproof Connector,T Waterproof
Connector,Y Waterproof Connector
4.Q: Why should you buy from us not from other suppliers?
A:professional hi-tech manufacturer of waterproof connectors integrated with the R & D, production and sales.widely applied to lightings, LED display, stage acoustics, machine tools, automation facilities and ect.we can design mold,make wires.
5. Q:What services can we provide?
A:Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY;
Accepted Payment Type: T/T,PayPal,Cash,Escrow;
Language Spoken:English,Chinese
6.Q:What type waterproof connector do you have?
A:We have 13 series type connector,and make more than 3000 types waterproof connector cable.Most of our connector is customized.We focus on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.
7.Q:What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
8.Q:Can I visit your factory?
A: Yes,It will be better for us face to face to talk about the project.And I am sure you will be confident in us after you visit our factory.
9.Q:Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
10.Q:How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
*Confirm Cable Wire guage
* Confirm Cable Length and Material.
4.Q: Why should you buy from us not from other suppliers?
A:professional hi-tech manufacturer of waterproof connectors integrated with the R & D, production and sales.widely applied to lightings, LED display, stage acoustics, machine tools, automation facilities and ect.we can design mold,make wires.
5. Q:What services can we provide?
A:Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,CNY;
Accepted Payment Type: T/T,PayPal,Cash,Escrow;
Language Spoken:English,Chinese
6.Q:What type waterproof connector do you have?
A:We have 13 series type connector,and make more than 3000 types waterproof connector cable.Most of our connector is customized.We focus on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.
7.Q:What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
8.Q:Can I visit your factory?
A: Yes,It will be better for us face to face to talk about the project.And I am sure you will be confident in us after you visit our factory.
9.Q:Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
10.Q:How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
*Confirm Cable Wire guage
* Confirm Cable Length and Material.
