Лучшая цена S235jr S275jr A572 Ss400 50x50x5 мм 200x200x12 угловая стержнестальная горячекатаная углеродистая оцинкованная сталь с
Лучшая цена S235jr S275jr A572 Ss400 50x50x5 мм 200x200x12 угловая стержнестальная горячекатаная углеродистая оцинкованная сталь с
Лучшая цена S235jr S275jr A572 Ss400 50x50x5 мм 200x200x12 угловая стержнестальная горячекатаная углеродистая оцинкованная сталь с
Лучшая цена S235jr S275jr A572 Ss400 50x50x5 мм 200x200x12 угловая стержнестальная горячекатаная углеродистая оцинкованная сталь с
Лучшая цена S235jr S275jr A572 Ss400 50x50x5 мм 200x200x12 угловая стержнестальная горячекатаная углеродистая оцинкованная сталь с
Лучшая цена S235jr S275jr A572 Ss400 50x50x5 мм 200x200x12 угловая стержнестальная горячекатаная углеродистая оцинкованная сталь с
Лучшая цена S235jr S275jr A572 Ss400 50x50x5 мм 200x200x12 угловая стержнестальная горячекатаная углеродистая оцинкованная сталь с

Лучшая цена S235jr S275jr A572 Ss400 50x50x5 мм 200x200x12 угловая стержнестальная горячекатаная углеродистая оцинкованная сталь с


Поделиться:

Цена:490,00 $ - 530,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики









Product Description

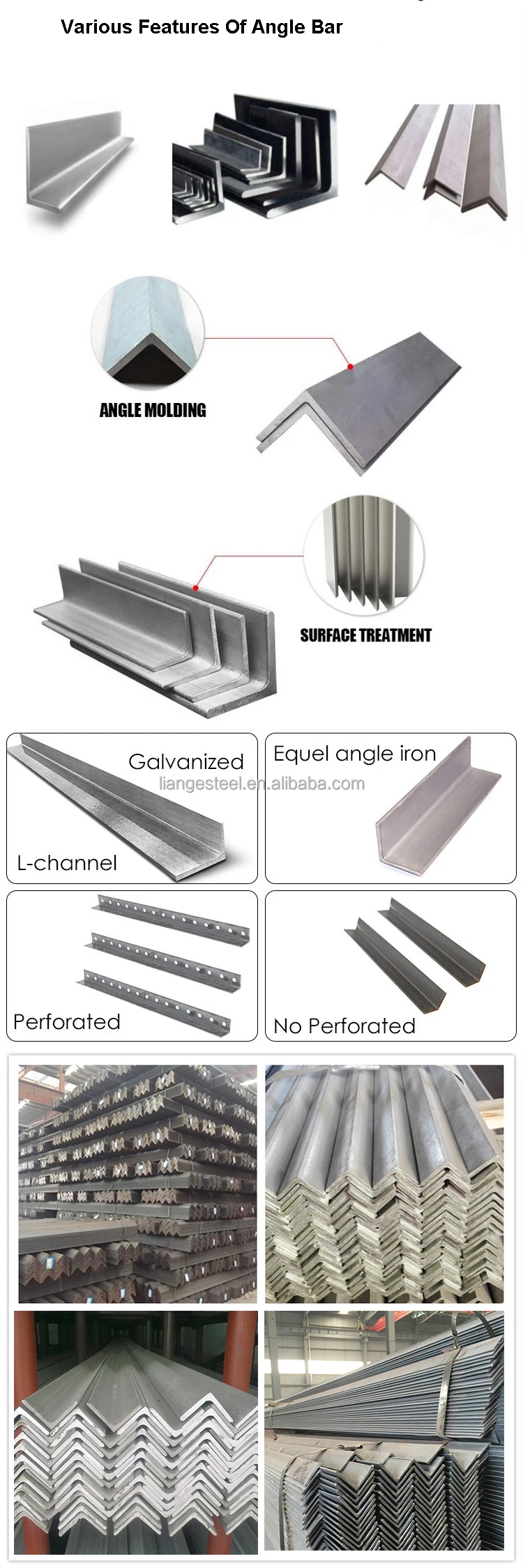

The angle steel is a carbon structural steel used for construction. It is a simple section steel, mainly used for metal components and plant frames. Good weldability, plastic deformation performance and certain mechanical strength are required in use. The raw steel billet for angle steel production is low carbon square steel billet, and the finished angle steel is delivered in the hot rolling forming, normalizing or hot rolling state.



SECTION STEEL
Attribute Description


Angle steel
Angle steel is a structural steel for construction, which is a section steel with simple section,
It is mainly used for metal components and plant frame.
In use, it is required to have good weldability, plastic deformation performance and certain mechanical strength.
Channel steel
Channel steel is a long strip of steel with groove section, which belongs to carbon structural steel for construction and machinery.
Channel steel is mainly used for building structure, curtain wall engineering, mechanical equipment and vehicle manufacturing.

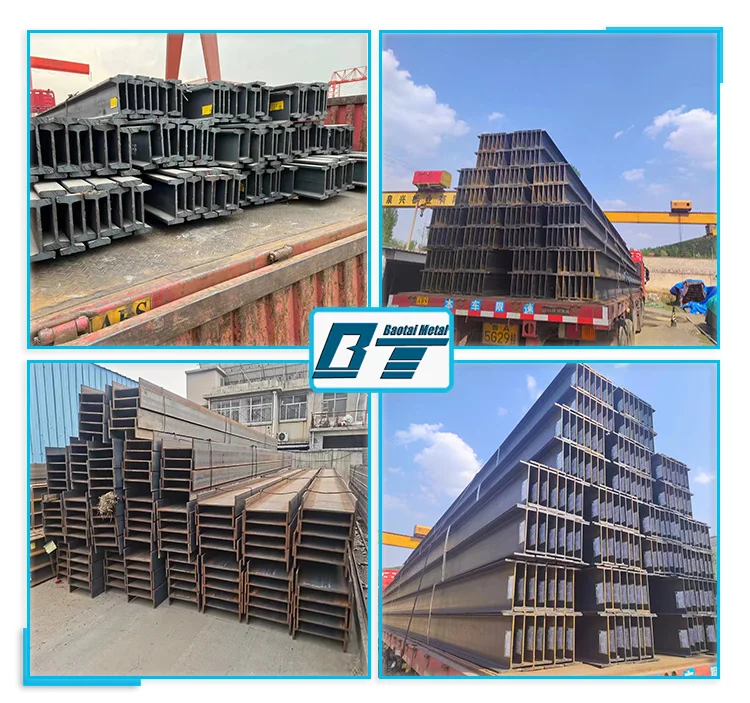

H-beam
H-beam steel is a kind of economic section high-efficiency profile with more optimized section area distribution and more
reasonable strength weight ratio.
Because all parts of H-section steel are arranged at right angles, H-section steel has the advantages of strong bending
resistance, simple construction, cost saving and light structural weight in all directions
I-beam
I-beam is also called steel beam, It is a long strip of steel with I-shaped section.
I-beam is divided into ordinary I-beam and light I-beam.
More members are directly used for bending in the plane of their webs or form lattice stressed members.
Flat steel
Flat steel refers to steel with width of 12-300mm, thickness of 3-60mm, rectangular section and slightly blunt edge.
Flat steel can be finished steel, or it can be used as blank for welded pipe and thin slab for laminated thin plate.
Main uses: as a finished material, flat steel can be used to make hoop iron, tools and mechanical parts, and used as building
frame structural parts and escalators in buildings.




Product name
Best Price S235jr S275jr A572 Ss400 50X50X5mm 200X200X12 Angle Bar Steel Hot Rolled Carbon Galvanized Angle Steel with L I
Q195 Q215 Q235 Q255 Q275 Hot Rolled Structural Galvanized Angle steel Galvanized Iron
L Shape Mild Steel Bar Angle Bar Price
Equal Angle Steel Sizes
Size(mm)
Thickness
(mm)
Theoretic weight (kg/m)
Size(mm)
Thickness
(mm)
Theoretic weight (kg/m)
20*20*3
3
0.885
80*80*8
8
9.55
25*25*3
3
1.12
90*90*6
6
8.25
30*30*3
3
1.36
90*90*7
7
7.35
30*30*4
4
1.78
90*90*8
8
109
30*30*5
5
2.16
90*90*9
9
12.2
38*38*3
3
1.72
90*90*10
10
13.3
38*38*4
4
2.26
100*100*6
6
9.22
40*40*3
3
1.83
100*100*7
7
10.7
40*40*4
4
2.41
100*100*8
8
12.1
40*40*5
5
2.95
100*100*9
9
13.5
50*50*3
3
2.33
100*100*10
10
14.9
50*50*4
4
3.06
100*100*12
12
17.8
50*50*5
5
3.77
120*120*8
8
14.7
50*50*6
6
4.43
120*120*10
10
18.2
70*70*5
5
5.37
120*120*12
12
21.5
70*70*6
6
6.38
130*130*9
9
17.9
70*70*7
7
7.35
130*130*10
10
19.7
75*75*5
5
5.76
130*130*12
12
23.4
75*75*6
6
6.85
150*150*10
10
22.9
75*75*7
7
7.94
150*150*12
12
27.3
75*75*8
8
8.92
150*150*15
15
33.6
75*75*9
9
9.96
200*200*15
15
45.3
80*80*6
6
7.32
200*200*20
20
59.7
80*80*7
7
8.48
200*200*24
24
71.1
Unequal Angle Steel Sizes
25*16*3
0.912
75*50*8
7.431
125*80*7
11.066
32*20*3
1.171
75*50*10
9.098
125*80*8
12.551
32*20*4
1.522
80*50*5
5.005
125*80*10
15.474
40*25*3
1.484
80*50*6
5.935
125*80*12
18.33
40*25*4
1.936
80*50*7
6.848
140*90*8
14.1
45*28*3
1.687
80*50*8
7.745
140*90*10
17.475
45*28*4
2.203
90*56*5
5.661
140*90*12
20.724
50*32*3
1.908
90*56*6
6.717
140*90*14
23.908
50*32*4
2.494
90*56*8
8.779
160*100*10
19.872
56*36*3
2.153
100*63*7
8.722
160*100*14
27.274
56*36*4
2.818
100*63*8
9.878
160*100*16
30.853
56*396*5
3.466
100*63*10
12.142
180*110*10
22.273
63*40*4
3.185
100*80*6
8.35
180*110*12
26.464
63*40*5
3.92
100*80*7
9.656
180*110*14
30.589
63*40*6
4.638
100*80*8
10.946
180*110*16
34.649
70*45*5
4.403
100*80*10
13.476
200*125*12
29.761
70*45*6
5.218
110*70*6
8.35
200*125*14
34.436
70*45*7
6.011
110*70*7
9.656
200*125*16
39.045
75*50*5
4.808
110*70*8
10.946
200*125*18
43.588
75*50*6
5.699
110*70*10
13.476









Appearance quality
The surface quality of angle steel is specified in the standard, and it is generally required that there shall be no harmful defects in use, such as delamination, scab, crack, etc.
The allowable range of geometric shape deviation of angle steel is also specified in the standard, generally including bending, edge width, edge thickness, top angle, theoretical weight, etc., and it is specified that the angle steel shall not have significant torsion.

Chemical Composition
(1) Composition index: the chemical composition of angle steel belongs to the rolled steel series for general structure, and the main verification indexes are C, Mn, P and S. According to different brands, the content varies from C<0.22%, Mn: 0.30-0.65%, P<0.060%, S<0.060%.
(2) Test methods: When testing the above chemical components, the commonly used standard test methods are GB223, JISG1211-1215, BS1837, BS Manual 19 ГОСТ 22536, etc.
ГОСТ 535-88 (Technical conditions for ordinary carbon section steel).

Specifications
GB/T2101-2008 (General Provisions for Acceptance, Packaging, Marking and Quality Certificate of Section Steel);
GB/T706-2008 (replacing GB/T9787-88 GB/T9788-88) (dimensions, shape, weight and allowable deviation of hot rolled equal/unequal angle steel);
JISG3192-94 (Shape, size, weight and tolerance of hot rolled section steel);
DIN17100-80 (quality standard for ordinary structural steel);

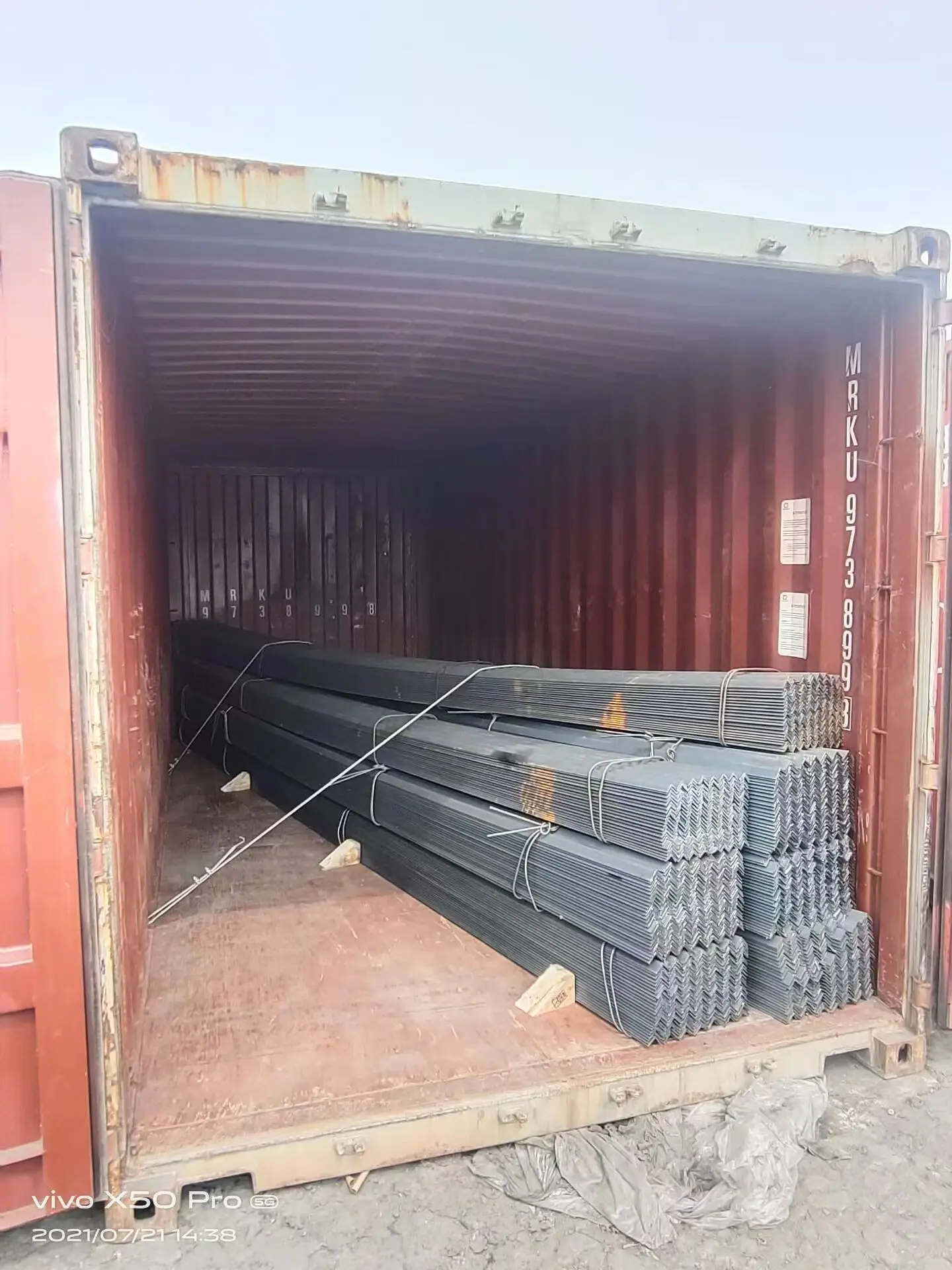

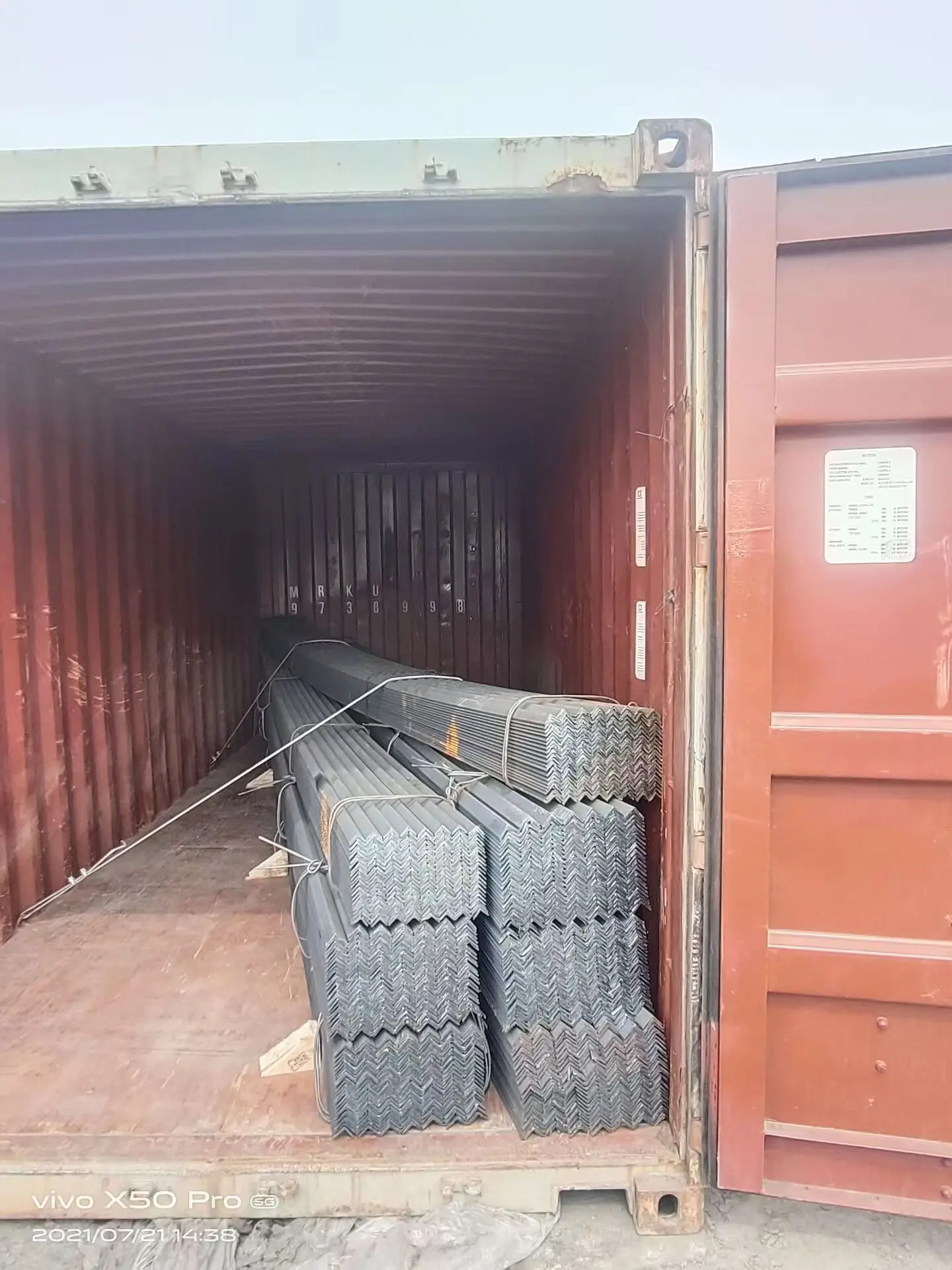

According to the provisions of the above standards, the angle steel shall be delivered in bundles, and the binding times and the length of the same bundle shall meet the requirements. The angle steel is generally delivered in bare package, and attention shall be paid to moisture-proof during transportation and storage.

Mechanical Properties
(1) Inspection method:
① Tensile test method. Common standard inspection methods include GB/T228-87, JISZ2201, JISZ2241, ASTM A370 ГОСТ 1497, BS18, DIN50145, etc;
② Bend test method. Common standard inspection methods include GB/T232-88, JISZ2204, JISZ2248, ASTM E290 ГОСТ 14019, DIN50111, etc.
(2) Performance index:
the inspection items for evaluating the performance of angle steel are mainly tensile test and bending test. The indicators include yield point, tensile strength, elongation and bending qualification.

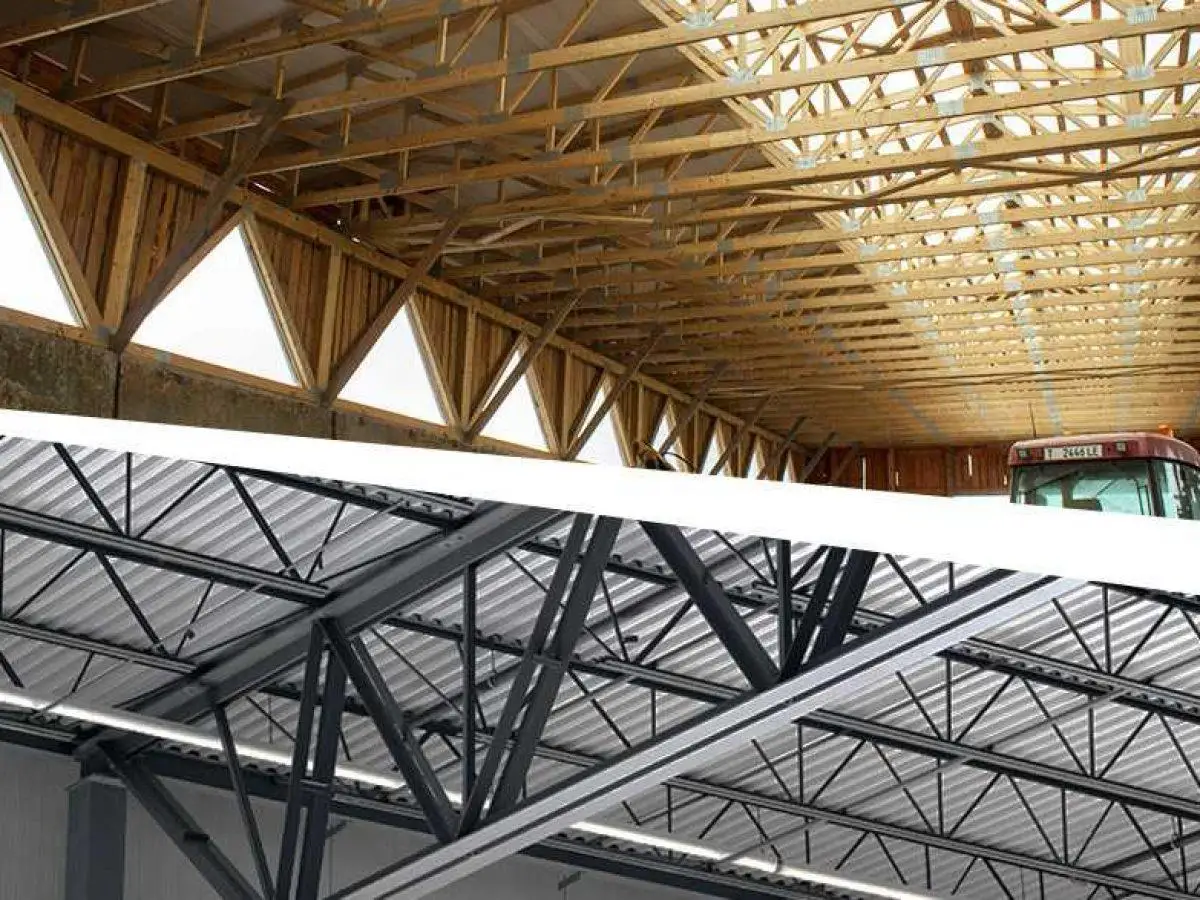

The angle steel can be used to form various stressed members according to the different needs of the structure, and can also be used as a connector between members. It is widely used in various building structures and engineering structures, such as house beams, bridges, transmission towers, hoisting and transportation machinery, ships, industrial furnaces, reaction towers, container racks, cable trench supports, power piping, bus support installation, warehouse shelves, etc.










Company Profile




Shandong Baotai Metal Materials Group Co., Ltd. is located in Jinan, the capital of Shandong Province. Mainly engaged in stainless steel, carbon steel, galvanized steel, PPGI, PPGL, copper, aluminum. Our team has focused on the steel industry for 15 years. The
company has established long-term close cooperative relations with well-known domestic steel companies. At the same time, the company's annual spot reserve exceeds 1000,000 tons, so we can guarantee a short delivery time. Baotai Steel provides services for large enterprises such as domestic government construction projects, Chinese listed companies, and state-owned enterprises. High-quality products, low prices, and high-quality services are highly praised by customers. Customers from various countries
have signed agency agreements with Baotai Steel and become Baotai Steel's agents. Baotai Steel's service team is online 24 hours a day to provide you with professional and high-quality services. At the same time, Baotai Steel also adheres to the concept of
win-win, customer-centric, and looks forward to becoming your trustworthy and high-quality enterprise.


Certifications




Data information




Why Choose Us






Customer Feedback






FAQ


1. who are we?
We are based in Shandong, China, start from 2021,sell to Southeast Asia(20.00%),South America(20.00%),South Asia(15.00%),Africa(10.00%),North America(7.00%),Eastern Asia(6.00%),Eastern Europe(6.00%),Southern Europe(6.00%),Mid East(3.00%),Northern Europe(2.00%),Central America(2.00%),Oceania(2.00%),Western Europe(1.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
PPGI,Galvanized Steel,Stainless Steel,Carbon Steel,Ductile Iron Pipes

4. why should you buy from us not from other suppliers?
The company has sufficient inventory to ensure that customers receive the goods at the lowest price and the shortest delivery time when purchasing. A professional logistics team and after-sales team will solve all delivery and receiving problems for you.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
