Цена:3 588,00 $ - 5 800,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики









Product Description


Model
HR-920
HR-936
HR-940
Engine power
490 engine 39kw
4120 engine 60KW
4105 engine 84KW

Recommended pile pipe diameter
114mm-220mm
114mm-220mm
114mm-220mm
Recommended pile pipe length
2.6m-3.3m
2.6m-3.3m
2.6m-3.3m
Hydraulic system flow rate
80-110L/Min
40-63L/Min
40-63L/Min
Rated system pressure
15Mpa
13-16Mpa
14-17Mpa
wheelbase
2070m
2070M

2070M

Drilling diameter
80-200mm
80-200mm
80-200mm
Drilling depth
0-1200mm
0-1200mm
0-3000mm
Overall dimensions
4600*2050*2650
5300*2400*2800
6700*2400-2850
weight
4600kg
5300kg
7200KG

Weight of hydraulic hammer for pile driving device
80KG

80KG

80KG
Hammer strike frequency
500-900Hz
500-900Hz
500-900Hz
Working flow rate of hydraulic hammer
40-70L/min
60-100L/min
80-120L/min
Working pressure of hydraulic hammer
11-14Mpa
11-14Mpa
11-14Mpa
Pile driving efficiency
4M/min
1.5M/min
1M/min

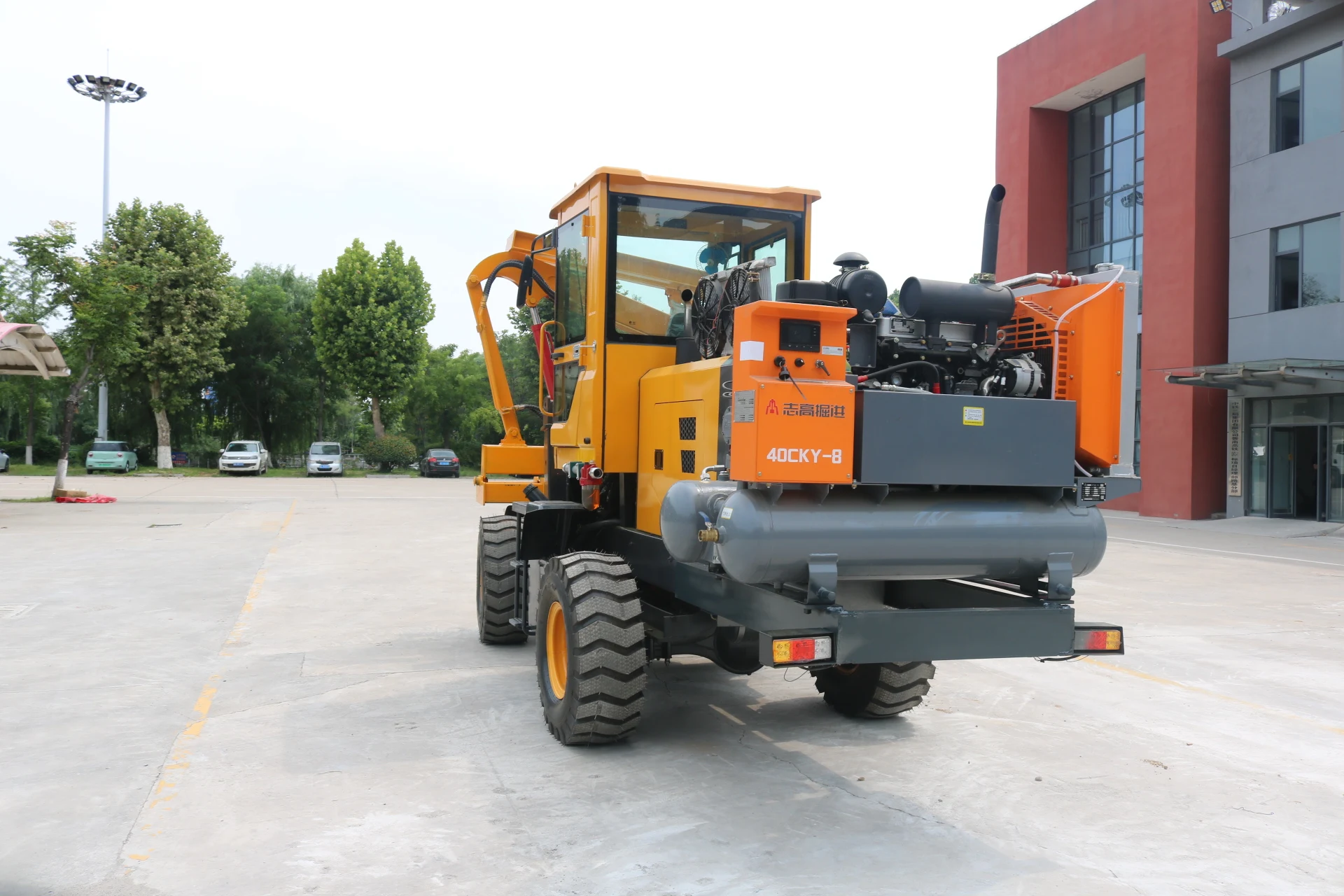

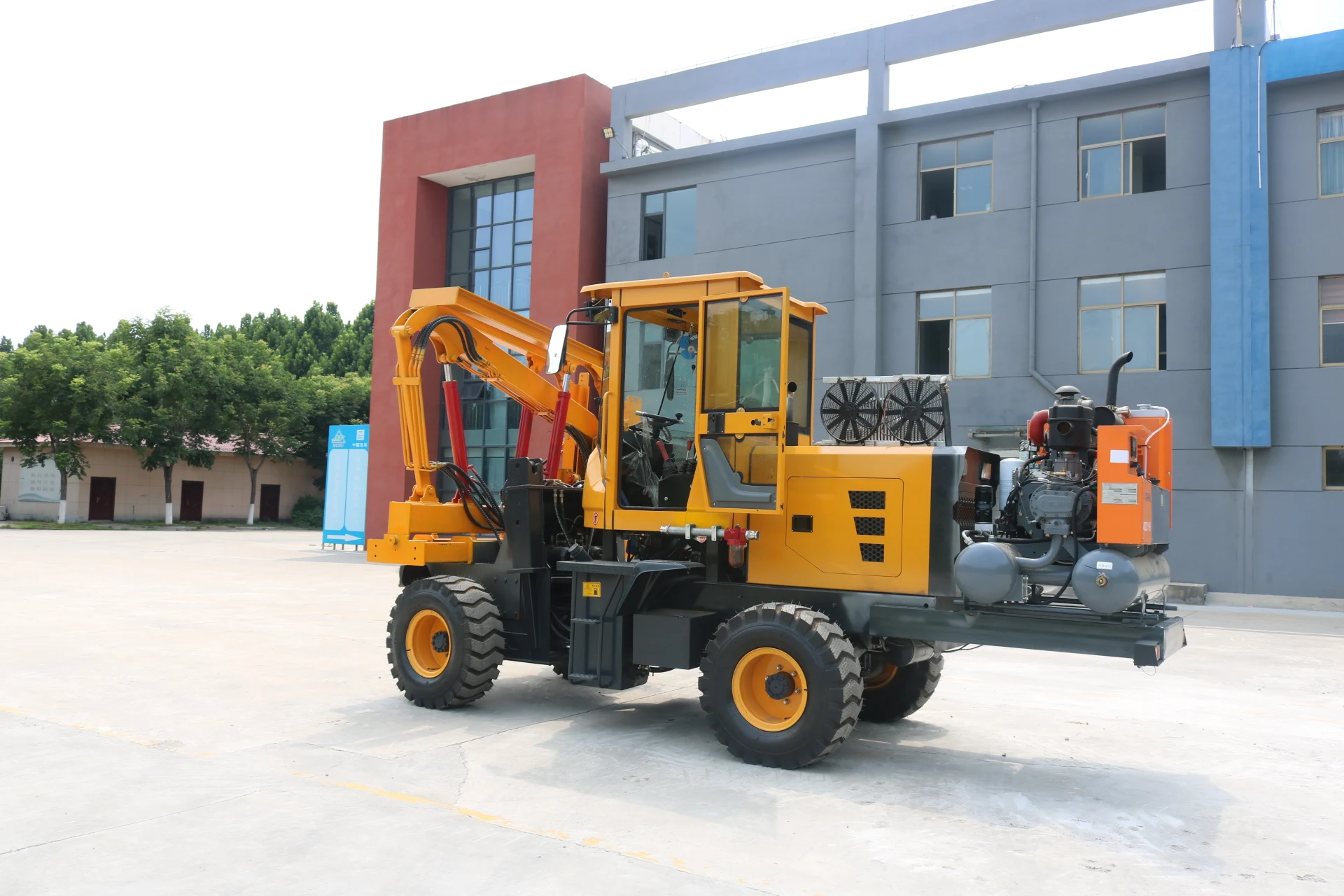

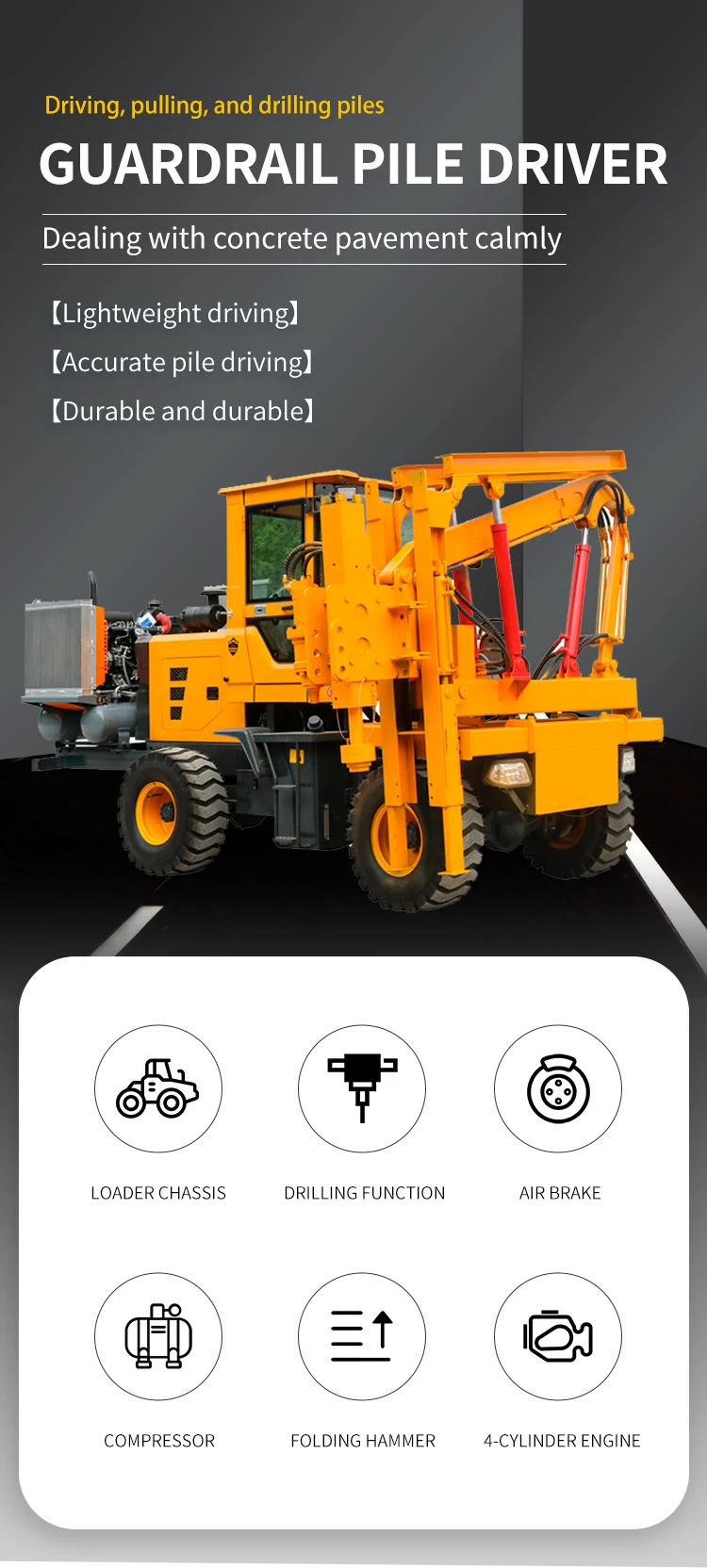

Four-wheel Small
Guardrail Hammer Ramming Pile Driver / Guard Rail Post Pile Driver Machine
Using :

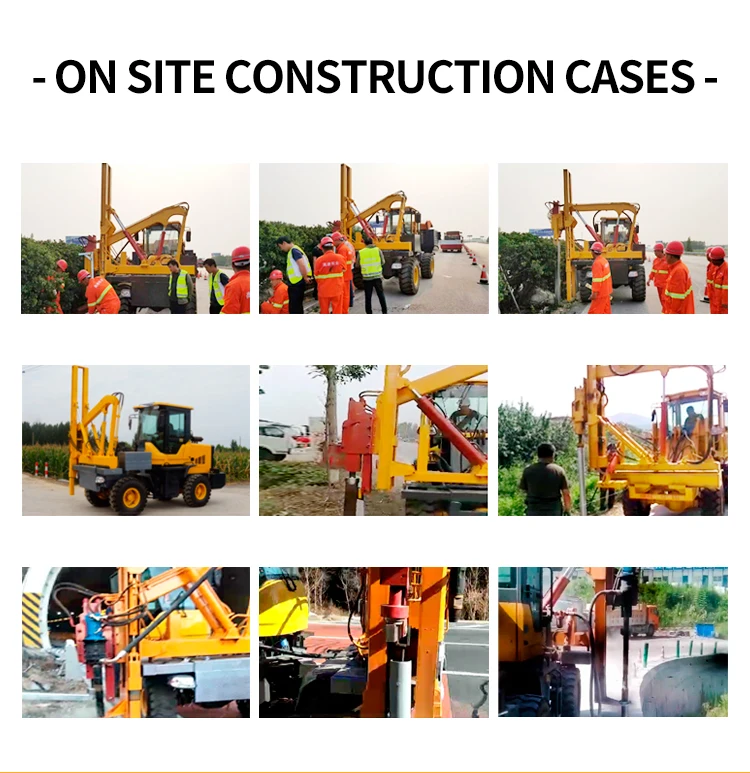

Hydraulic post driver for highway construction and ramming pile
Multi-functional/Multipurpose design:

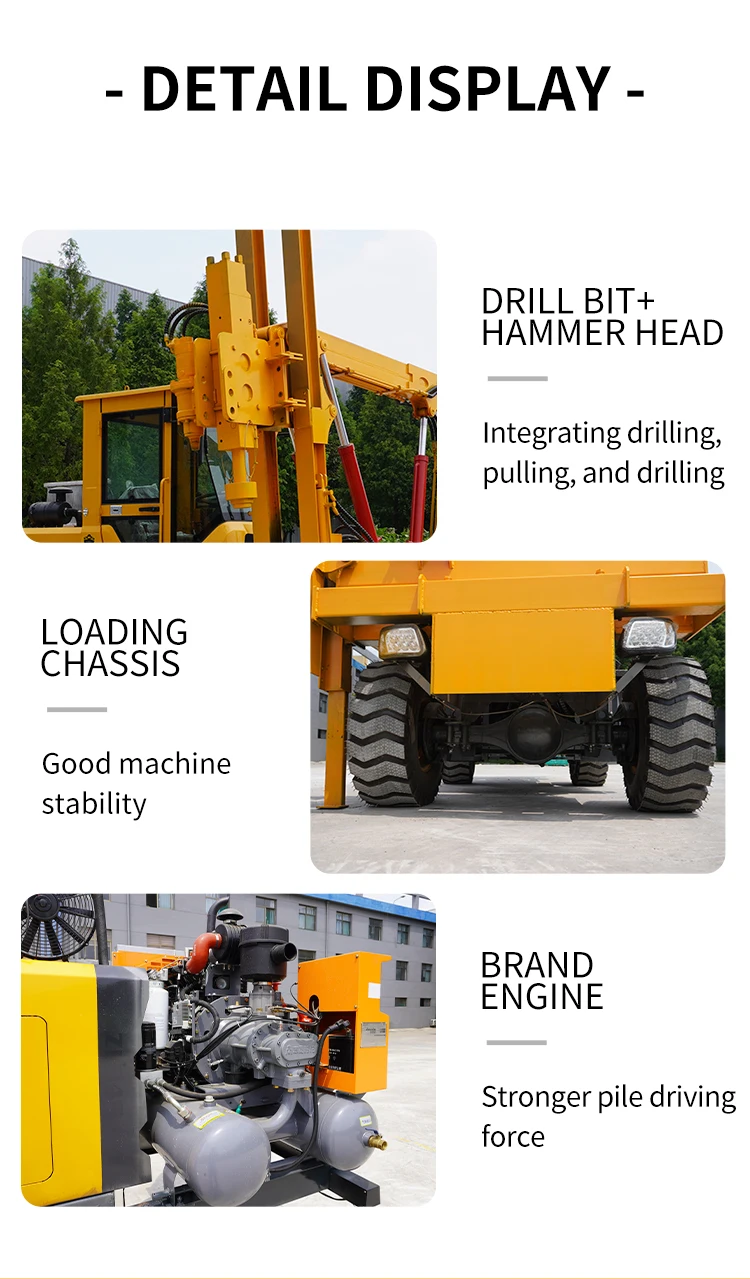

Jining Hongrun series self-propelled hydraulic pile driver is a kind of multi-functional guardrail installation machine which can accomplish piling, pulling, pile extracting and drilling holes on ground with the same hydraulic unit when changing another device. It can works on different pavement, such as bituminous, Cement, clay, soil, concrete, sand as well as rock etc. They are widely applied on Highway Guardrail Installation, road crash barrier construction, road maintenance work and other sites such as freeway, ordinary road, farm, pasture orchard etc.

Adantage:
1 The small piling machine is light in driving,high in piling precision,durable,energy-saving and environmentally friendly.It is
especially suitable for the field construction of highway guardrail installation,maintenance and emergency repair.
2 Four-wheel brake,it’s easy to use and increase reliability and safety.Flexible movement with four wheels,high efficiency of
displacement.
3 The hydraulic hammer has high impact frequency and strong force,which can effectively improve work efficiency and work quality.
4 Easy operation,Long service life and labor saving.

A variety of models can be selected and support customization！
Welcome to consult, I will customize products for you according to your needs!

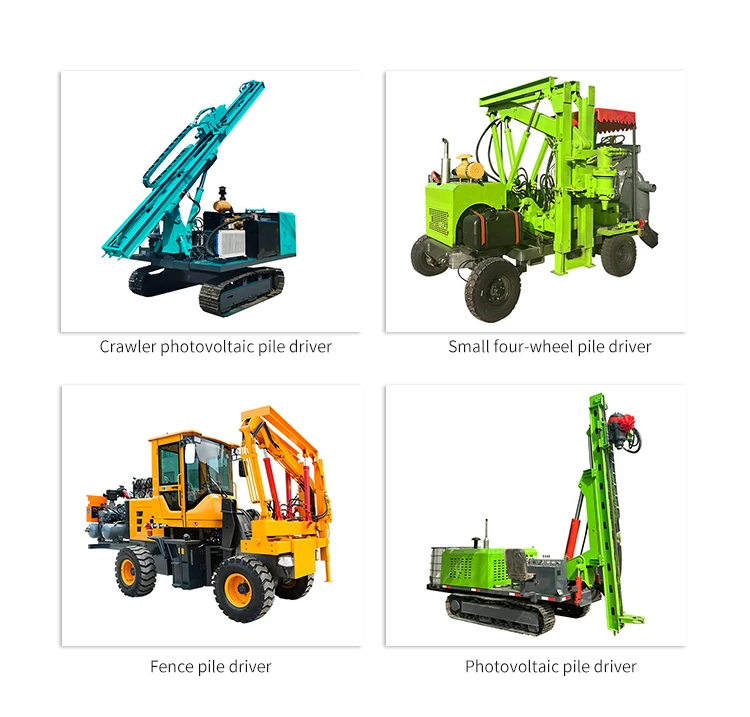

Recommend Products














Company Profile






Certifications






Packing




Shipping




FAQ


1.Are you manufacture?
Ans: Yes, we are factory with more than 20 years of manufacturing experience.
2.What is your terms of payment?
.Full payment before shipment.we'll show you the photos of the products and packages before you pay the balance.
3.What is your terms of delivery?
Ans.: EXW, FOB,CFR, CIF.
4.How about your delivery time?
Ans.: Generally, it will take 7-10 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5.What is the warranty of our machine?
Ans.:Our main machine enjoys a l year warranty, during this time all accessories broken can be changed for a new one.And we provide videos for machine installation and operation.
6.What is your terms of packing?
Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
7.Do you test all your goods before delivery?
Ans: Yes, we have 100% test before delivery.And we will attach our inspectreport for every machine.
8.Do you Preferred provide wear parts for transacted clients?
Ans.: Yes, we have records for your clients, and will prefer providing accessories to clients.
9.How do you make our business long-term and good relationship?
Ans.: 1.We keep good quality and competitive price to ensure our customers
10.Do you have any certificates for your machine?
Ans.:All of our products coming with the certificates of CE, ISO9001.
