Product Description


1. Usage: TB02 series protector is a micro product, which is widely used in lithium batteries, tubular motors, lighting, fire and medical equipment and other fields.
2. Operating temperature tolerance:±3℃ , ±5℃ , ±8℃

3.Reset temperature tolerance:±10℃ , ±15℃



Product Name

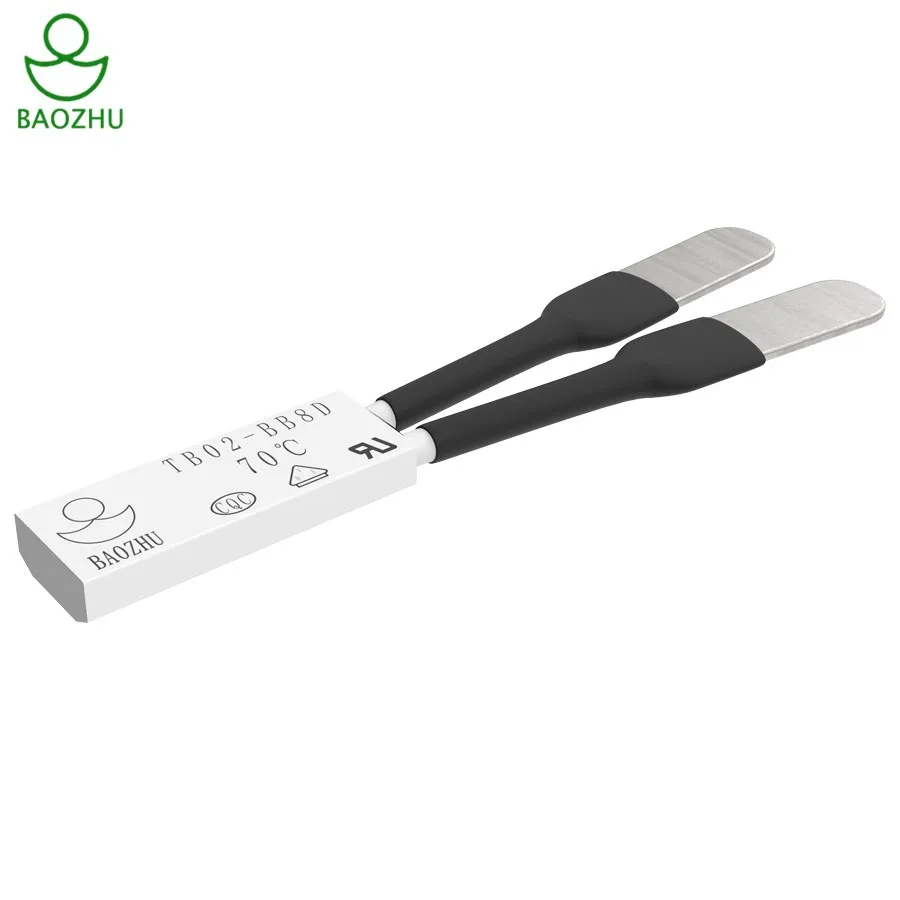

TB02 series thermal protector
Lead wire
Nickel strip;AWG22# 3266;AWG24# 3135(Use this wire at temperatures above 130℃)
Remarks
Can customized according to customer requirements
Nickel sheet size
20*4、20*3、18*4、18*3


Product Paramenters

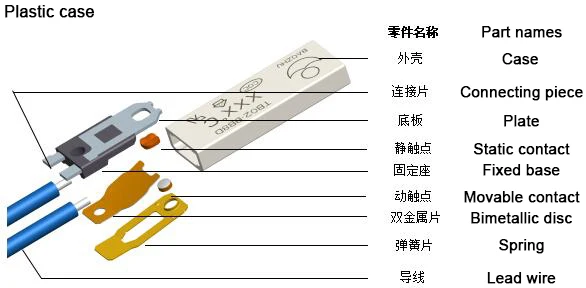

Appearance and structure：

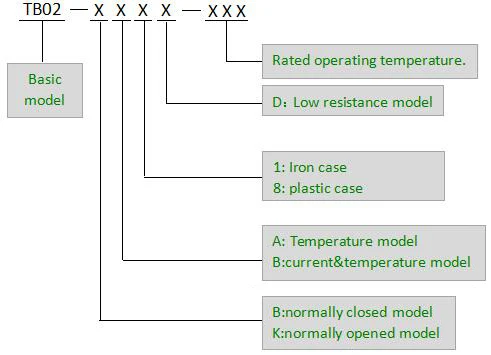

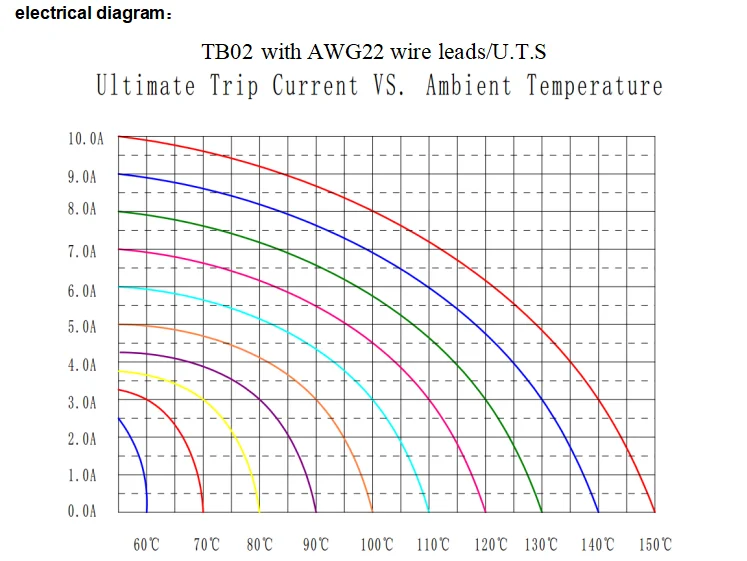

Code system： Temperature-current curve：

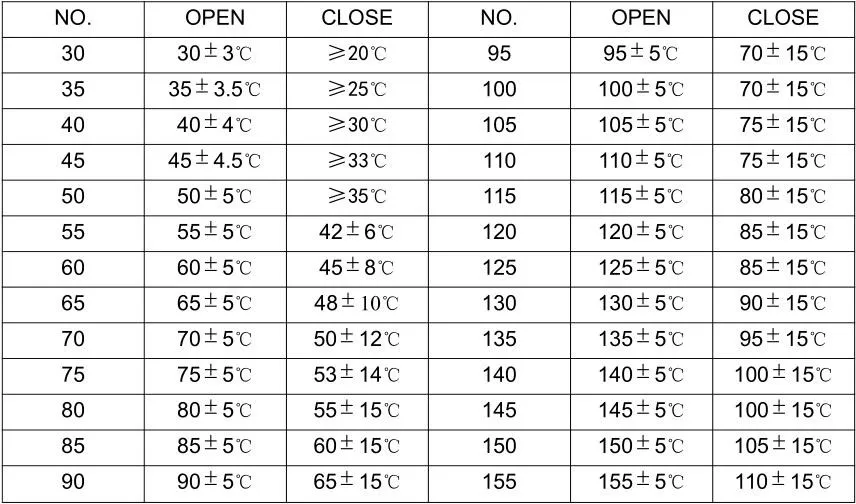

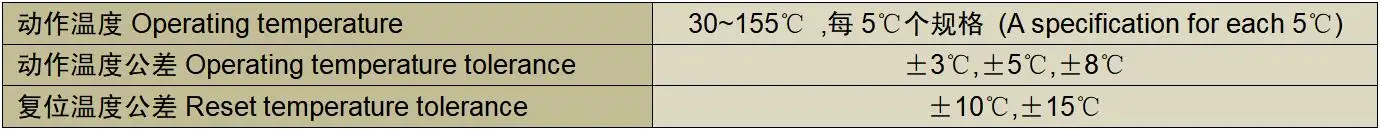

Temperature Range and Tolerance：

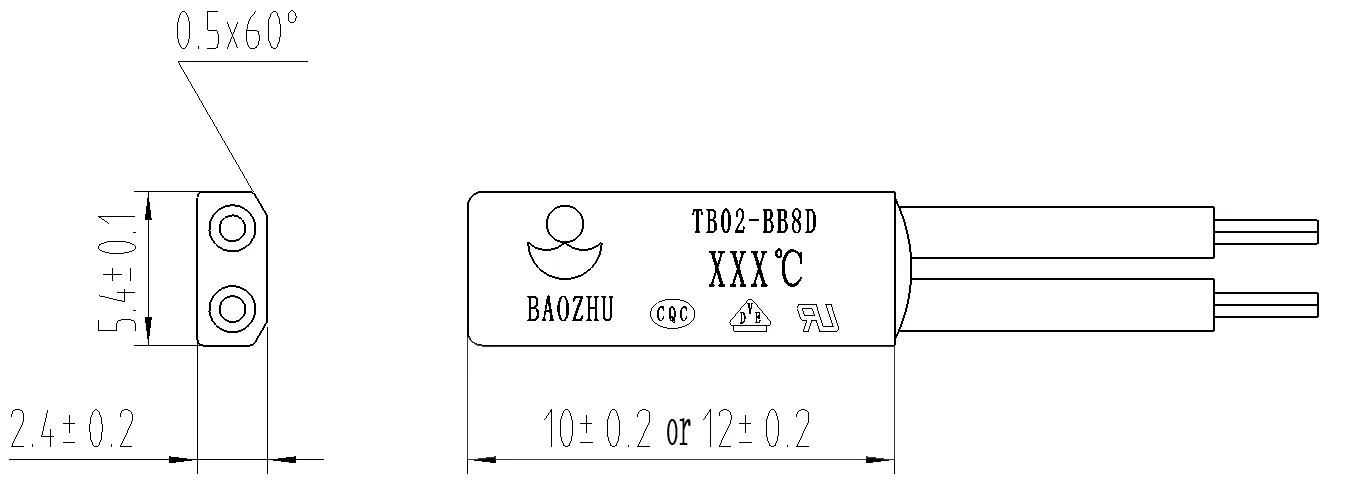

Size:

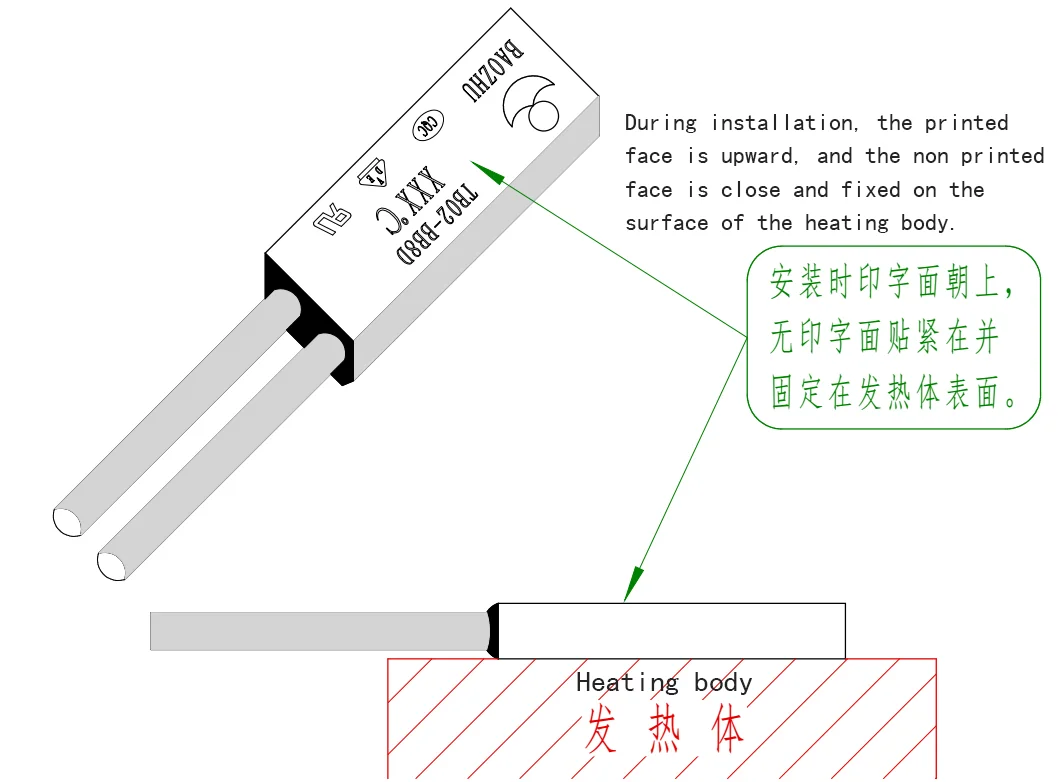

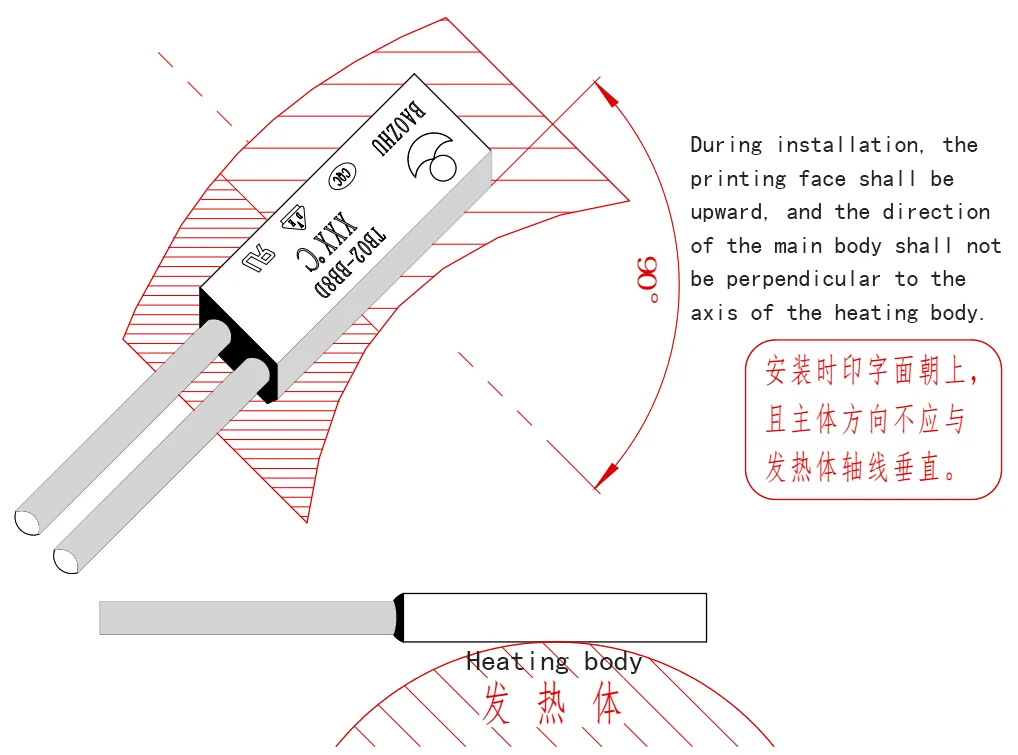

Installation notes:




Installation with printed face up, non-printed face close to solid heater surface.

Installation of the print face upward and the main direction should not be perpendicular to the axis of the heating body.



Certifications


Certification authority
Certificate No.
UL
E305764
VDE
40016121
TUV
R50109800
R50110965
CQC
CQC05002013372
CQC19002226310
CQC19002226892
CB
CN50847
CN5785
KC
ZU02062-14001B
ISO9001
00120Q34918R5M/3200
0105Q1274ROS/3200




Certificates of our products include CE, CQC, ROHS, UL, VDE, etc.
Please contact me if you need relevant certificates.


Our Service


Free sample


Our company can provide 10 free samles for your testing.





Our Company




Factory

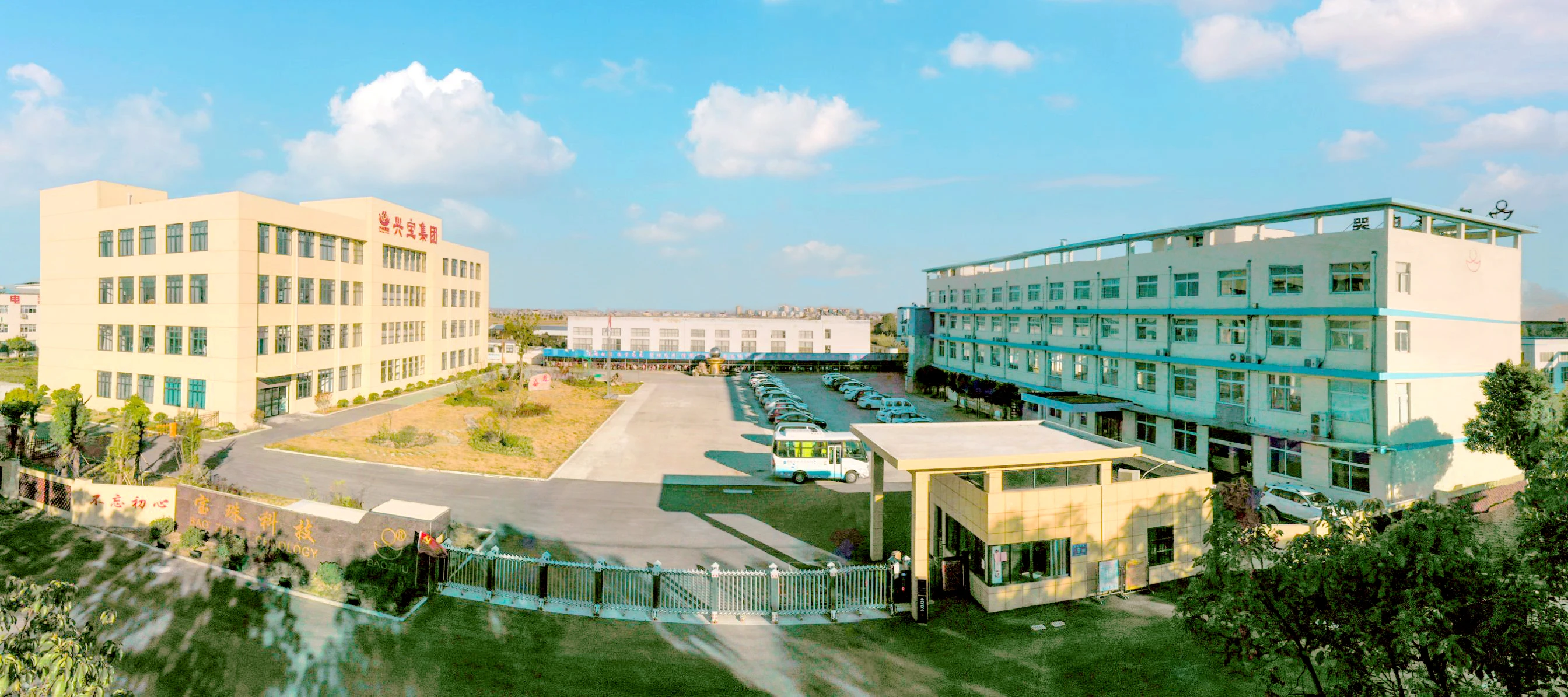

Headquarters

Office zone




Chengnan Branch


Jinghe branch




Dongguan Branch


Yangzhou Office

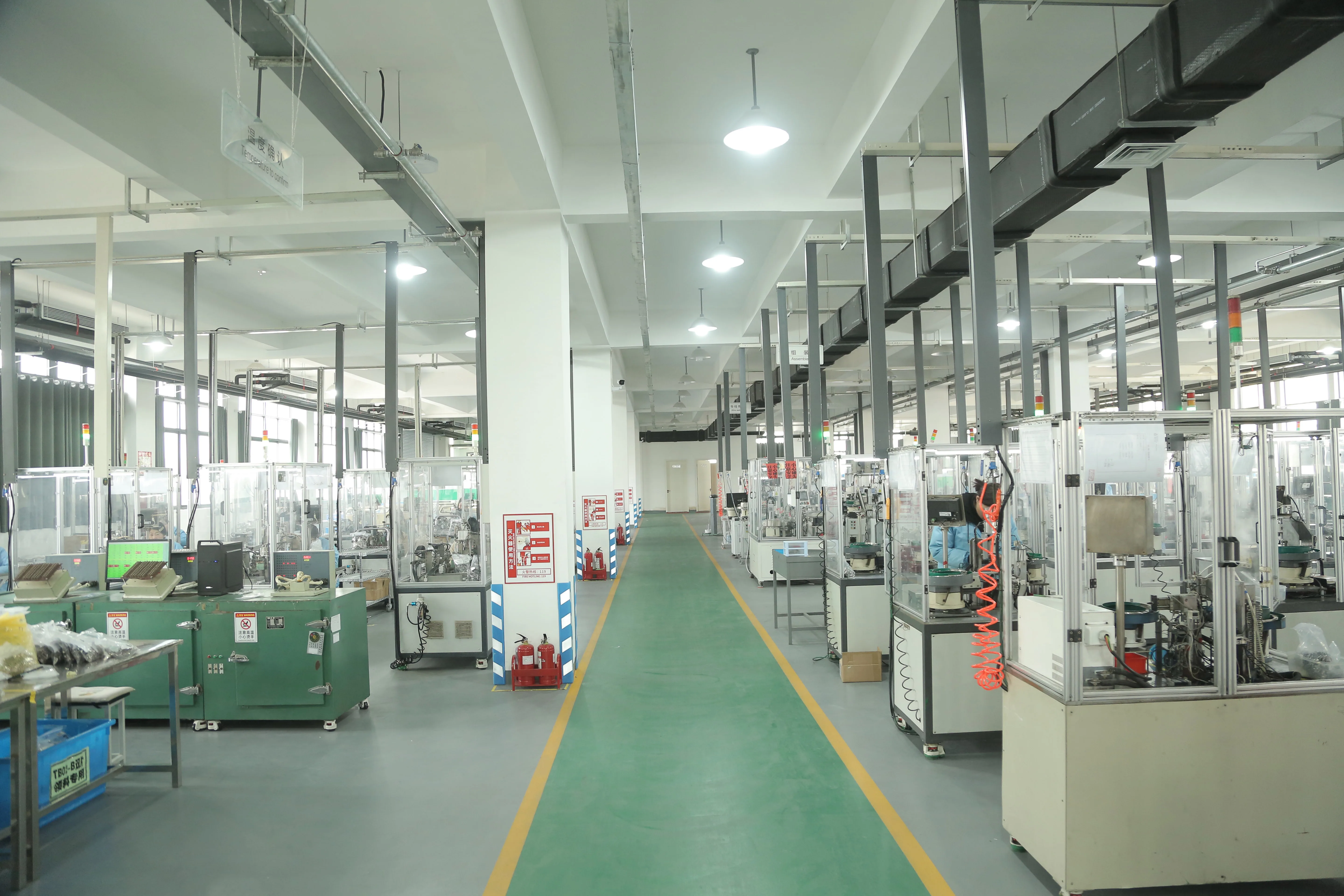

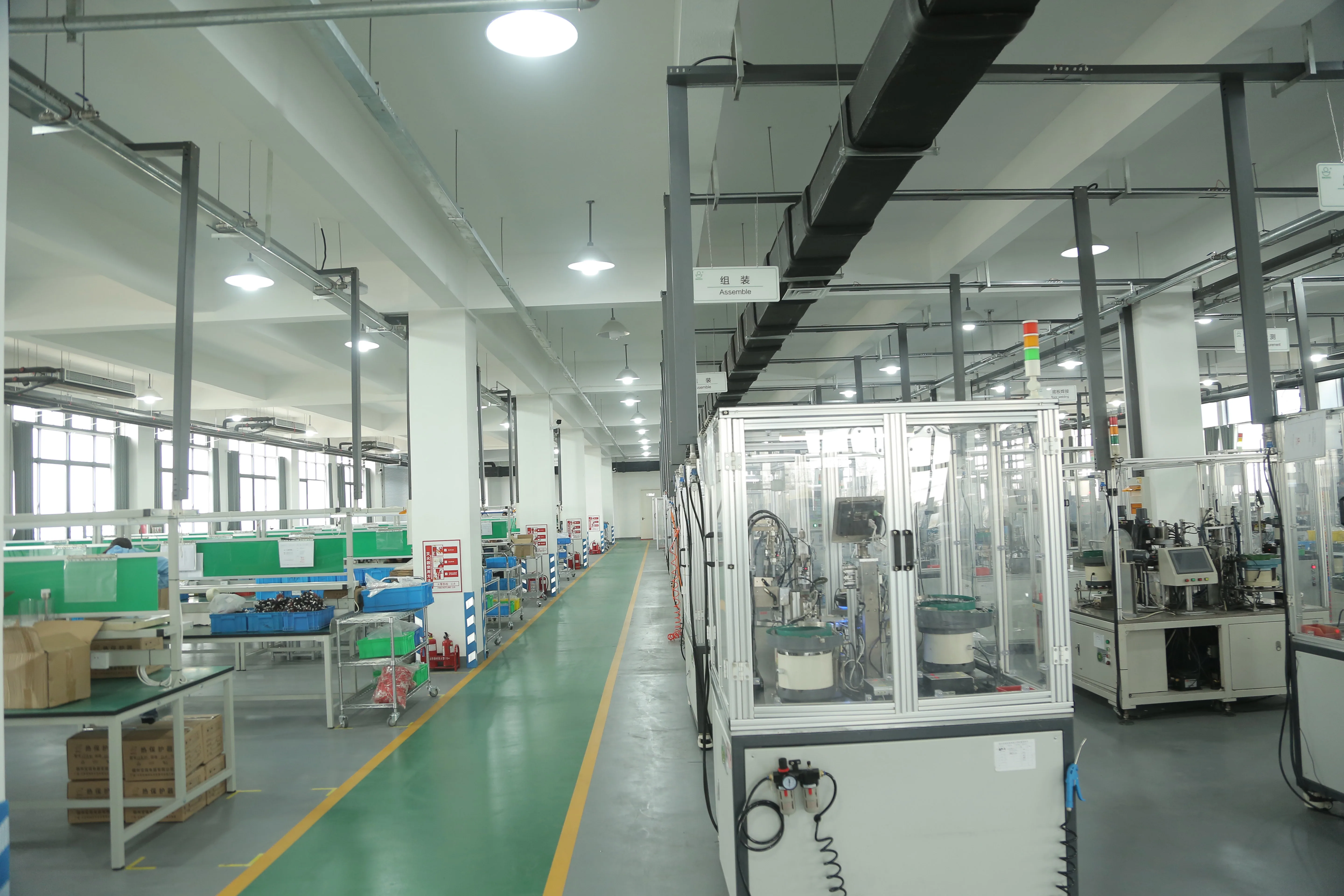

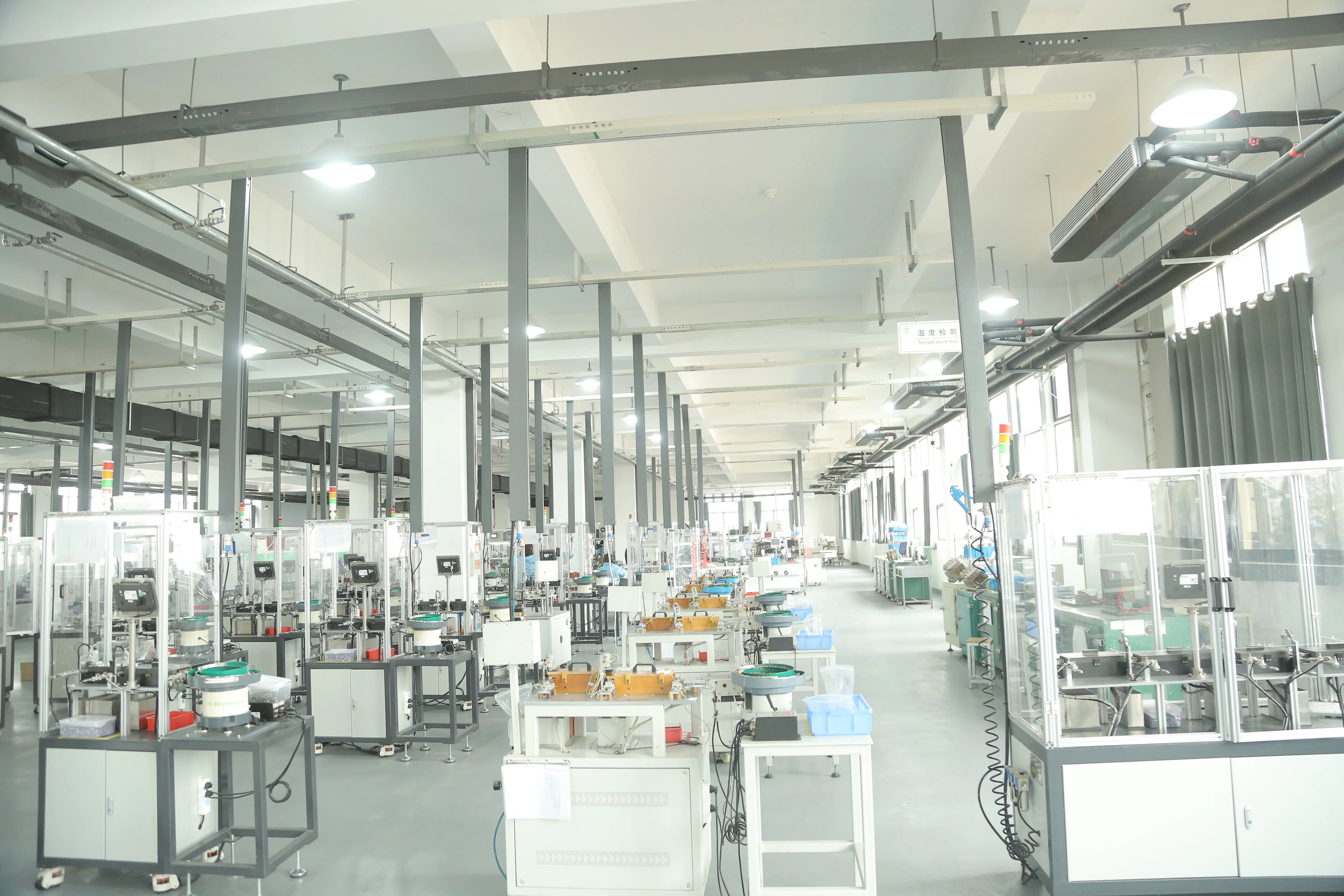

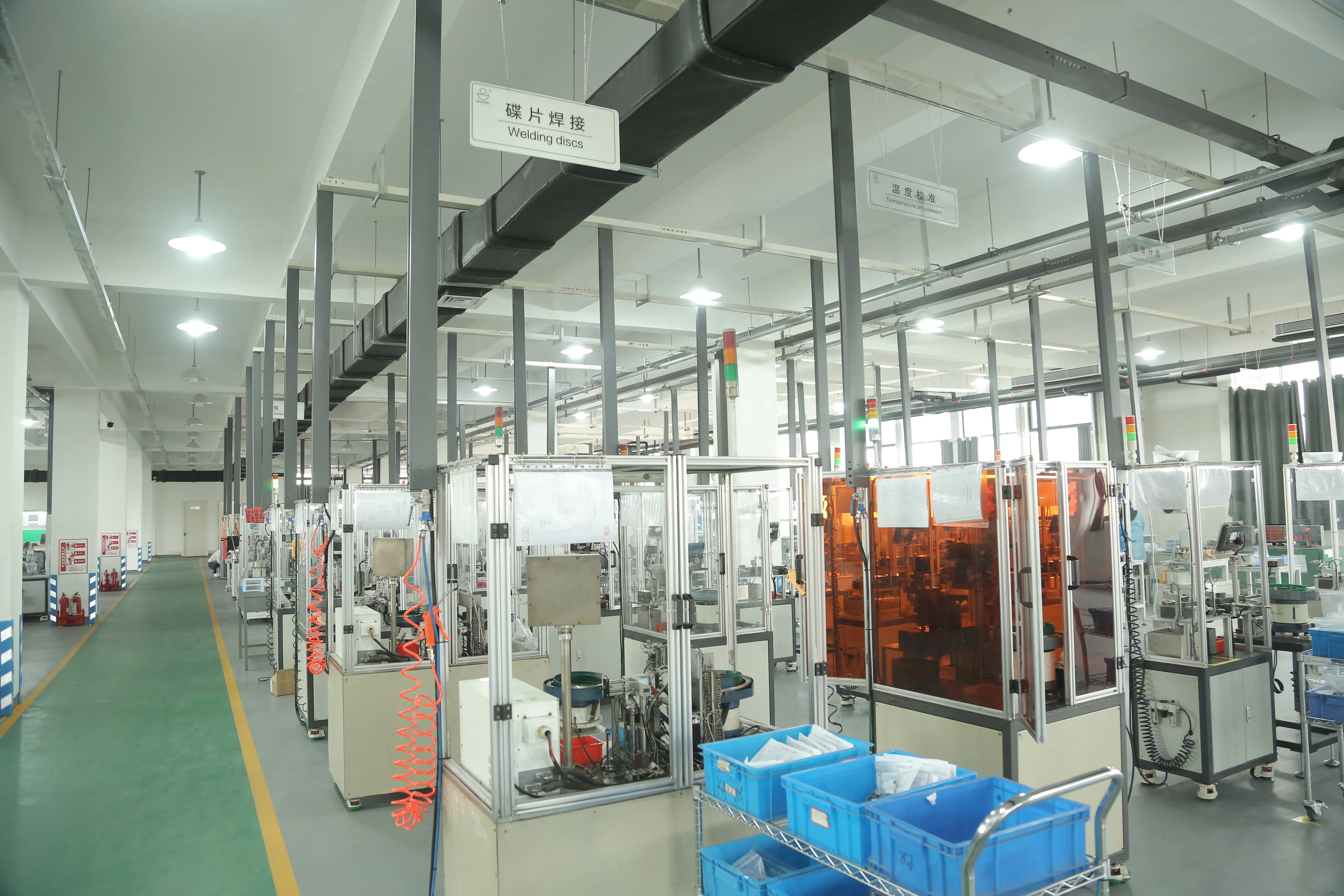

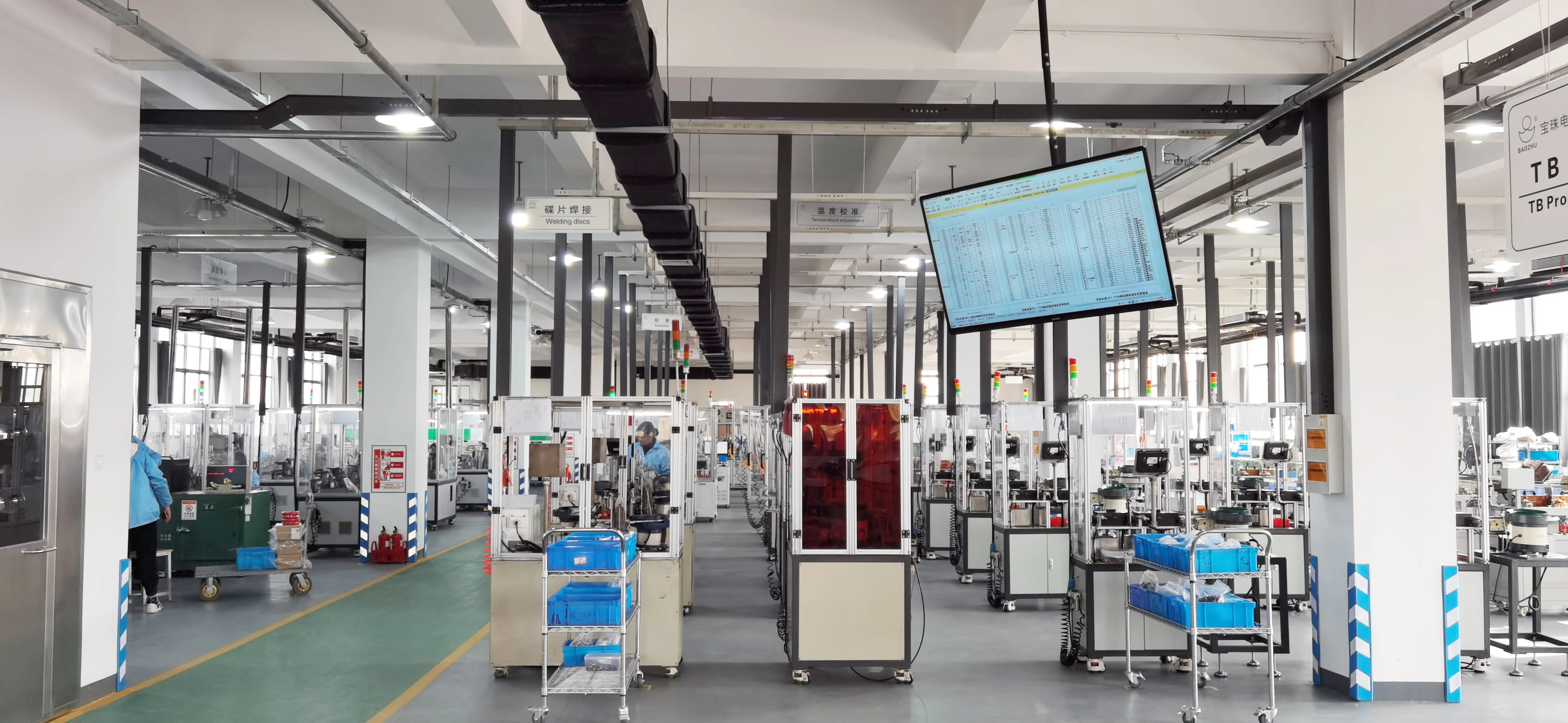

Factory Workshop








Packing & Delivery



Samples Packing Details : File pocket

Order Packing Details :
1000pcs in one plastic bag
5000pcs in one export carton(26*18*22cm)
10000pcs in one export carton (carton size:32*26*22cm)

Delivery Details : 7-15 days
                                  Decide delivery time according to order                                       quantity and requirement.



Contact information


Skype:bzdq5_168
E-mail:bzdq5@bzdq.cn
Wechat:17768559558
