Product Description
AOHUA PVC Cable Connector
PVC series waterproof connector is crimping pin, these connectors are of high quality and competitively priced. Then IP65 waterproof connector widely used in LED lighting, flexible strip outdoor display, electrical equipments, automation machines, electrical vehicle and etc. Your drawings and designs are welcome, as we have own R&D team to provide you solutions.

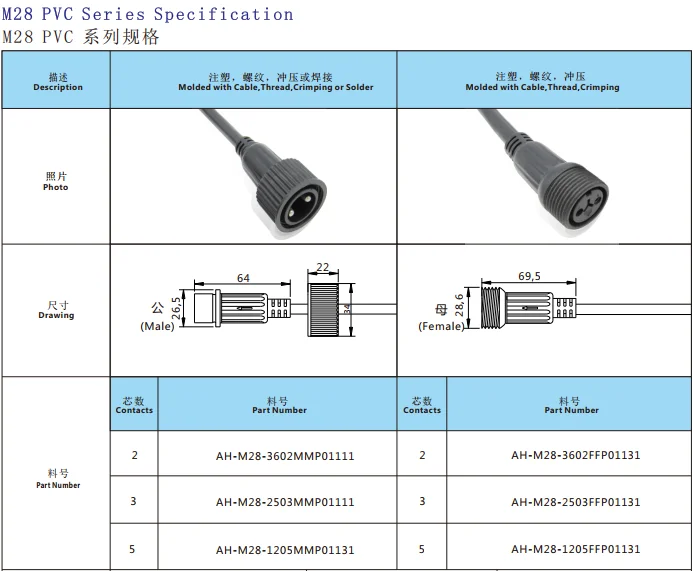

M28 PVC waterproof connector | ||||||||||||
Product Specification | ||||||||||||
Pins | Part Number | Wire Size | Cable OD | Voltage | Current | IP Grade | ||||||
2 | AH-M28-3602MM/FFP01111 | ≤8.0mm² | 8mm-14.5mm | 250V | 36A | |||||||
3 | AH-M28-2503MM/FFP01111 | ≤4.0mm² | 250V | 25A | ||||||||
5 | AH-M28-1205MM/FFP01111 | ≤1.5mm² | 250V | 12A | ||||||||

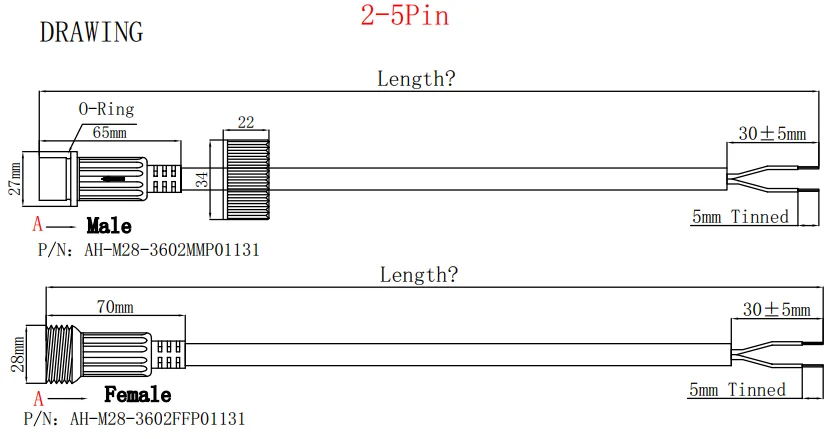

This M28 waterproof connectors is molded with PVC cable and connectors are made of PVC material. As usual, M28 PVC waterproof connector wire size options are as follows:
2*4.0mm², 2*2.5mm², 2*2.0mm².
3*4.0mm², 3*2.5mm², 3*2.0mm².
5*1.5mm², 5*1.0mm², 5*16AWG.
2*4.0mm², 2*2.5mm², 2*2.0mm².
3*4.0mm², 3*2.5mm², 3*2.0mm².
5*1.5mm², 5*1.0mm², 5*16AWG.
Before quotation: firstly, please let me know the wire gauge clear, cable length and quantity, then send requirements our sales, we will get back to you with drawing/price, within 5 hours.
1. Current rating, such as: 36A...
2. Pins, such as : 2pin, 3pin...
3. Wire size, such as: 2*4.0mm²...
4. Cable Length, such as: 300mm.
2. Pins, such as : 2pin, 3pin...
3. Wire size, such as: 2*4.0mm²...
4. Cable Length, such as: 300mm.
Remarks:
1. Cable requirements: CCC/VDE/UL/RoHS and other certification cables can be used according to customer requirements;
2. Research and design unconventional joint products according to customer requirements;
3. Without any explanation, production shall be carried out according to the enterprise standard requirements of our company;
4. special cable requirements, can be provided by the customer, by our company to process the injection molding on the waterproof joint.
2. Research and design unconventional joint products according to customer requirements;
3. Without any explanation, production shall be carried out according to the enterprise standard requirements of our company;
4. special cable requirements, can be provided by the customer, by our company to process the injection molding on the waterproof joint.
