Серия YGM/4R шлифовальная мельница Raymond высокого давления для продажи
13 600,00-13 900,00 $
Smelting of Laterite Nickel Ore Ygm High Pressure Grinding Mill Mtm 100
- Категории: >>>
- Поставщик: Shanghai,Zenith,Mineral,Co.,Ltd.Shanghai,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
mtm 100 grinding mill shell
MTW Euro-type Trapezium Mill owns many independent patents, such as overall prick gear drive, internal thin oil lubrication system, arc-shaped air duct.
More Compact Structure
Longer Service Life
Eco-friendly Production
Capacity: 3-45t/h
Max. Input Size: 50mm
Min. Output Size: 0.038mm
mtm 100 grinding mill shell Material
It can grind limestone, calcite, marble, talcum, dolomite, bauxite, barite, petroleum coke, quartz, iron ore, phosphate rock, gypsum, graphite and other non-inflammable and non-explosive mineral materials with Moh’s hardness below 9 and humidity lower than 6%.
mtm 100 grinding mill shell Application
This mill is mainly applied to the material processing of metallurgy, building materials, chemical engineering, mining and other industries.
 | Smelting Of Laterite Nickel Ore Ygm High-Pressure Grinding Mill Mtm 100 Grinding Mill Shell
Product Features: Lower operational & maintenance costs, excellent environmental protection, better quality of finished products Input Size: 0-50mm |
Smelting Of Laterite Nickel Ore Ygm High-Pressure Grinding Mill Mtm 100 Grinding Mill Shell introduction:
More Compact Structure
The structure is more compact, occupying smaller floor area to reduce project investments.
Eco-friendly Production
mtm 100 grinding mill shell is equipped with a professional dust remover, so the operation is quite friendly to the surrounding environment.
Longer Service Life
Grinding rollers and rings are made of wear-resistant alloy. Their service life is expected to be 1.7-2.5 times longer than traditional ones.
Special Design
Compared with traditional straight air ducts, the inlet of this air duct is smooth with little resistance and the outlet is easy for the dispersing of materials.
Smelting Of Laterite Nickel Ore Ygm High-Pressure Grinding Mill Mtm 100 Grinding Mill Shell working principle:
After jaw crushers break large bulky materials to smaller ones, elevators work to send materials to the hopper. Then, by electromagnetic vibrating feeders, broken materials are evenly and quantitatively sent to the grinding chamber of MTW mtm 100 grinding mill shell. After grinding, materials are blown away by airflow to the powder concentrator for classifying. Under the action of the impeller of powder selector, materials which fail to meet fineness would be sent back to grinding chamber to get another grinding while qualified powders would be collected by cyclone powder collector and discharged from the bottom as finished products. And, after that, the airflow would go into the fan along with the air return duct at the top of cyclone power collector. This system adopts a closed circuit and runs under positive and negative pressure. Because materials have a certain content of moisture, heat generated during grinding may lead air evaporation or swell in the grinding chamber so that the amount of airflow increases sharply. Besides, if the feed port and joints of pipelines are not sealed well, external air may intrude the grinding mill and lead imbalance of airflow. So, ZENITH arranges exhaust valves at the air outlet of the fan to induce redundant air into the bag filter. After purifying, the redundant air is discharged. This arrangement can achieve both the balance of airflow and the eco-friendly production.

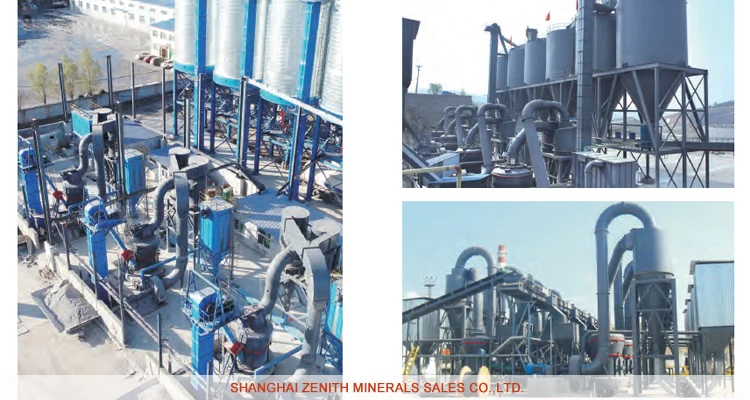

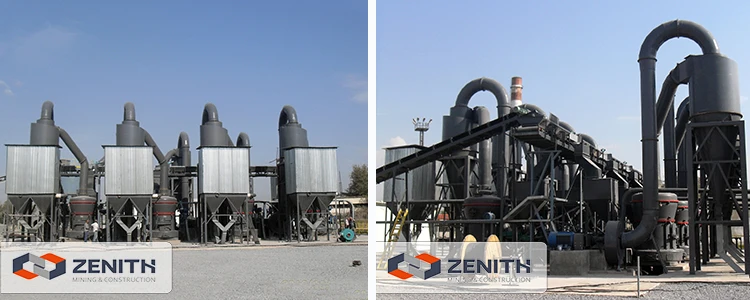

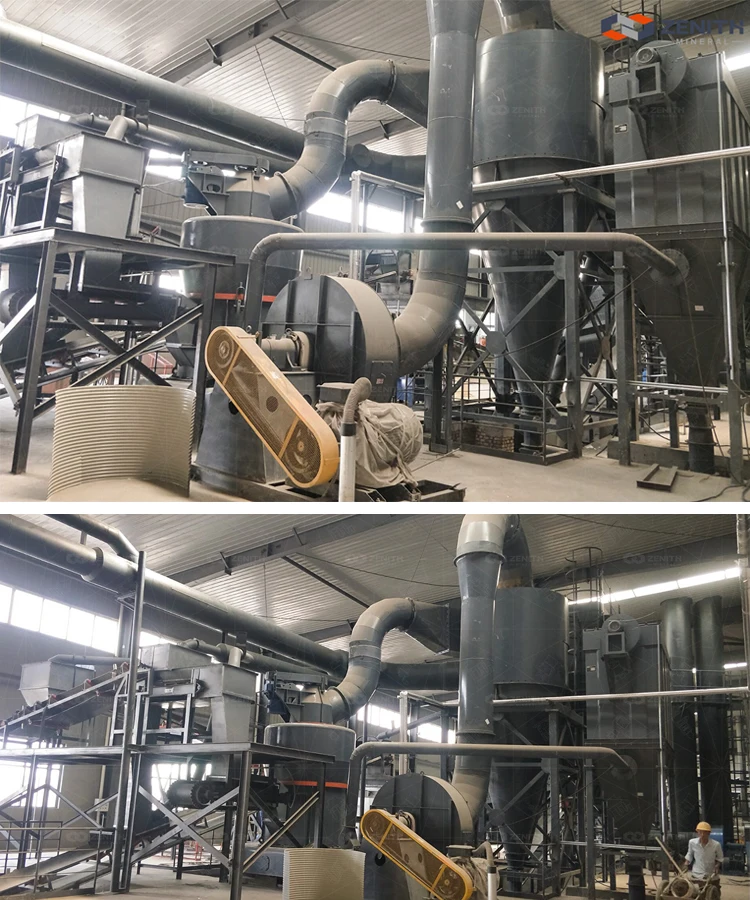

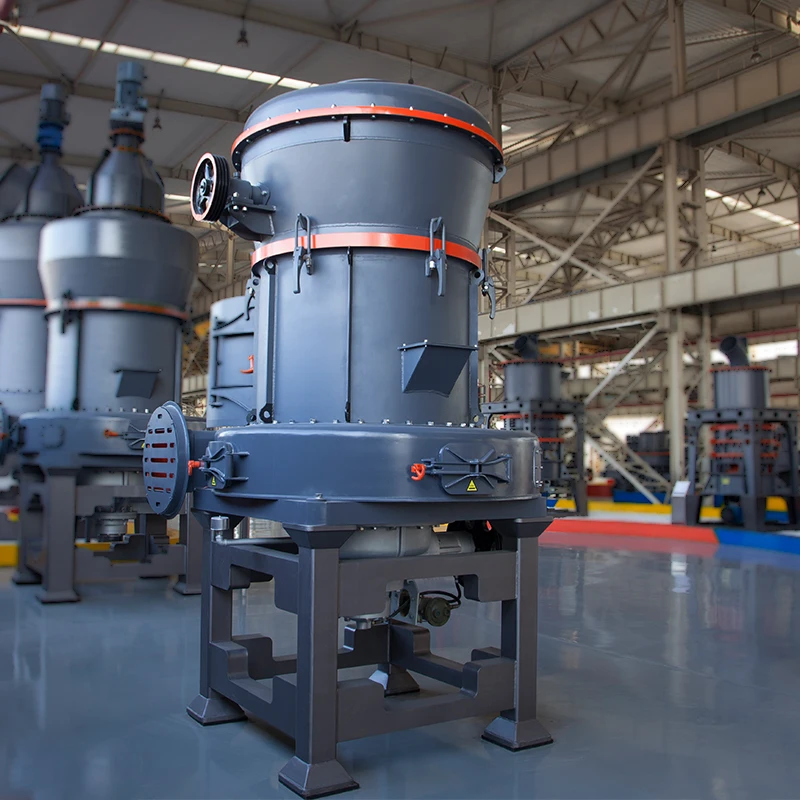

Smelting Of Laterite Nickel Ore Ygm High-Pressure Grinding Mill Mtm 100 Grinding Mill Shell photo:

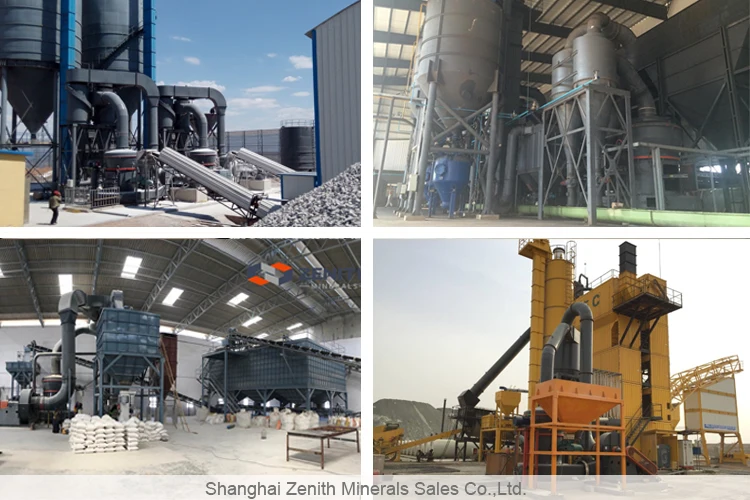

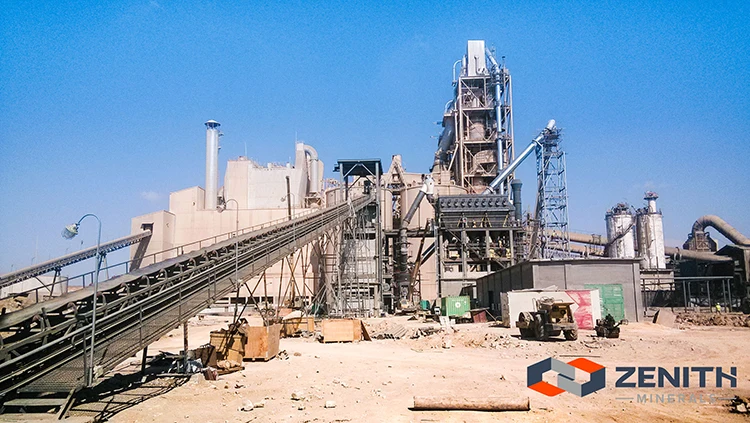

WALK INTO FIELD
Zenith Customer MTW 138 Pulverizing Line
Certain chemical industry building material Co., Ltd., Zhejiang
This company mainly produces calcium carbonate powder, with finished product used in citric acid industry
It purchases a suit if MTW138 Europe version grinder complete equipment
Production Line Condition
Site: Zhejiang
Daily running: 22 hours
Raw material: Limestone, particle size 100-350mm, particle size into grinder<10mm
Finished product: calcium carbonate powder with 98% calcium content, particle size 150 screen meshes -200 screen meshes
Configuration: MTW138 pulverizing complete equipment
Customer’s comment
Zenith company is very concerned about service condition at our site. What is even rarer is that it can absorb practical experience in customer use. It constantly improves details according to our real production conditions. As a result, this suit if MTW138’s yield also exceeds expectance. Compared with our previously used equipment, the prominent merit is convenience and simplicity in repair and maintenance. Currently our company’s machines are developing to large scale. If new equipment needs to be increased, Zenith’s equipment will still be the first choice.
-----Mr. Shen, factory director of factory in this building material company

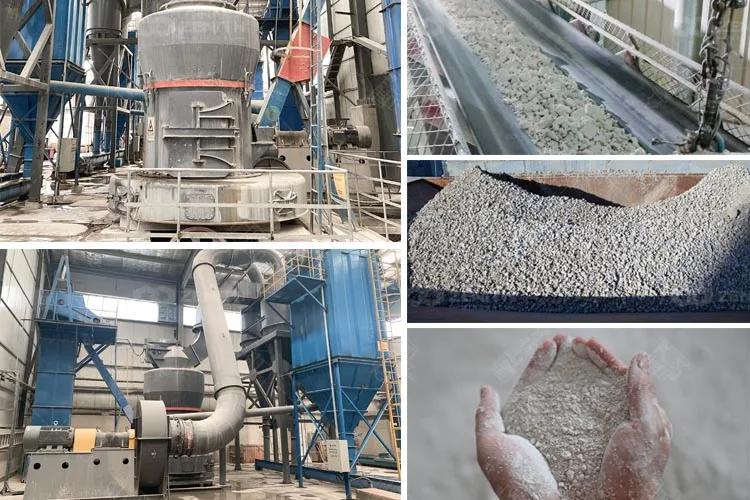

Finished Products of Smelting Of Laterite Nickel Ore Ygm High-Pressure Grinding Mill Mtm 100 Grinding Mill Shell:
Specifications of Smelting Of Laterite Nickel Ore Ygm High-Pressure Grinding Mill Mtm 100 Grinding Mill Shell:
| Name & Model | MTW110 | MTW138 | MTW175 | MTW215 |
| Ring Roller Number(pcs) | 4 | 4 | 5 | 5 |
| Major diameter of roller(mm) | 360×190 | 460×240 | 520×280 | 640x 320 |
| Inner diameter of roller (mm) | 1100×190 | 1380×240 | 1750×280 | 2150x 320 |
| Revolving Speed(rmin) | 120 | 96 | 75 | 65 |
| Max.Feed Size(mm) | <30 | <35 | <40 | <50 |
| Final size(mm) | 1.6-0.045, fineness can reach to 0.038 | 1.6-0.045, fineness can reach to 0.038 | 1.6-0.045, fineness can reach to 0.038 | 1.6-0.075, fineness can reach to 0.038 |
| Capacity(th) | 3.5-10 | 6.5-15 | 13-20 | 30-45 |
| Overall dimension(mm) | 8625×7933×8642 | 10920×9470×10227 | 12275×9555×9916 | 14730x 10860x 10341 |
| Main unit motor | Model | Y280M-6 | Y315M-6 | Y355M2-8 |
| Power(kw) | 55 | 90 | 160 | 280 |
| Rotate Speed(rmin) | 980 | 990 | 740 | 740 |
| Classifier speed regulating motor (variable frequency motor) | Model | Y132M-4 | Y180M-4 | Y200L-4 |
| Power(kw) | 7.5 | 18.5 | 30 | 90 |
| Rotate Speed(rmin) | 1440 | 1470 | 1470 | 1470 |
| Centrifugal induced draft fan motor | Model | Y250M-4 | Y315-4 | Y315L2-4 |
| Power(kw) | 55 | 110 | 200 | 315 |
| Rotate Speed(rmin) | 1480 | 1480 | 1480 | 1480 |
| Elevator | Bucket Model | TH210 | TH315 | TH315 |
| Motor Model | Y100L2-4 | Y112M-4 | Y112M-4 | Y160M-4 |
| Motor Power(kw) | 3 | 3 | 4 | 11 |
| Rotate Speed(rmin) | 1430 | 1430 | 1440 | 1440 |
| Jaw Crusher | Model | PE250×400 | PE250×750 | PE250×750 |
| Motor Model | Y180L-6 | Y200L2-6 | Y200L2-6 | Y315M2-6 |
| Power(kw) | 15 | 22 | 22 | 110 |
| Rotate Speed(rmin) | 970 | 970 | 970 | 990 |
| Magnetic Vibrating Feeder | Model | GZ2F | GZ3F | GZ4F |
Packaging & Shipping
Ways of Packing:
1.Sand blasting, coat with high quality paint;
2.Product wrap by PP-Bubble
3.Load container, Spear Parts in wooden case.
Transportation:
1. By sea Freight;
2. MSK/MSC/APL/EMC/WANHAI/KLINE
3. We will remind you before boat arrival
Certifications
Zenith products have acquired :
Russian GOST Certificate
EU CE Cetificate
ISO Quality Management Certificate
China Good Enterprises
China Credit Example Certificate , etc.
Company Information
A VARIETY OF TRUSTED EXPERIENCE ZENITH has a variety of professional, reliable and efficient crushing lines all around the world. So customers have great confidence in us. |
INFINITE BRAND VALUE What ZENITH is doing is customizing economical and suitable production lines for customers and building brand value. |
1200,000 SQUARE METERS OF PRODUCITION AREA 6 large-scale manufacturing bases occupy 1200,000 square meters in total. So quick delivery is a matter of course. |
Shanghai Zenith Mineral Co., Ltd. is a hi-tech, engineering group. We are specialized in the research, development, and production of industrial crushing, powder grinding, mineral processing equipments and other related devices. Our products have been sold to 120 countries and areas of Southeast Asia, East Europe, South America, the Middle East and Africa etc, and more foreign markets will be promoted in future.

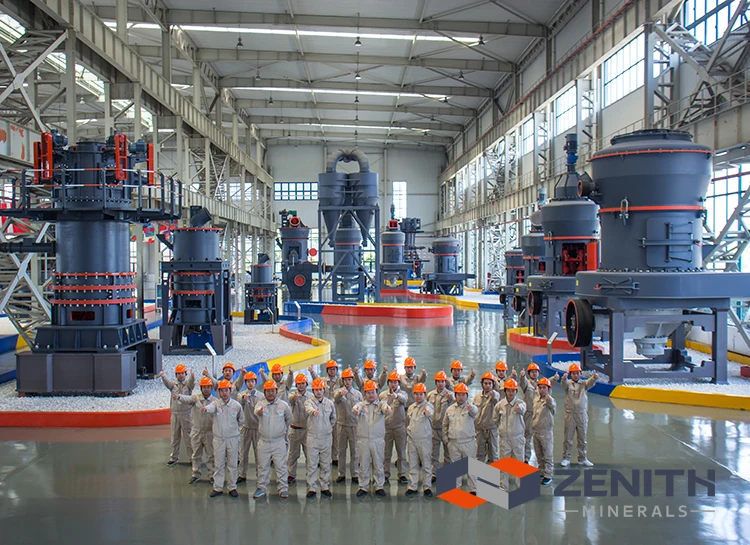

Zenith Factory
Headquarter of Zenith is located in Shanghai, China and now we have two manufacturing bases as our strong support. One is located in Shanghai about 450,000 square meters, and the other is in Qidong city, about 600,000 square meters. It takes about one-hour driving from Shanghai to Qidong city.
Exhibition
Zenith participate in various exhibitions frequently,such as Bauma China,China Import and Export Fair , Asia-pacific's International Mining Exhibition, Bauma Africa, CONEXPO Latin America , etc.
Get Price
If you are interested with our products, please don't hesitate to contact us now!
You can tell me the following questions, Then I can send you accurate quotation, including additional discount!
1. Which machine do you need? like stone crusher, grinding mill or beneficiation machine, etc.
2. what is your raw material plan to process? like limestone, granite or inron ore, etc.
3. The capacity you need. Like 100 tones per hour or 2000 tones per day.
4. Your contact information. Both Email and phone number are essential, we can contact you easier.
Now,please click the following contact to send us email or chat online!
