Advantages
Products advantage
World-class algorithm, high-speed and accurately identify fingerprint.
Face/Fingerprint/Pin/Card authentication.
Suitable for the entrances and exits of office, factory, hotel, school, etc.
Large capacity, user capacity up to 3,000, logs capacity up to 200,000.
Suitable for the entrances and exits of office, factory, hotel, school, etc.
Large capacity, user capacity up to 3,000, logs capacity up to 200,000.
2.8 inch TFT color screen 320x240 pixel.
TCP/IP + USB Flash Drive Download + USB Communication.
More helpful function like T9 input method, self-service inquiry, etc.

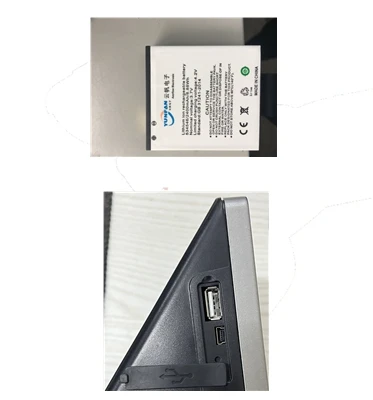

Support door control / alarm function.

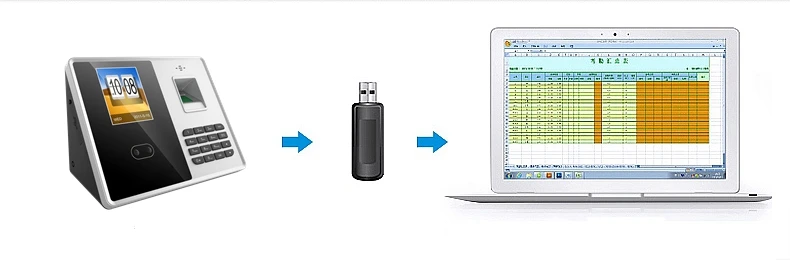

USB flash drive for offline data management.
Multi-language: English, Arabic, French, Spanish, Portuguese, etc.
Multiple shifts setting.
Professional AT software eTime.
Easy wall-mounting.
Exact calculation of worked hours / overtime.
Product Description
Product performance description

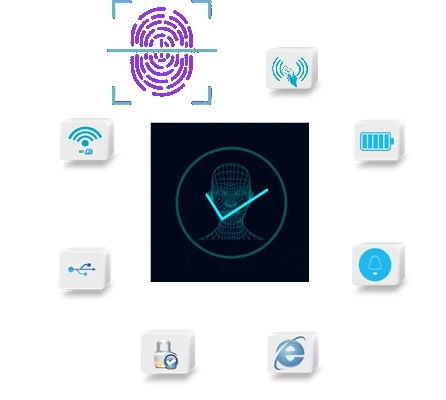

New model FF686 is popular in the market with smart desgin, improved function that support WIFI, access control, bell, battery, RFID. professional communication port with wiegand in & out, 2 × relay, NC, NO, alarm, etc.

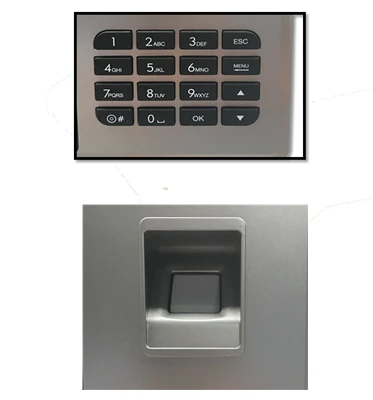

Device could be with Black, Grey, Sliver color, smooth keypad to be more humanized.

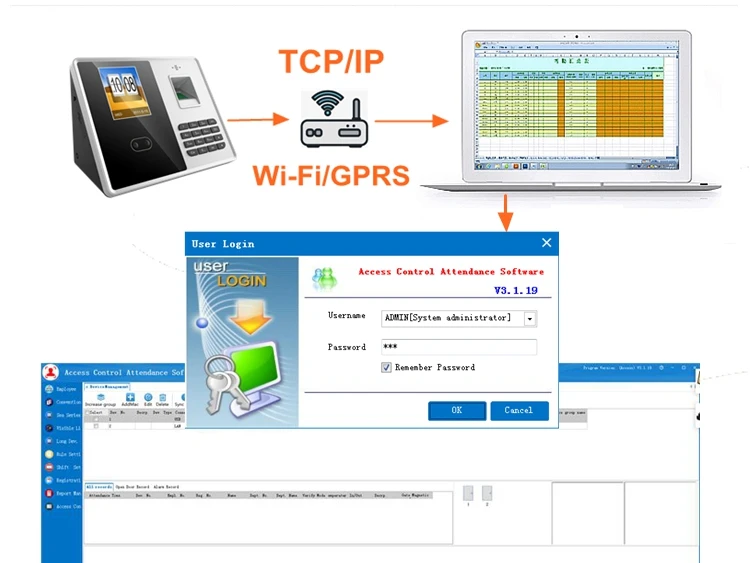

Data be managed via TCP/IP, WiFi, and USB host port for data up / download to avoid the risk of accidental deletion, what's more, friendly software eTime with perfect setting of shifts, rules, employees, departments, etc.
Device could be with Black, Grey, Sliver color, smooth keypad to be more humanized.
Data be managed via TCP/IP, WiFi, and USB host port for data up / download to avoid the risk of accidental deletion, what's more, friendly software eTime with perfect setting of shifts, rules, employees, departments, etc.
TECHNICAL SPECIFICATIONS | ||||||||
Biometric Measurement | Face & Fingerprint | |||||||
User capacity | 1000 (Could be Up to 3,000) | |||||||
Log capacity | 200000 | |||||||
CPU | 400MHz | |||||||
LCD display | 2.8" TFT color screen 320x240 pixel | |||||||
Interface | TCP/IP, USB (host and slave), 2 × Relay， wiegand in & out | |||||||
Language | English, Arabic, French, Korean, Spanish, Portuguese, etc | |||||||
Attendance mode | Face or Fingerprint or Password or Card or Face+Password | |||||||
Voice instruction | 16-bit Hi-Fi voice & sound indication | |||||||
Verification time | < 0.5 second [1:N] | |||||||
FRR (False Rejection Rate) | < 1% | |||||||
FAR (False Acceptance Rate) | < 0.0001% | |||||||
Power source | 5VDC/1A | |||||||
Operating temperature | 0℃-45℃ | |||||||
Operating humidity | < 90%RH | |||||||
Dimensions (mm) | 175 x 145 x 79.5 | |||||||
Weight (kg) | 0.33 | |||||||
Quantity/Carton | 10 units | |||||||
Gross weight/carton (kg) | 9.7 | |||||||
Carton size | 650 x 465 x 290 | |||||||
Quantity / container | 3200 units per 20' container | |||||||

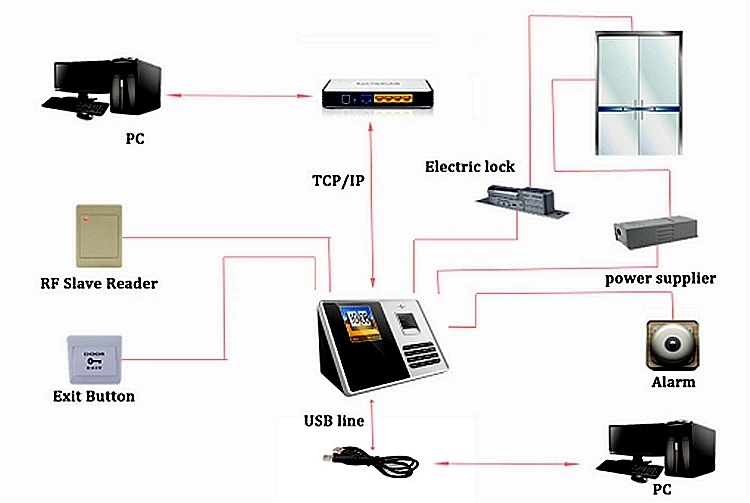

Application and Accessories
Packing&Shipping
Dimensions (mm) | 175 x 145 x 79.5 | Weight (kg) | 0.5 |
Quantity/Carton | 10 units | Gross weight/carton (kg) | 9.7 |
Carton size | 650 x 465 x 290 | Quantity / container | 3200 units per 20' container |
Company Profile

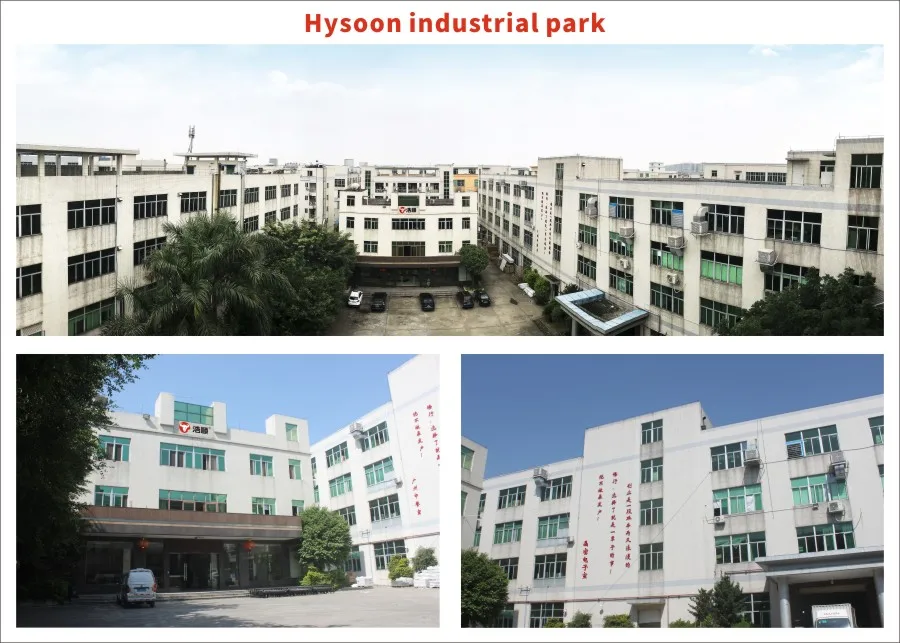

Hysoon History

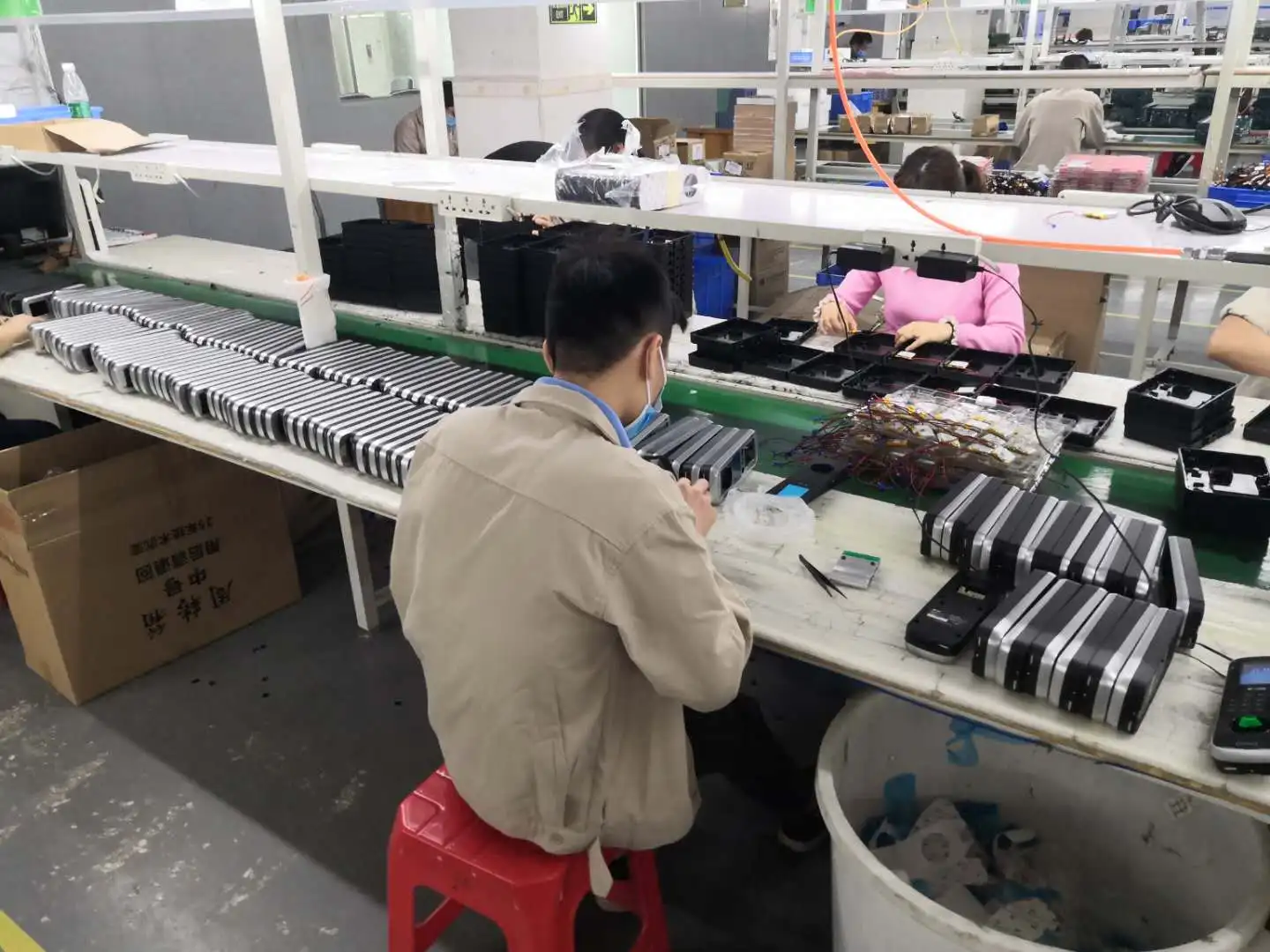

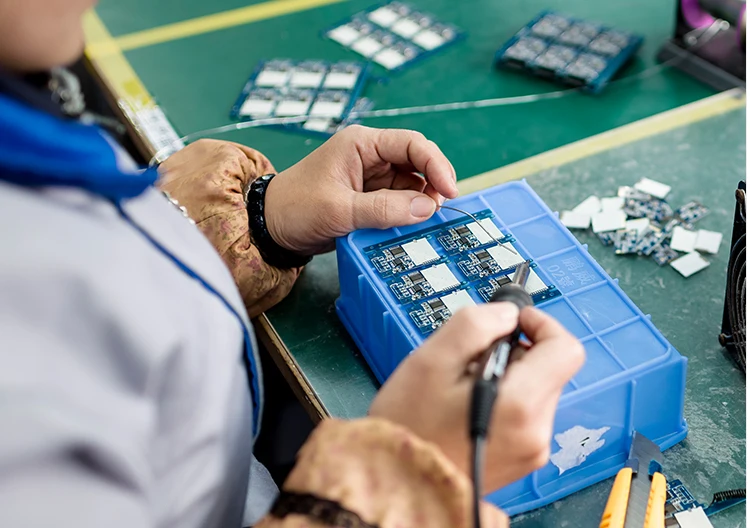

Hysoon (Holdings) Corporation is located in Huadu district, Guangzhou China. The factory occupies over 15000 square meters of area, more than 800 employees. Hysoon is a private high-tech enterprise,specialized in developing and producing high quality paper shredders, access control systems, fingerprint and face recognition attendance machines, cash register machines and POS systems.
Exhibition
Certifications
FAQ
Q:What OEM do you support?
A: Brand Logo, machine function such as capacity, door access control,back battery,GPRS all are supported.
Q:What's the warranty?
A: 24 months after the order. The free spare parts will be shipped free for replacement.
Q:Technical supporting?
A: Offer the SDK file to help customers to program their own software, or use hysoon software directly.
Q:Payment
Every online or offline payment all are supported, such as Paypal, Western union, credit card, T/T payment and so on
Q:What's the warranty?
A: 24 months after the order. The free spare parts will be shipped free for replacement.
Q:Technical supporting?
A: Offer the SDK file to help customers to program their own software, or use hysoon software directly.
Q:Payment
Every online or offline payment all are supported, such as Paypal, Western union, credit card, T/T payment and so on
Q: Order process.
A:Start production after receiving payment or deposit. At the same time, design customized logo and carton then show to customers. The finished product will be tested the hardware, firmware and programs for 24 hours before delivery.
.
Q:Delivery
A:The samples will be shipped within 7 days after payment . The bulk order delivery time will be within 15 days.
Q:Shipment
A: Express, air shipment and sea shipment all are available.
.
Q:Delivery
A:The samples will be shipped within 7 days after payment . The bulk order delivery time will be within 15 days.
Q:Shipment
A: Express, air shipment and sea shipment all are available.
