Product Description




CNB-LV801 Tuya Smart App Security Camera Monitor Glass Sliding Door Activation Detector Visual Sensor

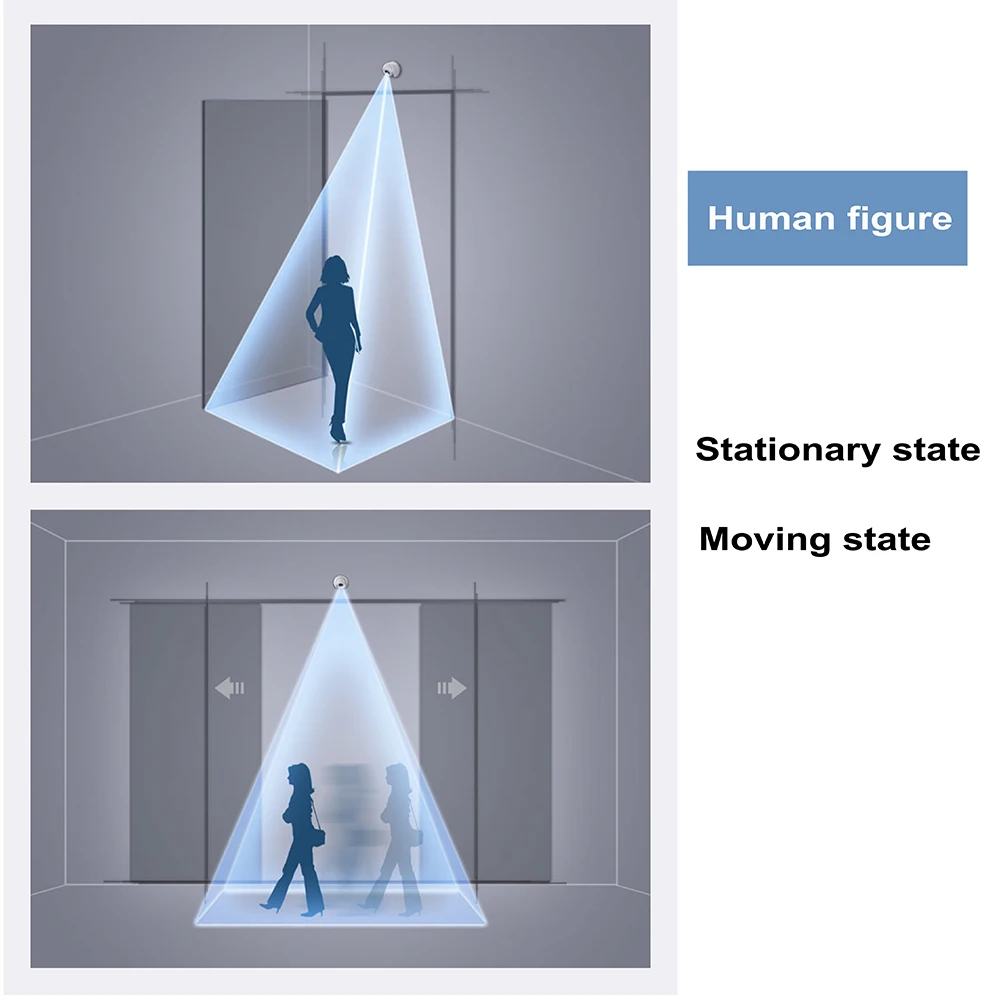

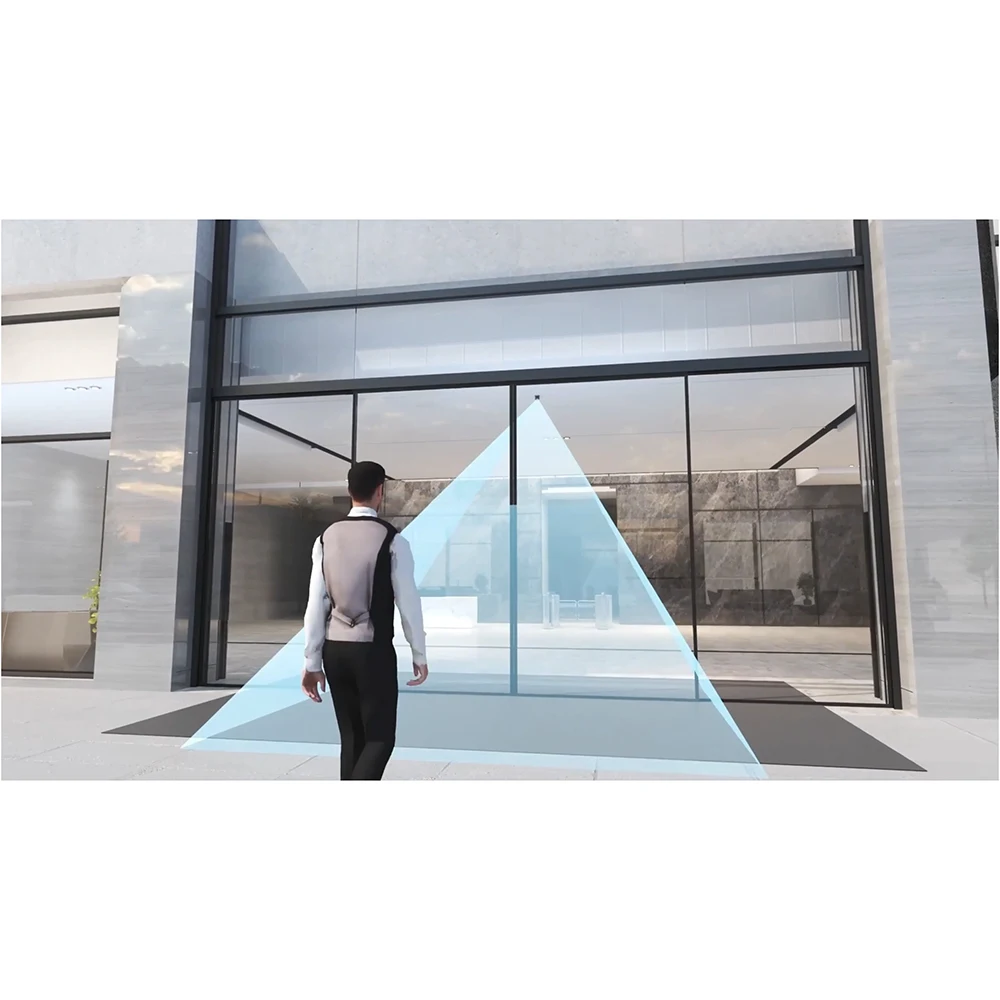

Camera sensor, recognizing the human figure in the detecting area, whether in the moving or stationary state, it can also outout signals. This product can be as a motion sensor, also as a presence safety sensor.


Visual sensor, AI human figure intelligent detection, recognizing the human figure in the detecting area, whether in the moving or stationary state, it can also outout signals. This product can be as a motion sensor, also as a presence safety sensor.

Working mode switch:
Mode 1: "human figure+slight movement" mode
Press the setting button once, when you hear ONE beep voice, it will switch to mode 1: When someone enters the detection range, the sensor recognizes the human figure, door will open; When someone stays under the door, slight movements will also be sensed, door will not be closed at this time, also as safety presence function for automatic gate.
Application: High-sensitivity induction, suitable for applications that require both motion and anti-pinch functions. (Factory default setting).

Mode 2: "human figure+movement" mode
Press the setting button again, when you hear TWO beep voice, it will switch to mode 2: When someone enters the detection range, the sensor recognizes the human figure, door will open; When someone stays under the door, normal movements will be sensed, also used to automatic gates as safety presence function.
Application: Normal induction, suitable for scenes with slight disturbance, such as floating water, fish tanks, shaking plants on site.

Mode 3: "Only human figure" mode
Press the setting button again, when you hear THREE beep voice, it will switch to mode 3: When someone enters the detection range,
the door will only open if the sensor recognizes the entire human figure.
Application: It is suitable for scenes that only recognize human figure and do not need to react to other objects.

Mode 4: "only movement" mode
Press the setting button again, when you hear FOUR beep voice, it will switch to mode 4: When someone or objects enters the detection range, any movement will be recognized, and door will open.
Application: Suitable for scenes that all movement are sensed. And in the mode 4, the detection range can be adjusted freely according to your need on site. High sensitivity and high precision.
















Product features

1, Adopt advanced Convolutional Neural Network, to detect and recognize the human figure, can avoid interference from strong light, vibration, flying insects, floating leaves, etc.

2, Use the video stream image acquisition technology, on the basis of ensure a certain angle of view, the sensing detection of ultra-high door can be realized, and the maximum installation height can be 6 meters.

3, It supports inserting an SD card and expanding the memory to 128G to realize all-day video monitoring; and it is convenient for users to upgrade the system without changing the hardware.

4, Built-in Wi-Fi module, which can be connected to mobile phone through external Wi-Fi network or mobile phone hotspot.

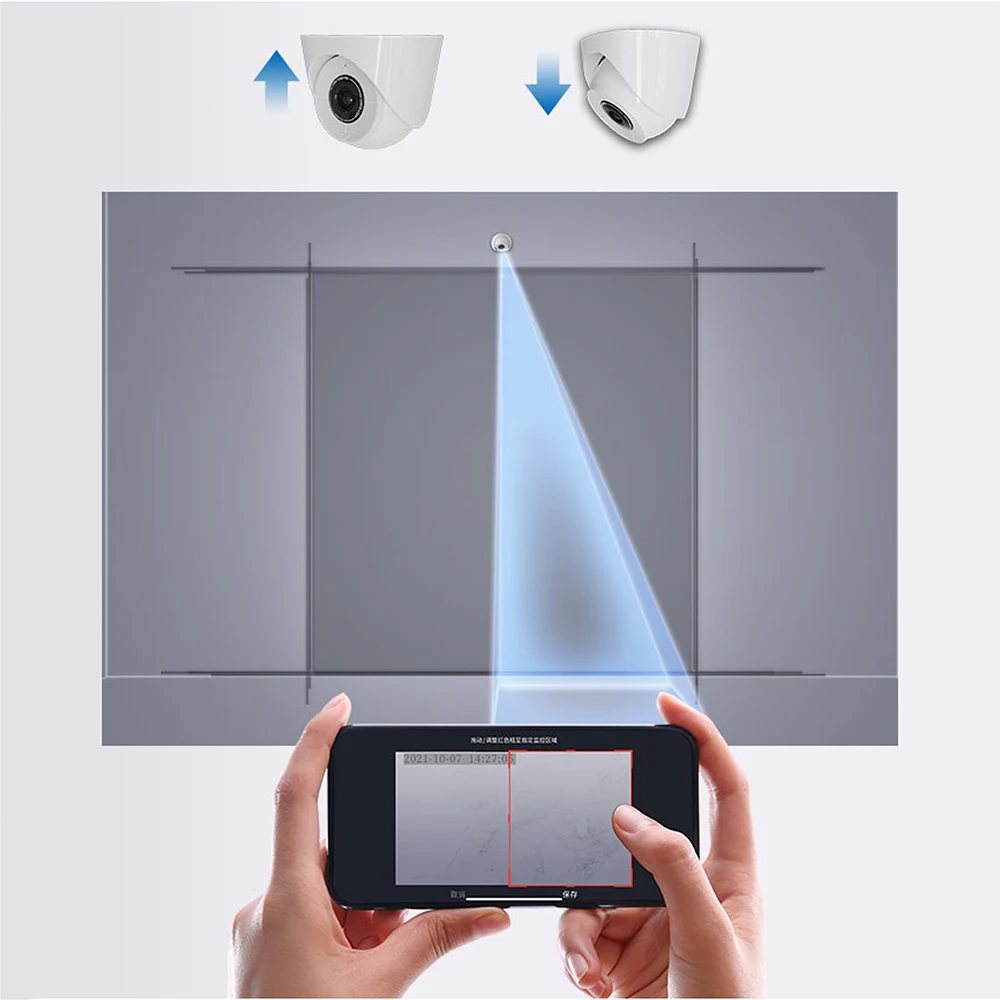

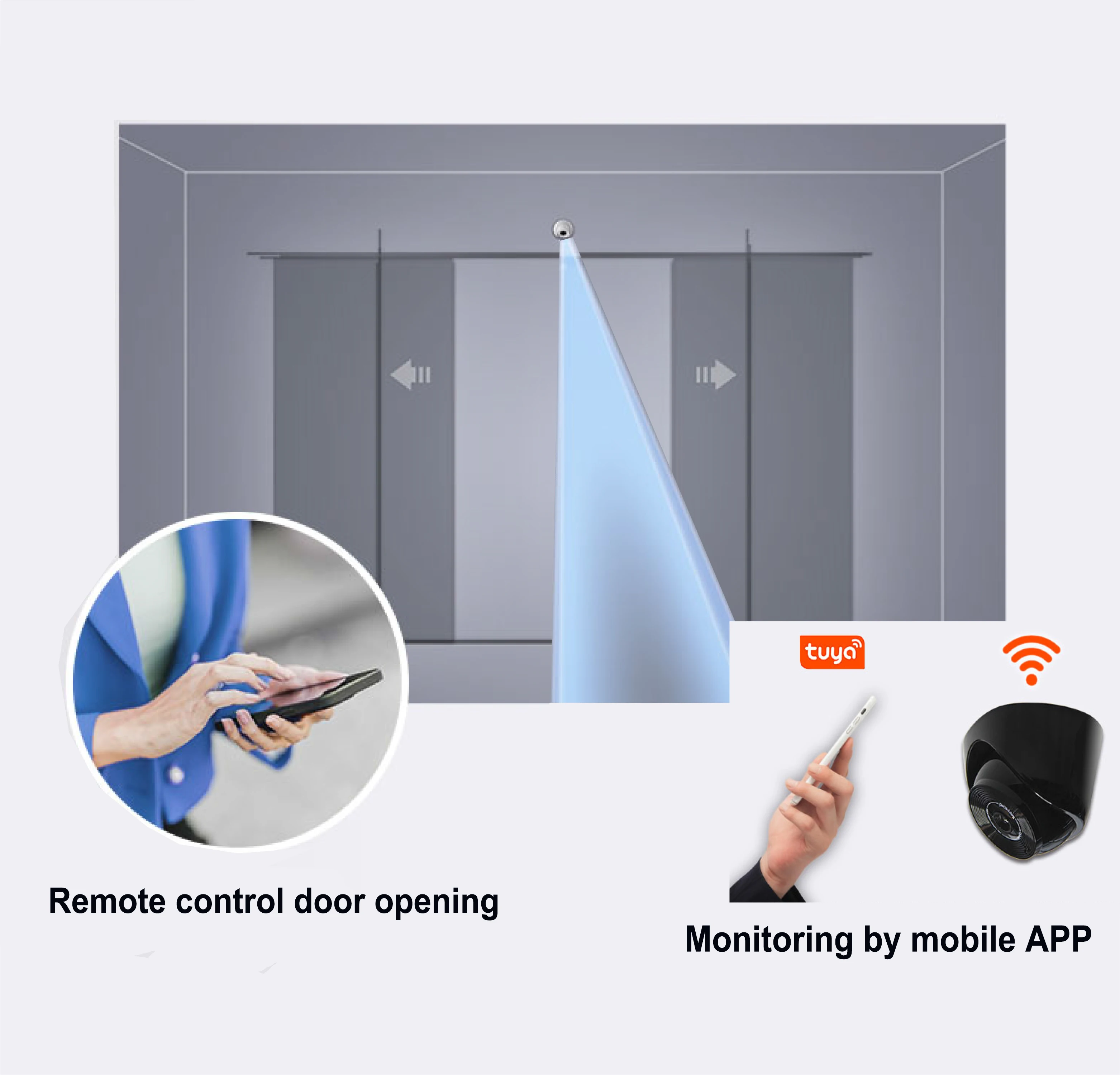

5, Equipped with the global AI+LOT Internet of Things platform--"TUYA", the detecting area size can be set through the APP, and remote monitoring and remote opening of the door can be realized by mobile phones.

6, With single axis eagle eyes design, flexibly to adjust the view angles, and the detecting areas.

7, After power on, it will automatically enter the AI human figure detection and recognition mode, without background learning.

8, Built-in microphone, real-time simultaneous monitoring.






Specification


ITEM
Image Recognition Sensor
BRAND
CANBO
MODEL
LV801
Main processor
INGENIC T31N
Main frequency
1.5GHz
Detection mode
Moving + human figure detection (Dual mode)
Pixel
HD 720P 1296*732
Response speed
50ms
Monitor storage
TF card in FAT32 format, maximum 128GB memory
View adjustment
0-90° (expose installation) 0-45°(embedded installation)
Network distance
10-30 meters (dependin on the strength of Wi-Fi on site)
Detection function
human figure motion, presence, remote control opening, monitoring, period function switching
Signal output
Relay ON, CN
Power supply
AC/DC 12-36V
Standby comsumption
60mA ± 30mA

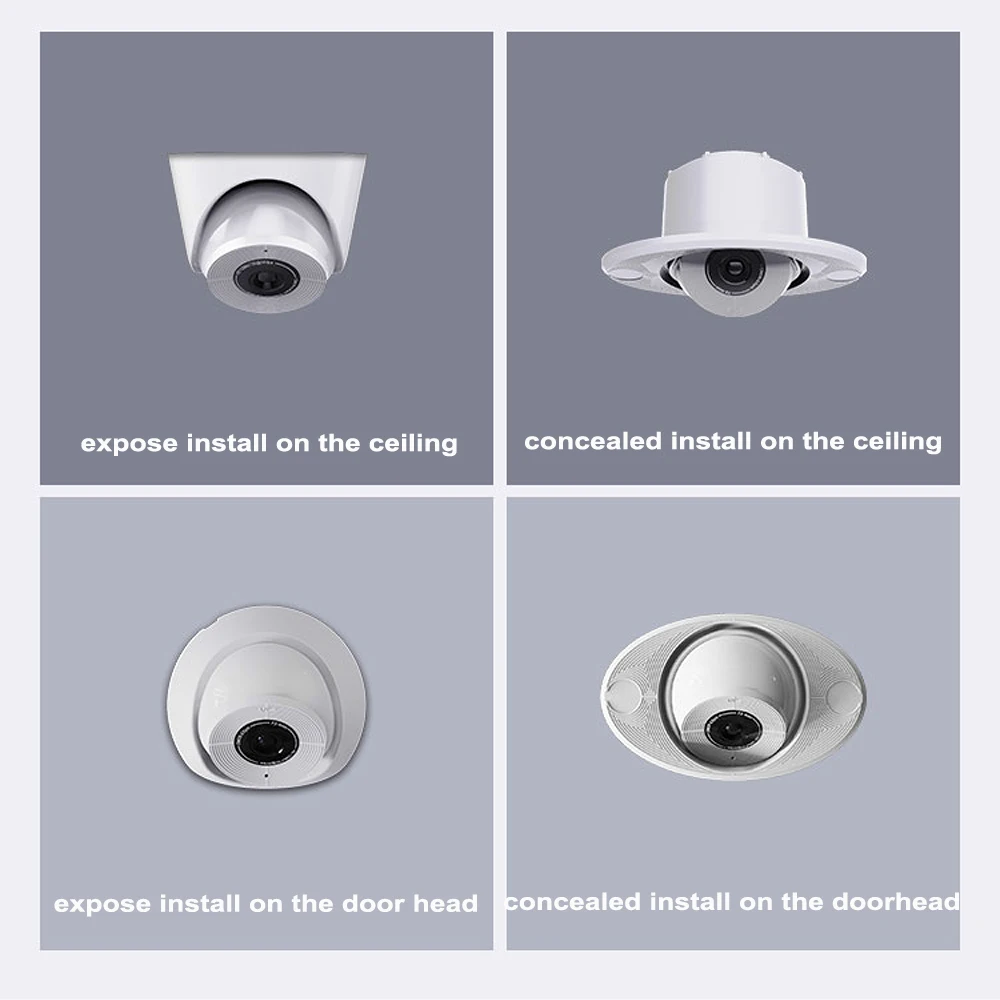

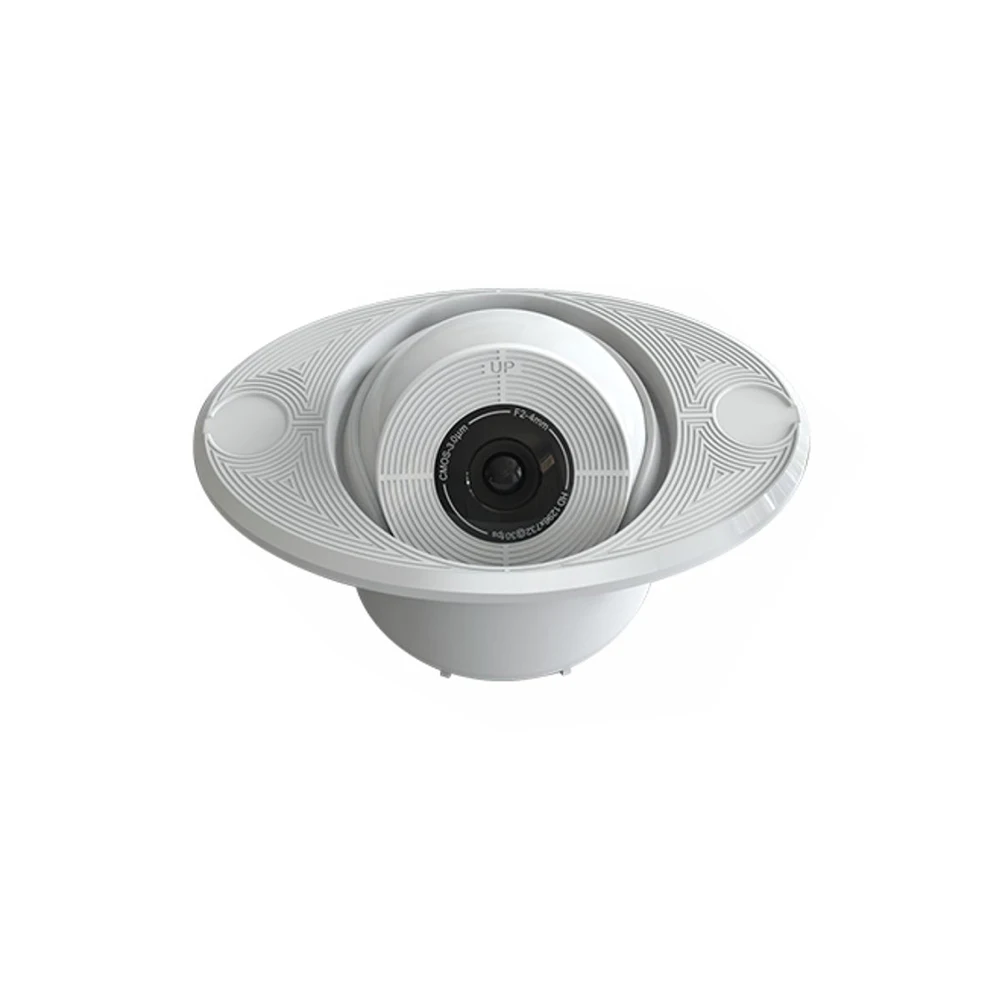

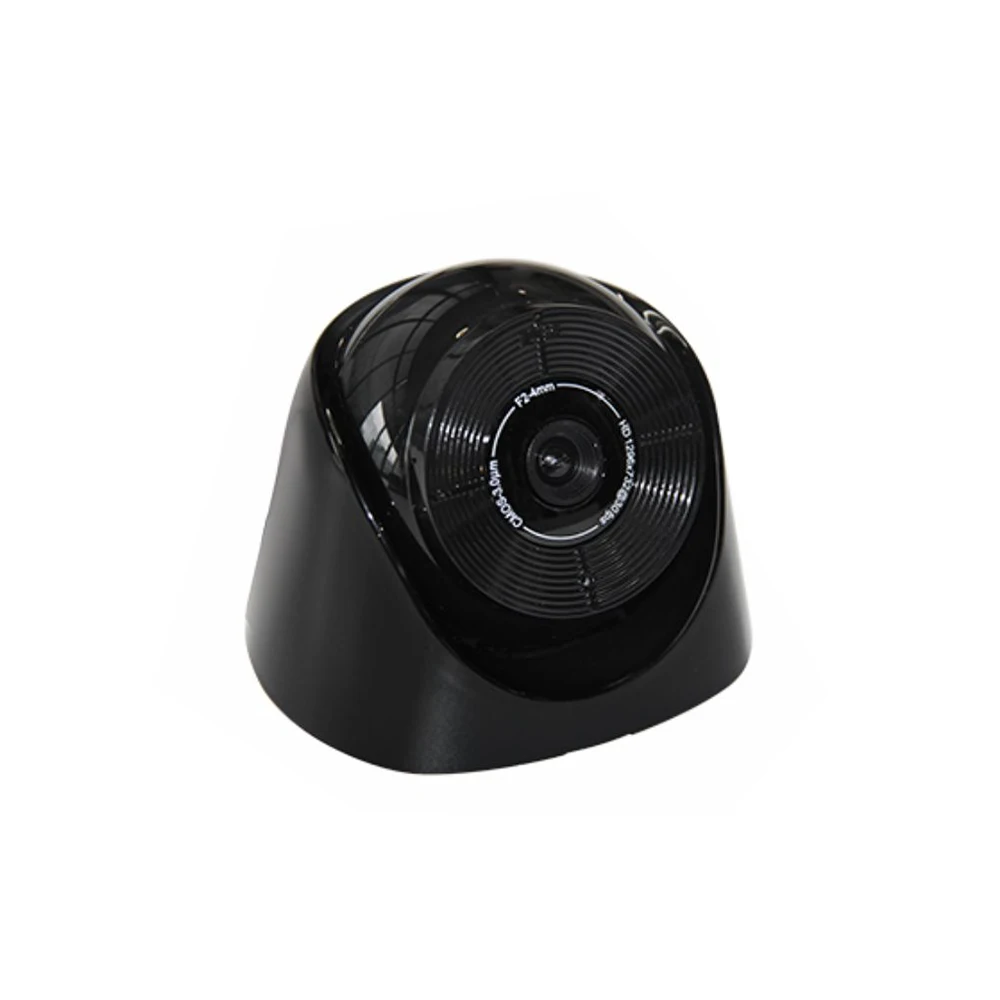

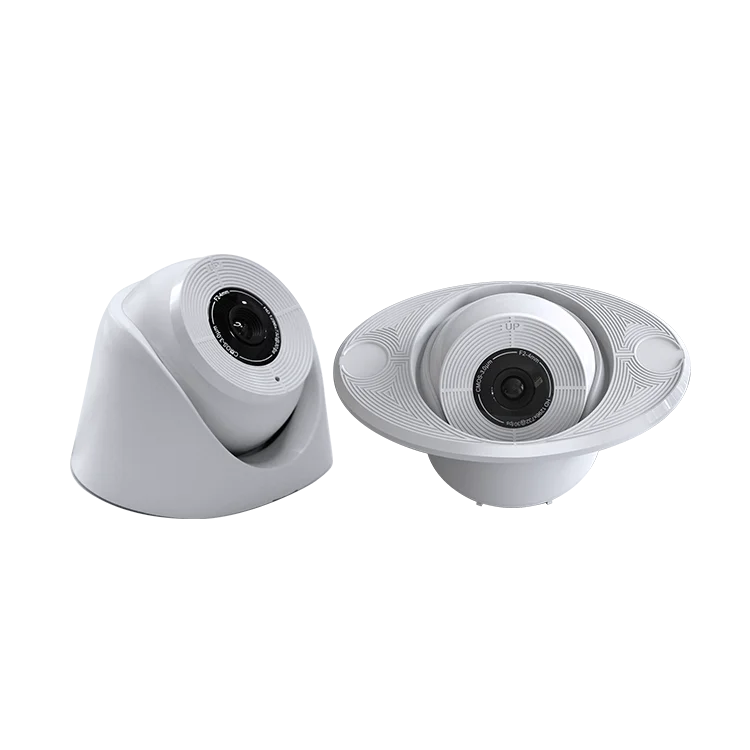

Installation methods
Expose or embedded installation on the door head, wall, and ceiling

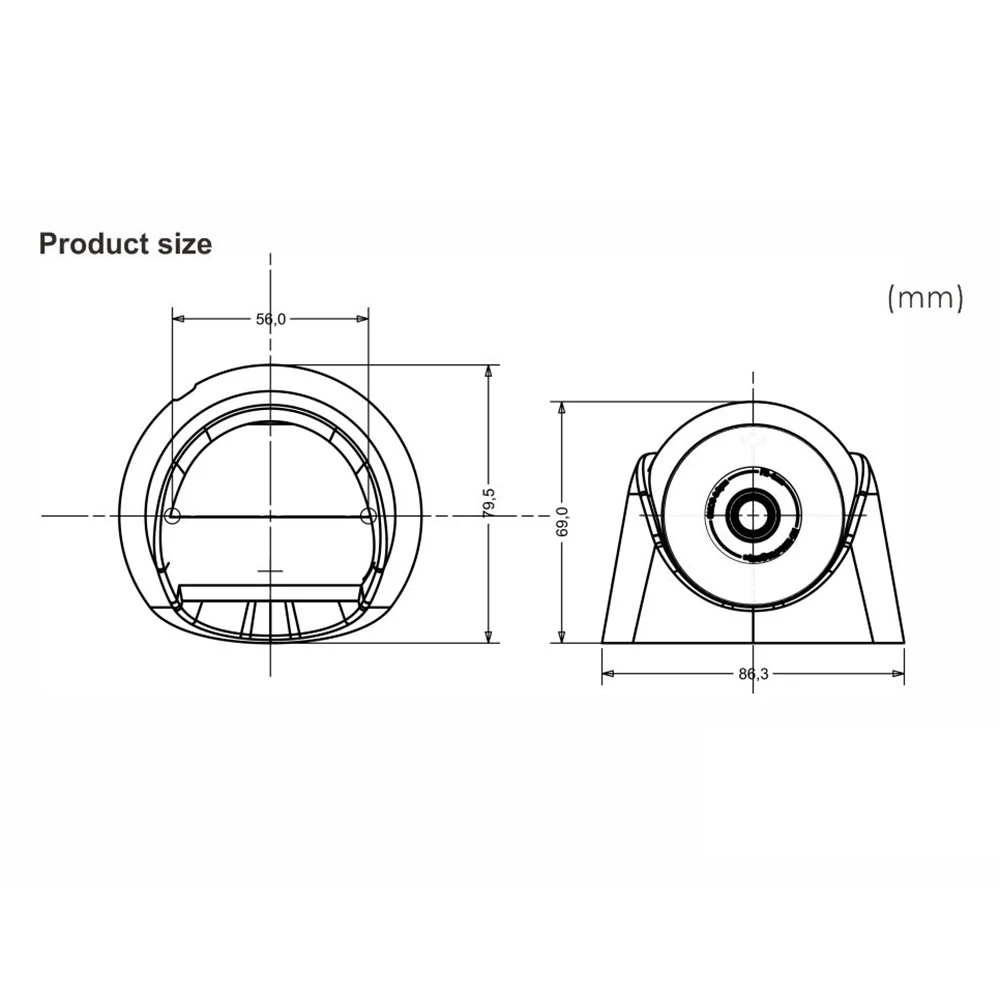

External dimension
86.3x69x79.5mm(expose) 129.6x82x70.7mm(embedded)
Installation height
≤ 6 meters (It can be installed higher if the installation inclination can be guaranteed)

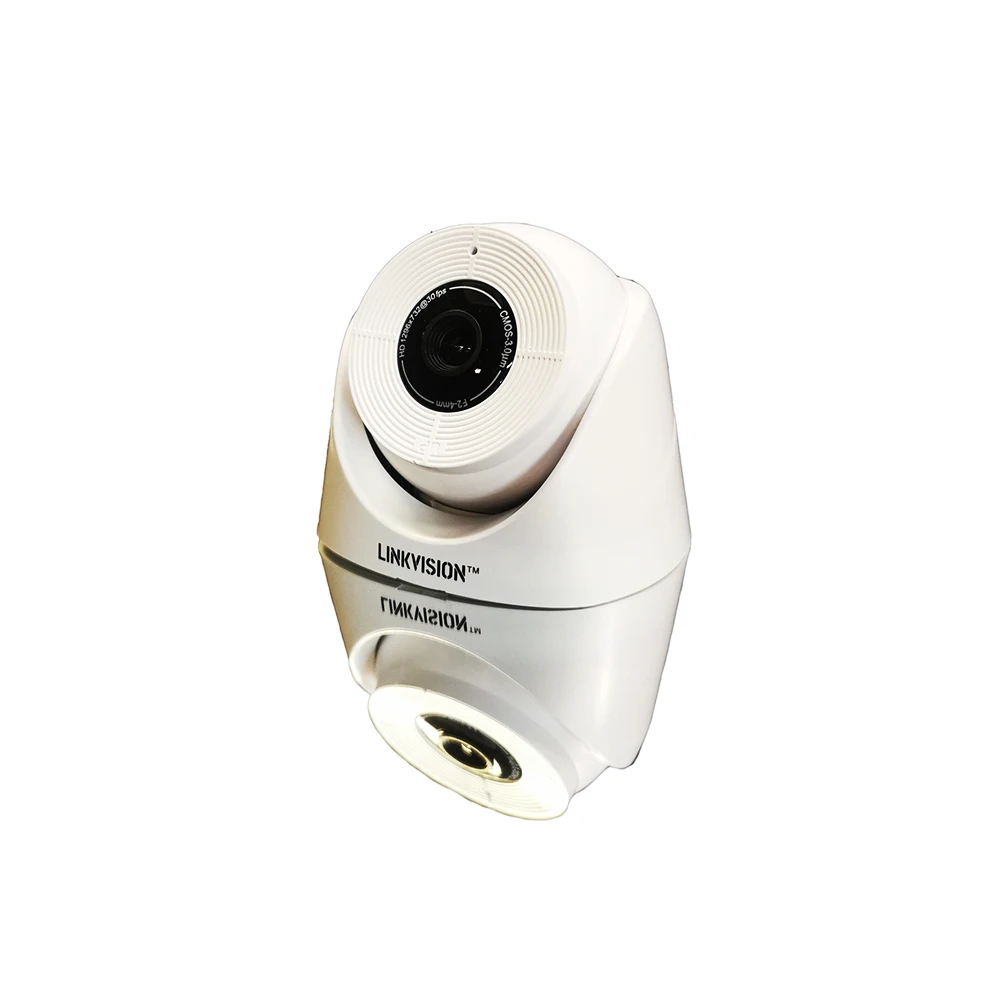

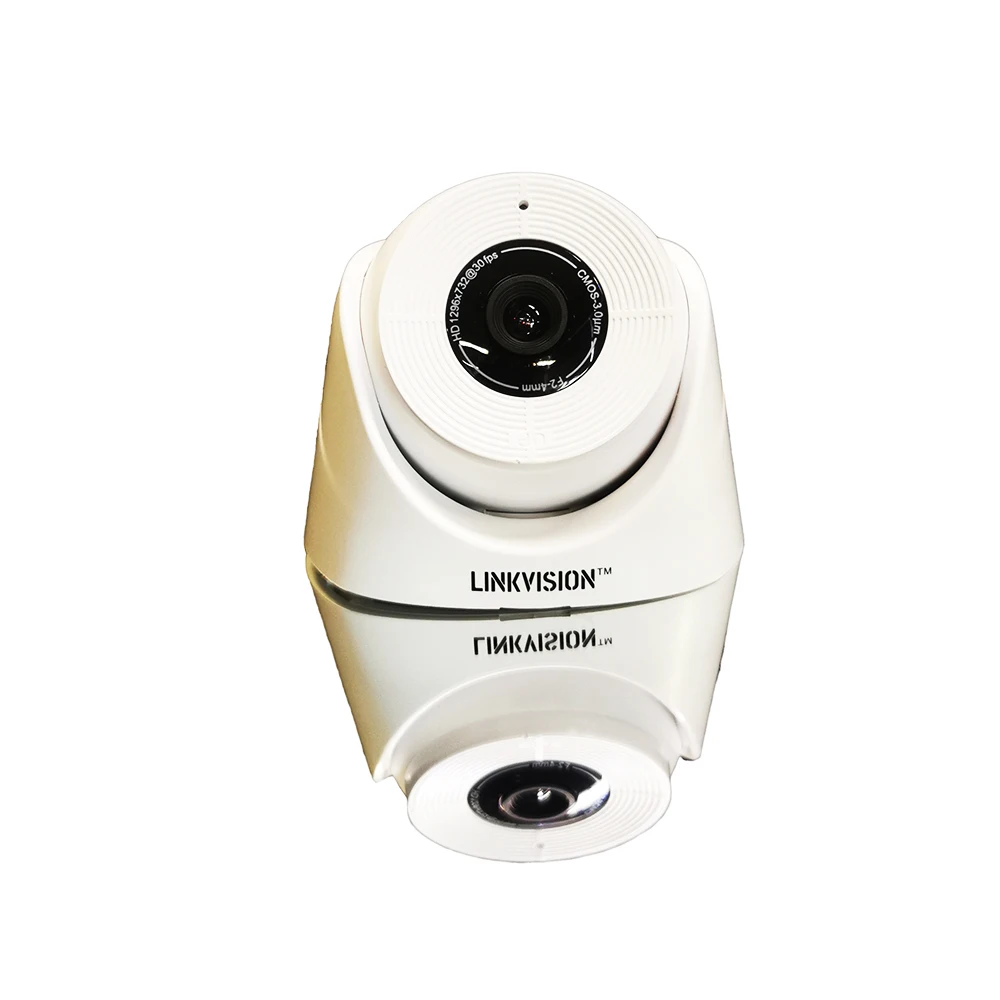

Details Images








Packing & Delivery


Packing: poly bag + PE foam + inner box + outer box, screws will be packed into a zipcode bag.
(Maybe there will be some differences in the way of packing for different models of products )




Recommend Products




All are three beams detact sensor, or single and double beams available.






Certifications






Company Profile


Shenzhen Winfor Canbo Technology Co., Ltd.
We are a professional manufacturer engaged in research and manufacture of automatic door control and access & attendance products. We have rich experience in development of automatic door controlling system and product application on the market. "Canbo"(CANBO) series automatic door controlling products are widely used in auto door control system, business/office building access control and attendance checking systems, bank management system and medical purification control system.





With strong applicability, high stability, and exquisite appearance, CANBO products are regularly provided for many large scale automatic door manufactures, engineer contractors and export merchants. Winfor Canbo Company has become a globalized professional manufacturer in this field since our products sold to domestic and oversea markets such as Europe, United States and Asian markets, enjoying good reputation. In the spirit of innovative, pragmatic and high efficient, Winfo Canbo focus on providing high quality, advanced & pragmatic product to serve worldwide markets, in the fields of automatic door access control, intelligent security guard and medical purification. Winfor Canbo Company owns the following advantages: rich technology resources, a number of core techniques with proprietary intellectual property rights and exchanged European and US cooperation techniques. What's more, we have established long-term technical and business cooperative relationships with automatic door machine and matching product manufactures and system integrators of Germany, France, Spanish, Japan, Korea and Malaysia etc. we are providing all kinds of matching services for many large scale domestic automatic door manufacturers. With the characteristic of advanced technology, excellent quality and exquisite technics, our products have rather high cost performance and strong market competitiveness.

Pursuing for practical product applicability is the unremitting striving direction and also the enterprise mission of Winfor's
staff. Specific products are as follows: ATM card reader, magnetic card access controller, infrared presence sensor, passive infrared sensor, infrared presence detector, microwave sensor, palm inductive switch, wireless touch switch, auto-door switch for disable, pedal inductive switch, automatic door sensor beam, enhanced type remote controller, pet presence detector, automatic door function extender, five range programmed switch, ID card& password access controller, access controller and attendance integrated controller, fingerprint and attendance access controller, automatic timing switch, bad debt controller, electric mortise lock(anode lock) electric lock cath (cahode lock), magnetic lock, ID(IC) smart card, dedicated power for access control. Different kinds of metal accessory lockers and exit switch buttons etc. Automatic access control access series.

CANBO product has passed CE certification of European Union with CE certificate issued.


FAQ




1. Can i get one piece sample each model?
Yes, sample can be available.

2. How long will i get my products?
Generally, for sample and small quantity order, we will arrange delivery within 1 week.
for customized products and large quantity order, we will confirm and let you know the delivery time before order.

3. Can you add my logo? Or custom function according to our requirements?
Yes, color, logo, packaging, product function all can be customized.

4. Are you a Manufacturer or a trader? Can i be the agent of your brand in our country?
Shenzhen Winfor Canbo Technology Co.,Ltd is a professional factory engaged in research and manufacturer of automatic door access and attendance series products over 13 years.
Yes, Welcome to discuss any kind of cooperation with us.

5. what services we can choose?
Accepted Delivery Terms: FOB,EXW, etc.
Accepted Payment Currency: USD,EUR,HKD,CNY;
Accepted Payment Type: T/T, Escrow;
