48-51 мм Диапазон металлический шланг зажим 22 ширина
48-51 мм Диапазон металлический шланг зажим 22 ширина
48-51 мм Диапазон металлический шланг зажим 22 ширина
48-51 мм Диапазон металлический шланг зажим 22 ширина
48-51 мм Диапазон металлический шланг зажим 22 ширина
48-51 мм Диапазон металлический шланг зажим 22 ширина
48-51 мм Диапазон металлический шланг зажим 22 ширина

48-51 мм Диапазон металлический шланг зажим 22 ширина


Поделиться:

Цена:0,11 $ - 0,13 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики





Product Description

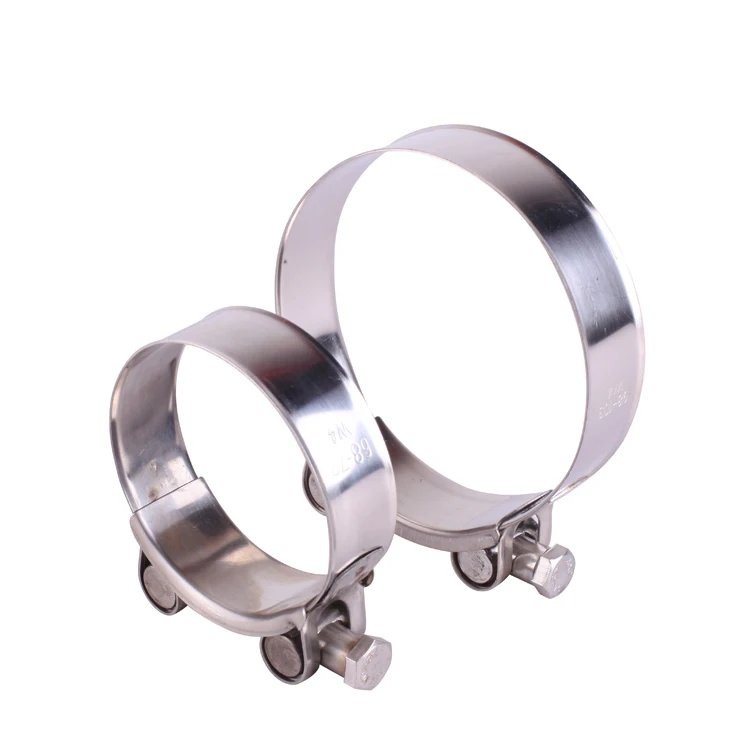

Single Bolt Hose Clamp

For Heavy duty applications where large tightening forces are required
Rolled edge to prevent hose damage
Easy installation bolt is used for tightening not a nut which ensures full travel when using a socket
Solid trunnions with hex head bolt
Superior sealing tighter seals at lower bolt torques


*Brand
TheOne
*Name
Single Bolt Hose Clamp
*Material
W1 series (all the parts are carbon steel )
W2 series (band and bridge are SS200 or 300,others are carbon steel )
W4 series (all the parts are SS200 or 300 )
W5 series (all the parts are SS316 )
*Size
18-20 mm to all
*Package
plastic bags+cartons
*Dimension information
all dimension can be customized








Drawing




bandwidth
(mm)
thickness(W1)(SS)
(mm)
size
(mm)
screw
pcs/bag
pcs/ctn
ctn szie
(cm)
G.W./ctn
(W1)(SS)(kg)
Torque
(N.m)
18
0.6/0.6
17-19
M5
10
250
38*27*13
10.13/10.25
≥5
20-22
M5
10
250
38*27*13
10.38/10.50
≥5
23-25
M5
10
250
38*27*15
10.63/10.75
≥5
26-28
M5
10
250
38*27*15
11.20/11.10
≥5
20
0.8/0.6
29-31
M6
10
200
38*27*17
10.90/10.80
≥10
32-35
M6
10
200
38*27*17
12.28/11.00
≥10
36-39
M6
10
200
38*27*19
13.98/11.20
≥10
39-41
M6
10
200
38*27*19
14.52/11.40
≥10
40-43
M6
10
200
38*27*24
14.94/11.60
≥10
22
1.2/0.8
44-47
M6
10
200
38*27*27
17.30/14.80
≥10
48-51
M6
10
200
38*27*27
18.02/15.00
≥10
52-55
M6
10
200
38*27*29
18.76/15.20
≥10
56-59
M6
10
100
38*27*17
10.02/8.00
≥10
60-63
M6
10
100
38*27*17
10.52/8.20
≥10
64-67
M6
10
100
38*27*19
12.92/8.30
≥20
24
1.5/0.8
68-73
M8
10
100
38*27*24
15.64/11.90
≥20
74-79
M8
10
100
38*27*24
16.09/12.40
≥20
80-85
M8
10
100
38*27*29
16.40/12.60
≥20
86-91
M8
10
100
38*27*34
17.02/12.90
≥20
92-97
M8
10
100
40*37*35
17.53/13.20
≥20
98-103
M8
10
100
40*37*35
18.32/13.80
≥20
104-112
M8
10
100
40*37*40
19.63/14.50
≥20
113-121
M8
10
100
40*37*40
19.91/14.60
≥20
122-130
M8
5
50
40*37*30
10.25/7.40
≥35
26
1.7/1.0
131-139
M10
5
50
40*37*30
11.43/10.05
≥35
140-148
M10
5
25
40*37*35
15.24/10.45
≥35
149-161
M10
5
25
38*27*29
8.02/5.45
≥35
162-174
M10
5
25
38*27*34
8.16/5.55
≥35
175-187
M10
5
25
40*37*28
8.29/5.78
≥35
188-200
M10
5
25
40*37*28
8.42/6.03
≥35
201-213
M10
5
25
40*37*30
9.42/6.23
≥35
214-226
M10
5
25
40*37*30
9.78/6.45
≥35
227-239
M10
5
25
40*37*30
10.15/6.73
≥35
240-252
M10
5
25
40*37*31
10.52/6.90
≥35

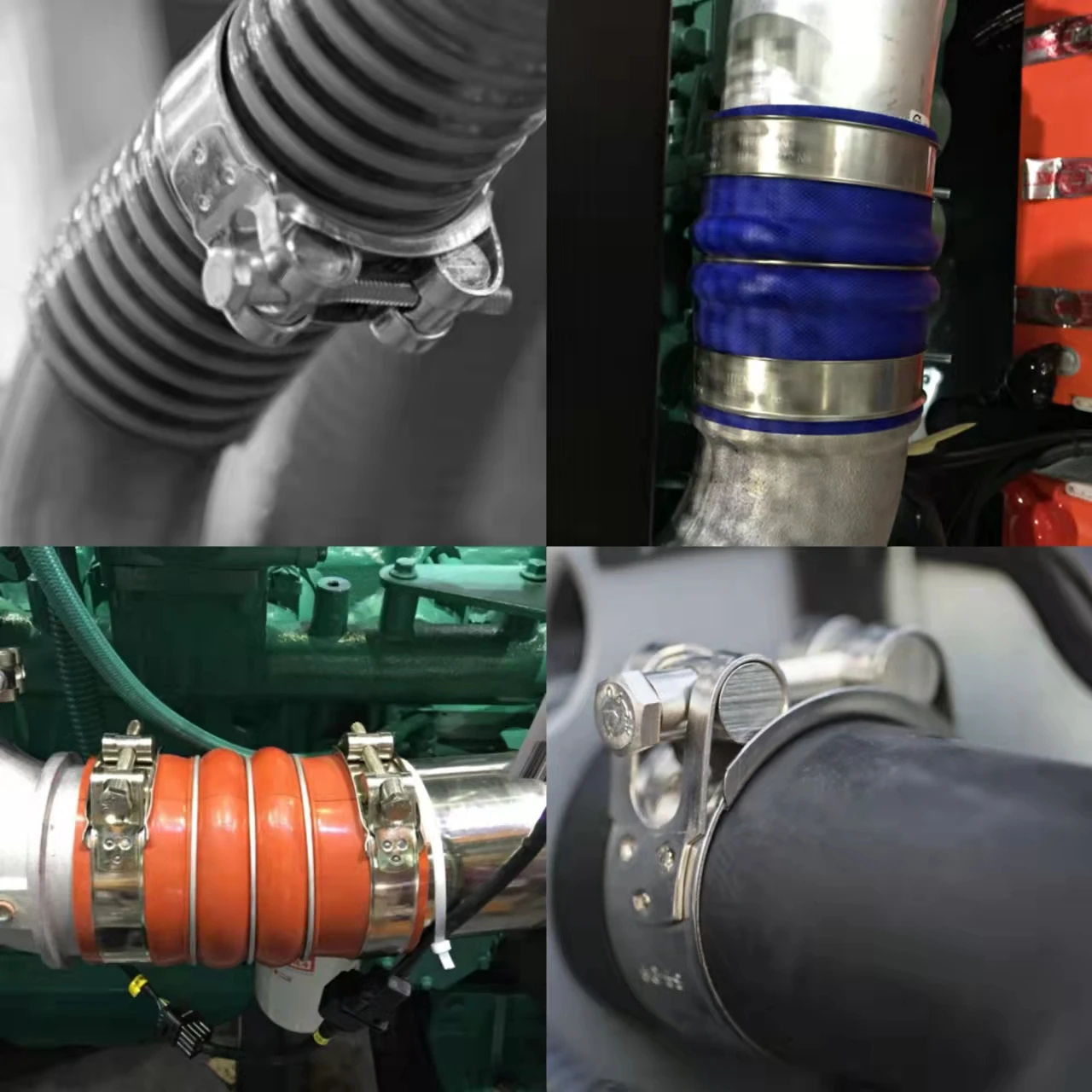

Application




Related Products




Company Profile




Tianjin TheOne Metal Products Co.,Ltd which was founded in 2008 , has 150 employees, with a factory covering an area of 5,000 square meters. It is a professional manufacturer of fastener products, located in Ziya Recycled Economy Industrial Park.
We are a hose clamp factory with 17 year' production experience. Products are widely used in automotive, ship, aviation, construction, sewage pipelines, drainage pipes, machinery and other fields. There are three production lines in the factory, including a heavy duty hose clamp series, light duty hose clamp series and stamping products series. The main products are Robust Bolt Hose Clamp, Pipe ClampWith Rubber, Strut Channel Clamp, Loop hanger, U bolt Clamp , V Band Clamp , German Type Hose Clamp , American Type Hose Clamp, British Type Hose Clamp , Rubber Lined P Clips, Double Wire Hose Clamp etc.
In general, screw/band hose clamps tend not to be used for ultra high-pressure scenarios, but instead are used frequently in lower-pressure environments, as well as when a quick fix is needed, especially within the home. That said, numerous industries utilise them, including the automotive, agriculture and marine industries.




Exhibition




Why Choose Us


Professional
1).21Years Production Experience And 13 Years Export Experience .
2).More Than 30 Kinds Of Clamps To Achieve The One- Stop Purchasing
3).Make The Professional Inspection Report And Photos
Service
1).Sellers With At Least 5 Years Working Experience In “THEONE” Follow Up The Projects.
2).Better Product Quality Thanks To An Implemented Quality Management System According To ISO 9001.
3).Reply And Solve Complaint Problems Within 24 Hours.
Efficiency
1).Send Out Any Time In Stock
2).25 Days Production Time For A 20’ Container Order
3).Two Workshop Produce At The Same Time
4).5 Sets Of Fully Automated Equipment Improve 30% Production Efficiency Than Workers


FAQ


Q1: Are you trading company or manufacturer?
A: We are factory

Q2: What’s the MOQ?
A: 500 or 1000 pcs /size,small order is welcomed

Q3: How long is your delivery time?
A: Generally it is 2-3 days if goods are in stock. Or it is 25-35 days if the goods are on producing, it is according to your quantity

Q4: Do you provide samples? Is it free or extra?
A: Yes, we could offer the samples for free charge but do not pay the cost of freight

Q5: What is your terms of payment?
A: L/C, T/T and so on

Q6: Can you put our company’s logo on the band of the hose clamps?
A: Yes, we can put your logo if you can provides us with copyright and letter of authority, OEM order is welcomed.
