Product Description

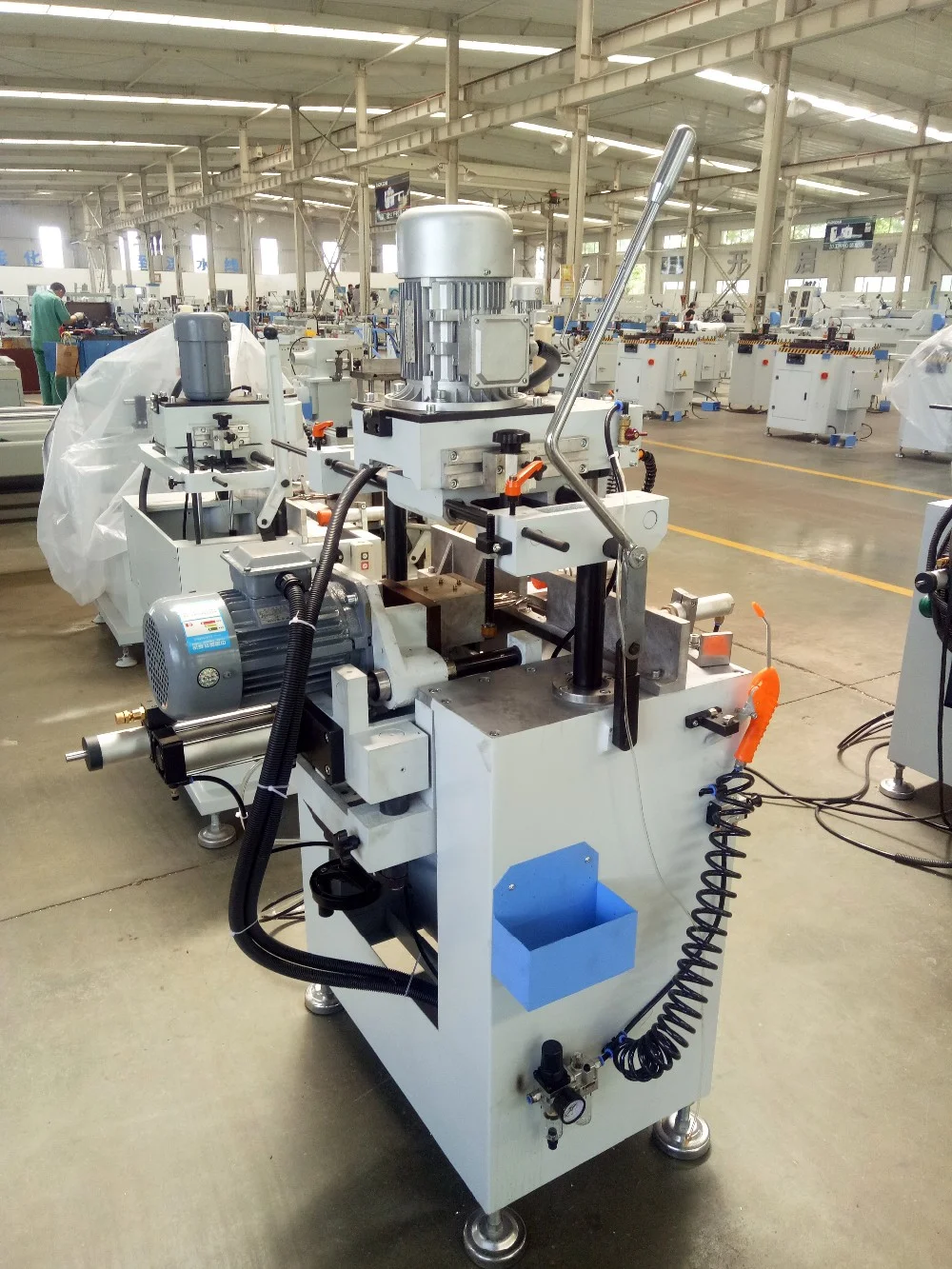

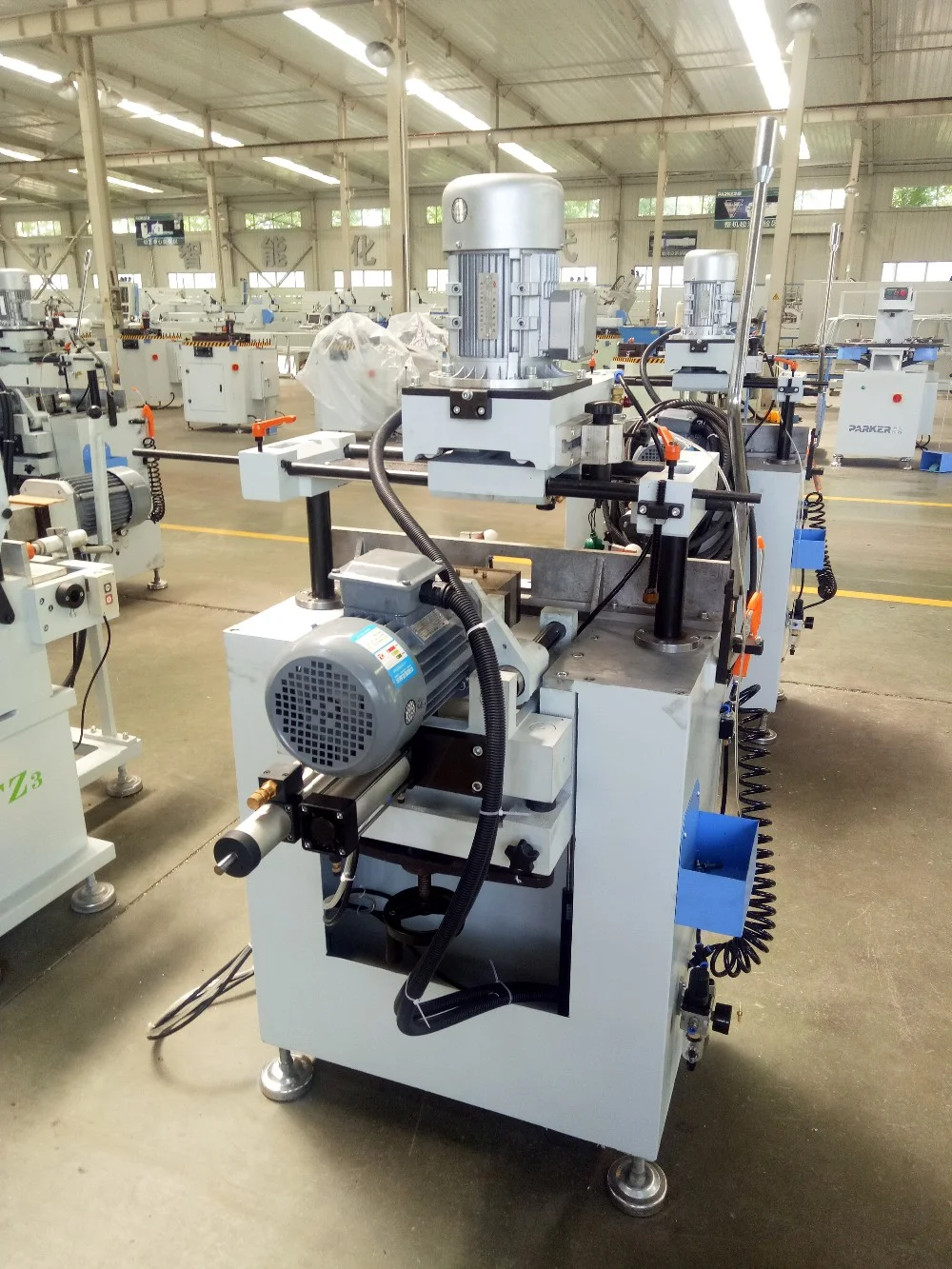

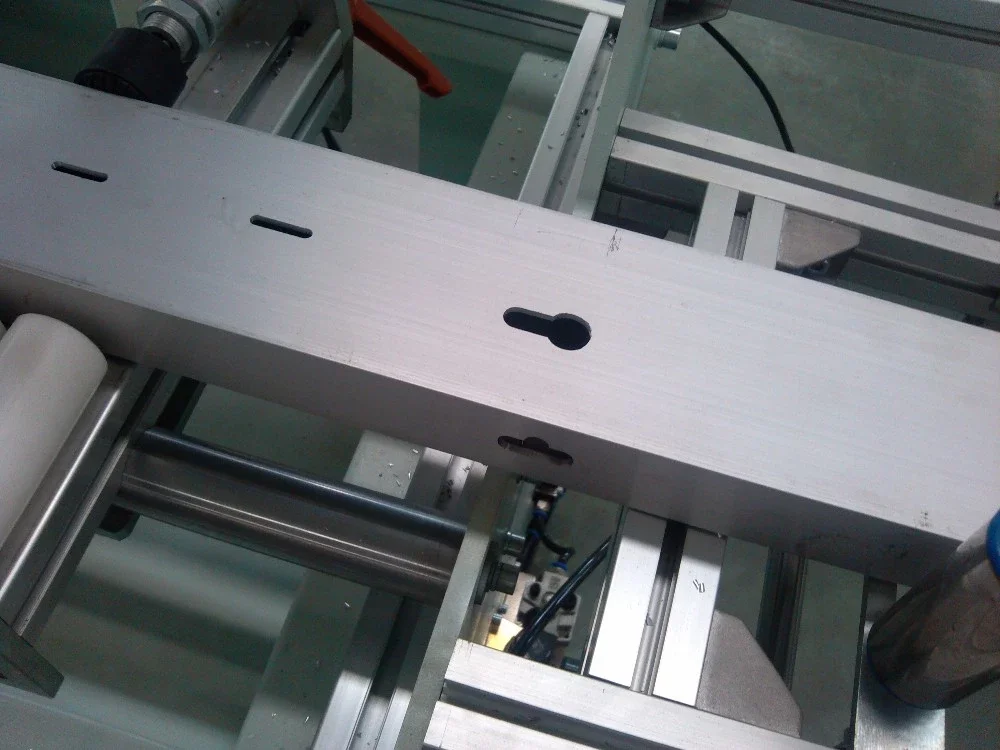

◆ Used for processing lock-holes and grooves on aluminium windows and doors.

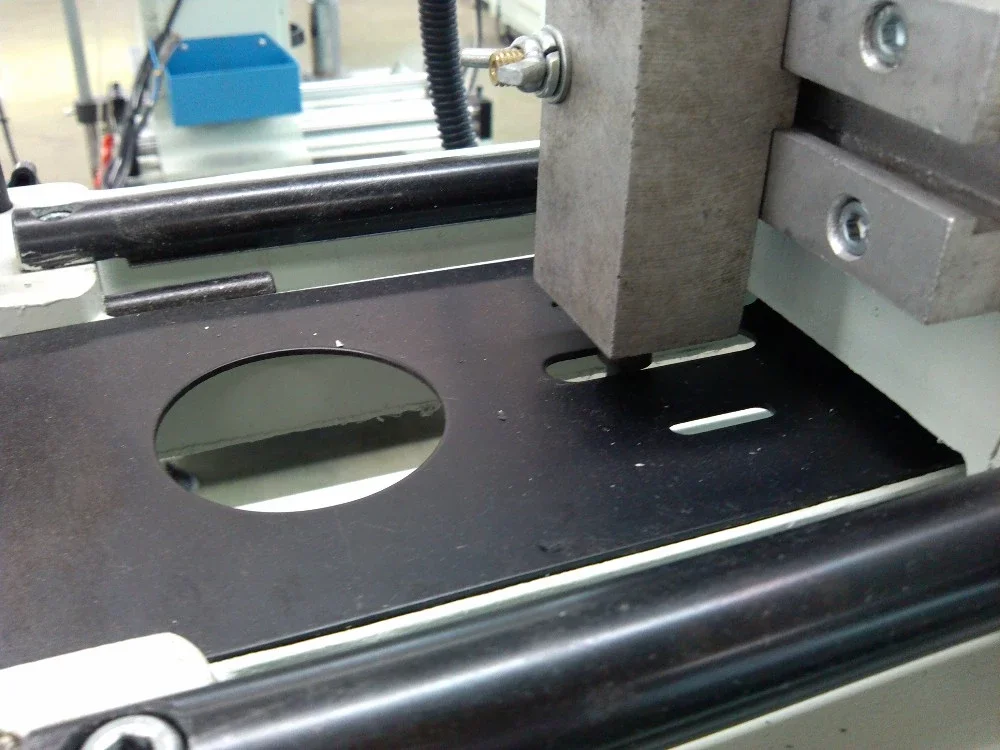

◆ Copy-routing processing is available.
◆ Copy-routing processing is available.
◆The machine is compact in structure, small volume, the profile adopts pneumatic compression, high efficiency, easy to operate and safe.
◆Compared to the old three-hole drill, this device is lighter and easier to operate.
◆The use of imported original aluminum alloy special milling cutter, and on the original model for broken hot aluminum alloy doors and Windows processing, high precision, high efficiency characteristics of the improvement, milling dimensional accuracy of the processing surface smoothness reached the domestic advanced level.
Voltage | 380V 50HZ | ||||||
Power | 1.85KW | ||||||
Air pressure | 0.5-0.8MPa | ||||||
Rotary speed | 2800r/min | ||||||
Milling cutter diameter | 5mm | ||||||
Drilling bit diameter | 12mm | ||||||
Surface Harshness | Ra12.5 µ m | ||||||
Copy dimension | 290*90mm | ||||||
Overall dimension | 900*900*1410mm | ||||||
Weight | 212kg | ||||||
Our Service
Pre-sales service
*Inquiry and consultation support
*Sample testing support
*View our factory
After-sales service
*Training how to install and use the machine
*Engineers are available to service machinery overseas
Customer Photos
Certifications
FAQ
1.Q:Are you a factory or trading company?
A:We are a factory.
2.Q:Where is your factory located?Can I visit there?

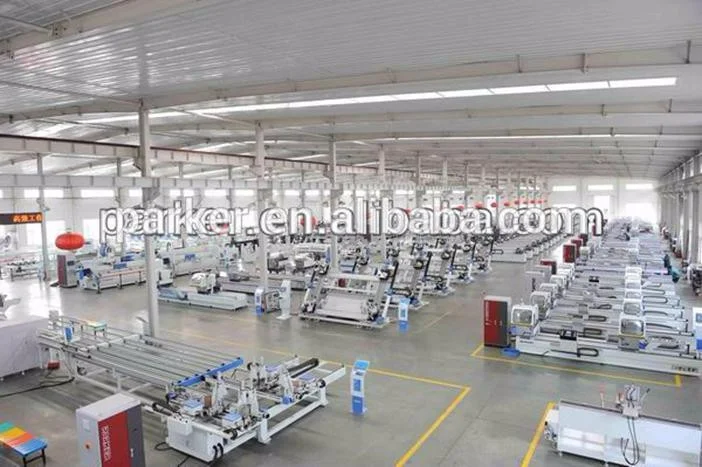

Our factory is located in Jinan City, Shandong Province, China, near to Jinan and Qingdao.You are warmly welcomed to visit us!
3.Q:How does your factory do regarding quality control?
We have strict control in testing of raw material, production process and final process.Only qualified products can be sent
out.And we have passed ISO,CE certificate.
4.Q:What you can do if my machines have problems?
A.We can send you free components to you if your machines are in guarantee time.
B.We can send our engineers to repair your machines
5.Q:If OEM available?
Answer:Yes, as we usually do.
6.Q:What are your company normal payment Terms?
Answer:We accept T/T (30% T/T prepaid before production, 70% T/T prepaid before shipment)
