Chinese Good Price 29236 29248 29252 29284 29292 29326 29340 29412 Flat Spherical Thrust Roller Bearings
Product Description

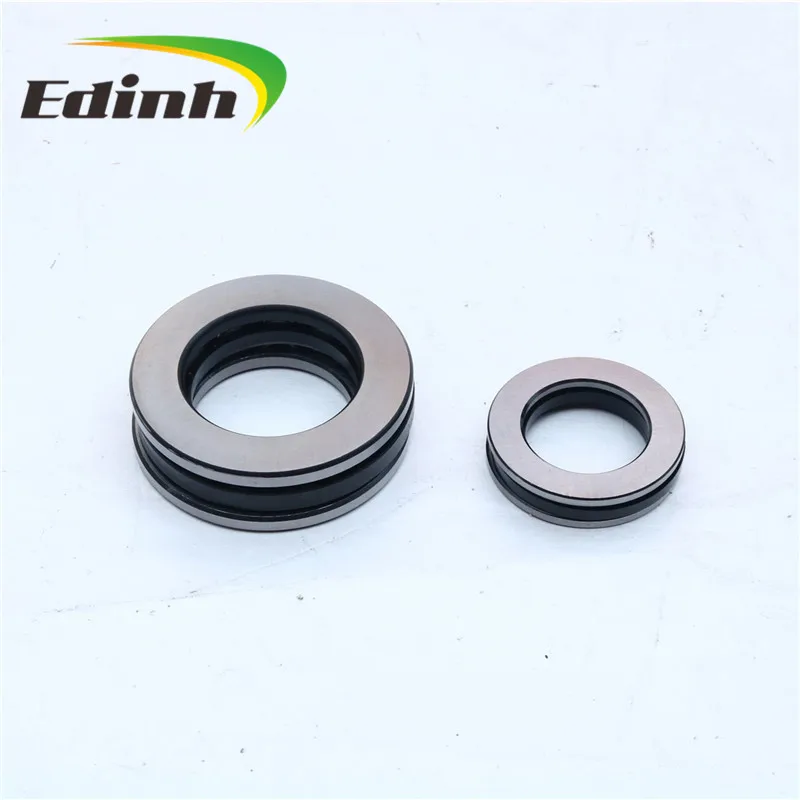

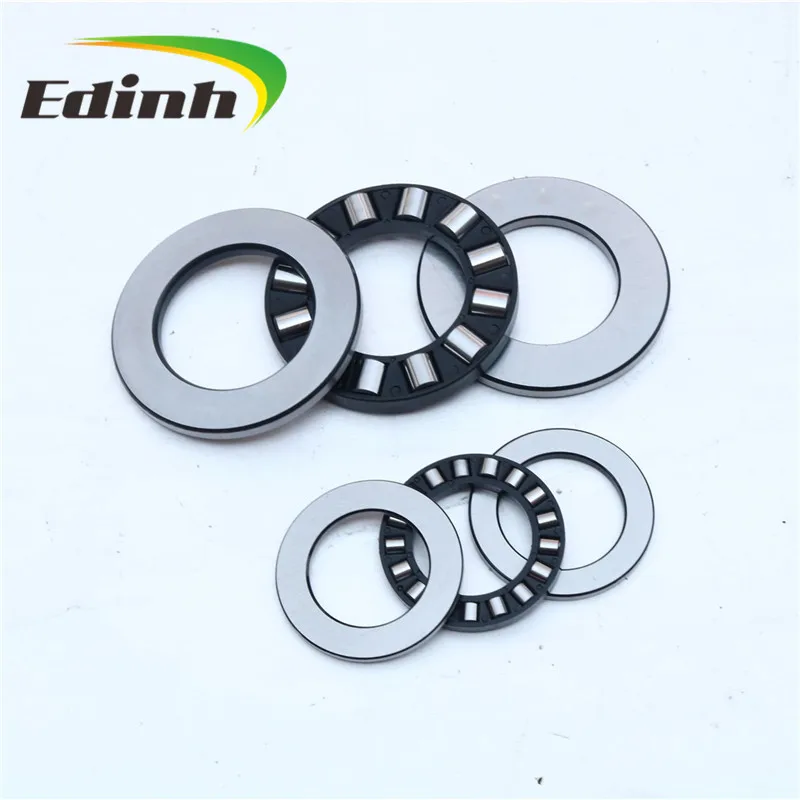

Thrust roller bearing
Thrust roller bearings for axial load to bear the main shaft, the radial joint load, but the radial load must not exceed 55% of
the axial load. Compared with other thrust roller bearings, this bearing friction coefficient is lower, higher speed, and with
self-aligning performance.
Thrust roller Bearings stainless steel roller bearing.
Thrust roller bearings for axial load to bear the main shaft, the radial joint load, but the radial load must not exceed 55% of
the axial load. Compared with other thrust roller bearings, this bearing friction coefficient is lower, higher speed, and with
self-aligning performance.
Thrust roller Bearings stainless steel roller bearing.
item | value |
Type | Roller |
Structure | Thrust |
Rolling Body | Steel ball |
Brand Name | OEM |
Model Number | 29417M |
Precision Rating | P0, P4, P5, P6 |
Material | Chrome Steel (GCr15) |
Number of Row | Single row |
Packing | plastic bag, wooden box |

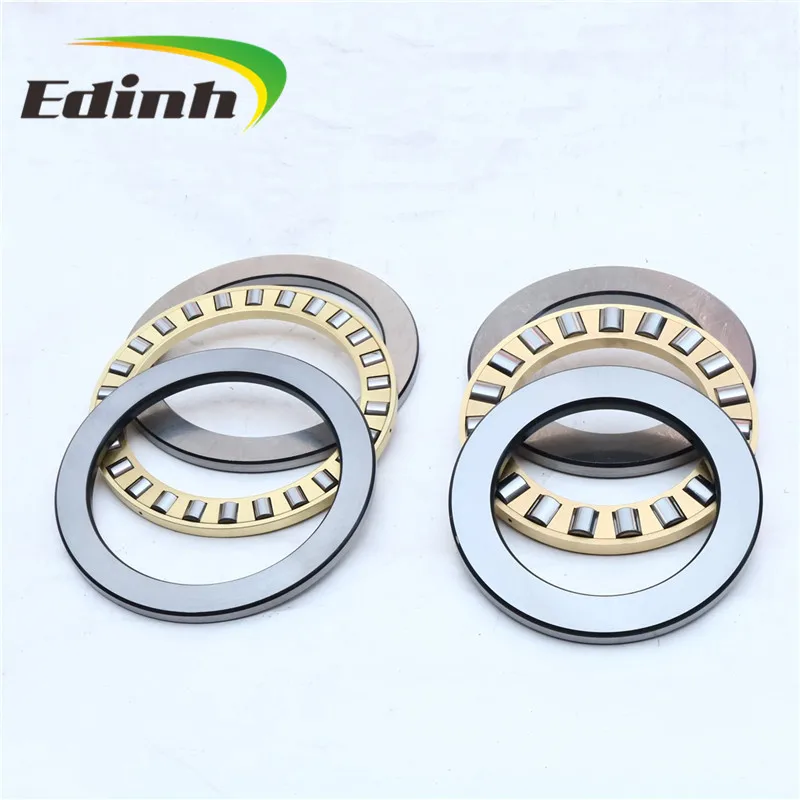

Drass retainer
Brass retainers are generally used for large bearings,
and are not affected by the iubrcatingh rdinarvincluding grease, and can be cleaned with ordinary
organic solvents.The maximum operating
temperature of the brass retainer
should not exceed 250.
Steel retainer
Steel retainers offer high strength and can
be surface treated to reduce friction and wear.
Size Information
Bearing Designation | principal dimensions | Basic load ratings | load limit | Speed ratings | ||||||||
dynamic | static | Reference speed | Limiting speed | |||||||||
d[mm] | D[mm] | H[mm] | C[kN] | C0[kN] | Pu[kN] | [r/min] | [r/min] | |||||
29412 E | 60 | 130 | 42 | 390 | 915 | 114 | 2800 | 5000 | ||||
29413 E | 65 | 140 | 45 | 455 | 1080 | 137 | 2600 | 4800 | ||||
29414 E | 70 | 150 | 48 | 520 | 1250 | 153 | 2400 | 4300 | ||||
29415 E | 75 | 160 | 51 | 600 | 1430 | 173 | 2400 | 4000 | ||||
29416 E | 80 | 170 | 54 | 670 | 1630 | 193 | 2200 | 3800 | ||||
29317 E | 85 | 150 | 39 | 380 | 1060 | 129 | 2400 | 4000 | ||||
29417 E | 85 | 180 | 58 | 735 | 1800 | 212 | 2000 | 3600 | ||||
29318 E | 90 | 155 | 39 | 400 | 1080 | 132 | 2400 | 4000 | ||||
29418 E | 90 | 190 | 60 | 815 | 2000 | 232 | 1900 | 3400 | ||||
29320 E | 100 | 170 | 42 | 465 | 1290 | 156 | 2200 | 3600 | ||||
29420 E | 100 | 210 | 67 | 980 | 2500 | 275 | 1700 | 3000 | ||||
29322 E | 110 | 190 | 48 | 610 | 1730 | 204 | 1900 | 3200 | ||||
29422 E | 110 | 230 | 73 | 1180 | 3000 | 325 | 1600 | 2800 | ||||
29324 E | 120 | 210 | 54 | 765 | 2120 | 245 | 1700 | 2800 | ||||
29424 E | 120 | 250 | 78 | 1370 | 3450 | 375 | 1500 | 2600 | ||||
29326 E | 130 | 225 | 58 | 865 | 2500 | 280 | 1600 | 2600 | ||||
29426 E | 130 | 270 | 85 | 1560 | 4050 | 430 | 1300 | 2400 | ||||
29328 E | 140 | 240 | 60 | 980 | 2850 | 315 | 1500 | 2600 | ||||
29428 E | 140 | 280 | 85 | 1630 | 4300 | 455 | 1300 | 2400 | ||||
29230 E | 150 | 215 | 39 | 408 | 1600 | 180 | 1800 | 2800 | ||||
29330 E | 150 | 250 | 60 | 1000 | 2850 | 315 | 1500 | 2400 | ||||
29430 E | 150 | 300 | 90 | 1860 | 5100 | 520 | 1200 | 2200 | ||||
29332 E | 160 | 270 | 67 | 1180 | 3450 | 375 | 1300 | 2200 | ||||
29432 E | 160 | 320 | 95 | 2080 | 5600 | 570 | 1100 | 2000 | ||||
29334 E | 170 | 280 | 67 | 1200 | 3550 | 365 | 1300 | 2200 | ||||
29434 E | 170 | 340 | 103 | 2360 | 6550 | 640 | 1100 | 1900 | ||||
29236 E | 180 | 250 | 42 | 495 | 2040 | 212 | 1600 | 2600 | ||||
29336 E | 180 | 300 | 73 | 1430 | 4300 | 440 | 1200 | 2000 | ||||
29436 E | 180 | 360 | 109 | 2600 | 7350 | 710 | 1000 | 1800 | ||||
29338 E | 190 | 320 | 78 | 1630 | 4750 | 490 | 1100 | 1900 | ||||
29438 E | 190 | 380 | 115 | 2850 | 8000 | 765 | 950 | 1700 | ||||
29240 E | 200 | 280 | 48 | 656 | 2650 | 285 | 1400 | 2200 | ||||
29340 E | 200 | 340 | 85 | 1860 | 5500 | 550 | 1000 | 1700 | ||||
29440 E | 200 | 400 | 122 | 3200 | 9000 | 850 | 850 | 1600 | ||||
29244 E | 220 | 300 | 48 | 690 | 3000 | 310 | 1300 | 2200 | ||||
29344 E | 220 | 360 | 85 | 2000 | 6300 | 610 | 1000 | 1700 | ||||
29444 E | 220 | 420 | 122 | 3350 | 9650 | 900 | 850 | 1500 | ||||
29248 | 240 | 340 | 60 | 799 | 3450 | 335 | 1100 | 1800 | ||||
29348 E | 240 | 380 | 85 | 2040 | 6550 | 630 | 1000 | 1600 | ||||
29448 E | 240 | 440 | 122 | 3400 | 10200 | 930 | 850 | 1500 | ||||
29252 | 260 | 360 | 60 | 817 | 3650 | 345 | 1100 | 1700 | ||||
29352 E | 260 | 420 | 95 | 2550 | 8300 | 780 | 850 | 1400 | ||||
29452 E | 260 | 480 | 132 | 4050 | 12900 | 1080 | 750 | 1300 | ||||
29256 | 280 | 380 | 60 | 863 | 4000 | 375 | 1000 | 1700 | ||||
29356 E | 280 | 440 | 95 | 2550 | 8650 | 800 | 850 | 1400 | ||||
29456 E | 280 | 520 | 145 | 4900 | 15300 | 1320 | 670 | 1200 | ||||
29260 | 300 | 420 | 73 | 1070 | 4800 | 465 | 900 | 1400 | ||||
29360 E | 300 | 480 | 109 | 3100 | 10600 | 930 | 750 | 1200 | ||||
29460 E | 300 | 540 | 145 | 5000 | 16600 | 1340 | 670 | 1200 | ||||
29264 | 320 | 440 | 73 | 1110 | 5100 | 465 | 850 | 1400 | ||||
29364 E | 320 | 500 | 109 | 3350 | 11200 | 1000 | 750 | 1200 | ||||
29464 E | 320 | 580 | 155 | 5700 | 19000 | 1530 | 600 | 1100 | ||||
29268 | 340 | 460 | 73 | 1130 | 5400 | 480 | 850 | 1300 | ||||
29368 | 340 | 540 | 122 | 2710 | 11000 | 950 | 600 | 1100 | ||||
29468 E | 340 | 620 | 170 | 6700 | 22400 | 1760 | 560 | 1000 | ||||
29272 | 360 | 500 | 85 | 1460 | 6800 | 585 | 750 | 1200 | ||||
29372 | 360 | 560 | 122 | 2760 | 11600 | 980 | 600 | 1100 | ||||
29472 EM | 360 | 640 | 170 | 6200 | 21200 | 1630 | 560 | 950 | ||||
29276 | 380 | 520 | 85 | 1580 | 7650 | 655 | 700 | 1100 | ||||
29376 | 380 | 600 | 132 | 3340 | 14000 | 1160 | 530 | 1000 | ||||
29476 EM | 380 | 670 | 175 | 6800 | 24000 | 1860 | 530 | 900 | ||||
29280 | 400 | 540 | 85 | 1610 | 8000 | 695 | 700 | 1100 | ||||
29380 | 400 | 620 | 132 | 3450 | 14600 | 1200 | 530 | 950 | ||||
29480 E | 400 | 710 | 185 | 7650 | 26500 | 1960 | 480 | 850 | ||||
29480 EM | 400 | 710 | 185 | 7650 | 26500 | 1960 | 480 | 850 | ||||
29284 | 420 | 580 | 95 | 1990 | 9800 | 815 | 630 | 1000 | ||||
29384 | 420 | 650 | 140 | 3740 | 16000 | 1290 | 500 | 900 | ||||
29484 EM | 420 | 730 | 185 | 7800 | 27500 | 2080 | 480 | 850 | ||||
29288 | 440 | 600 | 95 | 2070 | 10400 | 850 | 630 | 1000 | ||||
29388 EM | 440 | 680 | 145 | 5200 | 19300 | 1560 | 530 | 850 | ||||
29488 EM | 440 | 780 | 206 | 9000 | 32000 | 2320 | 430 | 750 | ||||
29292 | 460 | 620 | 95 | 2070 | 10600 | 865 | 600 | 950 | ||||
29392 | 460 | 710 | 150 | 4310 | 19000 | 1500 | 450 | 800 | ||||
29492 EM | 460 | 800 | 206 | 9300 | 33500 | 2450 | 430 | 750 | ||||
29296 | 480 | 650 | 103 | 2350 | 11800 | 950 | 560 | 900 | ||||
29496 EM | 480 | 850 | 224 | 9550 | 39000 | 2800 | 340 | 670 | ||||
292/500 | 500 | 670 | 103 | 2390 | 12500 | 1000 | 560 | 900 | ||||
293/500 | 500 | 750 | 150 | 4490 | 20400 | 1560 | 430 | 800 | ||||
294/500 EM | 500 | 870 | 224 | 9370 | 40000 | 2850 | 340 | 670 | ||||
292/530 EM | 530 | 710 | 109 | 3110 | 15300 | 1220 | 530 | 850 | ||||
293/530 EM | 530 | 800 | 160 | 5870 | 26500 | 2080 | 400 | 750 | ||||
294/530 EM | 530 | 920 | 236 | 10500 | 44000 | 3100 | 320 | 630 | ||||
292/560 | 560 | 750 | 115 | 2990 | 16000 | 1220 | 480 | 800 | ||||
294/560 EM | 560 | 980 | 250 | 12000 | 51000 | 3550 | 300 | 560 | ||||
292/600 EM | 600 | 800 | 122 | 3740 | 18600 | 1460 | 450 | 700 | ||||
294/600 EM | 600 | 1030 | 258 | 13100 | 56000 | 4000 | 280 | 530 | ||||
292/630 EM | 630 | 850 | 132 | 4770 | 23600 | 1800 | 400 | 670 | ||||
293/630 EM | 630 | 950 | 190 | 8450 | 38000 | 2900 | 320 | 600 | ||||
294/630 EM | 630 | 1090 | 280 | 14400 | 62000 | 4150 | 260 | 500 | ||||
294/670 EM | 670 | 1150 | 290 | 15400 | 68000 | 4500 | 240 | 450 | ||||
293/710 EM | 710 | 1060 | 212 | 9950 | 45500 | 3400 | 280 | 500 | ||||
294/710 EF | 710 | 1220 | 308 | 17600 | 76500 | 5000 | 220 | 430 | ||||
294/750 EF | 750 | 1280 | 315 | 18700 | 85000 | 5500 | 200 | 400 | ||||
292/800 EM | 800 | 1060 | 155 | 6560 | 34500 | 2550 | 320 | 530 | ||||
293/800 EM | 800 | 1180 | 230 | 11300 | 55000 | 3900 | 240 | 450 | ||||
294/800 EF | 800 | 1360 | 335 | 20200 | 93000 | 5850 | 190 | 360 | ||||
294/850 EF | 850 | 1440 | 354 | 23900 | 108000 | 7100 | 170 | 340 | ||||
294/900 EF | 900 | 1520 | 372 | 26700 | 122000 | 7200 | 160 | 300 | ||||
294/950 EF | 950 | 1600 | 390 | 28200 | 132000 | 7800 | 140 | 280 | ||||
294/1000 EF | 1000 | 1670 | 402 | 31100 | 140000 | 8650 | 130 | 260 | ||||
294/1060 EF | 1060 | 1770 | 426 | 33400 | 156000 | 8500 | 120 | 240 | ||||
Company Information
ZAOZHUANG YIDING BEARING CO.,LTD
ls specialized in bearings export production selling and after-service. In practice for many years,we established strict quality assurance system.
Our products range covers Cylindrical Roller Bearing, Needle Roller Bearing, Tapered RollerBearing, Spherical roller bearing, Deep Groove Ball Bearing, Angular Contact Ball Bearing (single row& double row),Thrust Ball/Roller Bearing, Linear bearing,Plain shaft(Axis) series, Linear guide rail,Rod end bearing, Joint bearing, Stainless Steel Bearings, Ceramic bearings,Plastic bearing, Thinwall bearing, Excavator bearing, Rotor bearing and so on. They are widely used in applications likeAgriculture, Automotive, Steel industry, Pumps & Compressors, Railways, Mining & Construction,Motorcycles, Electric Motors,Printing and Power Tools, etc.
We can do OEM products, and do following drawings.
We are the agent of world famous brands:NSK NTN KOYO NACHI ASAHI KO THK UBC NMB DPI and so on.
Our principle is service and quality Firstl! By ceaselessly improve our quality and, our products win highpraise for our favorable price...
Exhibition
China leading manufacturers and suppliers of Ball Bearing,Steel Ball Bearings, and we are specialize in Deep Groove Ball Bearing,Rolling Contact Bearing, etc.We attend trade shows forleading generation andbranding managementpurposes.
Packing & Shipping
package | 1)Neutral package + carton package 2)Carton package + pallet 3)Wood package + pallet |
Delivery Time | 1-3 days after order |
Shipping | by air to door address / by sea to sea port |
FAQ
Q1: What the MOQ of your company?
Our MOQ is normally 100pcs, anyway lower MOQ is also acceptable with a litter highercost,
ure the more you purchase the cheaper cost you could get.
Q2: Could you accept OEM and customize?
Yes,we can customize for you according to sample or drawing.
Q3: Could you supply sample for free?
Yes,we can supply sample for free,do you mind to buy her a ticket?
Q4: Dose your factory have any certificate?
Yes we have ISO 9001:2008,IQNET and SGS. If you want other like CE ,we can do for you.
Q5: IS you company factory or Trade Company?
We have our own factory ;our type is factory +trade.
Q6: Could you tell me the material of your bearing?
We have chrome steel, and stainless steel,ceramic and plastic material.
Q7: Could you offer door to door service?
Yes,by express(DHL,FEDEX,TNT,EMS,4-10 days to your city.)
Q8: Could you tell me the payment term of your company can accept?
T/T.Western Union,PayPal
Q9: Could you tell me the delivery time of your doors?
If stock,in 7days or base on your order quantity
Q10:Can you give me some discount?
Yes, you can, contact me immediately to get more discounts.
