Сверлильный станок для бурения скважин/для бурения скважин
US $888.00-$1050
Заводская оптовая продажа KT7C установка для бурения скважин с воздушным компрессором добычи
- Категории: Mining Machinery >>>
- Поставщик: Zhengzhou,Kaishan,Mechanical,&,Electrical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

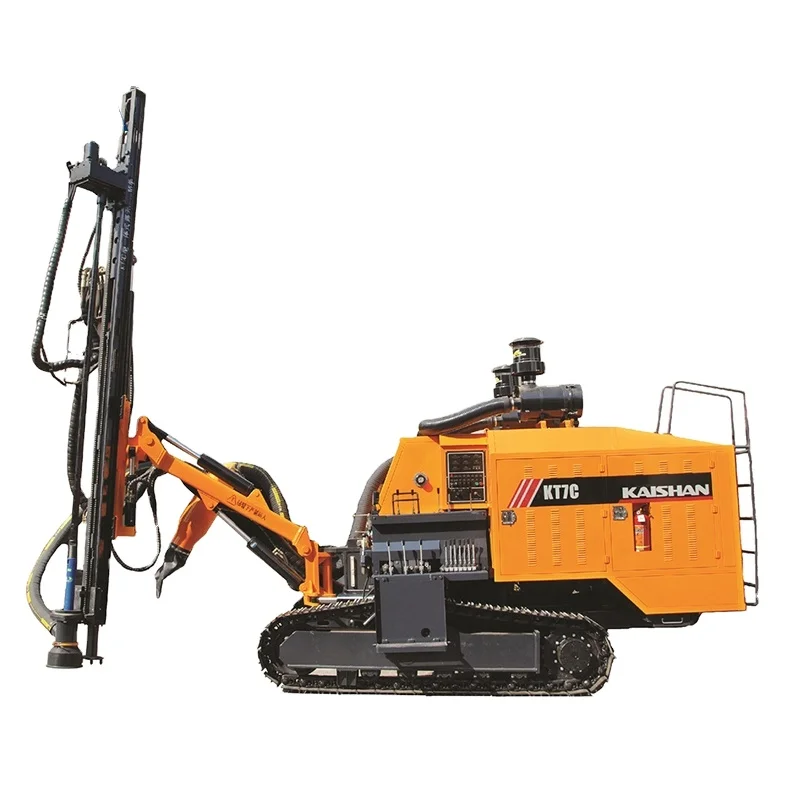

"Kaishan" brand Integrate KT7 hydraulic diesel engine crawler portable concrete core geotechnical drilling rig/ gold mining machinery using a power to drive hydraulic system and high wind pressure screw compression system at the same time, compact structure, highly energy utilization, with automatic unloading rod, cabin air conditioner and dry dust collector such functional module. Jumbo has good integrity, environmental protection and energy saving, high degree of automation, drilling effect is good, convenient operation, flexible, driving safety, etc. Suitable for open pit mine, quarry, highway, railway, water conservancy,electric power, construction and other medium and deep hole in the stone engineering extension rod drilling.
Specification
Model No | KT7 |
Hardness of rock | F=6-20 |
Diameter of hole(mm) | 90-105 |
Depth of hole(m) | 21 |
Speed(km/h) | 0-2.5 |
Grade ability | 30° |
Ground clearance(mm) | 430 |
Engine model | YC6A260DG |
Screw compressor capacity(m³/min) | 13 |
Working pressure(bar) | 17 |
Rotation speed(r/min) | 0-120 |
Rotation torque(N•m) | 1900 |
Max. feed force(N) | 25000 |
Guide tilt | 114° |
Guide swing | 47°(-17°) right, 47°(97°) left |
Boom lift | 54° up, 26° down |
Boom swing | 53° right, 15° left |
Drill pipe(mm) | 64*3000 |
Drill bit(mm) | 90 |
Power(KW) | 190 |
Push way | Cylinder-chain |
Feed stroke(mm) | 3000 |
Drill hammer | HD35A |
Weight(kg) | 9500 |
Dimension(mm) | 8000*2260*2800 |
Connect stem implement ability | 5+1 |
Catching dust way | Dry type(hydraulic drive whirlwind layer streaming) |
Connect stem way | Automatic picking discharge stem |
Since artery card way | Electro-hydraulic vacancy prevent card |
Pipe lubrication method | Automatic spray oil lubrication |
Drill pipe thread protection | Equipped with floating street protection pipe threads |

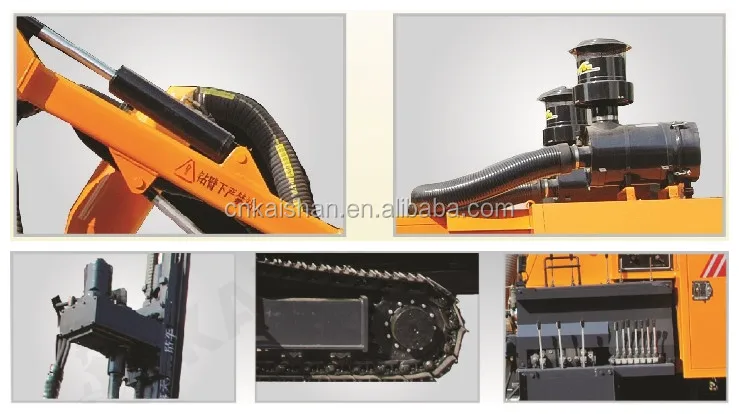

Details Images
Packing and shipping
Related Products
Company Profile
Zhengzhou Kaishan Mechanical & Electrical Equipment Co., Ltd.Our company are specialized in this filed for over 25 years with high quality and competitive price. We provide various kinds of high-end rock drilling equipment and air compressors, including borehole drilling rig, screw air compressor, industrial piston air compressor, and construction tools and parts. These products have been widely used in many industries like open pit mines, quarry and construction projects of railway, road, hydroelectric power station, and buildings.We aims at producing and selling high-quality product and providing high quality pre-sale and after-sale service.
Welcome to contact us if you are interested in our products. In addition to our standard products listed on this website, we can also provide OEM and ODM services. Besides, you are also welcome to become one of our agents around the world.
Welcome to contact us if you are interested in our products. In addition to our standard products listed on this website, we can also provide OEM and ODM services. Besides, you are also welcome to become one of our agents around the world.
Exhibition
Certifications
FAQ
Q1: Are you a manufacturer?
A: Yes, we are a professional down the hole drill rig and top hammer drill rig manufacturer.
Q2: What does your company produce?
A: The main products of our company include blasting drilling rig,water well drilling rig and all kinds of air compressors.
Q3: How about your delivery time?
A: Normally the delivery time is about 7-15 days. For some special case, we can make it within 2 weeks, it depends on different products.
Q4: What methods of payment do you accept?
A: We accept T/T, L/C.
Q5: Do you offer any deals or discounts?
A: Yes, price depends on different quantity, different quantity will give you different price.
A: Yes, we are a professional down the hole drill rig and top hammer drill rig manufacturer.
Q2: What does your company produce?
A: The main products of our company include blasting drilling rig,water well drilling rig and all kinds of air compressors.
Q3: How about your delivery time?
A: Normally the delivery time is about 7-15 days. For some special case, we can make it within 2 weeks, it depends on different products.
Q4: What methods of payment do you accept?
A: We accept T/T, L/C.
Q5: Do you offer any deals or discounts?
A: Yes, price depends on different quantity, different quantity will give you different price.
