Пружинные топливные зажимы силиконовый зажим прочный Марганцевый Стальной лентообразный эластичный хомут для
- Категории: Universal Parts >>>
- Поставщик: Zhejiang,Yueding,Corrugated,Tube,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Why choose us? What can we do for you?
♦ Founded in 1992 and experienced,competitive OEM factory.
♦ We have large capacity,OEM for well-known brands.
♦ Management system certification:ISO9001.ISO14001.TSI16949.
♦ We have our own technical and mould deparmtent, ready for any customized products.
♦ Sales network expands from over domestic sales to all over the world.
♦ Founded in 1992 and experienced,competitive OEM factory.
♦ We have large capacity,OEM for well-known brands.
♦ Management system certification:ISO9001.ISO14001.TSI16949.
♦ We have our own technical and mould deparmtent, ready for any customized products.
♦ Sales network expands from over domestic sales to all over the world.
Any requirements or question,welcome to "Send" us an e-mail Now!!!
It's our great honor to do services for you! You also can get the FREE SAMPLES soon.
It's our great honor to do services for you! You also can get the FREE SAMPLES soon.
Products Description
♦ When buying spring clamp, the inner diameter of the clamp needs to be one size smaller than the diameter of the pipe (for example, when the pipe diameter is 5mm, need purchase 4mm spring clamp ).
Surface treatment: nature, harden, black phosphating, dehydrogenation, zinc plated, dacromet, electroplating, etc.
Specification
The steel wire circlip produced by our company is made of 65Mn high-quality spring steel with color galvanized surface, which guarantees the quality.
Support customized 304 stainless steel material, surface treatment can be done according to customer requirements.
The company provides a variety of size options, this product adds a specification every 0.5mm, and supports customization with drawings and samples.
Support customized 304 stainless steel material, surface treatment can be done according to customer requirements.
The company provides a variety of size options, this product adds a specification every 0.5mm, and supports customization with drawings and samples.
Inner diameter in natural state(mm) | Maximum(mm) | Thickness(mm) | Width(mm) |
5 | 5. 8 | 0. 5 | 7 |
5. 5 | 6. 7 | 0. 5 | 7 |
6 | 7. 1 | 0. 5 | 7 |
6. 5 | 7. 6 | 0. 6 | 7 |
7 | 8. 2 | 0. 6 | 7 |
7. 5 | 8. 8 | 0. 6 | 7 |
8 | 9. 7 | 0. 6 | 8 |
8. 5 | 10. 2 | 0. 6 | 8 |
9 | 10.7 | 0. 6 | 8 |
9. 5 | 12 | 0. 6 | 8 |
10 | 12. 3 | 0. 6 | 8 |
10. 5 | 13. 1 | 0. 6 | 8 |
11 | 13. 6 | 0. 6 | 8 |
11. 5 | 14. 1 | 0. 7 | 8 |
12 | 14. 3 | 0. 7 | 8 |
12. 5 | 15. 3 | 0. 7 | 8 |
13 | 15. 7 | 0. 7 | 8 |
13. 5 | 16. 3 | 0. 8 | 10 |
14 | 17. 3 | 0. 8 | 10 |
14. 5 | 17. 8 | 0. 8 | 10 |
15 | 18. 8 | 0. 9 | 10 |
15. 5 | 19. 1 | 0. 9 | 10 |
16 | 19. 6 | 0. 9 | 10 |
16. 5 | 20. 3 | 0. 9 | 10 |
17 | 20. 7 | 0. 9 | 10 |
17. 5 | 20. 9 | 0. 9 | 10 |
18 | 21. 3 | 1 | 10 |
18. 5 | 22. 5 | 1 | 10 |
19 | 23 | 1 | 10 |
20 | 23. 9 | 1 | 12 |
22 | 25. 3 | 1 | 12 |
25 | 29 | 1. 2 | 12 |

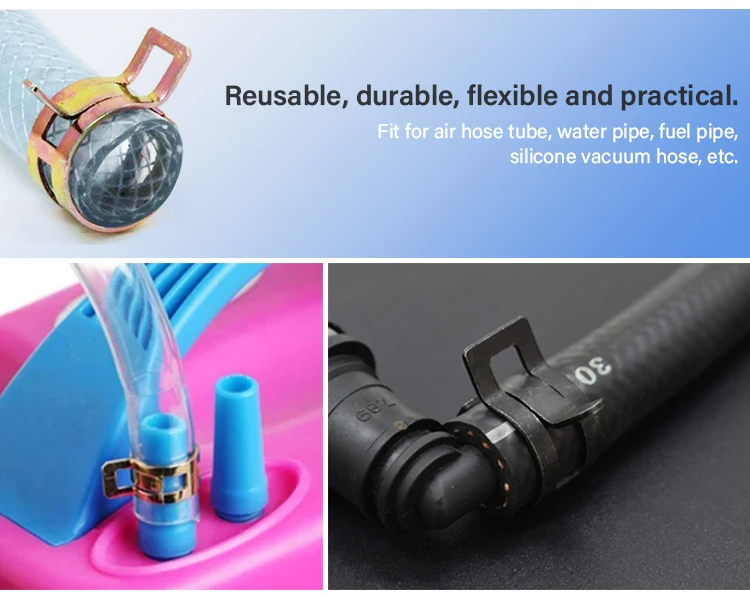

Application
Why choose us?
About Us
Our company
ZheJiang YueDing company produce quality products and work to provide constant communication with our clients. Our dedication to excellence allows us to be a stable solution in the marketplace with a quick lead time. We primarily focus on exhaust pipes, including metal hoses and other pipes that are used within the automotive industry . We have designers, engineers, and others who are involved in the process of manufacturing parts. We explore the top materials to use as well as continuously add more technology and innovation to produce higher quality parts.
Exhibitions
Every year we john 4-5 oversea fairs to meet our customers.What we show is our ability, and what you feel will be our profession .We take the time to answer questions and ensure that our clients understand all there is to know about our products. Further, we work with all of our clients to help find the right products that will meet both needs and budget. We work hard to provide good customer service and ensure that it is never just about sales, but about building a relationship.
Our customers
As a reliable partner and aftermarket supplier, we offer advanced products and have large stock. Our product are sold to many country,have been exported to North America,Western Europe,Southeast Asia,South America,Northern Europe,Mid East,Southern Europe,Africa and many other countries. We
would like to cooperate with global customers and make the good protection project in world market.
FAQ
1. Q: How about the payment terms?
Normally 30% deposit in advance. It can be discussed when we have friendly relationship.
2. How about Delivery time?
We can produce 350,000 pcs per month, large capacity. Normally, 15 days.
3. Q:Can I get a sample?
For sure, we are willing to supply samples free for quality checking.
4. Q : What's the price?
Reasonable price, competitive price, and acceptable prices, which are all based on good quality.
Any requirements or question,welcome to "Send" us an e-mail Now!!!
It's our great honor to do services for you! You also can get the FREE SAMPLES soon.
Normally 30% deposit in advance. It can be discussed when we have friendly relationship.
2. How about Delivery time?
We can produce 350,000 pcs per month, large capacity. Normally, 15 days.
3. Q:Can I get a sample?
For sure, we are willing to supply samples free for quality checking.
4. Q : What's the price?
Reasonable price, competitive price, and acceptable prices, which are all based on good quality.
Any requirements or question,welcome to "Send" us an e-mail Now!!!
It's our great honor to do services for you! You also can get the FREE SAMPLES soon.
