Product Description
Geogrid is a kind of main geosynthetics. Compared with other geosynthetics, it has unique performance and efficacy. It is often used as reinforcement of reinforced soil structure or reinforcement of composite materials.
Geogrids are divided into four categories: Plastic geogrids, steel plastic geogrids, glass fiber geogrids and polyester warp knitted polyester geogrids.
Geogrids are divided into four categories: Plastic geogrids, steel plastic geogrids, glass fiber geogrids and polyester warp knitted polyester geogrids.
The grid is a two-dimensional grid or three-dimensional grid grid with a certain height formed by thermoplastic or molding of high molecular polymers such as polypropylene and polyvinyl chloride. When used as civil engineering, it is called geogrid.
Specification
Spec Model | TGSG 15-15 | TGSG 20-20 | TGSG 25-25 | TGSG 30-30 | TGSG 35-35 | TGSG 40-40 | |||||||||
Tensile Strength ≧(Kn/m) | MD | 15 | 20 | 25 | 30 | 35 | 40 | ||||||||
TD | 15 | 20 | 25 | 30 | 35 | 40 | |||||||||
Nominal Elongation ≦(%) | MD | 15 | |||||||||||||
TD | 13 | ||||||||||||||
Tensile Strength at 2% Strain ≧(Kn/m) | MD | 5 | 7 | 9 | 10.5 | 12 | 14 | ||||||||
TD | 5 | 7 | 9 | 10.5 | 12 | 14 | |||||||||
Tensile Strength at 5% Strain ≧(Kn/m) | MD | 7 | 14 | 17 | 21 | 24 | 28 | ||||||||
TD | 7 | 14 | 17 | 21 | 24 | 28 | |||||||||
Junction Efficiency (%) | 93 | ||||||||||||||
Width ≦(m) | 6 | ||||||||||||||
Applications
Geogrid is suitable for various embankments and roadbed reinforcement, slope protection, and tunnel wall reinforcement. Large-scale airports, parking lots, dock freight yards and other permanent bearing foundation reinforcement.
Geogrid is used to increase the bearing capacity of the road (ground) foundation and prolong the service life of the road (ground) foundation.
Geogrid is used to prevent the road (ground) from collapsing or cracking, and keep the ground beautiful and tidy.
Geogrids are used to prevent cracks in culverts.
Geogrids are used to enhance soil slopes and prevent soil erosion.
Geogrid is used to reduce the thickness of the cushion and save the cost.
The geogrid is used to support the stable greening environment of the grass-planting mesh pad on the slope.
Geogrid is used to increase the bearing capacity of the road (ground) foundation and prolong the service life of the road (ground) foundation.
Geogrid is used to prevent the road (ground) from collapsing or cracking, and keep the ground beautiful and tidy.
Geogrid is used for convenient construction, saving time and effort, shortening the construction period and reducing maintenance costs.
Geogrids are used to prevent cracks in culverts.
Geogrids are used to enhance soil slopes and prevent soil erosion.
Geogrid is used to reduce the thickness of the cushion and save the cost.
The geogrid is used to support the stable greening environment of the grass-planting mesh pad on the slope.
PP Geogrid for agriculture usage

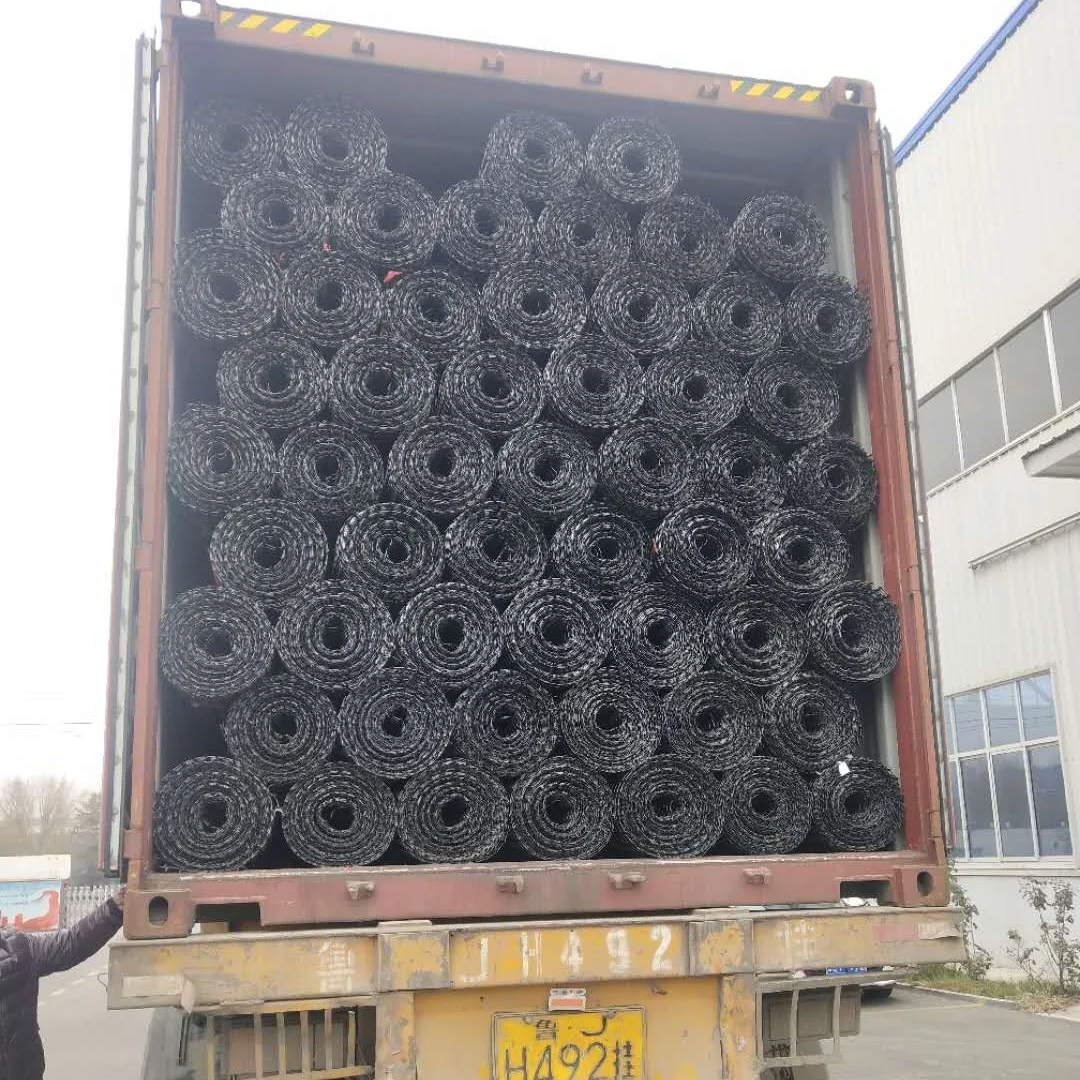

Packing & Delivery
Company Profile
VEGAS, as a professional and leading HDPE geomembrane and HDPE Pipe manufacturer with more than 30 years experience, has specialized in the production and marketing of HDPE geomembranes, LDPE&LLDPE geomembranes,HDPE pipe and fittings.
VEGAS owns 20 production lines for HDPE pipe &fittings, 3 HDPE Geomembrane production lines now, also has established a national-standard laboratory for in-house quality control and built a strict quality control system in all aspects from raw materials testing and production processes to final product quality testing.
Not only is stringent internal quality control carried out at VEGAS, but regular testing and analyzing of our product performance is implemented by authoritative testing organizations in Europe and the United States. The management system is certified by ISO9001 and VEGAS's products have passed the CE certification authorized by BTTG.
VEGAS products have been distributed to more than 120 countries around the world. VEGAS is constantly developing and offering creative and excellent performance geosynthetic products, professional technical services, and engineering consulting for reinforcement applications. We always warmly invite new business partners to be members of our worldwide distribution network.
VEGAS owns 20 production lines for HDPE pipe &fittings, 3 HDPE Geomembrane production lines now, also has established a national-standard laboratory for in-house quality control and built a strict quality control system in all aspects from raw materials testing and production processes to final product quality testing.
Not only is stringent internal quality control carried out at VEGAS, but regular testing and analyzing of our product performance is implemented by authoritative testing organizations in Europe and the United States. The management system is certified by ISO9001 and VEGAS's products have passed the CE certification authorized by BTTG.
VEGAS products have been distributed to more than 120 countries around the world. VEGAS is constantly developing and offering creative and excellent performance geosynthetic products, professional technical services, and engineering consulting for reinforcement applications. We always warmly invite new business partners to be members of our worldwide distribution network.
