Хорошая цена трехосный полуприцеп для нефтяного танкера 40KL 45KL из нержавеющей стали топливный танкер транспортировки
- Категории: Truck Trailers >>>
- Поставщик: Hubei,Shengda,Automobile,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Paramenters
40000Liters | ||
Design Specification | ||
Loading medium | edible oil, | |
Overall dimension(L*W*H)(mm) | 9130×2500×3650 | |
Total mass(kg) | 35000 | |
Curb mass(kg) | 8400 | |
Rated loading capacity (kg) | 26660 | |
Tanker | ||
40Rear tanker volume | 40cbm（40cbm with water） | |
Tanker section | Quasi ellipse | |
Tanker wall | stainless steel material | |
End-heads | stainless steel material | |
Anti-wave sheet | stainless steel material | |
pipeline and accessories | ||
manholes & NO. | Euro standard aluminum alloy explosion-proof manholes*2(2compartments | |
Bottom loading system | Bottom loading outlet*5 sets | |
oil and gas recovery | oil and gas recovery | |
Anti-overflow | With Anti-overflowing system | |
Safety bottom valve | Aluminum alloy material 4 inch Safety bottom valve*1 | |
Discharging valves | Middle and right side | |

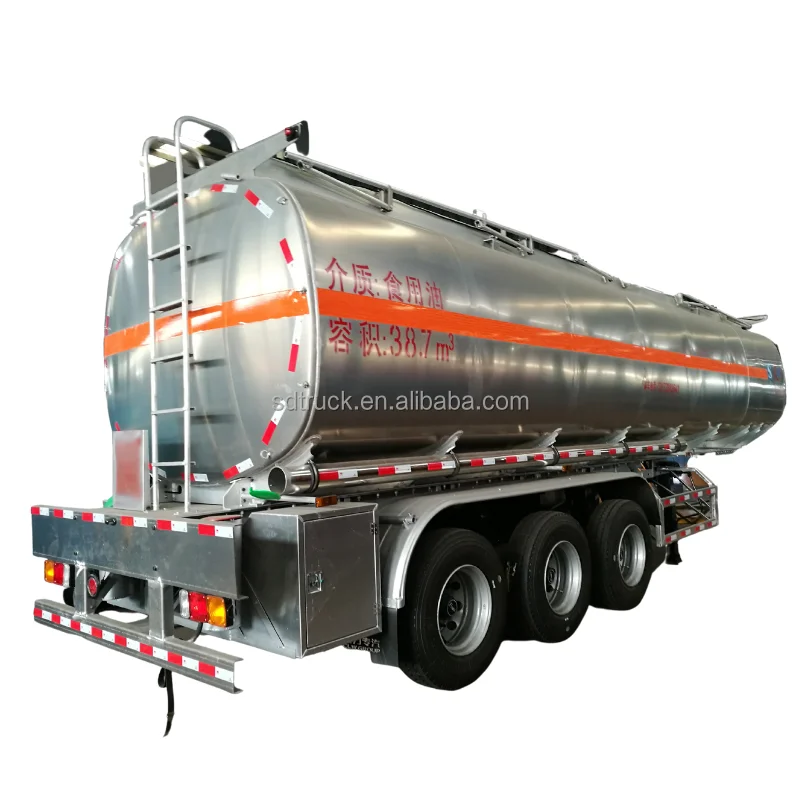

Details Images
Our Advantages
high quality aluminum alloy oil tanker workshop
customized overseas aluminum alloy oil tanker trailer
1. Euro standard tank mouth: also known as manhole cover, installed on the top of the tank. Features built-in breathing and
emergency exhaust. The folding guardrail can be raised or lowered for easy use.
2. YBottom loading system: including unloading valve, oil and gas recovery, subsea valve and other devices. Subsea valve
automatically disconnects the line in an emergency to prevent leaks.
3. Safety device: Two fire extinguishers are equipped with the vehicle. The tail is equipped with an anti-static device to prevent accidents caused by static electricity during loading and unloading or transportation.
4. Fuel Dispenser: optional side mounted tanker or built-in tanker.
5. Speed limiter: special speed limiter, with intelligent chip control to limit the speed, high precision, stable and reliable
performance. Does not affect the start of the big throttle, does not affect the torque. Just limit the top speed, lower the
throttle but don't turn off the engine.
6. ABS: Make full use of the brakes. Shortening the braking time and distance can effectively prevent the vehicle from slipping and drifting during emergency braking. It can avoid the violent friction between the tire and the ground and reduce the wear of the tire.
7.Tank Body: high quality carbon steel or aluminum alloy (can be customized according to your needs). The tank body of the small tanker is 5mm thick. Above 15 square meters, the thickness is 6mm. Tank body can be set up with compartments according to your needs.
emergency exhaust. The folding guardrail can be raised or lowered for easy use.
2. YBottom loading system: including unloading valve, oil and gas recovery, subsea valve and other devices. Subsea valve
automatically disconnects the line in an emergency to prevent leaks.
3. Safety device: Two fire extinguishers are equipped with the vehicle. The tail is equipped with an anti-static device to prevent accidents caused by static electricity during loading and unloading or transportation.
4. Fuel Dispenser: optional side mounted tanker or built-in tanker.
5. Speed limiter: special speed limiter, with intelligent chip control to limit the speed, high precision, stable and reliable
performance. Does not affect the start of the big throttle, does not affect the torque. Just limit the top speed, lower the
throttle but don't turn off the engine.
6. ABS: Make full use of the brakes. Shortening the braking time and distance can effectively prevent the vehicle from slipping and drifting during emergency braking. It can avoid the violent friction between the tire and the ground and reduce the wear of the tire.
7.Tank Body: high quality carbon steel or aluminum alloy (can be customized according to your needs). The tank body of the small tanker is 5mm thick. Above 15 square meters, the thickness is 6mm. Tank body can be set up with compartments according to your needs.

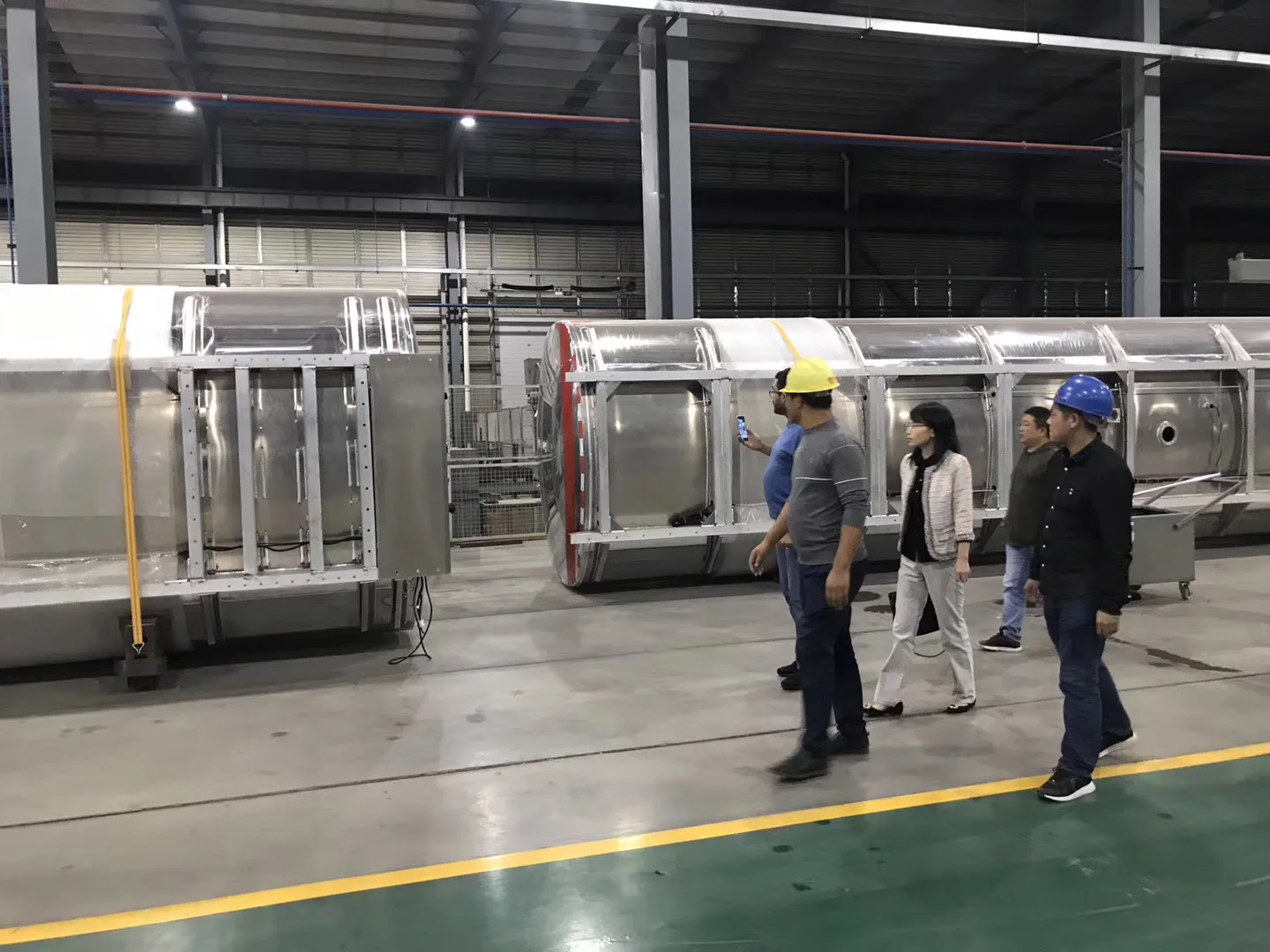

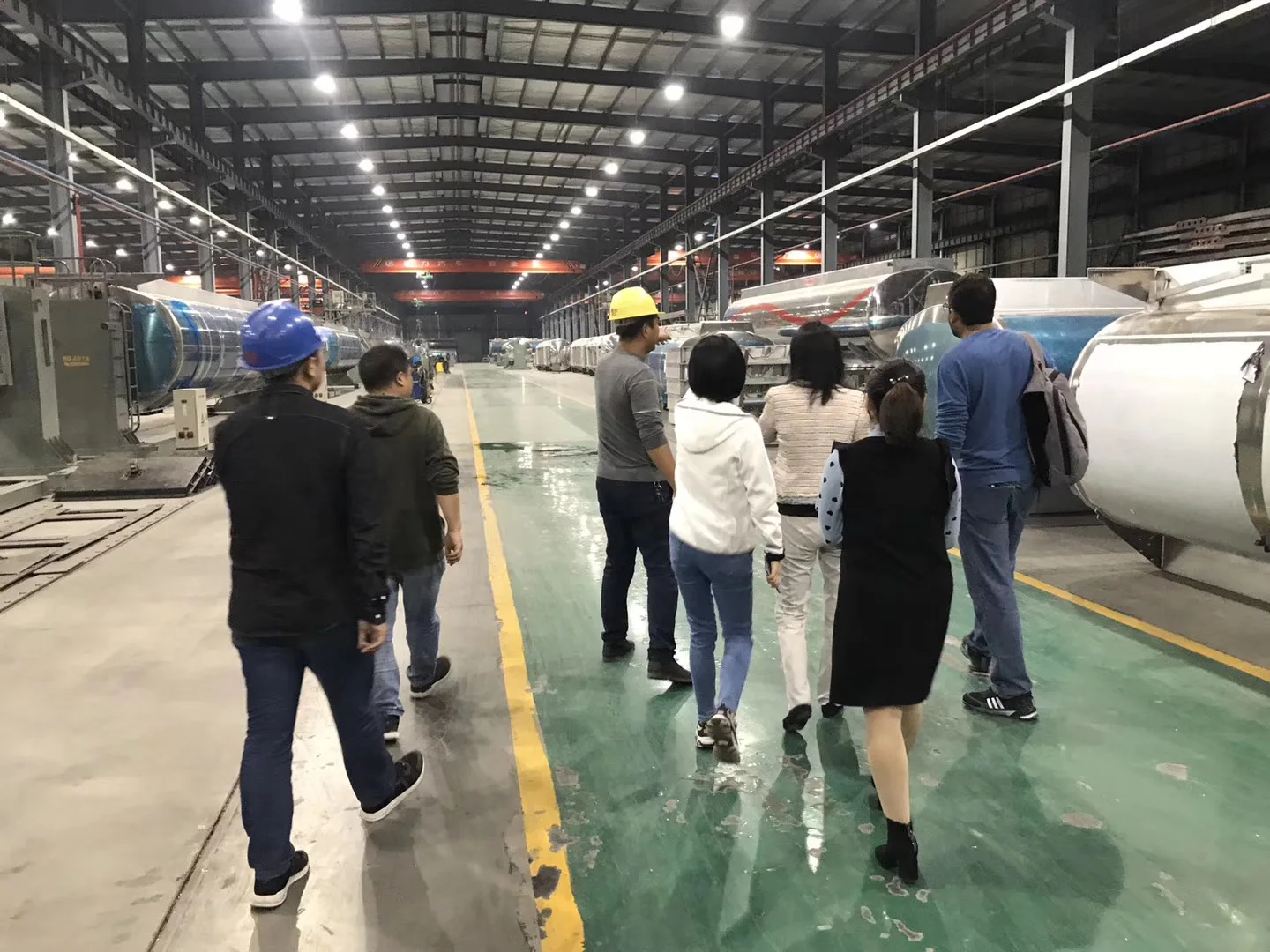

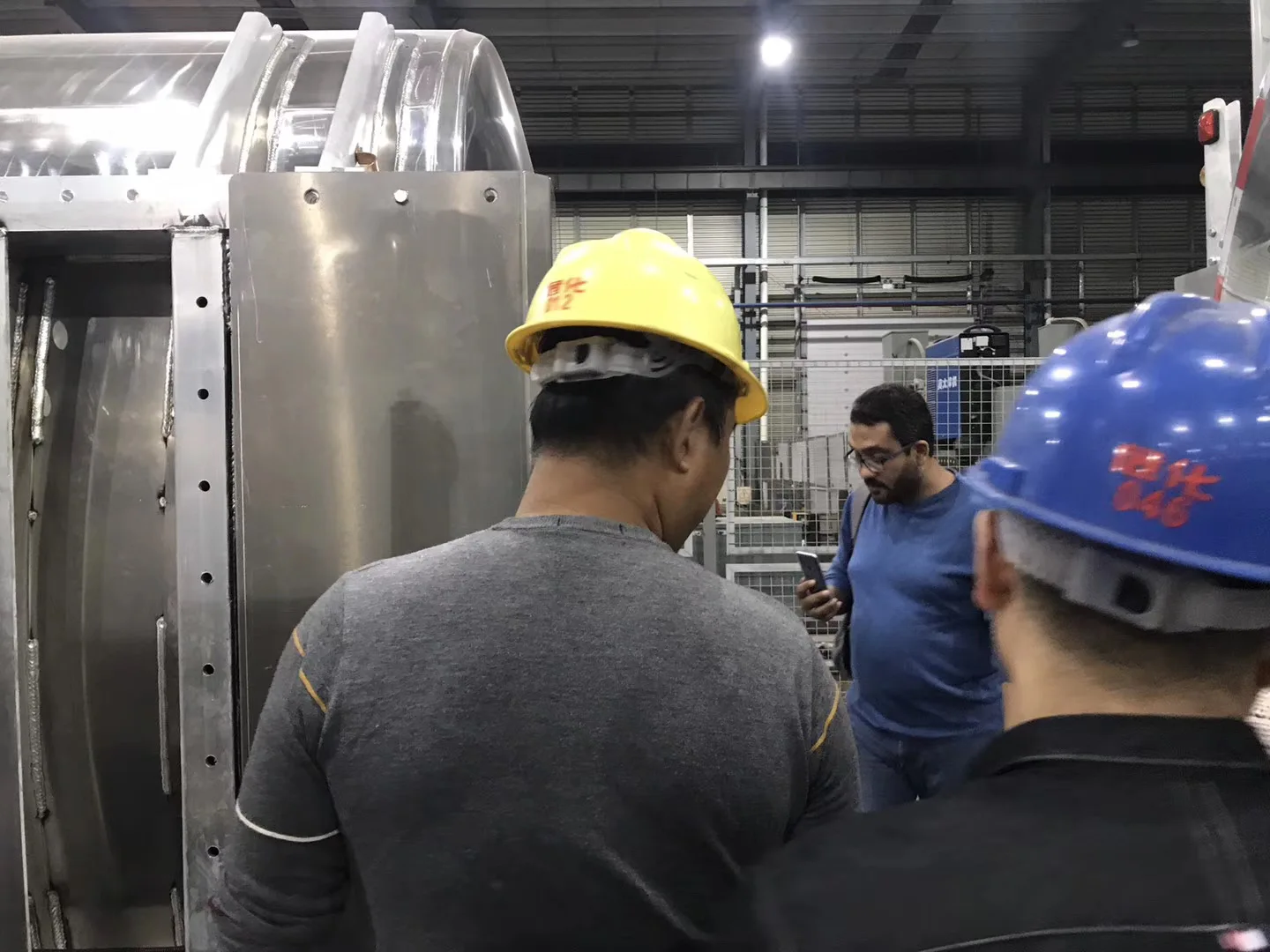

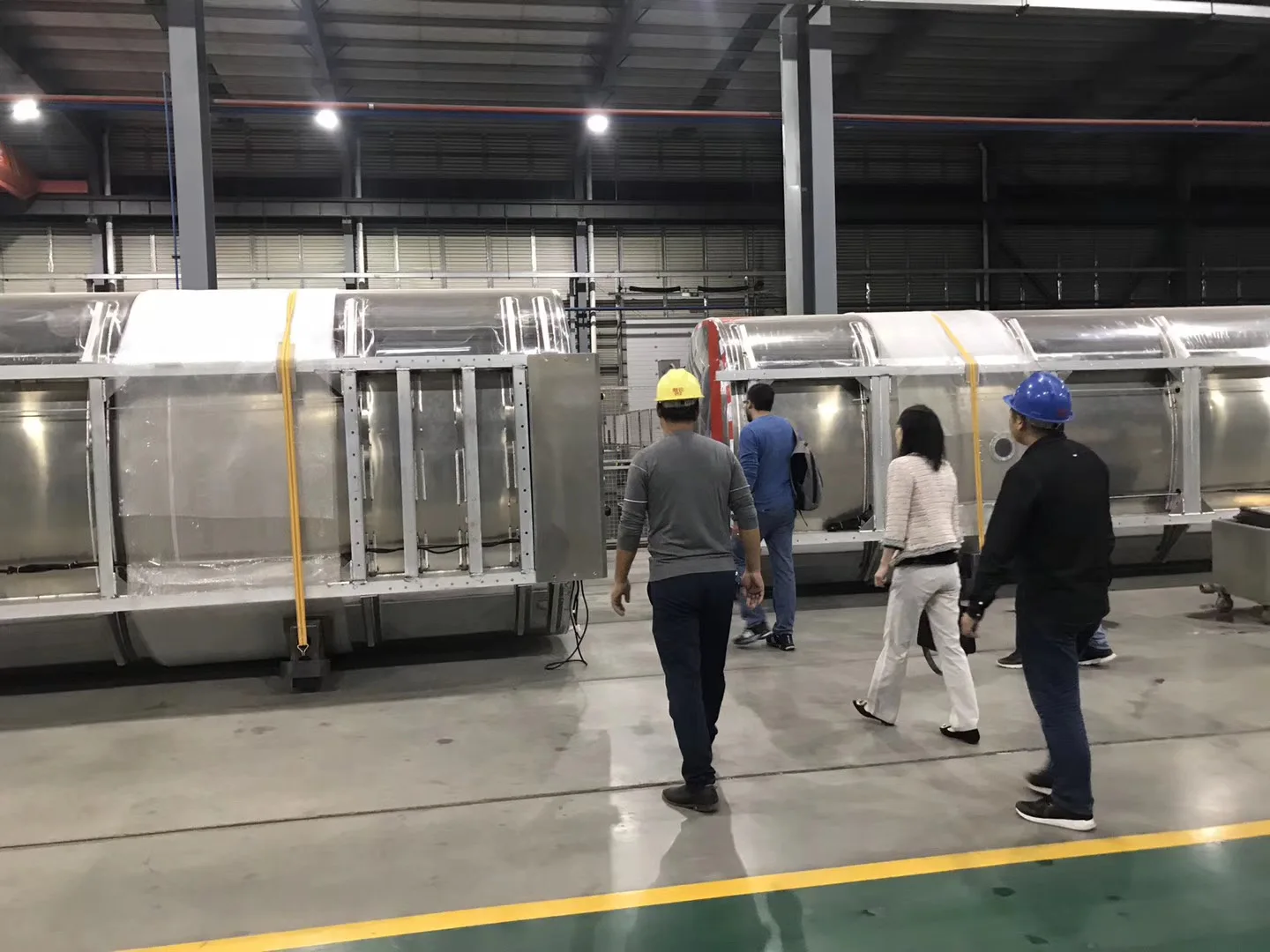

Customer Photos
FAQ
1. who are we?
We are based in Hubei, China, start from 2013,sell to Southeast Asia(30.00%),South America(25.00%),South Asia(20.00%),Mid East(15.00%),Eastern Asia(10.00%). There are total about null people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
special-purpose manufacture,construction machinery manufacture,auto spare parts,auto trading,hardware sales
4. why should you buy from us not from other suppliers?
professional special-purpose vehicle with indepedent research and development 30 years experience, 1000 workers, this is how we
keep superior quality and competitive offers for global valued customers
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
We are based in Hubei, China, start from 2013,sell to Southeast Asia(30.00%),South America(25.00%),South Asia(20.00%),Mid East(15.00%),Eastern Asia(10.00%). There are total about null people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
special-purpose manufacture,construction machinery manufacture,auto spare parts,auto trading,hardware sales
4. why should you buy from us not from other suppliers?
professional special-purpose vehicle with indepedent research and development 30 years experience, 1000 workers, this is how we
keep superior quality and competitive offers for global valued customers
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
