Product Description


Orbital Welding Machine
Orbital welding is a specialized area of welding whereby the arc is rotated mechanically through 360° (180 degrees in double up welding) around a static workpiece, an object such as a pipe, in a continuous process. The process was developed to address the issue of operator error in gas tungsten arc welding processes (GTAW), to support uniform welding around a pipe that would be significantly more difficult using a manual welding process, and to ensure high quality repeatable welds that would meet more stringent weld criteria set by ASME. In orbital welding, computer-controlled process runs with little intervention from the operator.

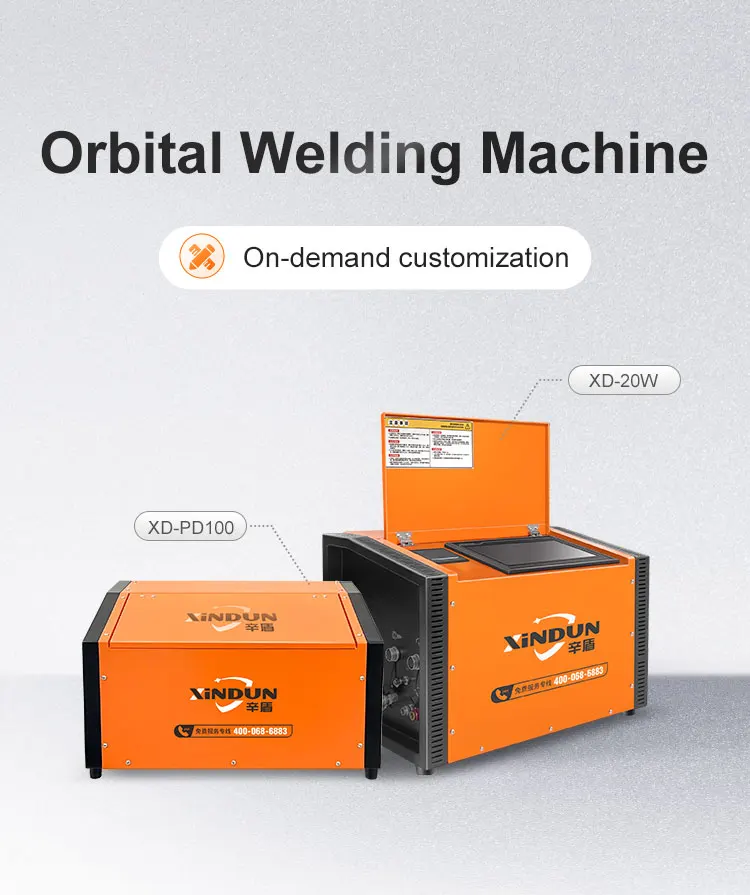

XD-20W digital programmed welding power supply is composed of control system, power supply system and cooling water tank. It has the characteristics of digital, easy operation and reliability. The control system adopts an open and up gradable operating system to centrally set, store and synchronously control all functional parameters in the all-position welding. This power supply is specially designed and manufactured for pipe welding, which is used in semiconductor, food, electronic pipeline, new energy, heat exchanger, refrigeration equipment, water treatment, laboratory and other industries.The overall design tends to be convenient,energy saving, intelligent, human-machine interaction. Reduced volume and weight by one third compared with the original split type. The integrated design is oriented to the construction with small space on sit.











Technical Parameters


Model
XD-20W
XD-PD100
Duty cycle
200A 60% /155A 100%
Floating voltage
65V
Input voltage
AC220V±10% 50Hz/60Hz
Power
4.5 KVA
Welding gun cooling
Built-in circulating water cooling
Screen
10 inch touch screen
Partition Free Space
12
Insulation grade/Protection grade
F/IP21
Welding current
5-200A
10-200A
Programmable memory
99
20
Tank Volume
4L
2L
Weight
33KG(Water inclusion 4L)
18KG(Water inclusion 2L)

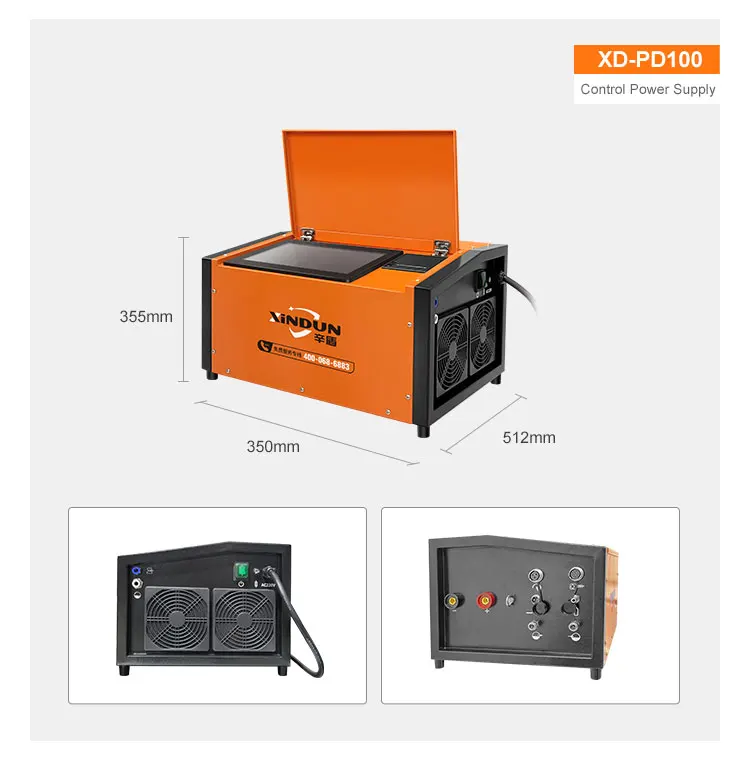

Machine size
512*355*350mm
450*330*260mm
Control function
DC/pulse current control / gas control/rotary motion /auto printing/water cooling control
Protection function
Overvoltage, overload, leakage, arc failure and tungsten needle short circuit protection

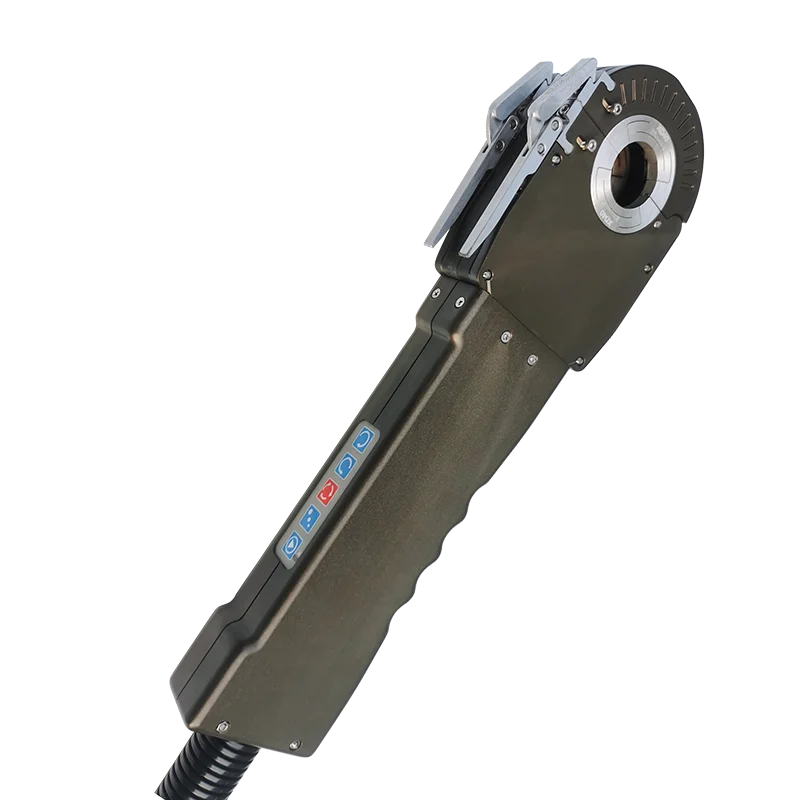

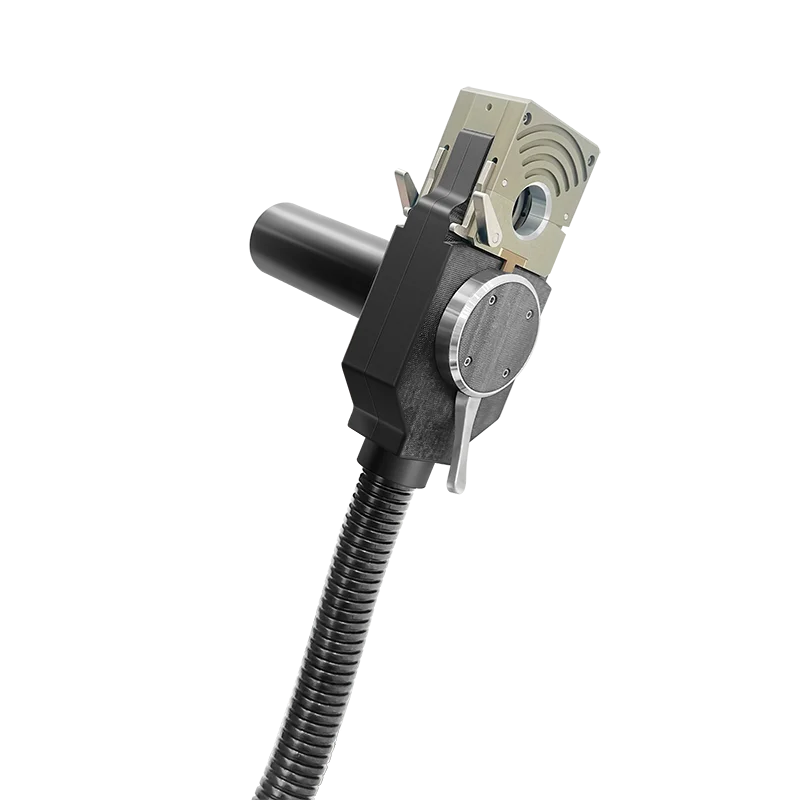

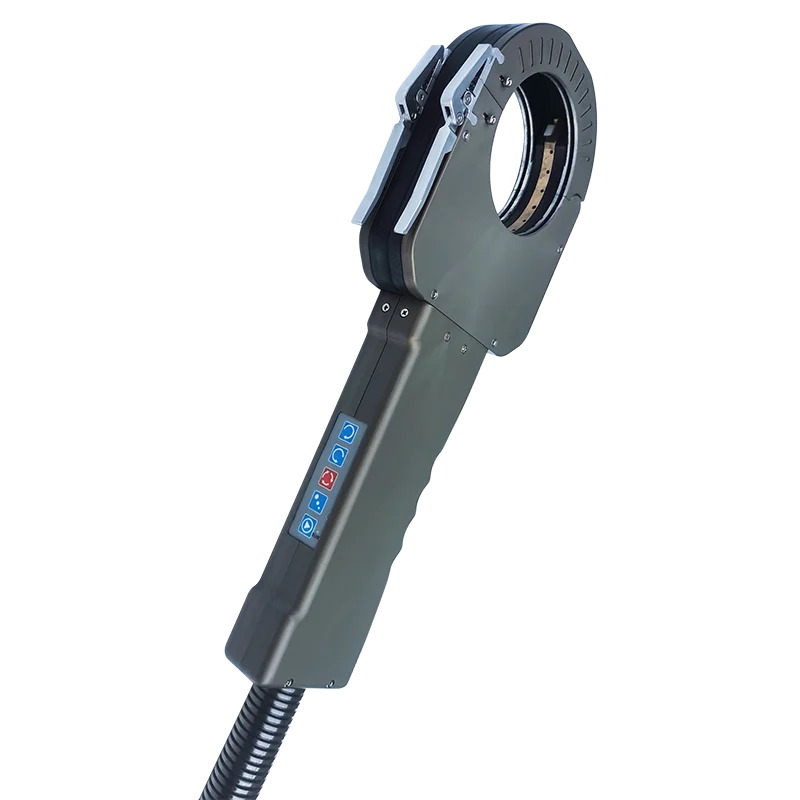

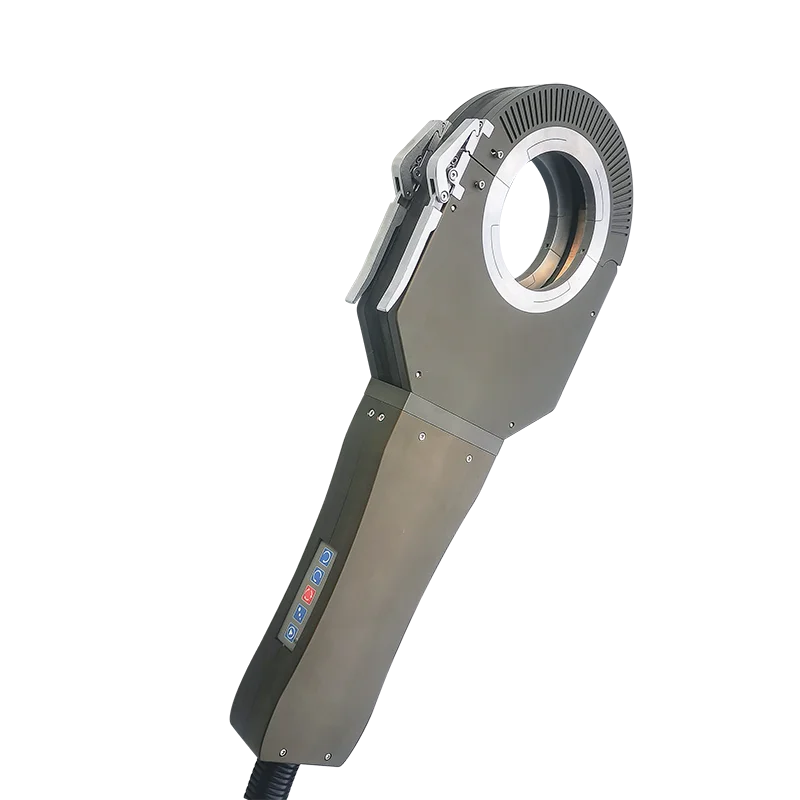

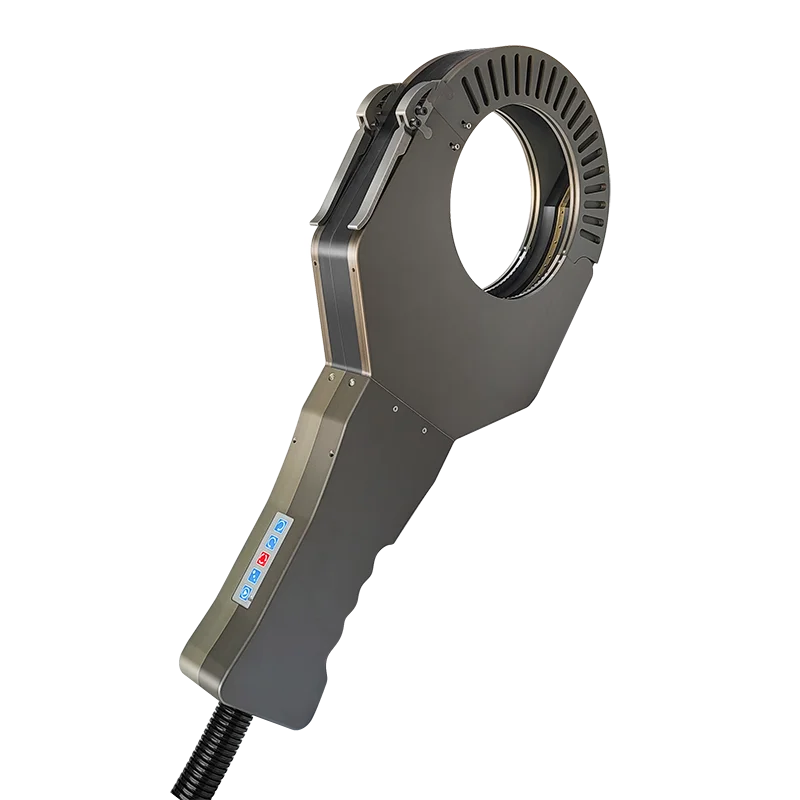

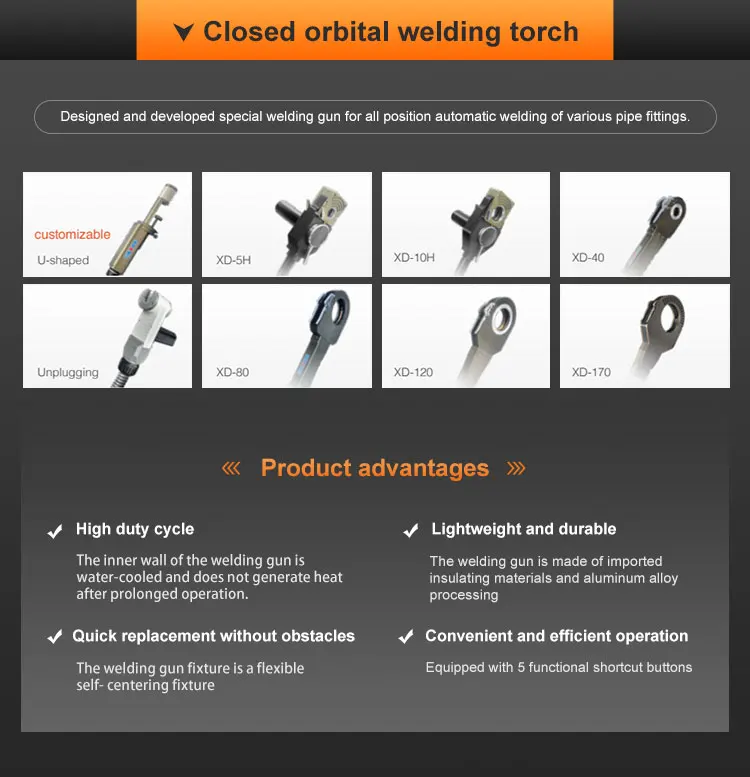

Model
XD-5H
XD-10H
XD-40
XD-80
XD-120
XD-170
U-shaped /
unplugging
U-shaped
special
Main power supply
XD-20 wall position control power supply
Welding material
Carbon steel/stainless steel/titanium alloy, etc
Center distance/mm
/
≥ 38
≥ 45
Pipe length/mm
/
≥ 35
≥ 65
Welding Diameter Range/mm
3.175-15.88
6.35-25.4
6.35-38.1
10-76.2
19-114.3
38.1-168
12.7-15.88
12.7-21
The Maxium Wall Thickness/mm
0.5-1.5
0.5-2.0
2.5
3
3
0.5-3.0
0.5-1.5
0.5-1.5
Torch rotation speed(rpm)
0.6~9.0
0.6~9.0
0.16~2.8
0.1~1.8
0.1~1.8
0.1~1.8
/
/
Welding Heads Cooling
water cooling
Welding shielding gas
Argon
Weight(kg)
1.3
1.8
3.5
5
6.5
9.5
4.5
5
Dimension(mm)
155*70*50
170*100*55
377*129*42
438*155*44
540*195*54
620*290*65
385.2*96*80
380*100*86

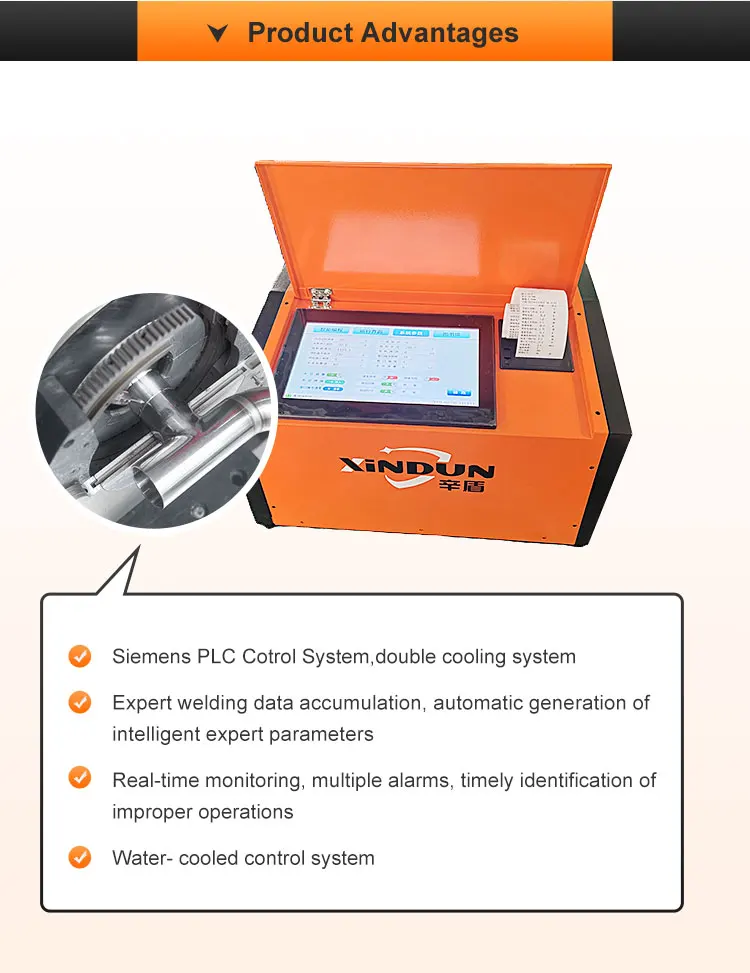

Product Advantages




Company Profile

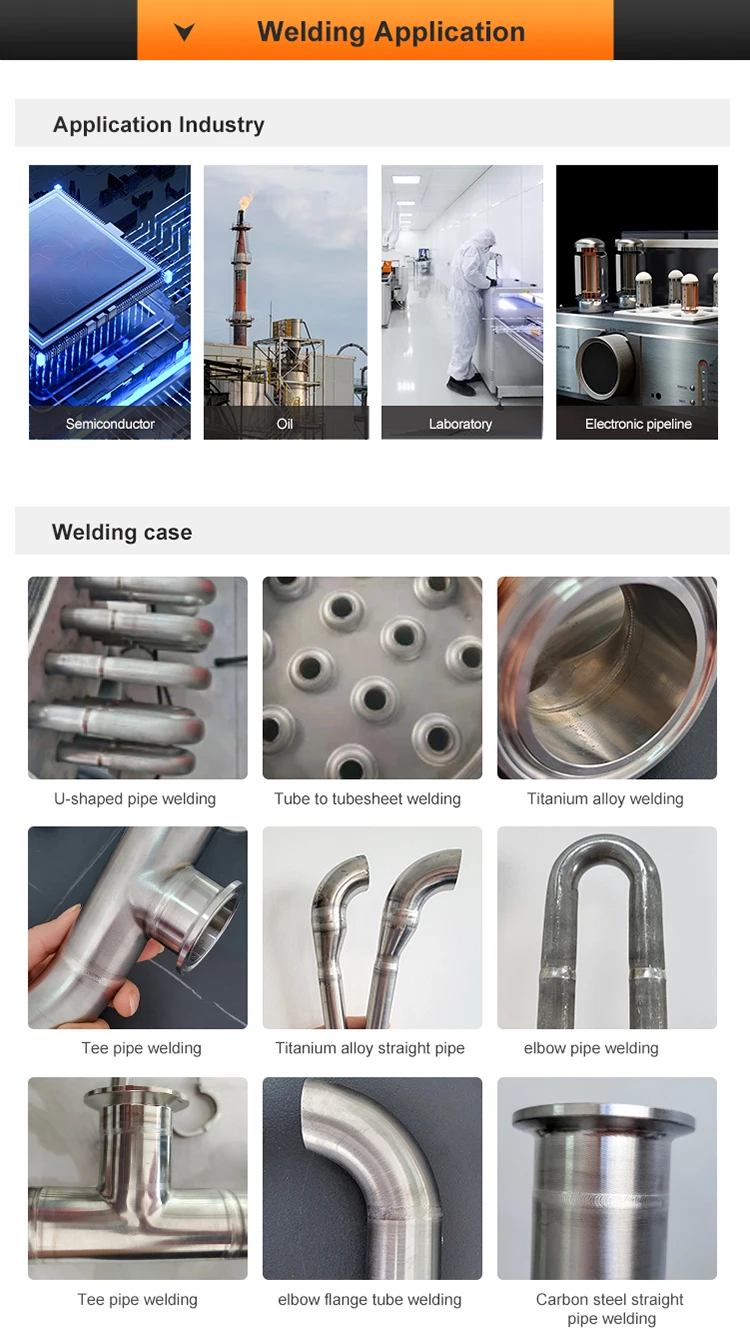

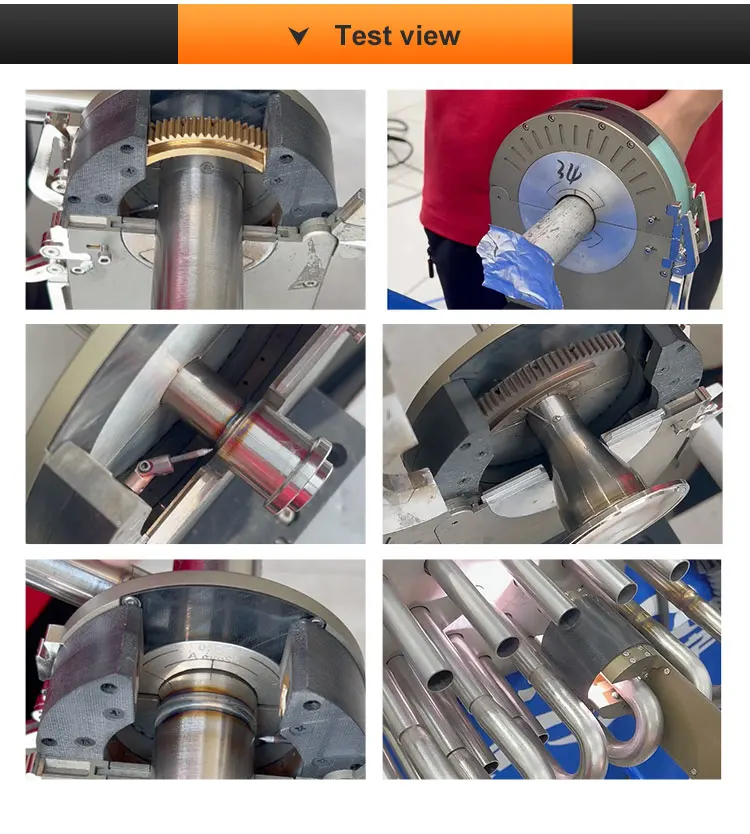

Welding Case








Certifications










After-sales Service






FAQ


01 Are you factory?
Yes, we are factory self-produced and exported, located in shanghai.

02 Do you have CE?
Yes, we have CE, ISO9100.

03 How long is the delivery time?
Within 7 days after receiving payment

04 What are the advantages of pipe welding, and what are the scenarios?
Pipe welding machine is equipped with argon arc welding, torch water cooling,and all-position welding. The appearance is uniform and beautiful, intelligent, andthe finished welding product can meet the requirements of clean weld bead.
The light and compact appearance of the pipe welding machine is more conven-ient for on-site installation and piping. Such equipment is widely used in indus-tries such as food, semiconductor, bioengineering, instrumen-tation, pipeline installation and construction operations.

05 What are the advantages of laser welding?
1. Small range reduces thermal stress and heat-affected area, extremely low dis-tortion
2. Narrow seam and smooth surface: reduce or even eliminate before processing
3. The welded workpiece can be subjected to bending or hydroforming
4. Easy to integrate
5. Only one side of the seam needs to be close
6. High process speed shortens processing time
7. Especially suitable for automation technology

06 What other products does your factory provide?

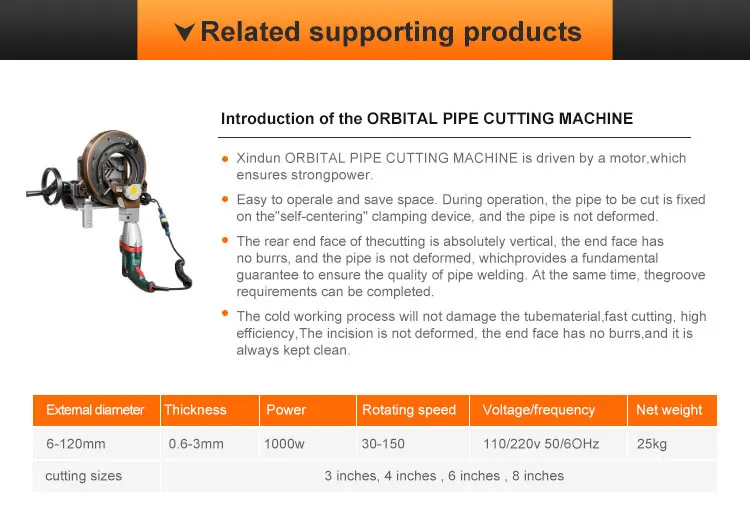

Our factory provides cold welding machine, pipe welding, hand-held laser weld-ing, planetary pipe cutting machine, wire feeder, spark butt welding repair and re-lated product accessories.

07 What payment methods does your company accept?
We accept payment in any way, and you can also pay directly by alibaba creditorder.
