Лидер продаж автоматическая машина для брикетирования шарикового прессования Рулонного Типа изготовления брикетов овальной
- Категории: >>>
- Поставщик: Henan,Cheng,Jinlai,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

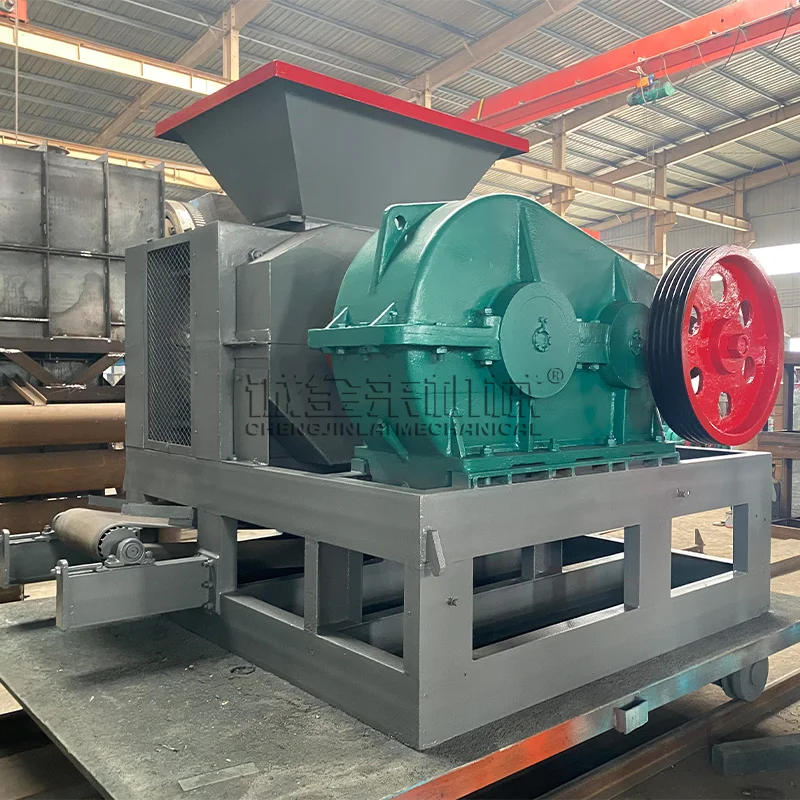

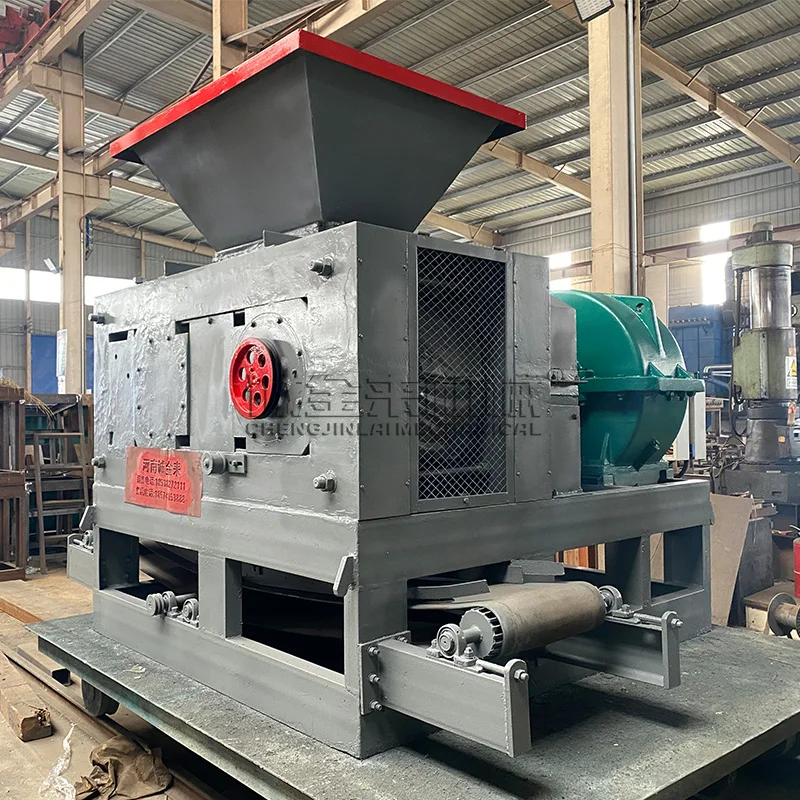

Ball press briquetting machine is a kind of mechanical equipment that presses powder particles into various spherical shapes. It has a wide range of applications and it’s widely used in the field of metallurgy,chemical, refractories, etc. The final product(coal ball briquette) has the advantages of smokeless, non-toxic, no peculiar smell, and easy transportation&storage.
Final briquettes have features of high density, high strength, high hardness, high performance, and the main rollers adopt hard wear resistance materials, which improve roller's service life greatly.
Sample shape and size both can be customized according to customer requirements, for
example special shape,special logo, color etc.
example special shape,special logo, color etc.
Product Details

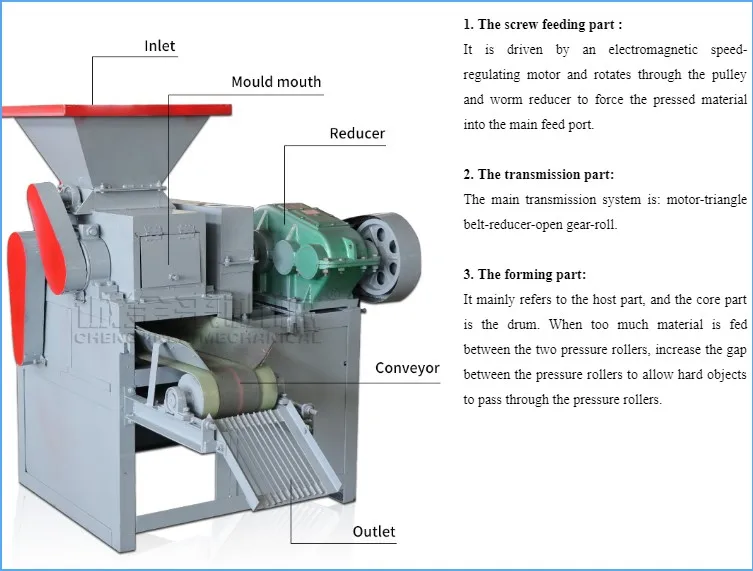

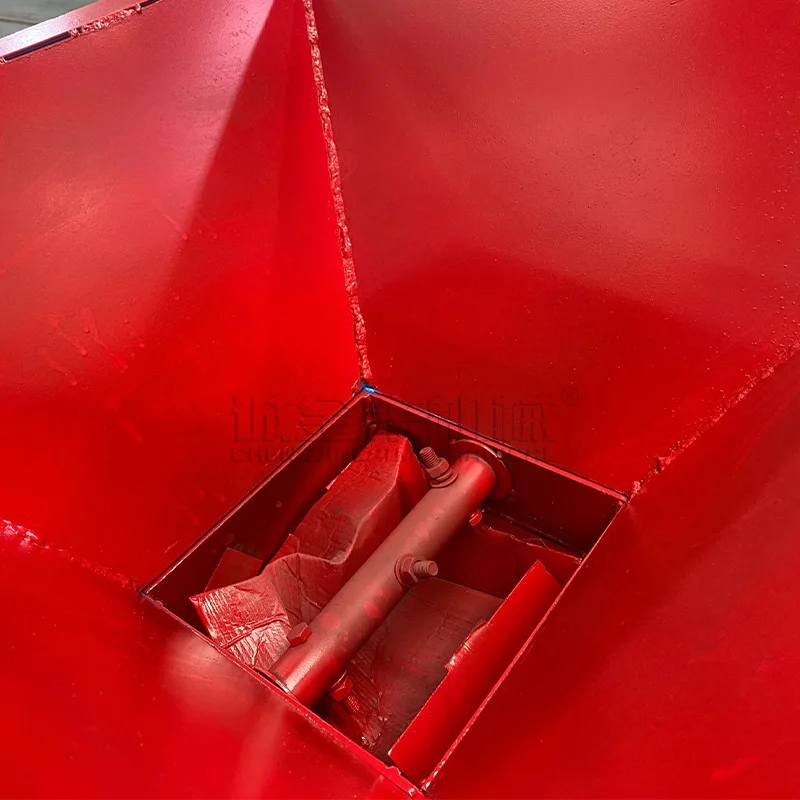

1. Feeding part: This part includes the screw feeding device and the hopper, which is mainly used to realize quantitative feeding to ensure that the material enters between the pair of rollers evenly.
2. Transmission part: The main transmission system is: motor → triangle belt → reducer →open gear → counter roll.

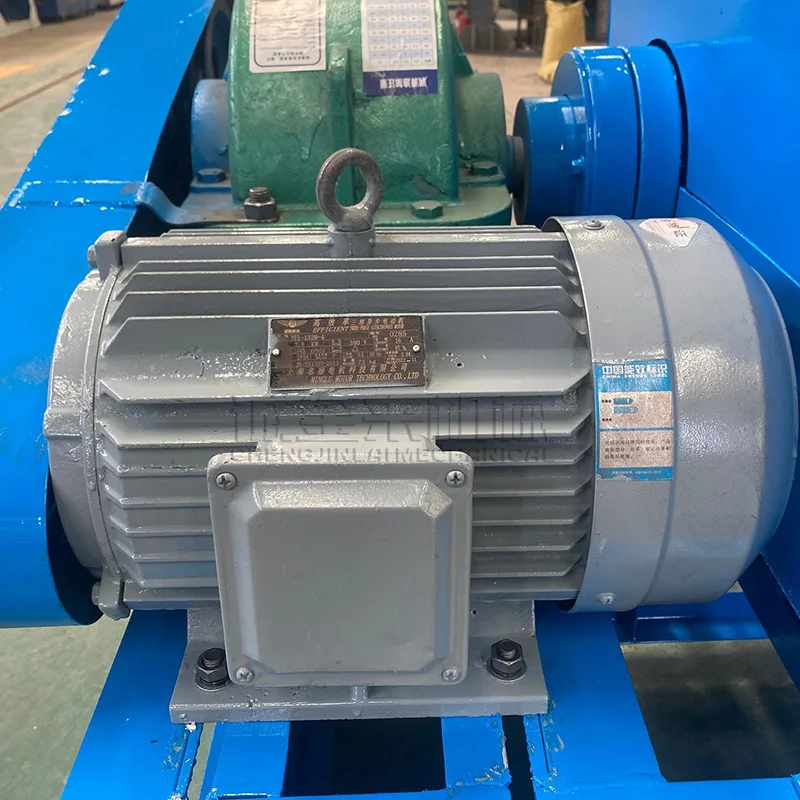

The main engine is powered by an electromagnetic speed-regulating motor, which is transmitted to the driving shaft through a pin
coupling through a belt wheel and a cylindrical gear reducer.

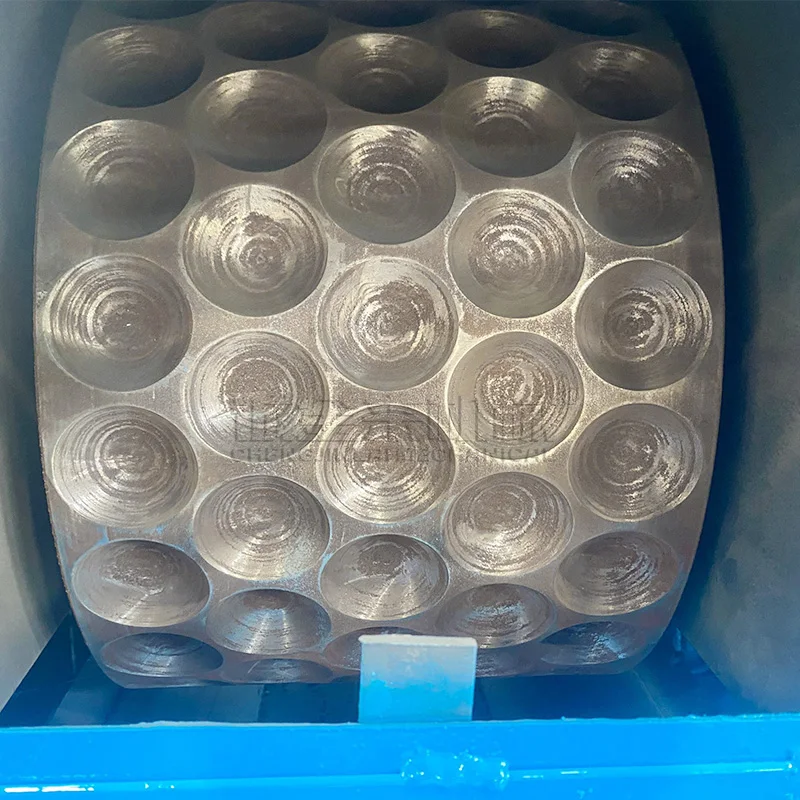

3.Forming part: The core of the forming part is the pair of rolls. This is a pair of rotating shafts of the same size, with many hemispherical sockets of the same size and regularly arranged on the surface. There is a hydraulic protection device.

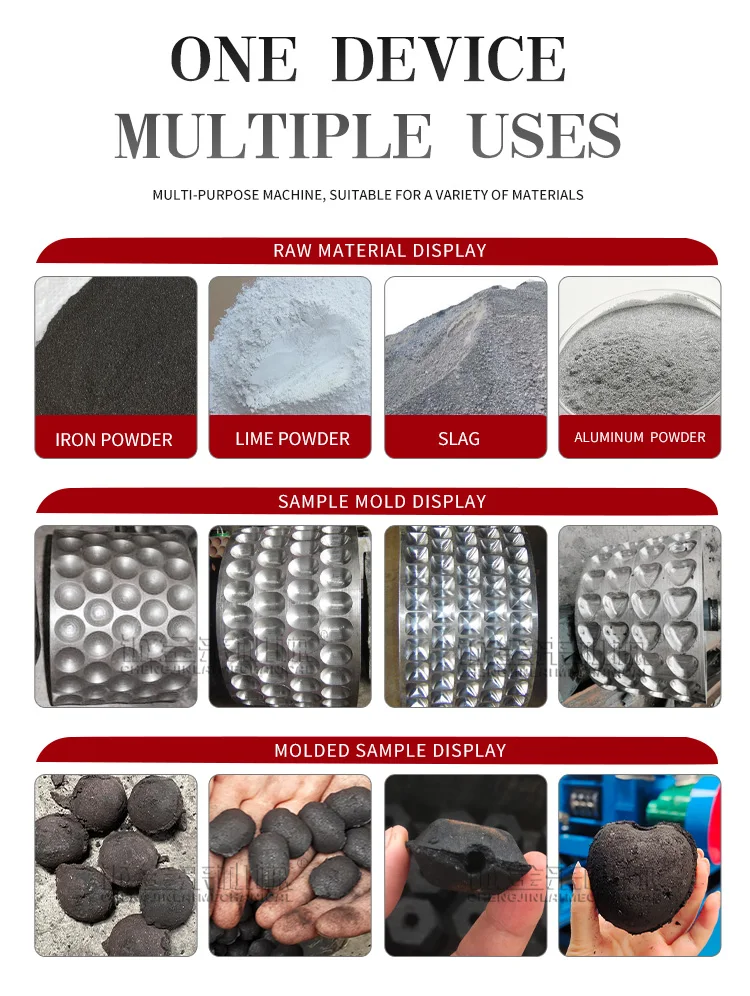

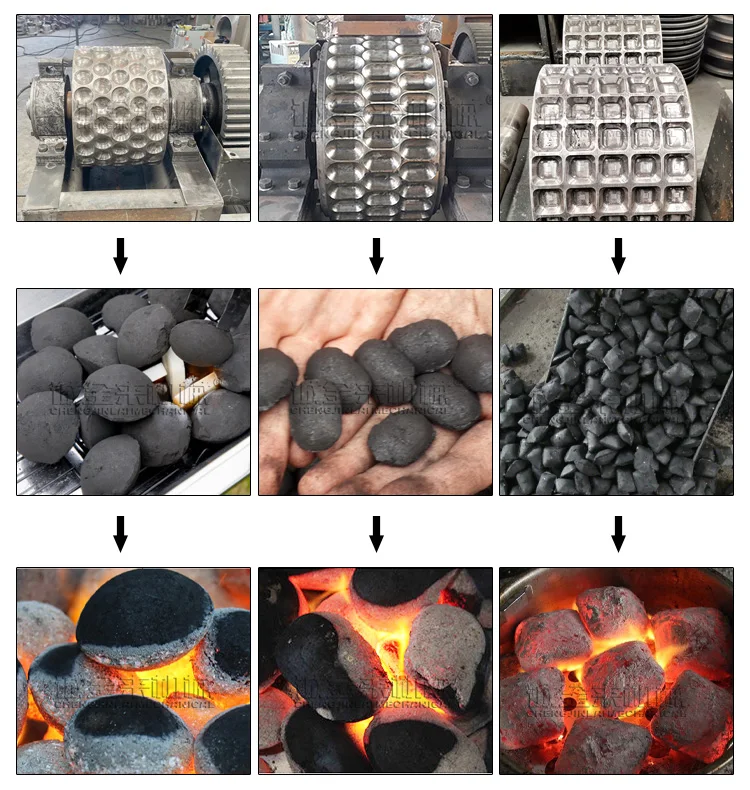

A variety of molds for you to choose from!
We could customize reasonable and efficient paramenters according to customers' site, raw materials, output and other requirements.
Model | Roller Diameter(mm) | Capacity（t/h） | Power | Reducer |
290 | 290 | 1-2 | 5.5-7.5 | 350 |
360-2 | 360 | 2-3 | 7.5-11 | 350 |
360-4 | 360 | 2-3 | 11-15 | 400 |
450 | 450 | 4-5 | 22 | 400 |
550 | 550 | 5-8 | 37 | 500 |
650 | 650 | 8-10 | 45 | 650 |
800 | 800 | 15-20 | 90 | 850 |
1000 | 1000 | 25-30 | 110 | 1000 |

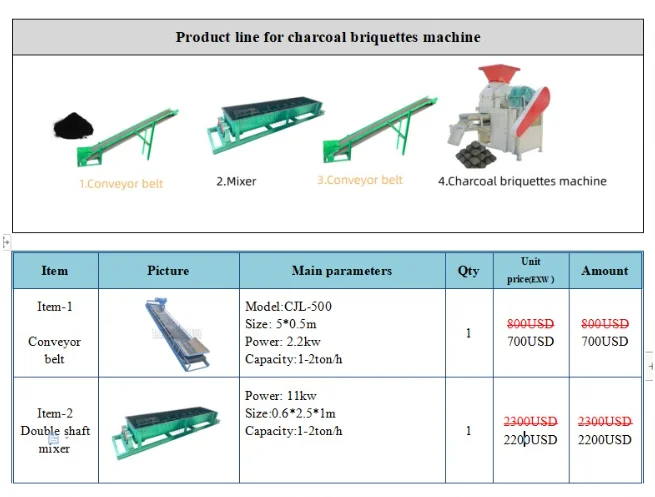

We also provide the whole production line for you to choose, good quality, cheap price,welcome to buy!

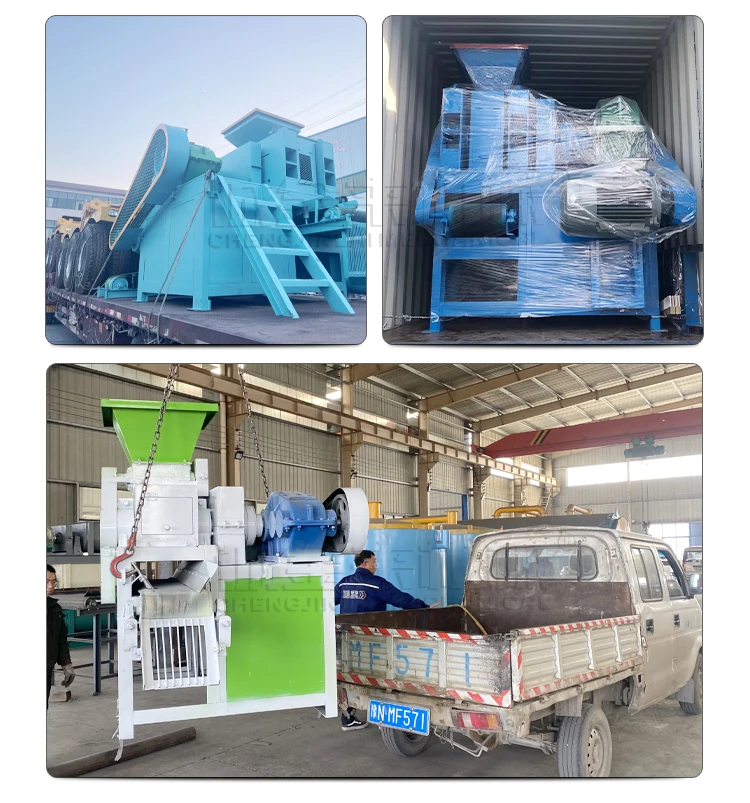

Packaging and shipping:
1. All the machines will be wrapped up with plastic film first (including the motor).
2. The plastic film bag wrapped machine, according to the size and weight to make wooden or iron box, put machine in and fixed the box after loading. (The box material can be made as your requirements)
3. The machine parts need to be put in a fixed container, should be fixed well, lest
collision and wear, or lost.
2. The plastic film bag wrapped machine, according to the size and weight to make wooden or iron box, put machine in and fixed the box after loading. (The box material can be made as your requirements)
3. The machine parts need to be put in a fixed container, should be fixed well, lest
collision and wear, or lost.
Why choose us :
Customer Trust is our driving force！
We offer multimodal transport for safe arrival.
Our market has spread all over the world.
Favoriable comments
Customer visit
Please contact us for quotations and product catalogues!
We are the factory, we can offer you the cheapest price!
FAQ
Q: What about the quality of your products?
A: Our machines are manufactured strictly according to national and international standards,and we take tests on each equipment before delivery.You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.
Q: How about the price?
A: We are manufacturer, and we can give you lower price than those trade companies. Besides,customers from Alibaba can get a discount.
Q: What is the Installation of your products?
A: Chengjinlai Group has several experienced technicians with passports ready to go for installation, when installation service is needed, the client should pay for technicians' round way air tickets, food and lodging, most importantly to guarantee the technician's safety.
A: Chengjinlai Group has several experienced technicians with passports ready to go for installation, when installation service is needed, the client should pay for technicians' round way air tickets, food and lodging, most importantly to guarantee the technician's safety.
Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year. Our company is located in Zhengzhou Henan province, China, you can come here by air or train. The nearest airport is Zhengzhou Xinzheng International Airport, and the Airport Code is CGO.We will pick you up at airport. Welcome to visit our factory.
lf your concerns and misgivings are not mentioned here, just email or call us for inquiries.We will answer them with all our heart.
