Легкий стальной каркасный дом LGS легкая стальная прокатная конструкция рулонная формовочная машина для строительных
- Категории: >>>
- Поставщик: Xiamen,Xinhonghua,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Focus on roll forming machine for more than 19 years
Factory Lifetime Service
CE Certificate
Best Quality：select all best material for roller,shaft,cutter,PLC and driving system
Customized Profile：can design the profile according to customer request
Main Products
Products Description

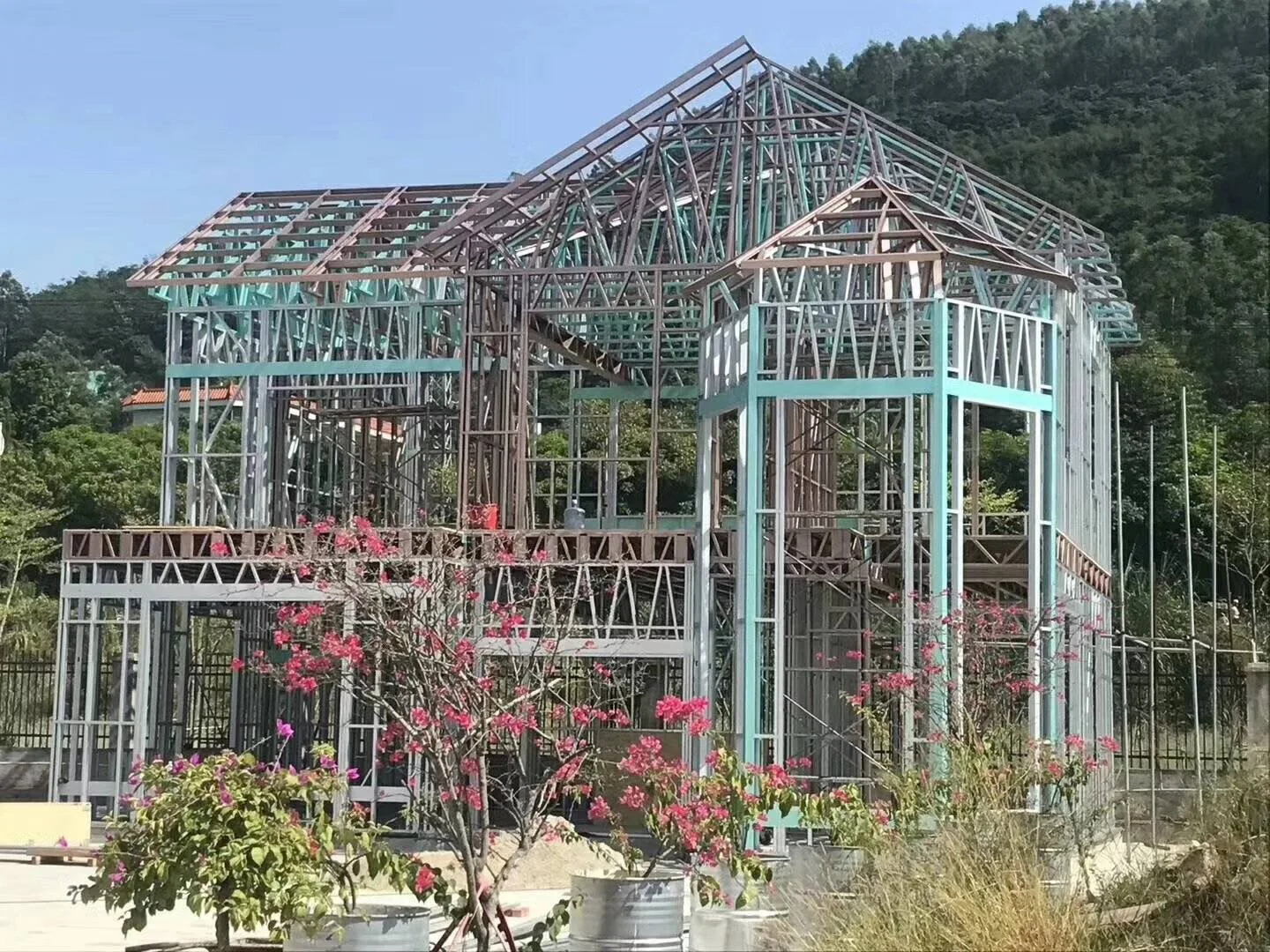

The Technical Advantages of Using Light Steel Villa Machine:
1.Cost-effective: Light steel villa machines can greatly reduce labor costs and enhance production efficiency, making the construction process less time-consuming and more cost-effective.
2.High precision: Advanced light steel villa machines can achieve high precision and high-quality production, ensuring the accuracy and durability of the steel frames and components.3.Sustainable and eco-friendly: Light steel villa machines are eco-friendly and sustainable, as they produce less waste and generate less pollution compared to traditional construction methods.
4.Easy to assemble: Light steel villa machines make the construction process simpler and faster, as the components are prefabricated off-site and then assembled on-site, reducing dependence on skilled labor and saving time.

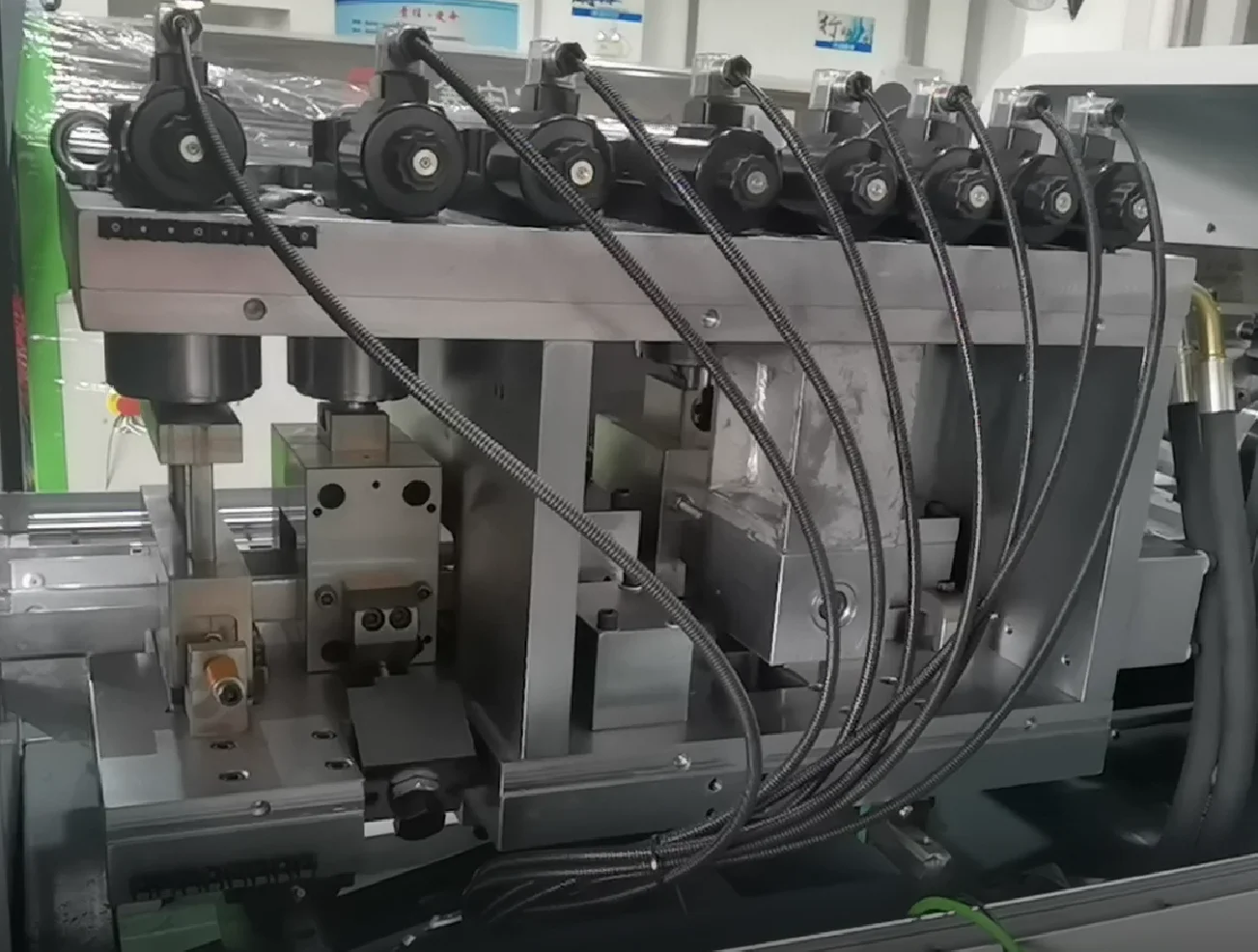

Post Punching Mould
XHH LGS Machine all with post punching and post cutting, which make more high precision performance on position & dimension

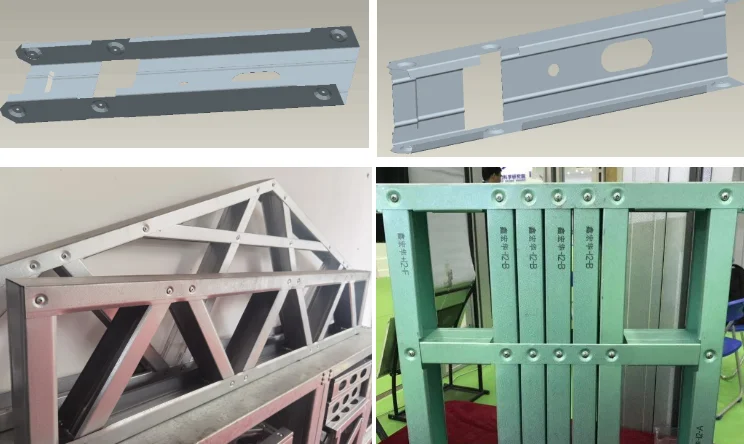

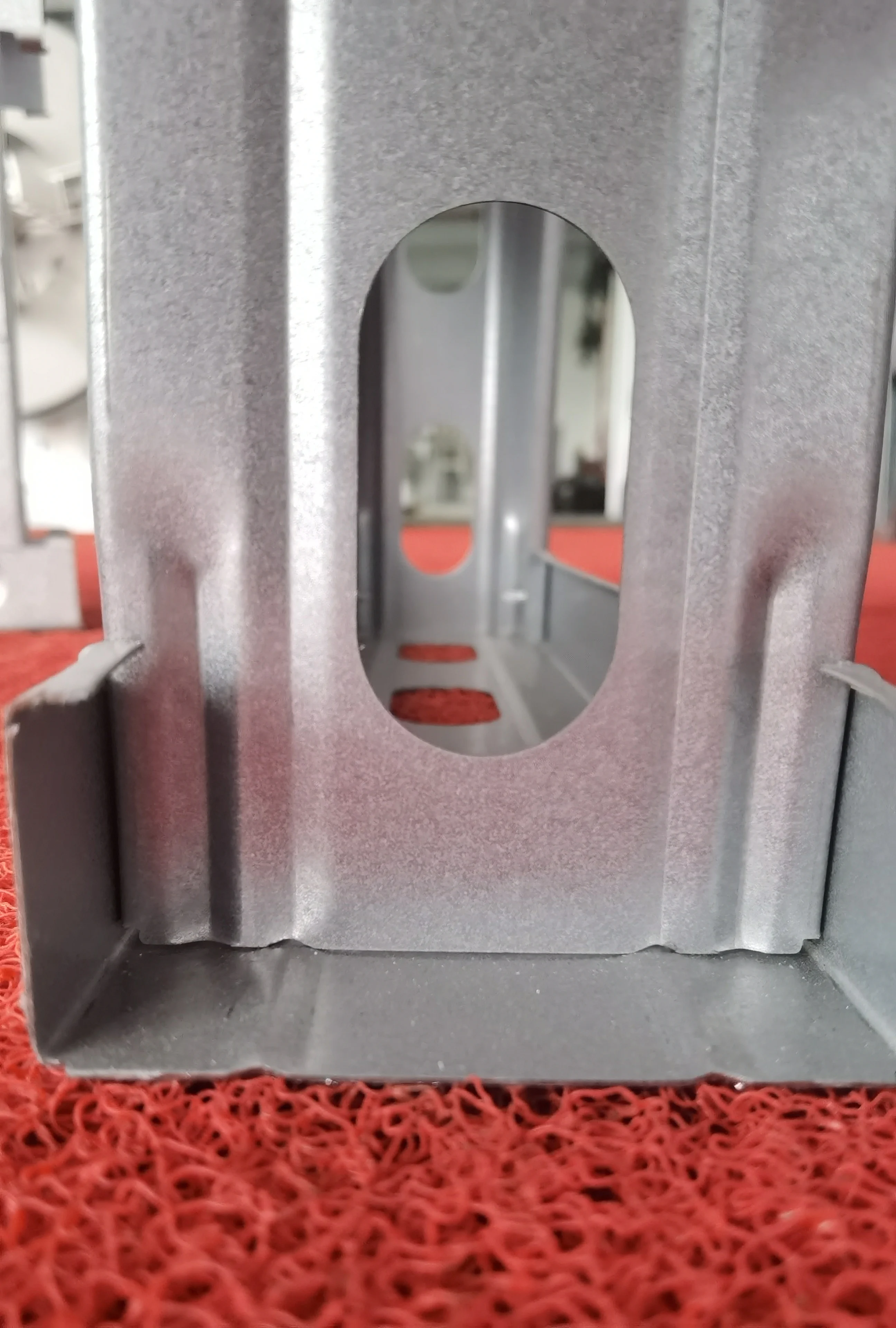

Seamless end cut connection
Seamless end-cut connection is a patent design of XHH LGS ROLL FORMER. The two ends of the vertical frame can seamlessly connect to the web of the bottom and top horizontal frames. So the weight of the house can be directly loaded and passed by the vertical
frame, which makes the house safer.
frame, which makes the house safer.
Lower material wasting
Short distance between punching & cutting die able to limit the start-up material waste length at 0.2m, and end material waste
length within 1 meter.
length within 1 meter.
Save cost:
1. The length of each start-up waste of the XHH post-punching & cutting machine is about 1M; most machines on the market are pre-punching & post-cutting (other supplier), their waste material is about 8M on each start-up;
Start-Up/Change Steel Coil | 8.11-12.13 Kg |
5 Steel Coils/Day | 40.55-60.65 Kg |
Material Saved/Year | 12.17-18.2 T |
2. XHH Machine steel strip width is: 170-174mm width, 10mm less than the most other machines in the market. For a 200sqm house, the total frame is around 7000m,can save 439.6-659.4kg material;
Material Thickness | 0.8mm | 1.0mm | 1.2mm |
Material Saved Per House | 439.6kg | 549.5kg | 659.4kg |
Main Accessories: |
1) Main Forming Machine |
2) 3Tons Manual Uncoiler |
3) Servo Motor System |
4) IPC Computer Controlling System (Lenovo Laptop) |
5) Production Software (1set) |
6) Design Software-Vertex,forever using license |

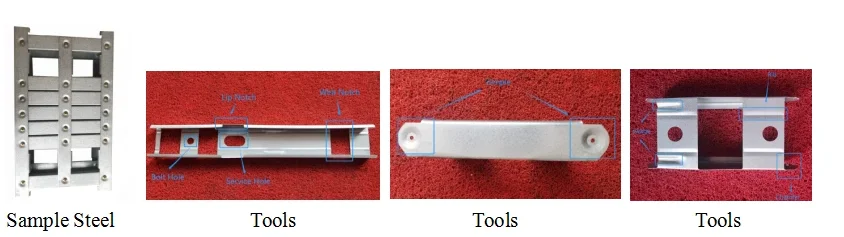

7) Hydraulic Automatic Punching Device (Web/Lip Notch,Swage,Service Hole,Chamfer,Dimple,Bolt Hole) |
8) Hydraulic Post-cutting Device (Material:SKD-11) |
9) Automatic Printing Device |
10) Run Out Table (4m) |
11) Operation Manual |
Main Technical Data: | |
1) Size | C89-JC |
2) Dimension | 2850*820*1480mm |
3) Main Servo Motor Power | 5.5KW |
4) Hydraulic Motor | 5.5kw |
5) Forming Steps | 7Steps |
6) Forming Speed | 2-3tons/8hours |
7)Voltage | 380V/50HZ/3PH |
8) Effective Width | 89mm |
9) Material Width | 174mm |
10) Flange Height | 38mm |
11) Lip | 9mm |
12) Material Thickness | 0.6-1.2mm |
13) Tolerance for cutting and punching | ±0.5mm |
14) Tolerance for forming | ±0.75mm |
15) Control System | IPC Computer Controlling System |
16) Design Software | Vertex Software |
17) Material for All Roller | SKD-11 steel with heat treatment, plate hard chrome on the surface of rollers |
18) Material for Shaft | SKD-11 |
19) Material for Puncher | SKD-11 |
20) Material for Cutter | SKD-11 |
Can not find the machine you need?
Why not customize it!
We have engineers with experience more than 17 years!
The configuration is not unique, we will provide you with customized services.

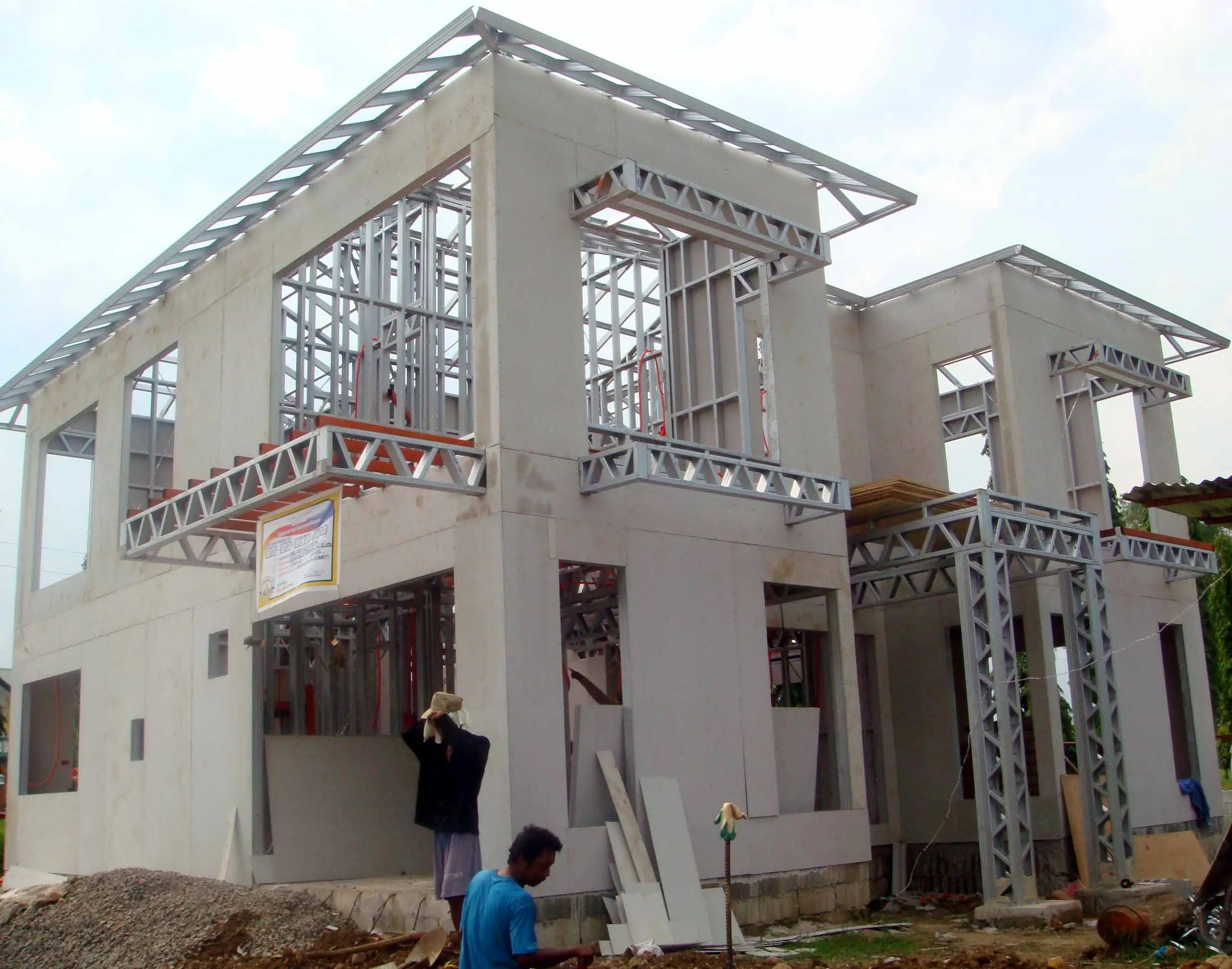

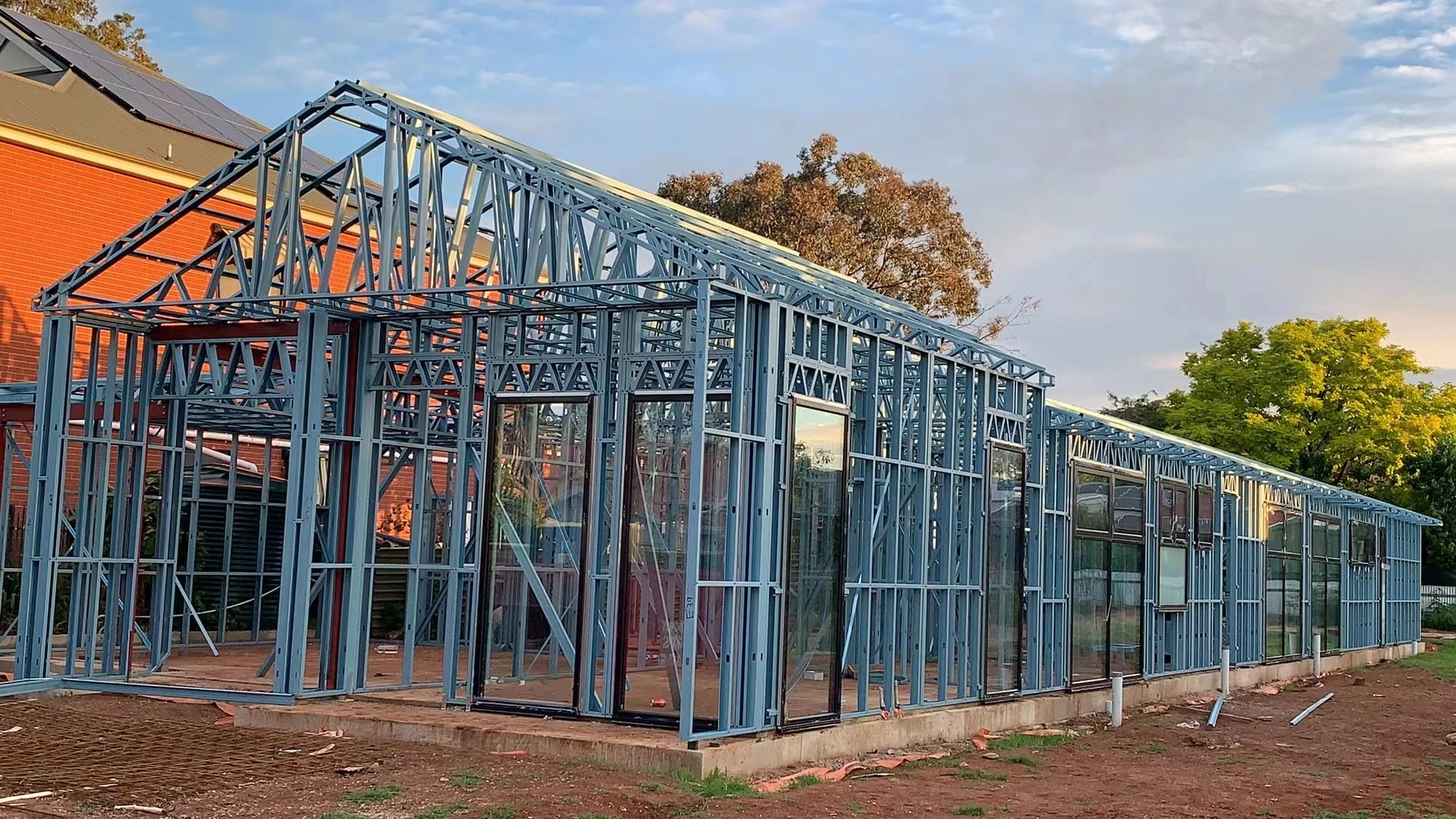

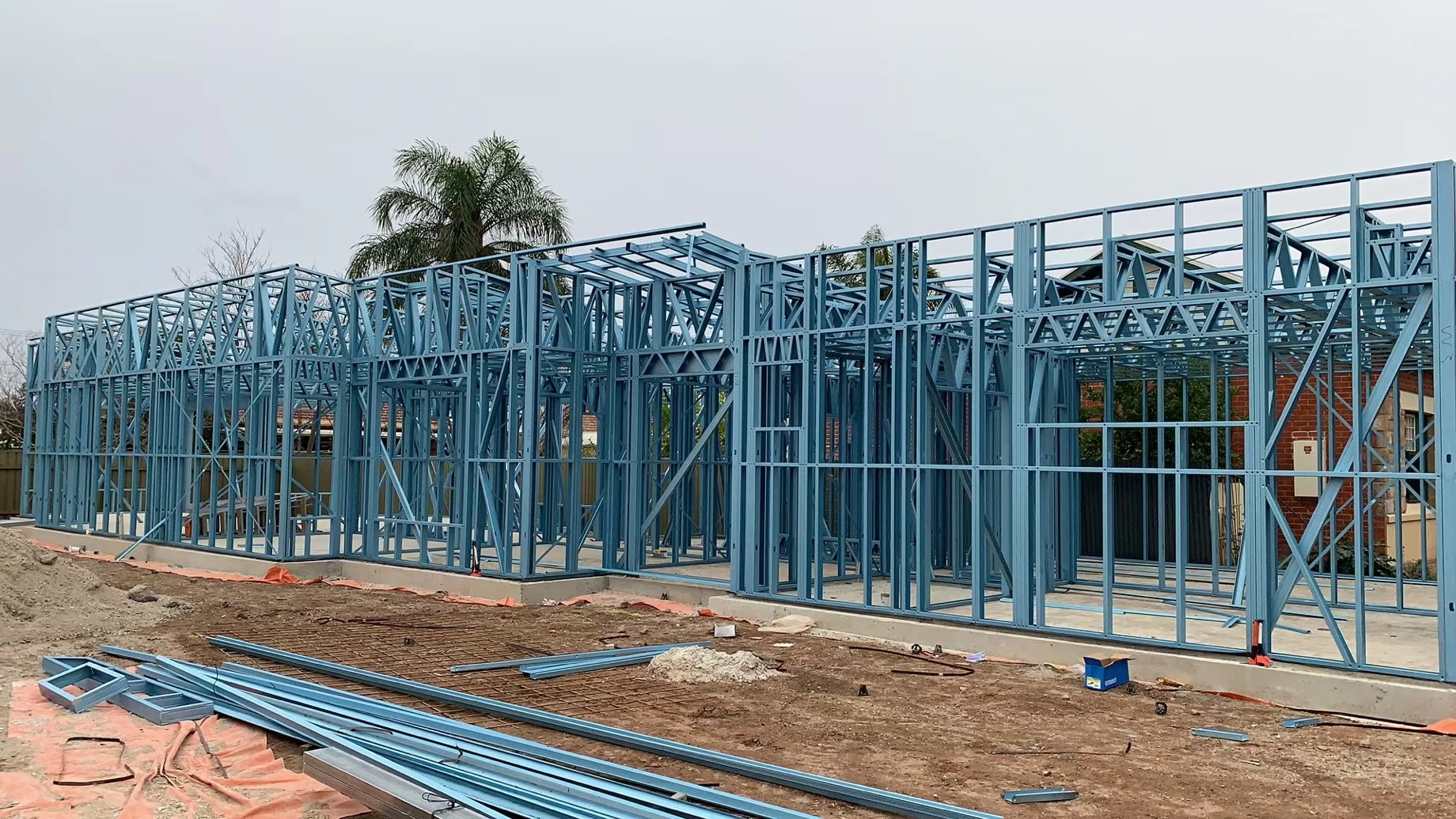

Product Application
Light Gauge Steel Framing Machine Overview
Fasting Working Speed:4-5T/8Hours
Higher Precision with 0.5mm
Post-Punching System
Lower Material Waste with 20cm
