Каменная техника Hualong HKNC-500 5-осевая мостовая пила для резки камня станка с ЧПУ мрамора и
- Категории: >>>
- Поставщик: Fujian,Province,Hualong,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
CNC Stone Machine

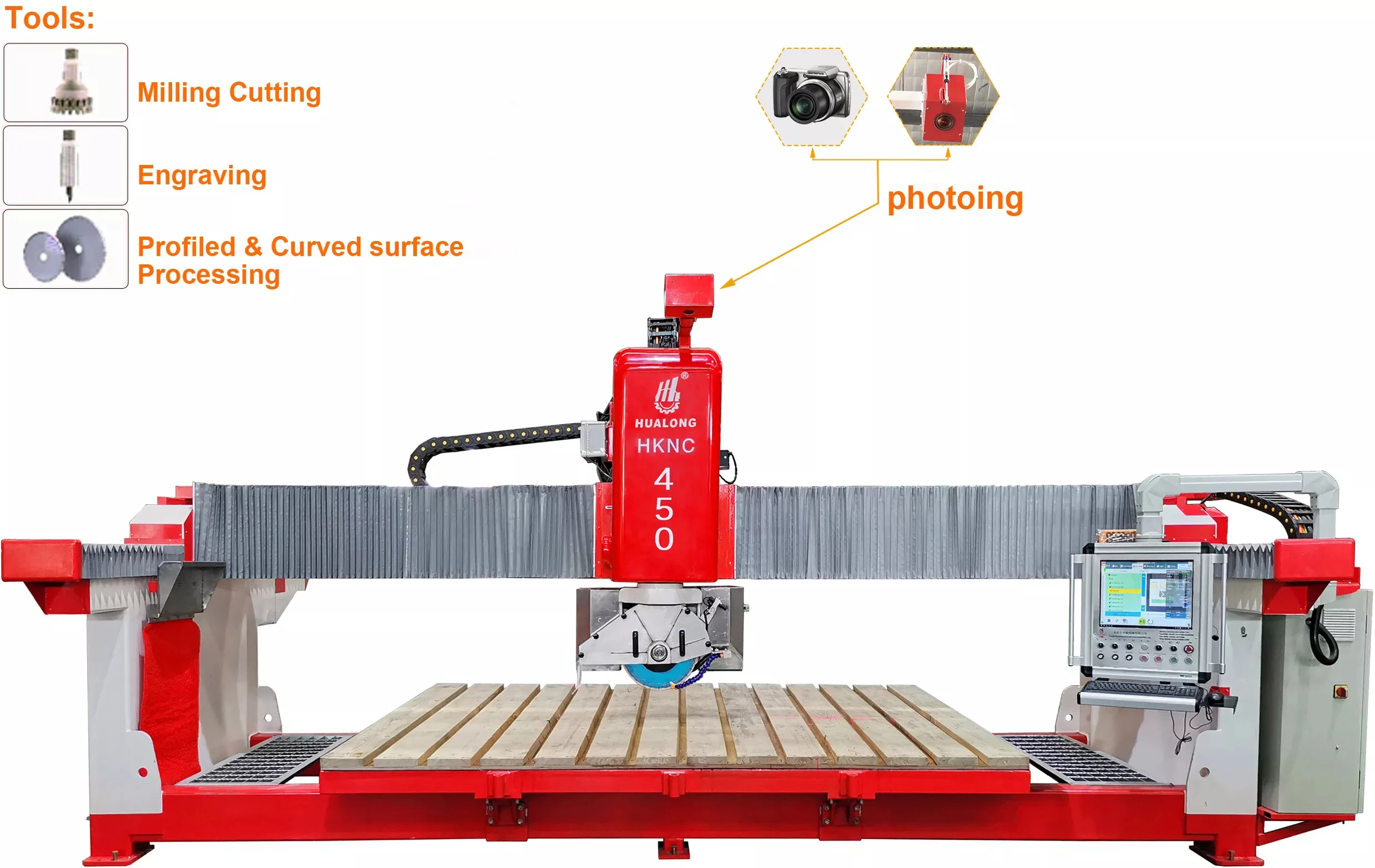

5 axis interpolated cnc bridge saw HKNC-450 is a multifunctional CNC stone cutting and shaping machine built with the needs of workshops in mind, combining simplicity with maximum versatility for a minimum investment budget. It is popularly used for cutting slabs and blocks of both natural and synthetic stone, and ceramic.
Match these capabilities with Italian ESA CNC system, digital servo motors and CAD CAM drawing software to make any cut with ease. HKNC-450 can also been equipped with a vacuum manipulator for the automatic moving of slabs to optimise workpiece usage during the cutting process.
Functions:
* make vertical, inclined& horizontal Cut with Disc Blade
* cut curves with Contour Cutting
* machine with the Core Tool such as drill, end mill & excavation wheel

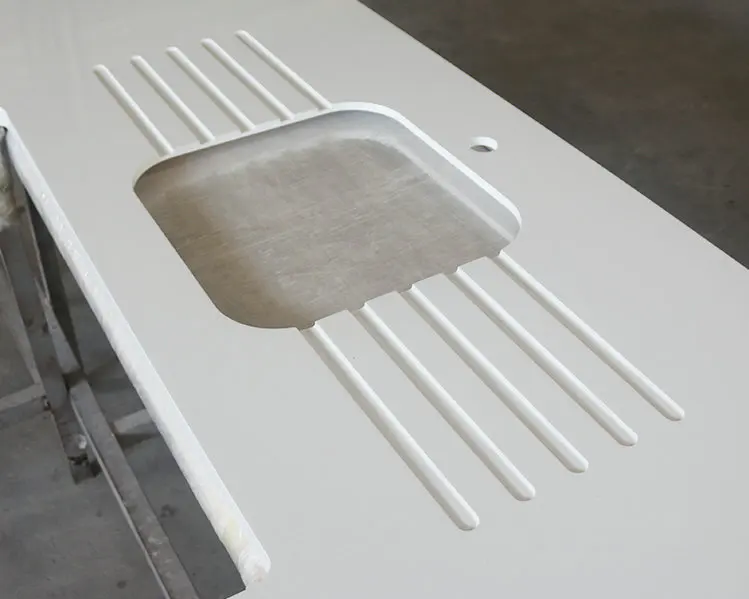

* Incremental routing for sink cutting, profiling & engraving
* machine with the Core Tool such as drill, end mill & excavation wheel
* Incremental routing for sink cutting, profiling & engraving
Match these capabilities with Italian ESA CNC system, digital servo motors and CAD CAM drawing software to make any cut with ease. HKNC-450 can also been equipped with a vacuum manipulator for the automatic moving of slabs to optimise workpiece usage during the cutting process.
Main Features:
1) 5 axis lnterpolation with Italian CNC Esa system.
2) Easy to use interface with 19" color touch-screen.
3) Blade can rotate 0°-360° and tilt 90° for any any direction's and any angle's chamferring cutting.
4) Working platform can tilt 85 degrees, easy for slabs loading.
5) Easy for loading, unloading and installation due to monobloc structure with size suitable for container.
2) Easy to use interface with 19" color touch-screen.
3) Blade can rotate 0°-360° and tilt 90° for any any direction's and any angle's chamferring cutting.
4) Working platform can tilt 85 degrees, easy for slabs loading.
5) Easy for loading, unloading and installation due to monobloc structure with size suitable for container.
6) Manual cuts available for simple machining.

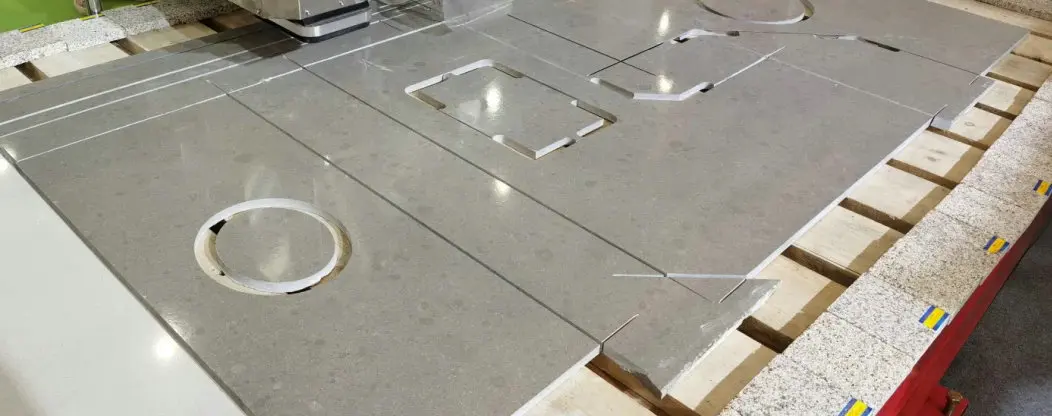

7) Nesting manual / automatic to optimize slab surface usage
8) Optional - Vacuum manipulator for workpieces handling.
9) Optional - Photo slab for nesting and avoiding defects.

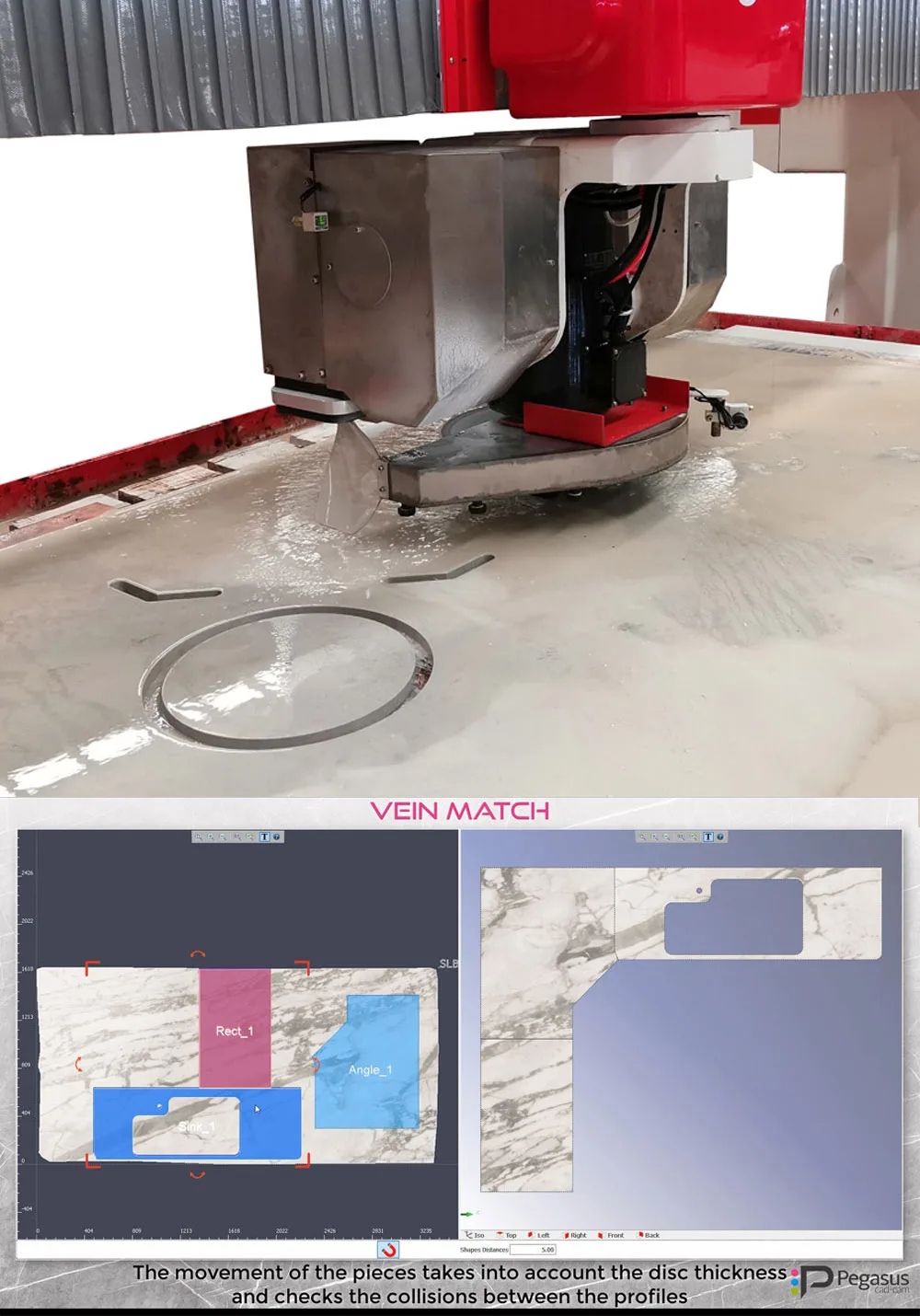

10) Optional - Vein match for easily matching up perfectly each vein,color at the seam of your project.
8) Optional - Vacuum manipulator for workpieces handling.
9) Optional - Photo slab for nesting and avoiding defects.
10) Optional - Vein match for easily matching up perfectly each vein,color at the seam of your project.
Technical Data for HKNC-450 | ||||
Diameter of blade | mm | 350- 450 | ||
Max. cutting thickness | mm | 90 | ||
Max. cutting length | mm | 3500 | ||
Max. lifting travel | mm | 250 | ||
Worktable dimensions | mm | 3500x2100 | ||
Max. lifting weight by sunction cups | kg | 200 | ||
Power of main motor | kw | 15 | ||
Power of cutter frame motor | kw | 2 | ||
Power of crossbeam shifting motor | kw | 1.1 | ||
Power of lifting motor | kw | 0.85 | ||
Power of hydraulic station motor | kw | 2.2 | ||
Gross power | kw | 22kw | ||
Water consumption | m3/h | 2 | ||
Dimension (L x W x H） | mm | 5700x3260x2765 | ||
Gross Weight | kg | 4000 | ||
Application fields:
* 2D decorative wall panels

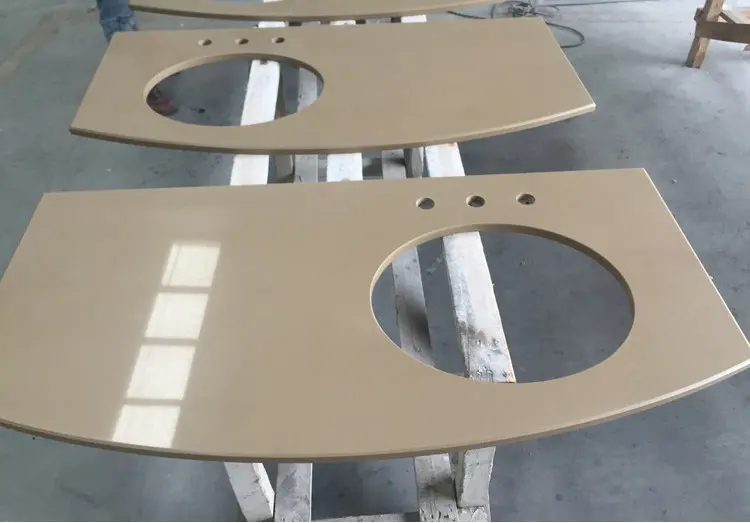

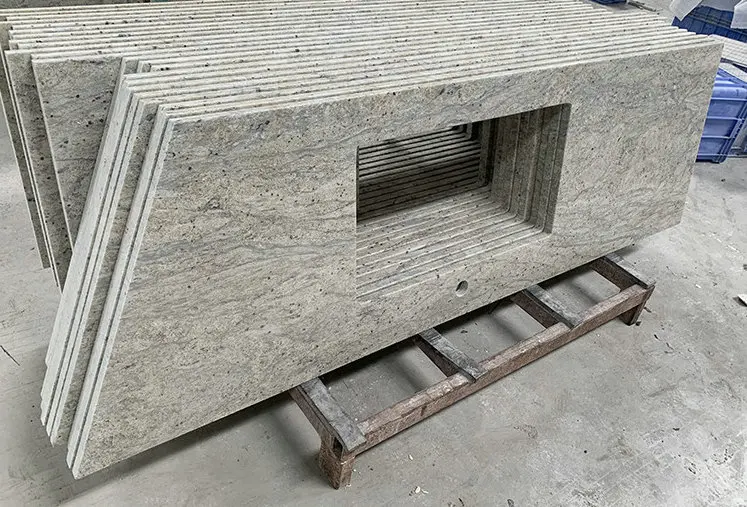

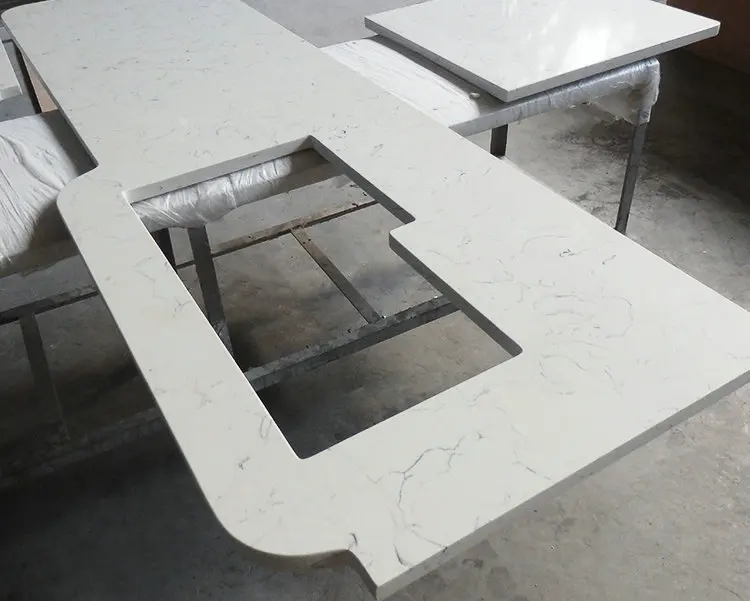

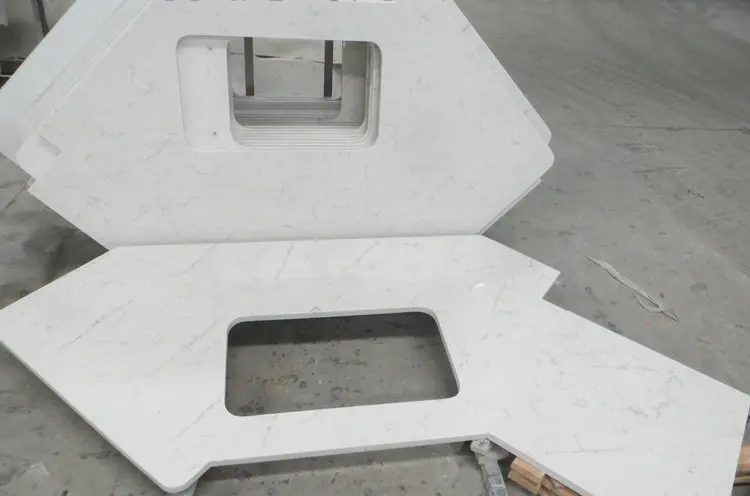

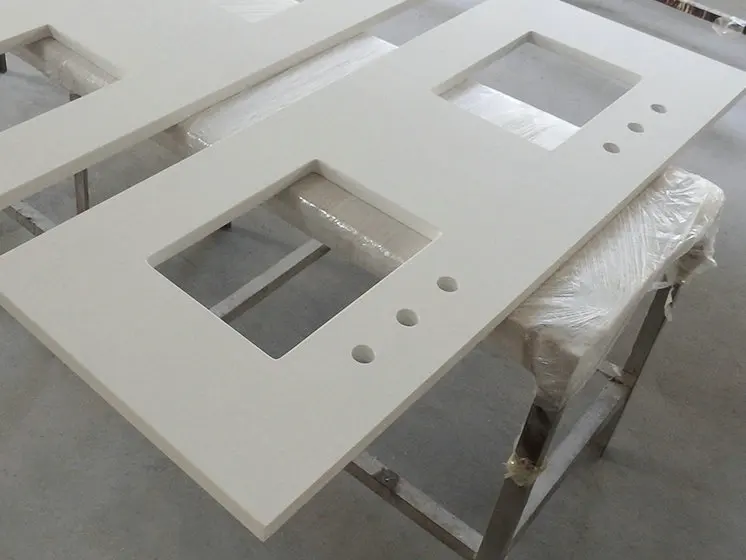

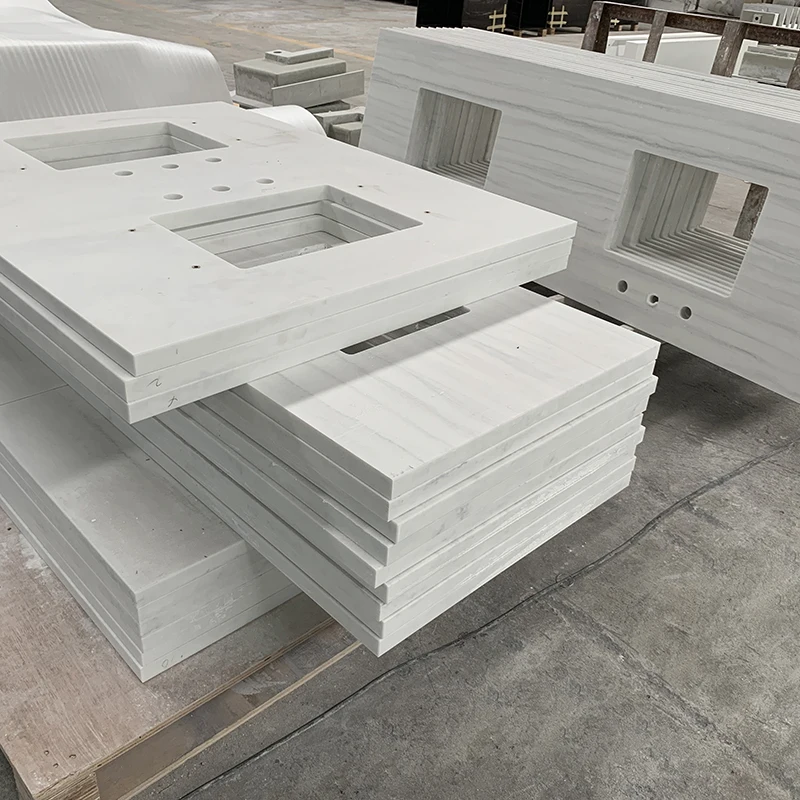

* Countertops
* Doorsteps, staircases and thresholds
* Fireplaces
* Flooring
* Funerary art
* Street furniture
* Ventilated facades
* Countertops
* Doorsteps, staircases and thresholds
* Fireplaces
* Flooring
* Funerary art
* Street furniture
* Ventilated facades

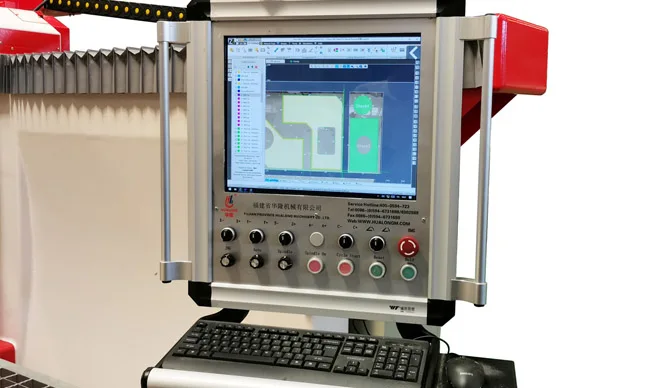

Control system -- CNC
Brand: Esa
Original: Italy
Top of the line CNC system with touch screen for easy setting and automatic processing. It can make a complicated machining job
easy, perfect and high efficient.
easy, perfect and high efficient.
Digital Servomotor
Brand: ESA
Original: Italy
A permanent magnet brushless servomotor with intergrated drives, designed to achieve total digital integration with Esa’s CNCs,
creates a reliable controlling power for X, Y, Z, and C axises
Original: Italy
A permanent magnet brushless servomotor with intergrated drives, designed to achieve total digital integration with Esa’s CNCs,
creates a reliable controlling power for X, Y, Z, and C axises
Laser Reticule Apparatus
Origin: China
Laser checking and calibration instrument to aid in lining up the cut at the beginning of processing.
Laser checking and calibration instrument to aid in lining up the cut at the beginning of processing.
Electro-spindles
of high quality controlled by an inverter allowing the adjustment of the nr. of revolutions from 0 to 6000 rpm, so
granting the use of blade and diamond tools such as a core drill or milling cutter. The tool change is of manual type.
Internal water passage
granting the use of blade and diamond tools such as a core drill or milling cutter. The tool change is of manual type.
Internal water passage

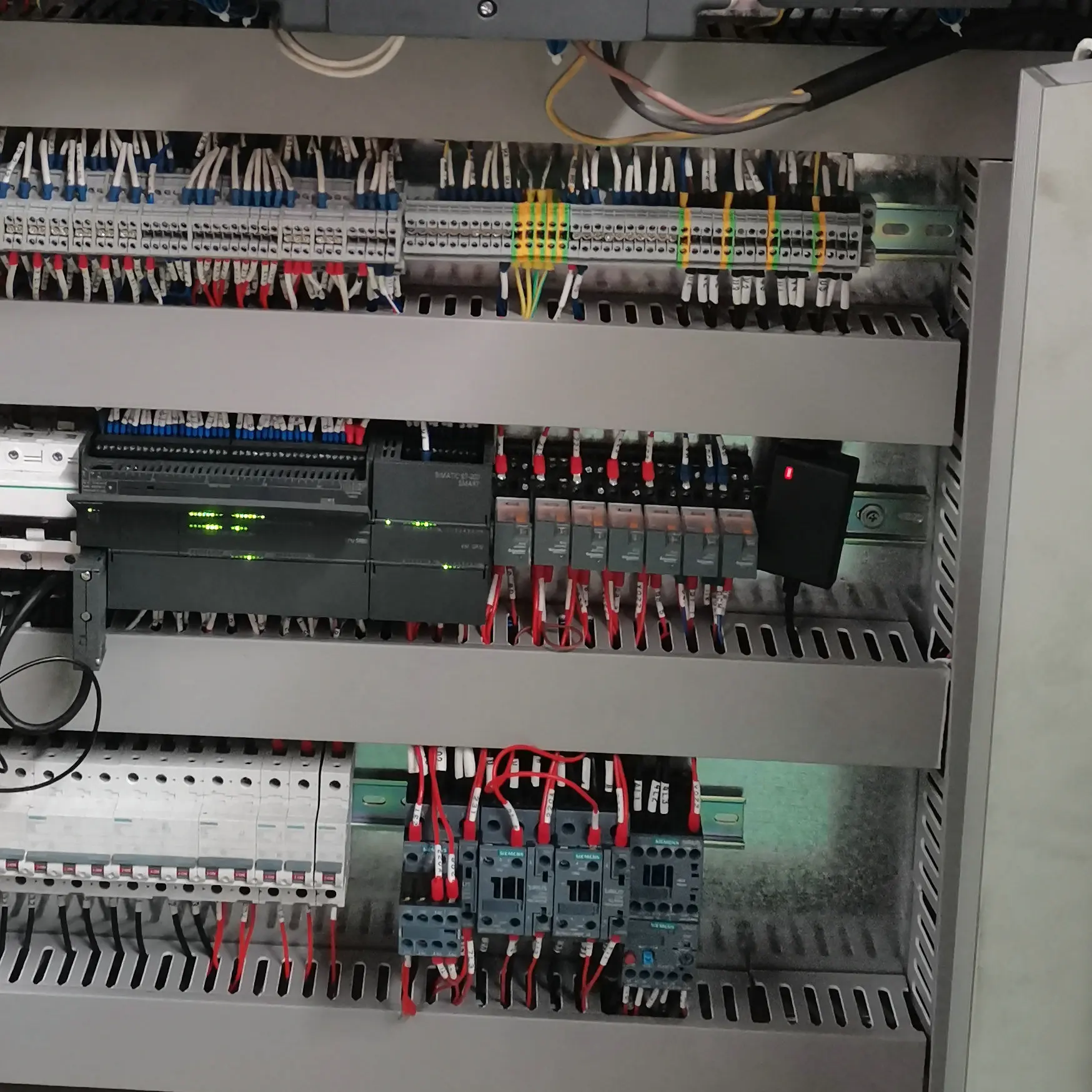

Electric Cabinet
ESA, Schneider、Sanch and other brands of electric companents are adopted to ensure stable performance.
Linear Guide
Brand: Hiwin Original: Taiwan, China
Famous products, top quality used on crossbeam and carling for high precision of cutting and long lifespan.
