Product Description

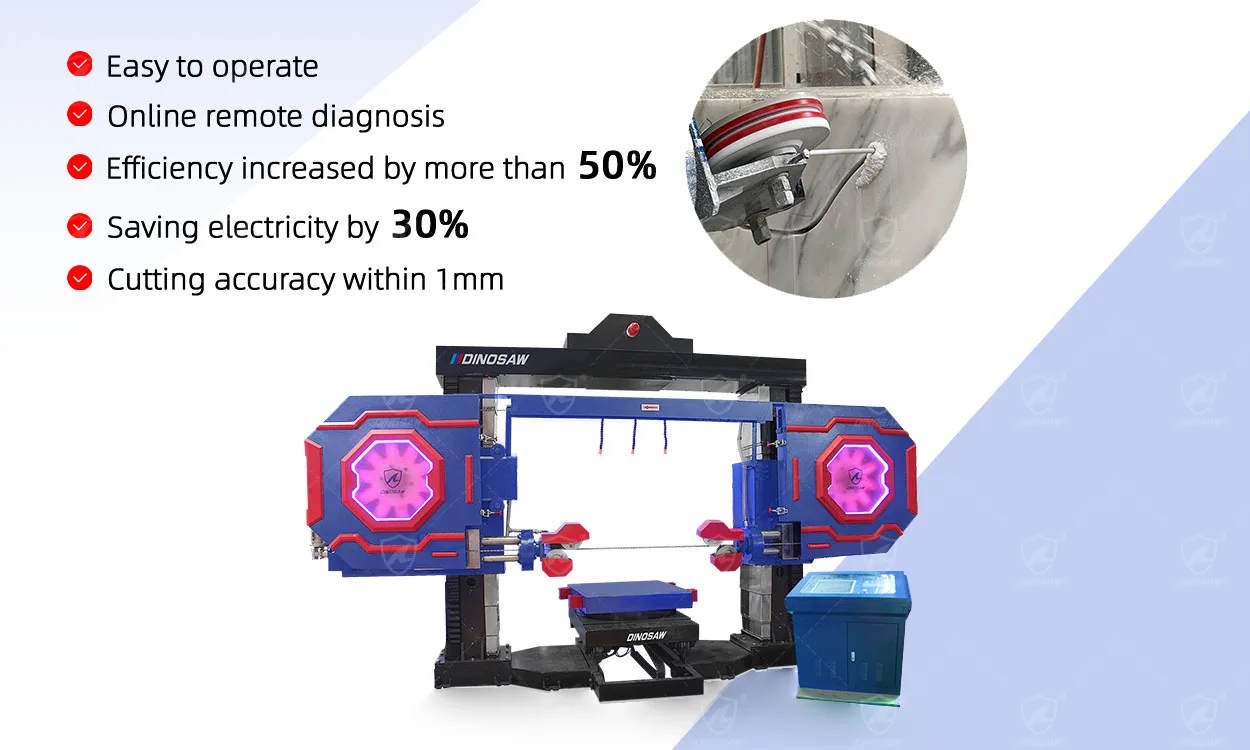

Dinosaw Intelligent diamond wire saw cutting machine
Model | Unit | YXSJ-2000 | YXSJ-2500 | YXSJ-3000 | ||||
Max working dimensions | mm | 3000x2000x1500 | 3000x2500x1500 | 3000x3000x1500 | ||||
Worktable size | mm | 2500x1300 | 2500x1300 | 2500x1300 | ||||
Wire length | mm | 14750 | 15750 | 16750 | ||||
Wire diameter | mm | 7.6-11 | 7.6-11 | 7.6-11 | ||||
Cutting linear speed | m/s | 20-40 | 20-40 | 20-40 | ||||
Main motor power | kw | 11 | 11 | 15 | ||||
Water consumption | m³/h | 3 | 3 | 3 | ||||
Overall dimensions | mm | 6300x7200x4000 | 6300x7700x4000 | 6300x8200x4000 | ||||
Approximate weight | kg | 6800 | 7600 | 8500 | ||||
* It can be customized according to customers’ requirement. | ||||||||
1. Simple operation solves the problem of many buttons and complicated operation of the traditional wire saw machine, and reduces the learning time and cost of workers.
2. Under the same processing conditions, the cutting efficiency is 2-3 times faster than ordinary heterosexual wire saw machines, which improves the production efficiency of the factory.
3. This machine can process various shapes of arc plates, Roman columns, numbers, letters of various countries, Chinese characters, etc.
2. Under the same processing conditions, the cutting efficiency is 2-3 times faster than ordinary heterosexual wire saw machines, which improves the production efficiency of the factory.
3. This machine can process various shapes of arc plates, Roman columns, numbers, letters of various countries, Chinese characters, etc.
Product Advantage
Why choose us???
①Cutting speed 1.5-2.0㎡/h
②Cutting accuracy within 1mm
③50% faster high efficieny & accuracy
④Easy opeation, within in 5minitues
⑤Built-in 4G & OTA system to upgrade
⑥No CAD & No programming
⑦Use App to get cutting information
②Cutting accuracy within 1mm
③50% faster high efficieny & accuracy
④Easy opeation, within in 5minitues
⑤Built-in 4G & OTA system to upgrade
⑥No CAD & No programming
⑦Use App to get cutting information
Precision cutting
Using servo motor and inverter system, the cutting accuracy is within 1mm. Realize high-speed and high-efficiency cutting, and the efficiency can be increased by more than 5 times compared with traditional cutting.
Higher efficiency with permanent magnet motors
Our competitors use stepper motors, which do no feedback adjustments when the target is not fully completed, and lose precision over time. In contrast, the permanent magnet motor we use is more efficient, saves power, does not shake, is more stable, and has a lower failure rate.
Strong wire saw & Cut efficiently
Our machine adopts hydraulic tension device & pressure sensor for ensuring real-time stable pressure, automatic pressure replenishment，thus rope is not easy to get broken and your operator will be confident to run machine at full load.
Easy to operate
Our machine is very simple and easy.Traditional machine requires the operator to have CNC background and need to learn writing G code, but for ours this is not required. One operator can take care 3~4 machines together. So you are saving huge labor cost.
Dinosaw wire saw machine system can realize various applications through programming, has strong data processing ability, and can realize complex calculation and logic functions. While ensuring high-efficiency cutting accuracy, personal safety is also guaranteed.
Certificate&Our partener
About Us
Exhibition
Product Processing Line
Packing & Delivery
FAQ
Q：Are you manufacturer or trading company?
A：We have two factories, one for stone processing machines and another for diamond tools. Besides, we are the only new composite technology company in China's stone machinery industry that integrates AI+IOT software development team, electrical engineer team, mechanical design team, and mechanical production team.
Q：What is your maximum processing size?
A：Our biggest model is YXSJ-4000-25H, its max. cutting size is 4000*4000*2500mm. Can also be customized as per specific requirement.
Q：Is your wire saw easy to get broken?
A：No. Our machine is equipped with hydraulic tension device + pressure sensor, which can automatically balance the wire pressure during production(accuracy up to 0.1Mpa), so that the wire always maintains tension and thus not easy to break.
Q：Is it difficult to operate your wire saw machine?
A：Our machine is very simple and easy to operate. It takes around 2~3 days for installation & training, no need to learn complicated G code, no need to have CNC background. We have patent for our operation system;
Q：How many tons stones can your trolley load?
A：We have different design for option, 20T, 30T or 50T etc. For trolley we apply heavy duty rail, which is same used for train, thus lifetime is longer. The trolley rotation adopts rotary support(same applied on loader), this is more stable and can bear more load compared to gear structure.
Q：What's the warranty time?
A：One year, not including wire saw, guide wheels, rubber ring, rubber strips etc. After warranty, we will continue to provide service support for client;
Q：Does your machine have remote control system?
A：Yes. Once connected with Internet, our service center engineer can enter the system to help check machine running status and correct setting parameters/datas if needed. Also we can transfer G Code or CAD drawing to the system and help upgrade the system future for free.
A：We have two factories, one for stone processing machines and another for diamond tools. Besides, we are the only new composite technology company in China's stone machinery industry that integrates AI+IOT software development team, electrical engineer team, mechanical design team, and mechanical production team.
Q：What is your maximum processing size?
A：Our biggest model is YXSJ-4000-25H, its max. cutting size is 4000*4000*2500mm. Can also be customized as per specific requirement.
Q：Is your wire saw easy to get broken?
A：No. Our machine is equipped with hydraulic tension device + pressure sensor, which can automatically balance the wire pressure during production(accuracy up to 0.1Mpa), so that the wire always maintains tension and thus not easy to break.
Q：Is it difficult to operate your wire saw machine?
A：Our machine is very simple and easy to operate. It takes around 2~3 days for installation & training, no need to learn complicated G code, no need to have CNC background. We have patent for our operation system;
Q：How many tons stones can your trolley load?
A：We have different design for option, 20T, 30T or 50T etc. For trolley we apply heavy duty rail, which is same used for train, thus lifetime is longer. The trolley rotation adopts rotary support(same applied on loader), this is more stable and can bear more load compared to gear structure.
Q：What's the warranty time?
A：One year, not including wire saw, guide wheels, rubber ring, rubber strips etc. After warranty, we will continue to provide service support for client;
Q：Does your machine have remote control system?
A：Yes. Once connected with Internet, our service center engineer can enter the system to help check machine running status and correct setting parameters/datas if needed. Also we can transfer G Code or CAD drawing to the system and help upgrade the system future for free.
