Application
Foam concrete machine application
1. Cellar, basement and arch filling
2. Sewers and Drains filling
3. Horizontal floor heightening
4. Water tank and fuel tank building
5. Upstanding beam foundation ditches filling
2. Sewers and Drains filling
3. Horizontal floor heightening
4. Water tank and fuel tank building
5. Upstanding beam foundation ditches filling
6. Garden and rockeries
7. Foam concrete block
8. Foamed concrete precasting, hollow wallboard casting
9. External wall thermal insulation
10. Thermal insulation roofing
7. Foam concrete block
8. Foamed concrete precasting, hollow wallboard casting
9. External wall thermal insulation
10. Thermal insulation roofing
11. Thermal flooring
12. Platform filling and mending
12. Platform filling and mending
13. Sound insulation and fire protection walls
14. Playground and track construction
15. Sound insulation layer, tunnel lining filling
14. Playground and track construction
15. Sound insulation layer, tunnel lining filling
Products Description

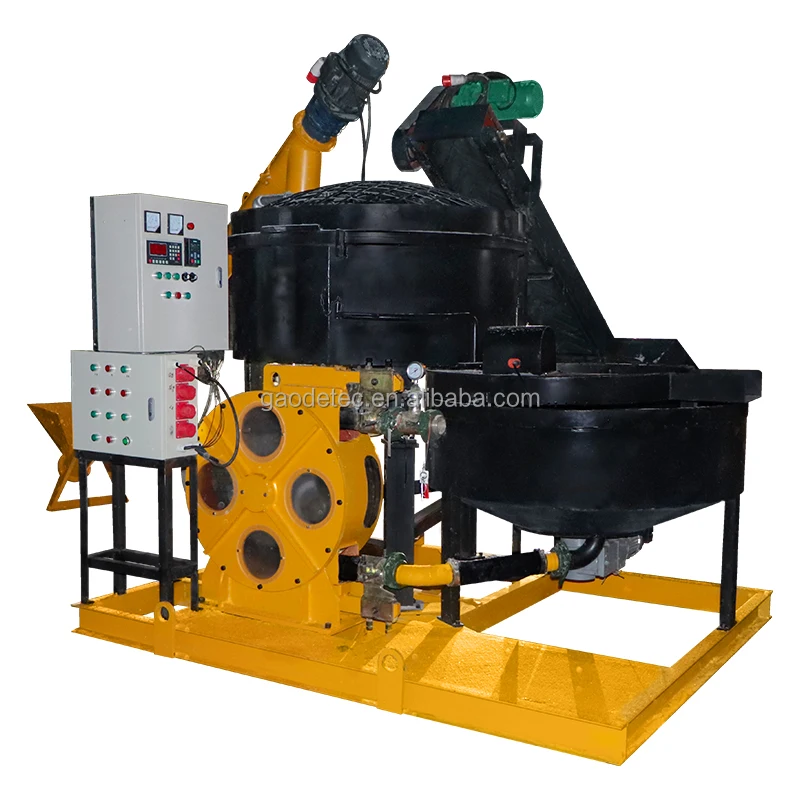

GFC1000-H 3 in 1 lightweight cement foam concrete machine equipped with auto-weighing system

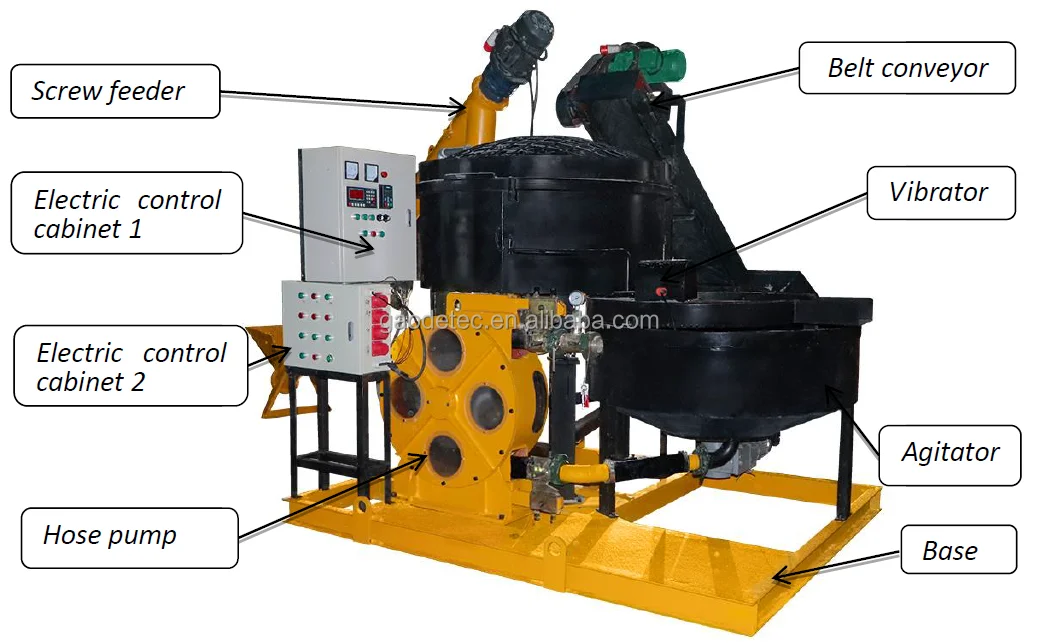

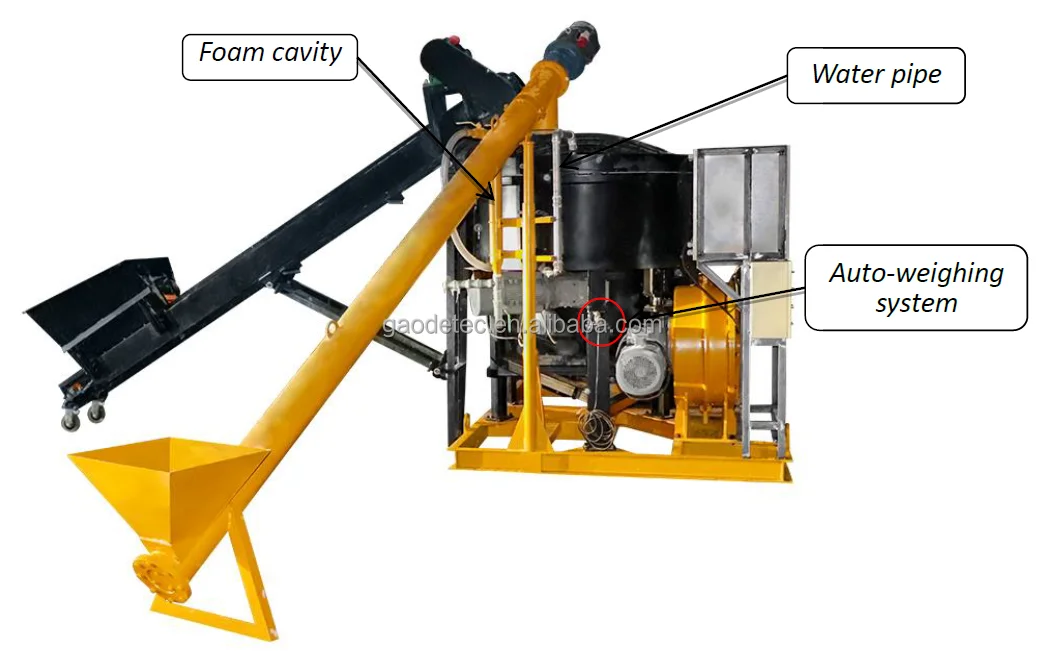

GFC1000-H foam concrete machine is composed of mixer, agitator, foam generator, hose pump, equipped with screw feeder, belt conveyor and submersible pump. The equipment is equipped with a weighing sensor and automatic batching system, which can set each batching weight and realize automatic feeding and full mixing.
Work process of GFC1000-H 3 in 1 foam concrete machine equipped with auto-weighing system
The process is completely controlled by the auto-weighing system. After the preparation work is completed, press the automatic button to start the automatic working. The mixer is started to mixing. Sand, cement, water and foaming agent are loaded in turn and mixed quickly after reaching the set weight. After the mixing is even, open the discharge door. The mixture flow down into the lower screen of the agitator. The low speed mixing blades are equipped in this agitator. After the mixture completely flow down, close the door and continue the next batch mixing. At the same time, start the hose pump to pump the foam concrete mixture to the work site.
Product parameters
Model | GFC1000-H | ||
Items | Specification | ||
Mixer | Volume | 600L | |
Power | 7.5Kw, 3 phase, 380V, 50Hz | ||
Speed | 45rpm | ||
Agitator | Volume | 650L | |
Power | 1.5KW, 3 phase, 380V, 50Hz | ||
Output | 8m³/h, 20bar pumping pressure | ||
Power | 7.5Kw, 3 phase, 380V, 50Hz | ||
Pumping distance | Vertical: 130m; Horizontal: 250m | ||

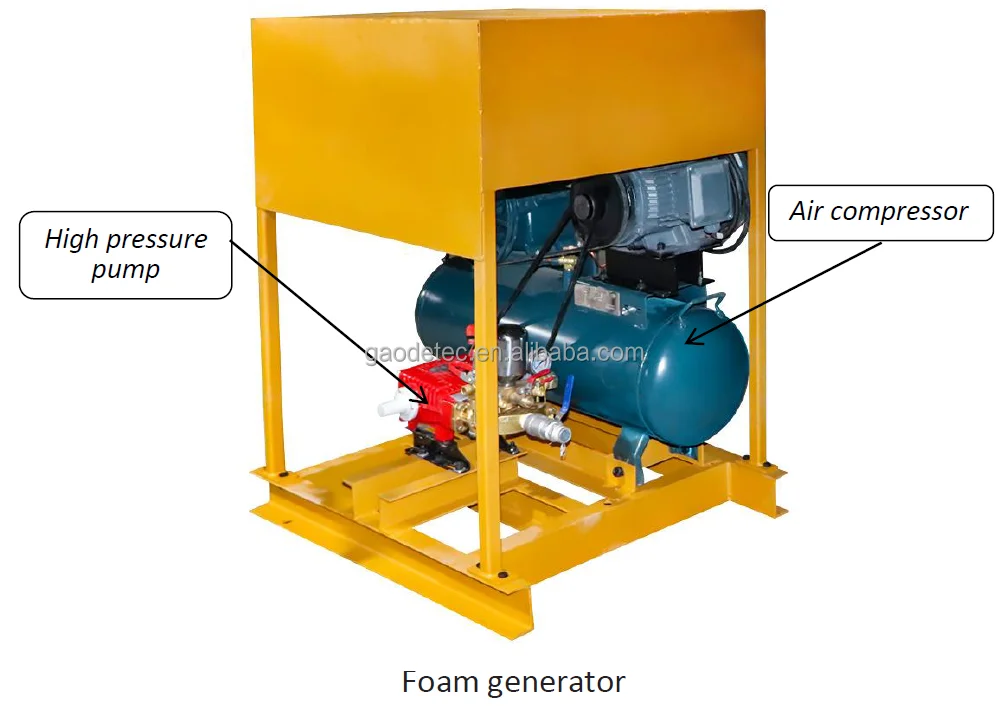

Foam generator | Foam output | 600L/min | |
Air pressure | 6 bar | ||
Weight | 1200kg | ||
Dimension | 2400×1900×1960mm | ||
Details Images
GFC1000-H 3 in 1 Foam concrete machine features

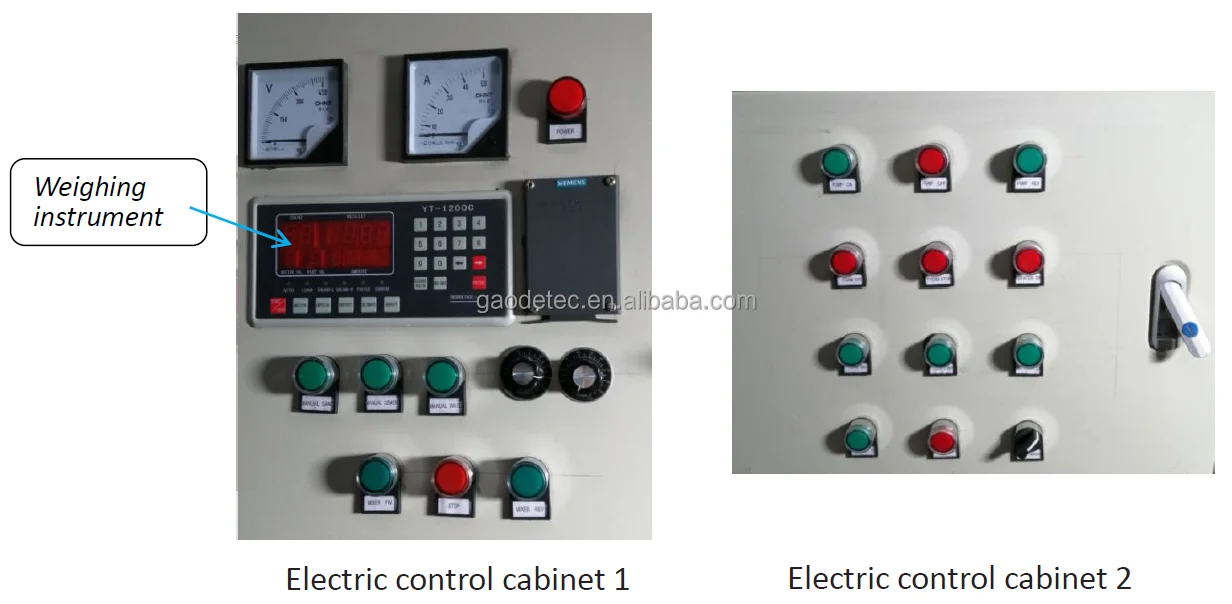

1. Automatic control and weight cell loading: material weight mixing ratio precise, simple operation, saving labor, great reliability.
2. Heavy duty and powerful mixer, easily to mix sand, cement, water and foam agent, as well as high efficiency to achieve continuous mixing and continuous work.
3. Up to 20bar high pumping pressure to meet high floor pumping requirement.
4. Foam agent can be added into the mixer continuously, high working efficiency.
2. Heavy duty and powerful mixer, easily to mix sand, cement, water and foam agent, as well as high efficiency to achieve continuous mixing and continuous work.
3. Up to 20bar high pumping pressure to meet high floor pumping requirement.
4. Foam agent can be added into the mixer continuously, high working efficiency.
Accessories
No. | Model | Qty |
1 | Extruding tube | 5 pcs |
2 | 10m delivery tube (M/M) ID51 | 1 pc |
3 | 3m steel tube ID51 | 10 pcs |
4 | 2m steel tube ID51 | 1 pc |
5 | 1.5m steel tube ID51 | 1 pc |
6 | 45 degree steel tube ID51 | 2 pcs |
7 | 90 degree steel tube ID51 | 4 pcs |
8 | Electrical wire (5C) | 90 m |
9 | Rubber seal of clamp | 20 pcs |
10 | Clamp with rubber seal | 20 pcs |
11 | Tool box with tools | 1 set |
12 | Mortar spray gun | 1 set |
13 | Washing sponge ball | 50 pcs |
14 | U pipe | 1 pc |
15 | Water pump | 1 set |
16 | Water tank | 1 set |
17 | Auto batching device | 1 pc |
18 | Weighting cell | 3 pcs |
19 | Electric fule | 1 set |

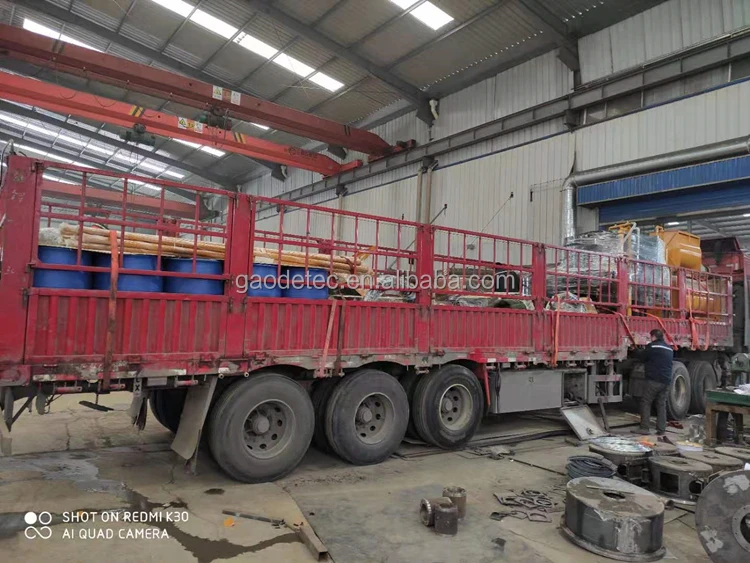

Packaging&Shipping
Related Product
Contact Us
Contact us for foam concrete machine price
Before we send quotation, please let us know the following items:
1. What project you will use the machine do? Wall, floor, roof, or other?
2. What capacity do you need? 5m3/h, 10m3/h, 20m3/h or other?
3. What materials do you use to make foam concrete? Cement, foam agent, water?
4. May I know what is your local voltage? 3phase, 380V, 50Hz is OK for you?
5. Do you mind to tell me you email address? So I can send you detailed info such as specifications and quotation.
2. What capacity do you need? 5m3/h, 10m3/h, 20m3/h or other?
3. What materials do you use to make foam concrete? Cement, foam agent, water?
4. May I know what is your local voltage? 3phase, 380V, 50Hz is OK for you?
5. Do you mind to tell me you email address? So I can send you detailed info such as specifications and quotation.
