Product Description
Technical Specification
Model | LFP48V100AH | LFP48V150AH | LFP48V200AH | |||
Type | POWER WALL | |||||
Nominal Voltage | 48V | |||||
Nominal Capacity | 100Ah | 150Ah | 200Ah | |||
Nominal Battery Energy | 4.8KWH | 7.2KWH | 9.6KWH | |||
Charging Current | 100A | |||||
Discharging Current | 100A | 125A | 150A | |||
Cell Compose Method | 15S 2P | 15S 3P | 15S 4P | |||
Communication | Integrated CAN and RS485 Protocol | |||||
BMS Protection | Over Voltage, Low Voltage, Over Current, Over Temperature, Low Temperature | 95 | 108 | |||
For The Price And More Technical Details， Please Send Enquiry | ||||||
Attractive Design
Wide Application
X Energy Lithium Ion Battery Pack Series Are Widely Used In Solar Energy Storage Systems For Residential And Commercial Use. With More Than 6000 Times Deep Cycle, Up To 90% DOD High Efficiency, X Energy Power Wall Has Won Global Approval!
Integrated Function
X Energy Lithium Battery Built-in BMS, Comprehensive Monitoring Of Each Battery Cells Status With Self-protection Function. Integrated CAN and RS485 Protocols, Compatible With Different Brands Of Inverters.

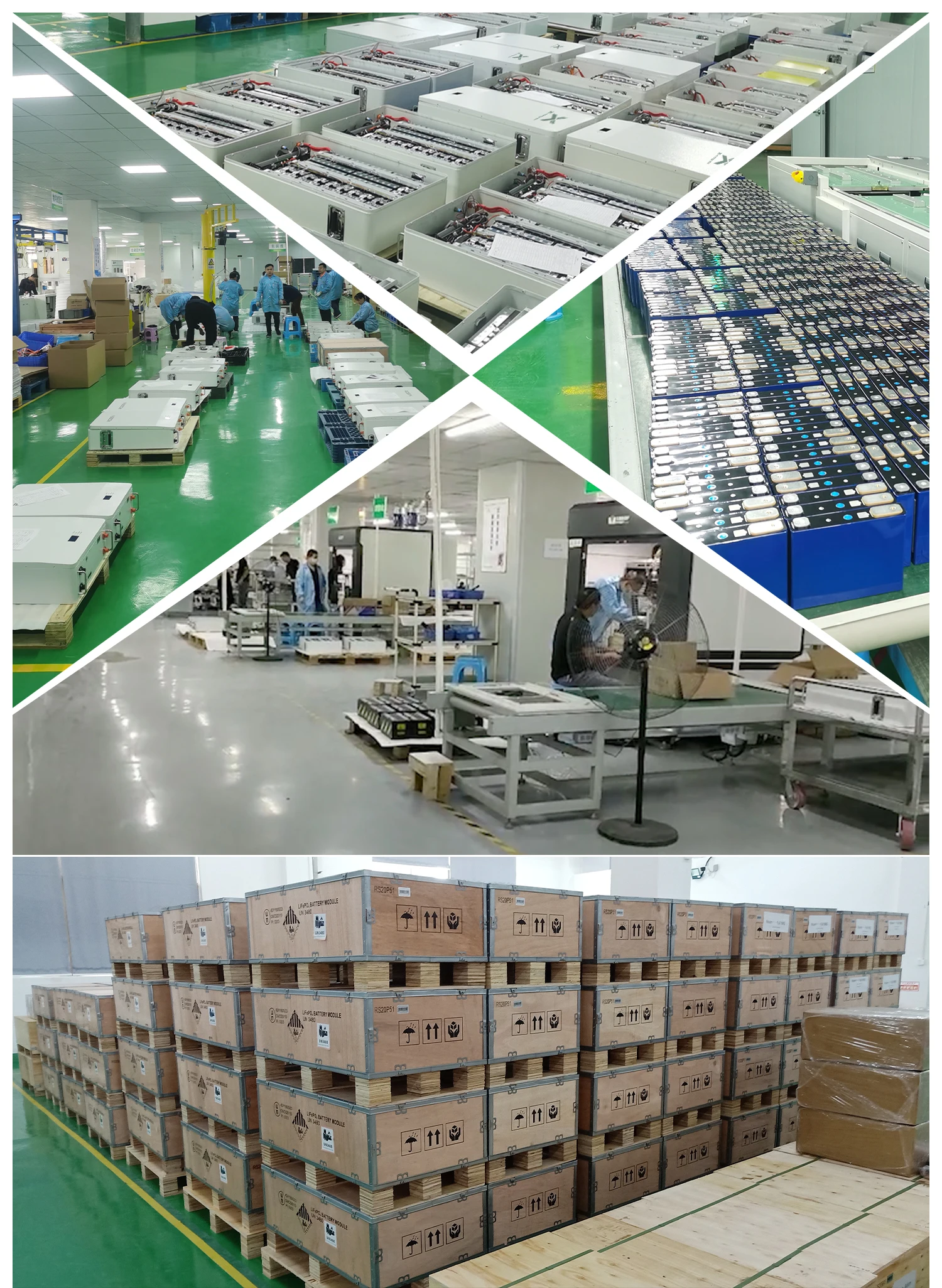

Production & Packaging

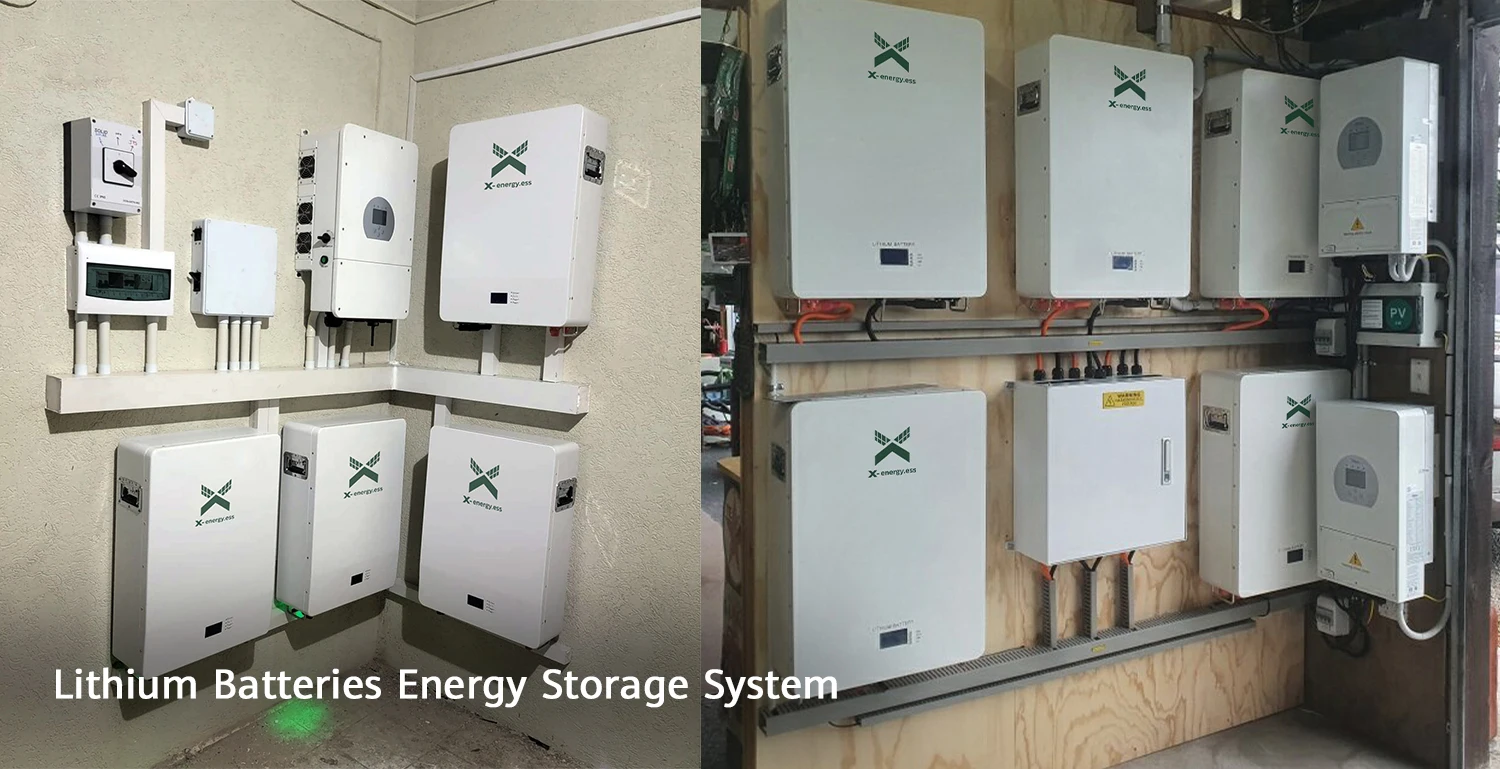

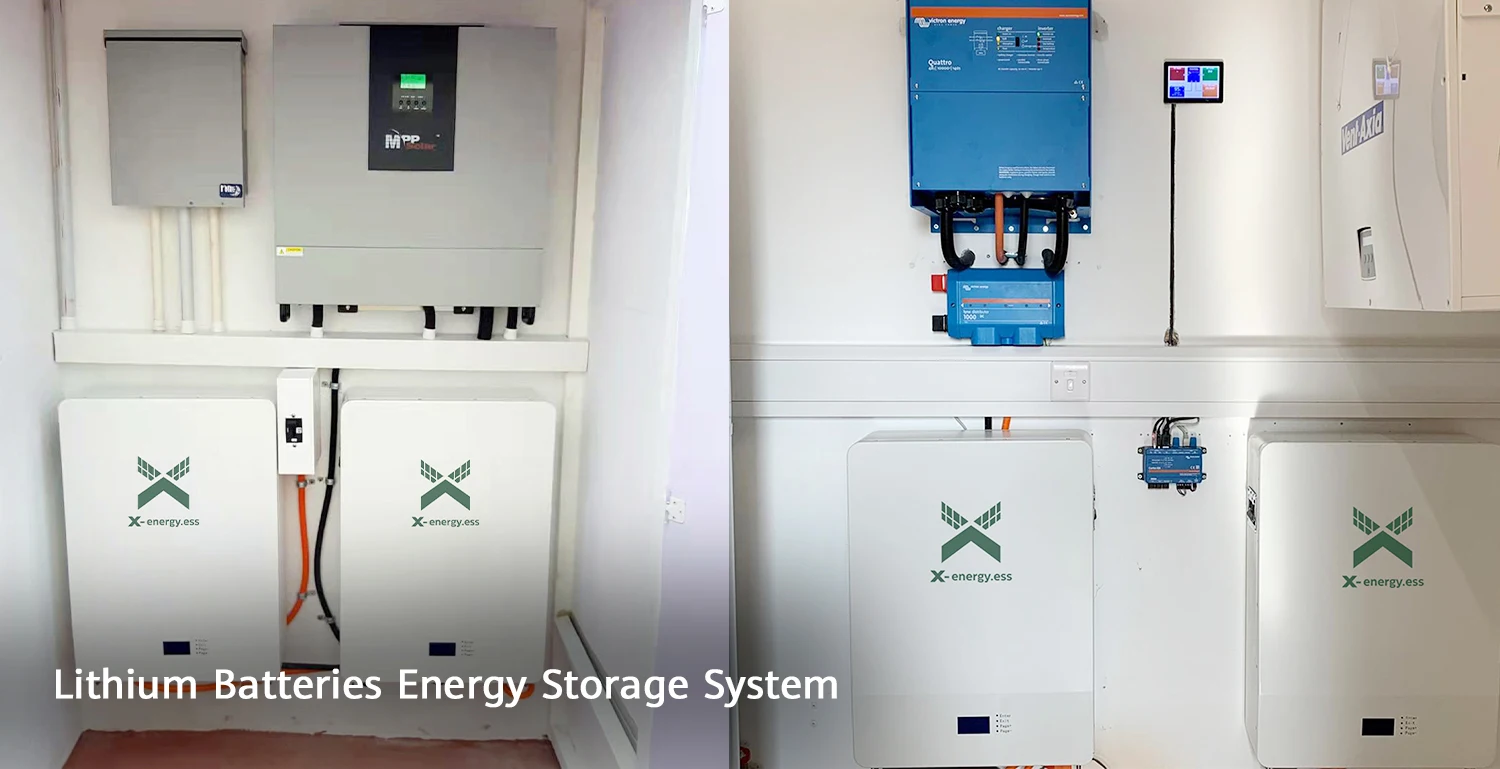

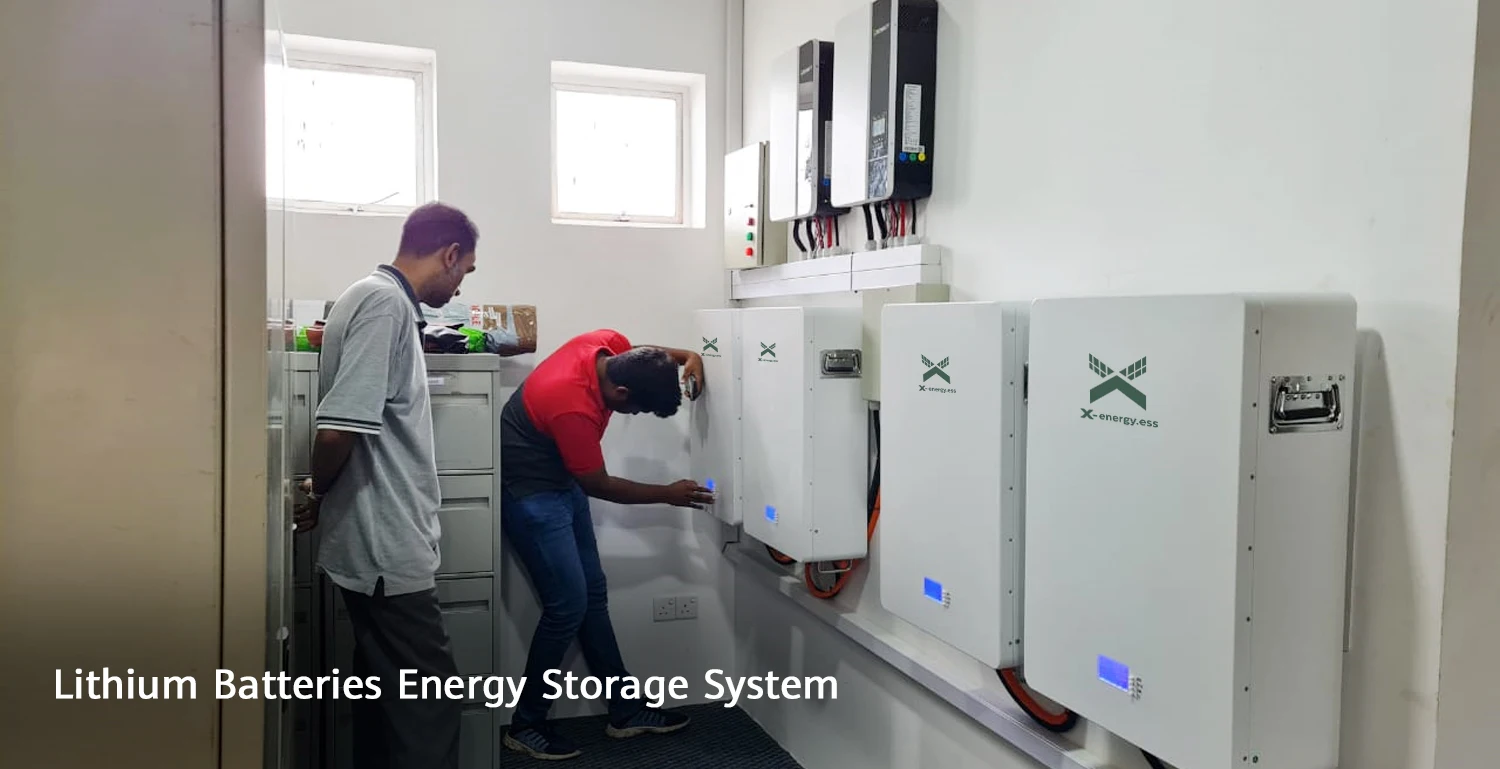

Projects
Power Wall Storage System
Model : LFP51.2V100AH
System Storage : 20KWH ( 4 Batteries in Parallel）
Max. Discharging Current : 400A
BMS Communication： Yes
BMS Communication： Yes
Solar Power Storage System
Model : LFP48V150AH
System Storage : 15KWH ( 2 Batteries in Parallel）
Max. Discharging Current : 250A
BMS Communication： Yes
BMS Communication： Yes
Solar Battery Storage System
Model : LFP48V200AH
System Storage : 40KWH / 50KWH
Max. Discharging Current : 600A / 750A
BMS Communication： Yes
BMS Communication： Yes
FAQ
1, How long is the delivery time of photovoltaic solar systems?
"Usually delivery time about 10work days for pv solar systems, please note in advance if you need it to be faster"
2, Solar panels are fragile, how to avoid damage during transportation?
"We pack all solar panels by customized solid wooden box for better protection"
3, Which types of solar panels do you use for solar system?
"PERC or N- type Topcon are all available，hot selling items are 410W, 450W, 550W, 620W, 650W and 700w solar panels etc. All are compatible with the whole PV system"
4, How does the client know about the whole solar energy system connection？
"Not only get products, customers also get our technical support and services，customer can install as per the wiring diagram. or call us directly to get online installation guide service"
5, How many kwh batteries does customer need for the photovoltaic system?
"Usually, 5kw system with 5-20kwh battery energy storage, 10kw system with 10-30kwh batteries. our sales will help you choose the suitable solar energy storage system solution"
6, Which types of battery you supply for energy storage systems?
"Now we mainly have storage batteries of deep cycle maintenance free lead acid battery or most popular Lithium ion Batteries powerwall or stackable rack types, which is compatible with most hybrid solar inverter communication"
7, Do you manufacture large containerized lithium ESS?
"Yes, we design the complete ESS for you with connection layout, PV simulation, ROI,installation, training, commissioning etc. Now we are mainly installing factory projects about 100kwh to 500kwh storage ESS with 10/20feet containers, HVAC, hybrid inverter, PCS chargers, battery storage, mounting brackets etc"
8, How does customer get best quotation and technical datasheet?
"Please send enquiry and leave your contact，our sales will get in touch with you and discuss the solar system in details"
"Usually delivery time about 10work days for pv solar systems, please note in advance if you need it to be faster"
2, Solar panels are fragile, how to avoid damage during transportation?
"We pack all solar panels by customized solid wooden box for better protection"
3, Which types of solar panels do you use for solar system?
"PERC or N- type Topcon are all available，hot selling items are 410W, 450W, 550W, 620W, 650W and 700w solar panels etc. All are compatible with the whole PV system"
4, How does the client know about the whole solar energy system connection？
"Not only get products, customers also get our technical support and services，customer can install as per the wiring diagram. or call us directly to get online installation guide service"
5, How many kwh batteries does customer need for the photovoltaic system?
"Usually, 5kw system with 5-20kwh battery energy storage, 10kw system with 10-30kwh batteries. our sales will help you choose the suitable solar energy storage system solution"
6, Which types of battery you supply for energy storage systems?
"Now we mainly have storage batteries of deep cycle maintenance free lead acid battery or most popular Lithium ion Batteries powerwall or stackable rack types, which is compatible with most hybrid solar inverter communication"
7, Do you manufacture large containerized lithium ESS?
"Yes, we design the complete ESS for you with connection layout, PV simulation, ROI,installation, training, commissioning etc. Now we are mainly installing factory projects about 100kwh to 500kwh storage ESS with 10/20feet containers, HVAC, hybrid inverter, PCS chargers, battery storage, mounting brackets etc"
8, How does customer get best quotation and technical datasheet?
"Please send enquiry and leave your contact，our sales will get in touch with you and discuss the solar system in details"
