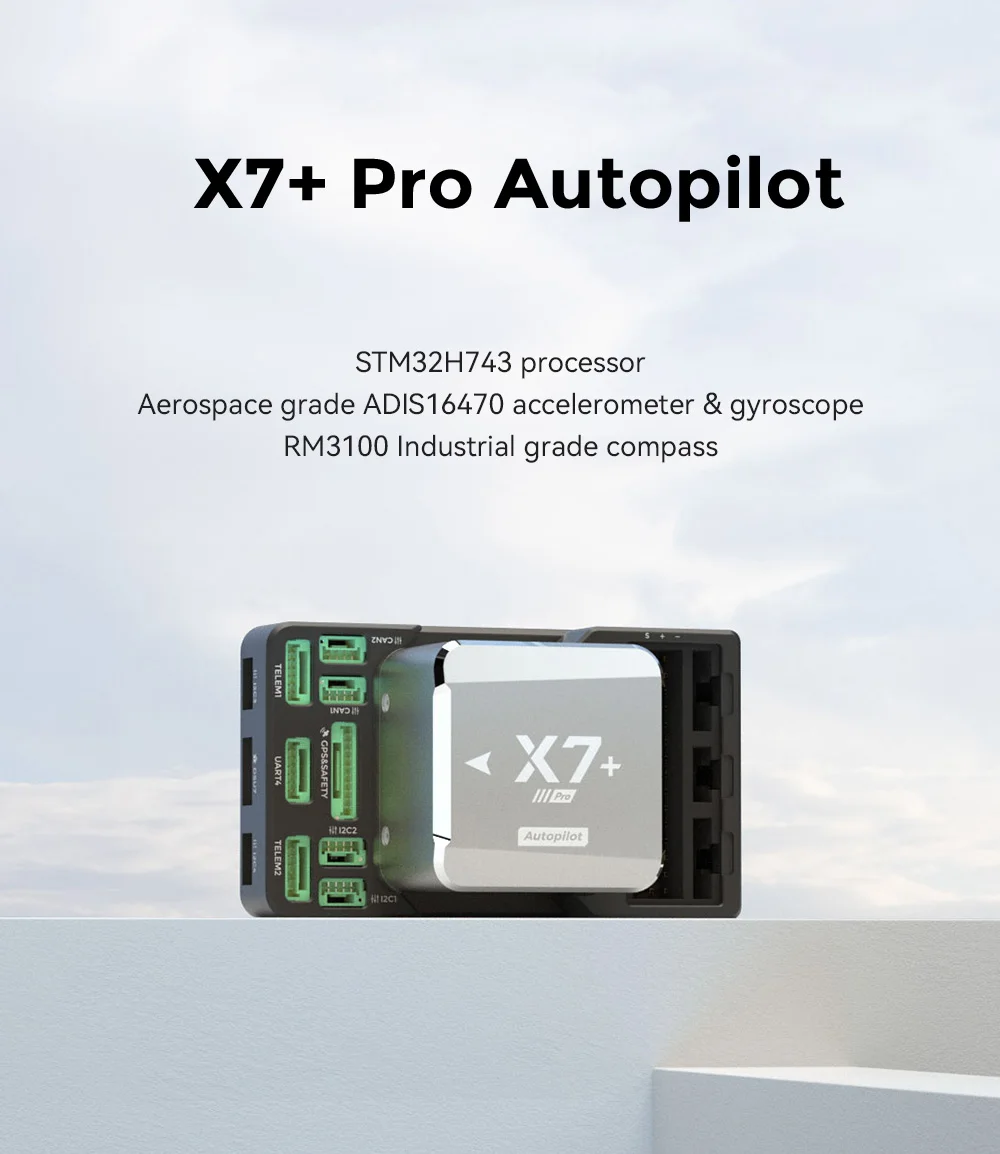

Aerospace grade ADIS16470 sensor
The X7+pro adopts a high-end ADI16470 chip, which is commonly used in cutting-edge aerospace projects and has excellent gyroscope and acceleration drift performance. This time, we will introduce it to open source flight control. And after careful tuning, the sensor performance of the flight control system has been improved to perform even better
The X7+pro adopts a high-end ADI16470 chip, which is commonly used in cutting-edge aerospace projects and has excellent gyroscope and acceleration drift performance. This time, we will introduce it to open source flight control. And after careful tuning, the sensor performance of the flight control system has been improved to perform even better
Details Images

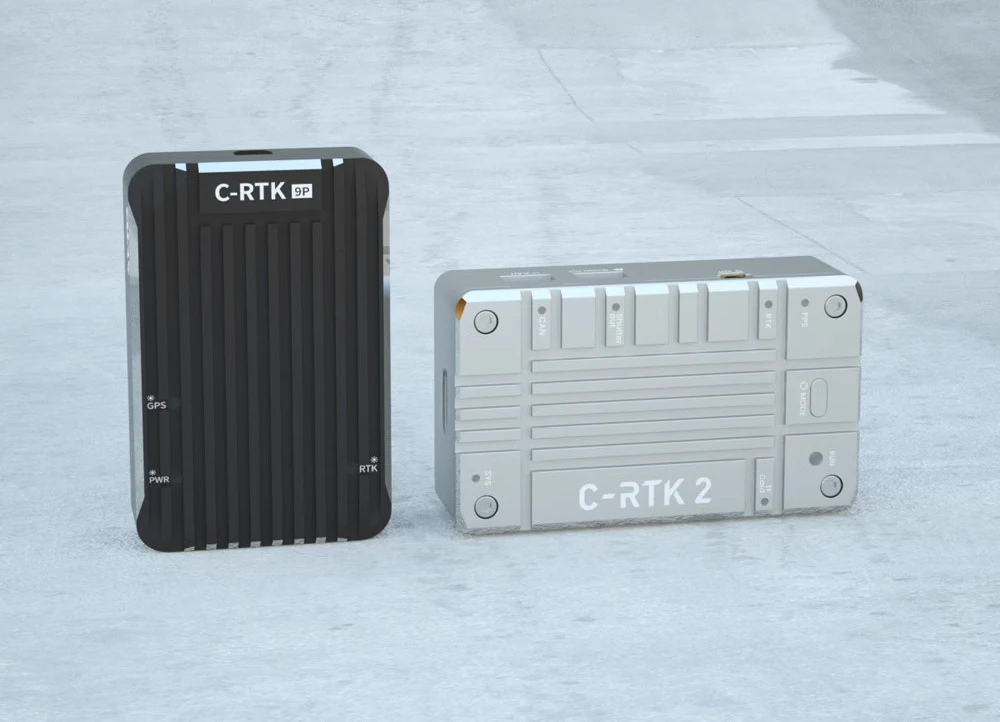

Optional PTK and PPK for more application scenarios
CUAV's PTK and PPK products can be purchased to achieve centimeter level positioning for applications in scenarios that require high-precision positioning. Such as plant protection, surveying, etc
CUAV's PTK and PPK products can be purchased to achieve centimeter level positioning for applications in scenarios that require high-precision positioning. Such as plant protection, surveying, etc
Product Paramenters

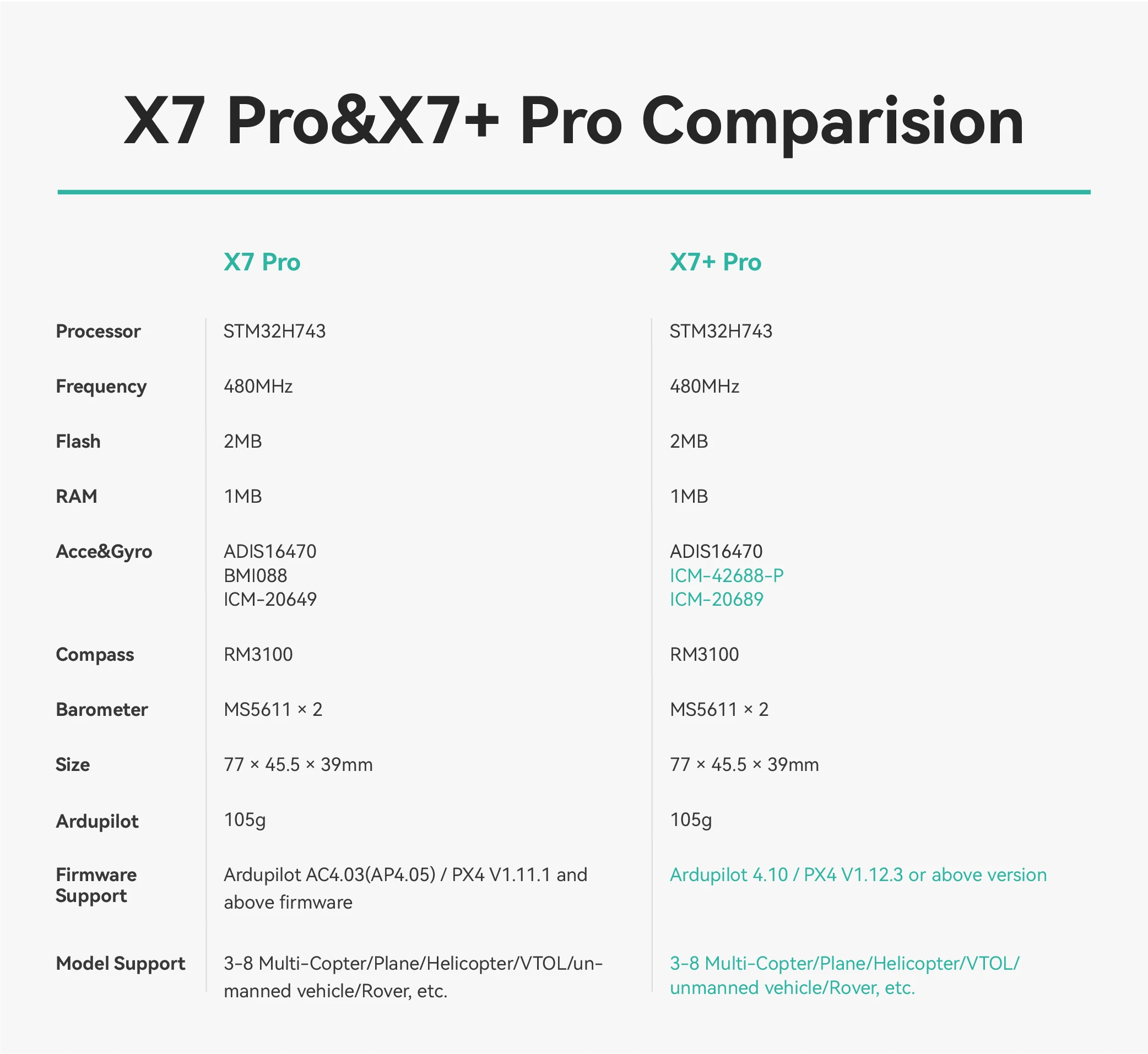

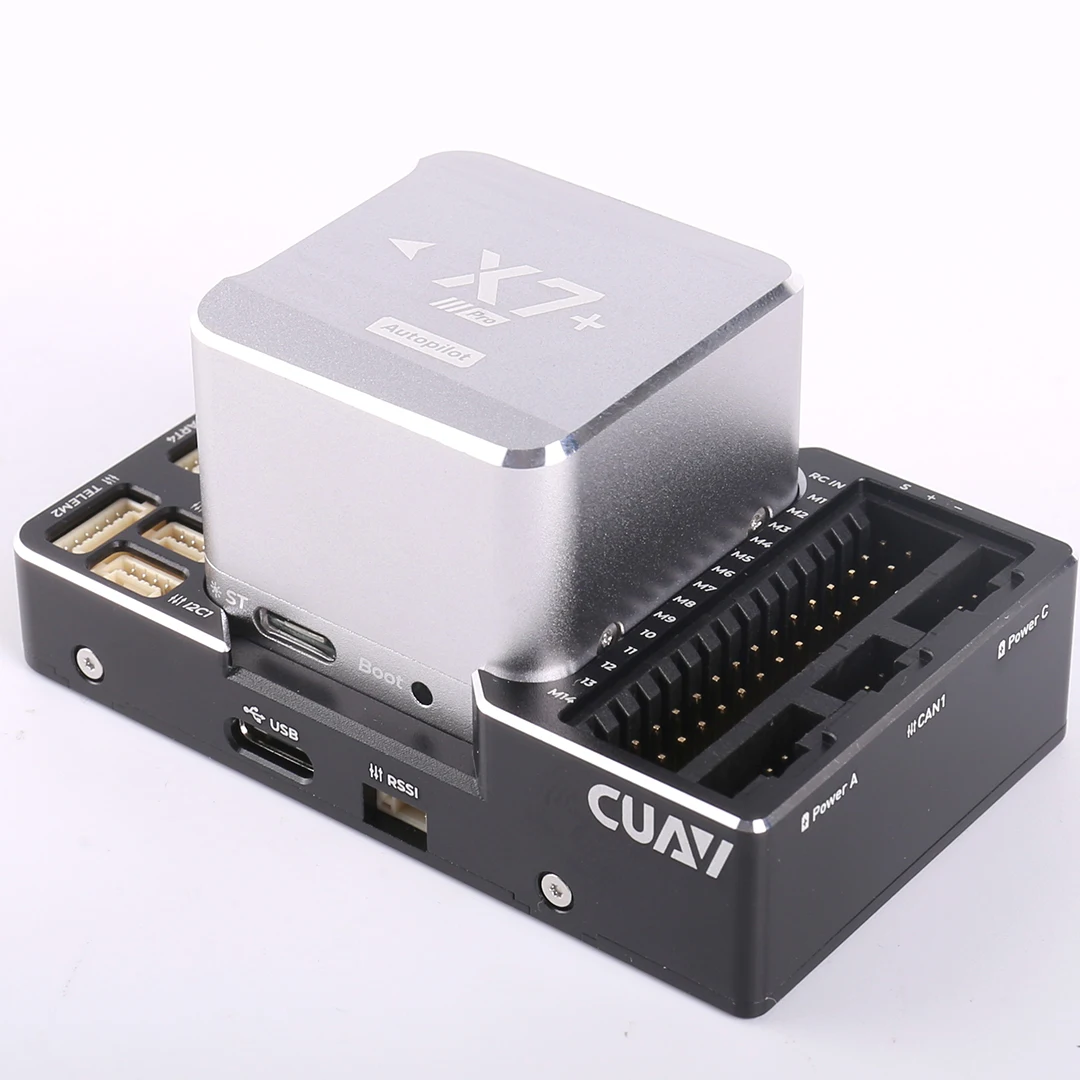

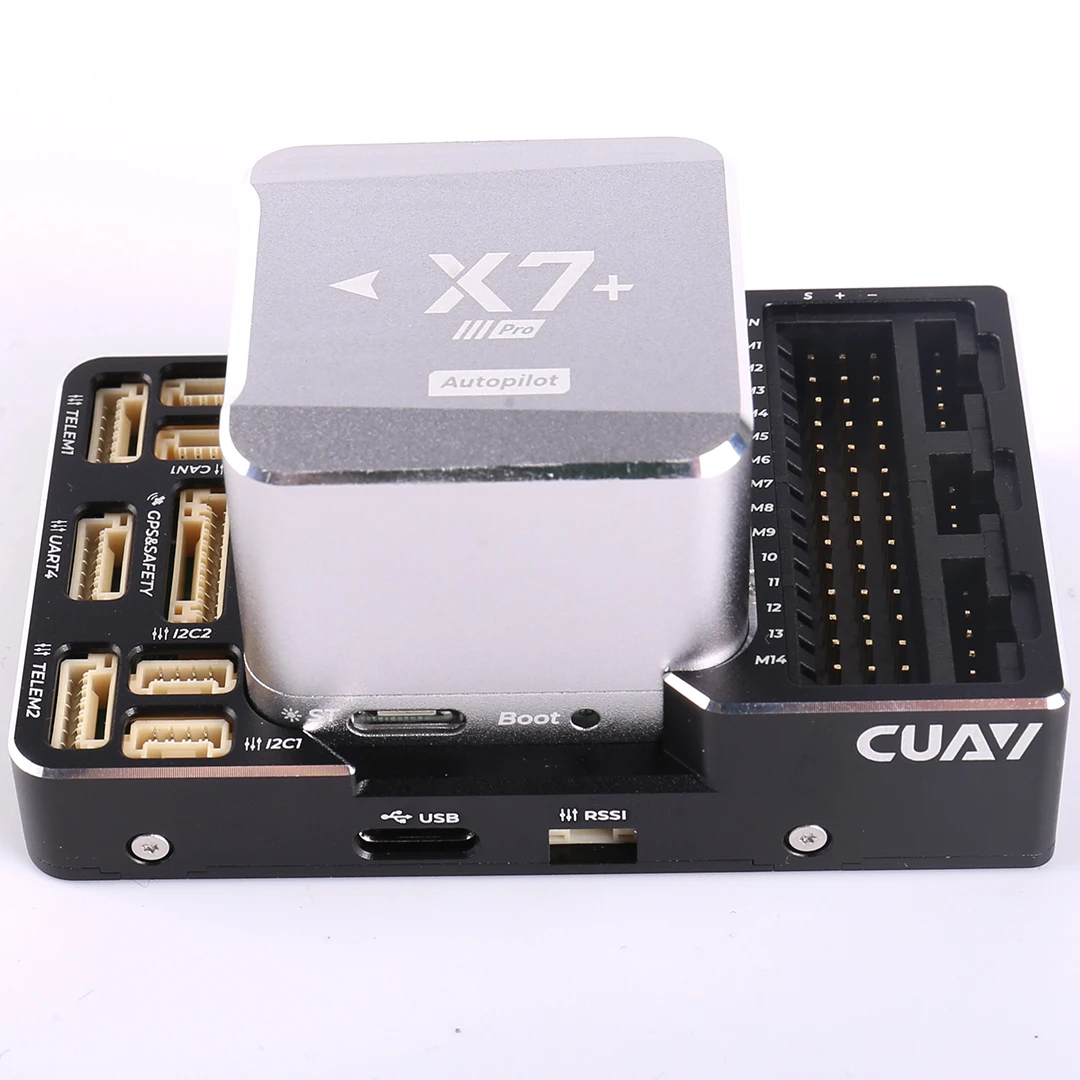

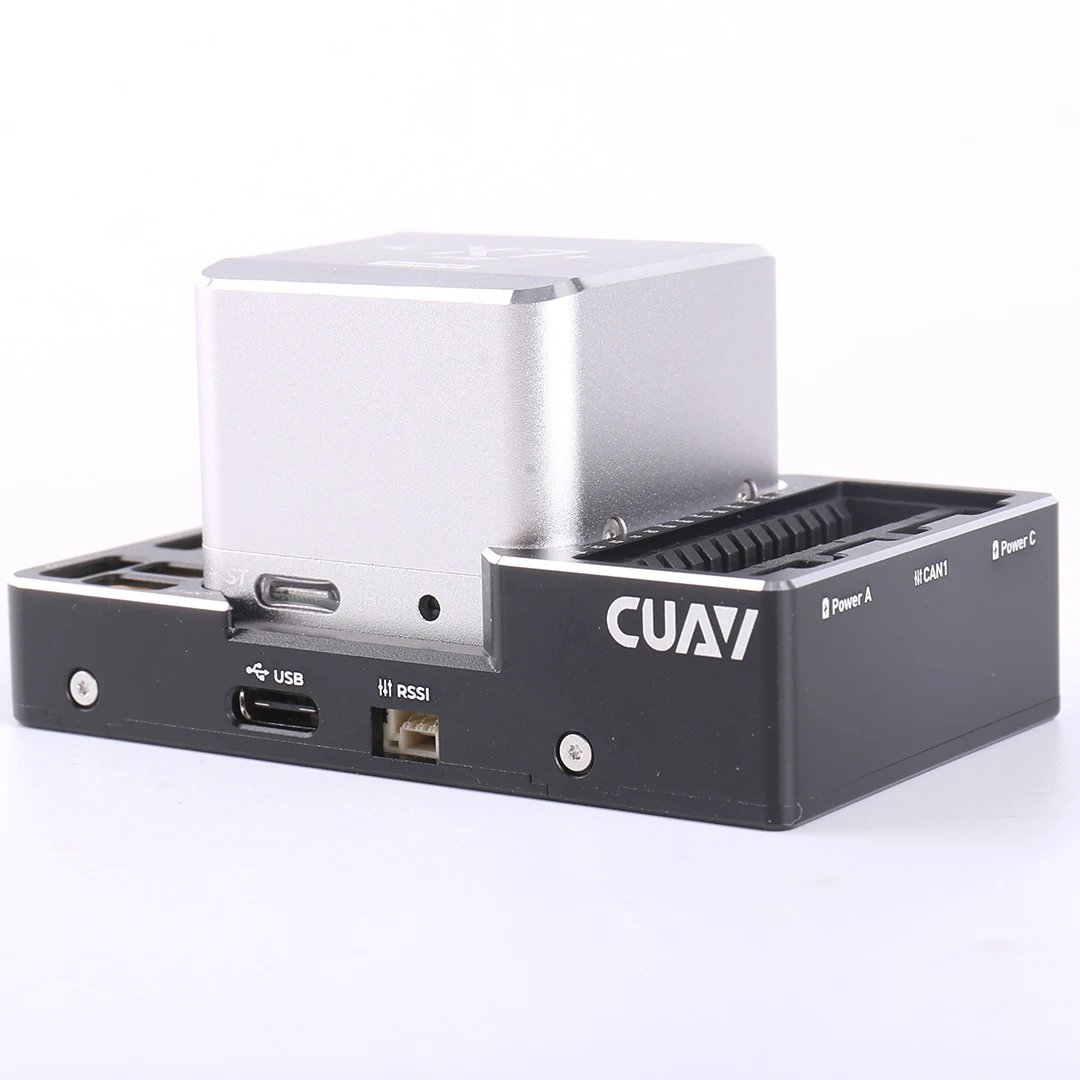

X7+ PRO Flight Controller Specification parameters

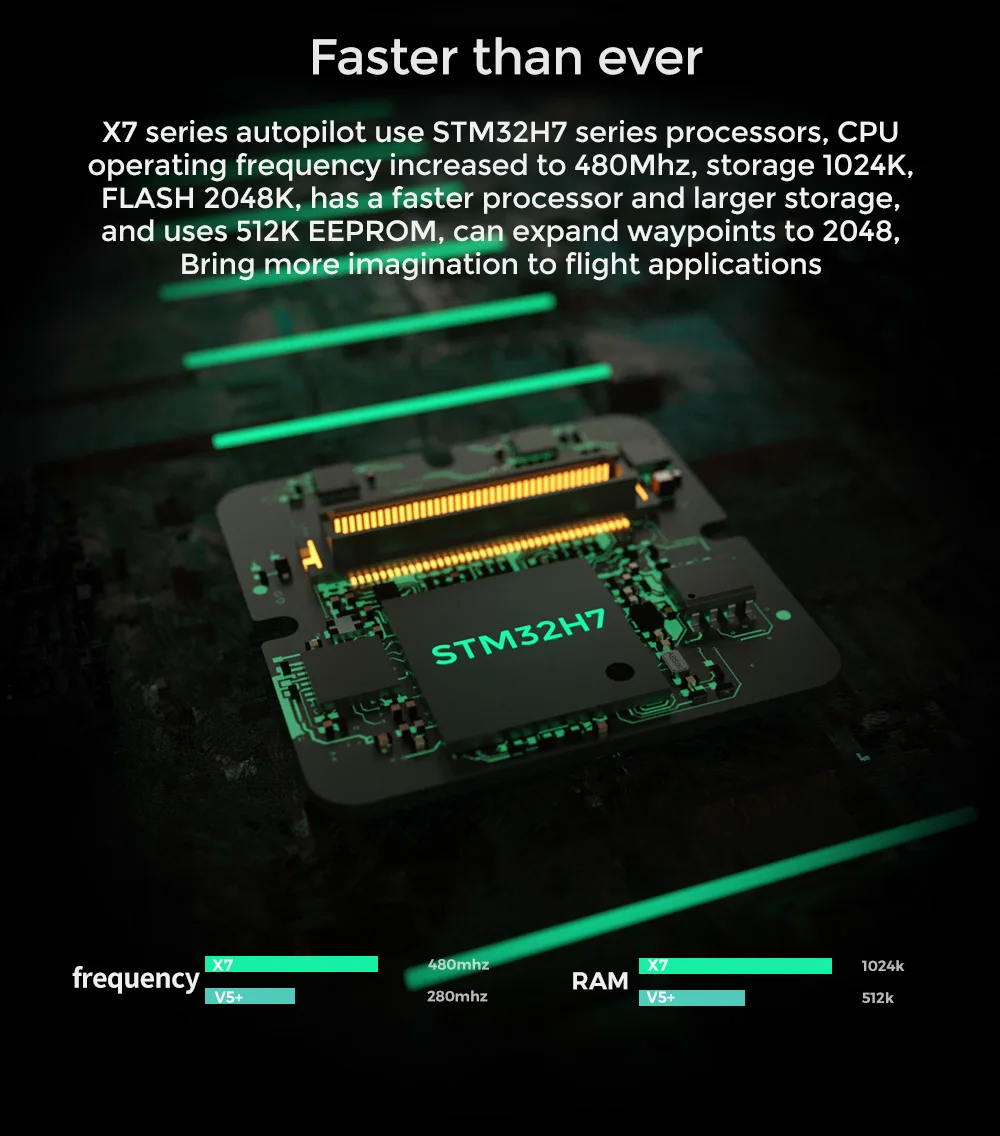

Processor：STM32H743
Frequency：480MHz
Flash：2MB
RAM：1MB

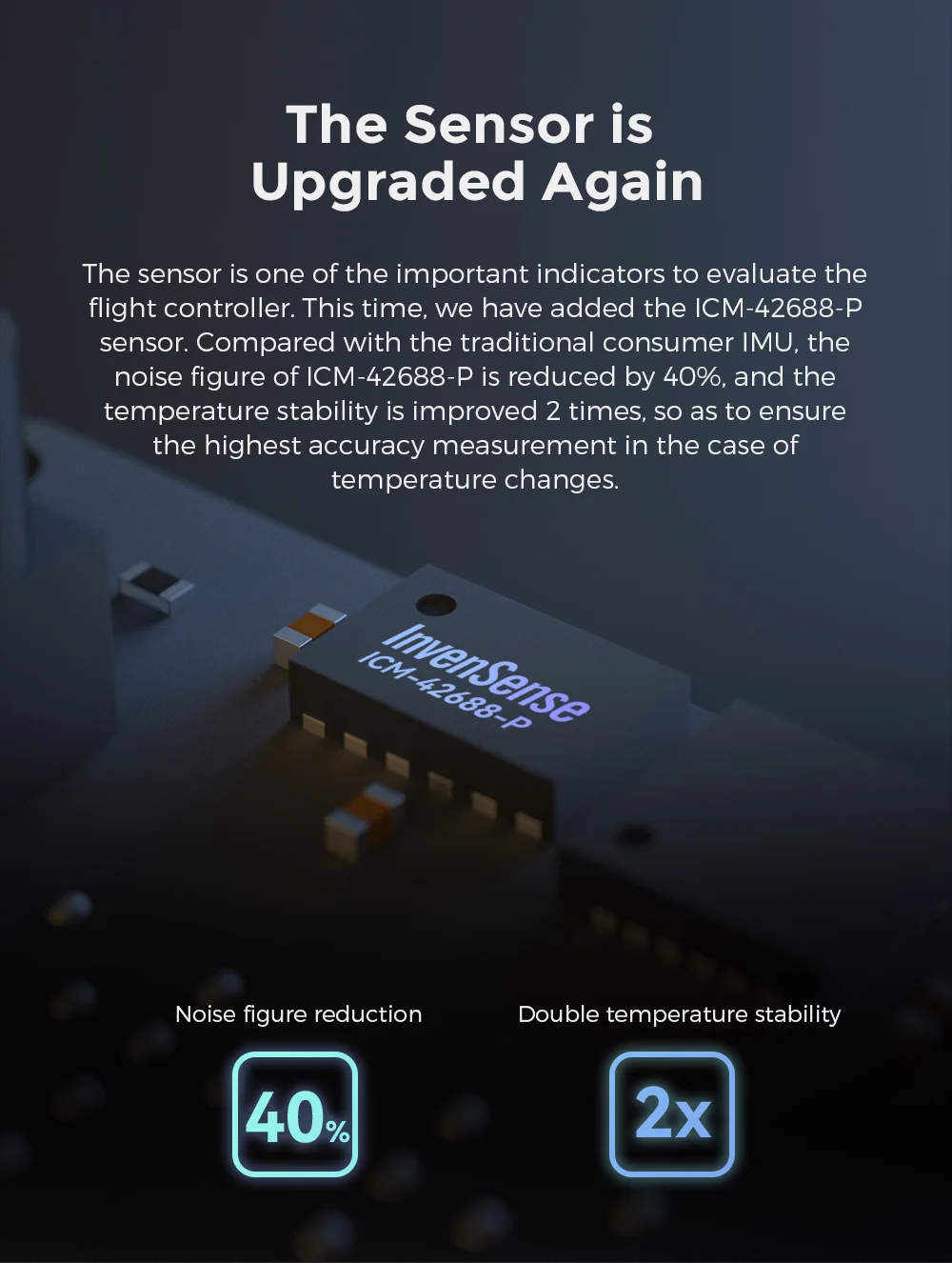

Acce & Gyro：ADIS16470；ICM-42688-P；ICM-20689
Compass：RM3100
Barometer：MS5611x2
UART：5pcs
I2C：6pcs Two of them are integrated in GPS&Safety and UART4
CAN：2pcs
ADC IN：1pcs Supports 6.6V and 3.3V
SPI：1pcs
PWM OUT：14pcs M1~M12 Supports DSHOT protocol
RC IN：1pcs Supports PPM SBUS DSM
RSSI：PWM or 3.3V Analog voltage
power input：2pcs Power A is the ADC protocol Power is the CAN protocol
GPS interface：2pcs
Safety switch：In the GPS&SAFTETY interface
Buzzer：In the GPS&SAFTETY interface
Debug：1（UART7）
JATG：1pcs
USB：Type-C*2
TF card slot：1pcs
working voltage ：4.5~5.5V
USB voltage：4.75~5.25V
Servo voltage：0~36V
working temperature：-20~85°

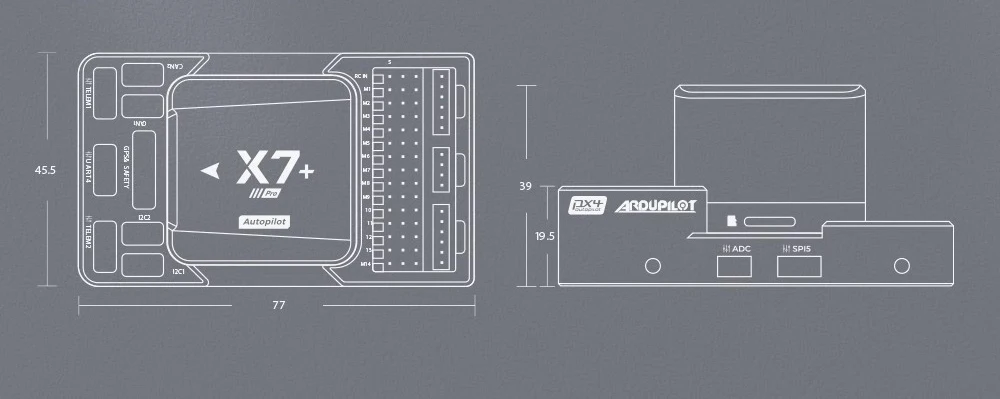

LxWxH：77x45.5x39mm
Weight：105g
Firmware support：Ardupilot 4.10 / PX4 V1.13 or above version
Model support：Fixed wing/3-8 rotor/helicopter/VTOL vertical takeoff and landing unmanned aerial vehicle/unmanned vessel, etc
Processor：STM32H743
Frequency：480MHz
Flash：2MB
RAM：1MB
Acce & Gyro：ADIS16470；ICM-42688-P；ICM-20689
Compass：RM3100
Barometer：MS5611x2
UART：5pcs
I2C：6pcs Two of them are integrated in GPS&Safety and UART4
CAN：2pcs
ADC IN：1pcs Supports 6.6V and 3.3V
SPI：1pcs
PWM OUT：14pcs M1~M12 Supports DSHOT protocol
RC IN：1pcs Supports PPM SBUS DSM
RSSI：PWM or 3.3V Analog voltage
power input：2pcs Power A is the ADC protocol Power is the CAN protocol
GPS interface：2pcs
Safety switch：In the GPS&SAFTETY interface
Buzzer：In the GPS&SAFTETY interface
Debug：1（UART7）
JATG：1pcs
USB：Type-C*2
TF card slot：1pcs
working voltage ：4.5~5.5V
USB voltage：4.75~5.25V
Servo voltage：0~36V
working temperature：-20~85°
LxWxH：77x45.5x39mm
Weight：105g
Firmware support：Ardupilot 4.10 / PX4 V1.13 or above version
Model support：Fixed wing/3-8 rotor/helicopter/VTOL vertical takeoff and landing unmanned aerial vehicle/unmanned vessel, etc

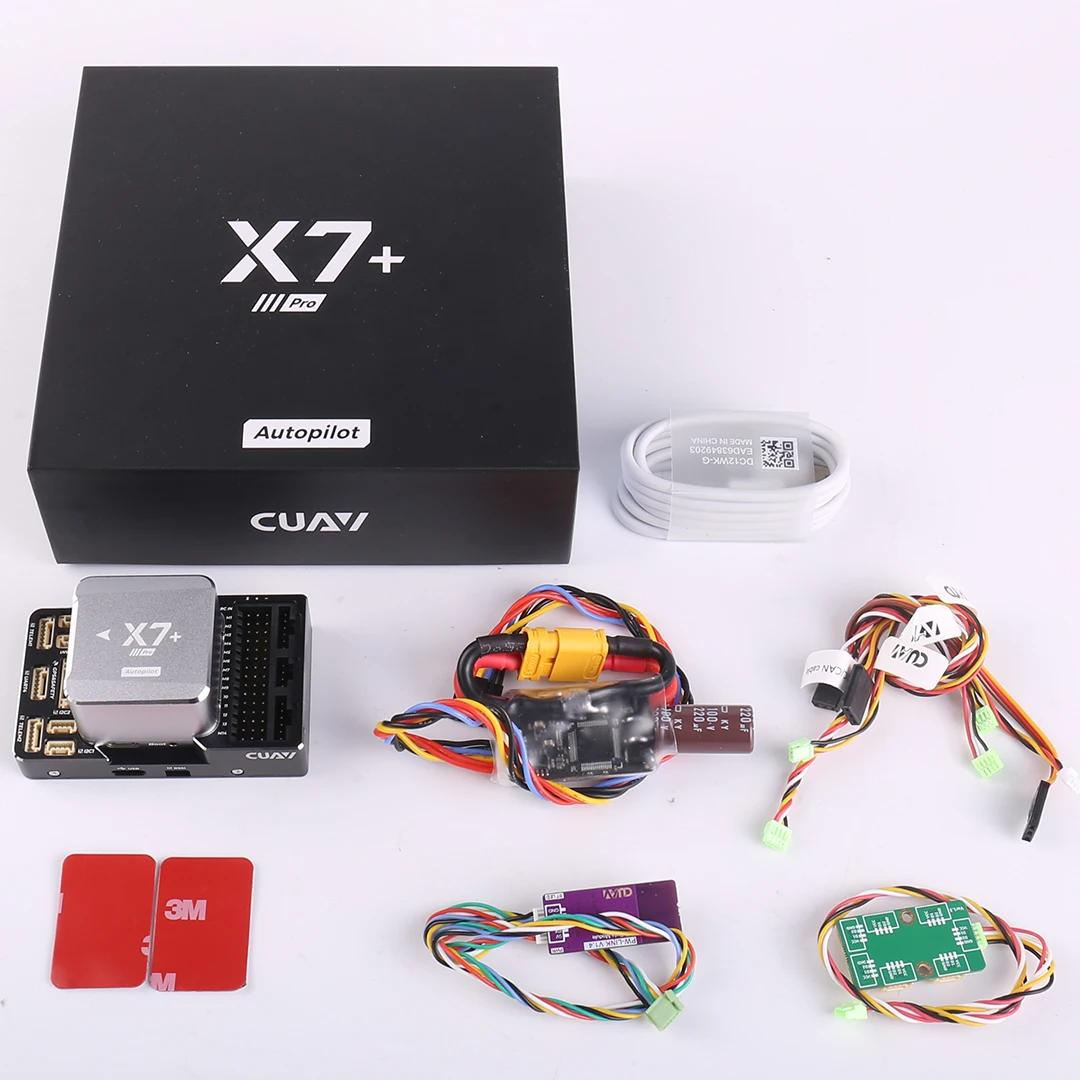

Packing & Delivery
X7 + PRO Autopilot x 1
I2C / CAN cable x 2
ADC3.3 cable x 1
RSSI cable (X7 series) x 1
CAN PMU Lite Power Module x 1
Dupont cable x 1
CAN extension board x 1
Pw-link module x 1
USB-Typec cable x 1
16G Memory card x 1
X7 + PRO Autopilot x 1
I2C / CAN cable x 2
ADC3.3 cable x 1
RSSI cable (X7 series) x 1
CAN PMU Lite Power Module x 1
Dupont cable x 1
CAN extension board x 1
Pw-link module x 1
USB-Typec cable x 1
16G Memory card x 1
