Standard Configurations:
Engine
Can be equipped with the EPA4/Euro5 engine to meet the Europe/American/Canada Environment Emission standard.

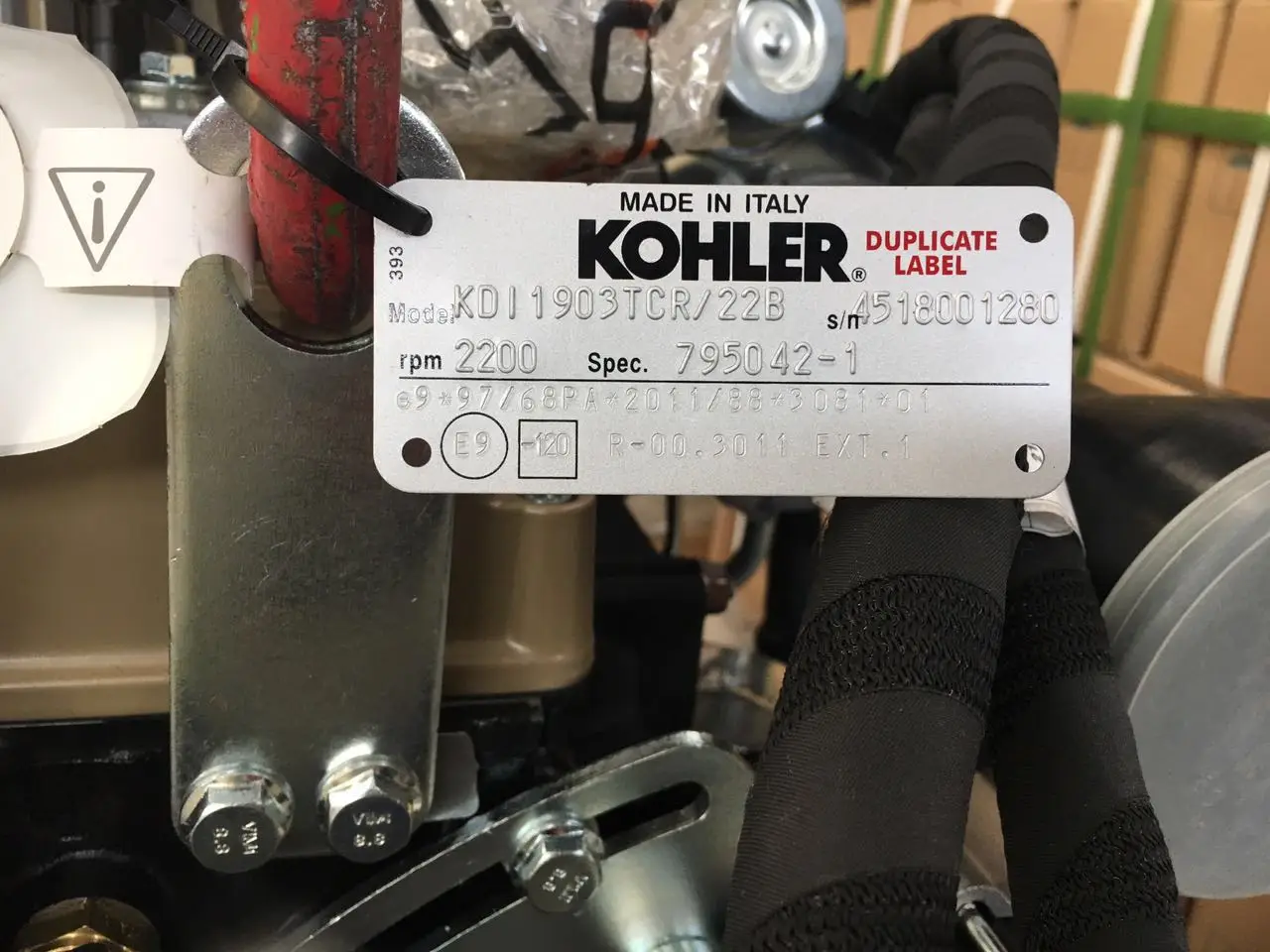

KOHLER EPA4 ENGINE

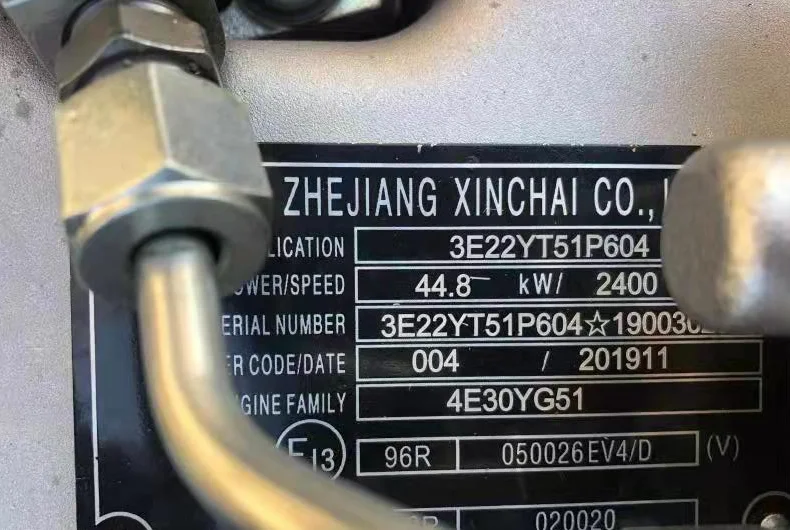

XINCHAI EURO5 ENGINE
Specifications
Specifications | Rated operating capacity(kg) | 850 |
Tipping load(kg) | 1700 | |
Bucket capacity(m3) | 0.5 | |
Operating weight(kg) | 3200 | |
Max. travel speed(km/h) | 12 | |
Hydraulic pump flow(L/min) | 75 | |
Fuel tank capacity(L) | 80 | |
Tires | 12-16-15 | |
Overall dimensions(mm) | 3840×1820×2080 | |
Dimensions | Height at maximum extension(mm) | 3690 |
Height to bucket hinge pin(mm) | 2920 | |
Width with bucket(mm) | 1820 | |
Track width(mm) | 1500 | |
Wheelbase(mm) | 991 | |
Ground clearance(mm) | 205 | |
Dump angle | 40° | |
Dumping height(mm) | 2330 | |
Rollback at ground | 710 | |
Angle of departure | XINCHAI 498 | |
Engine | Maker/Model | 60hp/2650rpm |
Net power | 4 Cylinder in-line, Water cooled, 4 stroke,Diesel engine | |
Type | 2.54 | |
Displacement(L) | Open-type operator cab | |
Standard | Hand control system(Mechanical type) | |
Standard bucket | ||
Auxiliary hydraulic couplers(common as Bobcat) | ||

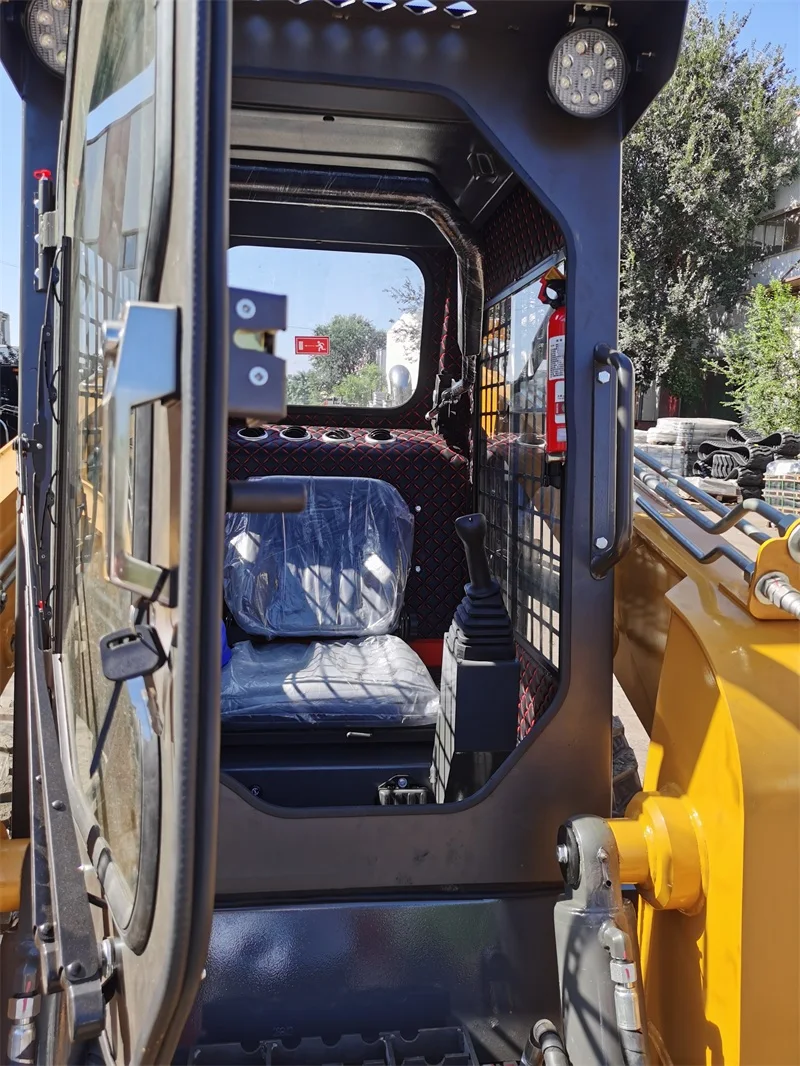

Open-type operator cab | ||
Optional | Hydraulic joystick controls | |
Enclosed operator cab with A/C | ||
Cab fitted with a heater | ||

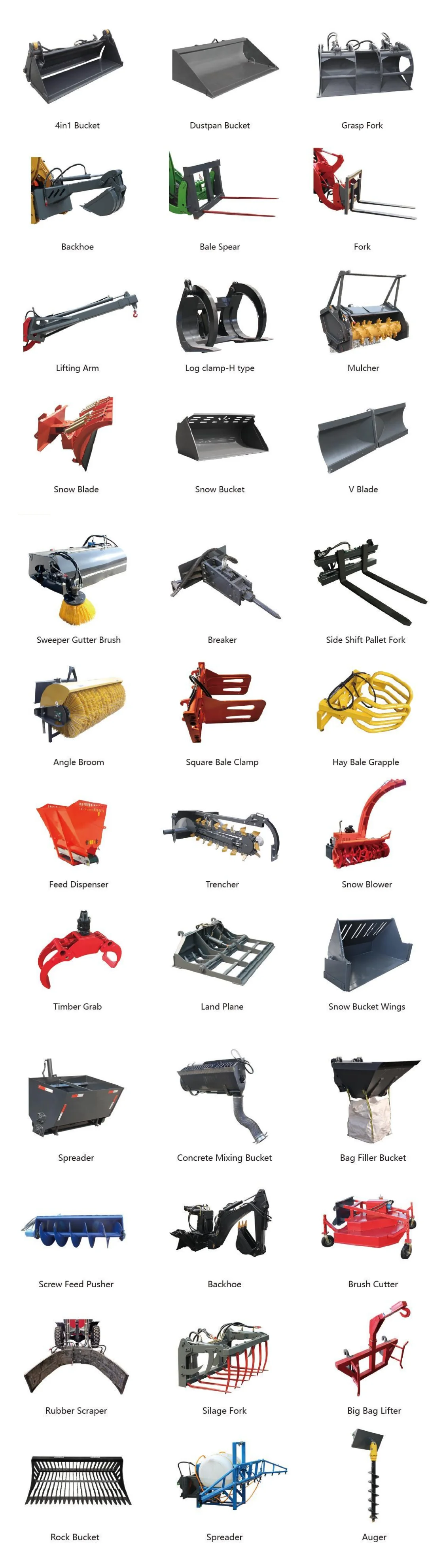

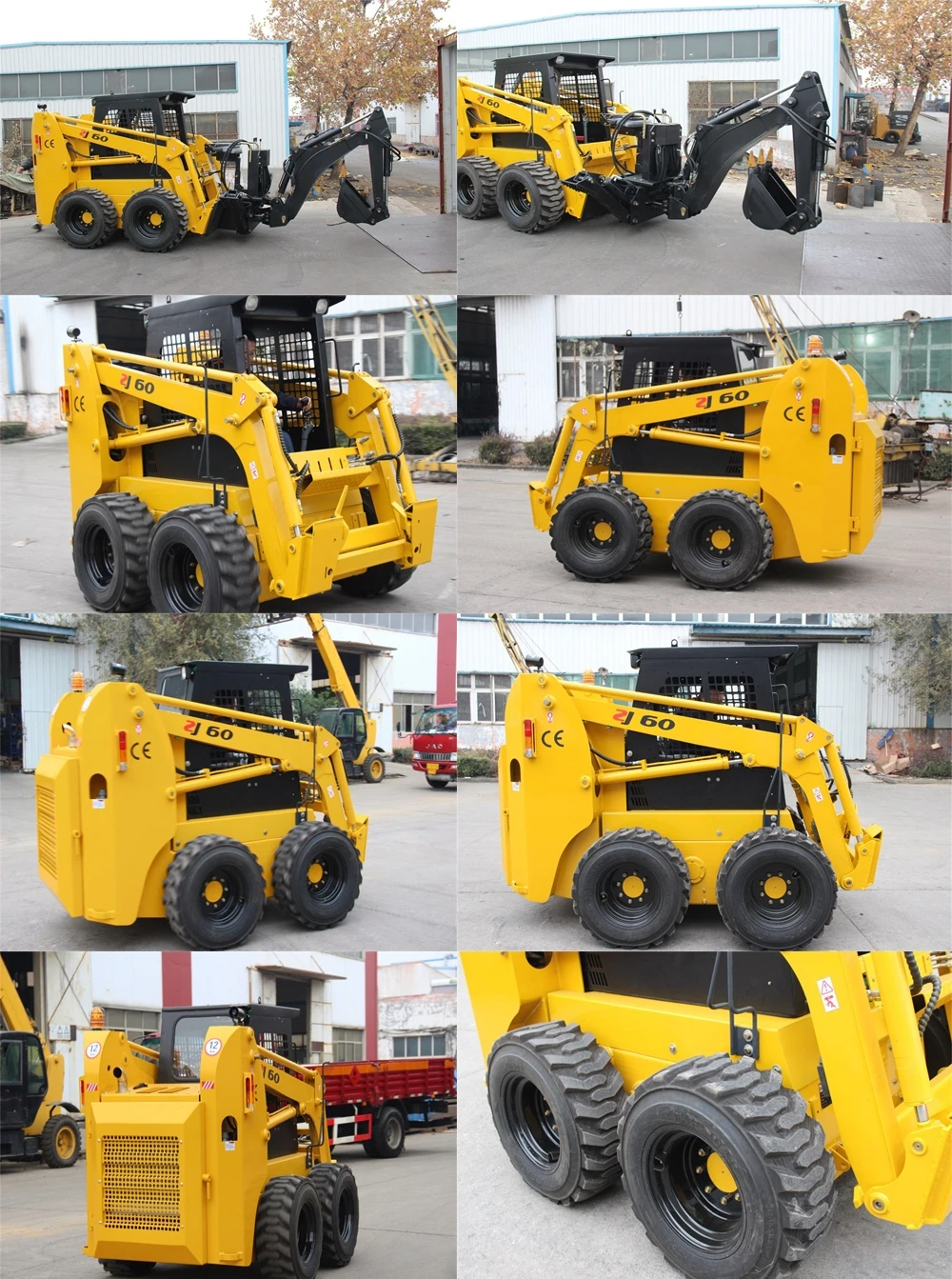

Backhoe,Breaker,Angle blade,Auger,Sweeper,Pallet fork,Combinition bucket,Mower,Asphalt cutter |

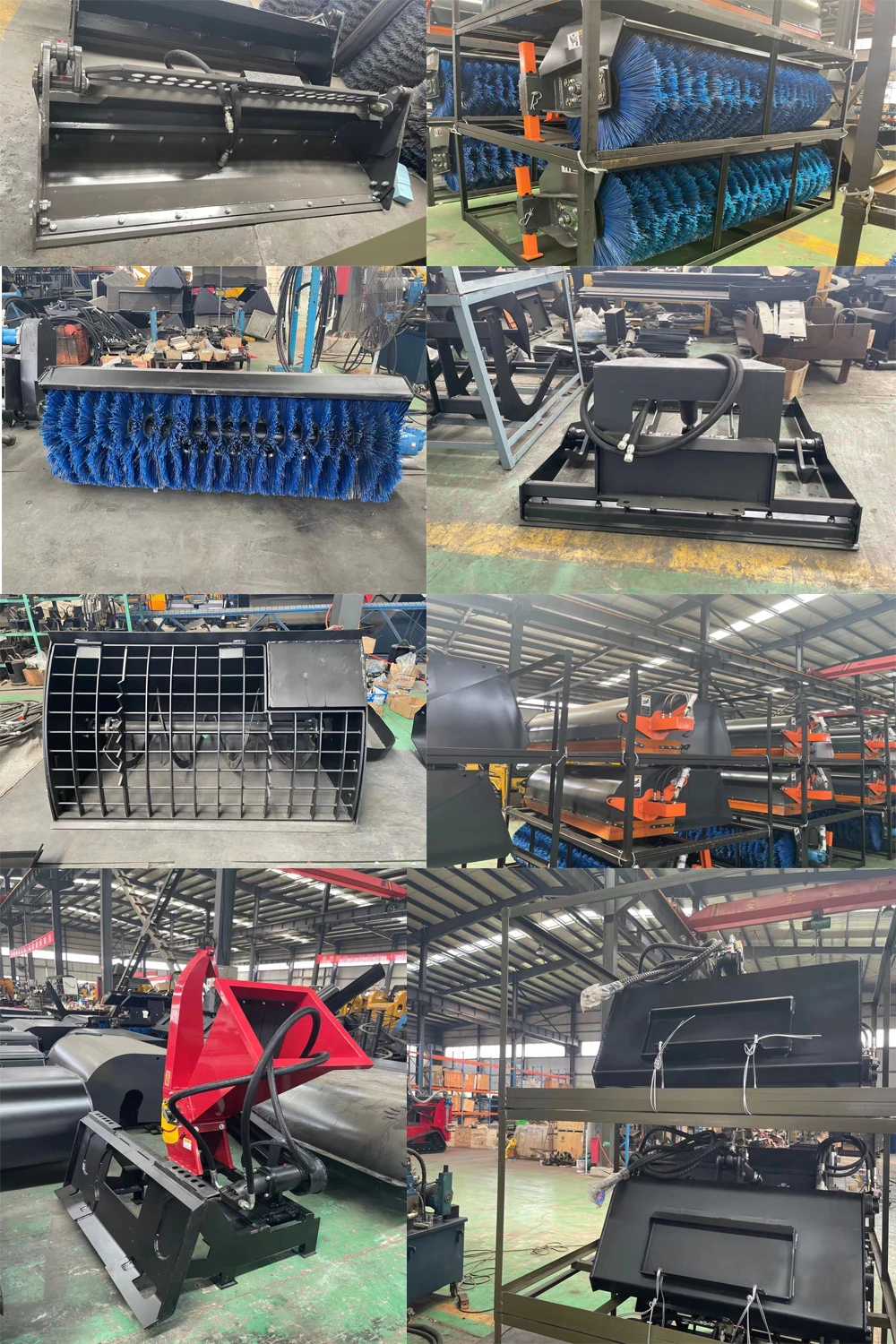

Attachments
Related Products

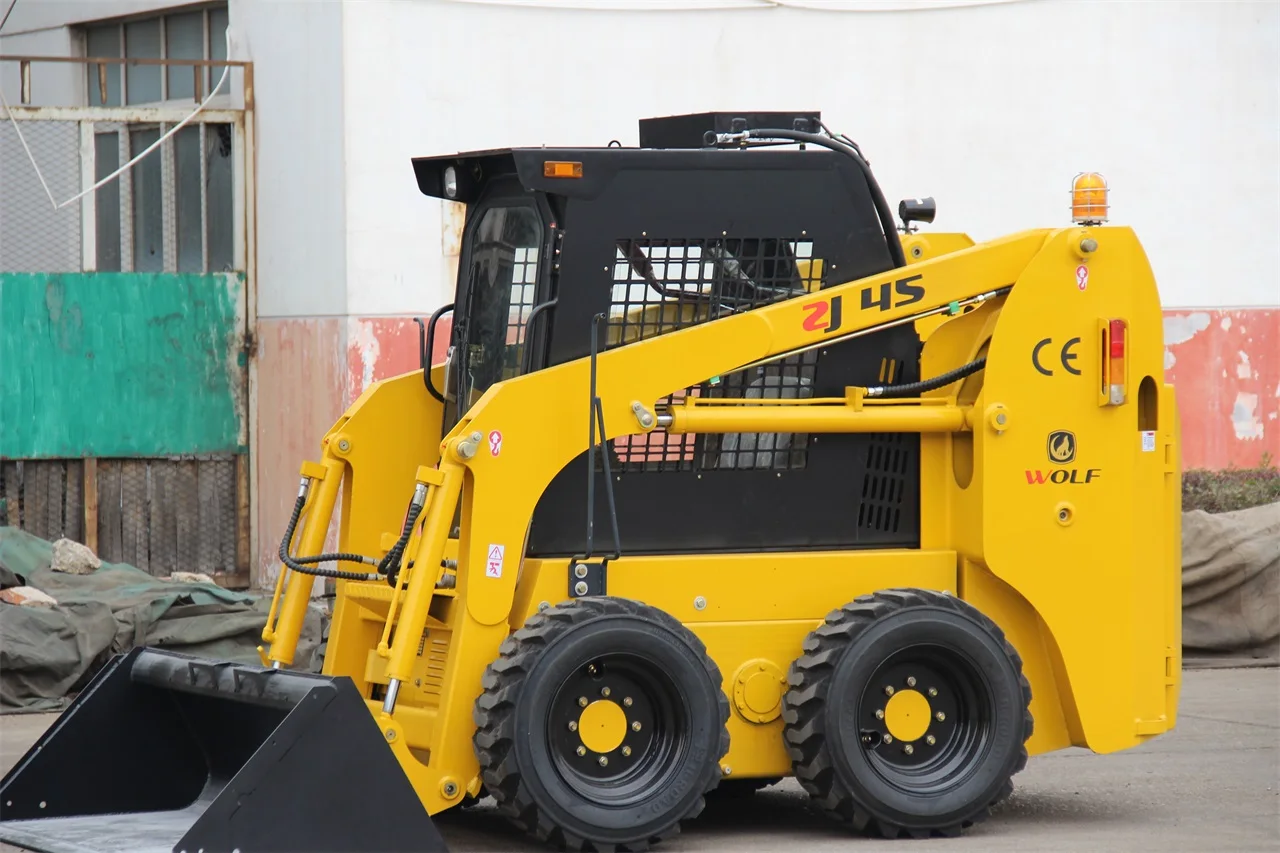

![]() | ZJ45 Xinchai 490 engine, American SAUER-DANFOSS pump, American Eton Motor, China gear pump, China cylinder, Italy BP multi-way valve, hydraulic brake. 1. Open-type operator cab 2. Hand control system(Mechanical type) 3. Standard bucket 68'' 4. Auxiliary hydraulic couplers(common as Bobcat) |

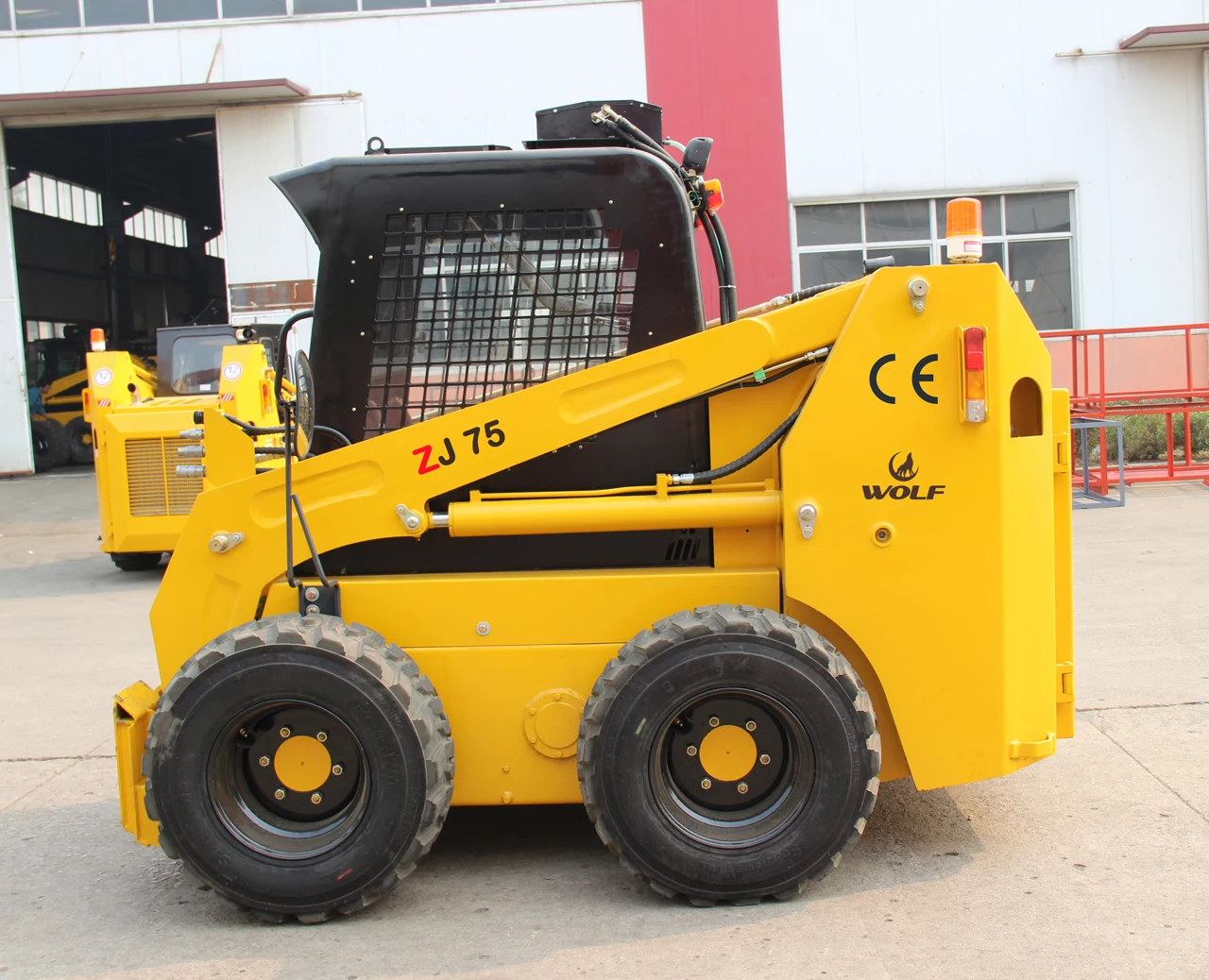

![]() | ZJ75 Xinchai 498T engine, Germany Rexroth pump, Rexroth Motor Imported gear pump, China cylinder, Italy BP multi-way valve and joystick valve, 12-16.5 tire, hydraulic brake. 1. Enclosed cabin. 2. Hydraulic control 3. Standard bucket 4. Auxiliary hydraulic couplers(common as Bobcat) |
