AOHUA M12 ip67 ip68 водонепроницаемый разъем для переборки 5-контактный с наружной панелью
- Категории: Connectors >>>
- Поставщик: Shenzhen,Aohua,Electric,Corporation,Limited
Поделиться:
Описание и отзывы
Характеристики
Product Description
What are details of our high-quality waterproof connectors?

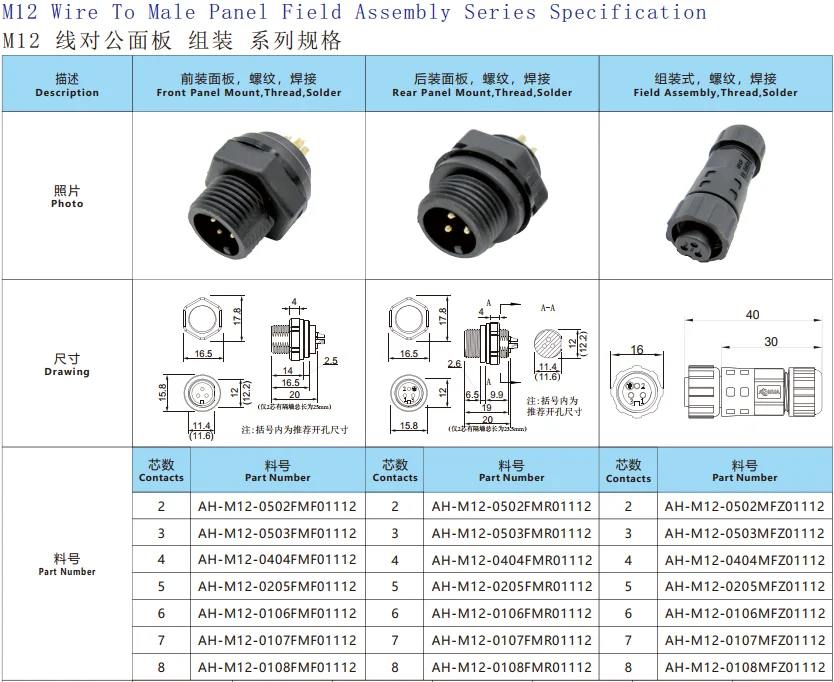

AOHUA M12 ip67 ip68 waterproof bulkhead connector 5 pin male panel mounted and plugs connector
Nylon material: wire to male panel field assembly 2, 3, 4, 5, 6, 7, 8 pins for choices.
Application: widely used in power, led lighting, driver, controller, etc.
Feature: favorable waterproof level ip67, safe and easy installation, our connector can be used outdoor during harsh winter or sweat summer.
Feature: favorable waterproof level ip67, safe and easy installation, our connector can be used outdoor during harsh winter or sweat summer.
Contants Number | 2 | 3 | 4 | 5 |
Voltage Rating | 300V | 300V | 110V | 60V |
Current Rating | 5A | 5A | 4A | 2A |
Wire Size | ≤1.0mm2 | ≤0.75mm2 | ≤0.5mm2 | ≤0.3mm2 |
Contants Number | 6 | 7 | 8 |
Voltage Rating | 60V | 60V | 60V |
Current Rating | 1A | 1A | 1A |
Wire Size | ≤0.2mm2 | ≤0.2mm2 | ≤0.2mm2 |
Cable OD | 3.5mm—7.5mm |
Mechanical Life | 3000 mating cycles |
Operating Rating | —40℃—+105℃ |
Waterproof Level | IP67/IP68 |
Seal Ring | 9*9*3.6/4.1/5.5/6.5/7.5mm |
1. Current rating, such as: 2A...
2. Pins, such as : 2pin, 3pin...
3. Wire size, such as: 5*22AWG...
4. Cable outer diameter(OD), such as: 5.5mm.
2. Pins, such as : 2pin, 3pin...
3. Wire size, such as: 5*22AWG...
4. Cable outer diameter(OD), such as: 5.5mm.
Details Images
Associated Protucts
Certifications
Our Advantages
Why Choose AOHUA?
1. High quality and reasonable price.
2. Approval: TUV, CE, UL.
3. Independent research and development; Cable and hardware production; Injection mold and mould making.
4. Advanced production equipment and strong technical strength ensure high-quality and creative products. We are China leading waterproof connectors manufacturer.
3. Independent research and development; Cable and hardware production; Injection mold and mould making.
4. Advanced production equipment and strong technical strength ensure high-quality and creative products. We are China leading waterproof connectors manufacturer.
5. Perfect assembly workshop; One-stop production.
6. Any question from you are welcome and will be replied in 24 hours.
6. Any question from you are welcome and will be replied in 24 hours.
Company Information
Product packaging
FAQ
