Product Description

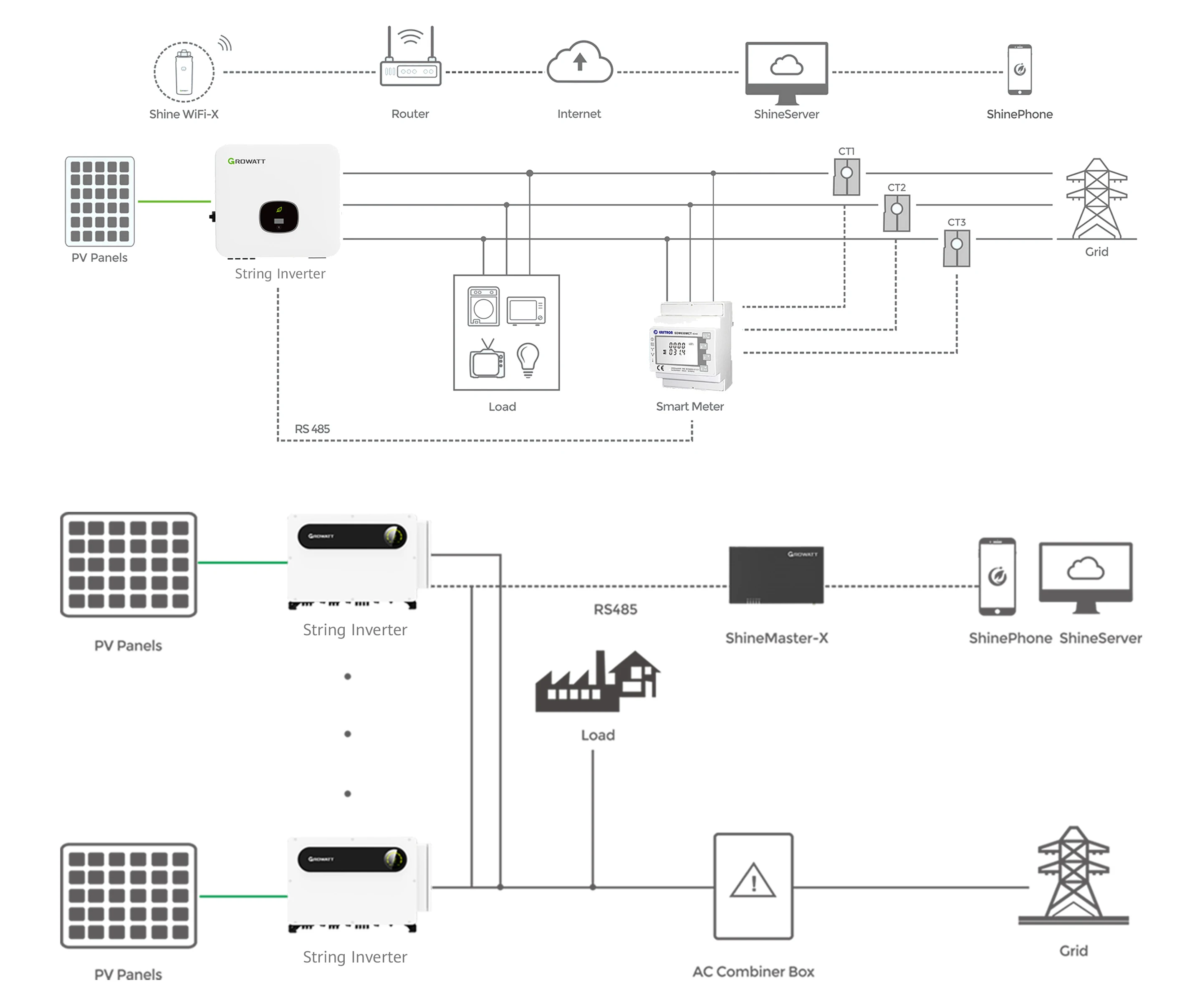

System Configuration
Item | 20KW | 30KW | 50KW | |||
Solar Panel | 40 pieces | 60 pieces | 100 pieces | |||
PV Combiner Box | DC Breaker/Combiner/Short-Circuit Protection/Lightning Protector | |||||
On Grid/Grid Tie Inverter | 20kw | 30kw | 50kw | |||
WIFI Module Monitor | 1 set | 1 set | 1 set | |||
PV Cable | 4mm² / 6mm² / 10mm²，Red and Black | 4/6/10mm² | 4/6/10mm² | |||
Mounting Bracket | Roof Mounting / Ground Mounting | Tile Roof/Ground | Tile Roof/Ground | |||
Accessories | PV Cable, MC4 Connector, Installation Tool, User Manual, CT , Smart Meter | 56pcs | 90pcs | |||
For more technical specification and price list, please contact: +86 18297974196 | ||||||
Technical Specification

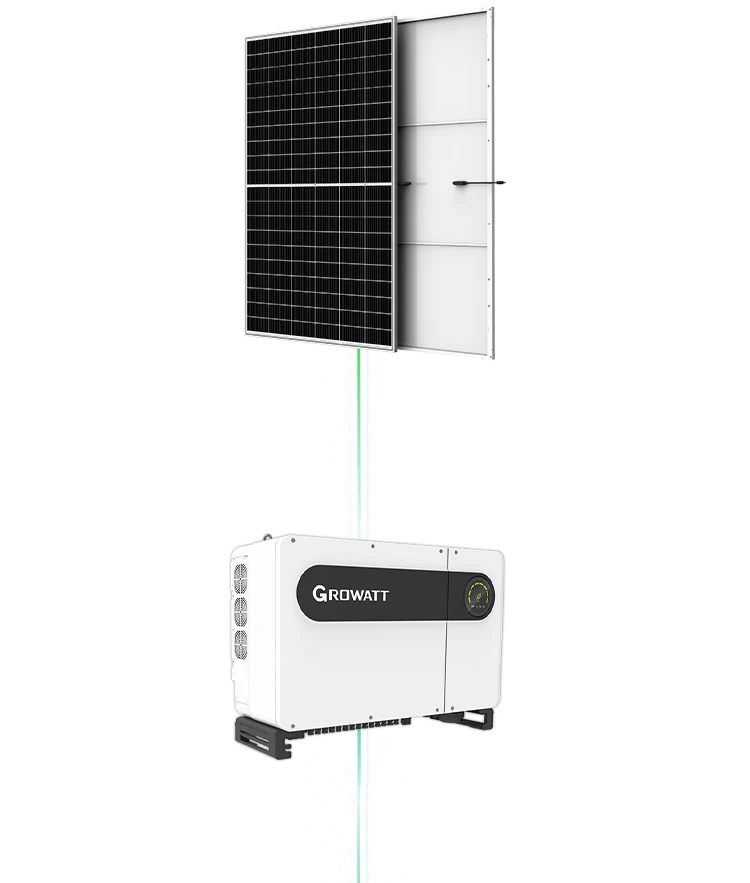

Solar Panels
• Wide Power Range From 300W - 700W
• Silver / Black / Bifacial Panels
• High Efficiency 9BB/10BB/12BB/16BB PV Cell
• Linear Power Warranty 30 Years
• Wind Load 2400Pa / Snow Load 5400Pa
• J-Box IP68 Rated, 3 Diodes
PV Inverter
• Three Phase/Split Phase
• Intelligent Cloud Platform Monitoring
• MPPT Charger Controller Build In
• Max. Efficiency 99%
• MPPT Voltage Up To 1000Vdc
• Type II SPD on DC and AC Side
• Communication Protocol CAN / RS485
• AFCI protection
• Max. Efficiency 99%
• MPPT Voltage Up To 1000Vdc
• Type II SPD on DC and AC Side
• Communication Protocol CAN / RS485
• AFCI protection

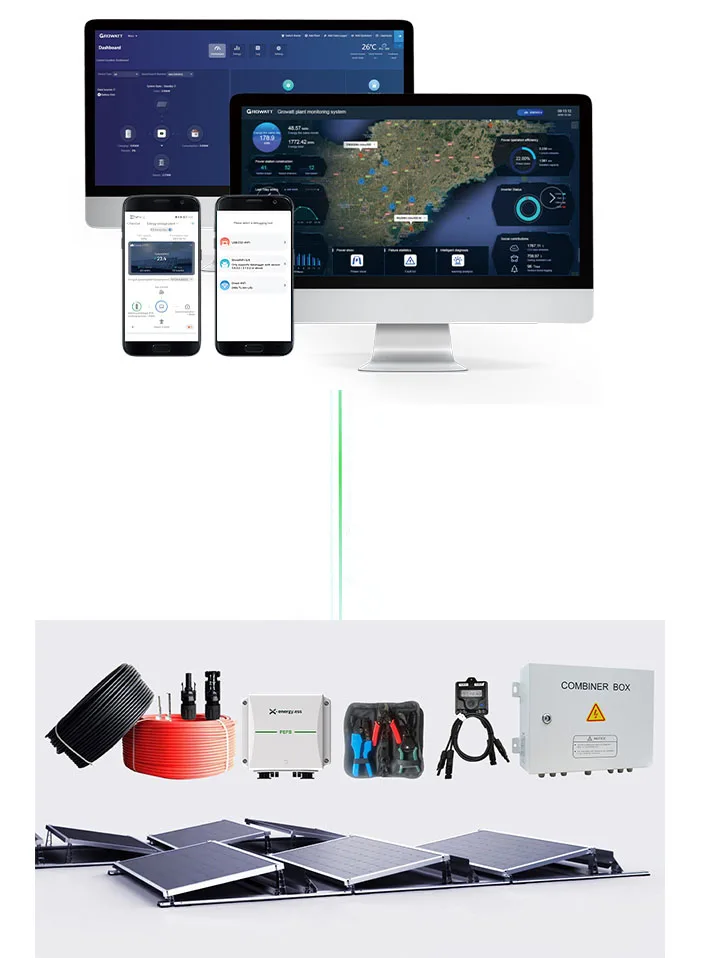

24/7 Monitoring
• User-defined Performance Views, Full Plant Supervision Via Muti-dimensional Analysis
• Flexible Data Access, Web & APP
• Data Storage Up To 25 years
• One APP For All Inverters
• Multiple Communication Methods Avaiable Include WiFi, 4G and LAN Cable
• Customized Mounting System For Tile Roof or Metal Roof or Ground.
• One APP For All Inverters
• Multiple Communication Methods Avaiable Include WiFi, 4G and LAN Cable
EPC Accessories
• Customized Mounting System For Tile Roof or Metal Roof or Ground.
• Combiner Box with Short-Circuit Protection And Lightning Protector.
• DC Cables Red Black 4mm2/6mm2/10mm2
• DC Cables Red Black 4mm2/6mm2/10mm2
• MC4 Connector 1500Vdc
• Solar Installation Tool Set

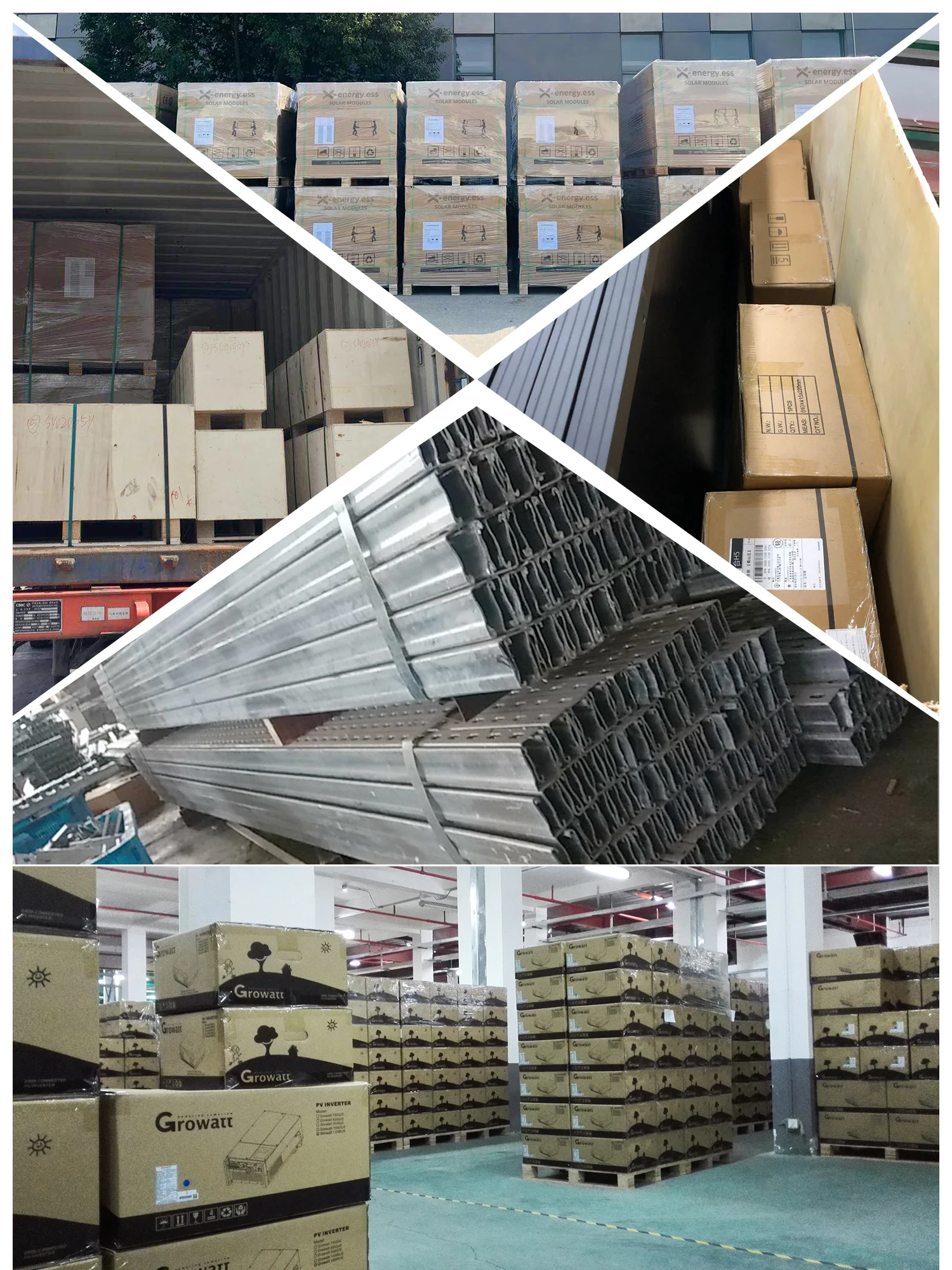

Production & Packaging
Projects

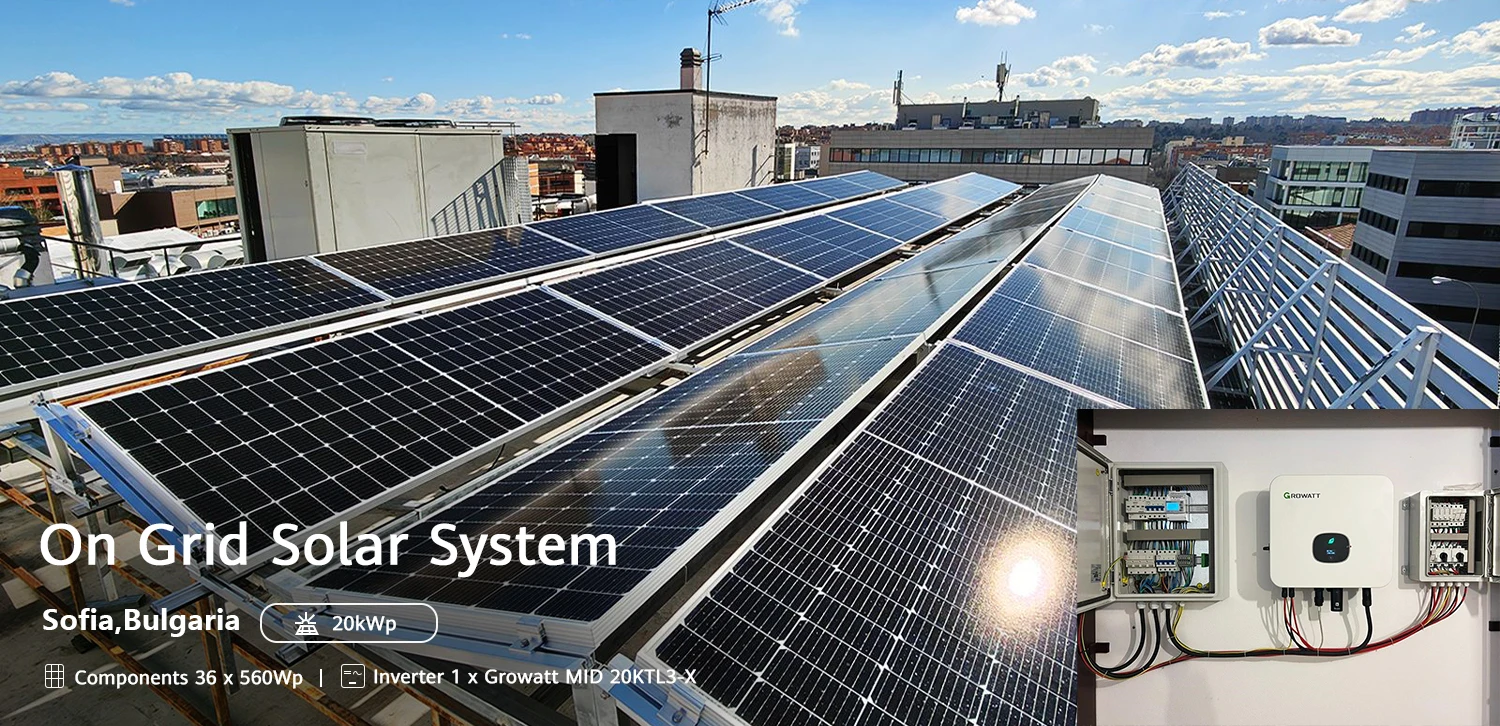

20KW On Grid Solar System
• Installation Date : July 2022
• AC Voltage : 380V 50HZ Three Phase
• Daily Power Production : 78kwh
• Mounting Position ：Pitched Steel Structure

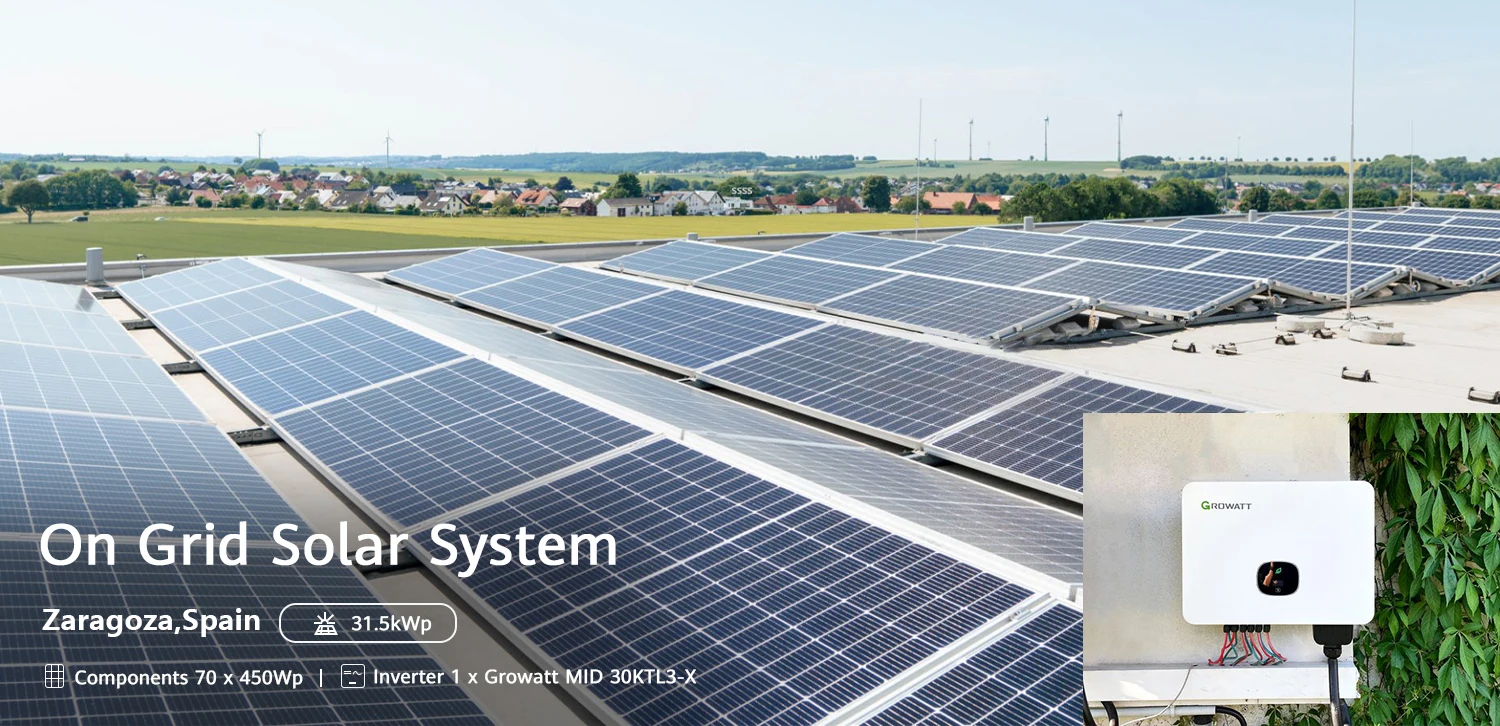

30KW On Grid Solar Energy System
• Installation Date : November 2021
• AC Voltage : 380V 50HZ Three Phase
• Daily Power Production : 146kwh
• Mounting Position ：Flat Concrete Roof

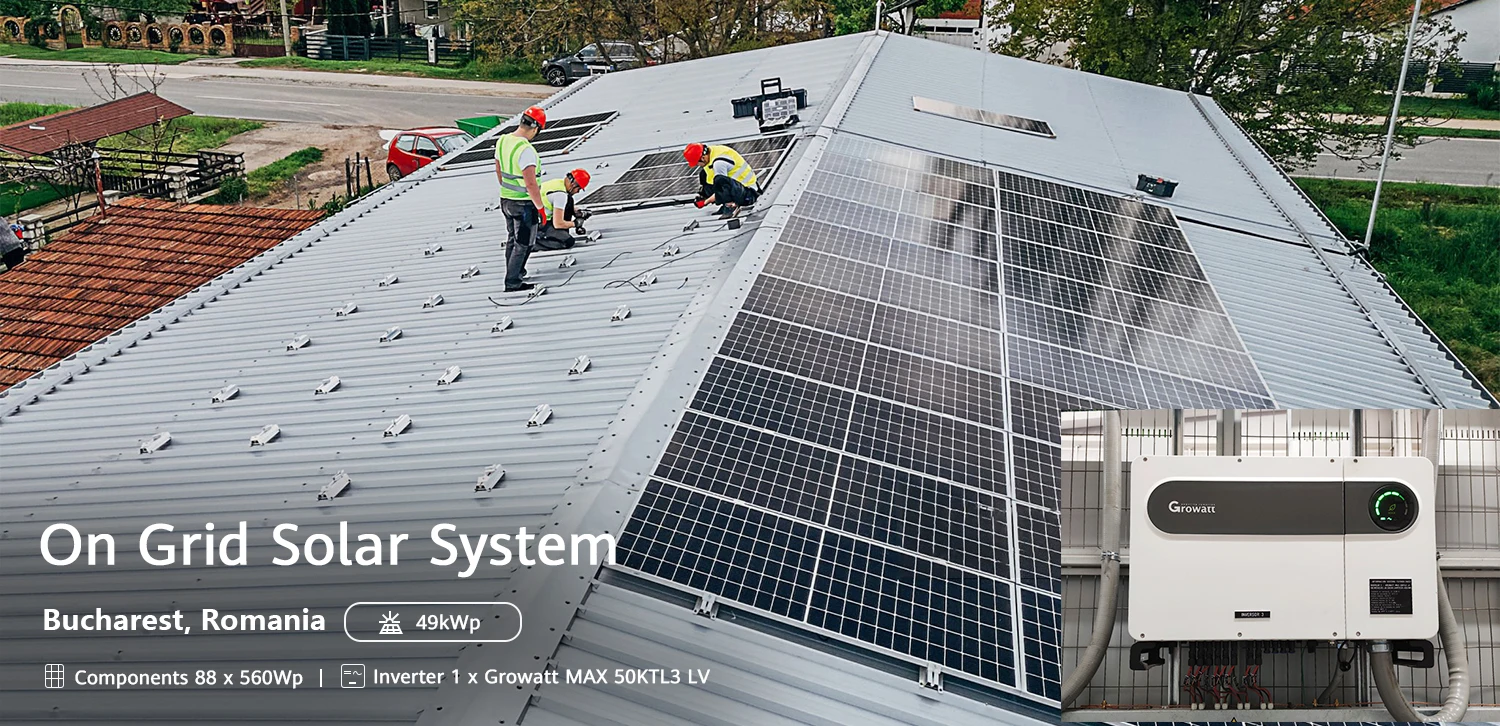

50KW Grid Tie Solar Power Station
• Installation Date : May 2022
• AC Voltage : 400V 50HZ Three Phase
• Daily Power Production : 193kwh
• Mounting Position ：Pitched Metal Roof
FAQ
1, How long is the delivery time of photovoltaic solar systems?
"Usually delivery time about 10work days for pv solar systems, please note in advance if you need it to be faster"
2, Solar panels are fragile, how to avoid damage during transportation?
"We pack all solar panels by customized solid wooden box for better protection"
3, Which types of solar panels do you use for solar system?
"PERC or N- type Topcon are all available，hot selling items are 410W, 450W, 550W, 620W, 650W and 700w solar panels etc. All are compatible with the whole PV system"
4, How does the client know about the whole solar energy system connection？
"Not only get products, customers also get our technical support and services，customer can install as per the wiring diagram. or call us directly to get online installation guide service"
5, How many kwh batteries does customer need for the photovoltaic system?
"Usually, 5kw system with 5-20kwh battery energy storage, 10kw system with 10-30kwh batteries. our sales will help you choose the suitable solar energy storage system solution"
6, Which types of battery you supply for energy storage systems?
"Now we mainly have storage batteries of deep cycle maintenance free lead acid battery or most popular Lithium ion Batteries powerwall or stackable rack types, which is compatible with most hybrid solar inverter communication"
7, Do you manufacture large containerized lithium ESS?
"Yes, we design the complete ESS for you with connection layout, PV simulation, ROI,installation, training, commissioning etc. Now we are mainly installing factory projects about 100kwh to 500kwh storage ESS with 10/20feet containers, HVAC, hybrid inverter, PCS chargers, battery storage, mounting brackets etc"
8, How does customer get best quotation and technical datasheet?
"Please send enquiry and leave your contact，our sales will get in touch with you and discuss the solar system in details"
"Usually delivery time about 10work days for pv solar systems, please note in advance if you need it to be faster"
2, Solar panels are fragile, how to avoid damage during transportation?
"We pack all solar panels by customized solid wooden box for better protection"
3, Which types of solar panels do you use for solar system?
"PERC or N- type Topcon are all available，hot selling items are 410W, 450W, 550W, 620W, 650W and 700w solar panels etc. All are compatible with the whole PV system"
4, How does the client know about the whole solar energy system connection？
"Not only get products, customers also get our technical support and services，customer can install as per the wiring diagram. or call us directly to get online installation guide service"
5, How many kwh batteries does customer need for the photovoltaic system?
"Usually, 5kw system with 5-20kwh battery energy storage, 10kw system with 10-30kwh batteries. our sales will help you choose the suitable solar energy storage system solution"
6, Which types of battery you supply for energy storage systems?
"Now we mainly have storage batteries of deep cycle maintenance free lead acid battery or most popular Lithium ion Batteries powerwall or stackable rack types, which is compatible with most hybrid solar inverter communication"
7, Do you manufacture large containerized lithium ESS?
"Yes, we design the complete ESS for you with connection layout, PV simulation, ROI,installation, training, commissioning etc. Now we are mainly installing factory projects about 100kwh to 500kwh storage ESS with 10/20feet containers, HVAC, hybrid inverter, PCS chargers, battery storage, mounting brackets etc"
8, How does customer get best quotation and technical datasheet?
"Please send enquiry and leave your contact，our sales will get in touch with you and discuss the solar system in details"
