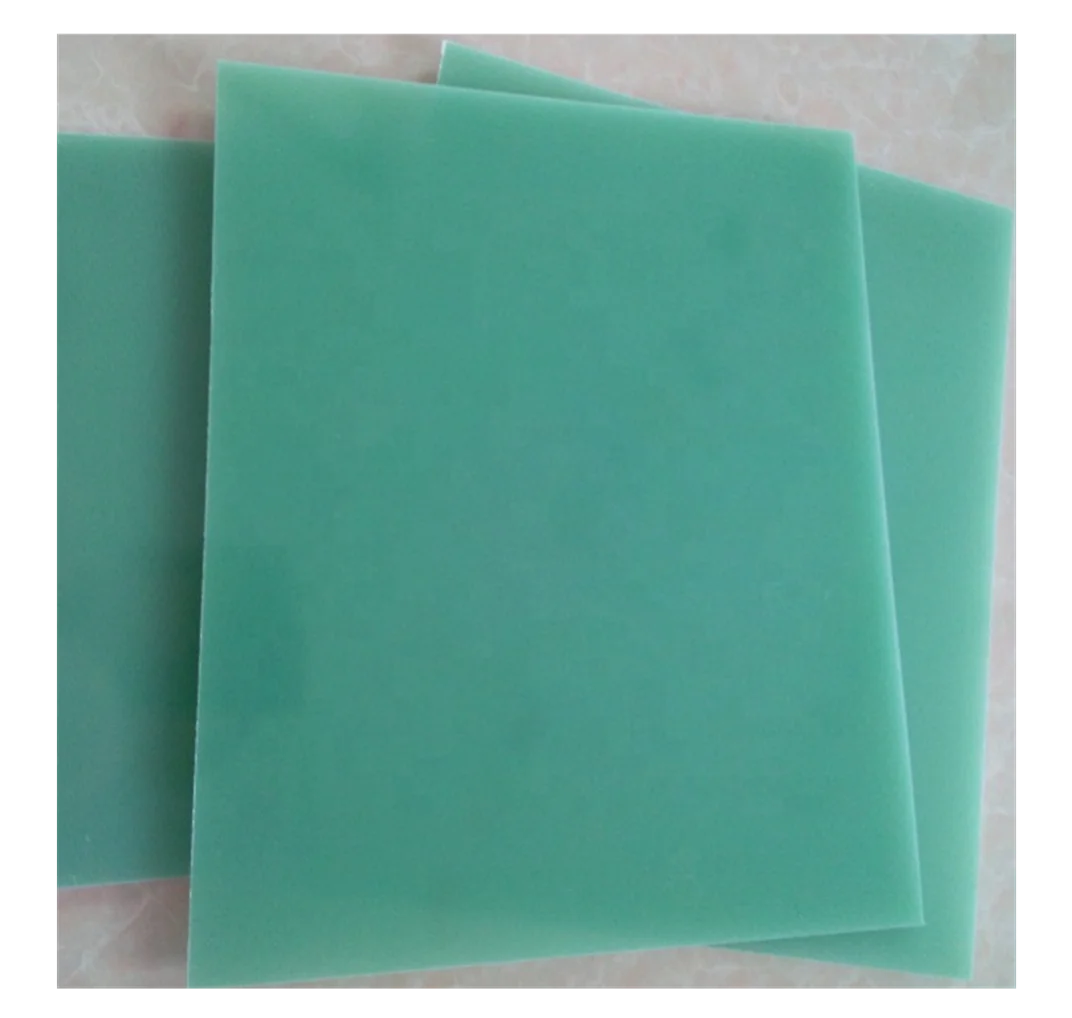

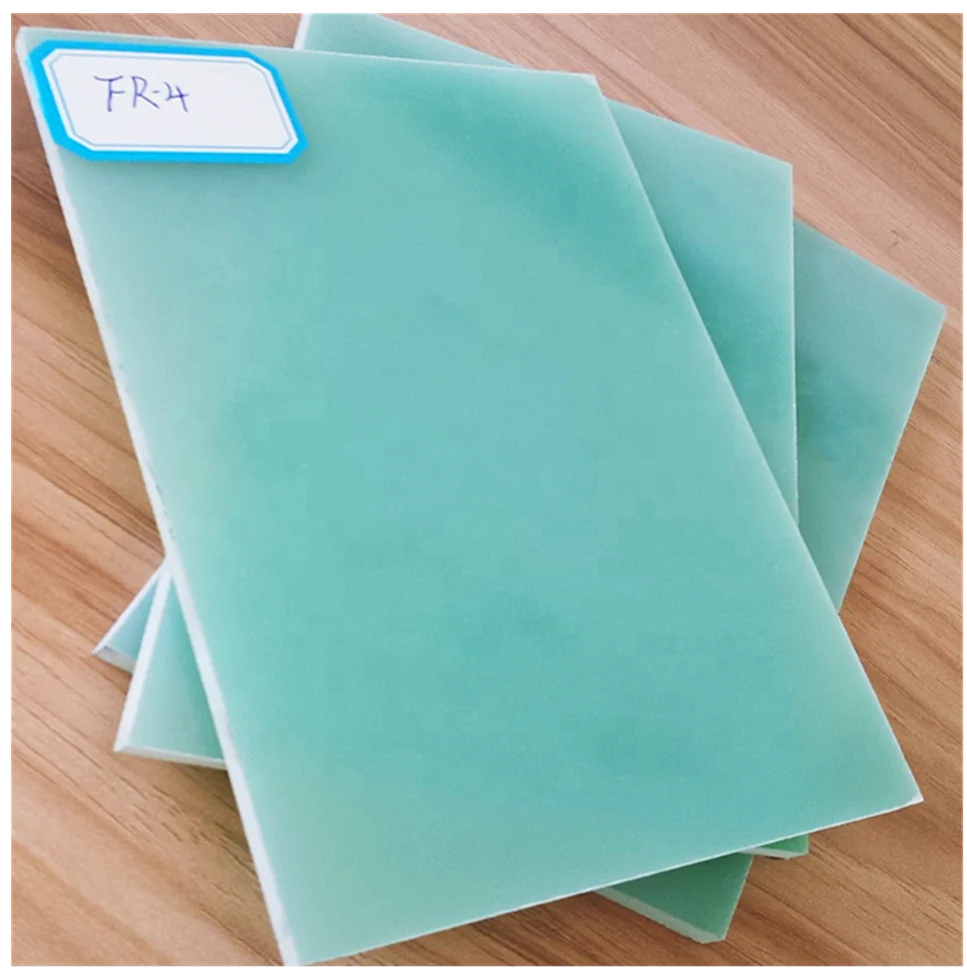

Светло-зеленый fr4 эпоксидный Стекловолоконный ламинат по
- Категории: Insulation Materials & Elements >>>
- Поставщик: Wuxi,Chifeng,Metal,Products,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product description
1.FR4/G10/G11 epoxy glass fiber laminate sheet is a composite material composed of woven fiberglass cloth and brominated flame retardant with an epoxy resin binder that is flame resistant (self-extinguishing).
2.FR stands for flame retardant, and denotes that safety of flammability of FR4 is in compliance with the standard
2.FR stands for flame retardant, and denotes that safety of flammability of FR4 is in compliance with the standard
UL94V-0.
Name | FR4/G10/G11 epoxy glass fiber laminate sheet | Size | 1020*1220mm,1020*2040mm,1220*2040mm,1220*2440mm |
Thickness | 0.2mm-100mm | Color | Light green,yellow,black |
Density | 2.06 g/cm3 | Component | Epoxy resin + Glass fiber cloth |
Relevant product parameters
ITEM | UNIT | VALUE | ||
G10 | FR4 | |||
Density | g/cm3 | 1.90~2.08 | 1.90~2.08 | |
Warpage≤ | mm | — | — | |
Thickness:3~6mm | 10 | 10 | ||
Thickness:6~8mm | 8 | 8 | ||
Thickness:>8mm | 6 | 6 | ||
Flexural strength perpendicular to lamination ≥ | MPa | — | — | |
Lengthwise | 340 | 340 | ||
Transverse direction | 250 | 250 | ||
Impact strength (charpy,Lengthwise)≥ | kJ/m2 | 37 | 37 | |
Adhesion strength≥ | N | 6500 | 6500 | |
Insulation resistance≥ | Ω | 1×1012 | 1×1012 | |
Under normal condition | 5×1010 | 5×1010 | ||
After impregnated in water at 24h | — | — | ||
Dissipation factor≤ | — | — | — | |
50Hz: | 0.04 | 0.04 | ||
1MHz: | 0.04 | 0.04 | ||
Relative dielectric constant≤ | — | — | — | |
50Hz: | 5.5 | 5.5 | ||
1MHz: | 5.5 | 5.5 | ||
Water absorption rate≤ | % | 0.25 | 0.25 | |
Voltage endurance perpendicular to lamination in transformer oil 1 min at 90±2℃≥ | — | — | ||
Thickness:0.5~1.0mmmm | kV/mm | 20 | 20 | |
Thickness:1.1~2.0mmmm | — | 18 | 18 | |
Thickness:2.1~3.0mmmm | — | 16 | 16 | |
Voltage endurance parallel to lamination in transformer oil 1 min at 90±2℃≥ | kV | 35 | 35 | |
Flammability | — | — | — | |
Oxygen index | % | — | 40 | |
Area of the sheets | mm | 1020×1220 | ||
1020×2040 | ||||
Standard | GB/T 1303-2009 / IEC60893-2003 | |||||||||||||||
Basic Info | Chinese Name | 3240 | ||||||||||||||
IEC | EPGC201 | EPGC202 | EPGC203 | EPGC204 | EPGC306 | EPGC308 | ||||||||||
NEMA | - | FR4 | G10 | FR5 | G11 | - | ||||||||||
Basic Material | Glass fiber cloth | Glass fiber cloth | Electronic Grade Glass Fiber Cloth | |||||||||||||
Resin | Epoxy | Epoxy | Heat-resistant Epoxy Resin | |||||||||||||
Color | Natural | Natural | Natural/Green | |||||||||||||
Test Item | Test Item | Unit | Value | |||||||||||||
Density | Density | g/m³ | 1.8~1.95 | |||||||||||||
Vertical Layer Bending Strength (normal) | Vertical Layer Bending Strength (normal) | MPa | ≥340 | |||||||||||||
Parallel Layer Impact Strength (simply supported beam method) | Parallel Layer Impact Strength (simply supported beam method) | KJ/m2 | ≥38 | |||||||||||||
Vertical Layer Electrical Strength(90℃transformer oil)(1mm thickness) | Vertical Layer Electrical Strength(90℃transformer oil)(1mm thickness) | Kv/mm | ≥14.2 | |||||||||||||
Parallel Layer Breakdown Voltage(90℃transformer oil) | Parallel Layer Breakdown Voltage(90℃transformer oil) | kv | ≥35 | ≥35 | ≥40 | ≥35 | ≥40 | ≥35 | ||||||||
Dielectric Constant (50Hz) | Dielectric Constant (50Hz) | - | ≤5.5 | |||||||||||||
Dielectric Constant (50Hz) | - | ≤0.04 | ||||||||||||||
Dielectric Loss Factor(50Hz) | Ω | ≥5.0*1010 | ||||||||||||||
Proof Tracking Index(PTI) | - | - | - | - | - | ≥200 | - | |||||||||
Combustibility | - | - | V-0 | - | V-0 | - | - | |||||||||
Temperature Index | - | 130 | 130 | 155 | 155 | 155 | 180 | |||||||||
Water Absorption(1-20mm thickness) | mg | 17~73 | ||||||||||||||
Note:Range values are measured for different thicknesses | ||||||||||||||||
