We adopt highly vacuumed multi-circle insulation technology to produce the biological liquid nitrogen containers, which have good performance of low temperature insulation, and evaporation can be let down to minimum. So the containers can be widely used of farming, medical treatment, scientific research, machine manufacture and other areas, In these areas liquid nitrogen can be used as cryogenic to store the animal's semen, vaccine, toadstool, other biology samples, cold metal and precision parts cryogenic assembly and so on

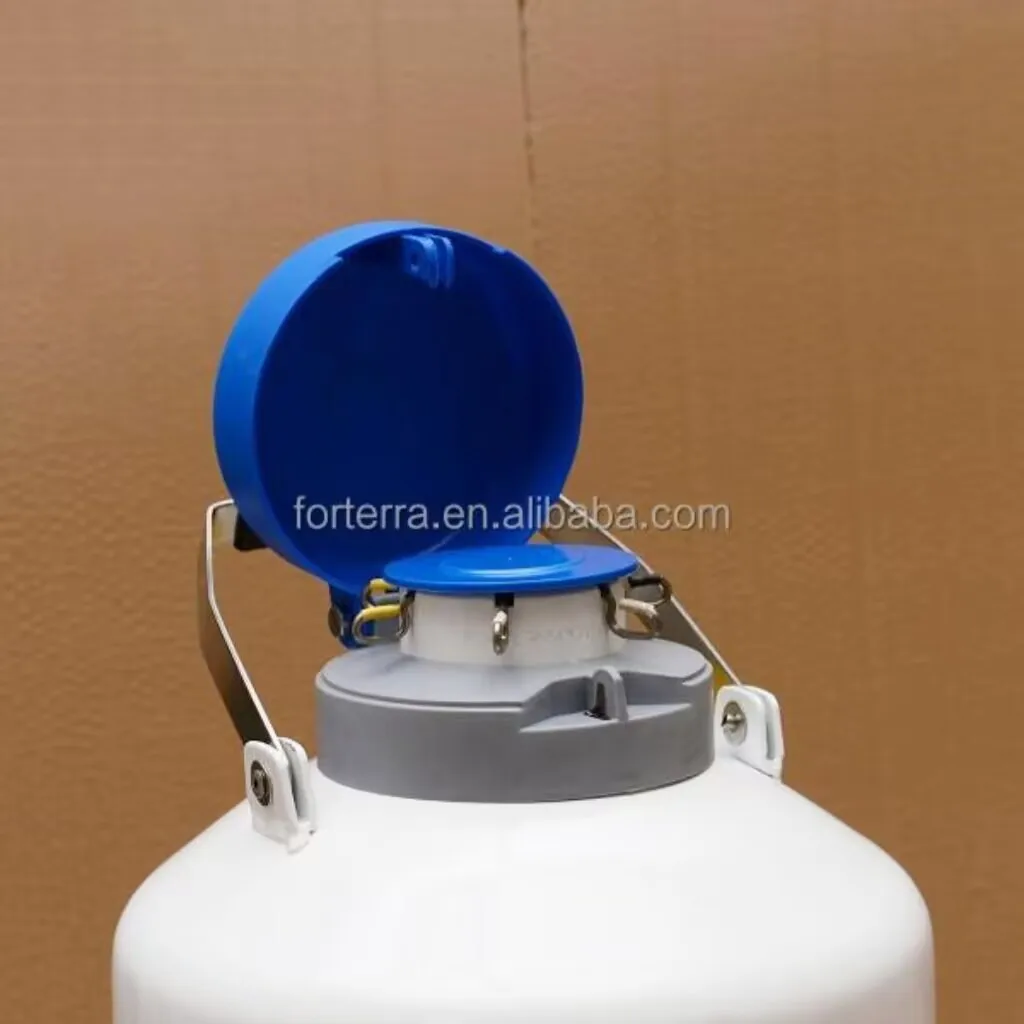

YDH-3 Liquid Nitrogen Container

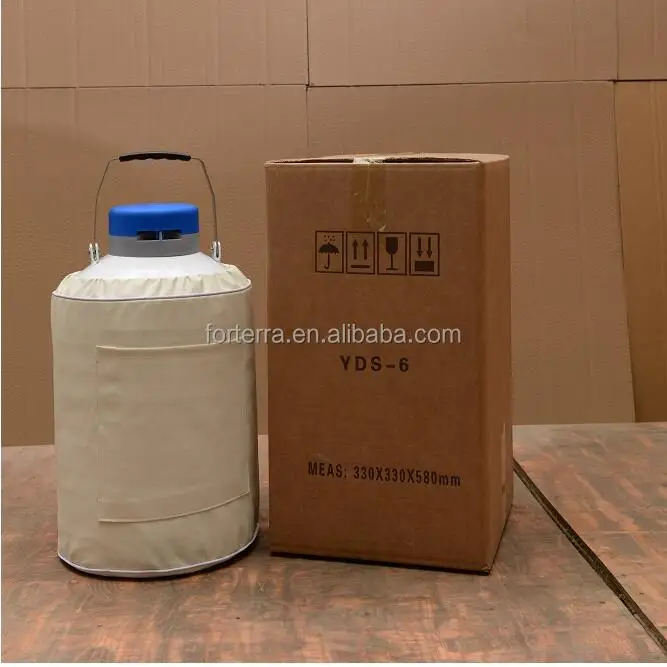

YDH-3 portable container

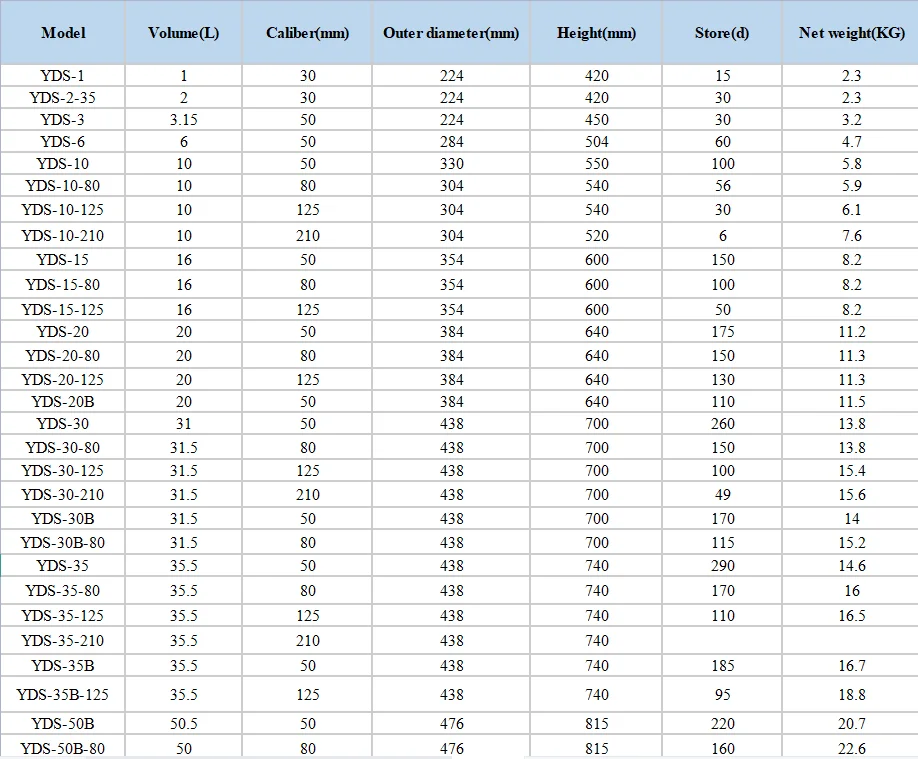

Liquid Nitrogen Container Type

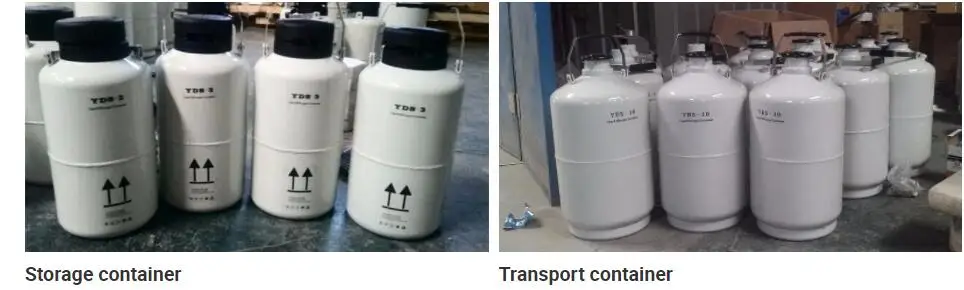

The types of nitrogen containers can be divided into two kinds: storage containers and transport containers. In terms of capacity, 3L, 5L, 6L, 10L, 15L, 20L, 29L, 30L,, 35L, 50L, and 100L.
The storage container is mainly used for indoor static storage of liquid nitrogen, should not be used in the working state under the long-distance transport; its characteristic is long storage time, such as 10 liters of liquid nitrogen tank standard storage time of 88 days -100 days; 30 liters of liquid nitrogen storage tank still save time for 243-293 days, when using the transport tank storage tank storage time short, and easy to damage. A special shock proof design was carried out to meet the requirements of transportation. Storage and transportation, in addition to the static storage, but also in the liquid nitrogen filling condition, for transportation use, but also should avoid collision and vibration intensity, it is used as a storage tank of liquid nitrogen consumption, short storage time, such as 10 liters of liquid nitrogen tank transport standard storage time for 52 days to 64 days, still 30 liters of liquid nitrogen preserved in liquid nitrogen tank transport time for 156-182 days.

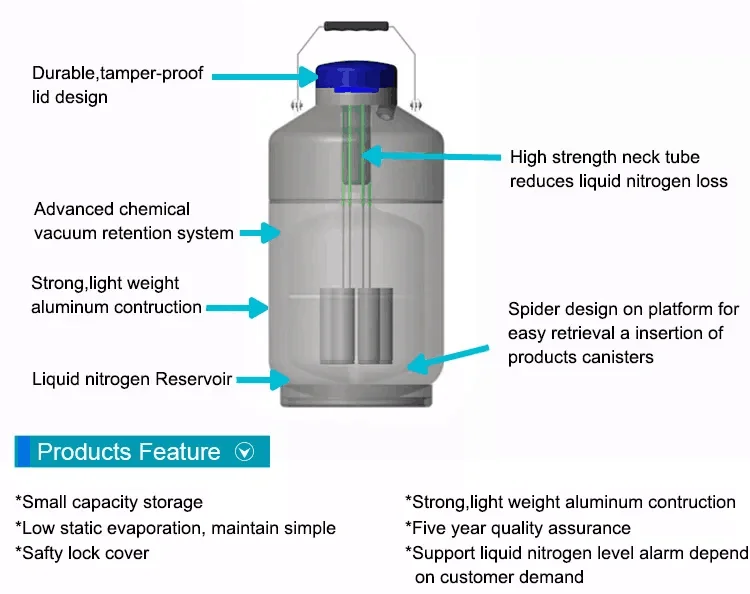

Liquid Nitrogen Container Structure
liquid Nitrogen Container Main Features
1. High quality rust proof aluminum alloy manufacturing, light product quality. 2 .The inner and outer shell of the product is formed by spinning technology, the welding seam is few, the appearance is strong and the vacuum leakage rate is guaranteed. 3. Can be in accordance with the requirements of the user can be equipped with a protective cover to ensure the safety of food samples stored in the container. 4. Numbered lifting cylinder for easy identification and independent access to biological samples. 5. Reproducible open, easy maintenance. 6. High vacuum multi-layer insulation design, with good low temperature insulation performance, it can store liquid nitrogen (-196DEG C) evaporation loss to a minimum, to provide no less than 8 years of vacuum guarantee.

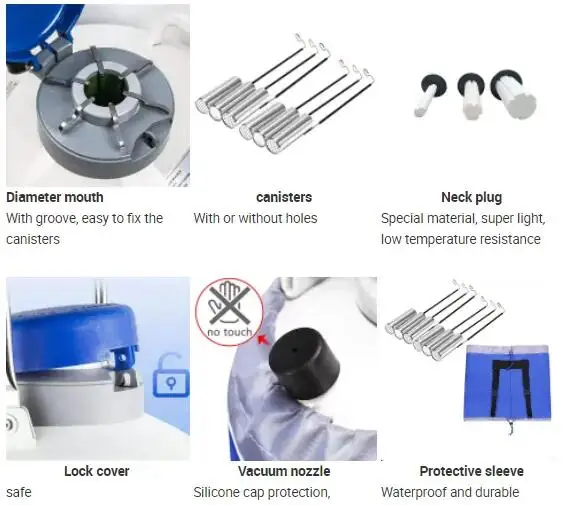

liquid Nitrogen Container More Details
Q1. What is the advantage about your company?
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3.Any other good service your company can provide?
A3. Yes,we can provide good after-sale and fast delivery.
