Машинка для производства шлака
3 500-3 980 $
Мини-горизонтальная лабораторная Планетарная шаровая мельница машина для добычи золота извести Каолина
- Категории: >>>
- Поставщик: Henan,Zoomjo,International,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
China Ball Mill Machine Manufacturer Laboratory Ceramic Ball Mill for Quartz Limestone Cement
Ball mill is the key equipment to grind the materials after they are crushed.ZOOMJO is a professional ball mill manufacturer, the ball mill is widely used in cement, silicate products, new building materials, refractory materials, chemical fertilizer, ferrous and nonferrous metal beneficiation and glass ceramics and other production industries, can be dry or wet fine grinding of various ores and other grindable materials.
Ball mill is an indispensable key equipment in the field of mineral processing, chemical industry and so on. With the rapid development of industry, the types of ball mills are becoming more and more abundant.ZOOMJO, as a senior ball mill manufacturer in China, has the ability to independently develop and customize all kinds of ball mills.
Ball mill is an indispensable key equipment in the field of mineral processing, chemical industry and so on. With the rapid development of industry, the types of ball mills are becoming more and more abundant.ZOOMJO, as a senior ball mill manufacturer in China, has the ability to independently develop and customize all kinds of ball mills.

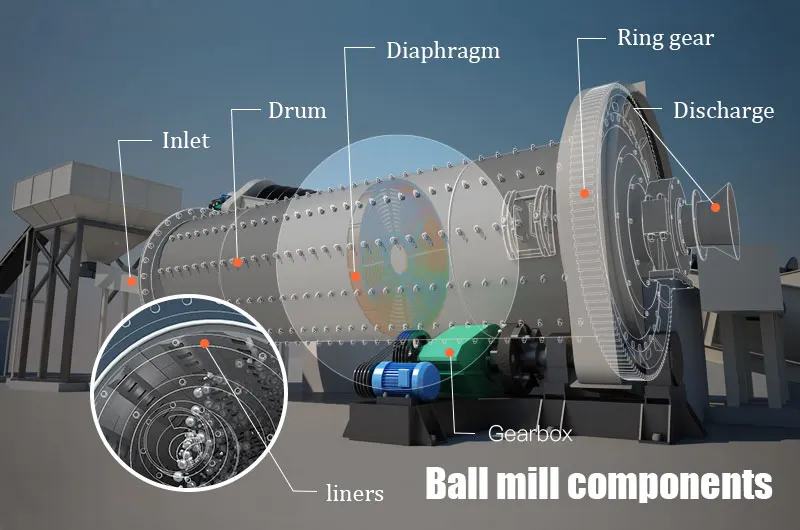

The structure of ball mill mainly includes lining plate, steel ball, gear and silo plate, etc. Among them, lining plate and steel ball are important wearing parts. Among them, the liner and steel ball are the important wearing parts of the ball mill. There are two kinds of liners: corrugated liner and flat liner, which can play a good role in assisting grinding and protecting the body. Steel ball is the main grinding part of ball mill, which is made of composite wear-resistant material. In the subsequent use process, you need to regularly check the steel balls and select new ones in time to ensure the grinding efficiency. Regular replacement of wearing parts is the key measure to ensure the excellent performance and prolong the service life of ball mill. Reasonable use and regular maintenance of ball mill parts can greatly improve the working efficiency and service life of the ball mill.
ZOOMJO produces overflow type and lattice type ball mills according to different grinding methods; according to the operation mode, it is divided into intermittent and continuous ball mills; according to the grinding effect, it is divided into ordinary ball mills and new energy-saving ball mills; according to the grinding method, it is divided into dry and wet ball mills; according to the specifications and models, it is divided into small, medium and large ball mills.
ZOOMJO produces overflow type and lattice type ball mills according to different grinding methods; according to the operation mode, it is divided into intermittent and continuous ball mills; according to the grinding effect, it is divided into ordinary ball mills and new energy-saving ball mills; according to the grinding method, it is divided into dry and wet ball mills; according to the specifications and models, it is divided into small, medium and large ball mills.
ZOOMJO can also customize high-yield energy-saving cone ball mills, alumina ball mills, copper ball mills and other special ball mills according to the actual needs of different industries to meet the individual needs of customers.
Applicable materials of ball mill: steel slag, white ash, gold ore, aluminum powder, quartz sand, aluminum powder paste, hematite, high alumina porcelain, iron ore, fluorite ore, barite, coal sludge, potassium feldspar, tungsten carbide, copper ore, sulfuric acid slag, barite, clinker, slag, bauxite, ceramic sand and so on.
Application scope of ball mill: it is widely used in cement, new building materials, refractory materials, chemical fertilizer and metal beneficiation as well as glass ceramics and other production industries.
Application scope of ball mill: it is widely used in cement, new building materials, refractory materials, chemical fertilizer and metal beneficiation as well as glass ceramics and other production industries.
Working Flow

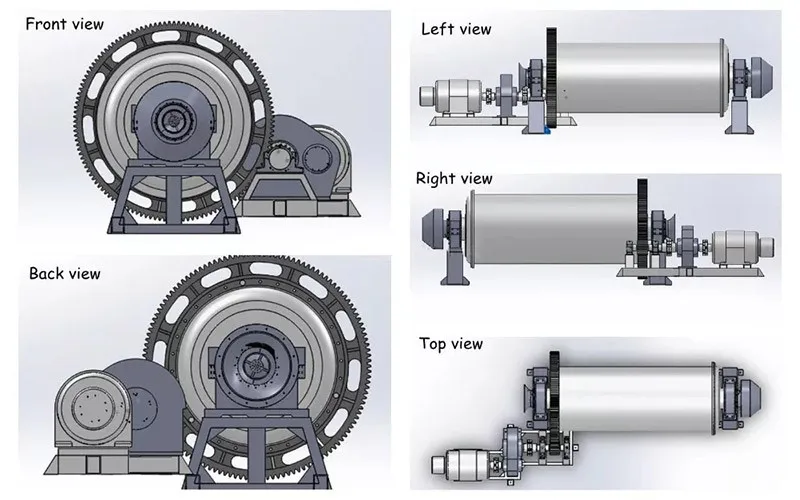

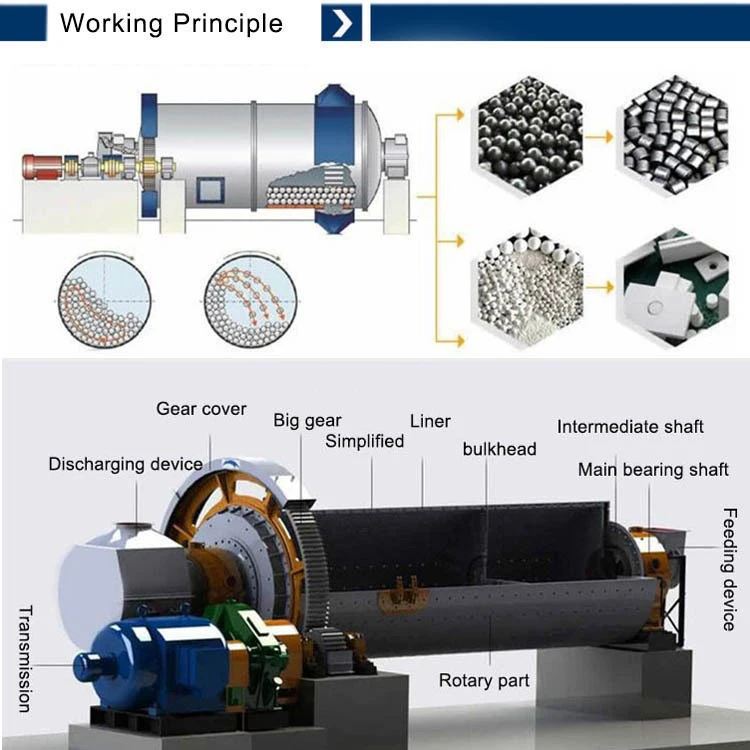

The ball mill consists of feeding part, discharging part, rotary part, transmission part (reducer, small transmission gear, motor, electric control) and other main parts. The hollow shaft is made of cast steel, the inner lining can be removed and replaced, the rotary gear is made of cast hobbing gear, and the cylinder body is set with wear-resistant lining plate, which has good wear resistance.
The working principle of the ball mill is as follows: the material enters into the first grinding silo uniformly through the feeding device and the spiral of the hollow shaft, and the first silo is equipped with stepped lining board or corrugated lining board, and steel balls of different specifications. The centrifugal force generated when the cylinder rotates drives the steel balls to rise to a certain height and then fall down, which produces impact and grinding effect on the materials and makes the materials reach the rough grinding state.
The working principle of the ball mill is as follows: the material enters into the first grinding silo uniformly through the feeding device and the spiral of the hollow shaft, and the first silo is equipped with stepped lining board or corrugated lining board, and steel balls of different specifications. The centrifugal force generated when the cylinder rotates drives the steel balls to rise to a certain height and then fall down, which produces impact and grinding effect on the materials and makes the materials reach the rough grinding state.
The roughly ground material enters into the second grinding bin through the single-layer bulkhead, and the second bin is equipped with flat lining boards and steel balls to further crush and grind the material. The ground powder material is discharged through the discharging grate plate to complete the whole grinding operation.
Product Featrues
Advantages Of ZOOMJO Ball Mill：
1、High wear-resistant and impact-resistant (liner plate)
Treated by advanced dual media quenching process, the liner plate can withstand huge impact force in production, and keep the surface shape of the liner plate for a long time in production, so as to reduce the deformation and abrasion of the liner plate.
2、Strong adaptability of liner plate
Compared with the high manganese steel liner on the market, the ball mill liner produced by ZOOMJO adopts medium alloy double medium quenching medium alloy steel, which shows high cost performance and can adapt to the wet grinding, dry grinding and mixed grinding of various mining rocks.
3、High bending strength of gear (gear)
The ball mill parts adopt the gears with variable position, so that the gears with weak bending strength are strengthened to a greater extent, so that the bending strength of the wheel teeth is more than doubled.
1、High wear-resistant and impact-resistant (liner plate)
Treated by advanced dual media quenching process, the liner plate can withstand huge impact force in production, and keep the surface shape of the liner plate for a long time in production, so as to reduce the deformation and abrasion of the liner plate.
2、Strong adaptability of liner plate
Compared with the high manganese steel liner on the market, the ball mill liner produced by ZOOMJO adopts medium alloy double medium quenching medium alloy steel, which shows high cost performance and can adapt to the wet grinding, dry grinding and mixed grinding of various mining rocks.
3、High bending strength of gear (gear)
The ball mill parts adopt the gears with variable position, so that the gears with weak bending strength are strengthened to a greater extent, so that the bending strength of the wheel teeth is more than doubled.
4、Good lubrication, reliable operation
Shift gears can reduce the sliding speed of meshing and reduce the sliding ratio, thereby improving the wear resistance of gears and anti-glue performance, but also improve the hydrodynamic performance of gear transmission and lubrication status, improving the reliability of the ball mill operation.
5、Heat insulation and cooling, long life (bearing)
The diameter of the hollow shaft in the rolling bearing part of the ball mill is thickened, so that the radial distance between the rolling bearing and the inlet and outlet spiral cylinder is increased, which plays a certain role of heat insulation and cooling, and prolongs the service life of the bearing.
6、Energy saving and less wear and tear
Thin oil lubrication is used instead of grease lubrication to prevent poor lubrication due to lack of oil, which makes the friction coefficient of bearings and other parts smaller, and greatly reduces the loss rate of parts.
Shift gears can reduce the sliding speed of meshing and reduce the sliding ratio, thereby improving the wear resistance of gears and anti-glue performance, but also improve the hydrodynamic performance of gear transmission and lubrication status, improving the reliability of the ball mill operation.
5、Heat insulation and cooling, long life (bearing)
The diameter of the hollow shaft in the rolling bearing part of the ball mill is thickened, so that the radial distance between the rolling bearing and the inlet and outlet spiral cylinder is increased, which plays a certain role of heat insulation and cooling, and prolongs the service life of the bearing.
6、Energy saving and less wear and tear
Thin oil lubrication is used instead of grease lubrication to prevent poor lubrication due to lack of oil, which makes the friction coefficient of bearings and other parts smaller, and greatly reduces the loss rate of parts.
Technical Parameter
Model | Shell rotation speed （r/min） | Ball load (t) | Feeding size (mm) | Discharging size (mm) | Capacity (t/h) |
Ф900×1800 | 36-38 | 1.5 | <20 | 0.075-0.89 | 0.65-2 |
Ф900×3000 | 36 | 2.7 | <20 | 0.075-0.89 | 1.1-3.5 |
Ф1200×2400 | 36 | 3 | <25 | 0.075-0.6 | 1.5-4.8 |
Ф1200×3000 | 36 | 3.5 | <25 | 0.074-0.4 | 1.6-5 |
Ф1200×4500 | 32.4 | 5 | <25 | 0.074-0.4 | 1.6-5.8 |
Ф1500×3000 | 29.7 | 7.5 | <25 | 0.074-0.4 | 2-5 |
Ф1500×4500 | 27 | 11 | <25 | 0.074-0.4 | 3-6 |
Ф1500×5700 | 28 | 12 | <25 | 0.074-0.4 | 3.5-6 |
Ф1830×3000 | 25.4 | 11 | <25 | 0.074-0.4 | 4-10 |
Ф1830×4500 | 25.4 | 15 | <25 | 0.074-0.4 | 4.5-12 |
Ф1830×6400 | 24.1 | 21 | <25 | 0.074-0.4 | 6.5-15 |
Ф1830×7000 | 24.1 | 23 | <25 | 0.074-0.4 | 7.5-17 |
Ф2100×3000 | 23.7 | 15 | <25 | 0.074-0.4 | 6.5-36 |
Ф2100×4500 | 23.7 | 24 | <25 | 0.074-0.4 | 8-43 |
Ф2100×7000 | 23.7 | 26 | <25 | 0.074-0.4 | 12-48 |
Ф2200×4500 | 21.5 | 27 | <25 | 0.074-0.4 | 9-45 |
Ф2200×6500 | 21.7 | 35 | <25 | 0.074-0.4 | 14-26 |
Ф2200×7000 | 21.7 | 35 | <25 | 0.074-0.4 | 15-28 |
Ф2200×7500 | 21.7 | 35 | <25 | 0.074-0.4 | 15-30 |
Ф2400×3000 | 21 | 23 | <25 | 0.074-0.4 | 7-50 |
Ф2400×4500 | 21 | 30 | <25 | 0.074-0.4 | 8.5-60 |
Ф2700×4000 | 20.7 | 40 | <25 | 0.074-0.4 | 22-80 |
Ф2700×4500 | 20.7 | 48 | <25 | 0.074-0.4 | 26-90 |
Ф3200×4500 | 18 | 65 | <25 | 0.074-0.4 | As per process conditions |
Ф3600×4500 | 17 | 90 | <25 | 0.074-0.4 | As per process conditions |
Ф3600×6000 | 17 | 110 | <25 | 0.074-0.4 | As per process conditions |
Ф3600×8500 | 18 | 131 | <25 | 0.074-0.4 | 45.8-256 |
Ф4000×5000 | 16.9 | 121 | <25 | 0.074-0.4 | 45-208 |
Ф4000×6000 | 16.9 | 146 | <25 | 0.074-0.4 | 65-248 |
Ф4000×6700 | 16.9 | 149 | <25 | 0.074-0.4 | 75-252 |
Ф4500×6400 | 15.6 | 172 | <25 | 0.074-0.4 | 84-306 |
Ф5030×6400 | 14.4 | 216 | <25 | 0.074-0.4 | 98-386 |
Ф5030×8300 | 14.4 | 266 | <25 | 0.074-0.4 | 118-500 |
Ф5500×8500 | 13.8 | 338 | <25 | 0.074-0.4 | 148-615 |
Customer Cases
ZOOMJO's mining process equipment, including high efficiency concentrator, crusher, ball mill, agitator tank, flotation machine, screening equipment, drying equipment, etc., have been successfully sold to more than 160 countries around the world, covering South Africa, Tanzania, Nigeria, Ethiopia, Kenya, Egypt, Zambia, Uganda, Ghana, India, Indonesia, Singapore, Australia and other countries.
Packaging Details: We will make different packaging according to different machine sizes. Standard international export packing, container, wooden box.
Delivery Time: We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 20 to 30 working days.
Our Advantages
EPCM all-inclusive service
ZOOMJO not only focuses on the manufacturing of mining equipment, but also provides a full range of services from engineering consulting, beneficiation test and research, to equipment manufacturing, installation and commissioning, personnel training, long-term tracking service and plant management and operation, so as to enable customers to realize one-stop solutions, shorten the construction period, and realize the benefits earlier.
High quality mining equipment

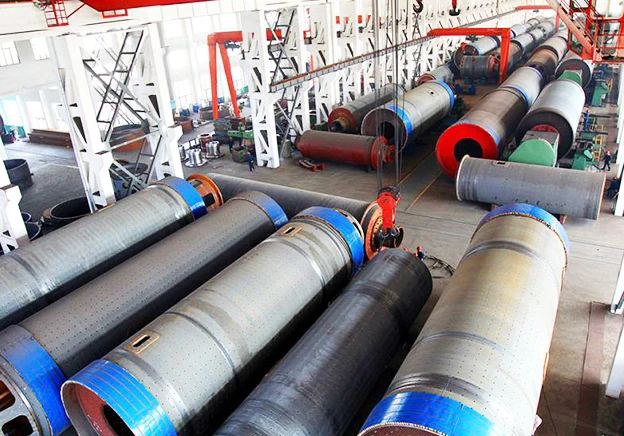

ZOOMJO in the production of equipment, from procurement to quality control process strictly control, to ensure that the raw materials are flawless. At the same time, each product is fully inspected and pre-acceptance, and debugging, to eliminate quality problems.
Shipping and Transportation
The equipment will be shipped in time after completion of manufacture. If the contract requires guided installation or contracted installation, after the site has the installation conditions, the company will quickly send staff on-site operation, and establish customer files, provide permanent tracking service to ensure long-term normal operation of the project to avoid customer losses. At the same time, we provide one year warranty for the whole machine, if there is any problem, you can contact us to deal with it.
About after-sales service
ZOOMJO after-sales service team consists of 50 experienced technicians, including old experts and senior technicians with more than 20 years of mining experience. We promise to arrive at the scene within 24 hours at home and 48 hours abroad (excluding passport time) to solve the problem quickly, which will greatly shorten the production downtime and reduce the loss of customers.
ZOOMJO not only focuses on the manufacturing of mining equipment, but also provides a full range of services from engineering consulting, beneficiation test and research, to equipment manufacturing, installation and commissioning, personnel training, long-term tracking service and plant management and operation, so as to enable customers to realize one-stop solutions, shorten the construction period, and realize the benefits earlier.
High quality mining equipment
ZOOMJO in the production of equipment, from procurement to quality control process strictly control, to ensure that the raw materials are flawless. At the same time, each product is fully inspected and pre-acceptance, and debugging, to eliminate quality problems.
Shipping and Transportation
The equipment will be shipped in time after completion of manufacture. If the contract requires guided installation or contracted installation, after the site has the installation conditions, the company will quickly send staff on-site operation, and establish customer files, provide permanent tracking service to ensure long-term normal operation of the project to avoid customer losses. At the same time, we provide one year warranty for the whole machine, if there is any problem, you can contact us to deal with it.
About after-sales service
ZOOMJO after-sales service team consists of 50 experienced technicians, including old experts and senior technicians with more than 20 years of mining experience. We promise to arrive at the scene within 24 hours at home and 48 hours abroad (excluding passport time) to solve the problem quickly, which will greatly shorten the production downtime and reduce the loss of customers.
Company Profile

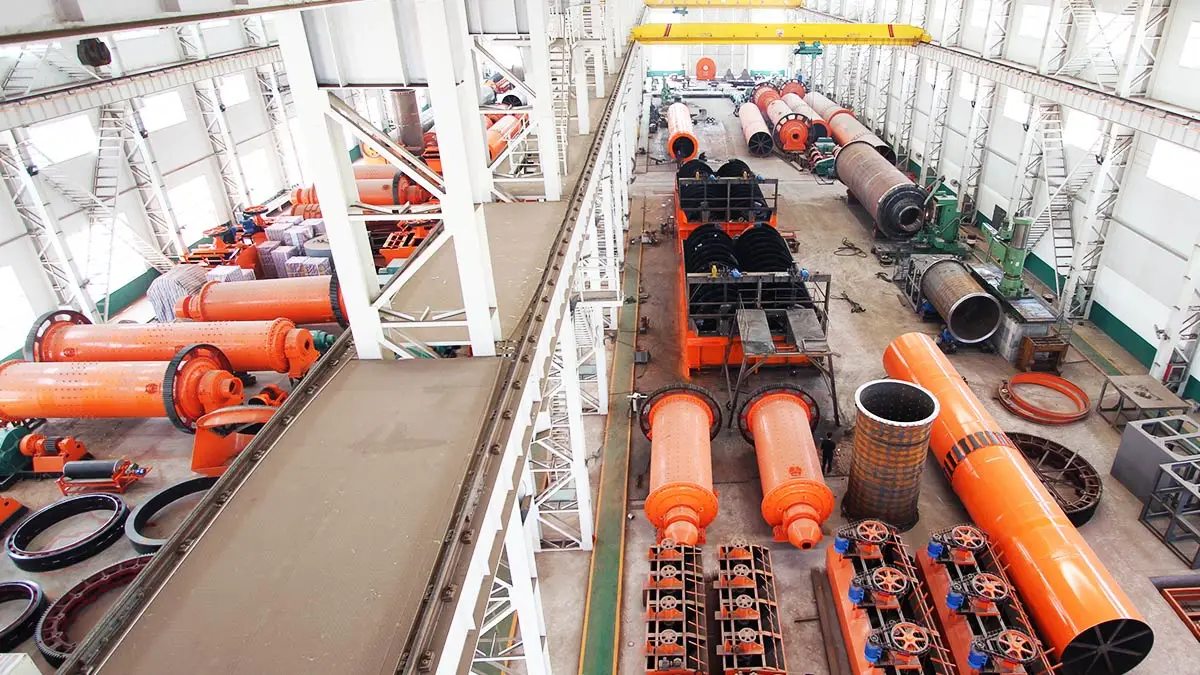

ZOOMJO is a large-scale enterprise that mainly produces heavy mining machinery and integrates scientific research, production and sales. It mainly produces various large and medium-sized crushing equipment, sand making equipment, drying and calcining equipment, mineral processing equipment and other series of products.
ZOOMJO has developed steadily from its establishment to the present with its technical strength, and has grown stronger day by day, and has gathered a large number of high-level management and scientific research personnel. Our company covers an area of 50,000 square meters, and another 10,000 square meters of modern office space, R&D center and sales center. The company has more than 500 employees, including more than 20 intermediate technicians. With strong technical strength, scientific management system and high product quality, ZOOMJO will rapidly grow into an important production and export base of mining machinery.
FAQ
1. How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every grinder before delivery.
2. Is the price of products reliable?
Yes, we are manufacturer and we have the strength to give you the lowest price compared with other dealers. However, we have the policy that "According to the quantity order, we will offer the lowest price as possible with our utterly honest attitude towards business ".
3. Will you help with installation and staff training?
Yes, we can send our engineers to your place to guide the installation and train your workers if needed, but the buyer should bear our technician’s round tickets, accommodation, and food.
4. Service and Payment Terms?
a. We usually accept T/T, L/C, but other terms also workable.
b. We take pictures of finished products before delivery.
Our products are manufactured strictly according to national and international standard, and we take a test on every grinder before delivery.
2. Is the price of products reliable?
Yes, we are manufacturer and we have the strength to give you the lowest price compared with other dealers. However, we have the policy that "According to the quantity order, we will offer the lowest price as possible with our utterly honest attitude towards business ".
3. Will you help with installation and staff training?
Yes, we can send our engineers to your place to guide the installation and train your workers if needed, but the buyer should bear our technician’s round tickets, accommodation, and food.
4. Service and Payment Terms?
a. We usually accept T/T, L/C, but other terms also workable.
b. We take pictures of finished products before delivery.
