Машина для прокатки листового металла
US $10000
Шпилька и стеллаж железный лист доска для гипсокартона стальной профиль гипсокартон потолочные профили делая
- Категории: >>>
- Поставщик: Henan,Jane,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description

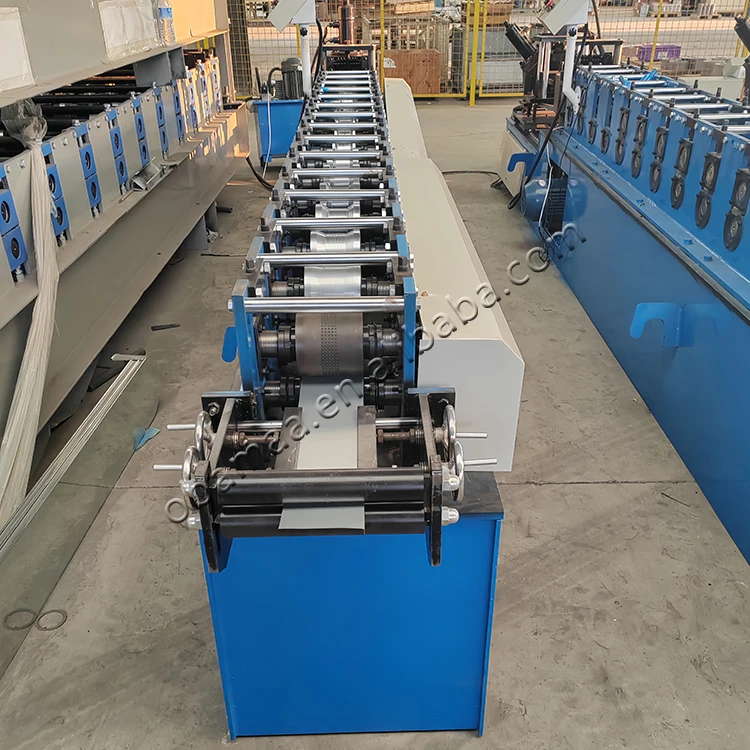

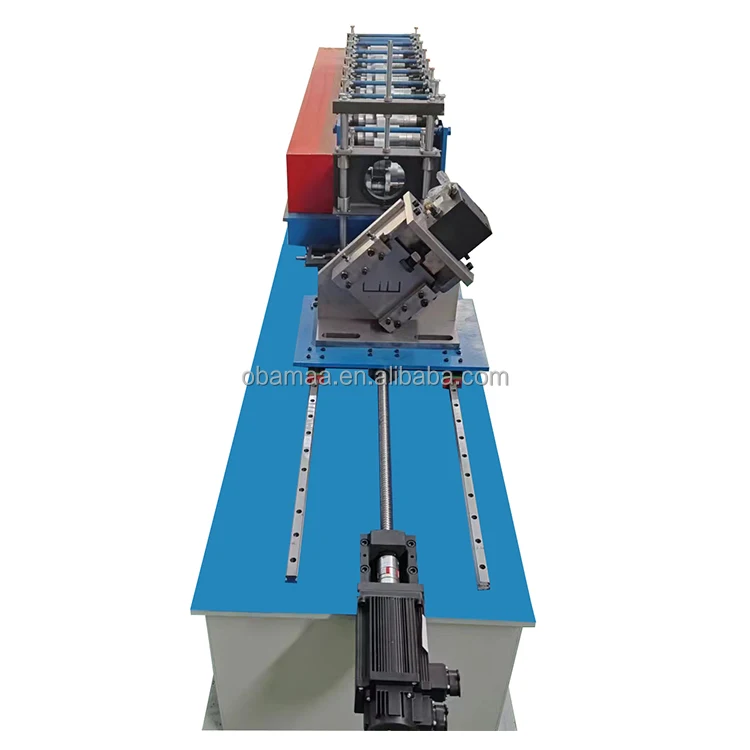

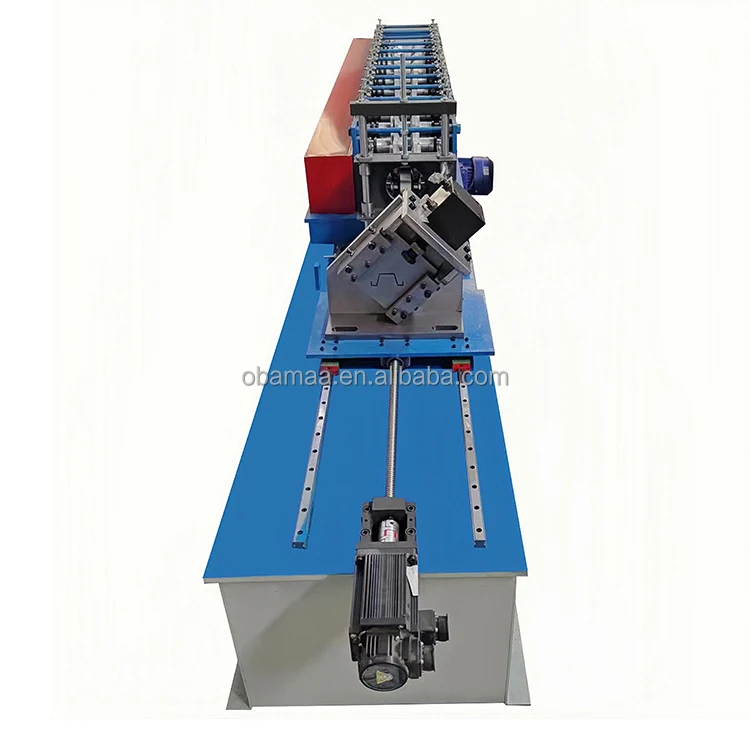

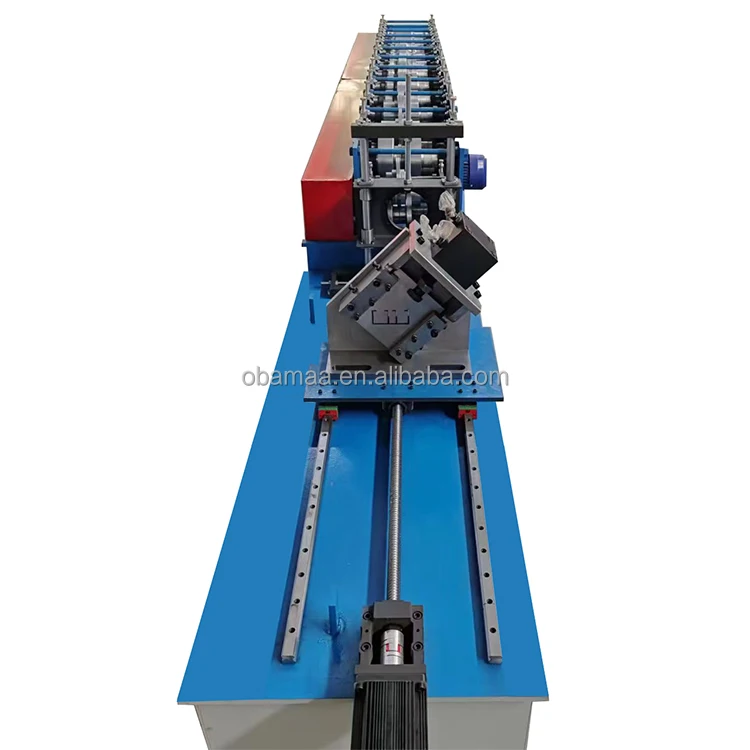

Omega channel profiles keel roll forming machine
The fully automatic Omega type purlin forming machine is a set of rollers used to produce various specifications of Omega purlin forming machines for single finished products. It consists of a passive loading frame, leveling device, punching device, post forming cutting device, hydraulic station, and computer control system. This machine adopts automatic flying saw punching, which is easy to operate. The Omega shaped purlins processed by this machine have good pressure performance, good flatness, automatic length cutting, automatic punching, high degree of automation, and fast and convenient installation.

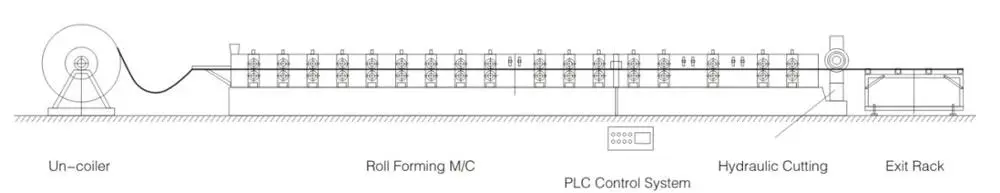

Work processing
Specification
Omega channel profiles keel roll forming machine | ||||||
SN | Part details | Item Name | Specification | |||
1 | Material | Raw material | Steel | |||
Thickness | 0.3-1 mm | |||||
2 | Machine | Roller station | 12- 20 | |||
Shaft diameter | 55 mm | |||||
Shaft material | 45# steel with 0.05mm chrome | |||||
Roller material hardness 30-40 HRC | Cr 12 | |||||
Machine size | 4200*800*1000mm | |||||
Machine weight | About 2.5 ton | |||||
Machine color | As customer' request | |||||
Working speed | 20-25 m/min | |||||
3 | Cutter | Operate | Hydraulic cutting | |||
Material | Cr 12 | |||||
Hardness | 50-65 HRC | |||||
Cutting tolerance | ± 1 mm | |||||
4 | Power | Main power | 4 kw | |||
Pump power | 3 kw | |||||
Driving way | Chain 1 inch | |||||
Voltage | Customize as customer' request | |||||
5 | Control system | Language | English or add language as customer need | |||
PLC brand | Delta or customize as customer' request | |||||
Screen | Touchable screen | |||||
6 | Decoiler | Operation | Manual | |||
Weight capicatity | 3 tons or 5 tons | |||||
Price | Free as gift | |||||
7 | Receiving table | Operation | Manual | |||
Length | 3 m | |||||
Price | Free as gift | |||||

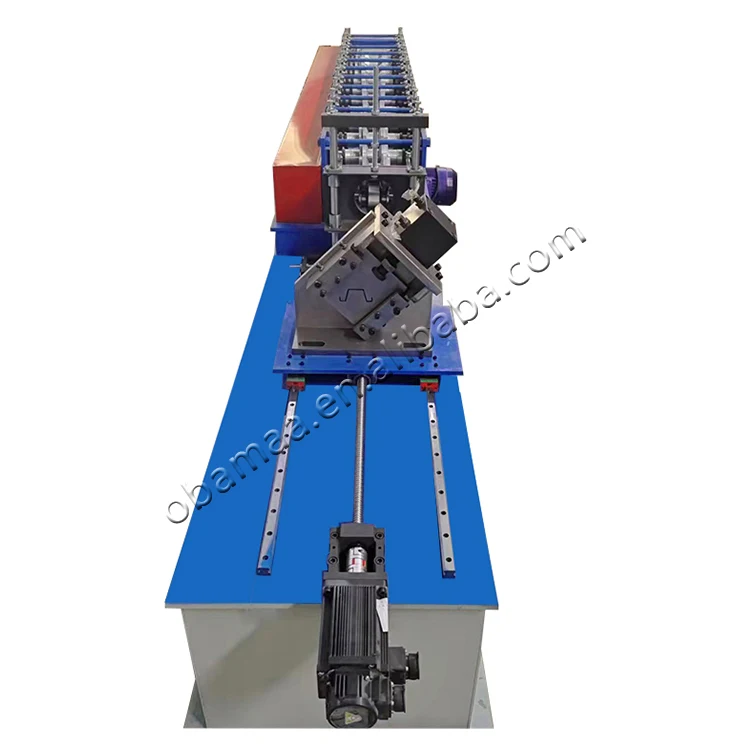

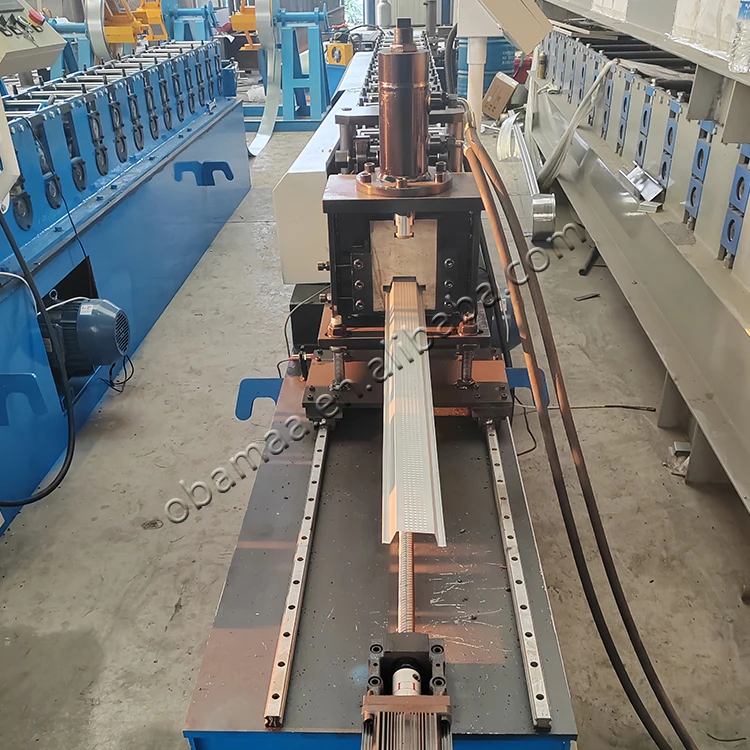

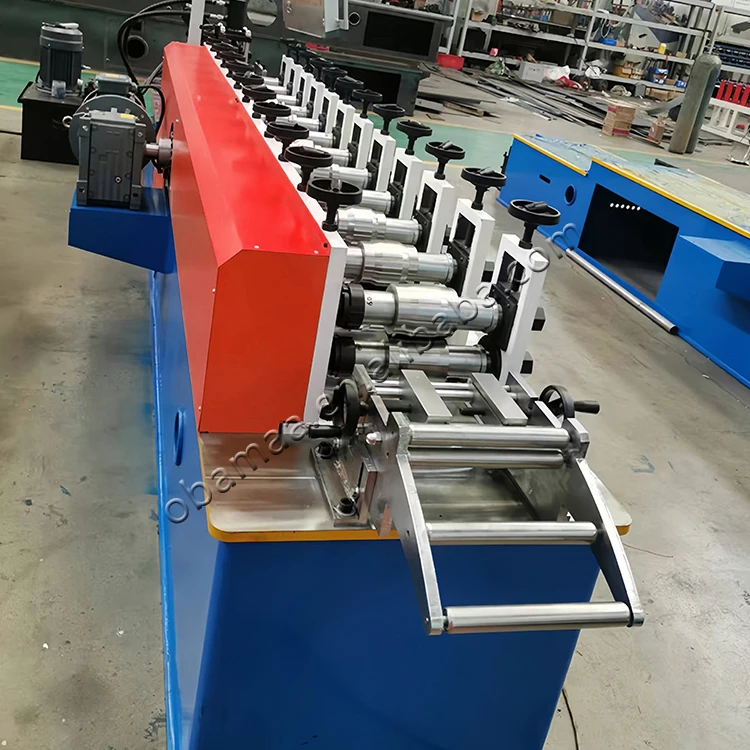

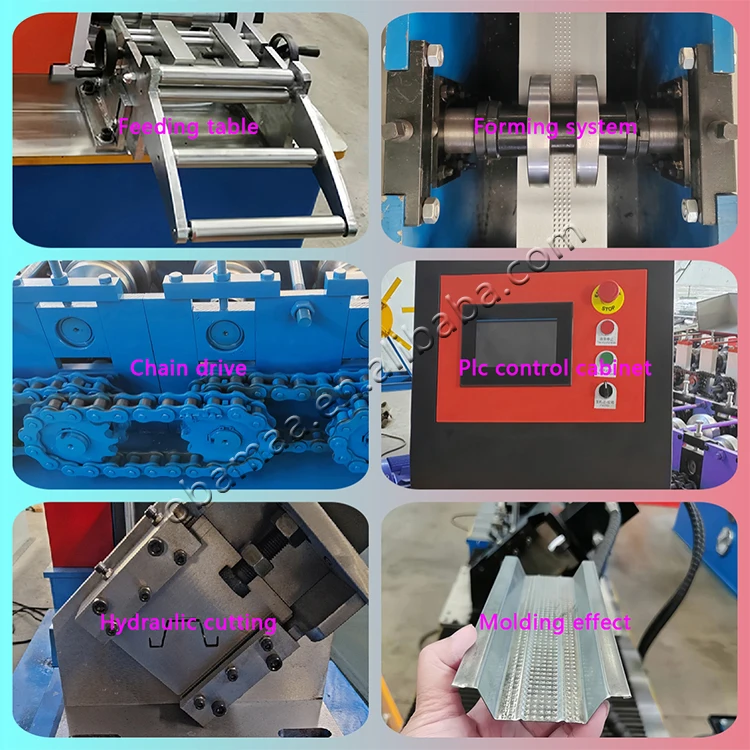

Product Details
Sample Room

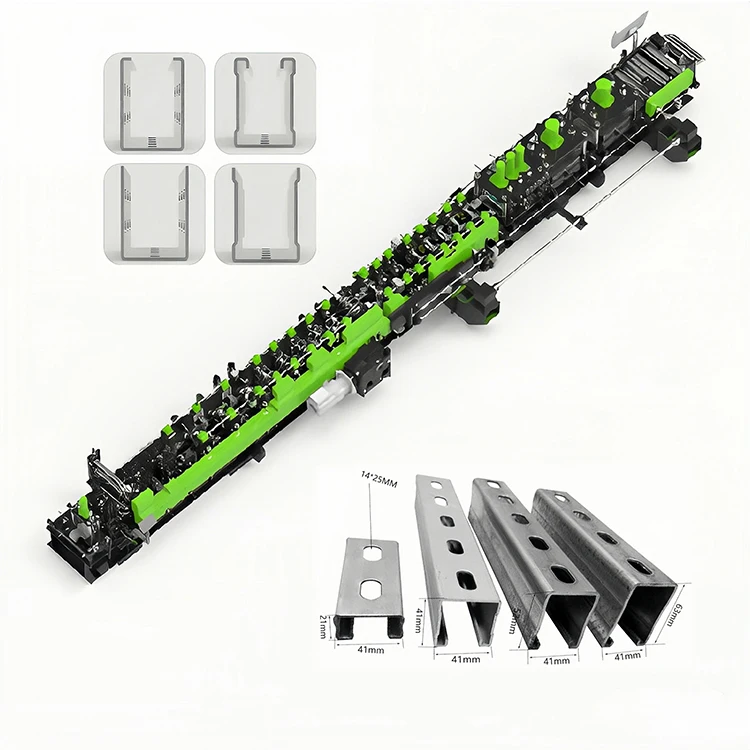

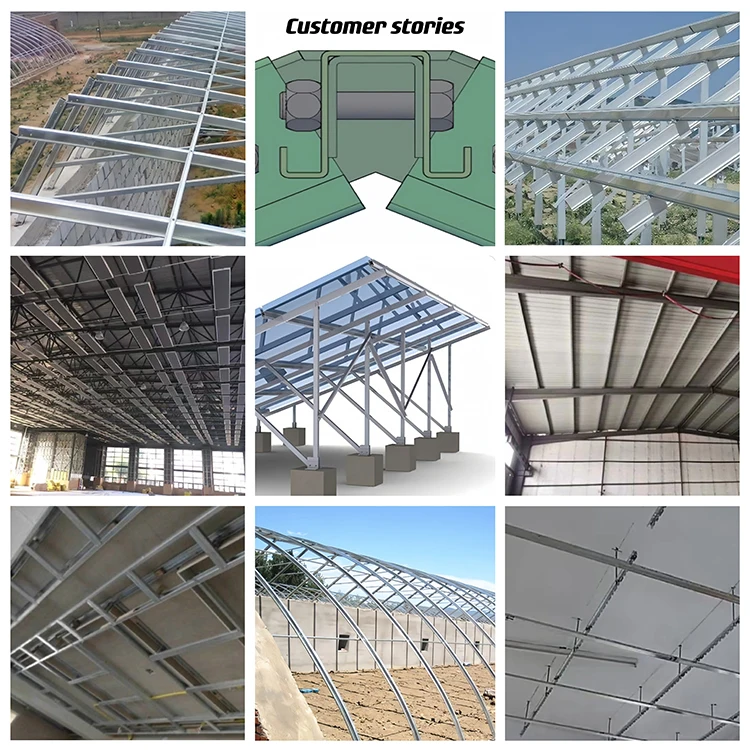

Finished product effect for your reference.
The following are the products produced by our machine. Please check the rolling forming effect.

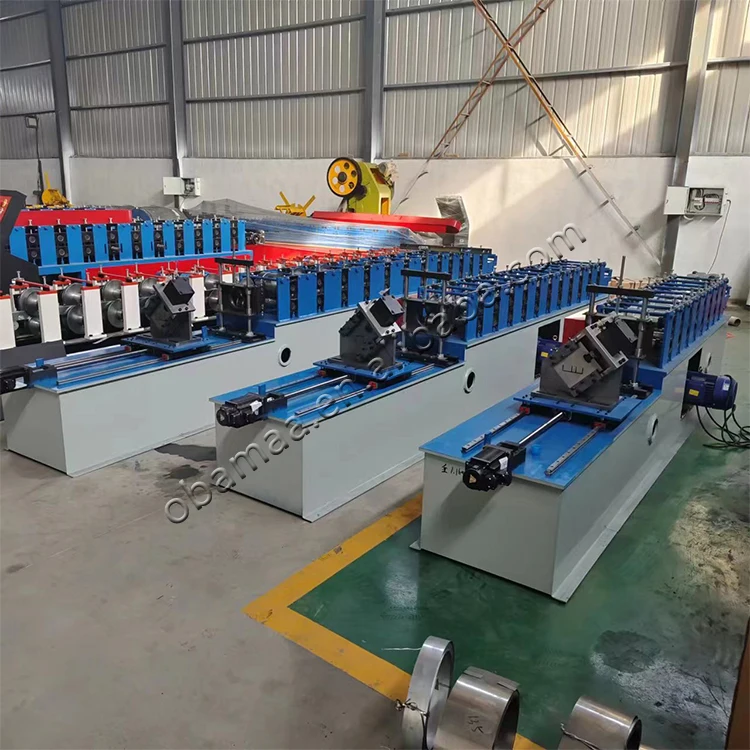

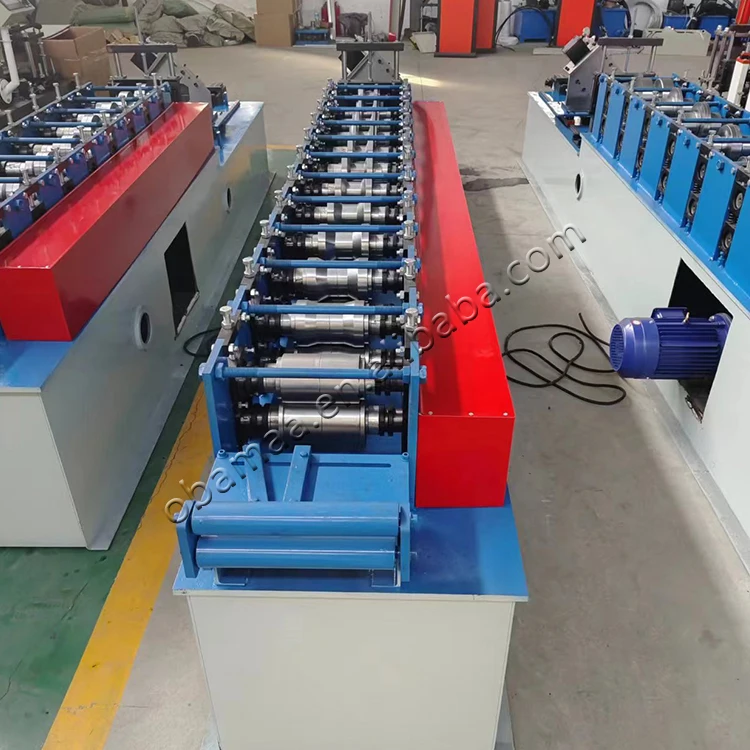

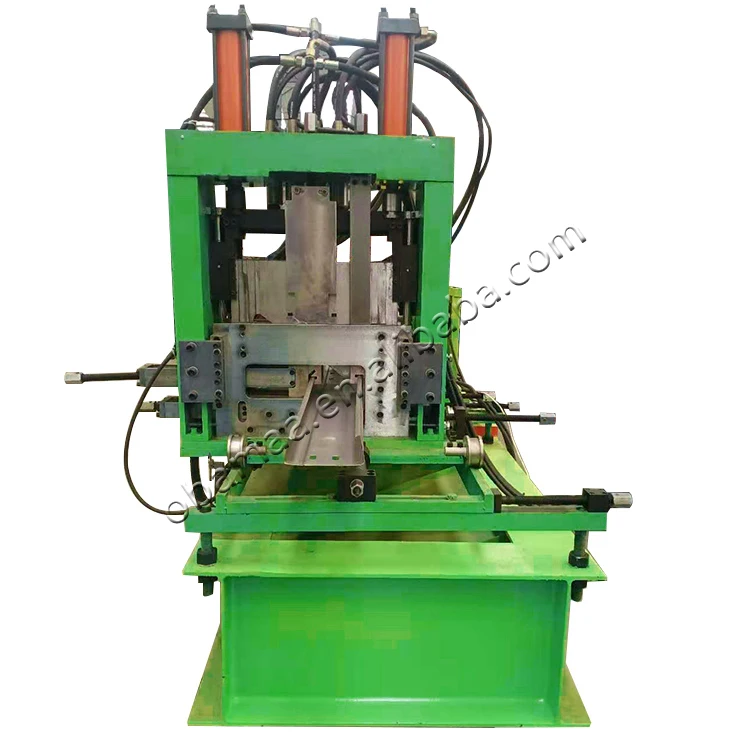

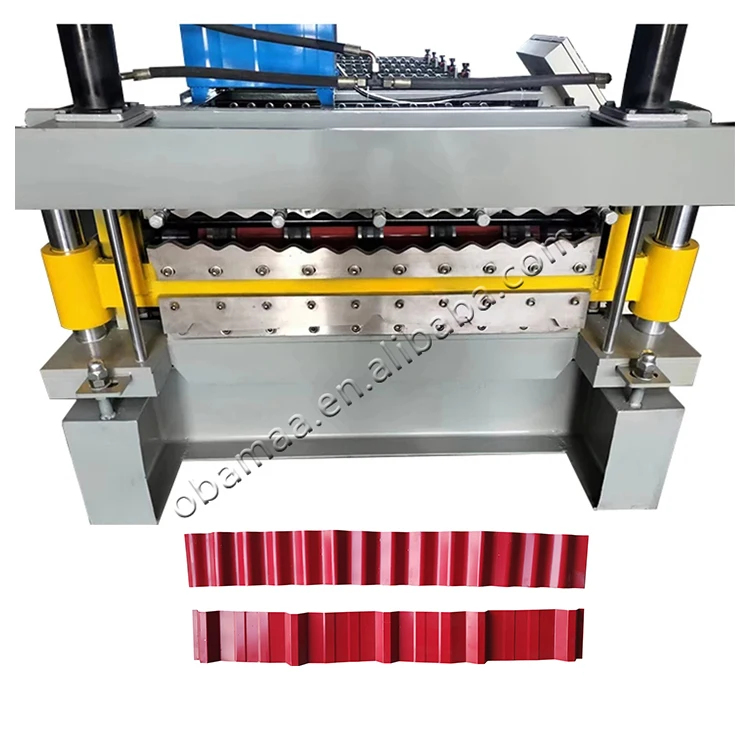

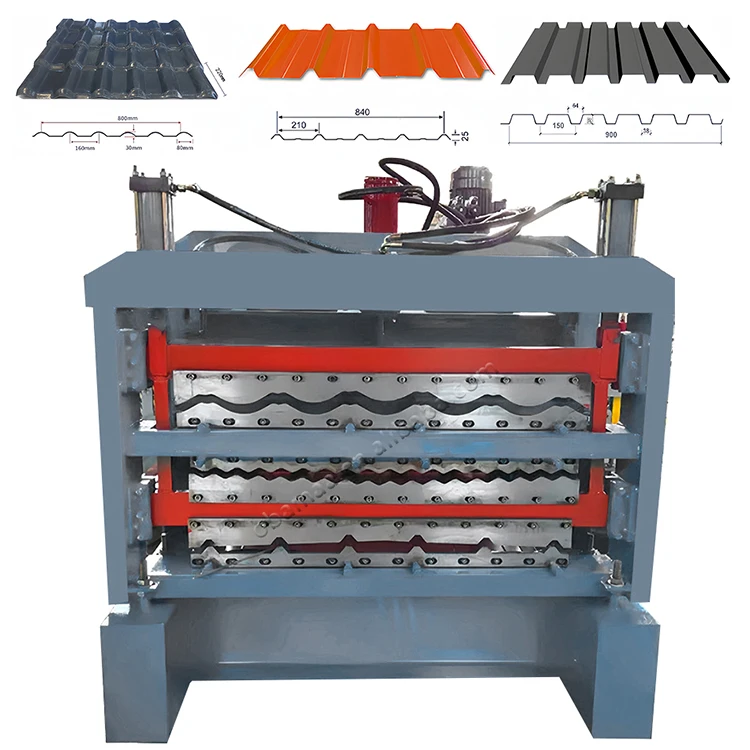

Other Product
Packing&Delivery

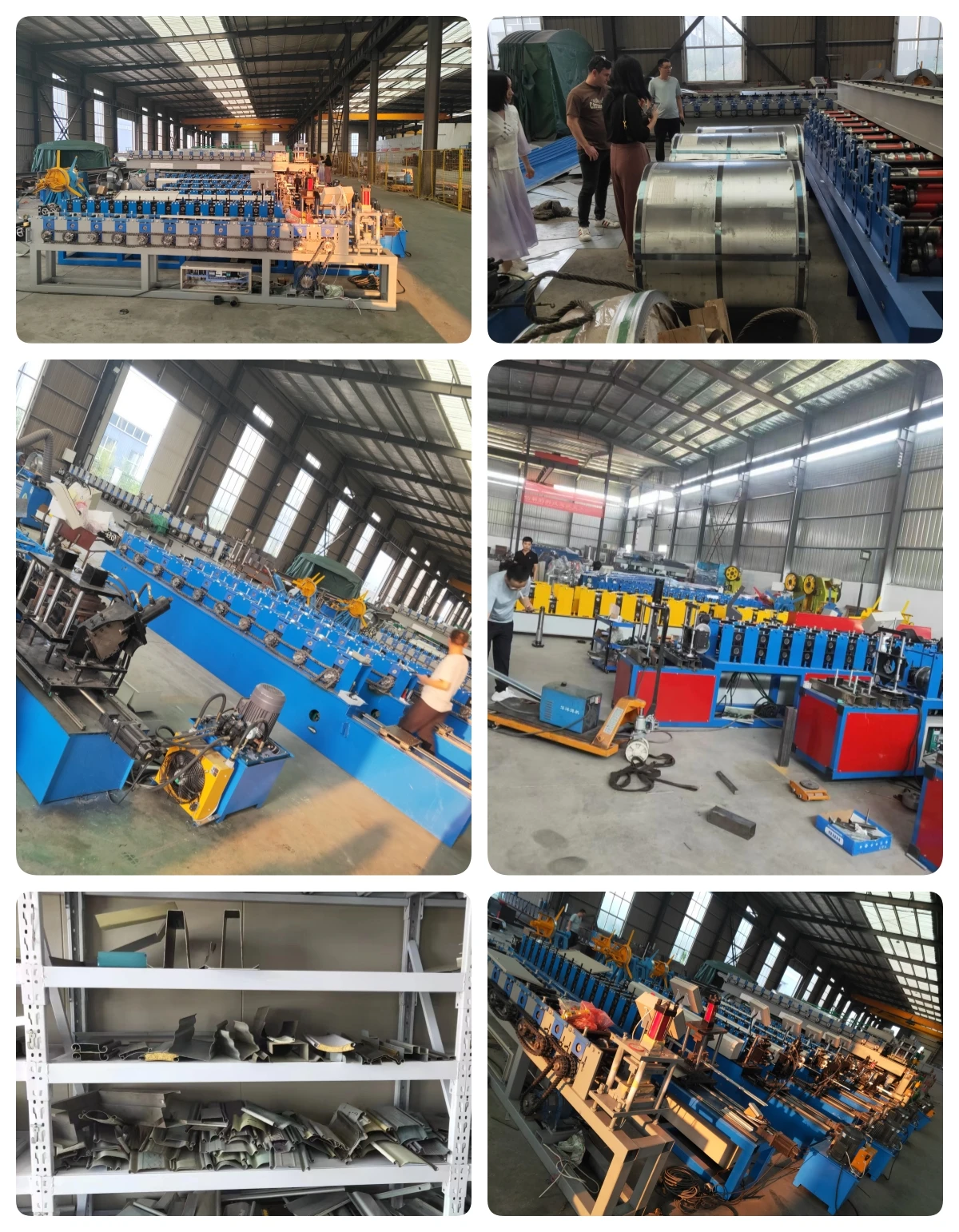

Company Profile
Henan Jane Machinery Co., Ltd. is a professional manufacturer and exporter of cold roll forming machines. All products comply with international quality standards and are greatly appreciated in markets throughout the world, such as Asia, Africa, Europe,South America, Australia and so on.
We specialized in manufacturing metal roofing roll forming machine, cz c z u purlin producing line,Glazed tile roll forming machine, floor tile making machine, rolling shutter machine, metal stud roll forming machine,highway guardrail roll forming machine,steel door frame making machines, gutter machine,no beam roof tile machine, pipe welding machine.
FAQ
Q1. How do I choose the right machine for me?
Q2. You don't show the product I need, can you manufacture it?
Our company's engineers have studied in well-known European cold bending companies and have great advantages in machine design and R&D and manufacturing.
Q3. How long can the machine be built?
Generally speaking, the machine takes about 40 days to complete, if you need a machine urgently, we can make it urgently, because I have a large number of spare parts.
1. A machine doesn't just provide a few photos to prove what they can produce .
2. A machine should have a complete production and assembly system photos and videos. When choosing a company with a factory, it is necessary to ensure that the company has a complete after-sales service system.
Q2. You don't show the product I need, can you manufacture it?
Our company's engineers have studied in well-known European cold bending companies and have great advantages in machine design and R&D and manufacturing.
Q3. How long can the machine be built?
Generally speaking, the machine takes about 40 days to complete, if you need a machine urgently, we can make it urgently, because I have a large number of spare parts.
Q4. Why are your prices higher than others?
Because we insist that every factory should put quality first, we make the machines more automated, more reliable and accurate,and have a longer service life. The equipment can be used for nearly 20 years, and we provide lifetime after-sales service.
Q5. Do you have after-sales support?
Product quality is the ultimate, the biggest after-sales service is service, to be a service company that you have the strength to guarantee.
Q6. How to get a quotation?
1. Give me the dimension drawing and thickness, it is very important.
2. If you have requirements for production speed, power, voltage and brand, please explain in advance.
3. If you don't have your own outline drawing, we canrecommend some models according to your local market standard.
Because we insist that every factory should put quality first, we make the machines more automated, more reliable and accurate,and have a longer service life. The equipment can be used for nearly 20 years, and we provide lifetime after-sales service.
Q5. Do you have after-sales support?
Product quality is the ultimate, the biggest after-sales service is service, to be a service company that you have the strength to guarantee.
Q6. How to get a quotation?
1. Give me the dimension drawing and thickness, it is very important.
2. If you have requirements for production speed, power, voltage and brand, please explain in advance.
3. If you don't have your own outline drawing, we canrecommend some models according to your local market standard.
