ASCO SCG353A044 replacement 2way angle valve 1inch AMF-25J solenoid pulse valve
Product Description
Operating pressure | 0.3~0.8Mpa | ||||||||
Ambient&fluid temperature | 0~60°C | ||||||||
Fliud | Clean Air | ||||||||
Relative humidity | ≤80% | ||||||||
Voltage | AC110V/AC220V/DC24V | ||||||||
Diaphragm life | Over one million cycles | ||||||||
Main parts material | Body | Aluminum alloy | |||||||
Seal | NBR | ||||||||

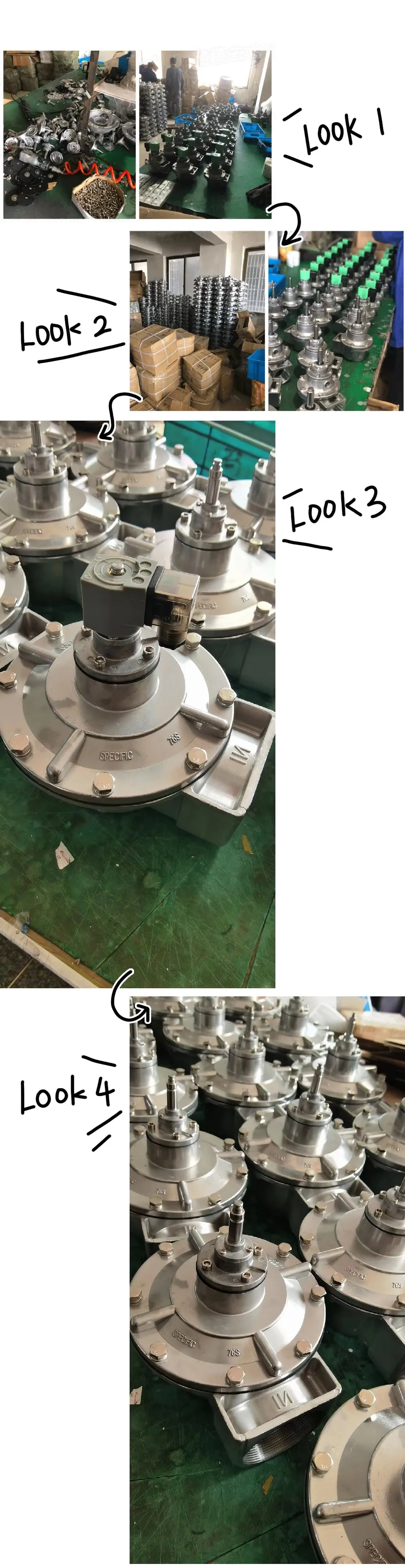

Comany Warehouse&Stocks
NMPC
The electromagnetic pulse valve is the compressed air "switch" of the ash spray system of the pulse bag dust collector.
DMF-Z type electromagnetic pulse valve is a right Angle valve, the Angle between the inlet and outlet is 90 degrees, it is suitable for the installation of air storage cylinder and dust spray pipe
Connected, the air flow is smooth, and can provide the cleaning gas pulse that meets the requirements.
Technical parameters:
Working pressure :0.3~0.8MPA
Ambient temperature :-10-65 degrees air is relatively not more than 85%
Working medium: Clean air,
Current :800mA/60mA
Voltage :24v 110v 220v etc. (multiple voltages are optional)
Service life: more than 1 million times, or 2 to 3 years
Installation method: The input end (IN) of the electromagnetic pulse valve is connected with the metal pipe of the air storage cylinder, and the output end is connected with the spray pipe of the dust collection box and the screw is connected
Intergrain are filled with PTFE raw tape tight seal.
The electromagnetic pulse valve is imported from abroad (also known as diaphragm valve), which is the compressed air "switch" of the ash spray system of the pulse bag dust collector
The output signal of the spray control instrument is controlled, and the dust removal accessories spray the dust of the filter bag by row (chamber), so that the resistance of the dust collector is maintained at the set
Within the scope to ensure the dust collector's processing capacity and dust collection efficiency.
DMF-Z type electromagnetic pulse valve is a right Angle valve, the Angle between the inlet and outlet is 90 degrees, it is suitable for the installation of air storage cylinder and dust spray pipe
Connected, the air flow is smooth, and can provide the cleaning gas pulse that meets the requirements.
Technical parameters:
Working pressure :0.3~0.8MPA
Ambient temperature :-10-65 degrees air is relatively not more than 85%
Working medium: Clean air,
Current :800mA/60mA
Voltage :24v 110v 220v etc. (multiple voltages are optional)
Service life: more than 1 million times, or 2 to 3 years
Installation method: The input end (IN) of the electromagnetic pulse valve is connected with the metal pipe of the air storage cylinder, and the output end is connected with the spray pipe of the dust collection box and the screw is connected
Intergrain are filled with PTFE raw tape tight seal.
The electromagnetic pulse valve is imported from abroad (also known as diaphragm valve), which is the compressed air "switch" of the ash spray system of the pulse bag dust collector
The output signal of the spray control instrument is controlled, and the dust removal accessories spray the dust of the filter bag by row (chamber), so that the resistance of the dust collector is maintained at the set
Within the scope to ensure the dust collector's processing capacity and dust collection efficiency.
