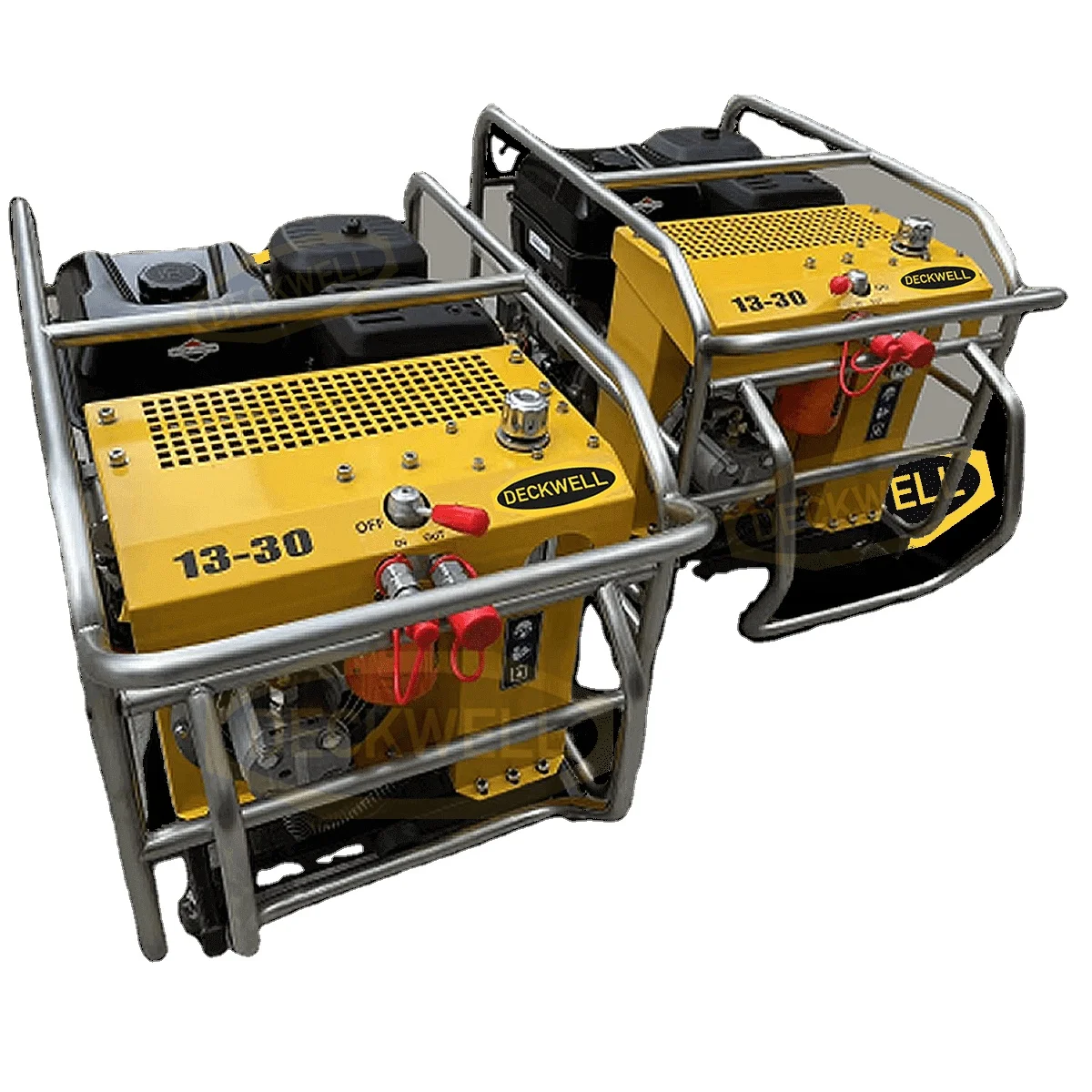

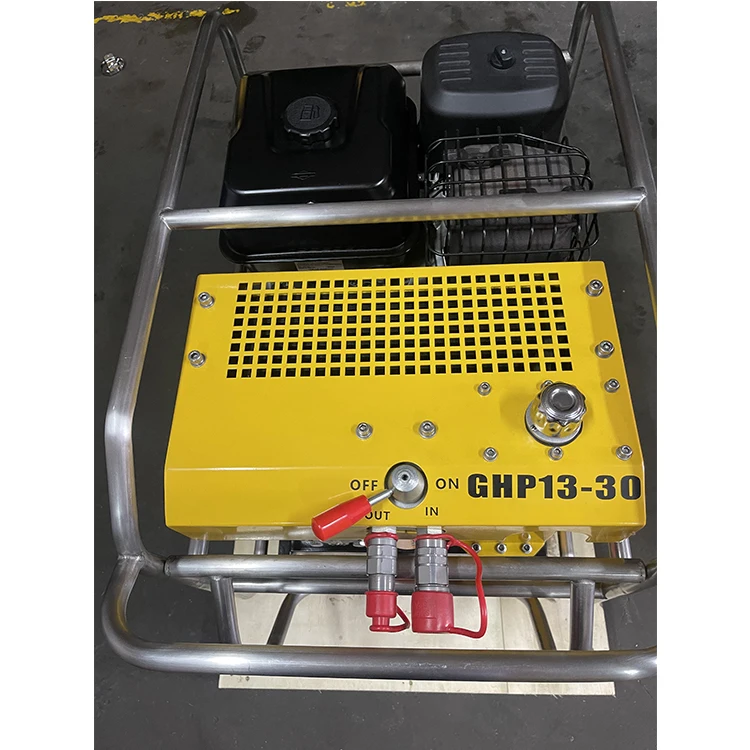

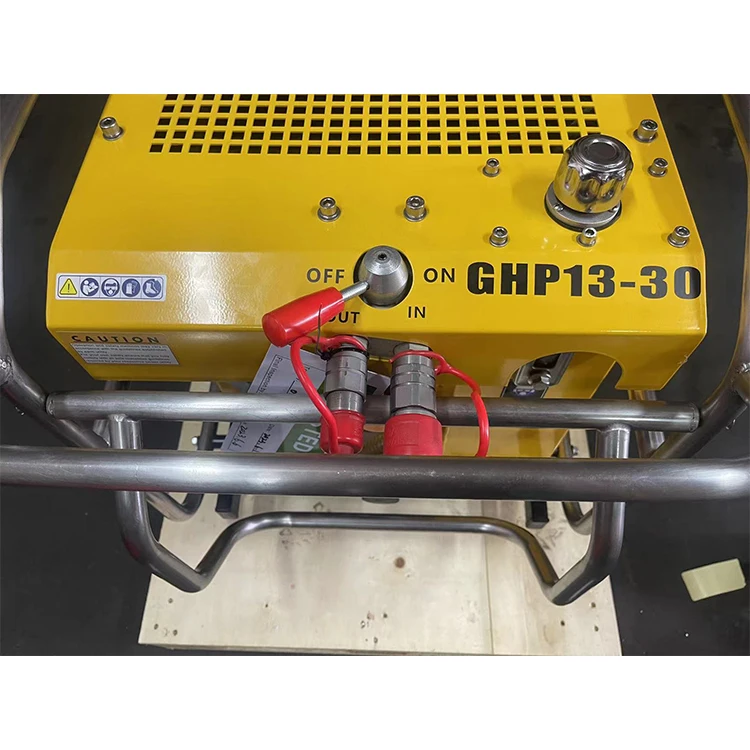

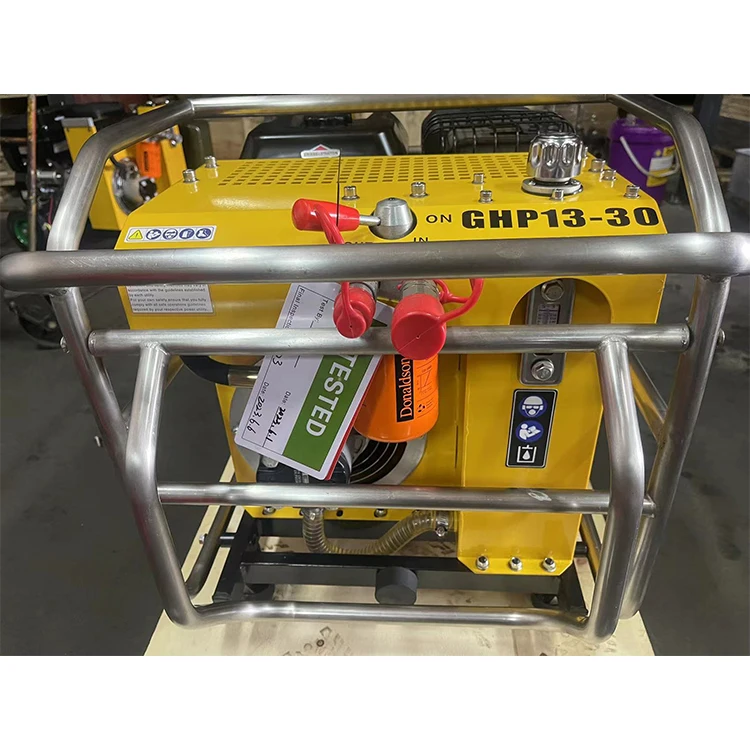

13HP 18HP 23HP 27HP 35HP Gasoline/Petrol Hydraulic Power unit Power Station
Product Description
Hydraulic Power Unit is widely used in Municipal administration of Road highway maintenance, Emergency repair of underground pipe network, Emergency rescue, Water logging and drainage, Rail traffic, Demolition recycling, Underwater operation, Fire fighting, Flood rescue, Earthquake rescue, Army troops and so on.
Gasoline type:
| Model | GHP13-30 | GHP18-30/40 | GHP23-40 | GHP35-80 | GHP28 |
| Volume(l/min) | 30 | 20/30 | 2-20 and 1-40 | 2-40 or 1-80 | 2-20 or 30 |
| Pressure(Bar) | 155 | 155 | 70-140 | 155 | 140 |
| Weight(Kg) | 90 | 120 | 135 | 200 | 163 |
| lenght | 780 | 900 | 1020 | 1165 | 952.5 |
| wide | 560 | 590 | 610 | 560 | 654 |
| hight | 600 | 740 | 770 | 885 | 762 |
| engine | Honda 13hp or B&S 13.5hp | B&S 18hp | B&S 23hp | B&S 35hp | B&S 27hp |
| 9.6kw | 13.2kw | 17kw | 27.5kw | 19.8kw | |
| Hydraulic gasoline | 12 | 12 | 12 | 24 | 12.1 |
| tank volume (L) | |||||
| Sound power level(L) | 101 | 101 | 101 | 101 | 101 |
| Noise level (DB) | 81 | 81 | 81 | 90 | 90 |
| Wheel/handle | yes | yes | yes | yes | yes |
| Cooling power (Hp) | 5 | 5 | 5 | 11 | 9 |
Electric type:
| Model | EHP10-20 | EHP15-30 |
| Weight(Kg) | 90 | 120 |
| Volume(l/min) | 20 | 30-40 |
| Pressure(Bar) | 90~155 | 90~155 |
| Size(mm) | 800x550x530 | 900×590×600 |
| Engine(Kw) | 7.5 | 11 |
| Rated current(A) | 16 | 32 |
| Rated voltage (V) | 380 | 380 |
| Noise level (DB) | 94 | 98 |
| Motor protection | Automatically restart | Automatically restart |
Diesel Type:
| Model | DHP13-20 | DHP19-30 |
| Weight(Kg) | 130 | 170 |
| Volume(l/min) | 20 | 30 |
| Pressure(Bar) | 155 | 155 |
| Size(mm) | 910X620X555 | 1020×610×800 |
| Engine(Kw) | 8.3 | 14 |
| capability of oil tank (L) | 12 | 12 |
