Гофрированная стальная зерновая силосная

Цена:4 922 703,00 ₽ - 5 469 670,00 ₽*

Стоимость в USD (на сегодня):Узнать

Количество:

Product Overview

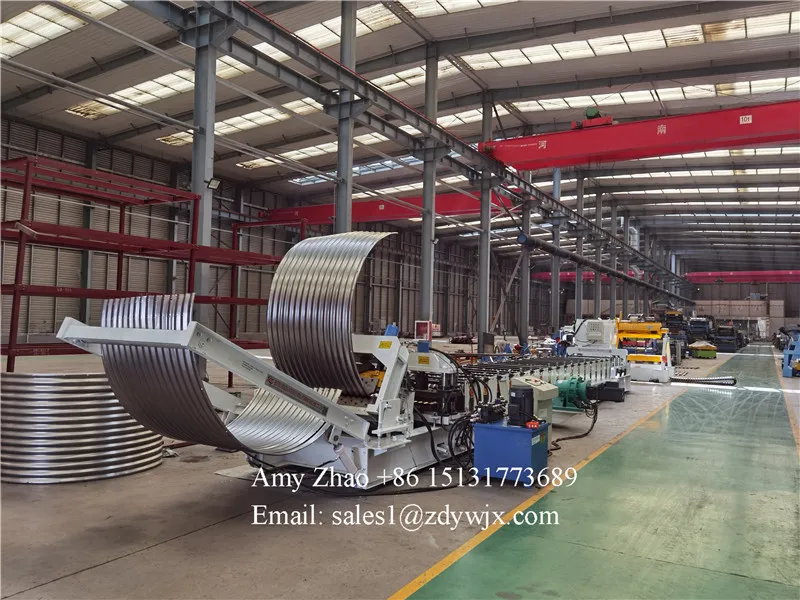

Corrugated Steel grain silo making machine steel silo roll forming machine

FEATURES AT A GLANCE

1. Customized sheet metal profile;

2. Full auto machine line;
3. Bending diameter: can be fully automatically adjusted through the electric control box;

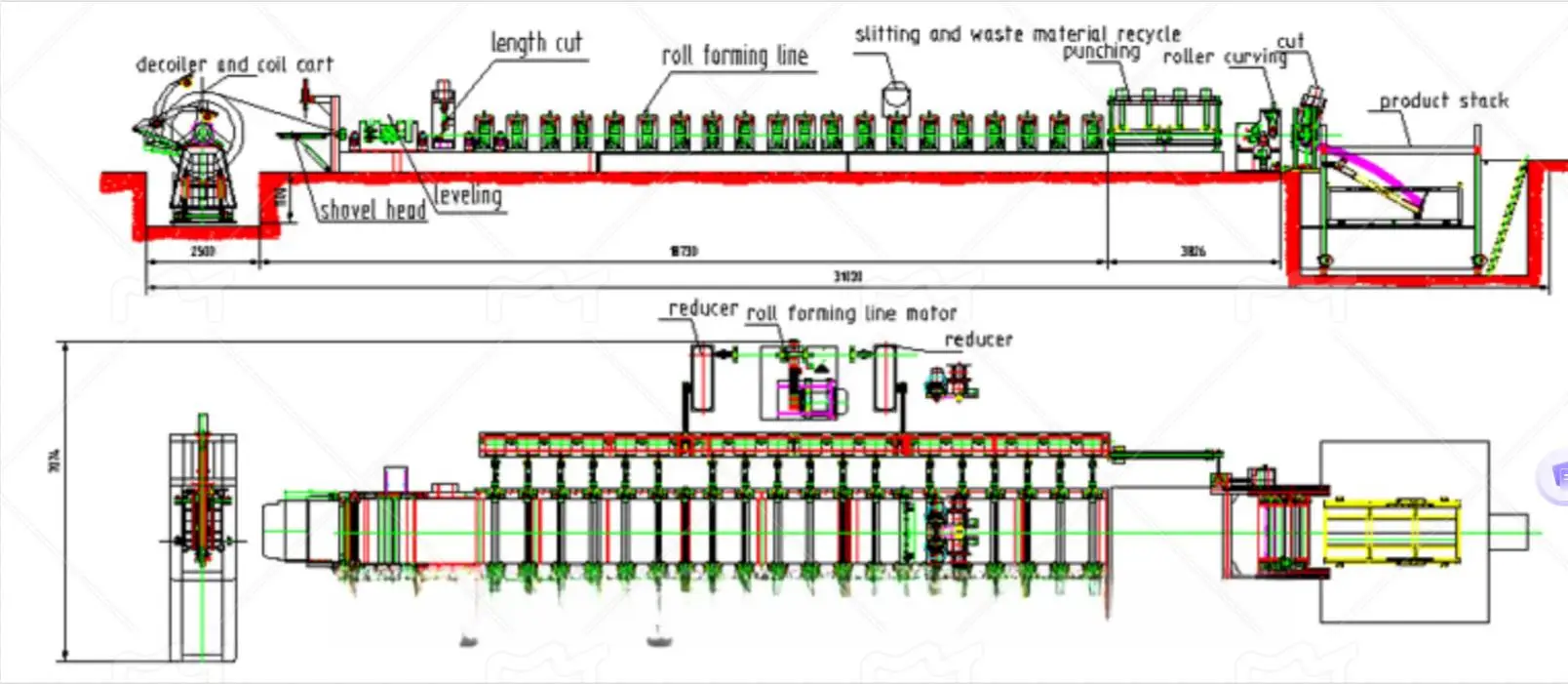

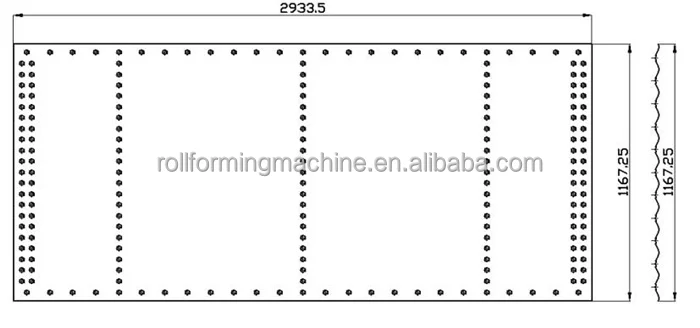

Profile drawing and workflow

PRODUCT SPECIFICATIONS

Components	Item	Specifications

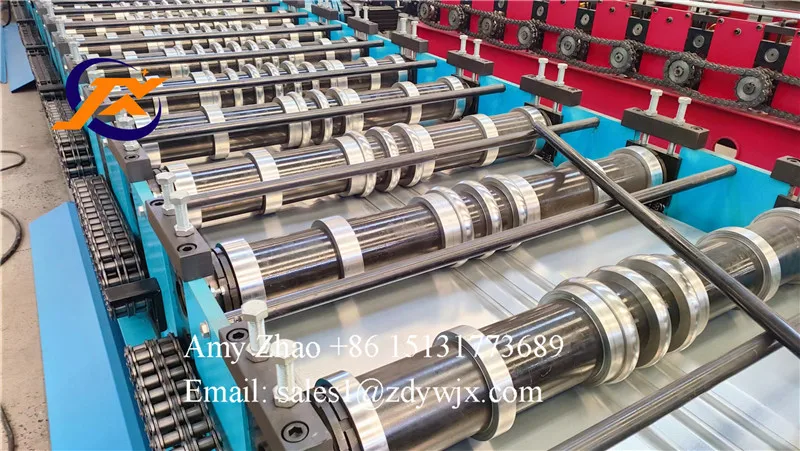

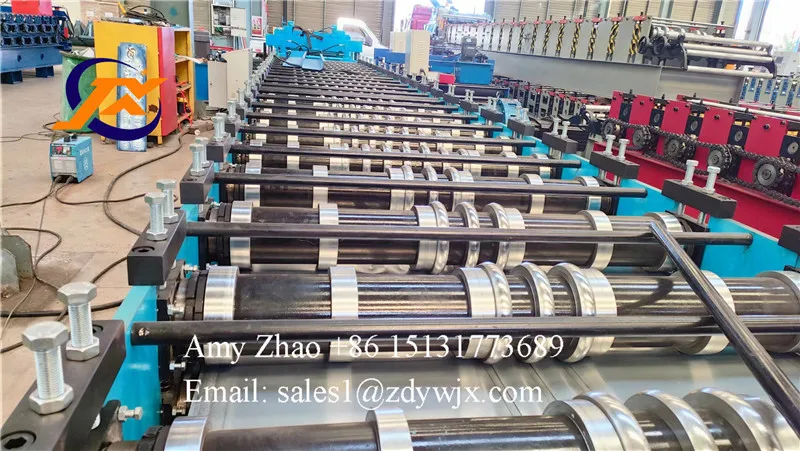

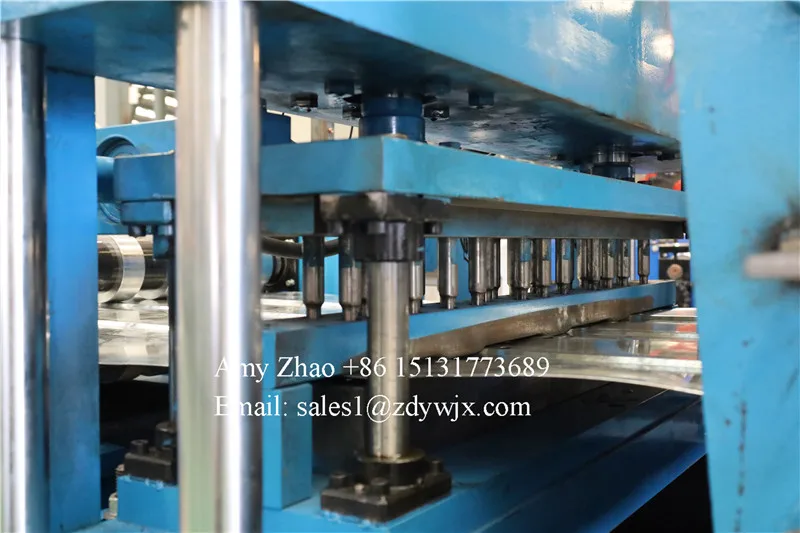

Roll Forming Machine part	Forming station	28-30 roller groups
		Material of rollers	Bearing steel GCR15, with chrome coated and quenching treatment.
		Diameter of shaft	135 mm solid, with tempering heat treatment.
		Material of shafts	S45C steel with heat treatment.
		Main Power	18.5 KW*2 SERVO MOTOR, with one 1:87 cycloidal reducer
		Main frame system	450mm H beam structure with tempering heat treatment, wall panel thickness 25 mm heavy duty.
		Transmission	By 1.5inch double row chain
		Bearing	6214 ball bearing

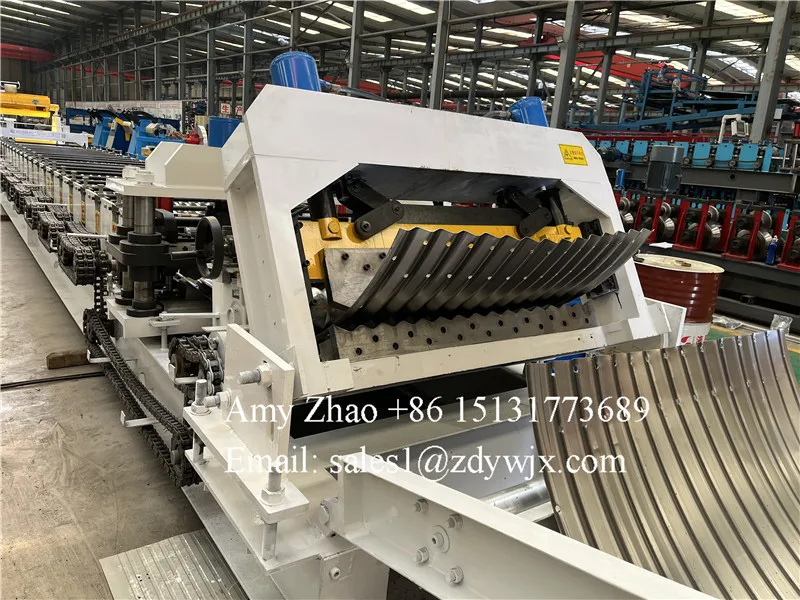

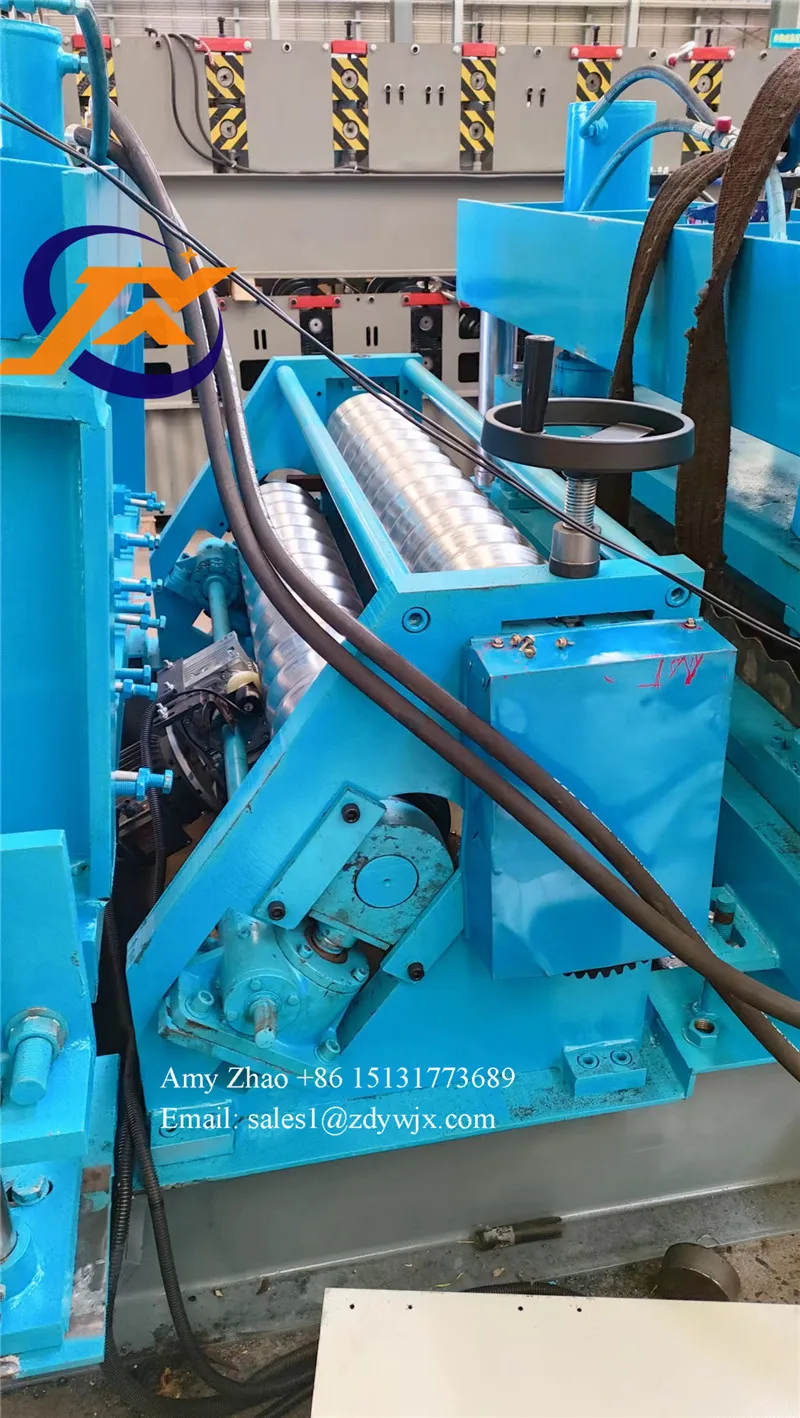

Curving machine	CNC PLC bending [3-axis] form, equipped with two 5-ton lifts
Curving machine		Curving Radius: ≥8m

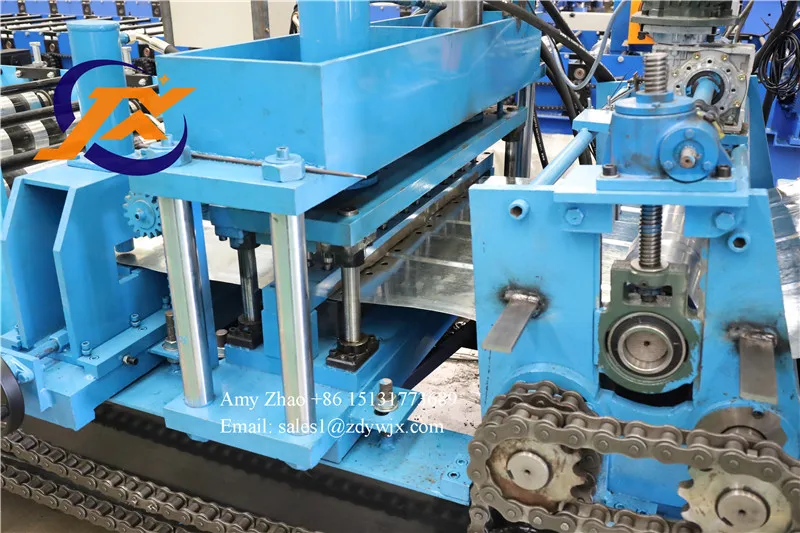

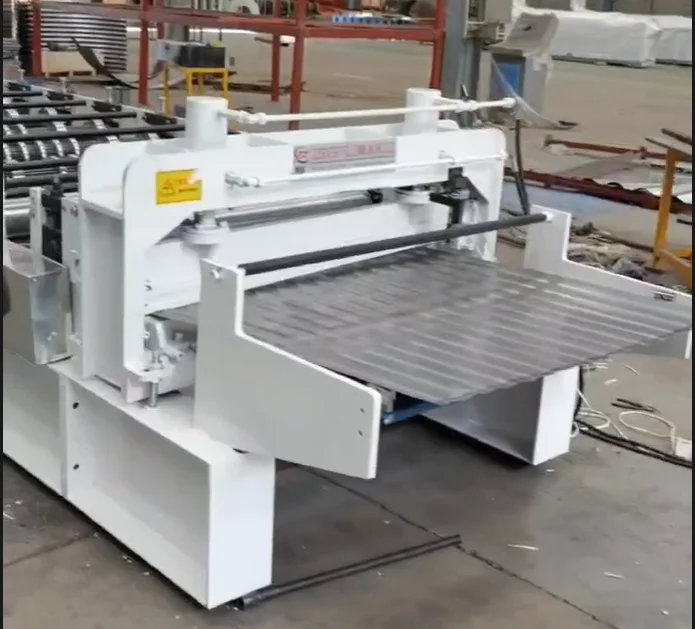

Cutting	Cut off method	Hydraulic cutting
		Drive	Driven by two Ø 110 cylinders
		Cutting die material	CR12
Electric control system	parameter settings	Through Touch Screen;
		PLC and Transducer	DELTA From Taiwan
		Control box	Vertical independent electric control cabinet;
		Control type	By 7 inch touch screen
		Touch screen language	Chinese, English, Spanish
		Voltage	380V,50HZ,3p or customized
		length measurement	Omron counter;
