Многоступенчатый вертикальный бустерный насос высокого давления центробежный водяной из нержавеющей
- Категории: >>>
- Поставщик: Shanghai,Cixi,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
CDL/CDLF series lightweight stainless steel vertical multi-stage centrifugal pumps are non-self-priming vertical multi-stage centrifugal pumps designed and manufactured by absorbing advanced domestic and foreign technologies. They use standard vertical motors and quick-install mechanical seals, which are very easy to replace. This pipeline centrifugal pump can replace foreign CR, CRN and other similar products. With its high efficiency, energy saving, reliable quality and wide range of use, it is deeply loved by the majority of users.
Product Name | Stainless steel multi-stage horizontal booster pump constant pressure centrifugal pump industrial automatic hot water pump |
Material | Cast iron/Stainless Steel(SS304/SS316L/SS904) |
Seal Material | Graphite/ silicon carbide |
Max. Flow | 240m³/h / 1057GPM |
Max. Head | 232m FOR CDL F2 |
Temperature type | -15 to 180℃ |
Max. rev | 2950rpm |
Motor Power | 0.37KW~110KW |
Voltage | 220V,380V |
Frequency | 50/60HZ |
IP class | IP55 |
Connection | Flange/Thread |
Altitude | Max. 1000m (If >1000m,customized) |
Application Scope | Water supply, Heating system, Industrial production, fire-fighting system, air-conditioning system,Irrigation |
Features:
◆Adopt excellent hydraulic model and advanced manufacturing technology to greatly improve the performance and service life of the pump.
◆The end face of the mechanical seal is made of alloy versus silicon carbide, and the auxiliary sealing ring is made of fluorine rubber, which can improve the reliability of pump operation and the temperature of the transported medium..
◆The flow-passing part of the pump is stamped and welded with stainless steel 304 and stainless steel 316 material plates, making the pump suitable for mildly corrosive media.
◆The overall structure is compact, small in size, light in weight, low in noise, significant in energy saving, and easy to maintain.
◆The water inlet and outlet of the pipeline centrifugal pump are located on the same horizontal line as the pump base and can be used directly in the pipeline.
◆Using standard motors, users can easily equip motors as needed.
Scope of use:
◆Thin, clean, non-flammable and explosive medium containing no solid particles or fibers.
◆Such as mineral water, softened water, pure water, clear oil and other light chemical media.
◆The main material of the pump is stainless steel, which can be used to pump mildly corrosive media.
◆The end face of the mechanical seal is made of alloy versus silicon carbide, and the auxiliary sealing ring is made of fluorine rubber, which can improve the reliability of pump operation and the temperature of the transported medium..
◆The flow-passing part of the pump is stamped and welded with stainless steel 304 and stainless steel 316 material plates, making the pump suitable for mildly corrosive media.
◆The overall structure is compact, small in size, light in weight, low in noise, significant in energy saving, and easy to maintain.
◆The water inlet and outlet of the pipeline centrifugal pump are located on the same horizontal line as the pump base and can be used directly in the pipeline.
◆Using standard motors, users can easily equip motors as needed.
Scope of use:
◆Thin, clean, non-flammable and explosive medium containing no solid particles or fibers.
◆Such as mineral water, softened water, pure water, clear oil and other light chemical media.
◆The main material of the pump is stainless steel, which can be used to pump mildly corrosive media.

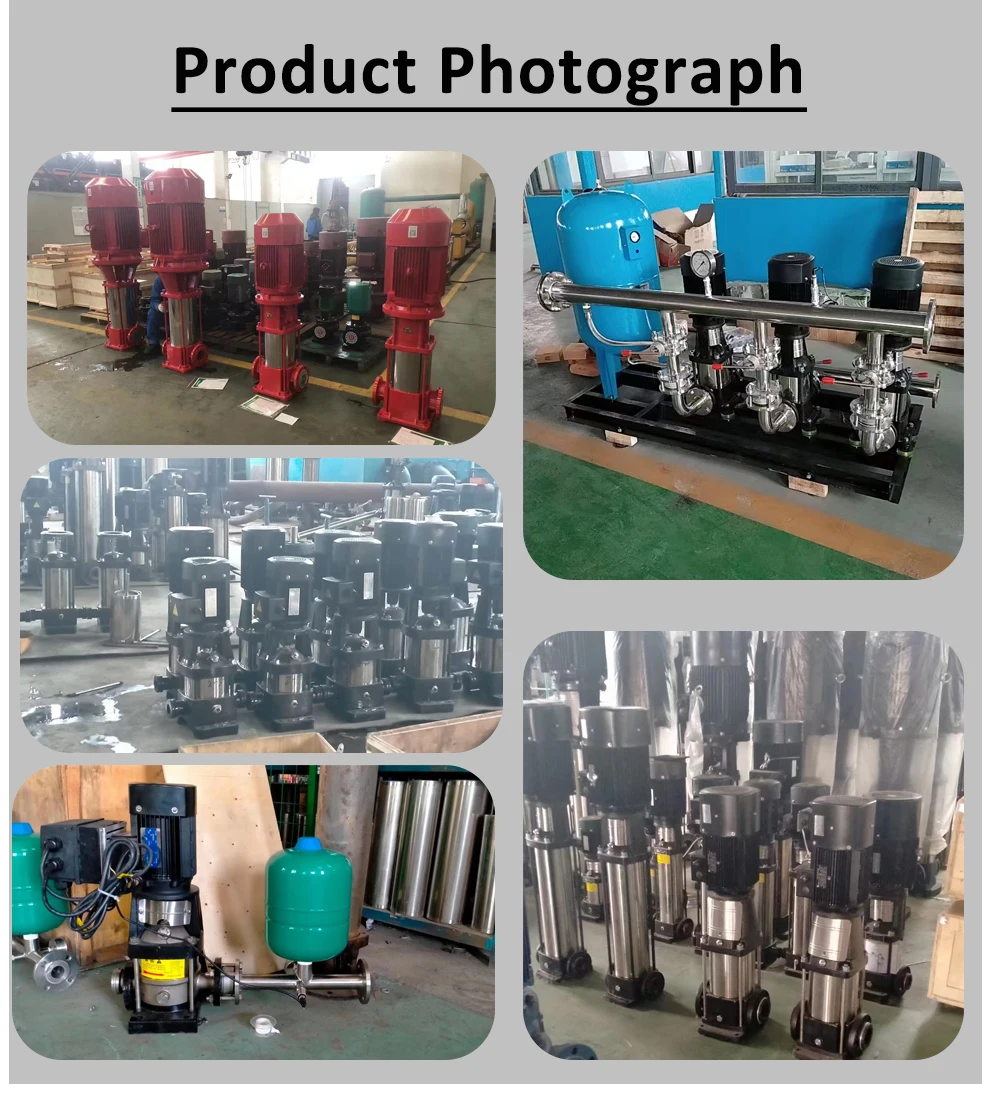

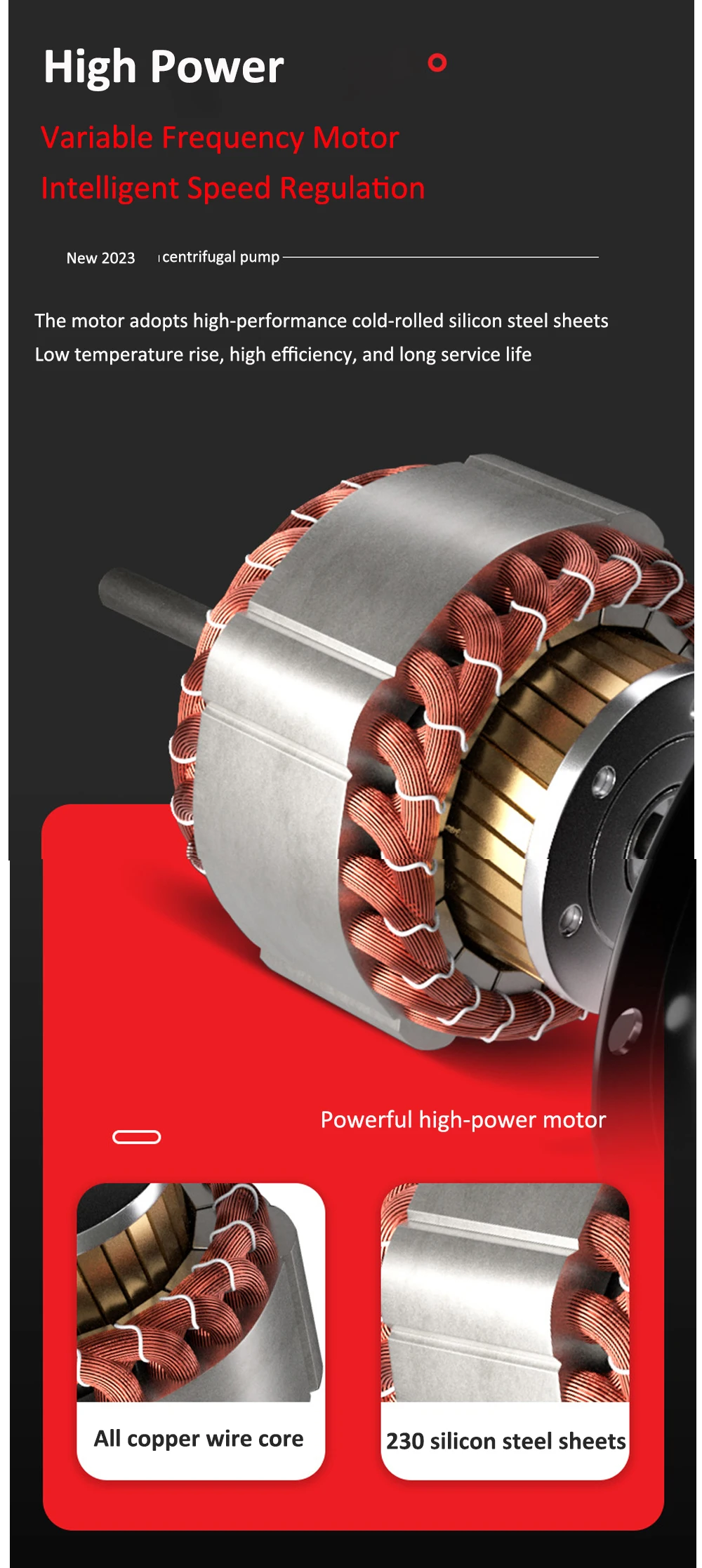

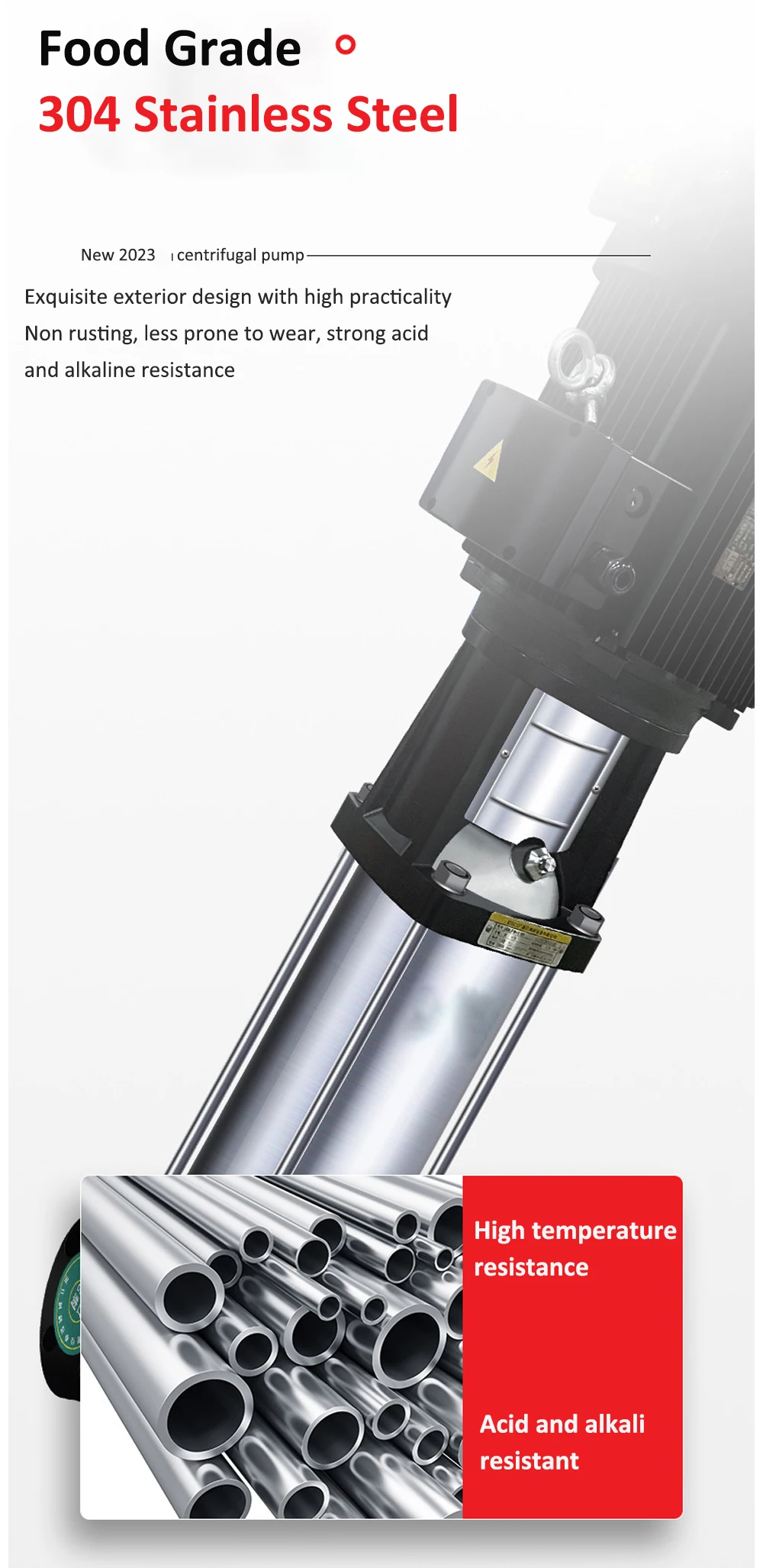

Product Show
Company Profile
FAQ
Q1.Are you a factory?
A1:We are based in Shanghai, China, start from 2011.Main production and sales of various industrial flow meters and other products.Welcome to visit!
Q2.what can you buy from us?
A2:We can provide one-stop flow meter services, providing sales of instruments such as flow meters, liquid level gauges, vacuum gauges, pumps, sensors, industrial thermometers, etc.
Q3.What is your terms of packing?
A3: Generally, JSN brand colorful cardboard boxes packing.OEM brandbrown cardboard boxes packing.
Q4. How about your delivery time?
Q4. How about your delivery time?
A4: Generally, standard type : 6-7 working days after confirm the order.non-standard type: 8-10 working days after confirm the order.
Q5. What's your MOQ?
A5: We have no MOQ demand, 1 piece for test purpose at first is acceptable.
Q6. How do you ensure good product quality?
A6: We have a complete quality control system; All of our products are fully checked by IQC, OQC departments before ship to our clients.
Q7. How long your quotation valid?
A7: Our quotation valid for 1 months.
Q8. Can you accept OEM brand?
A8: Yes, we can accept the OEM brand without extra charge.
Q9. How long is your product warranty?
A9: 7 days replacement and 12 months repair free of charge for quality problem.
Q10. Can you produce according to the samples?
A10: Yes, we can produce by your samples or technical drawings
