DONGFENG M50 4WD/AWD ICU мобильная медицинская клиника спасательная машина скорой
- Категории: >>>
- Поставщик: Zhejiang,Jingyan,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
M50 Configuration table | ||||||||
6 | Mass Parameter | (kg)curb mass | 3540 | |||||
7 | (kg) Max total mass | 6000 | ||||||
8 | Max traction mass (kg) | 2000 | ||||||
9 | Max loading mass (kg) | 2460 | ||||||
10 | Dimension parameter | (××)(mm) Overall Dimension(LxWxH) | 5320*2310*2080 | |||||
11 | wheelbase(mm) | 3800 | ||||||
12 | Front suspension/ Rear suspension(mm) | 630/890 | ||||||
13 | ()Approach angle | 45° | ||||||
14 | ()Departure angle | 35° | ||||||
15 | Min ground clearance(mm) | 380 | ||||||
16 | Performance parameters | Max speed(km/h) | ≥125 | |||||
17 | Max Gradeability(%) | 60% | ||||||
18 | Min turning diameter(mm) | 8.5 | ||||||
19 | Fule Economy(L/100km) | ≤13.5 | ||||||
20 | Max Endurance Mileage on Highway(km) | ≥600 | ||||||
21 | Grade Parking Performance(%) | 40% | ||||||
22 | General introduction of vehicle chassis | Emission | 6b Euro | |||||
23 | Engine | Dongfeng Cummins Engine ISD4 195Ps | ||||||
24 | Power rating | 143kW/2400rpm | ||||||
25 | Max torque | 600N·m/1100~2200rpm | ||||||
26 | Gear box | 5MT (6AT Optional) | ||||||
27 | wheel-side reducer | s | ||||||
28 | Driving type | Full time 4 WD | ||||||
29 | Braking type | Front Wheel | Disc Brake | s | ||||
30 | Rear Wheel | Disc Brake | s | |||||
31 | Parking brake | hand manipulation | s | |||||
32 | (EPB+AUTO HOLD) | - | ||||||
33 | Vision | Headlight | Xenon headlights | s | ||||
34 | LEDLED headlights | - | ||||||
35 | Daytime Running Lights | - | ||||||
36 | Headlight height manual adjustment | - | ||||||
37 | Electrically adjustable headlight height | s | ||||||
38 | Turn signal | s | ||||||
39 | Position light | s | ||||||
40 | Front fog lights or auxiliary lights | - | ||||||
41 | Rear lights | Reversing lights | s | |||||
42 | High-mounted brake light | - | ||||||
43 | Dual side rear fog lights | - | ||||||
44 | Single side rear fog light | s | ||||||
45 | Glass | ()Front windshield (normal green glass) | s | |||||
46 | ,()Front and rear door glass (ordinary green glass) | s | ||||||
47 | ()Rear glass (ordinary green glass) | s | ||||||
48 | Wiper system | Front windshield with speed-sensing dual-arm wipers | - | |||||
49 | Front windshield three-arm wiper | s | ||||||
50 | Rearview mirror | Manual adjustment of lenses | s | |||||
51 | With side turn signals | - | ||||||
52 | Ordinary interior rear view mirror | - | ||||||
53 | Automatic anti-dazzle interior rearview mirror | - | ||||||
54 | Safety | Braking system | Braking priority | - | ||||
55 | ABS antilock braking system | s | ||||||
56 | ASR AccelerationSlipRegulation | - | ||||||
57 | BA BrakeAssist | - | ||||||
58 | EBD Electronic Brake force Distribution | s | ||||||
59 | ESP Electronic Stability Program | - | ||||||
60 | Airbags | Driver/passenger's airbag | - | |||||
61 | /Driver/passenger's side curtain airbag | - | ||||||
62 | Passenger's side curtain airbag | - | ||||||
63 | Seatbelt | /Driver/passenger's three-point seatbelts | s | |||||
64 | /Driver/passenger's seatbelts Mounting point height adjustment | - | ||||||
65 | ()passenger's three-point seatbelts | s | ||||||
66 | Driver's seatbelt not fastened alarm | s | ||||||
67 | Assisted driving equipment | Reversing radar | - | |||||
68 | Reversing Vision System | s | ||||||
69 | 360 360-degree car viewing system | - | ||||||
70 | Headlight not off buzzer warning | - | ||||||
71 | ()Door is not closed display (two-door single-door display) | - | ||||||
72 | steering | steering wheel | Hydraulic Power Steering System | s | ||||
73 | Two-way manual adjustment of the steering wheel | - | ||||||
74 | leather steering wheel | s | ||||||
75 | Seat | Seat Fabric | ()Fabric (waterproof and stain-resistant) | s | ||||
76 | Faux Leather Fabric | O | ||||||
77 | /Driver/passenger's seat | 6The driver's seat is manually 6-way adjustable | s | |||||
78 | 6Passenger's is manually 6-way adjustable | s | ||||||
79 | Rear passenger seat | Two backrest adjustable seats | s | |||||
80 | Headrest | Height-adjustable front headrests | s | |||||
81 | Front active safety head restraints | - | ||||||
82 | Height-adjustable rear headrests | s | ||||||
83 | Comfortable and convenient equipment | In-car entry control | Central door lock | s | ||||
84 | Internal manual opening of the fuel tank filler cap | - | ||||||
85 | Door limiter | Hinges | s | |||||
86 | Vehicle step | Soft Step | - | |||||
87 | Hood lock | Internal opening lock | s | |||||
88 | windows | ,Electric windows | s | |||||
89 | Two-window glass one-button lift with anti-pinch | - | ||||||
90 | Close the windows remotely | - | ||||||
91 | Function buttons with backlight | s | ||||||
92 | air conditioning | Automatic air conditioning | s | |||||
93 | 2nd row central air conditioner outlet | - | ||||||
94 | Dual-zone automatic thermostatic air conditioning | - | ||||||
95 | ,, Visor, Mirrors, Handles | ()Visor (Driver and passenger's seat all Visor) | s | |||||
96 | ()vanity mirror lighting(Driver and passenger's seat) | - | ||||||
97 | Top-mounted glasses case | - | ||||||
98 | (;)Handles in the roof (one for the front passenger seat; one for each side of the rear row) | s | ||||||
99 | Cabin Lighting | (2)2 reading lights in the front row | s | |||||
100 | Indoor rear dome light | s | ||||||
101 | Cockpit lighting time-lapse function | - | ||||||
102 | Audio entertainment | (2,2)Number of speakers (2 woofers, 2 tweeters) | s | |||||
103 | (MP5)Radio (with radio function on MP5) | s | ||||||
104 | Active maintenance reminder system | - | ||||||
105 | Mobile phone intelligent interconnection | - | ||||||
106 | Multifunction display | - | ||||||
107 | MP5 | s | ||||||
108 | 77-inch multi-function LCD touch screen | - | ||||||
109 | 10.110.1-inch multi-function LCD touch screen | s | ||||||
110 | Electronic compass and outside temperature display | - | ||||||
111 | (,,MP5) Car Bluetooth (Bluetooth music, data transmission, MP5 ) | s | ||||||
112 | Voice control system | - | ||||||
113 | GPS GPS Navigation | - | ||||||
114 | USBUSB interface | s | ||||||
115 | Beidou Communications | - | ||||||
116 | Electric horn | ()High-bass electric horn (horn for driving whistle) | s | |||||
117 | Main power switch | s | ||||||
118 | Instrumentation | Full LCD instrument | - | |||||
119 | Mechanical instrument | s | ||||||
120 | Mobile computer | - | ||||||
121 | Power interface | 24V1 One 24V power interface | s | |||||
122 | USB One USB power interface | s | ||||||
123 | 220V(300W) One 220V power interface (300W) | s | ||||||
124 | Secondary start socket | - | ||||||
125 | trailer socket | - | ||||||
126 | Cigar lighter | s | ||||||
127 | key | Smart entry key | - | |||||
128 | ()Remote control key (2) | s | ||||||
129 | Storage space | Dashboard storage compartment and glove box | - | |||||
130 | Removable ashtray seat in front | - | ||||||
131 | Center sub-dashboard water cup holder | s | ||||||
132 | Cruise | ASCD ASCD cruise | - | |||||
133 | Interior | Interior matching | Knitted canopy | s | ||||
134 | Interior Color | O | ||||||
135 | Body equipment | Front and rear bumpers | s | |||||
136 | Fuel Tank Guard | - | ||||||
137 | Transfer case guard | - | ||||||
138 | Main and auxiliary fuel tanks | s | ||||||
139 | External antenna | s | ||||||
140 | Pull winch | O | ||||||
141 | Electric boarding step | - | ||||||
142 | Wading hose | O | ||||||
143 | Wheels & Tires | Tires | Brand tires | s | ||||
144 | Central charging and discharging system | O | ||||||
145 | Deflate drive system | - | ||||||
146 | Wheels | Aluminum Wheel | s | |||||
147 | 1818 inch rims | s | ||||||
148 | 16.516.5 inch rims | - | ||||||
149 | ()Full size spare tire (aluminum wheel) | s | ||||||
150 | cargo box | O | ||||||
151 | Side protection | Can be modified according to customer needs | O | |||||
152 | other devices | Regulatory Requirements Device | OBU Vehicle electronic label OBU | s | ||||
153 | T-BOX | s | ||||||
154 | Cold start device | ,Fuel circuit and fuel tank heating | O | |||||
155 | ()Boiler (heating cooling water) | O | ||||||
156 | Supercapacitor | - | ||||||
157 | Exhaust | Short exhaust tailpipes | - | |||||
158 | Retrofit reserved | Oil supply interface | Additional fuel supply ports for main and auxiliary fuel tanks | s | ||||
159 | Dual generator | 4kW | O | |||||
160 | power take-off | (30kW)Transmission PTO | O | |||||
161 | Air extraction device | Reserved air extraction interface (8-9bar) | s | |||||
162 | Vehicle accessories | Vehicle tools | Hydraulic jacks | s | ||||
163 | Tire lever and rocker jack | s | ||||||
164 | Triangular warning sign | s | ||||||
165 | Wheel Nut Socket Wrench | s | ||||||
166 | Reflective vests | s | ||||||
167 | Parking Wedge(2) | s | ||||||
168 | Double-ended wrench(13X15,16X18,21X24,1) | s | ||||||
169 | Screwdriver | s | ||||||
170 | Carp pliers | s | ||||||
171 | On-board tool kit | s | ||||||
172 | "S"standard,"-" Without this configration "O"Optional | |||||||
173 | Remark | 10 ,.The storage period is 10 years. After the new version is released, the original version will be invalid. | ||||||
number | project name | Quantity | unit | Remarks | |||
1 | Exterior | Appearance logo | 1 | set | |||
2 | 100W Long row of lights and sirens | 1 | set | Blue strobe | |||
3 | LED Square lamp | 6 | each | 4 blue 2 white | |||
4 | Electrical appliances | 1000W Inverter power supply | 1 | set | |||
5 | External power supply | 1 | each | ||||
6 | External power cable tray | 1 | each | ||||
7 | Power distribution system control panel | 1 | set | ||||
8 | 12V socket | 1 | set | ||||
9 | 220V socket | 1 | set | Multi-function socket with three or two holes | |||
10 | Auxiliary battery | 1 | Piece | ||||
11 | Battery isolator | 1 | each | ||||
12 | Long strip indoor light | 2 | strip | LED | |||
13 | Long strip ultraviolet disinfection lamp | 1 | each | Can be timed | |||
14 | New type ventilating fan | 1 | each | Two-way | |||
15 | Oxygen supply system | 10L oxygen cylinder | 2 | each | Fix with bracket | ||
16 | Oxygen supply system | 1 | set | ||||
17 | PVC Oxygen cabinet | 1 | set | ||||
18 | Monitoring seat | Three-person bench seat | 1 | each | With two-point safety belt | ||
19 | Single seat | 1 | each | With seat belt | |||
20 | Rear-facing monitoring seat | 1 | each | With seat belt | |||
21 | Interior | Overall interior | 1 | set | |||
22 | Central partition with sliding window | 1 | set | ||||
23 | floor | PVCMedical floor | 1 | each | |||
24 | Cabinet | Front medicine cabinet | 1 | set | |||
25 | Left wall cabinet | 1 | set | ||||
26 | Left instrument cabinet | 1 | set | ||||
27 | stretcher | Automatic loading stretcher | 1 | set | |||
28 | Stretcher silo | 1 | set | ||||
29 | Spine board stretcher | 1 | set | ||||
30 | other | Upper armrest | 1 | each | |||
31 | Black film | 1 | set | ||||
32 | 2 kg fire extinguisher and bracket | 1 | set | ||||
33 | Walkie talkie | 1 | pair | ||||
34 | Stainless steel trash can | 1 | each | ||||
35 | Rear door bench seat armrests | 1 | each | ||||
36 | Fixed infusion bottle hook | 2 | each | ||||

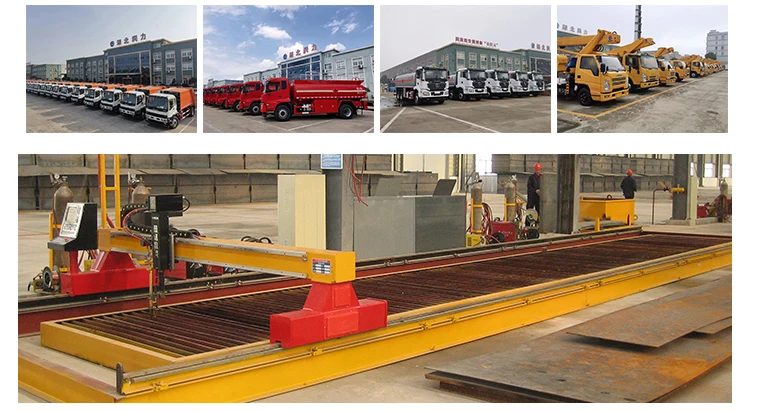

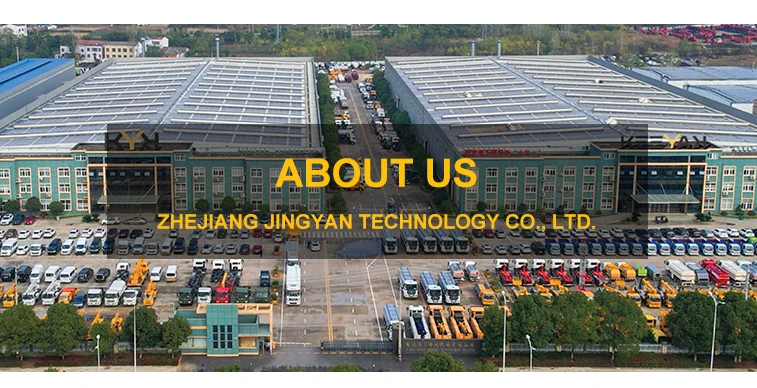

Keeyak, founded in 2009, is a special vehicle production company dedicated to the design, development, and manufacture of special vehicles such as water tanker trucks, garbage trucks, fuel tankers, high-aerial work vehicles, bulk feed trucks, tow trucks, and so on. For three years in a row, sales of high-aerial work vehicles ranked third in China.

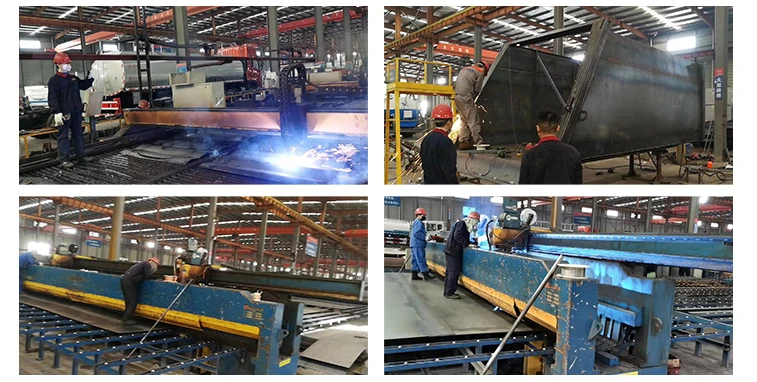

Keeyak has always adhered to the "Quality First" principle. Before each product leaves the factory, we inspect it for quality.
★ All products have passed the "3C" mandatory certification, and product qualification has exceeded 99.5%, which has been widely acknowledged by the market and customers. It has obtained the GB/T19001-2016(ISO 9001:2015) Quality Management System certification, as well as the GB/T27922-2011 five-star after-sales service certification.
★ We achieved something great. 33 authorized patents, two innovation patents, and one appearance patent have been obtained by the company.
★ Since entering the international market in 2010, Keeyak has built strong working relationships with numerous reputable international businesses. The Philippines, Cambodia, Tanzania, the Republic of Costa Rica, the Republic of Bolivia, Chile, the Republic of Colombia, Ethiopia, and Venezuela are just a few of the more than 50 nations and areas to which goods are shipped. Customers have been pleased with our products.
Q1. What is your terms of packing?
A: Generally, our cargo is suitable for naked or waxed packing, in container or bulk ship or RO-RO ship according to the size of the cargo.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
A: Generally, our cargo is suitable for naked or waxed packing, in container or bulk ship or RO-RO ship according to the size of the cargo.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Похожие товары
Новинки - Розница
