 Petro-Chemical, Environmental, Marine, Industrial, Aircraft and Oil & Gas Industries Membrane Nitrogen Generator

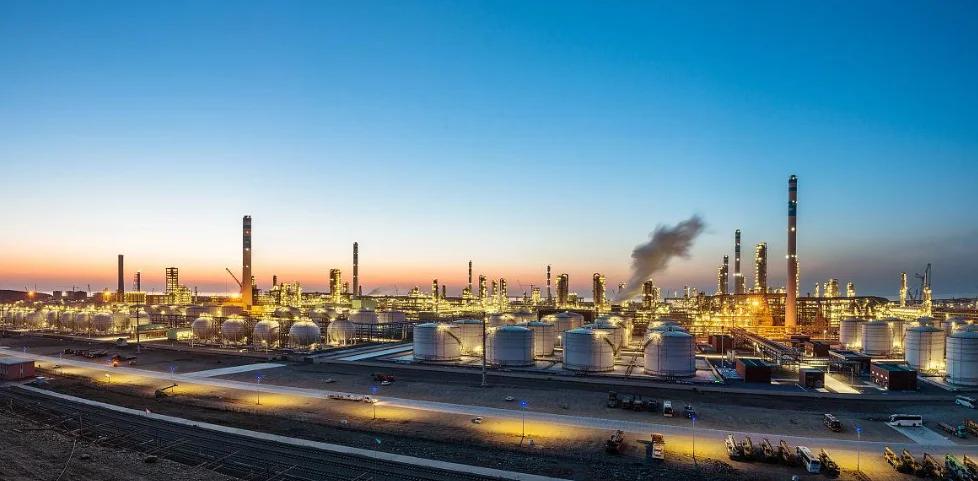

In the petroleum and petrochemical industry, inert atmosphere protection is a key safety measure used to prevent oxygen from reacting with flammable or explosive substances, thereby reducing the risk of fire and explosion. Nitrogen, as a commonly used inert gas, plays an important role in this regard.

In petroleum and petrochemical installations and equipment, many processes need to be carried out under high temperature, high pressure or special environment, involving flammable or explosive substances. These substances include petroleum products, petrochemicals, solvents, gases and vapors, etc. When oxygen is present, these substances may burn or explode under certain conditions, resulting in serious accidents and losses.

In order to reduce the risk of fire and explosion, the petroleum and petrochemical industry often adopts inert atmosphere protection technology. Among them, nitrogen is widely used as an excellent inert gas.

• The process of creating an inert atmosphere with nitrogen typically involves the following steps:


• Exclude Oxygen: Reduce the oxygen concentration below safe levels by introducing nitrogen and rapidly removing oxygen from the system. This can be achieved by using an inert gas generator or a nitrogen compressor.


• Maintain an inert environment: Once oxygen has been removed, continue to inject nitrogen into the system to maintain an inert atmosphere. The required inert environment is usually maintained by quantitatively controlling the nitrogen flow.


• Detection and monitoring: regular detection and monitoring of oxygen concentration to ensure the stability of the inert atmosphere. If the oxygen concentration is found to increase, it is necessary to replenish nitrogen in time or take other measures to maintain an inert environment.


• By creating an inert atmosphere, nitrogen effectively prevents oxygen from interacting with flammable or explosive substances, reducing the risk of fire and explosion. This technology is widely used in key equipment and processes such as petroleum and petrochemical plants, storage tanks, pipeline systems, reactors and catalyst beds to ensure their safe operation.

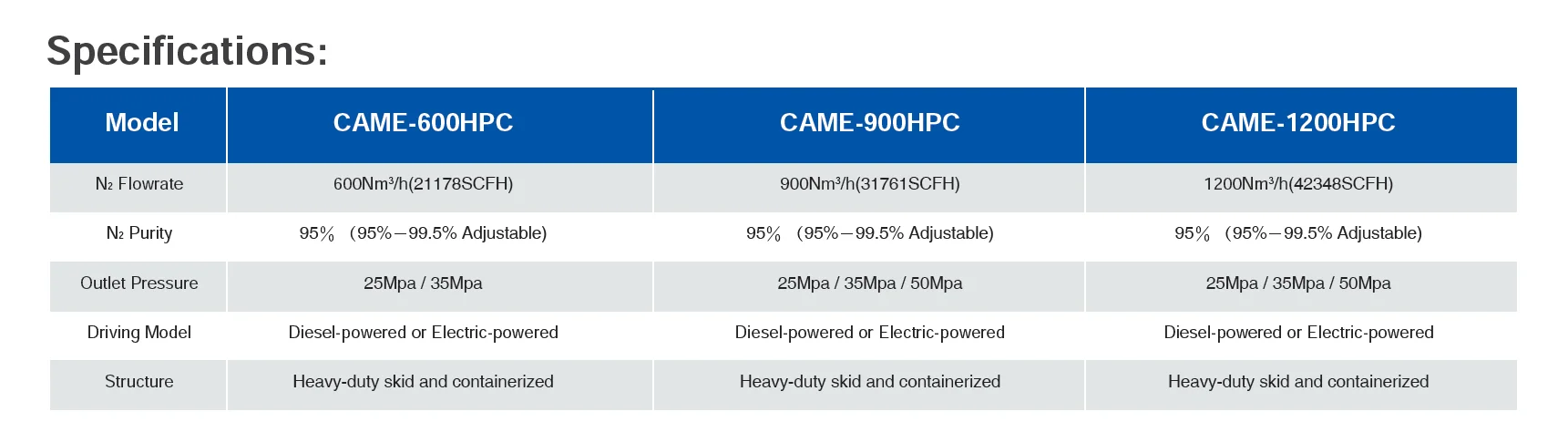

Model Selection:

 Working Principle


Membrane technology is based on the use of hollow fibers with a permeable structure. Thousands of these small, straw like plastic fibers are packed together in a tube of stainless steel 316 or coated aluminium. The process of gas separation starts when pressurized air is fed to one end of this tube. The quality of compressed air is important in order to maintain the efficiency of the nitrogen membranes and the purity of the nitrogen. Therefore the compressed air will be filtered. Solids, aerosol, liquid and vapour will be removed by coalescing, active carbon and dust filters. The filtration quality complies with customers’ requirements. The permeation rates of water vapour, CO2, and oxygen contained in the air stream are faster than nitrogen and argon and will rapidly diffuse through the fiber walls (permeate). The slower diffused nitrogen molecules remain in the fiber bore and are collected as the nitrogen product gas (retentate). The air flow rate will determine how much undiffused oxygen remains with the nitrogen gas. The membranes act like a filter with no moving parts and continuously generate nitrogen at selected flow and purity. The number of membrane modules, the compressed inlet air pressure and the temperature determine the capacity and purity of the nitrogen produced. The higher the feed air pressure the higher the nitrogen flow, this increase is more or less linear The produced nitrogen at the requested purity is now free for use in various applications or can be stored in a buffer vessel. The enriched oxygen is exhausted via the permeate outlet to a safe location. The nitrogen generator packages are provided with an oxygen analyzer which measures the quality of the produced nitrogen. In case the produced nitrogen does not meet the requested specification, the off-spec mixture will be vented outside or the package will shut-down completely. Each of our nitrogen generation packages is pre-tested in our workshop to make sure the package meets the requested specification of the client.

Purities up to 99,5%

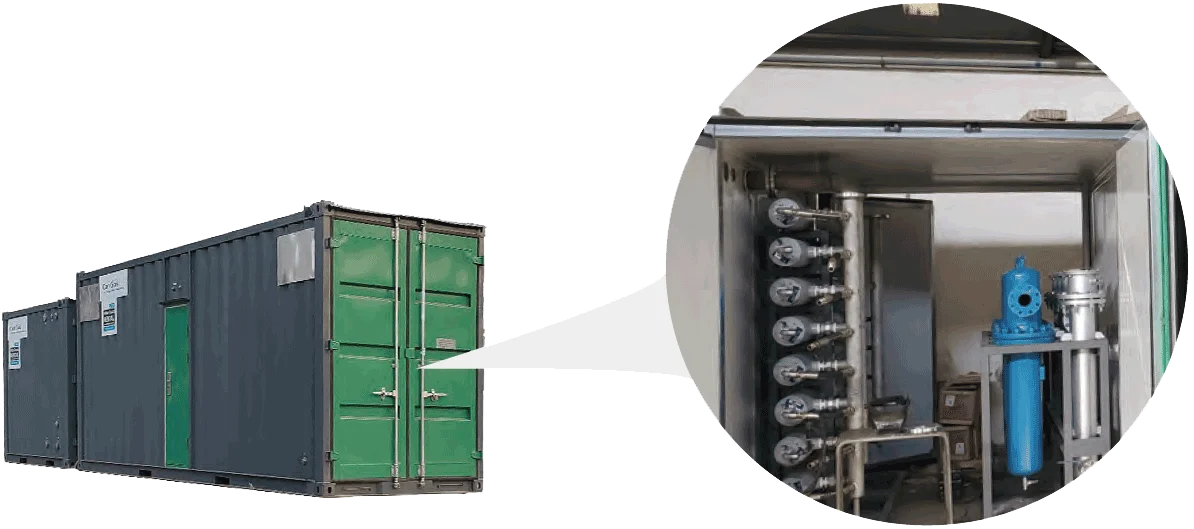

Membrane nitrogen generator packages are available for purities from 95% up to 99,5%, different pressures and capacities, including air compressors, filters, instrumentation, automatic valves, control panels, buffer vessels, gas boosters for cylinder charging and nitrogen bottle racks. The packages can be installed in safe areas as well as hazardous areas.

The benefits

• safe use

• high purity (up to 99,5%)

• small membrane modules

• operating at lower compressed air pressure

• minimum energy consumption

• no heater required

• quick start up and stable N2 production

• pre-aged: no loss of performance

• simple design

• low investment

 Comparison of PSA and Membrane Nitrogen Generator

 Factory

CAN GAS Systems Co., Ltd is a Chinese manufacturer specializing in on-site gas plants for nitrogen generation, oxygen generation, purification systems and so on.

With more than 1,000 systems built worldwide since 1998, CANGAS^® Systems win the respect of all with their reliability, cost-effectiveness, convenience and our excellent services.

A family of CANGAS^® Systems has been used in a wide range of industries: Chemical and Refining, Oil and gas production, Electronics, Aeronautics and aerospace, Pharmaceutical/Health care, Foods, Metallurgical, Glass, Coal-mine, and Aquaculture.

CANGAS^® Systems are the embodiment of the synthesis of the state-of-the-art technology and the perfect manufacturing techniques.

Our goal is to provide our customer with more reliable, more economical and more convenient

CANGAS^® air separation systems and more professional services.

ISO9001 Certification

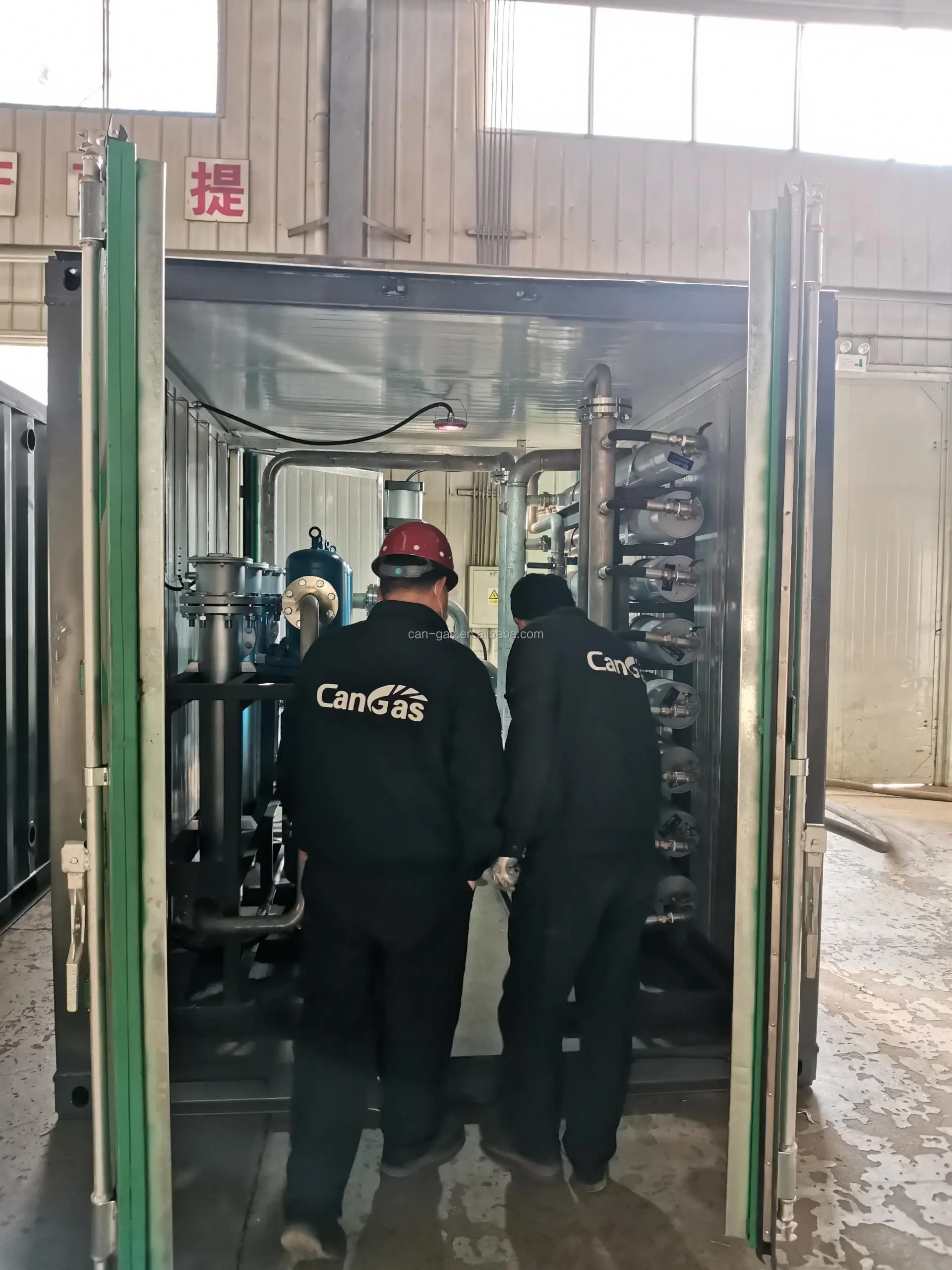

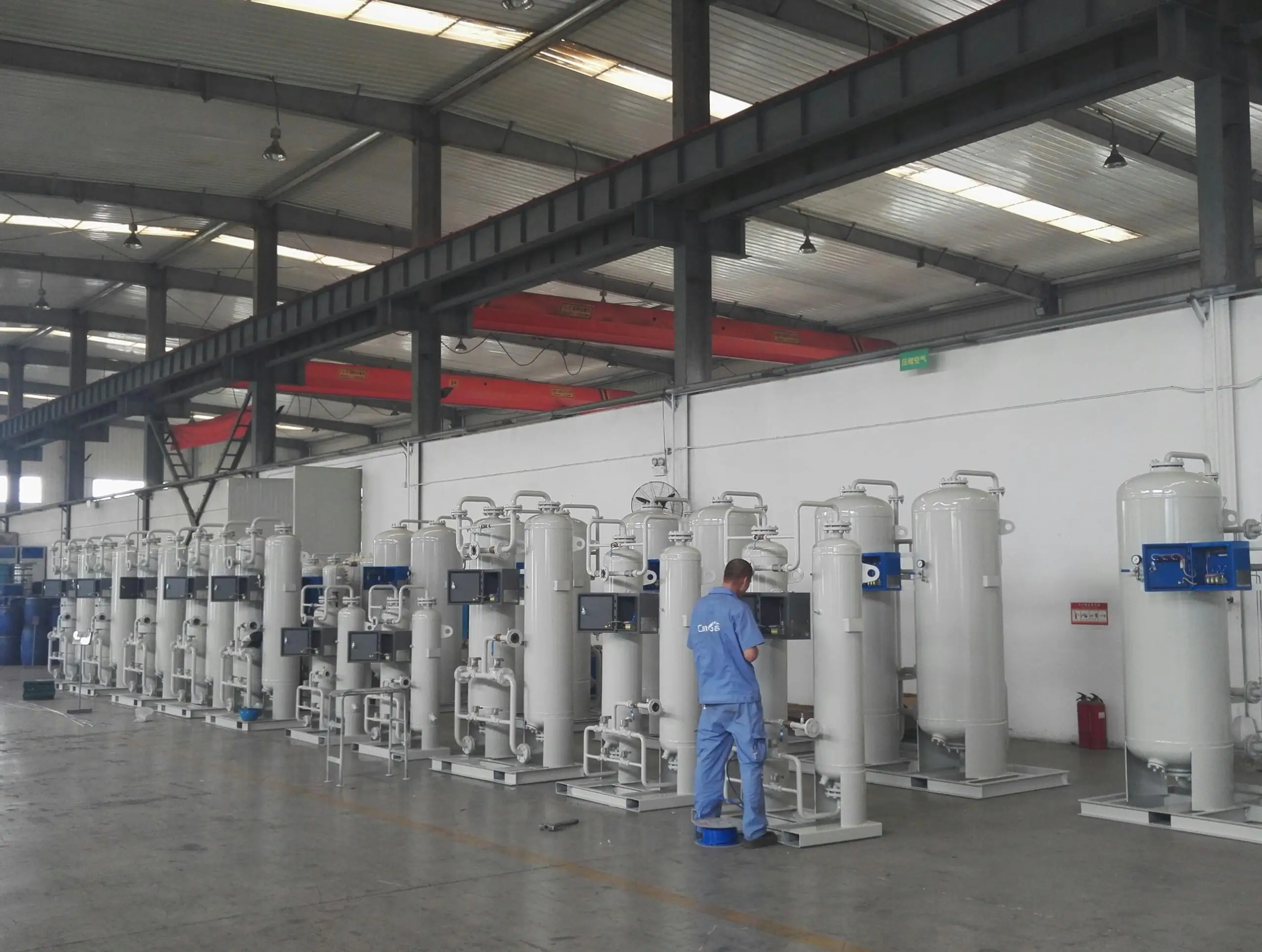

 Workshop

 Exhibition /Fair

 The Guarantee/Warranty Period shall be a period of twelve (12) months after on-site startup &

 commissioning or eighteen (18) months after shipment, whichever occurs first.

  If any trouble or defect, originating with the design, material, workmanship or operating characteristics of any Goods, arises at any time during GUARANTEE/WARRANTY period, CAN GAS shall, at his own expense and as promptly as possible, make such alterations, repairs and replacements as may be necessary to permit the Goods to function in accordance with the specifications and to fulfill the foregoing guarantees.

 Site service

 CAN GAS can do paid services of on-site startup, commissioning, installation supervision, training, by providing purchaser with the services of qualified English-speaking engineers at users site, by sending English-speaking engineer to users site.

 CAN GAS Oxygen Plant  on Customer Site
